Network IQ Training Manual Chapter 5 Structured Cabling

Network IQ Training Manual Chapter 5 - Structured Cabling Standards for Fibre Systems

Agenda • Purpose of Standards • Cabling Standards Worldwide • Key Standards for Structured Cabling • fibre Optic Classes • Duplex System Polarity • New Standards/Updates • Summary Optical Fibre Network IQ Training Manual 2

Purpose of Standards (Cabling and Communication Systems) • Promote trade and commerce • Set rules for an open system, open participation. • Ratification based on voting ballot process: – Voters consist of customers, consultants, manufacturers • Protect customers when buying from multiple manufacturers – Ensures compatibility of components between vendors • Provide guidance or recommendation for products to ensure consistent operation of a system Optical Fibre Network IQ Training Manual 3

Purpose of Standards (Cabling and Communication Systems) Cable Transmission Protocol • Different components and features of a system must be defined • Standards help solve the puzzle of compatibility problems Testing Connector Mating Fire Resistance • However understanding the Standards can also be a puzzle! Optical Fibre Network IQ Training Manual 4

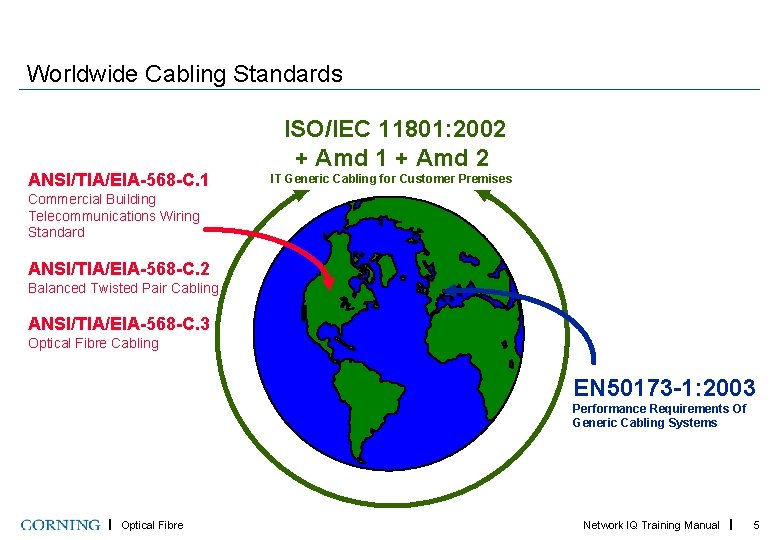

Worldwide Cabling Standards ANSI/TIA/EIA-568 -C. 1 ISO/IEC 11801: 2002 + Amd 1 + Amd 2 IT Generic Cabling for Customer Premises Commercial Building Telecommunications Wiring Standard ANSI/TIA/EIA-568 -C. 2 Balanced Twisted Pair Cabling ANSI/TIA/EIA-568 -C. 3 Optical Fibre Cabling EN 50173 -1: 2003 Performance Requirements Of Generic Cabling Systems Optical Fibre Network IQ Training Manual 5

Cooperation of Standard Workgroups Region Standards for Structured Cabling Standards for Active Electronics International ISO/IEC 11801 Hemisphere/ Continent EN 50173 -1 TIA/EIA-568. B Active equipment requirements from IEEE incorporated in structured cabling standards Country e. g. , Deutsche Kommission Elektrotechnik British Standards Additional information listed in reference pages on standards organization names and areas of competence Optical Fibre Network IQ Training Manual 6

Structured Cabling Systems Standards EN 50173 -1, ISO/IEC 11801 Horizontal cabling system – with copper - up to 100 m; incl. patch cords Total channel length max. 2000 m for fibre only cabling Optical Fibre Building backbone cabling system - fibre up to 500 m Campus backbone cabling system - fibre only up to 1500 m Network IQ Training Manual 7

The Need for Structured Cabling Server Racks • • Point to point structure The cabling starts with a few connections… and this is how it ends up. . . - No defined cable paths - Changes made at active equipment - Problem determination difficult - System growth can be impacted - Mess under the floor Storage Switch Racks Optical Fibre Network IQ Training Manual 8

Structured Cabling Systems Standards EN 50173 -1, ISO/IEC 11801 • Star Structure • Each circle represents a patch panel or outlet FD: Floor Distributor TO: Telecommunications Outlet BD: Building Distributor CD: Campus Distributor Optical Fibre Network IQ Training Manual 9

Fibre Polarity in 2 -fibre Channels ISO/IEC 11801, TIA-568 -C. 0 • Corning recommends Reverse Pair Positioning • A - B Patchcord – Position A connector crosses to Position B connector – At transceiver, Position A connects to receiver – At transceiver, Position B connects to transmitter Optical Fibre Network IQ Training Manual 10

Fibre Polarity in 2 -fibre Channels Duplex Jumper – Crossed and Straight Fibres are physically straight, Optical circuit is logically crossed - Reverse Pair Positioning (Standard) Fibres are physically crossed, Optical circuit is logically straight (Non-standard) Optical Fibre Network IQ Training Manual 11

Fibre Polarity in 2 -fibre Channels Duplex Jumper Clips and Duplex Adapter Position A Position B Front Optical Fibre Network IQ Training Manual 12

Fibre Polarity in 2 -fibre Channels Reverse Pair Positioning, ISO/IEC 11801, TIA-568 -C. 0 • 1 st Patch panel is “straight” (consecutive fibre order) • 2 nd patch panel is reverse-pair fibre order Optical Fibre Network IQ Training Manual 13

Structured Cabling Systems Standards EN 50173 -1, ISO/IEC 11801 Fibre Optic Categories Material Optical Fibre Type Key Dimension Bandwidth (MHz • km) Attenuation (d. B/km) Application/ Speed/Distance Glass OM 1 62. 5µm 200 @ 850 nm 3. 5 / 1. 5 1 1 Gbps to 1 km Glass OM 2 50µm 500 @ 850 nm 3. 5 / 1. 5 1 1 Gbps to 750 m, 10 Gbps to 82 m Glass OM 3 50µm 2000** @ 850 nm 3. 5 / 1. 5 1 10 Gbps to 300 m, 100 Gps to 100 m Glass OM 4 50µm 4700** @ 850 nm 3. 5 / 1. 5 1 10 Gbps to 500 m, 100 Gps to 150 m Glass OS 1 9µm N/A 1. 0 / - / 1. 0 2 Glass OS 2 9µm N/A 0. 4 / 0. 4 2 (Reduced water peak @1383 nm) 1 2 Attenuation at 850 / 1300 nm Attenuation at 1310 / 1383 / 1550 nm Optical Fibre ** laser bandwidth Network IQ Training Manual 15

Cabling Standards – Component Requirements Parameter Connector Pair Loss [d. B] TIA/EIA-568 ≤ 0. 75 100% ISO 11801 Amd. 2 < 0. 75 < 0. 35 100% 95% 50% ≤ 0. 3 Connector reflectance [d. B] ≥ -20 (MM) ≥ -26 (SM) ≥ -20 (MM) ≥ -35 (SM) Fibre attenuation Multimode OM 3/OM 4 [d. B/km] ≤ 3. 5/1. 5 @ 850/1300 nm < 0. 5/0. 5 < 0. 4/0. 4 @1310/1550 nm @1310/1383/1550 nm Splice Loss [d. B] Fibre attenuation Single-mode OS 1/OS 2 [d. B/km] Optical Fibre Network IQ Training Manual 16

Fibre Standards Update • OM 4 Fibre Class – – – Ratified in ISO/IEC 11801 and EIA/TIA 568 C Defined as 4700 MHz-km laser bandwidth, EMB (effective modal bandwidth) OFL (overfilled launch) with LED bandwidth defined at 3500 MHz-km Provides extended reach for 10 Gbps VCSEL systems; up to 500 meters Limited extended reach for 40 and 100 Gbps systems: 150 m Optical Fibre Network IQ Training Manual 17

40 G Ethernet Parallel Optics: OM 3 fibre 12 F MTP Interface Optical Fibre Network IQ Training Manual 18

100 G Ethernet Parallel Optics: OM 3 fibre 24 F MTP Interface Source: USConec Optical Fibre Network IQ Training Manual 19

Fibre Standards Update - 40 G and 100 G Ethernet • Ratified June 2010 • Fibre Connectivity based on MTP • Common multimode solutions based on parallel optics – VCSEL sources at 850 nm – 100 m max reach on OM 3; 150 m on OM 4 (max. conn. loss: 0. 5 d. B) – 100 GBASE-SR 10 • 100 G will be 2 x 10 “lanes” of 10 Gbit/sec – 40 GBASE-SR 4 • 40 G will be 2 x 4 lanes of 10 Gbit/sec • Single-mode solutions based on Wave Division Multiplexing – 40 GBASE-LR 4 (WDM): 10 km - 4λ x 10 G @1300 nm – 100 GBASE-LR 4 (WDM): 10 and 40 km - 4λ x 25 G @1300 nm • Copper solutions only 10 m – 40 GBASE-CR 10: 4 x 10 Gbps on twin-axial cable – 100 GBASE-CR 10: 10 x 10 Gbps twin-axial cable Optical Fibre Network IQ Training Manual 20

Fibre Standards Update • Maximum Supported lengths for Protocols: OM 4 vs OM 3 Application OM 3 [m / d. B] OM 4 [m /d. B] 1 Gb. E 1100* / 4. 1 1100* / 4. 5 10 Gb. E 300 / 2. 6 400 / 2. 71 40/100 Gb. E* 100 / 1. 9 150 / 1. 5 4 GB Fibre Channel 380 / 2. 88 400 / 2. 95 8 GB Fibre Channel 150 / 2. 04 190 / 2. 19 16 GB Fibre Channel 100 / 1. 86 125 / 1. 95 Max length [m] /Attenuation [d. B] (with 850 nm VCSEL) * OM 3/4 not defined for 1 G in IEEE Optical Fibre Network IQ Training Manual 21

Summary Cabling Standards • Standards provide guidance for components and systems to ensure installed systems perform properly and reliably support various protocols. • Standards ensure products from different vendors are compatible. • EN 50173 (based on ISO/IEC 11801 ) is the European standard for structured cabling – Some customers may follow TIA 568 C in Europe, MEA region • 40 G and 100 G ratified June 2010 – Require MTP connectivity and OM 3 fibre (minimum) Optical Fibre Network IQ Training Manual 22
