Network Guide to Networks Third Edition Chapter 11
- Slides: 50
Network+ Guide to Networks Third Edition Chapter 11: Networking with TCP/IP and the Internet
Objectives üDiscuss methods of network design unique to TCP/IP networks, including subnetting, CIDR, and NAT üDescribe protocols used between mail clients and mail servers Network + 2
Objectives (continued) üExplain the fundamental principles of using a TCP/IP network for packetized voice transmissions üEmploy multiple TCP/IP utilities for network discovery and troubleshooting Network + 3
Designing TCP/IP-Based Networks • Subnetting • Enhance security • Improve performance • Simplify troubleshooting Network + 4
Designing TCP/IP-Based Networks (continued) • Subnetting • Classful Addressing Network + 5
Designing TCP/IP-Based Networks (continued) Network + 6
Designing TCP/IP-Based Networks (continued) • Subnetting • Subnet Masks Network + 7

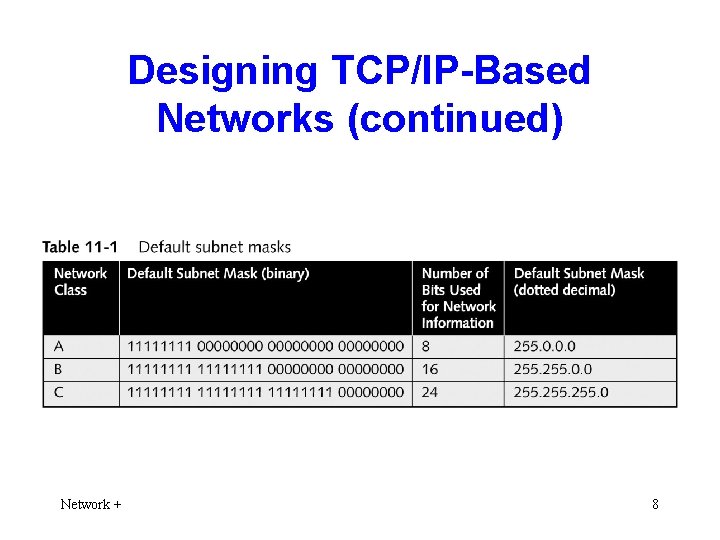

Designing TCP/IP-Based Networks (continued) Network + 8
Designing TCP/IP-Based Networks (continued) Network + 9
Designing TCP/IP-Based Networks (continued) Network + 10
Designing TCP/IP-Based Networks (continued) • Subnetting • Reserved Addresses Network + 11
Designing TCP/IP-Based Networks (continued) • Subnetting Techniques Network + 12
Designing TCP/IP-Based Networks (continued) Network + 13
Designing TCP/IP-Based Networks (continued) Network + 14
Designing TCP/IP-Based Networks (continued) • Subnetting • Calculating Subnets Network + 15
Designing TCP/IP-Based Networks (continued) Network + 16
Designing TCP/IP-Based Networks (continued) • Subnetting • Classless Inter-Domain Routing (CIDR) • Classless routing or supernetting Network + 17
Designing TCP/IP-Based Networks (continued) Network + 18
Designing TCP/IP-Based Networks (continued) Network + 19
Designing TCP/IP-Based Networks (continued) Network + 20
Designing TCP/IP-Based Networks (continued) • Subnetting • Internet Gateways Network + 21
Designing TCP/IP-Based Networks (continued) Network + 22
Designing TCP/IP-Based Networks (continued) • Subnetting • Network Address Translation (NAT) Network + 23
Designing TCP/IP-Based Networks (continued) Network + 24
Designing TCP/IP-Based Networks (continued) • Subnetting • Intranets and Extranets • Hypertext Markup Language (HTML) • Intranet • Within an enterprise • Extranet • Uses Internet-like services and protocols Network + 25
Designing TCP/IP-Based Networks (continued) • Simple Mail Transfer Protocol (SMTP) • Protocol responsible for moving messages from one mail server to another over TCP/IP-based networks Network + 26
TCP/IP Mail Services • MIME (Multipurpose Internet Mail Extensions) • Allows for messages that contain no more than 1000 ASCII characters Network + 27
TCP/IP Mail Services (continued) • Post Office Protocol (POP) • Application layer protocol used to retrieve messages from a mail server Network + 28
TCP/IP Mail Services (continued) • Internet Mail Access Protocol (IMAP) • Retrieve all or only a portion of any mail message • Review their messages and delete them while the • • messages remain on the server Create sophisticated methods of organizing messages on the server Share a mailbox in a central location Network + 29
Additional TCP/IP Utilities • Netstat • -a—Provides a list of all available TCP and UDP • • connections -e—Displays details about all the packets -n—Lists currently connected hosts according to their port and IP address Network + 30
Additional TCP/IP Utilities (continued) • Netstat (cont. ) • -p—Allows you to specify what type of protocol statistics to list • Must be followed by a protocol specification (TCP or UDP) • -r—Provides a list of routing table information • -s—Provides statistics about each packet transmitted by a host, separated according to protocol type (IP, TCP, UDP, or ICMP) Network + 31
Additional TCP/IP Utilities (continued) Network + 32
Additional TCP/IP Utilities (continued) • Nbtstat • -a—Displays a machine’s name table given its • • • Net. BIOS name -A—Displays a machine’s name table given its IP address -r—Lists statistics about names that have been resolved -s—Displays a list of all the current Net. BIOS sessions Network + 33
Additional TCP/IP Utilities (continued) • Nslookup • Allows you to query the DNS database Network + 34
Additional TCP/IP Utilities (continued) Network + 35
Additional TCP/IP Utilities (continued) • Whois • Allows you to query this DNS registration database and obtain information about a domain Network + 36
Additional TCP/IP Utilities (continued) • Traceroute (Tracert) • -d—Instructs the traceroute command not to • • resolve IP addresses to host names -h—Specifies the maximum number of hops -w—Identifies a timeout Network + 37
Additional TCP/IP Utilities (continued) Network + 38
Additional TCP/IP Utilities (continued) • Ipconfig • /? —Displays a list of switches • /all—Displays complete TCP/IP configuration • /release—Releases DHCP • /renew—Renews DHCP Network + 39
Additional TCP/IP Utilities (continued) Network + 40

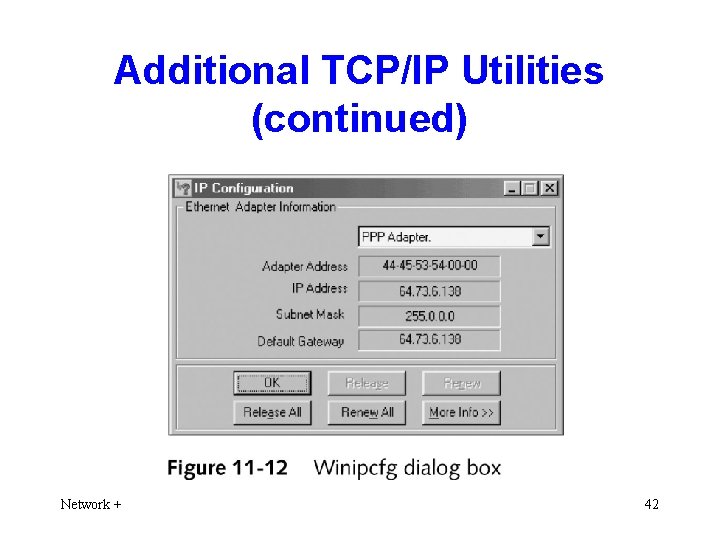

Additional TCP/IP Utilities (continued) • Winipcfg • Windows 9 x and Me operating systems Network + 41
Additional TCP/IP Utilities (continued) Network + 42
Additional TCP/IP Utilities (continued) • Ifconfig • -a • down • up Network + 43
Additional TCP/IP Utilities (continued) Network + 44
Voice Over IP (VOIP) • Voice over IP (Vo. IP), also known as IP telephony • Lower costs for voice calls • toll bypass • Supply new or enhanced features and applications • Centralize voice and data network management Network + 45
Voice Over IP (VOIP) (continued) Network + 46
Voice Over IP (VOIP) (continued) Network + 47
Voice Over IP (VOIP) (continued) Network + 48
Chapter Summary • Discuss methods of network design unique to TCP/IP networks, including subnetting, CIDR, and NAT • Describe protocols used between mail clients and mail servers Network + 49
Chapter Summary (continued) • Explain the fundamental principles of using a TCP/IP network for packetized voice transmissions • Employ multiple TCP/IP utilities for network discovery and troubleshooting Network + 50
