Network Devices Sritrusta Sukaridhoto Network Devices Media on
- Slides: 46
Network Devices Sritrusta Sukaridhoto
Network Devices
Media on PC n n Ethernet Modem PC Card (WLAN) DVB
Ethernet - Architecture
Ethernet – IEEE 802. 3 n n 10 Base 5 – Thick wire coaxial 10 Base 2 – thin wire coaxial / cheaper net 10 Base. T – Twisted Pair 10 Base. F – Fiber Optics 100 Base. T – Fast Ethernet
Ethernet – 10 Base 5
Ethernet – 10 Base 2
Ethernet – 10 Base. T
NIC Connector type n Coaxial Cable ¡ n Twisted Pair Cable ¡ n Bayonet Nut Connector (BNC) RJ-45 (8 wire) Fiber Optics ¡ SMA connectors
Modem n n Allows modems of different vendors to operate together Define How modems operate: ¡ ¡ ¡ Modulation techniques Data compression technique Error detection strategy

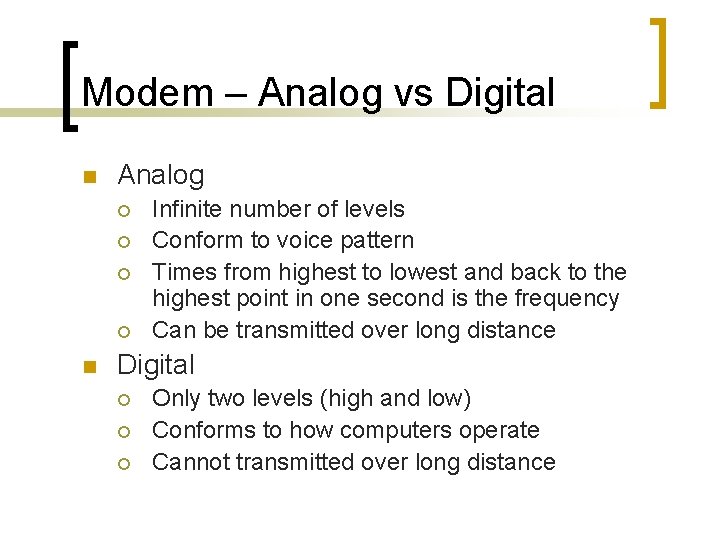

Modem – Analog vs Digital n Analog ¡ ¡ n Infinite number of levels Conform to voice pattern Times from highest to lowest and back to the highest point in one second is the frequency Can be transmitted over long distance Digital ¡ ¡ ¡ Only two levels (high and low) Conforms to how computers operate Cannot transmitted over long distance
Modem - Connection
Modem – Internal/External
PC Card – WLAN (802. 11) n Bypassing last mile
PC Card (WLAN) - 1
PC Card (WLAN) - 2
PC Card (WLAN) – Indoor Antena
DVB – DVB/IP Tech n The Digital Video Broadcast over Internet Protocol (DVB/IP) system is functionally an IP-over-Ethernet simplex satellite service that incorporates frame-relay type traffic management. At its core, DVB is a modemon-a-chip, plus an intelligent multiplexer. The antenna is typically a CATV dish, 2. 4 - 3. 8 meters in diameter (for C-band), or 0. 6 -1. 8 meters (for Ku-band).
DVB – DVB/IP Routing

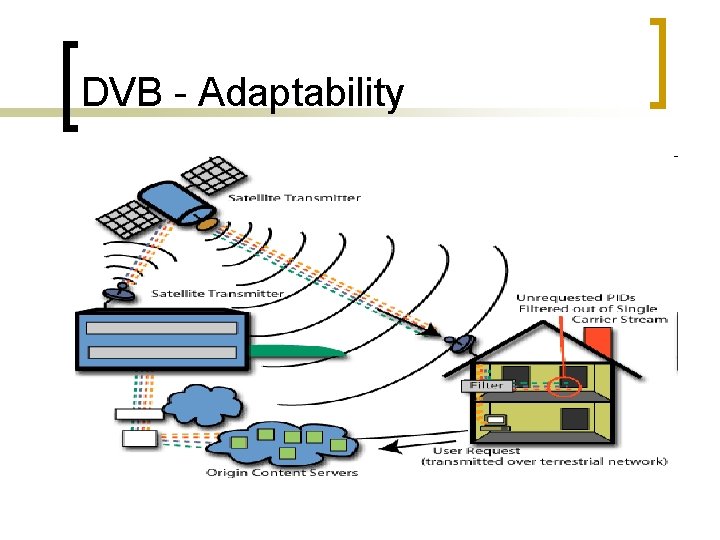

DVB - Adaptability
DVB – DVB Card
Media n Wired ¡ ¡ ¡ n Twisted Pair – UTP Coaxial Fiber Wireless ¡ ¡ Microwave Satellite

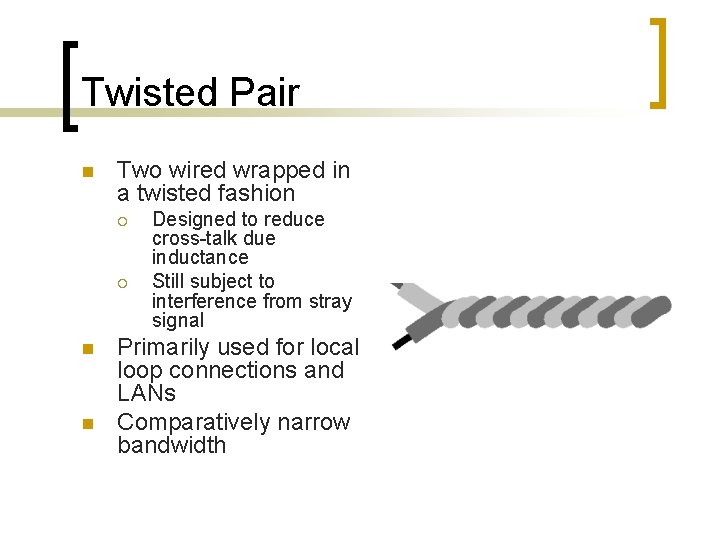

Twisted Pair n Two wired wrapped in a twisted fashion ¡ ¡ n n Designed to reduce cross-talk due inductance Still subject to interference from stray signal Primarily used for local loop connections and LANs Comparatively narrow bandwidth

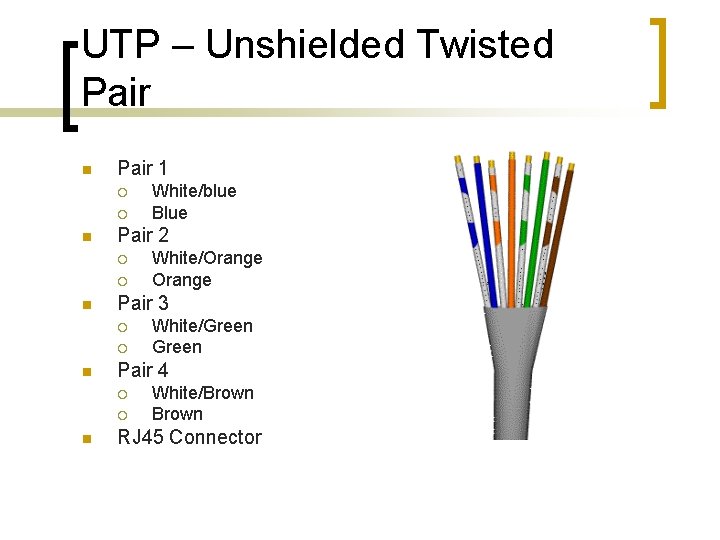

UTP – Unshielded Twisted Pair n Pair 1 ¡ ¡ n Pair 2 ¡ ¡ n ¡ White/Green Pair 4 ¡ ¡ n White/Orange Pair 3 ¡ n White/blue Blue White/Brown RJ 45 Connector

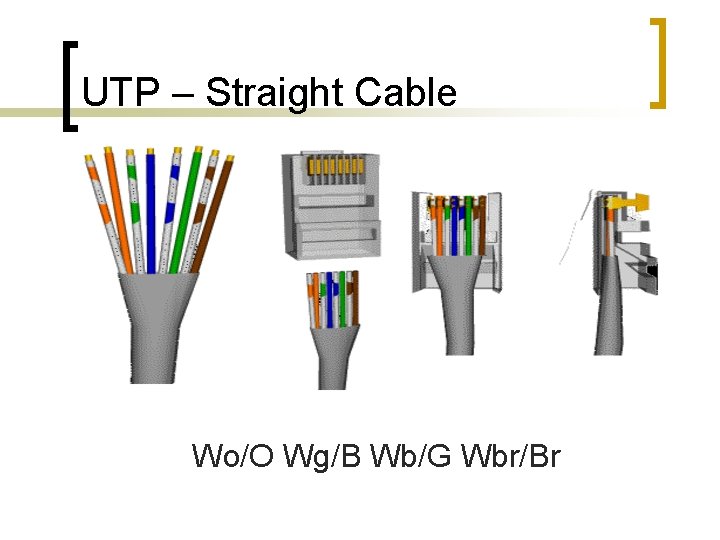

UTP – Straight Cable Wo/O Wg/B Wb/G Wbr/Br
UTP – Cross Cable Wg/G Wo/B Wb/O Wbr/Br
UTP - Category Maximum Data Rate Usual Application CAT 1 Less than 1 Mbps Analog voice (POTS), Integrated Services Digital Network Basic Rate Interface in ISDN Doorbell wiring CAT 2 4 Mbps Mainly used in the IBM Cabling System for token ring networks CAT 3 16 Mbps Voice and data on 10 BASE-T Ethernet CAT 4 20 Mbps Used in 16 Mbps Token Ring Otherwise not used much CAT 5 100 Mbps TPDDI (100 BASE-T or Fast Ethernet) 1000 Mbps (4 pair) 155 Mbps ATM Gigabit Ethernet CAT 5 E 100 Mbps TPDDI (100 BASE-T or Fast Ethernet) 155 Mbps ATM CAT 6 200 -250 MHz Super-fast Broadband Applications.
Coaxial n Center lead conducts the signal ¡ n n Protected by insulation and braded wire Used mostly for television and connections to antenna Larger Bandwidth but large in size
Fiber Optical n n n Signal transmitted by photos rather than electrons Dramatically higher bandwidth Used mostly for backbone communication connections, very high speed LANs and fast network connections
Microwave – Antenna (1) n n Omni 2. 4 GHz 8 d. Bi
Microwave – Antenna (2) n n Sectoral 14 d. Bi 180 deg
Microwave – Antenna (3) n n Sectoral 17 d. Bi 90 deg
Microwave – Antenna (4) n n Direct (Grid) 2. 4 GHz 24 d. B
Microwave – Power AMP
Satellite - Broadband
Media Comparison
Multiplexer n n HUB Switch Bridge Router

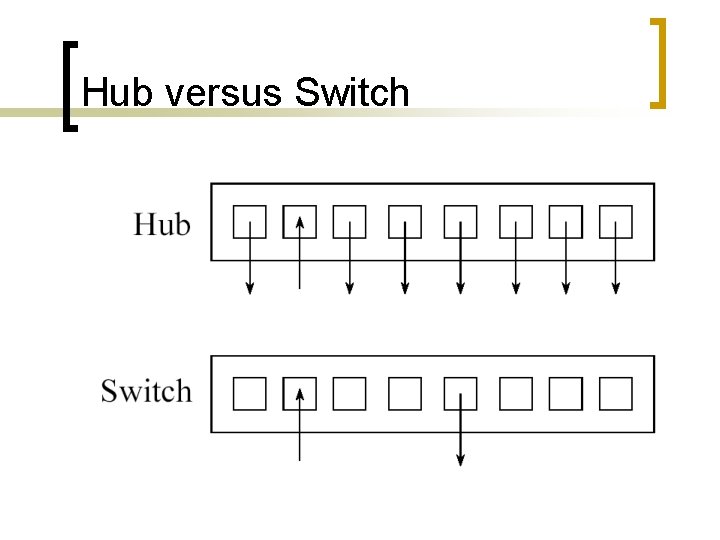

Hub versus Switch n Hub provide connection to all ports (i. e. in one port and out all other ports). ¡ ¡ n Passive hub – no signal regeneration Active hub – provide signal regeneration Switch direct the message from appropriate port (directs a message from the input port to the desired output port). ¡ More expensive but better bandwidth utilization
Hub versus Switch
LAN Hub device
Hub
LAN Switch device
Switch
Bridge – Access Point (WLAN)

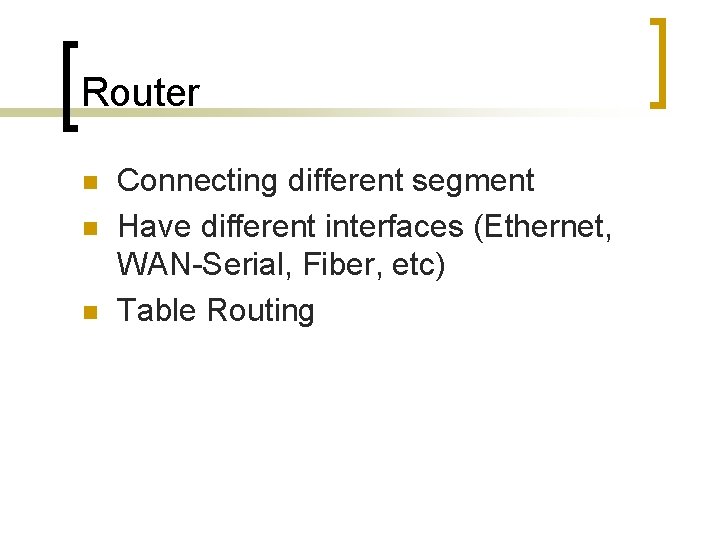

Router n n n Connecting different segment Have different interfaces (Ethernet, WAN-Serial, Fiber, etc) Table Routing
Router
