Network Design Principles CP 3397 Network Design and Security Lecture 2

Contents Design goals Design choices Design approaches The design process Capacity planning

Design goals Good designs should: n n n n Deliver services requested by users Deliver acceptable throughput and response times Be within budget and maximise cost efficiencies Be reliable Be expandable without major redesign Be manageable by maintenance and support staff Be well documented

Design Choices Balance of distribution Level of transparency Security Connectivity technology

Design approaches Two typical methods n n Traditional analytic design Building block approach Both use a similar iterative approach

The traditional design process

Design Stages - Agree requirements Engage end users Translate requirements n Business objectives –> technical specification Phasing the requirements n Right level of detail at each design stage Designing the requirements

Design Stages - Designing the requirements Aim for completeness Prioritise with a hierarchical system such as w [M] - Mandatory w [H] – Highly desirable w [D] - Desirable w [N] - Note

Design Stages - Assessing requirements Consider all aspects n E. g. support & maintenance, depreciation, commissioning costs, project management fees, h/w & s/w upgrade costs, b/w/ costs, consultancy charges – over the lifetime of the network Weighted matrix multipliers n n M=100, H=10, D=1, N=0 Produce scores and rank suppliers

Design Stages - Information gathering Need to find details of user behaviour, application use and location information for example: n n n n n User: location, numbers, services used, typical access Sites: number, location, constraints on traffic (security, political or cost) Servers and services: location, level of distribution WAN/backbone predicted link traffic Protocol support: bridged, routed or switched – Gateways needed? Legacy support: equipment, protocols or services Specific availability needs? 24 -hour/backup links etc Five-year plan – changes to population or business requirements Budgetary constraints Greenfield or existing site Information is refined and leads to a requirements database and capacity plan

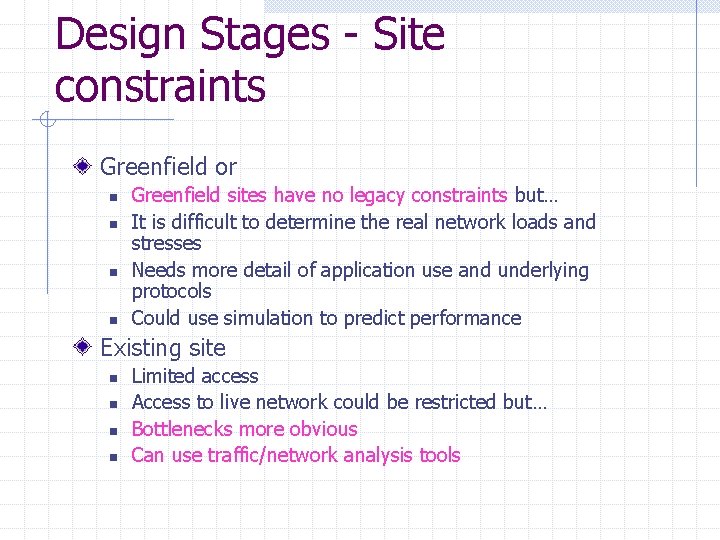

Design Stages - Site constraints Greenfield or n n Greenfield sites have no legacy constraints but… It is difficult to determine the real network loads and stresses Needs more detail of application use and underlying protocols Could use simulation to predict performance Existing site n n Limited access Access to live network could be restricted but… Bottlenecks more obvious Can use traffic/network analysis tools

Design Stages - Planning Uses information on n Hosts, users, services, and their internetworking needs Iterative process of n n n Conceptual design Analysis Refinement Involving n Brainstorming, design reviews, modelling tools Leading to final draft design

Design Stages - Design specification Detailed document of the design n n Acts as a benchmark for design changes Final design choices and changes need justification and documenting Should include change history to aid maintenance Used for the implementation

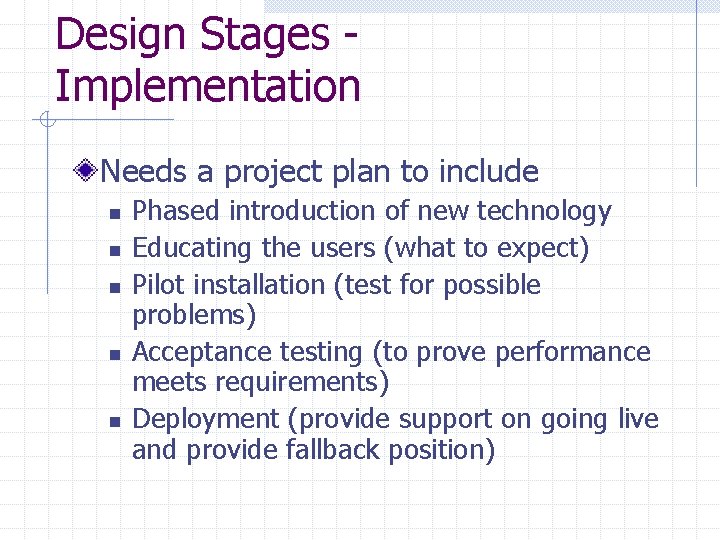

Design Stages Implementation Needs a project plan to include n n n Phased introduction of new technology Educating the users (what to expect) Pilot installation (test for possible problems) Acceptance testing (to prove performance meets requirements) Deployment (provide support on going live and provide fallback position)

Connectivity options Technology choices n n n LANs (Ethernet, Token ring, ATM) MANs (FDDI, SMDS, ATM, SONET/SDH) WANS (Frame relay, ATM, ISDN, X. 25, PDCs, Satellite) Wireless (802. 11, Bluetooth, GPRS, GSM) Dial-up lines Serial links

Connectivity option determinants Packet, cell or circuit switching Wired or wireless Distance Performance Bandwidth Quality of Service Availability

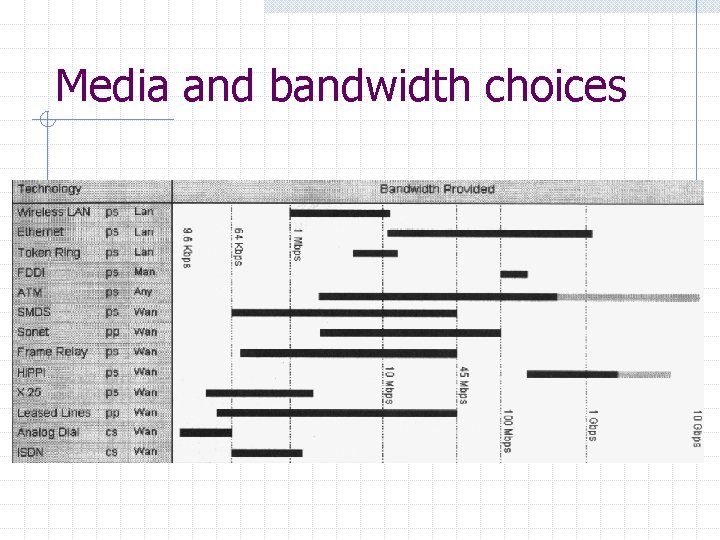

Media and bandwidth choices

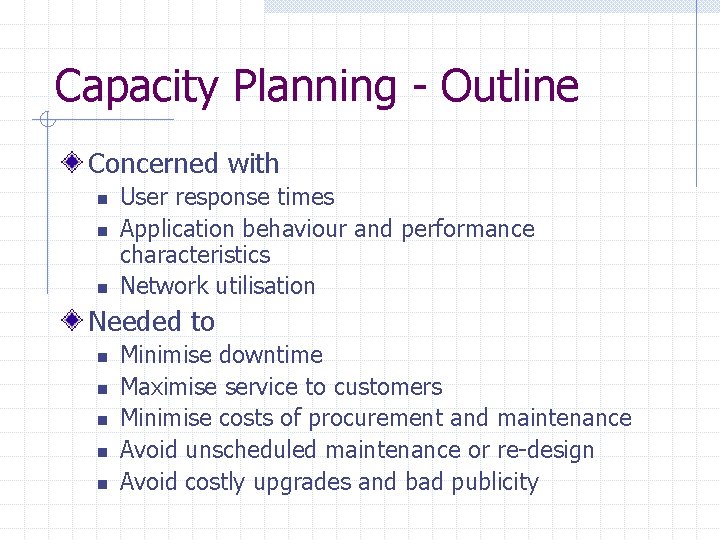

Capacity Planning - Outline Concerned with n n n User response times Application behaviour and performance characteristics Network utilisation Needed to n n n Minimise downtime Maximise service to customers Minimise costs of procurement and maintenance Avoid unscheduled maintenance or re-design Avoid costly upgrades and bad publicity

Capacity Planning - Stages Form a discussion group (involve users etc. ) Quantify user behaviour Quantify Application behaviour Baseline existing network n Traffic profiles Make traffic projections Summarize input data for design process Assess other data (environmental, location restrictions, deployment constraints etc)

Capacity Planning – Step 1 Form a discussion group (involve users etc. ) n n Needs wide representation Users, network managers, application groups To elicit n n What uses find acceptable and unacceptable Map of services and users and details of user behaviour Quantify items using n n User and service sizing data Snapshots from data capture and network management tools Traces of key services using protocol analysers Pilot network implementation

Capacity Planning – Step 2 Quantify user behaviour n n n Need to know population and location of users Summary of major user groups Application use by user group Site location data (country, grid ref. , town, postcode, telephone exchange) Planned changes

Capacity Planning – Step 3 Quantify Application behaviour n Need to identify w Applications that could affect performance w Location and performance of servers and clients w Key constraints on performance (response times, buffer sizes etc n And define w w Application behaviour under fault conditions (lost data) Addressing mechanisms( broad/multi/unicast) Packet characteristics (frame sizes and direction) Routable and non-routable services (IP, NETBIOS) Undefined applications allow choice of distribution balance

Capacity Planning – Step 4 Baseline existing network n Baselining – a behavioural profile of the network obtained from w Packet traces, transaction rates, event logs and stats w Router ACLs, firewall rulebases w Inventory of H/W and S/W revisions n Traffic profiles -Capture data for a stable working network with details of w w n B/w utilization by packet type and protocol Packet/frame size distribution Background error rates Collision rates Various tools can be used w Network and protocol analysers, SNMP data, RMON probes, OS tools, traceroute, ping etc

Capacity Planning – Step 5 Make traffic projections using some, or all of: n n n Hand calculation Commercial analytical tools to project network utilisation Simulation tools (most detail)

Capacity Planning – Step 6 Summarize input data for design process n n Budget Database of sites, user populations, List of key applications and their behaviour Traffic matrix Need to consider n n Static or dynamic bandwidth allocation Max. Delay and Max. hops between sites Resilience, Availability, degree of meshing Design constraints and trade-off w (e. g. delay v cost)

The building-block design process (an alternative)

Summary Good design n n Is an iterative process of continuous refinement Is logical and consistent Should deliver acceptable performance and cost metrics (trade-off) Is more than choosing the technology!
