Network Connectivity Cable Management HighDensity solutions for data

Network Connectivity & Cable Management High-Density solutions for data centres

High Density with reliable end-to-end connectivity Schneider Electric - Partner Business – LSB 02942– April, 2014 2

Outstanding performance in every stage ● Knowledge and systems for complete end-to-end solutions ● Forefront research and development ensure latest technical standards ● Faster to connect ● The entire solution from one supplier ensures 100% integration Schneider Electric - Partner Business – LSB 02942– April, 2014 3

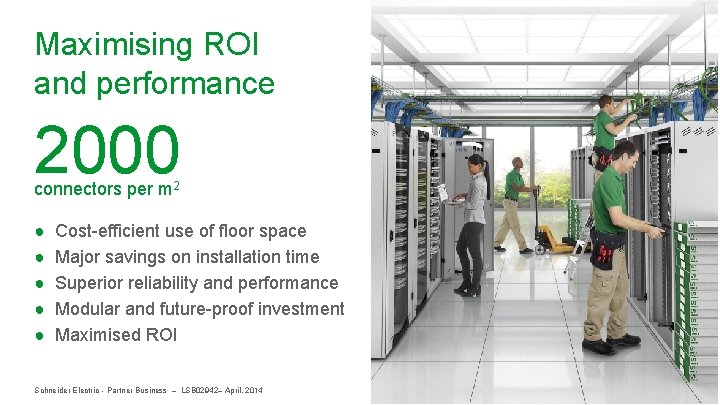

Maximising ROI and performance 2000 connectors per m 2 ● ● ● Cost-efficient use of floor space Major savings on installation time Superior reliability and performance Modular and future-proof investment Maximised ROI Schneider Electric - Partner Business – LSB 02942– April, 2014 4

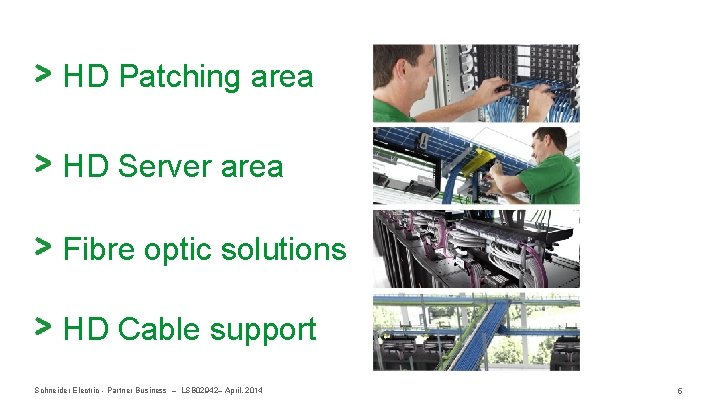

HD Patching area HD Server area Fibre optic solutions HD Cable support Schneider Electric - Partner Business – LSB 02942– April, 2014 5

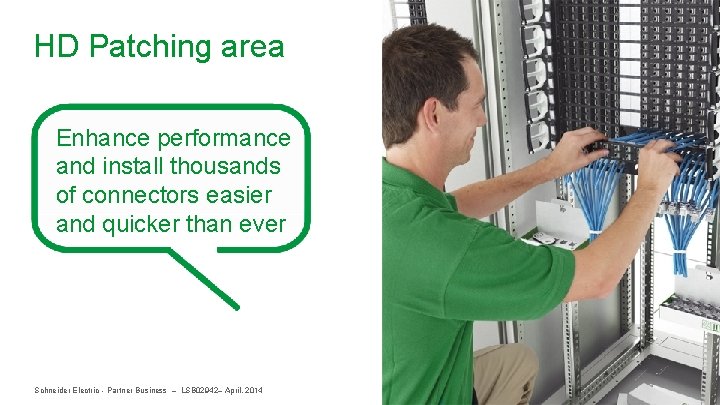

HD Patching area Enhance performance and install thousands of connectors easier and quicker than ever Schneider Electric - Partner Business – LSB 02942– April, 2014 6

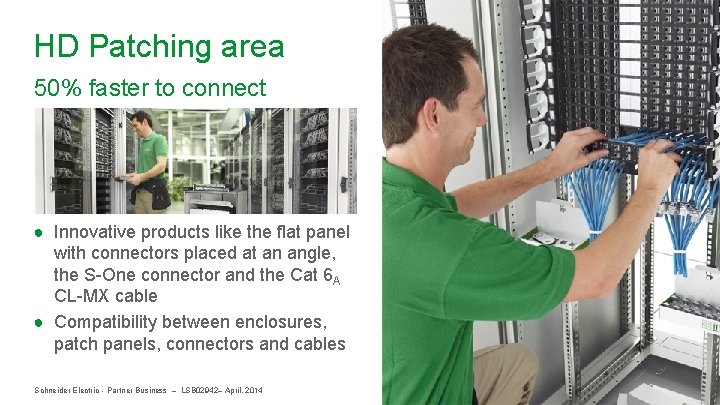

HD Patching area 50% faster to connect ● Innovative products like the flat panel with connectors placed at an angle, the S-One connector and the Cat 6 A CL-MX cable ● Compatibility between enclosures, patch panels, connectors and cables Schneider Electric - Partner Business – LSB 02942– April, 2014 7

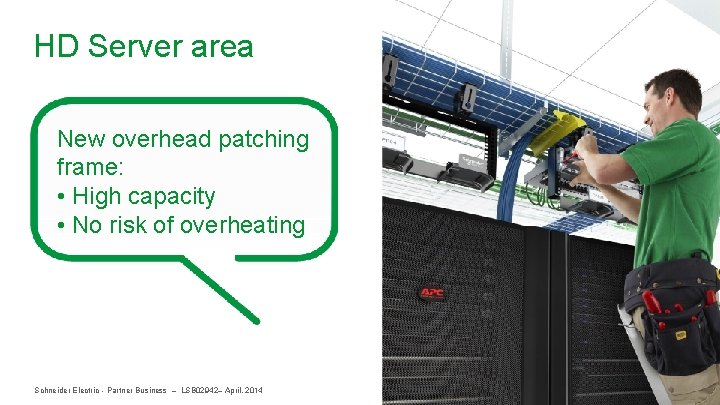

HD Server area New overhead patching frame: • High capacity • No risk of overheating Schneider Electric - Partner Business – LSB 02942– April, 2014 8

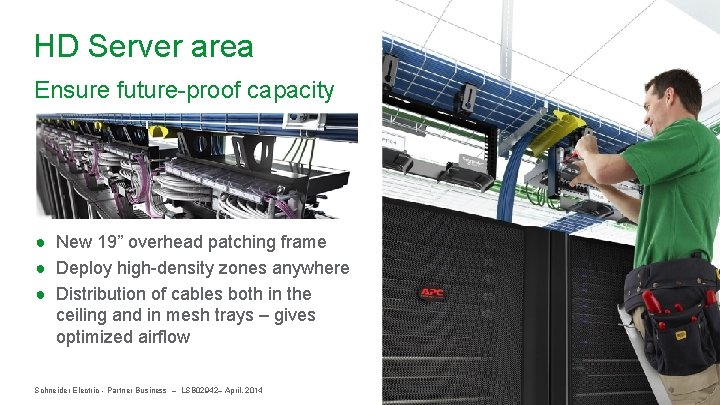

HD Server area Ensure future-proof capacity ● New 19” overhead patching frame ● Deploy high-density zones anywhere ● Distribution of cables both in the ceiling and in mesh trays – gives optimized airflow Schneider Electric - Partner Business – LSB 02942– April, 2014 9

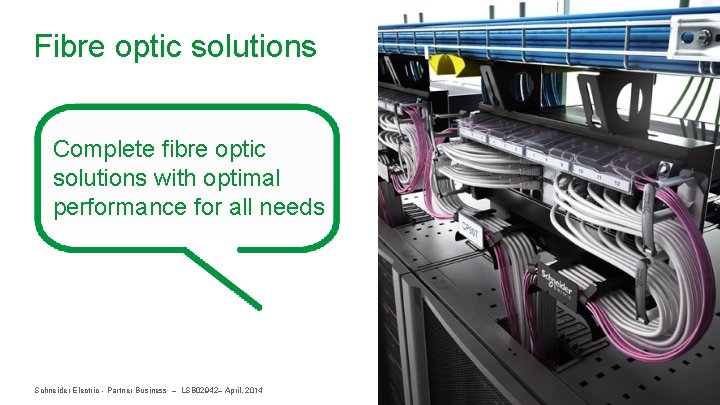

Fibre optic solutions Complete fibre optic solutions with optimal performance for all needs Schneider Electric - Partner Business – LSB 02942– April, 2014 10

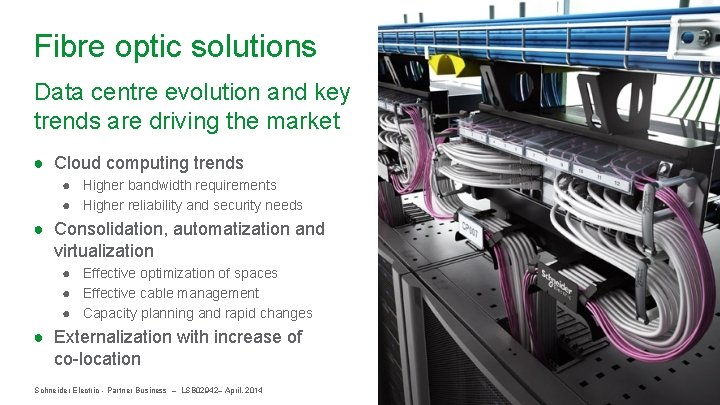

Fibre optic solutions Data centre evolution and key trends are driving the market ● Cloud computing trends ● Higher bandwidth requirements ● Higher reliability and security needs ● Consolidation, automatization and virtualization ● Effective optimization of spaces ● Effective cable management ● Capacity planning and rapid changes ● Externalization with increase of co-location Schneider Electric - Partner Business – LSB 02942– April, 2014 11

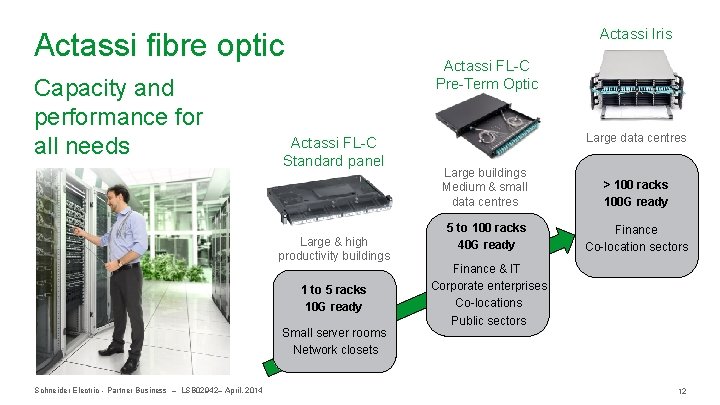

Actassi Iris Actassi fibre optic Capacity and performance for all needs Actassi FL-C Pre-Term Optic Actassi FL-C Standard panel Large & high productivity buildings 1 to 5 racks 10 G ready Small server rooms Network closets Schneider Electric - Partner Business – LSB 02942– April, 2014 Large data centres Large buildings Medium & small data centres > 100 racks 100 G ready 5 to 100 racks 40 G ready Finance Co-location sectors Finance & IT Corporate enterprises Co-locations Public sectors 12

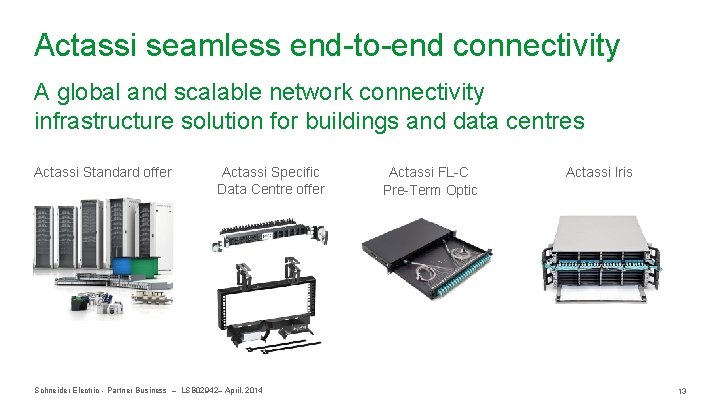

Actassi seamless end-to-end connectivity A global and scalable network connectivity infrastructure solution for buildings and data centres Actassi Standard offer Actassi Specific Data Centre offer Schneider Electric - Partner Business – LSB 02942– April, 2014 Actassi FL-C Pre-Term Optic Actassi Iris 13

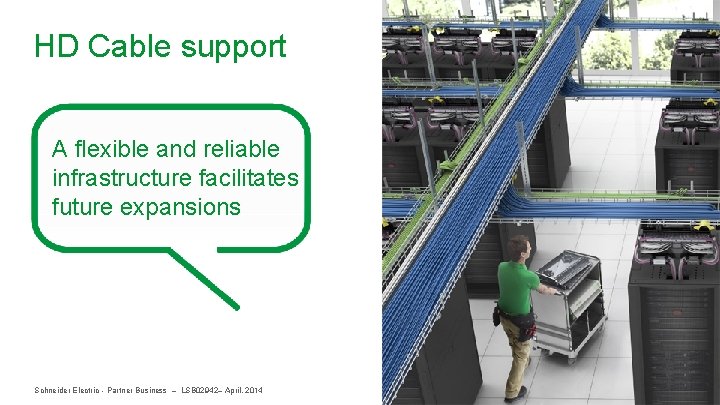

HD Cable support A flexible and reliable infrastructure facilitates future expansions Schneider Electric - Partner Business – LSB 02942– April, 2014 14

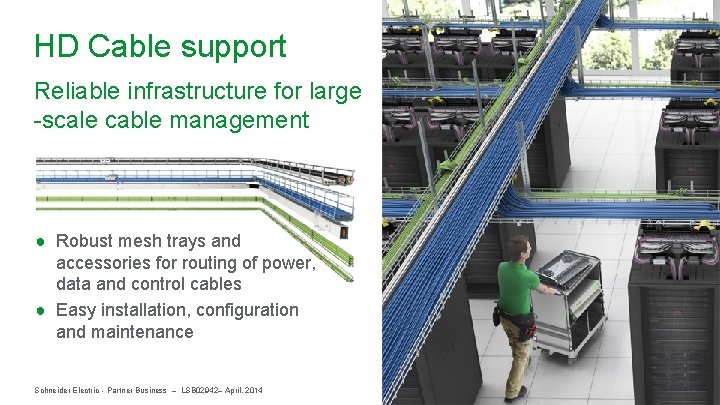

HD Cable support Reliable infrastructure for large -scale cable management ● Robust mesh trays and accessories for routing of power, data and control cables ● Easy installation, configuration and maintenance Schneider Electric - Partner Business – LSB 02942– April, 2014 15

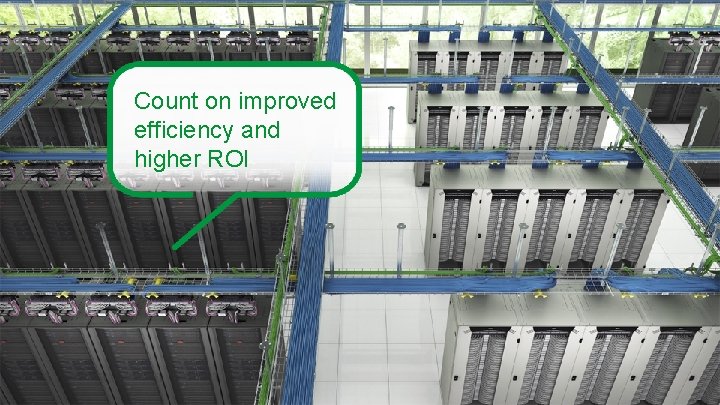

Count on improved efficiency and higher ROI Schneider Electric - Partner Business – LSB 02942– April, 2014 16

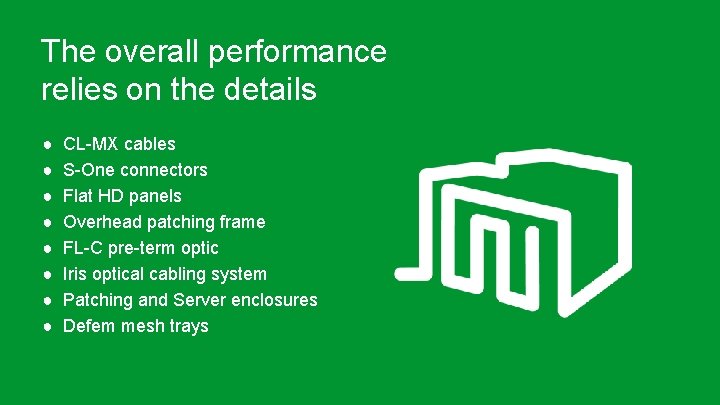

The overall performance relies on the details ● ● ● ● CL-MX cables S-One connectors Flat HD panels Overhead patching frame FL-C pre-term optic Iris optical cabling system Patching and Server enclosures Defem mesh trays Schneider Electric - Partner Business – LSB 02942– April, 2014 17

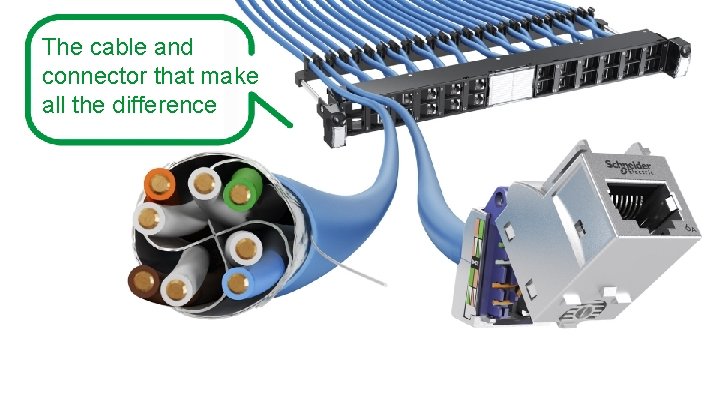

The cable and connector that make all the difference Schneider Electric - Partner Business – LSB 02942– April, 2014 18

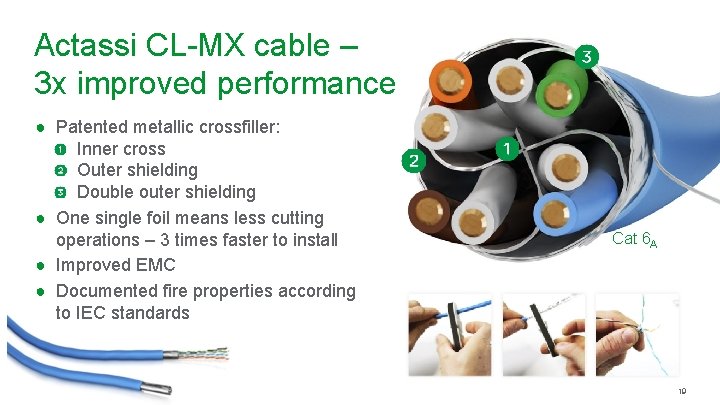

Actassi CL-MX cable – 3 x improved performance ● Patented metallic crossfiller: Inner cross Outer shielding Double outer shielding ● One single foil means less cutting operations – 3 times faster to install ● Improved EMC ● Documented fire properties according to IEC standards Schneider Electric - Partner Business – LSB 02942– April, 2014 Cat 6 A 19

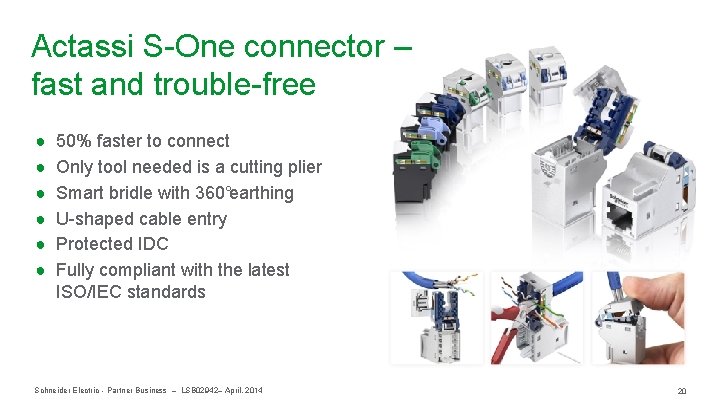

Actassi S-One connector – fast and trouble-free ● ● ● 50% faster to connect Only tool needed is a cutting plier Smart bridle with 360°earthing U-shaped cable entry Protected IDC Fully compliant with the latest ISO/IEC standards Schneider Electric - Partner Business – LSB 02942– April, 2014 20

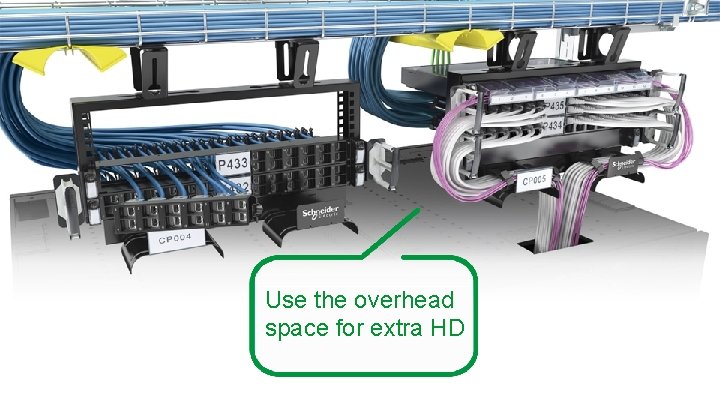

Use the overhead space for extra HD Schneider Electric - Partner Business – LSB 02942– April, 2014 21

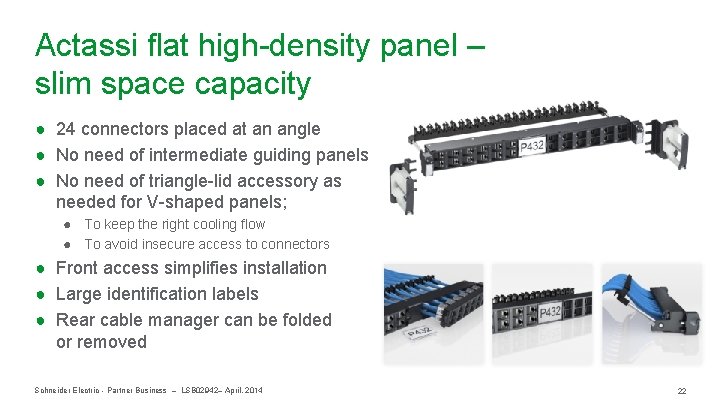

Actassi flat high-density panel – slim space capacity ● 24 connectors placed at an angle ● No need of intermediate guiding panels ● No need of triangle-lid accessory as needed for V-shaped panels; ● To keep the right cooling flow ● To avoid insecure access to connectors ● Front access simplifies installation ● Large identification labels ● Rear cable manager can be folded or removed Schneider Electric - Partner Business – LSB 02942– April, 2014 22

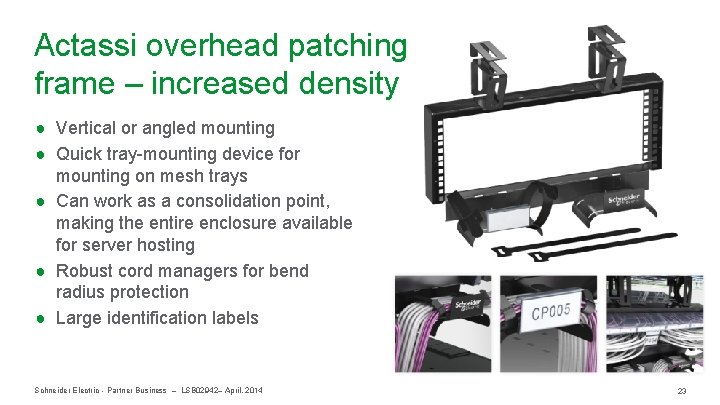

Actassi overhead patching frame – increased density ● Vertical or angled mounting ● Quick tray-mounting device for mounting on mesh trays ● Can work as a consolidation point, making the entire enclosure available for server hosting ● Robust cord managers for bend radius protection ● Large identification labels Schneider Electric - Partner Business – LSB 02942– April, 2014 23

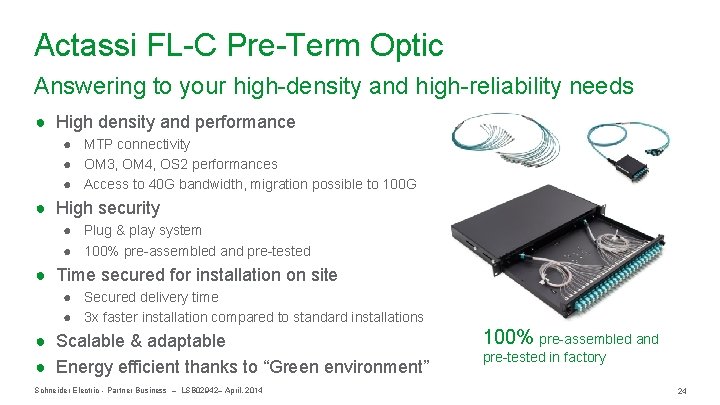

Actassi FL-C Pre-Term Optic Answering to your high-density and high-reliability needs ● High density and performance ● MTP connectivity ● OM 3, OM 4, OS 2 performances ● Access to 40 G bandwidth, migration possible to 100 G ● High security ● Plug & play system ● 100% pre-assembled and pre-tested ● Time secured for installation on site ● Secured delivery time ● 3 x faster installation compared to standard installations ● Scalable & adaptable ● Energy efficient thanks to “Green environment” Schneider Electric - Partner Business – LSB 02942– April, 2014 100% pre-assembled and pre-tested in factory 24

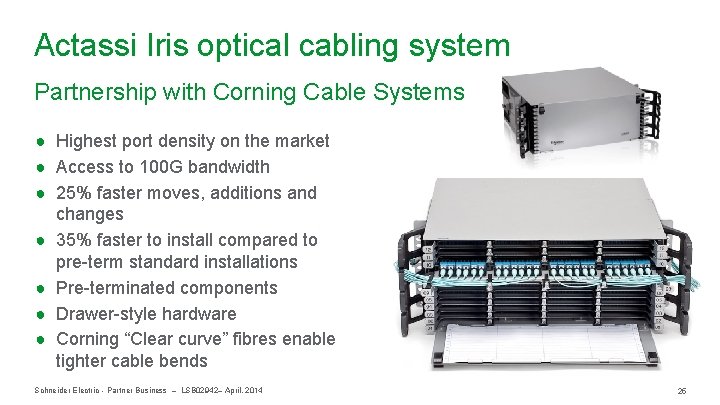

Actassi Iris optical cabling system Partnership with Corning Cable Systems ● Highest port density on the market ● Access to 100 G bandwidth ● 25% faster moves, additions and changes ● 35% faster to install compared to pre-term standard installations ● Pre-terminated components ● Drawer-style hardware ● Corning “Clear curve” fibres enable tighter cable bends Schneider Electric - Partner Business – LSB 02942– April, 2014 25

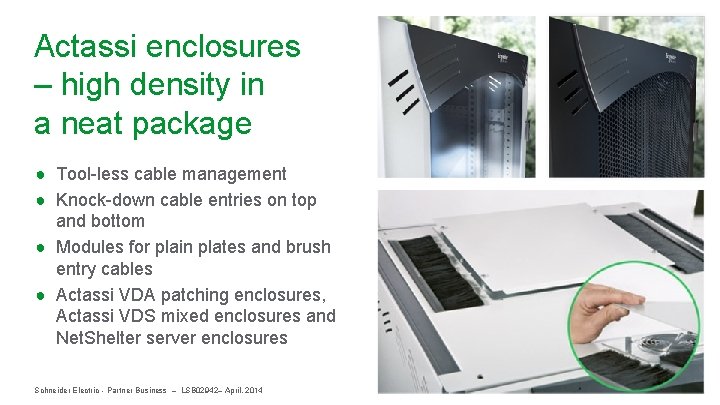

Actassi enclosures – high density in a neat package ● Tool-less cable management ● Knock-down cable entries on top and bottom ● Modules for plain plates and brush entry cables ● Actassi VDA patching enclosures, Actassi VDS mixed enclosures and Net. Shelter server enclosures Schneider Electric - Partner Business – LSB 02942– April, 2014 26

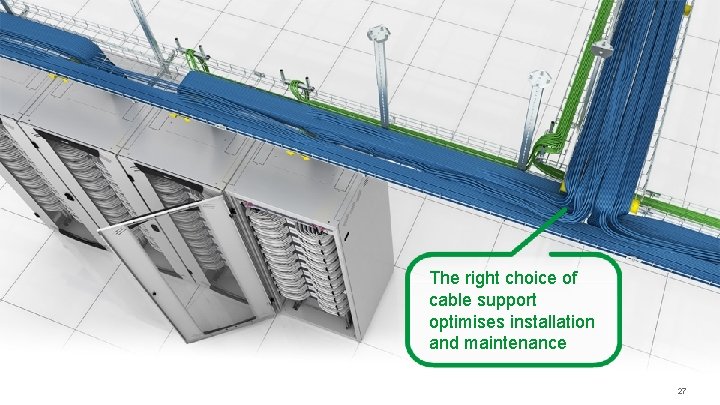

The right choice of cable support optimises installation and maintenance Schneider Electric - Partner Business – LSB 02942– April, 2014 27

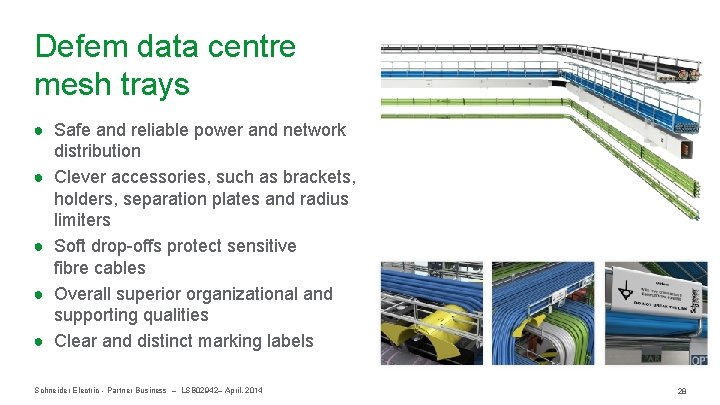

Defem data centre mesh trays ● Safe and reliable power and network distribution ● Clever accessories, such as brackets, holders, separation plates and radius limiters ● Soft drop-offs protect sensitive fibre cables ● Overall superior organizational and supporting qualities ● Clear and distinct marking labels Schneider Electric - Partner Business – LSB 02942– April, 2014 28

Data centre solutions – reap the benefits of high density
