Network Based IP Services Horace Lau Senior Market Development Manager Lucent Technologies, INS IP Services Business Unit 10/3/2020 Lucent Technologies – Proprietary 1

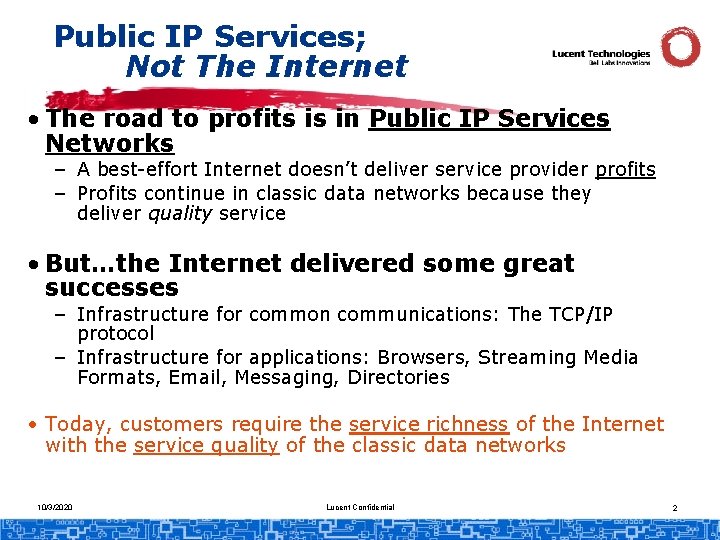

Public IP Services; Not The Internet • The road to profits is in Public IP Services Networks – A best-effort Internet doesn’t deliver service provider profits – Profits continue in classic data networks because they deliver quality service • But…the Internet delivered some great successes – Infrastructure for common communications: The TCP/IP protocol – Infrastructure for applications: Browsers, Streaming Media Formats, Email, Messaging, Directories • Today, customers require the service richness of the Internet with the service quality of the classic data networks 10/3/2020 Lucent Confidential 2

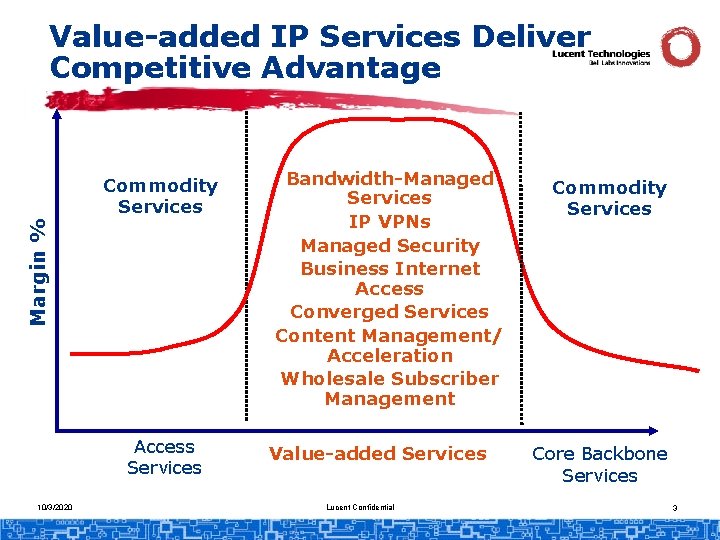

Value-added IP Services Deliver Competitive Advantage Margin % Commodity Services Access Services 10/3/2020 Bandwidth-Managed Services IP VPNs Managed Security Business Internet Access Converged Services Content Management/ Acceleration Wholesale Subscriber Management Value-added Services Lucent Confidential Commodity Services Core Backbone Services 3

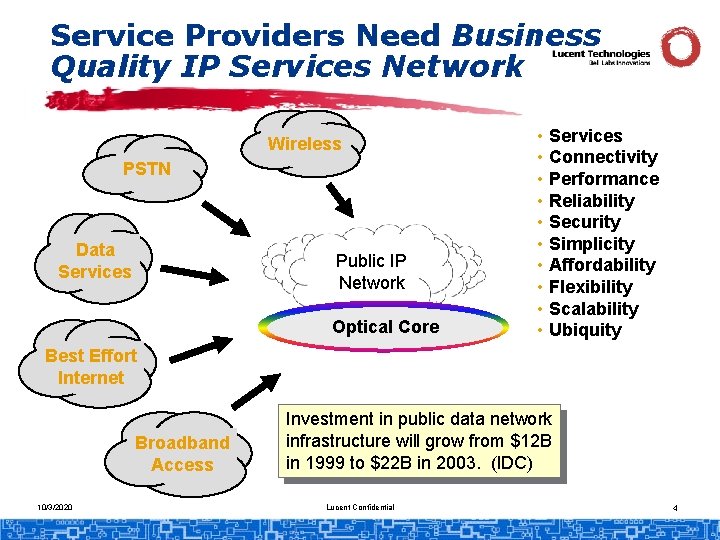

Service Providers Need Business Quality IP Services Network Wireless PSTN Data Services Public IP Network Optical Core • Services • Connectivity • Performance • Reliability • Security • Simplicity • Affordability • Flexibility • Scalability • Ubiquity Best Effort Internet Broadband Access 10/3/2020 Investment in public data network infrastructure will grow from $12 B in 1999 to $22 B in 2003. (IDC) Lucent Confidential 4

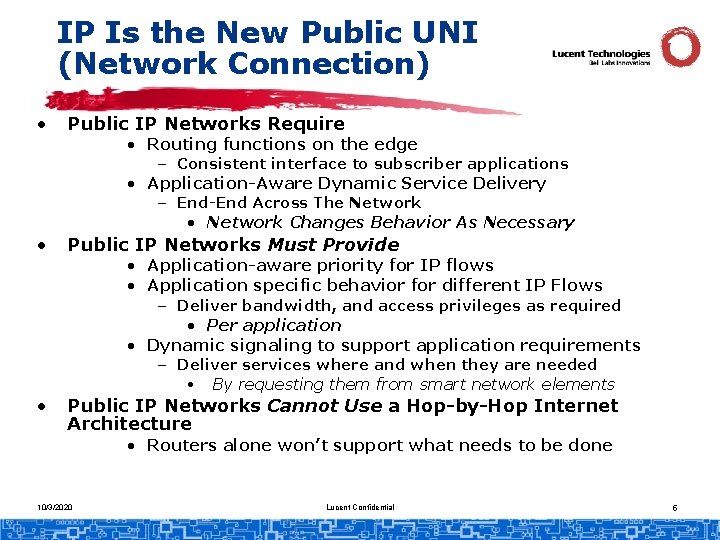

IP Is the New Public UNI (Network Connection) • Public IP Networks Require • Routing functions on the edge – Consistent interface to subscriber applications • Application-Aware Dynamic Service Delivery – End-End Across The Network • Network Changes Behavior As Necessary • Public IP Networks Must Provide • Application-aware priority for IP flows • Application specific behavior for different IP Flows – Deliver bandwidth, and access privileges as required • Per application • Dynamic signaling to support application requirements – Deliver services where and when they are needed • By requesting them from smart network elements • Public IP Networks Cannot Use a Hop-by-Hop Internet Architecture • Routers alone won’t support what needs to be done 10/3/2020 Lucent Confidential 5

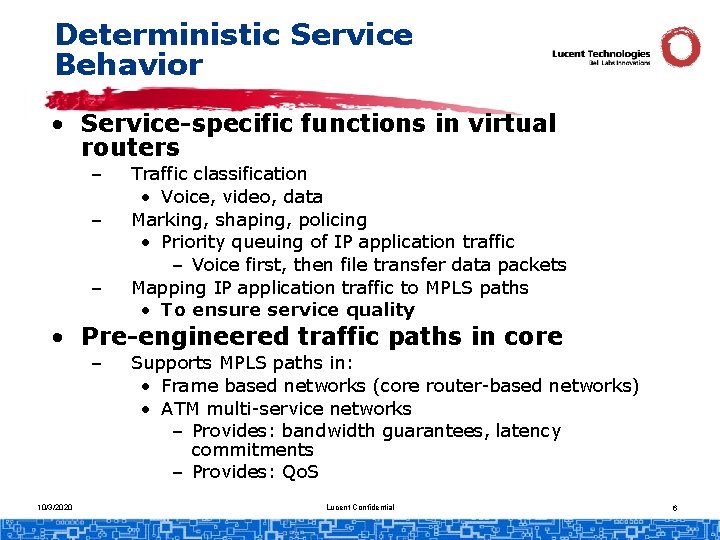

Deterministic Service Behavior • Service-specific functions in virtual routers – – – Traffic classification • Voice, video, data Marking, shaping, policing • Priority queuing of IP application traffic – Voice first, then file transfer data packets Mapping IP application traffic to MPLS paths • To ensure service quality • Pre-engineered traffic paths in core – 10/3/2020 Supports MPLS paths in: • Frame based networks (core router-based networks) • ATM multi-service networks – Provides: bandwidth guarantees, latency commitments – Provides: Qo. S Lucent Confidential 6

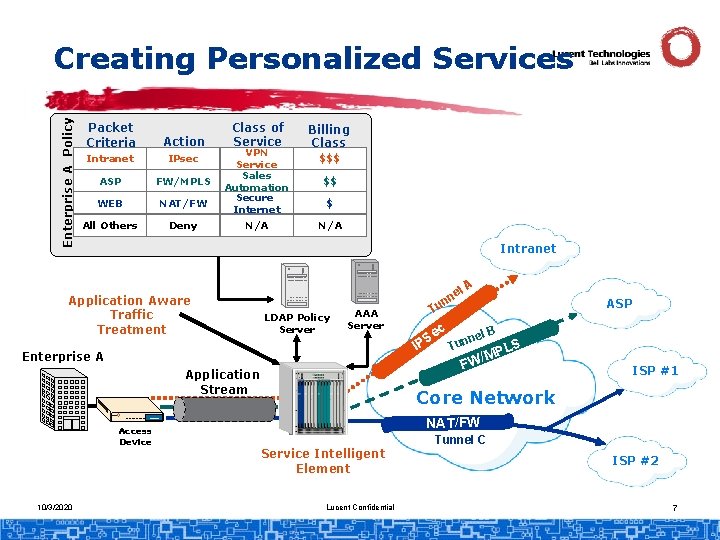

Enterprise A Policy Creating Personalized Services Packet Criteria Action Intranet IPsec ASP FW/MPLS WEB NAT/FW All Others Deny Class of Service VPN Service Sales Automation Secure Internet N/A Billing Class $$$ $$ $ N/A Intranet Application Aware Traffic Treatment l. A LDAP Policy Server c e PS I Application Stream Access Device ASP Tu AAA Server Enterprise A 10/3/2020 e nn l. B ne Tun LS /MP FW LSP ISP #1 Core Network NAT/FW Service Intelligent Element Lucent Confidential Tunnel C ISP #2 7

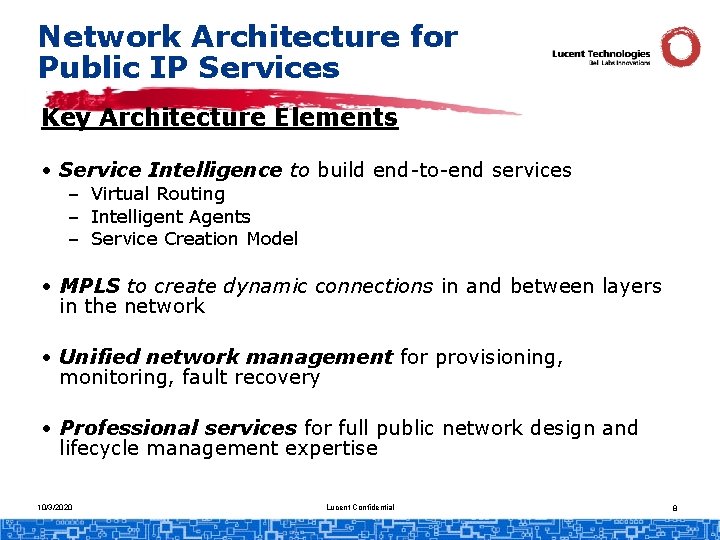

Network Architecture for Public IP Services Key Architecture Elements • Service Intelligence to build end-to-end services – Virtual Routing – Intelligent Agents – Service Creation Model • MPLS to create dynamic connections in and between layers in the network • Unified network management for provisioning, monitoring, fault recovery • Professional services for full public network design and lifecycle management expertise 10/3/2020 Lucent Confidential 8

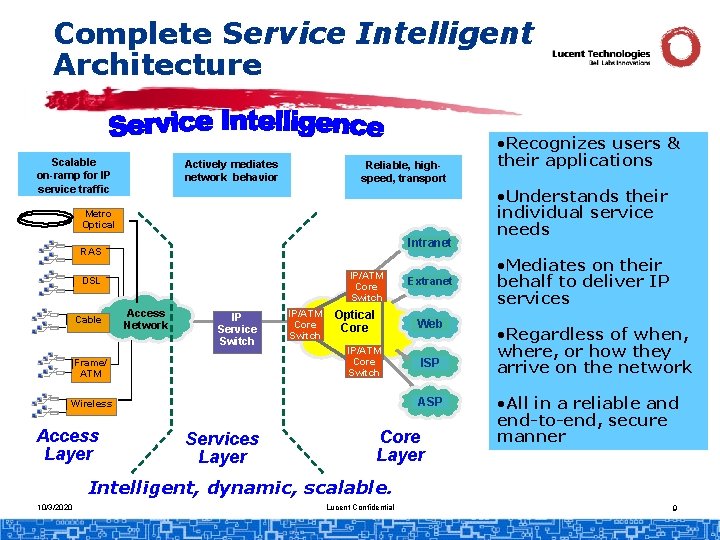

Complete Service Intelligent Architecture Scalable on-ramp for IP service traffic Actively mediates network behavior Reliable, highspeed, transport Metro Optical Intranet RAS IP/ATM Core Switch DSL Cable Access Network IP Service Switch Frame/ ATM IP/ATM Core Switch Optical Core Web IP/ATM Core Switch ISP ASP Wireless Access Layer Extranet Services Layer Core Layer • Recognizes users & their applications • Understands their individual service needs • Mediates on their behalf to deliver IP services • Regardless of when, where, or how they arrive on the network • All in a reliable and end-to-end, secure manner Intelligent, dynamic, scalable. 10/3/2020 Lucent Confidential 9

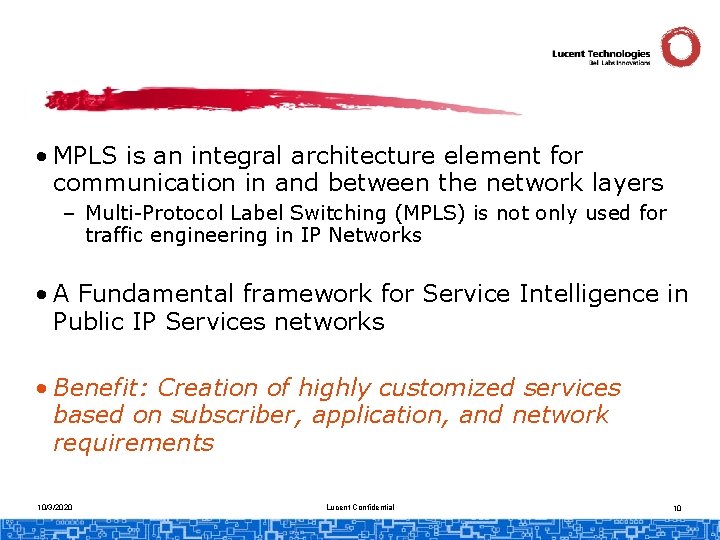

• MPLS is an integral architecture element for communication in and between the network layers – Multi-Protocol Label Switching (MPLS) is not only used for traffic engineering in IP Networks • A Fundamental framework for Service Intelligence in Public IP Services networks • Benefit: Creation of highly customized services based on subscriber, application, and network requirements 10/3/2020 Lucent Confidential 10

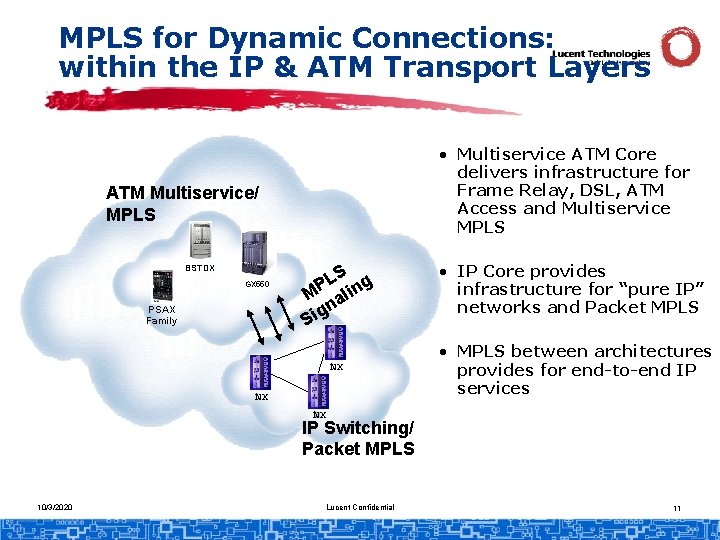

MPLS for Dynamic Connections: within the IP & ATM Transport Layers • Multiservice ATM Core delivers infrastructure for Frame Relay, DSL, ATM Access and Multiservice MPLS ATM Multiservice/ MPLS BSTDX GX 550 PSAX Family S L g MP alin gn i S NX NX • IP Core provides infrastructure for “pure IP” networks and Packet MPLS • MPLS between architectures provides for end-to-end IP services NX IP Switching/ Packet MPLS 10/3/2020 Lucent Confidential 11

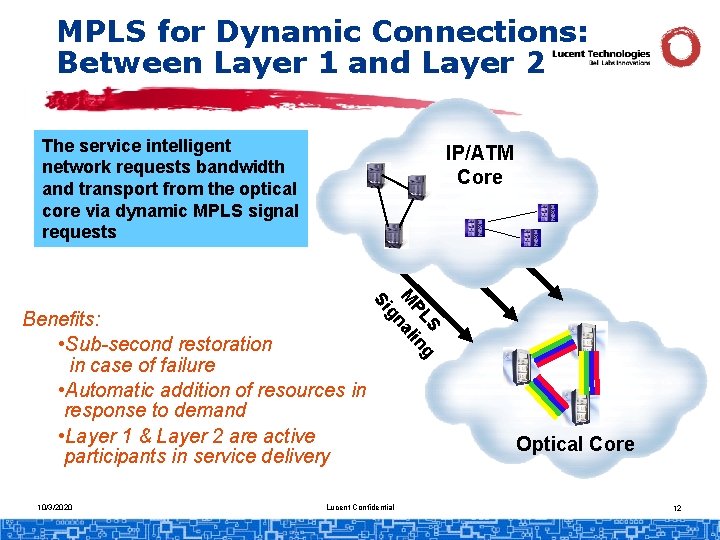

MPLS for Dynamic Connections: Between Layer 1 and Layer 2 The service intelligent network requests bandwidth and transport from the optical core via dynamic MPLS signal requests IP/ATM Core 10/3/2020 S g PL in M nal g Si Benefits: • Sub-second restoration in case of failure • Automatic addition of resources in response to demand • Layer 1 & Layer 2 are active participants in service delivery Lucent Confidential Optical Core 12

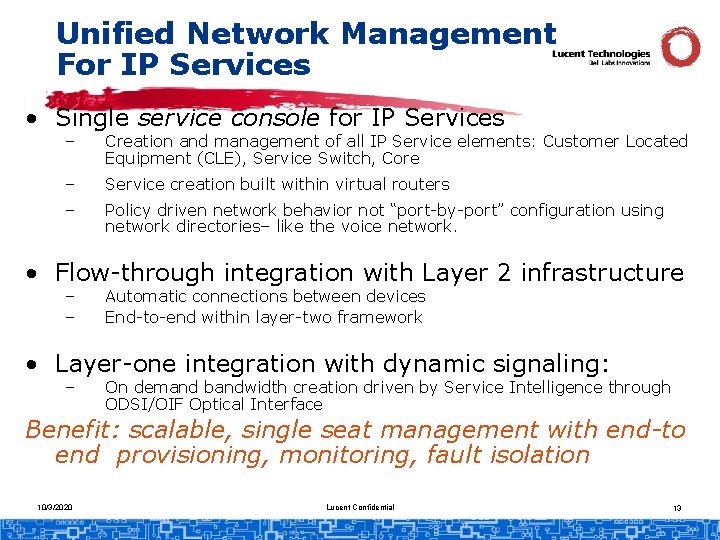

Unified Network Management For IP Services • Single service console for IP Services – Creation and management of all IP Service elements: Customer Located Equipment (CLE), Service Switch, Core – Service creation built within virtual routers – Policy driven network behavior not “port-by-port” configuration using network directories– like the voice network. • Flow-through integration with Layer 2 infrastructure – – Automatic connections between devices End-to-end within layer-two framework • Layer-one integration with dynamic signaling: – On demand bandwidth creation driven by Service Intelligence through ODSI/OIF Optical Interface Benefit: scalable, single seat management with end-to end provisioning, monitoring, fault isolation 10/3/2020 Lucent Confidential 13

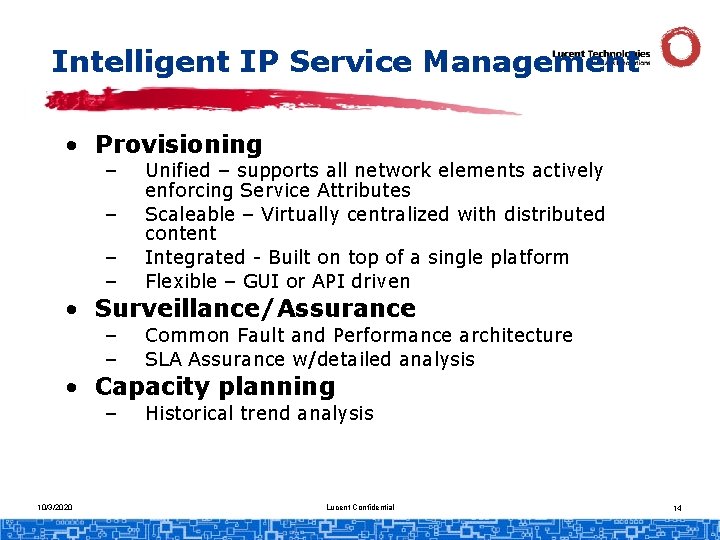

Intelligent IP Service Management • Provisioning – – Unified – supports all network elements actively enforcing Service Attributes Scaleable – Virtually centralized with distributed content Integrated - Built on top of a single platform Flexible – GUI or API driven • Surveillance/Assurance – – Common Fault and Performance architecture SLA Assurance w/detailed analysis • Capacity planning – 10/3/2020 Historical trend analysis Lucent Confidential 14

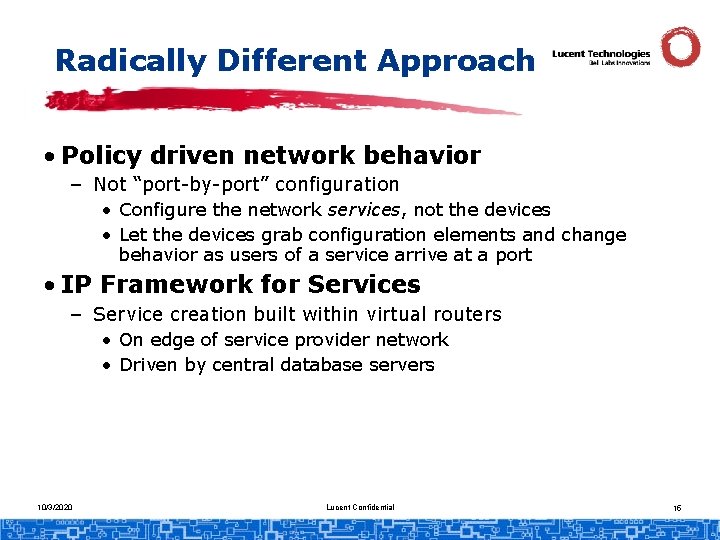

Radically Different Approach • Policy driven network behavior – Not “port-by-port” configuration • Configure the network services, not the devices • Let the devices grab configuration elements and change behavior as users of a service arrive at a port • IP Framework for Services – Service creation built within virtual routers • On edge of service provider network • Driven by central database servers 10/3/2020 Lucent Confidential 15

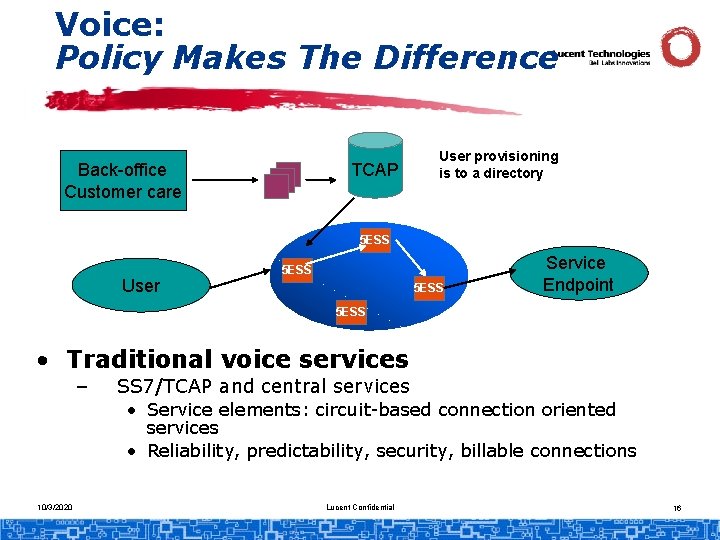

Voice: Policy Makes The Difference TCAP Back-office Customer care User provisioning is to a directory 5 ESS User 5 ESS Service Endpoint 5 ESS • Traditional voice services – SS 7/TCAP and central services • Service elements: circuit-based connection oriented services • Reliability, predictability, security, billable connections 10/3/2020 Lucent Confidential 16

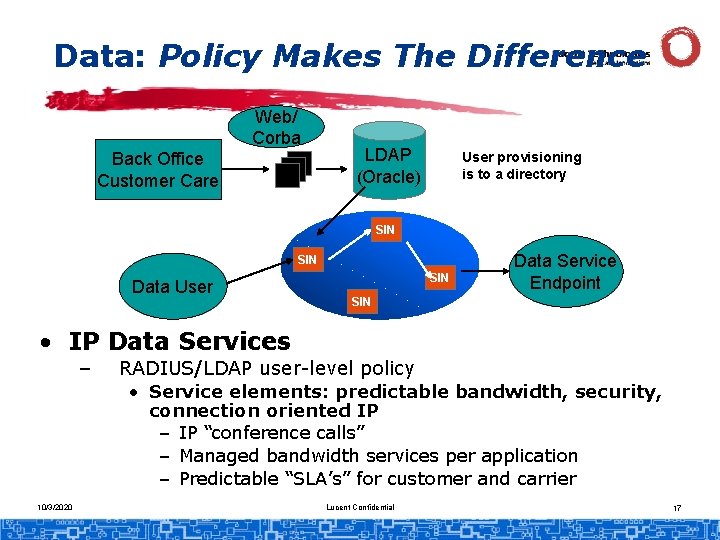

Data: Policy Makes The Difference Web/ Corba Back Office Customer Care LDAP (Oracle) User provisioning is to a directory SIN Data User SIN Data Service Endpoint SIN • IP Data Services – RADIUS/LDAP user-level policy • Service elements: predictable bandwidth, security, connection oriented IP – IP “conference calls” – Managed bandwidth services per application – Predictable “SLA’s” for customer and carrier 10/3/2020 Lucent Confidential 17

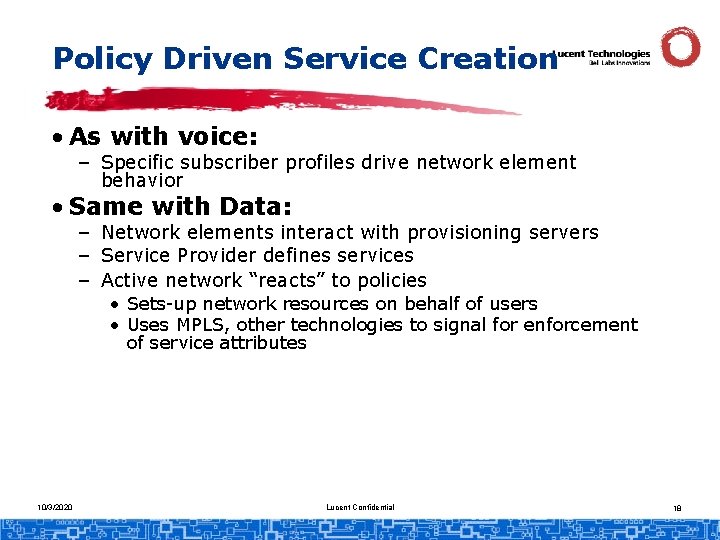

Policy Driven Service Creation • As with voice: – Specific subscriber profiles drive network element behavior • Same with Data: – Network elements interact with provisioning servers – Service Provider defines services – Active network “reacts” to policies • Sets-up network resources on behalf of users • Uses MPLS, other technologies to signal for enforcement of service attributes 10/3/2020 Lucent Confidential 18

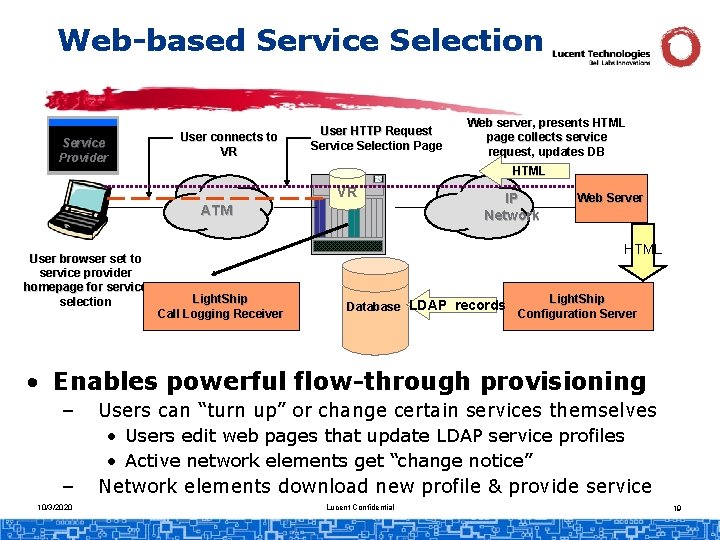

Web-based Service Selection Service Provider User connects to VR User HTTP Request Service Selection Page HTML VR ATM User browser set to service provider homepage for service selection Web server, presents HTML page collects service request, updates DB IP Network Web Server HTML Light. Ship Call Logging Receiver Database LDAP records Light. Ship Configuration Server • Enables powerful flow-through provisioning – – 10/3/2020 Users can “turn up” or change certain services themselves • Users edit web pages that update LDAP service profiles • Active network elements get “change notice” Network elements download new profile & provide service Lucent Confidential 19

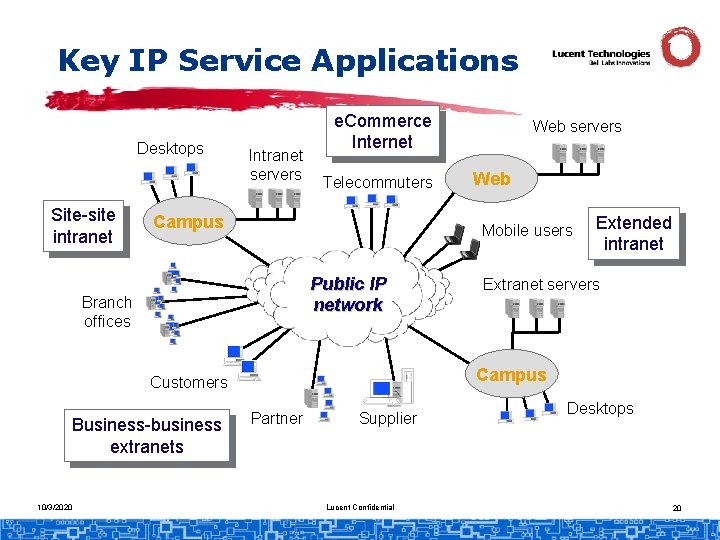

Key IP Service Applications Desktops Site-site intranet Intranet servers e. Commerce Internet Telecommuters Campus Branch offices Extended intranet Extranet servers Campus Customers 10/3/2020 Web Mobile users Public IP network Business-business extranets Web servers Partner Supplier Lucent Confidential Desktops 20

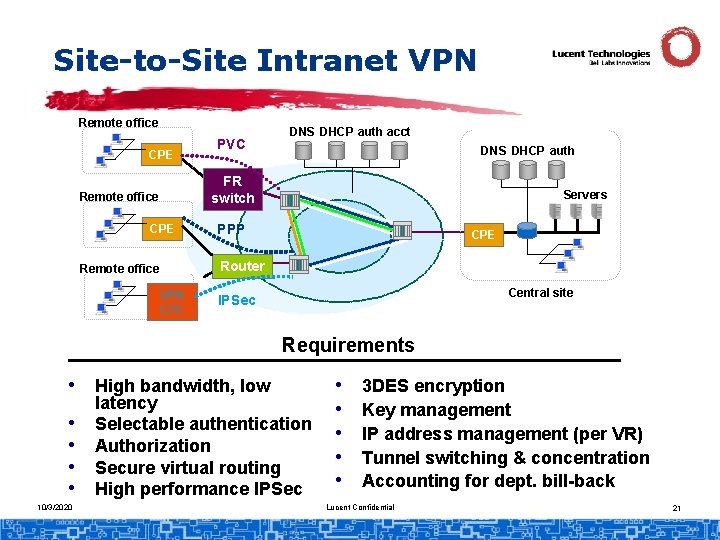

Site-to-Site Intranet VPN Remote office CPE PVC DNS DHCP auth acct DNS DHCP auth FR switch Remote office CPE Servers PPP CPE Router Remote office VPN CPE Central site IPSec Requirements • High bandwidth, low • • 10/3/2020 latency Selectable authentication Authorization Secure virtual routing High performance IPSec • • • 3 DES encryption Key management IP address management (per VR) Tunnel switching & concentration Accounting for dept. bill-back Lucent Confidential 21

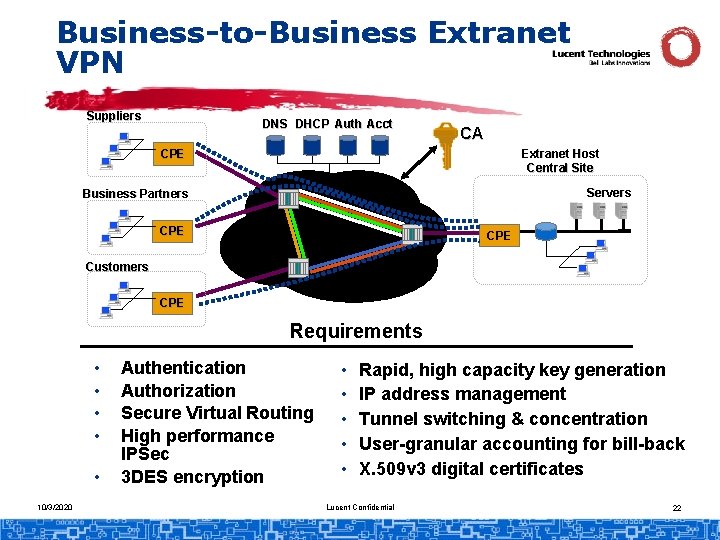

Business-to-Business Extranet VPN Suppliers DNS DHCP Auth Acct CA Extranet Host Central Site CPE Servers Business Partners CPE Customers CPE Requirements • • • 10/3/2020 Authentication Authorization Secure Virtual Routing High performance IPSec 3 DES encryption • • • Rapid, high capacity key generation IP address management Tunnel switching & concentration User-granular accounting for bill-back X. 509 v 3 digital certificates Lucent Confidential 22

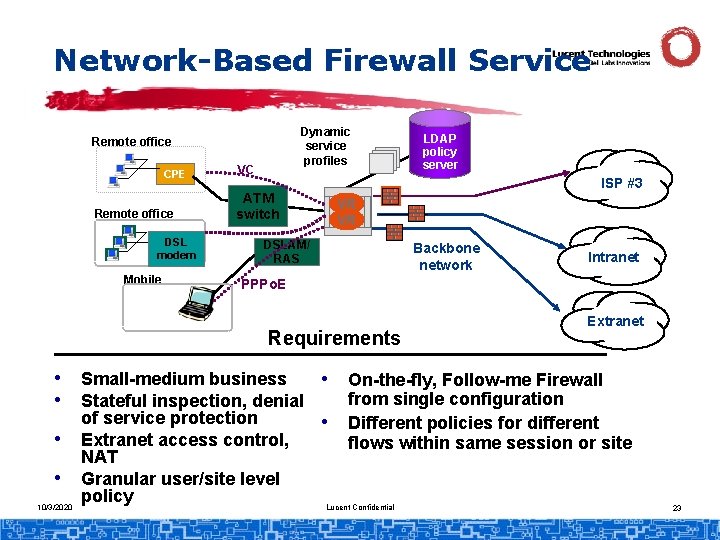

Network-Based Firewall Service Dynamic service profiles Remote office CPE Remote office DSL modem Mobile VC ATM switch LDAP policy server ISP #3 VR VR DSLAM/ RAS Backbone network Intranet PPPo. E Requirements Extranet • Small-medium business • On-the-fly, Follow-me Firewall from single configuration • Stateful inspection, denial of service protection • Different policies for different • Extranet access control, flows within same session or site • 10/3/2020 NAT Granular user/site level policy Lucent Confidential 23

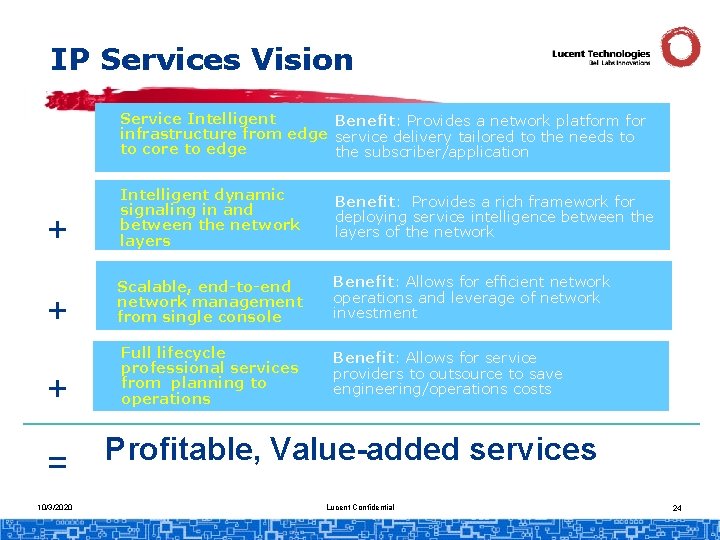

IP Services Vision Service Intelligent Benefit: Provides a network platform for infrastructure from edge service delivery tailored to the needs to to core to edge the subscriber/application + Intelligent dynamic signaling in and between the network layers Benefit: Provides a rich framework for deploying service intelligence between the layers of the network + Scalable, end-to-end network management from single console Benefit: Allows for efficient network operations and leverage of network investment + Full lifecycle professional services from planning to operations Benefit: Allows for service providers to outsource to save engineering/operations costs = 10/3/2020 Profitable, Value-added services Lucent Confidential 24
