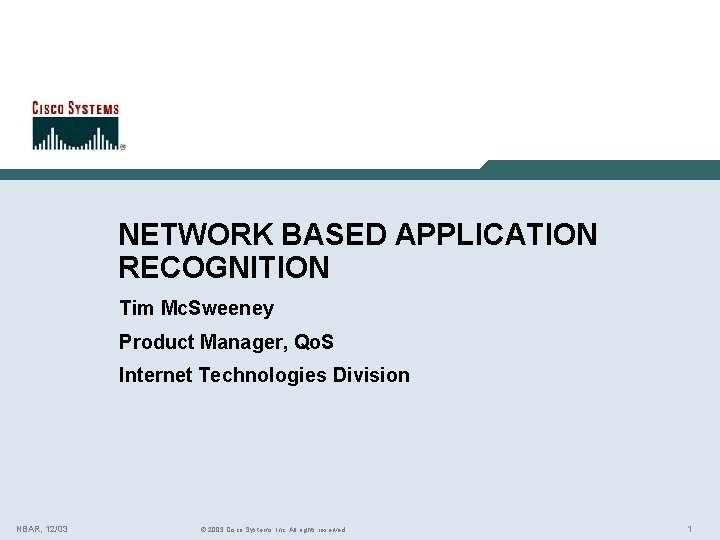

NETWORK BASED APPLICATION RECOGNITION Tim Mc Sweeney Product

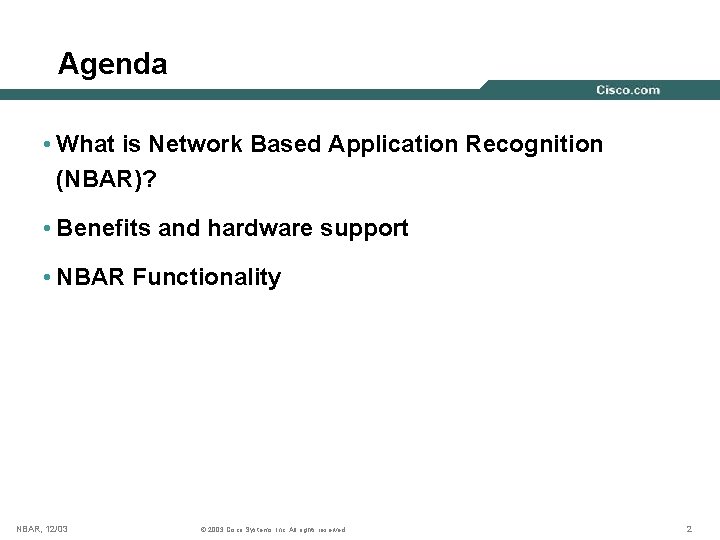

Agenda • What is Network Based Application Recognition (NBAR)? • Benefits and hardware support

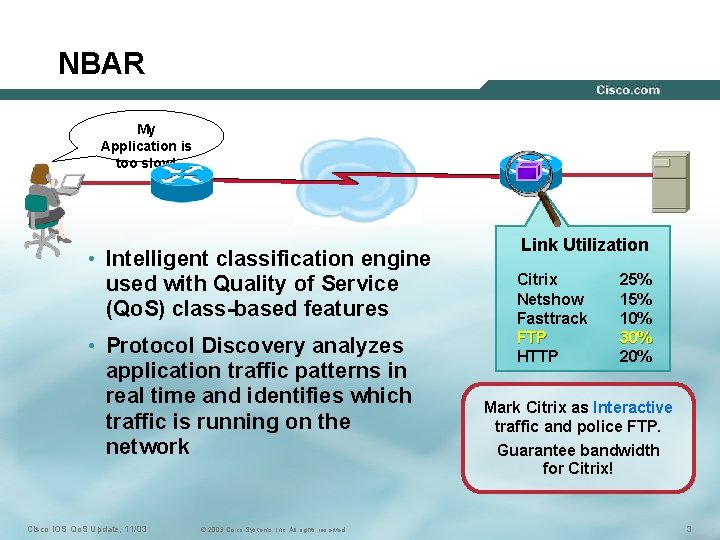

NBAR My Application is too slow! • Intelligent classification engine used with Quality of Service (Qo. S) class-based features • Protocol Discovery analyzes application traffic patterns in real time and identifies which traffic is running on the network NBAR, Cisco 12/03 IOS Qo. S Update, 11/03 © 2003 Cisco Systems, Inc. All rights reserved. Link Utilization Citrix Netshow Fasttrack FTP HTTP 25% 10% 30% 20% Mark Citrix as Interactive traffic and police FTP. Guarantee bandwidth for Citrix! 3

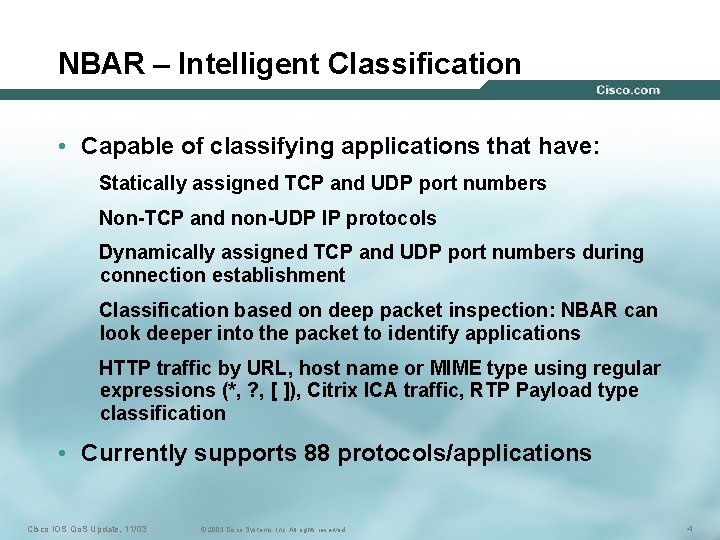

NBAR – Intelligent Classification • Capable of classifying applications that have: Statically assigned TCP and UDP port numbers Non-TCP and non-UDP IP protocols Dynamically assigned TCP and UDP port numbers during connection establishment Classification based on deep packet inspection: NBAR can look deeper into the packet to identify applications HTTP traffic by URL, host name or MIME type using regular expressions (*, ? , [ ]), Citrix ICA traffic, RTP Payload type classification • Currently supports 88 protocols/applications NBAR, Cisco 12/03 IOS Qo. S Update, 11/03 © 2003 Cisco Systems, Inc. All rights reserved. 4

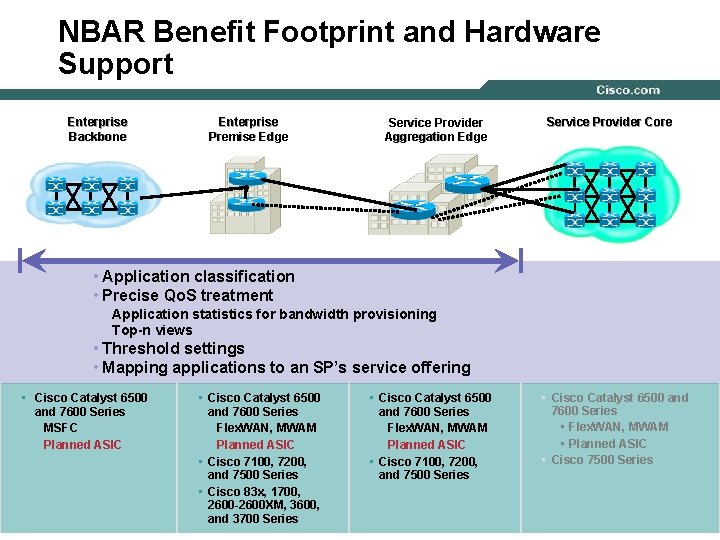

NBAR Benefit Footprint and Hardware Support Enterprise Backbone Enterprise Premise Edge Service Provider Aggregation Edge Service Provider Core • Application classification • Precise Qo. S treatment Application statistics for bandwidth provisioning Top-n views • Threshold settings • Mapping applications to an SP’s service offering • Cisco Catalyst 6500 and 7600 Series MSFC Planned ASIC NBAR, 12/03 • Cisco Catalyst 6500 and 7600 Series Flex. WAN, MWAM Planned ASIC • Cisco 7100, 7200, and 7500 Series • Cisco 83 x, 1700, 2600 -2600 XM, 3600, and 3700 Series © 2003 Cisco Systems, Inc. All rights reserved. • Cisco Catalyst 6500 and 7600 Series Flex. WAN, MWAM Planned ASIC • Cisco 7100, 7200, and 7500 Series • Cisco Catalyst 6500 and 7600 Series • Flex. WAN, MWAM • Planned ASIC • Cisco 7500 Series 5

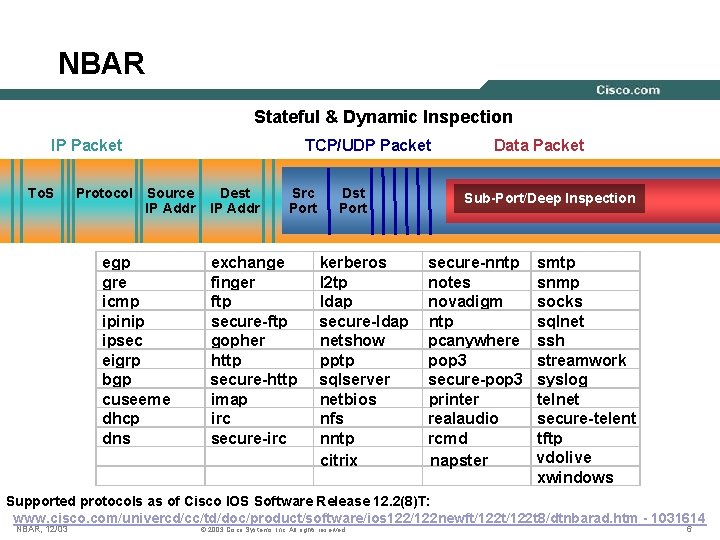

NBAR Stateful & Dynamic Inspection IP Packet To. S Protocol Source IP Addr egp gre icmp ipinip ipsec eigrp bgp cuseeme dhcp dns TCP/UDP Packet Dest IP Addr Src Port exchange finger ftp secure-ftp gopher http secure-http imap irc secure-irc Dst Port kerberos l 2 tp ldap secure-ldap netshow pptp sqlserver netbios nfs nntp citrix Data Packet Sub-Port/Deep Inspection secure-nntp notes novadigm ntp pcanywhere pop 3 secure-pop 3 printer realaudio rcmd napster smtp snmp socks sqlnet ssh streamwork syslog telnet secure-telent tftp vdolive xwindows Supported protocols as of Cisco IOS Software Release 12. 2(8)T: www. cisco. com/univercd/cc/td/doc/product/software/ios 122/122 newft/122 t 8/dtnbarad. htm - 1031614 NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 6

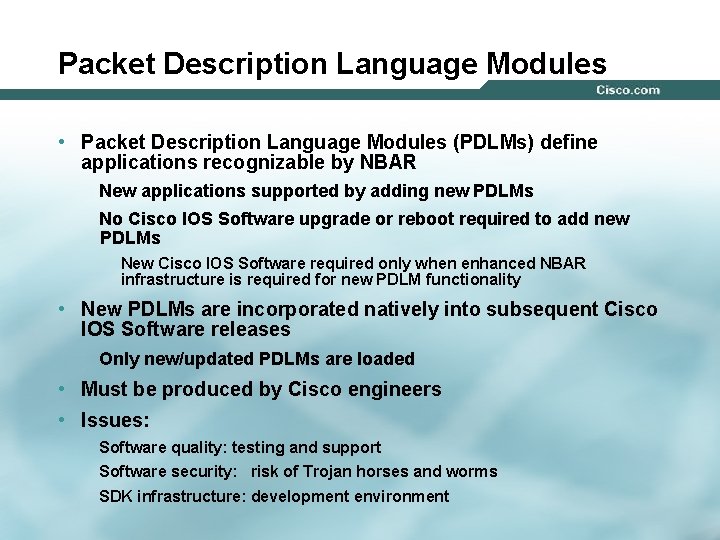

Packet Description Language Modules • Packet Description Language Modules (PDLMs) define applications recognizable by NBAR New applications supported by adding new PDLMs No Cisco IOS Software upgrade or reboot required to add new PDLMs New Cisco IOS Software required only when enhanced NBAR infrastructure is required for new PDLM functionality • New PDLMs are incorporated natively into subsequent Cisco IOS Software releases Only new/updated PDLMs are loaded • Must be produced by Cisco engineers • Issues: Software quality: testing and support Software security: risk of Trojan horses and worms SDK infrastructure: development environment NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 7

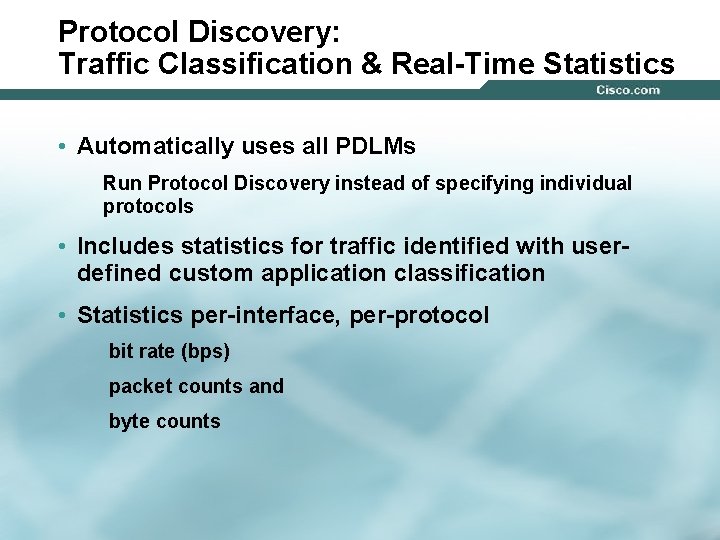

Protocol Discovery: Traffic Classification & Real-Time Statistics • Automatically uses all PDLMs Run Protocol Discovery instead of specifying individual protocols • Includes statistics for traffic identified with userdefined custom application classification • Statistics per-interface, per-protocol bit rate (bps) packet counts and byte counts NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 8

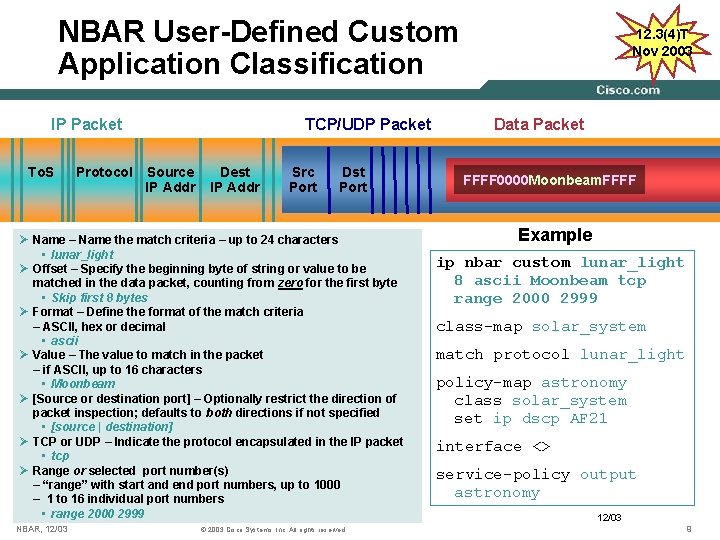

NBAR User-Defined Custom Application Classification IP Packet To. S Protocol Source IP Addr TCP/UDP Packet Dest IP Addr Src Port Dst Port Ø Name – Name the match criteria – up to 24 characters • lunar_light Ø Offset – Specify the beginning byte of string or value to be matched in the data packet, counting from zero for the first byte • Skip first 8 bytes Ø Format – Define the format of the match criteria – ASCII, hex or decimal • ascii Ø Value – The value to match in the packet – if ASCII, up to 16 characters • Moonbeam Ø [Source or destination port] – Optionally restrict the direction of packet inspection; defaults to both directions if not specified • [source | destination] Ø TCP or UDP – Indicate the protocol encapsulated in the IP packet • tcp Ø Range or selected port number(s) – “range” with start and end port numbers, up to 1000 – 1 to 16 individual port numbers • range 2000 2999 NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 12. 3(4)T Nov 2003 Data Packet FFFF 0000 Moonbeam. FFFF Example ip nbar custom lunar_light 8 ascii Moonbeam tcp range 2000 2999 class-map solar_system match protocol lunar_light policy-map astronomy class solar_system set ip dscp AF 21 interface <> service-policy output astronomy 12/03 9

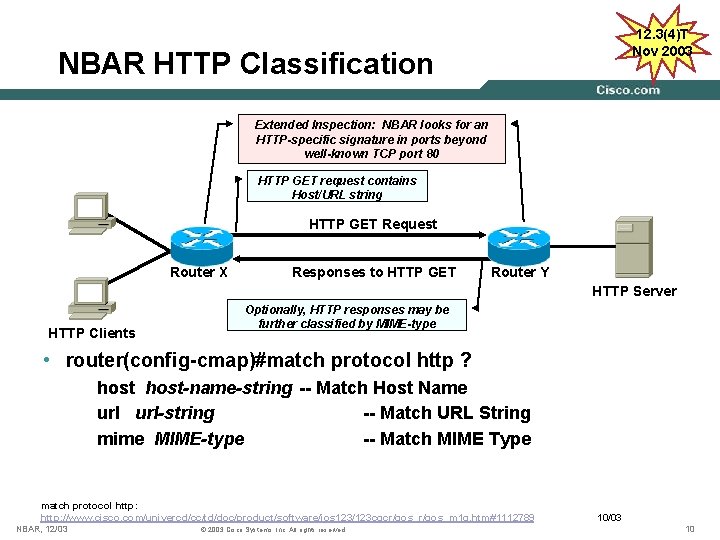

12. 3(4)T Nov 2003 NBAR HTTP Classification Extended Inspection: NBAR looks for an HTTP-specific signature in ports beyond well-known TCP port 80 HTTP GET request contains Host/URL string HTTP GET Request Router X Responses to HTTP GET Router Y HTTP Server HTTP Clients Optionally, HTTP responses may be further classified by MIME-type • router(config-cmap)#match protocol http ? host-name-string -- Match Host Name url-string -- Match URL String mime MIME-type -- Match MIME Type match protocol http: //www. cisco. com/univercd/cc/td/doc/product/software/ios 123/123 cgcr/qos_m 1 g. htm#1112789 NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 10/03 10

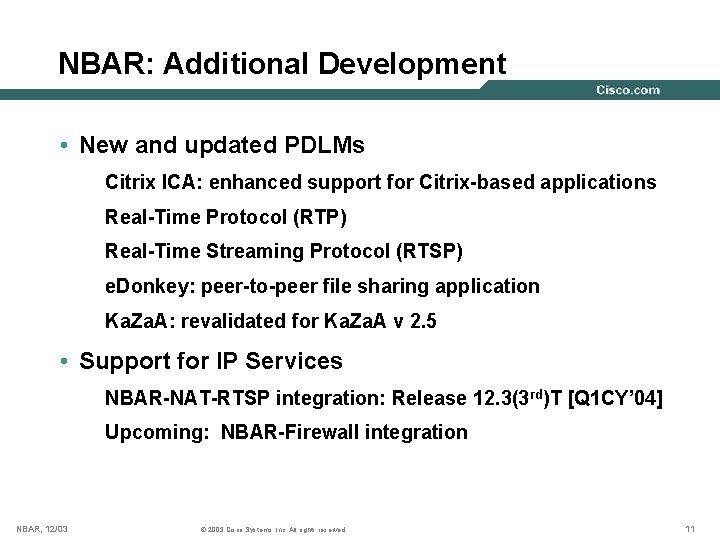

NBAR: Additional Development • New and updated PDLMs Citrix ICA: enhanced support for Citrix-based applications Real-Time Protocol (RTP) Real-Time Streaming Protocol (RTSP) e. Donkey: peer-to-peer file sharing application Ka. Za. A: revalidated for Ka. Za. A v 2. 5 • Support for IP Services NBAR-NAT-RTSP integration: Release 12. 3(3 rd)T [Q 1 CY’ 04] Upcoming: NBAR-Firewall integration NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 11

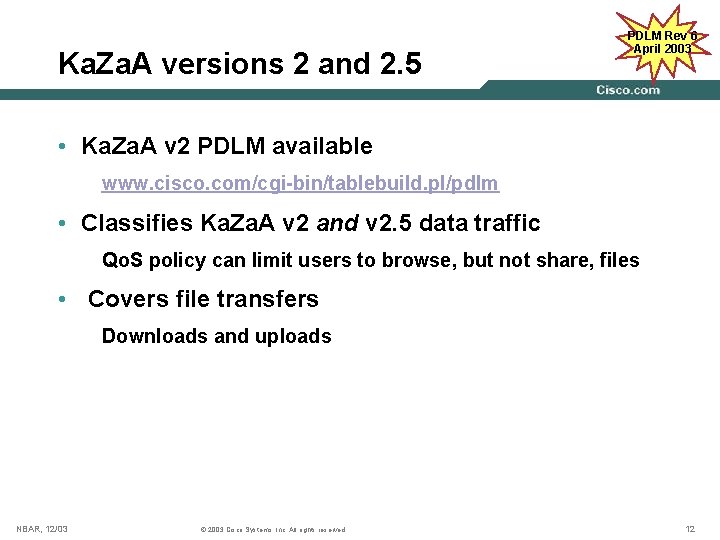

Ka. Za. A versions 2 and 2. 5 PDLM Rev 6 April 2003 • Ka. Za. A v 2 PDLM available www. cisco. com/cgi-bin/tablebuild. pl/pdlm • Classifies Ka. Za. A v 2 and v 2. 5 data traffic Qo. S policy can limit users to browse, but not share, files • Covers file transfers Downloads and uploads NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 12

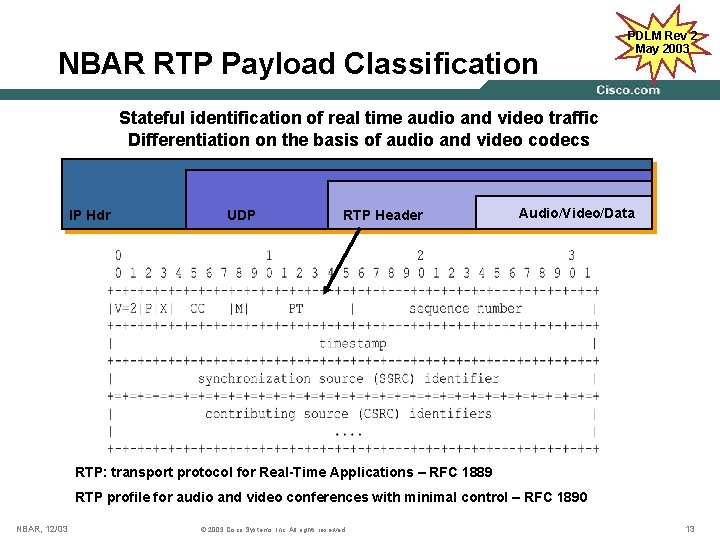

NBAR RTP Payload Classification PDLM Rev 2 May 2003 Stateful identification of real time audio and video traffic Differentiation on the basis of audio and video codecs IP Hdr UDP RTP Header Audio/Video/Data RTP: transport protocol for Real-Time Applications – RFC 1889 RTP profile for audio and video conferences with minimal control – RFC 1890 NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 13

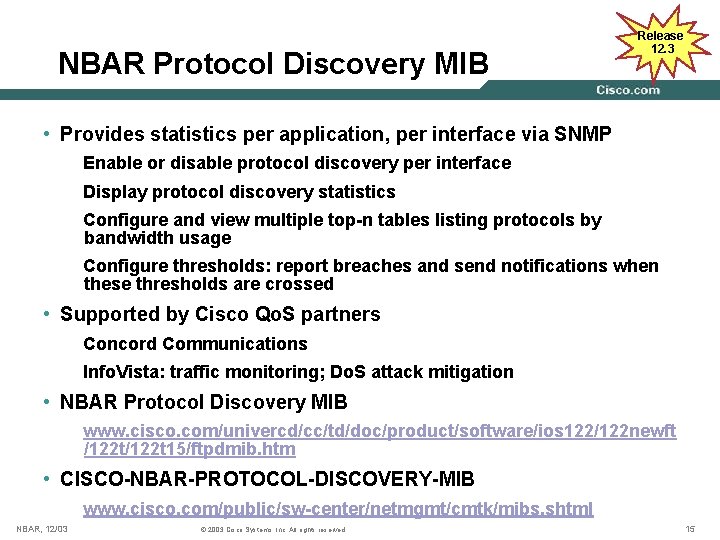

NBAR Protocol Discovery MIB Release 12. 3 • Provides statistics per application, per interface via SNMP Enable or disable protocol discovery per interface Display protocol discovery statistics Configure and view multiple top-n tables listing protocols by bandwidth usage Configure thresholds: report breaches and send notifications when these thresholds are crossed • Supported by Cisco Qo. S partners Concord Communications Info. Vista: traffic monitoring; Do. S attack mitigation • NBAR Protocol Discovery MIB www. cisco. com/univercd/cc/td/doc/product/software/ios 122/122 newft /122 t 15/ftpdmib. htm • CISCO-NBAR-PROTOCOL-DISCOVERY-MIB www. cisco. com/public/sw-center/netmgmt/cmtk/mibs. shtml NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 15

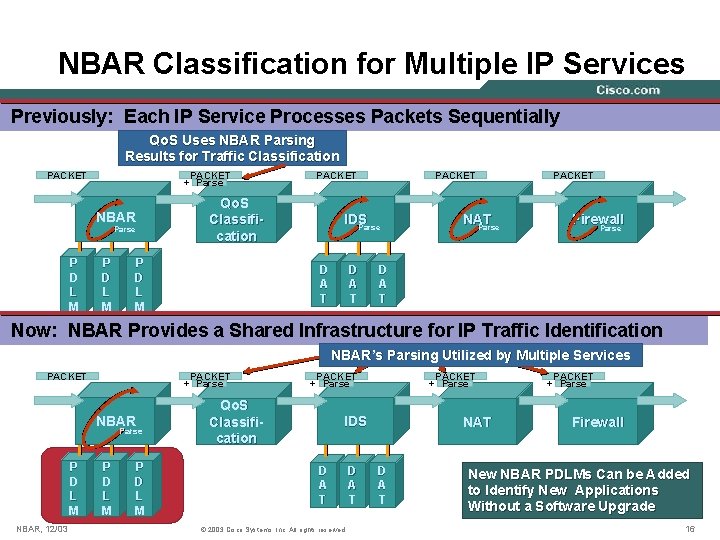

NBAR Classification for Multiple IP Services Previously: Each IP Service Processes Packets Sequentially Qo. S Uses NBAR Parsing Results for Traffic Classification PACKET + Parse NBAR Parse P D L M PACKET Qo. S Classification P D L M PACKET IDS Parse D A T NAT Parse PACKET Firewall Parse D A T Now: NBAR Provides a Shared Infrastructure for IP Traffic Identification NBAR’s Parsing Utilized by Multiple Services PACKET + Parse NBAR Parse P D L M NBAR, 12/03 P D L M PACKET + Parse Qo. S Classification PACKET + Parse IDS D A T © 2003 Cisco Systems, Inc. All rights reserved. D A T NAT D A T PACKET + Parse Firewall New NBAR PDLMs Can be Added to Identify New Applications Without a Software Upgrade 16

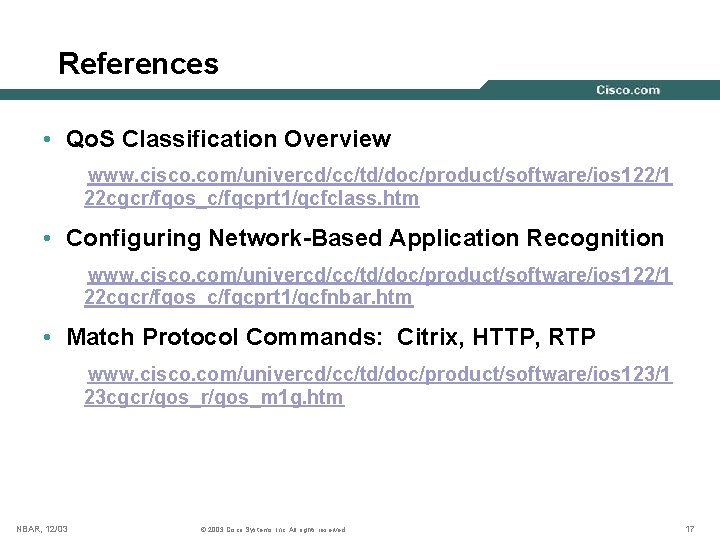

References • Qo. S Classification Overview www. cisco. com/univercd/cc/td/doc/product/software/ios 122/1 22 cgcr/fqos_c/fqcprt 1/qcfclass. htm • Configuring Network-Based Application Recognition www. cisco. com/univercd/cc/td/doc/product/software/ios 122/1 22 cgcr/fqos_c/fqcprt 1/qcfnbar. htm • Match Protocol Commands: Citrix, HTTP, RTP www. cisco. com/univercd/cc/td/doc/product/software/ios 123/1 23 cgcr/qos_m 1 g. htm NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 17

NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 18

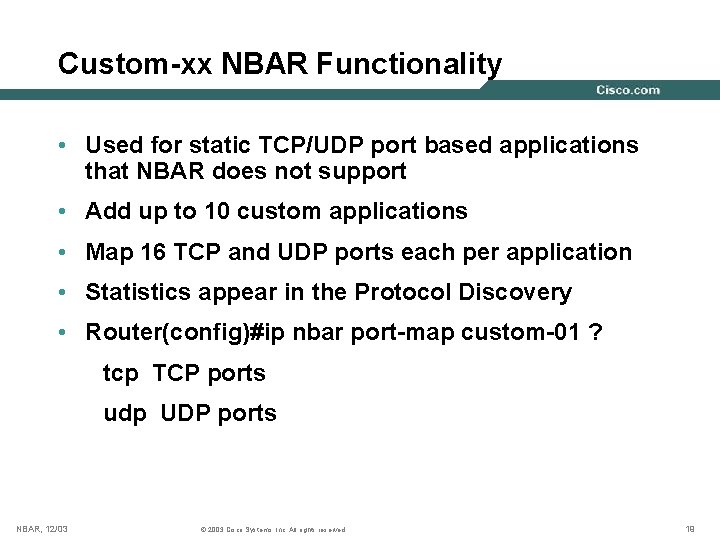

Custom-xx NBAR Functionality • Used for static TCP/UDP port based applications that NBAR does not support • Add up to 10 custom applications • Map 16 TCP and UDP ports each per application • Statistics appear in the Protocol Discovery • Router(config)#ip nbar port-map custom-01 ? tcp TCP ports udp UDP ports NBAR, 12/03 © 2003 Cisco Systems, Inc. All rights reserved. 19
