Nets Nets A net is a pattern that
- Slides: 32

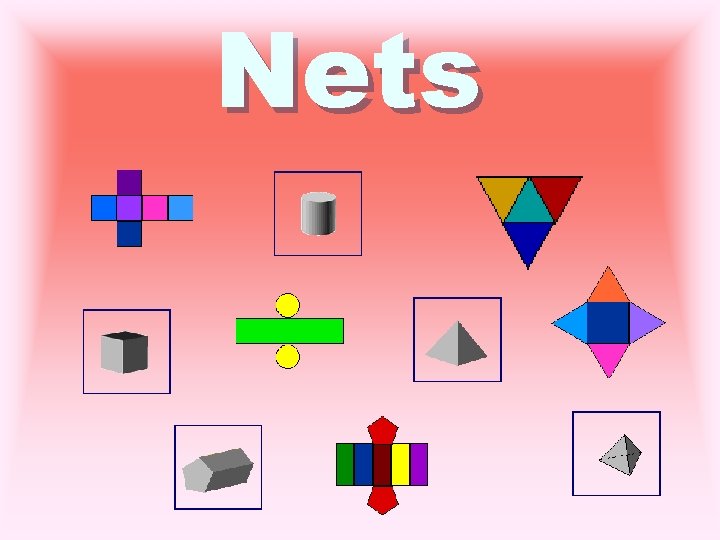

Nets
Nets A net is a pattern that you cut out and fold to form a 3 - dimensional figure.
Vocabulary Terms A cube is a prism with six congruent faces. Face

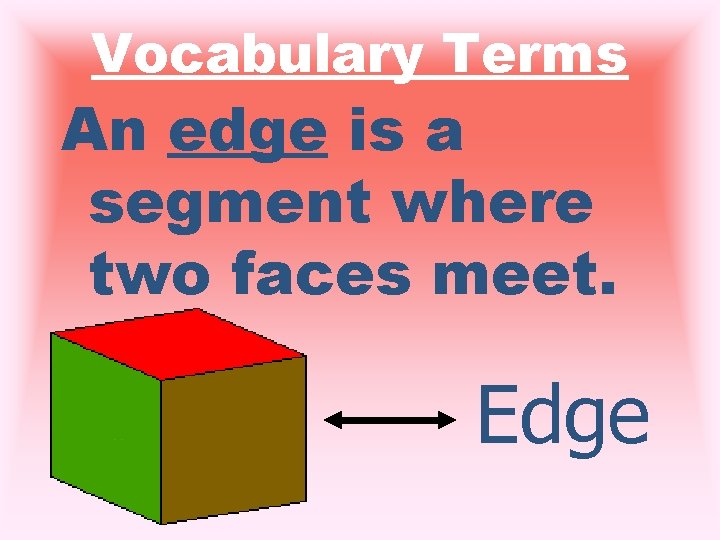

Vocabulary Terms An edge is a segment where two faces meet. Edge

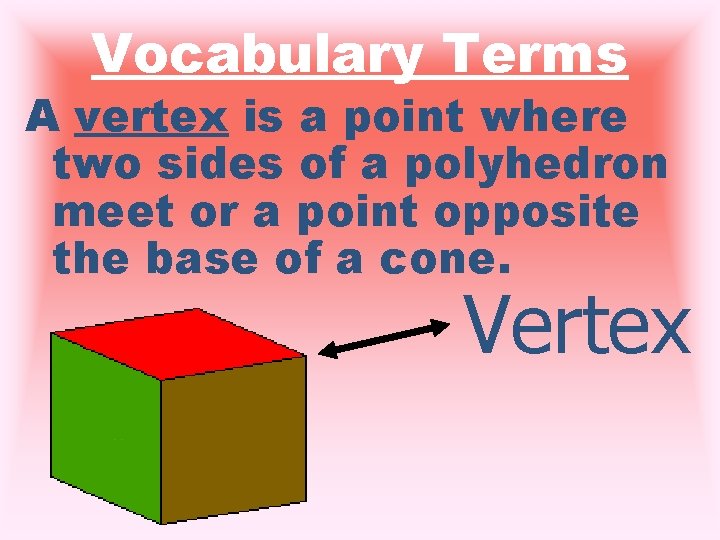

Vocabulary Terms A vertex is a point where two sides of a polyhedron meet or a point opposite the base of a cone. Vertex

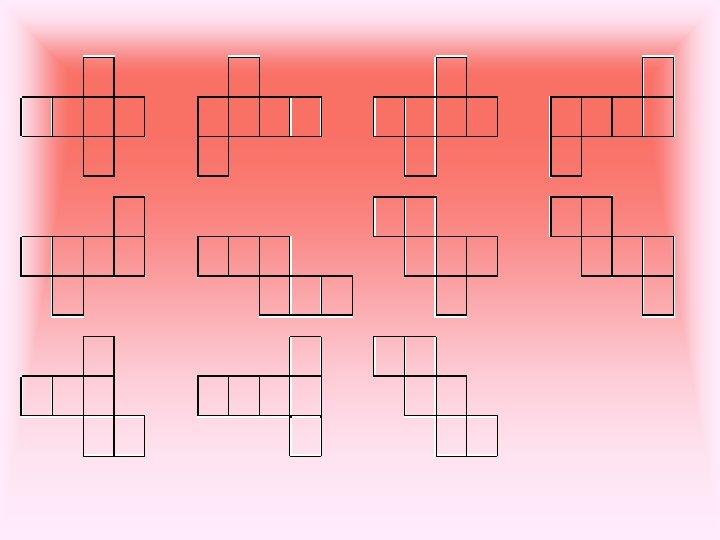

How many nets do you think you can come up with to form a cube? There are exactly eleven nets that will form a cube.
Nets for Pyramids have one base and lots of triangles. Sometimes they look like stars.

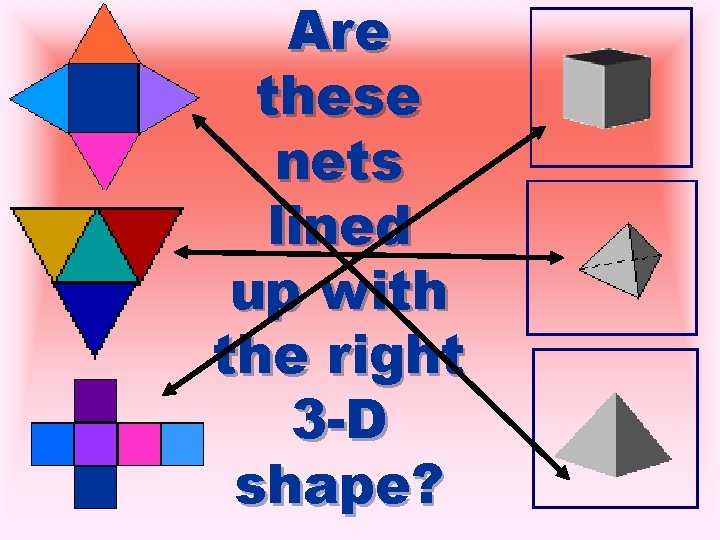

Are these nets lined up with the right 3 -D shape?
Are these nets lined up with the right 3 -D shape?

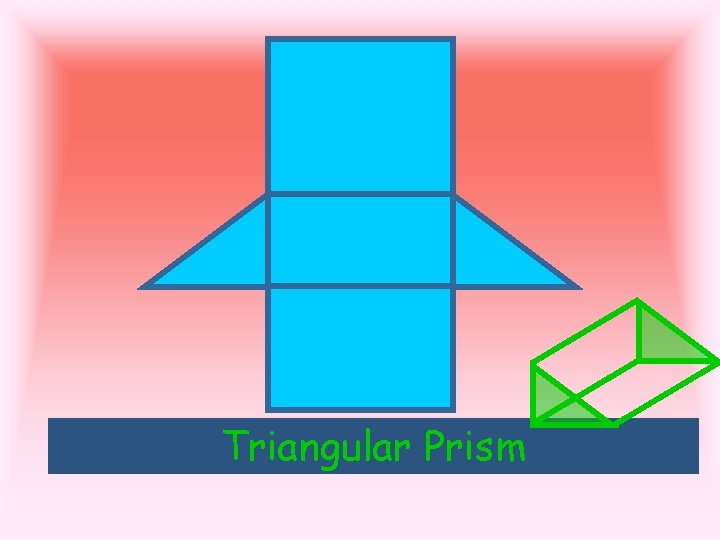

Triangular What solid will this. Prism net form?
Square or Rectangular Prism What solid will this net form?

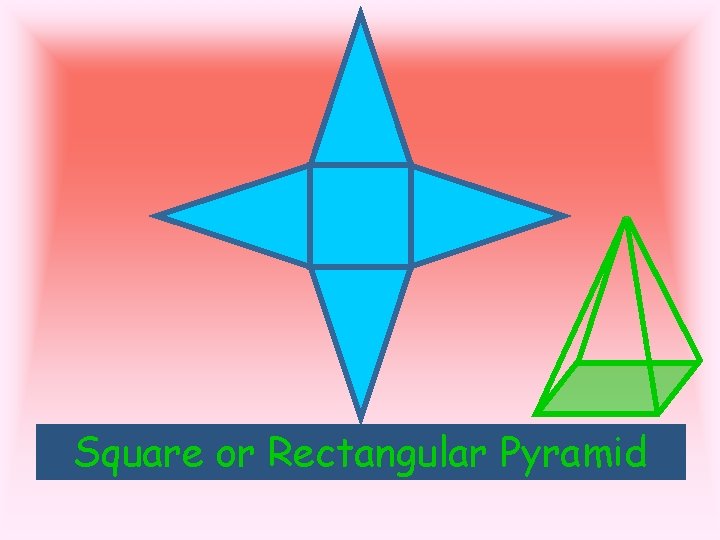

Square Rectangular What or solid will this net. Pyramid form?

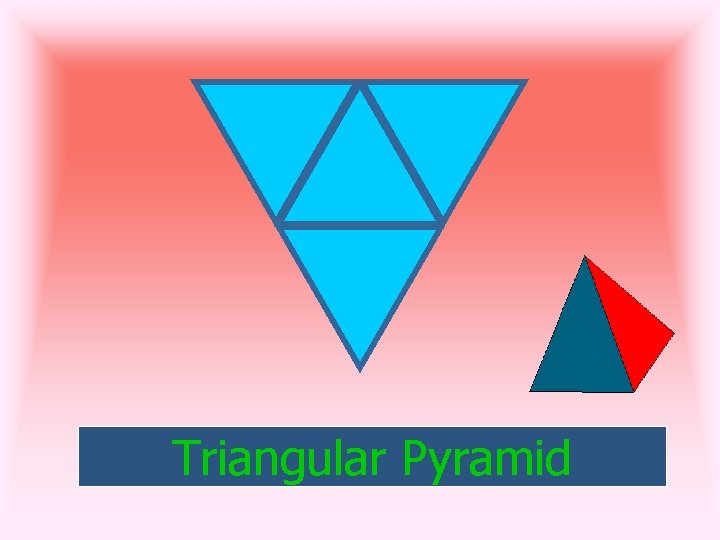

What solid will this net form? Triangular Pyramid
STOP!! End of Day 1 Cube Activity

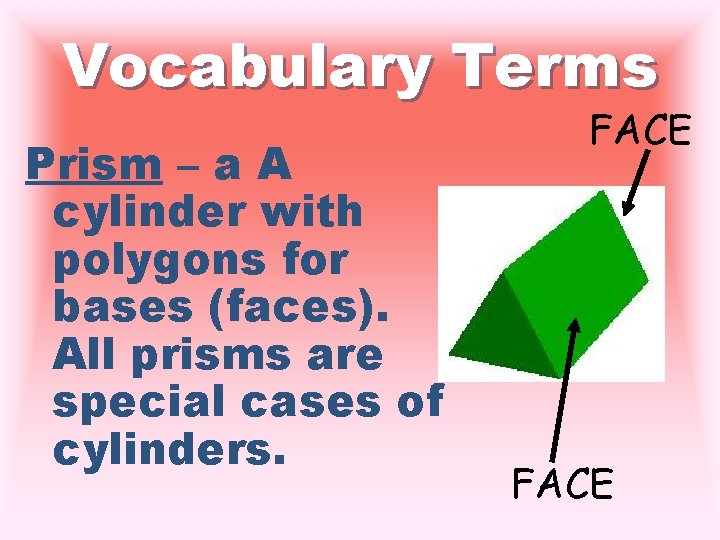

Vocabulary Terms Prism – a A cylinder with polygons for bases (faces). All prisms are special cases of cylinders. FACE

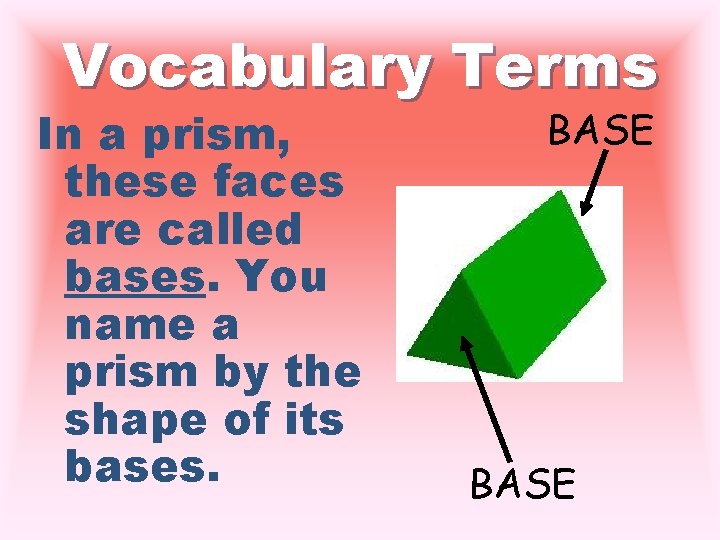

Vocabulary Terms In a prism, these faces are called bases. You name a prism by the shape of its bases. BASE

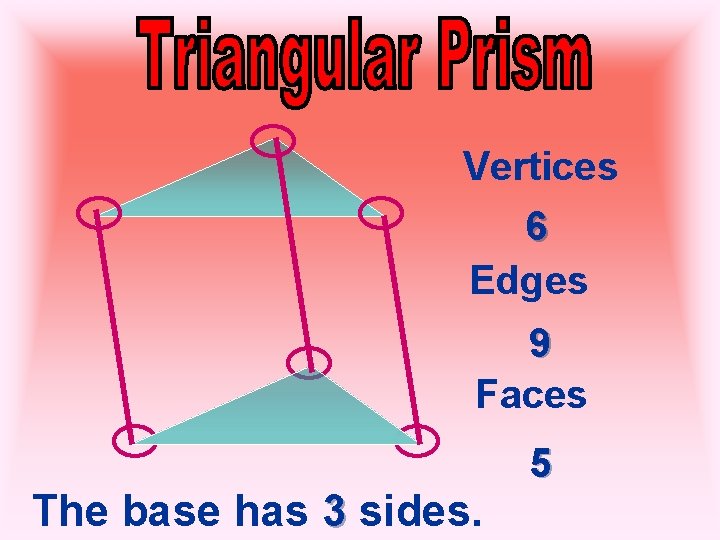

Vertices 6 Edges 9 Faces The base has 3 sides. 5
The base has 4 sides. Vertices 8 Edges 12 Faces 6
The base has 5 sides. Vertices 10 Edges 15 Faces 7

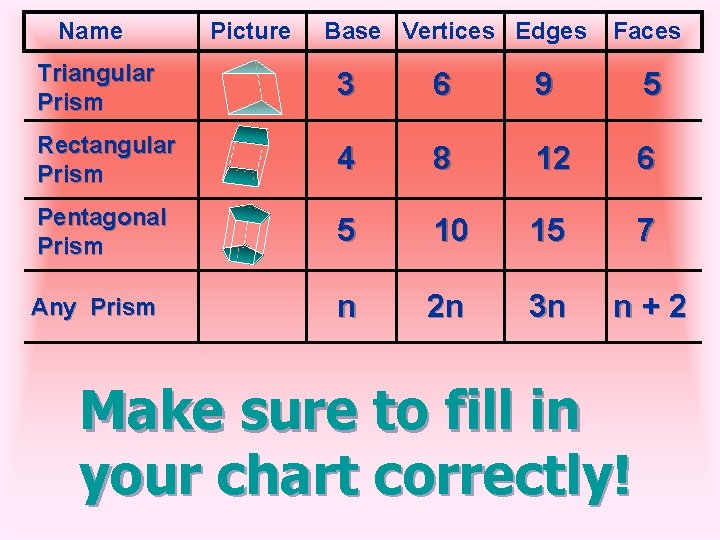

Name Picture Base Vertices Edges Faces Triangular Prism 3 6 9 5 Rectangular Prism 4 8 12 6 Pentagonal Prism 5 10 15 7 Any Prism n 2 n 3 n n+2 Make sure to fill in your chart correctly!
A pyramid is a cone with a polygon for a base. All faces joining the vertex are triangles. They are named by the shape of the base.

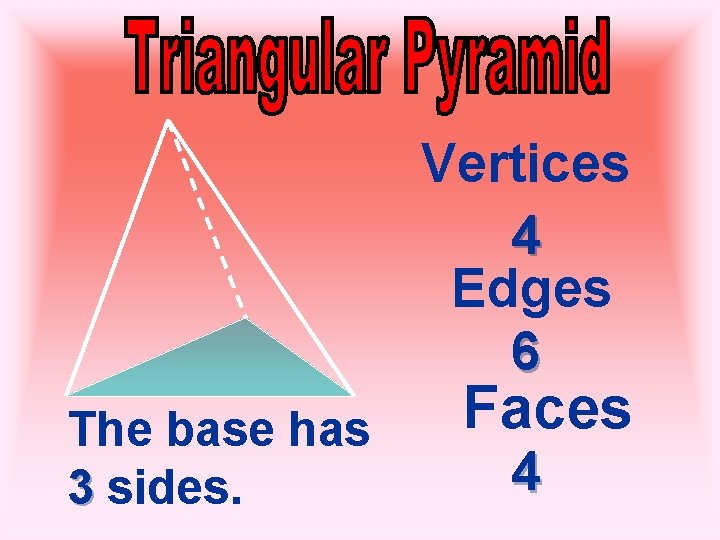

Vertices 4 Edges 6 The base has 3 sides. Faces 4
The base has 4 sides. Vertices 5 Edges 8 Faces 5
The base has 5 sides. Vertices 6 Edges 10 Faces 6

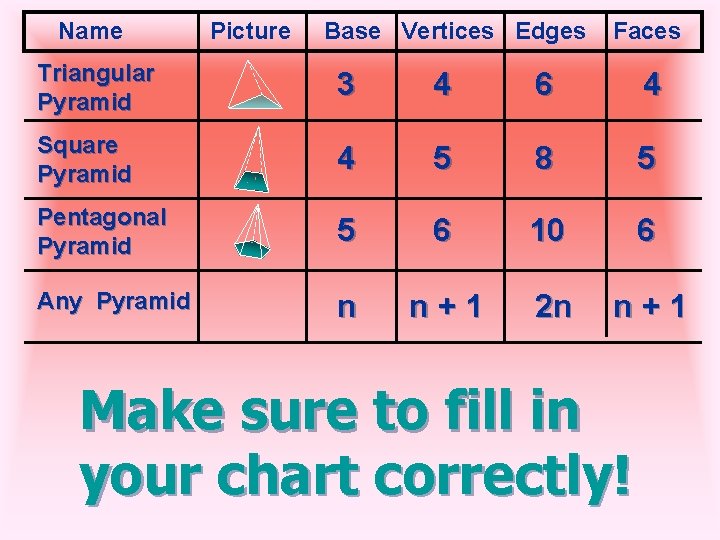

Name Picture Base Vertices Edges Faces Triangular Pyramid 3 4 6 4 Square Pyramid 4 5 8 5 Pentagonal Pyramid 5 6 10 6 Any Pyramid n n+1 2 n n+1 Make sure to fill in your chart correctly!

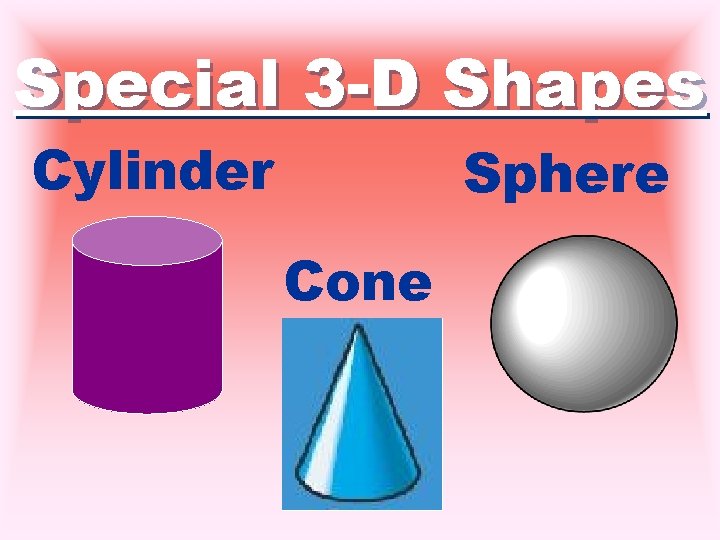

Special 3 -D Shapes Cylinder Sphere Cone

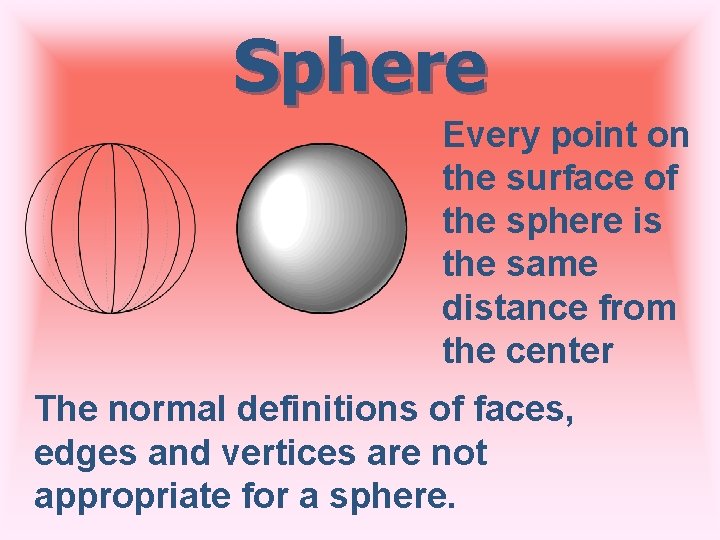

Sphere Every point on the surface of the sphere is the same distance from the center The normal definitions of faces, edges and vertices are not appropriate for a sphere.
Cone The vertex of the cone is opposite the circular base of a cone. The cone has a face, a vertex, and an edge (formed by the base and the lateral face).
Cylinder A prism with two congruent, parallel faces called bases. A cylinder has 2 faces (circular bases), edges and no vertices.
