NETLAB Configuration http netdevgroup comdocNETLABVMwareRemotePCGuide pdf http netdevgroup

NETLAB Configuration http: //netdevgroup. com/doc/NETLAB_VMware_Remote_PC_Guide. pdf http: //netdevgroup. com/ae/doc/NETLAB_Cuatro_Router_Pod. pdf VM Configuration

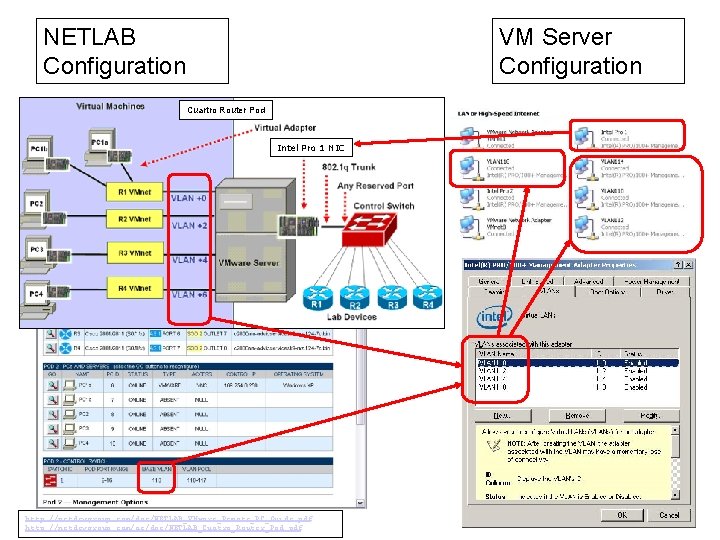

NETLAB Configuration VM Server Configuration Cuartro Router Pod Intel Pro 1 NIC http: //netdevgroup. com/doc/NETLAB_VMware_Remote_PC_Guide. pdf http: //netdevgroup. com/ae/doc/NETLAB_Cuatro_Router_Pod. pdf

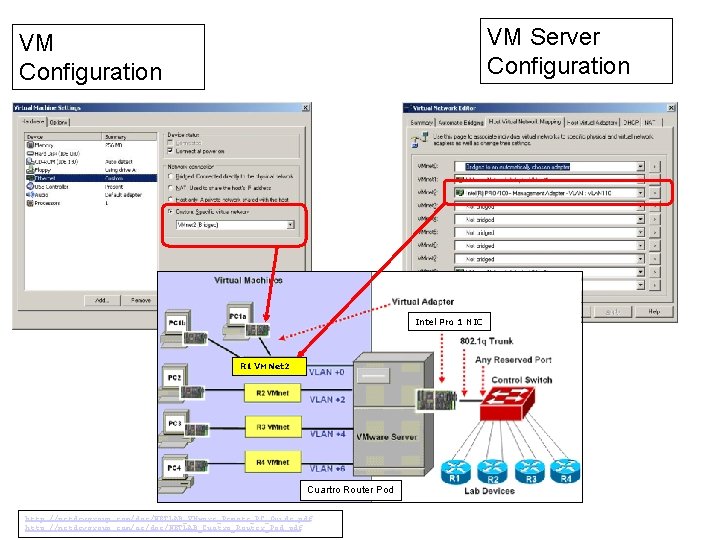

VM Server Configuration VM Configuration Intel Pro 1 NIC R 1 VMNet 2 Cuartro Router Pod http: //netdevgroup. com/doc/NETLAB_VMware_Remote_PC_Guide. pdf http: //netdevgroup. com/ae/doc/NETLAB_Cuatro_Router_Pod. pdf

NETLAB – VMware Server Configuration interface Fast. Ethernet 0/20 switchport mode trunk switchport trunk allowed vlan 110, 112, 114, 118 switchport nonegotiate no switchport access vlan no shutdown Cuartro Router Pod Intel Pro 1 NIC No IP Configuration Intel Pro 2 NIC 169. 254. 0. 250 255. 0 Reserved Port 20 (VLAN 1) NETLAB Control Switch 1 Reserved Port 21 (VLAN 1) Note: Intel Pro 1 NIC provides access to VM’s for a pod. Intel Pro 2 NIC is used by Netlab to control the VMware server. http: //netdevgroup. com/doc/NETLAB_VMware_Remote_PC_Guide. pdf http: //netdevgroup. com/ae/doc/NETLAB_Cuatro_Router_Pod. pdf

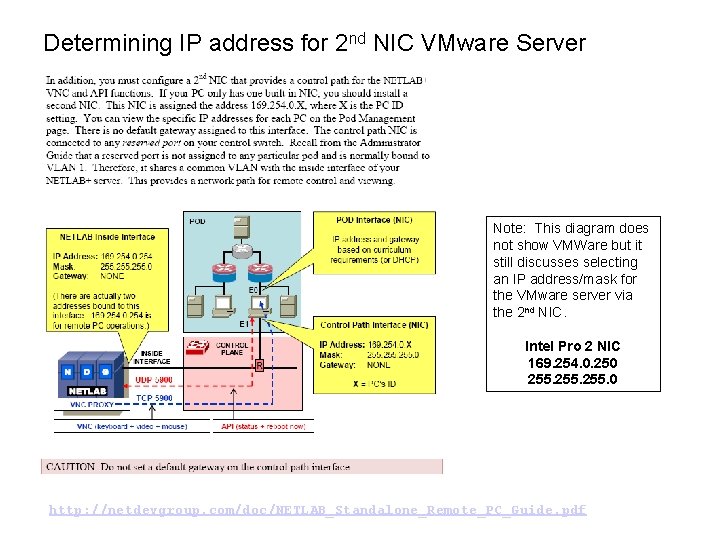

Determining IP address for 2 nd NIC VMware Server Note: This diagram does not show VMWare but it still discusses selecting an IP address/mask for the VMware server via the 2 nd NIC. Intel Pro 2 NIC 169. 254. 0. 250 255. 0 http: //netdevgroup. com/doc/NETLAB_Standalone_Remote_PC_Guide. pdf

Must read Documents: http: //netdevgroup. com/doc/NETLAB_VMware_Remote_PC_Guide. pdf http: //netdevgroup. com/ae/doc/NETLAB_Cuatro_Router_Pod. pdf http: //netdevgroup. com/doc/NETLAB_Standalone_Remote_PC_Guide. pdf
