Net. Sentron: Net to Net VPN By: Darren Critchley

Net. Sentron: Net to Net VPN By: Darren Critchley

What is VPN? A tunnel created between two endpoints where all packets sent and

What is VPN? A tunnel created between two endpoints where all packets sent and received are encrypted n Allows one to access a network securely from anywhere in the world

Who uses VPN … Net. Sentron is an Industry Standard IPSec based VPN n

Who uses VPN … Net. Sentron is an Industry Standard IPSec based VPN n Used by Cisco, IBM, Symantec, Sonic. Wall, Watch. Guard, Linksys, Dlink and many others. n Net. Sentron only uses the following data encryption algorithms: n

3 DES (Data Encryption Standard) n Encrypts data three times. Three 64 -bit keys

3 DES (Data Encryption Standard) n Encrypts data three times. Three 64 -bit keys are used, instead of one, for an overall key length of 192 bits (the first encryption is encrypted with second key, and the resulting cipher text is again encrypted with a third key).

AES (Advanced Encryption Standard) Created to replace DES n Has a fixed block size

AES (Advanced Encryption Standard) Created to replace DES n Has a fixed block size of 128 -bits and a key size of 128, 192, or 256 -bits n June 2003 the U. S. Government (NSA) announced that AES is secure enough to protect classified information up to the TOP SECRET level

DES (Data Encryption Standard) n The algorithm specification was published in January 1977 n

DES (Data Encryption Standard) n The algorithm specification was published in January 1977 n NOT Supported by the Net. Sentron n Easily cracked and considered insecure

How to Configure a Net to Net Pre. Shared Key VPN Enter VPN Hostname

How to Configure a Net to Net Pre. Shared Key VPN Enter VPN Hostname or IP Address (Dynamic DNS Service) n Enable the VPN n If using Dynamic DNS, set delay to 60 n Enabled DPD (Dead Peer Detection) if using Dynamic IP's n VPN Enabled, can now add a connection n

How to add a VPN connection – Pre-Shared Key n n Enable Remote GUI

How to add a VPN connection – Pre-Shared Key n n Enable Remote GUI access on remote Net. Sentron Click Add on the VPN Page Choose “Net-to-Net Virtual Private Network” and click Add Give the VPN a name n n n Cannot start with a number Cannot contain spaces or non-alphanumeric items Enter Remote Hostname or IP Address (Dynamic DNS Service) Adjust Local Subnet if necessary Enter the Remote Subnet Enter a Remark – describes this VPN Connection

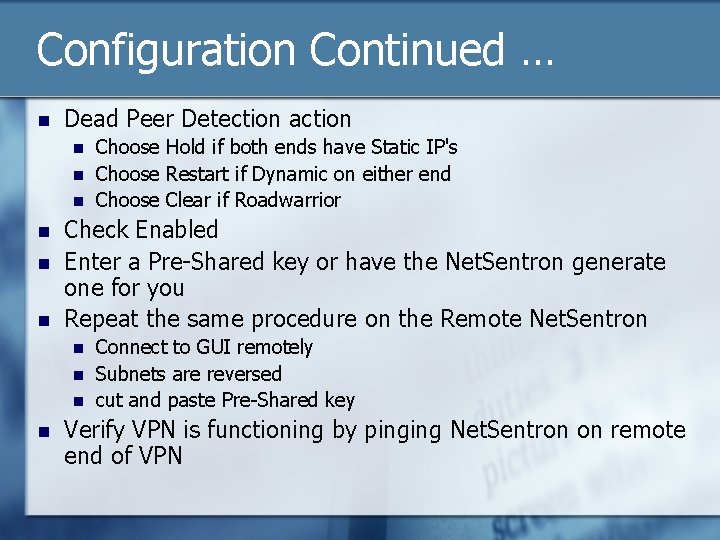

Configuration Continued … n Dead Peer Detection action n n n Check Enabled Enter

Configuration Continued … n Dead Peer Detection action n n n Check Enabled Enter a Pre-Shared key or have the Net. Sentron generate one for you Repeat the same procedure on the Remote Net. Sentron n n Choose Hold if both ends have Static IP's Choose Restart if Dynamic on either end Choose Clear if Roadwarrior Connect to GUI remotely Subnets are reversed cut and paste Pre-Shared key Verify VPN is functioning by pinging Net. Sentron on remote end of VPN
