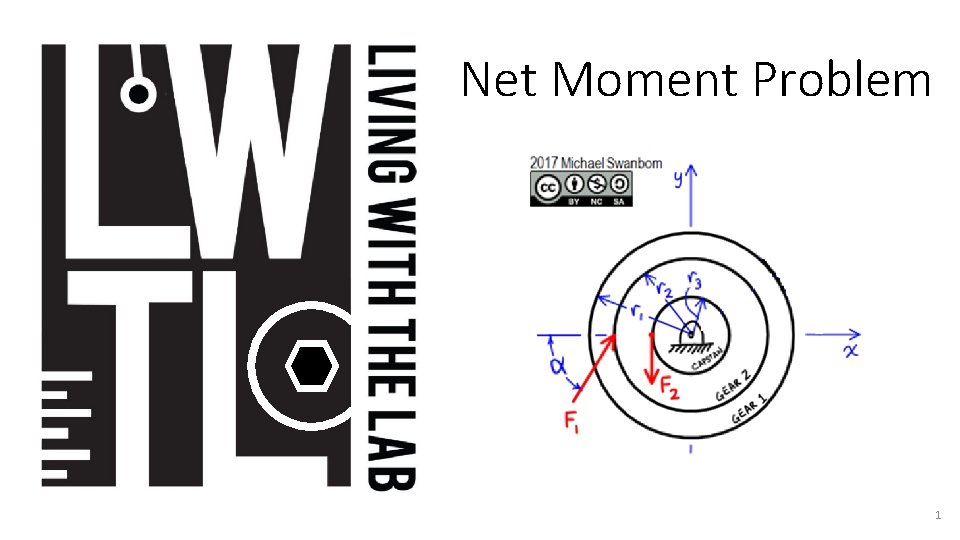

Net Moment Problem 1

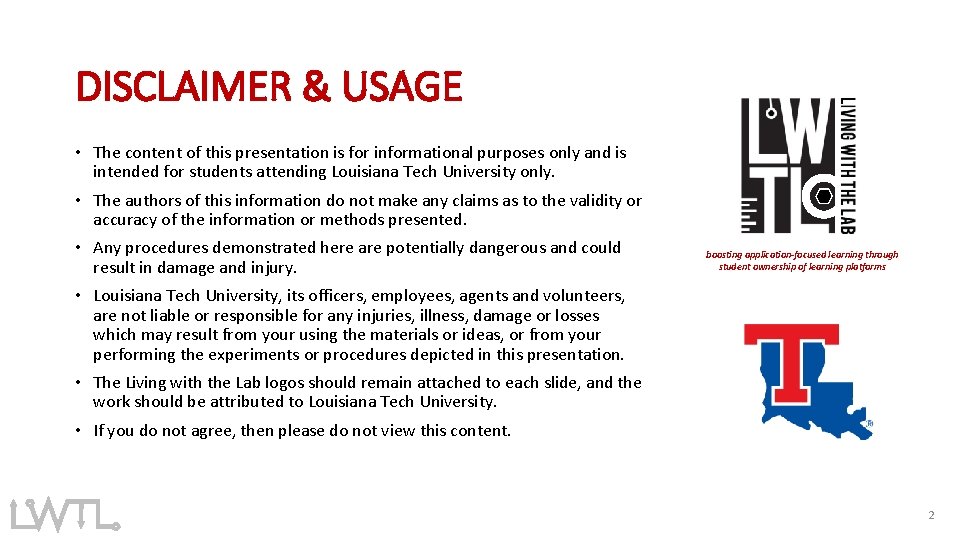

DISCLAIMER & USAGE • The content of this presentation is for informational purposes only and is intended for students attending Louisiana Tech University only. • The authors of this information do not make any claims as to the validity or accuracy of the information or methods presented. • Any procedures demonstrated here are potentially dangerous and could result in damage and injury. boosting application-focused learning through student ownership of learning platforms • Louisiana Tech University, its officers, employees, agents and volunteers, are not liable or responsible for any injuries, illness, damage or losses which may result from your using the materials or ideas, or from your performing the experiments or procedures depicted in this presentation. • The Living with the Lab logos should remain attached to each slide, and the work should be attributed to Louisiana Tech University. • If you do not agree, then please do not view this content. 2

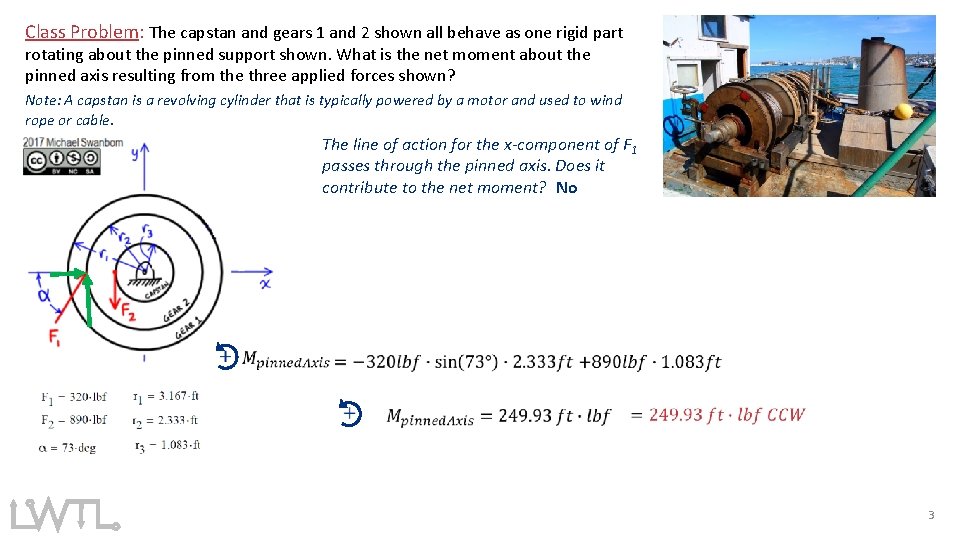

Class Problem: The capstan and gears 1 and 2 shown all behave as one rigid part rotating about the pinned support shown. What is the net moment about the pinned axis resulting from the three applied forces shown? Note: A capstan is a revolving cylinder that is typically powered by a motor and used to wind rope or cable. The line of action for the x-component of F 1 passes through the pinned axis. Does it contribute to the net moment? No 3
