Neuron Anatomy • Cell body (aka: perikaryon= cyton =soma) – single, central nucleus with large nucleolus, cell organelles • Dendrites – for receiving signals, conduct impulses toward the cell body • Axon – for sending signals, conduct impulses away from the cell body to effectors – Covered by lipid myelin

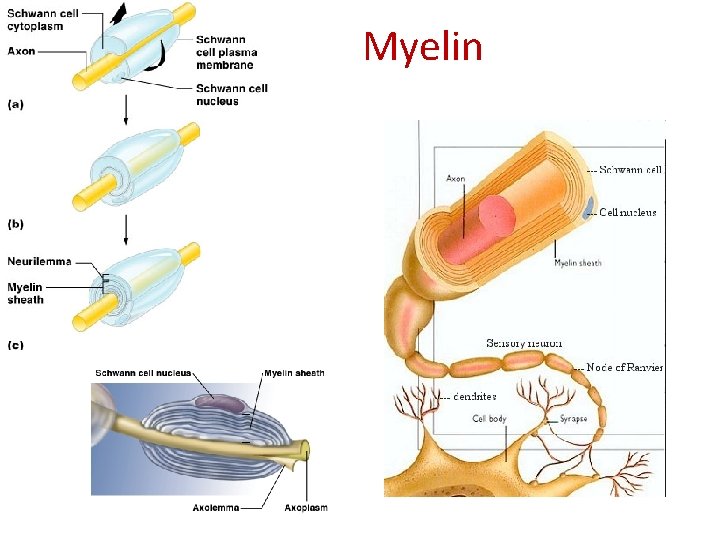

Myelin
Myelin Sheath Formation • Myelination begins during fetal development, but proceeds most rapidly in infancy.

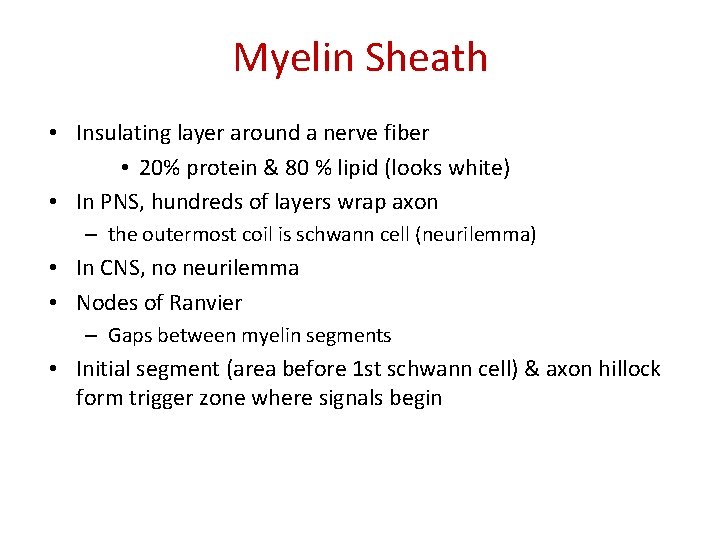

Myelin Sheath • Insulating layer around a nerve fiber • 20% protein & 80 % lipid (looks white) • In PNS, hundreds of layers wrap axon – the outermost coil is schwann cell (neurilemma) • In CNS, no neurilemma • Nodes of Ranvier – Gaps between myelin segments • Initial segment (area before 1 st schwann cell) & axon hillock form trigger zone where signals begin

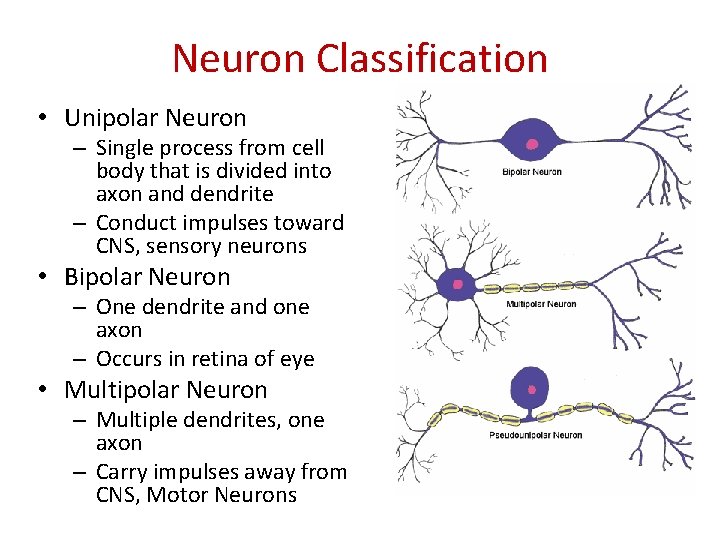

Neuron Classification • Unipolar Neuron – Single process from cell body that is divided into axon and dendrite – Conduct impulses toward CNS, sensory neurons • Bipolar Neuron – One dendrite and one axon – Occurs in retina of eye • Multipolar Neuron – Multiple dendrites, one axon – Carry impulses away from CNS, Motor Neurons

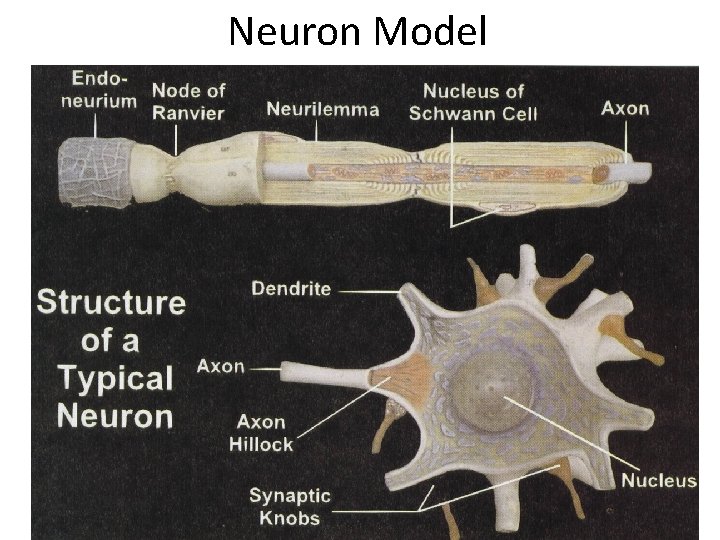

Neuron Model
Neuron Model Pre

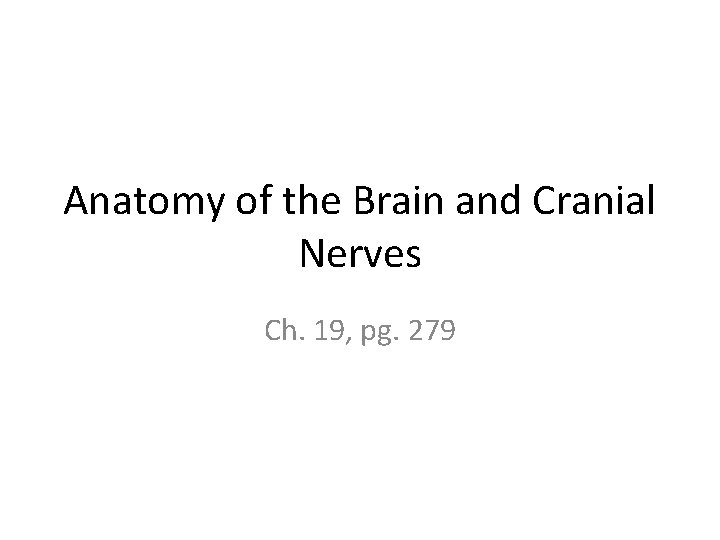

Anatomy of the Brain and Cranial Nerves Ch. 19, pg. 279
