Nervous System Histology Week 9 SB What is

Nervous System Histology Week 9 SB

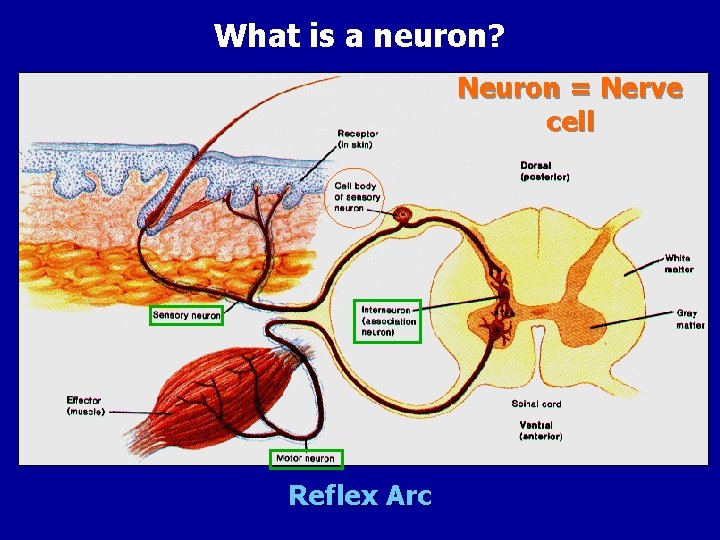

What is a neuron? Neuron = Nerve cell Reflex Arc

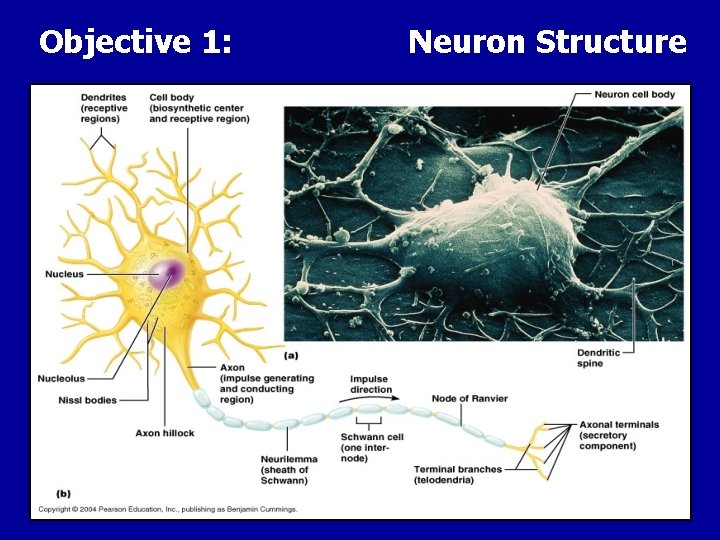

Objective 1: Neuron Structure

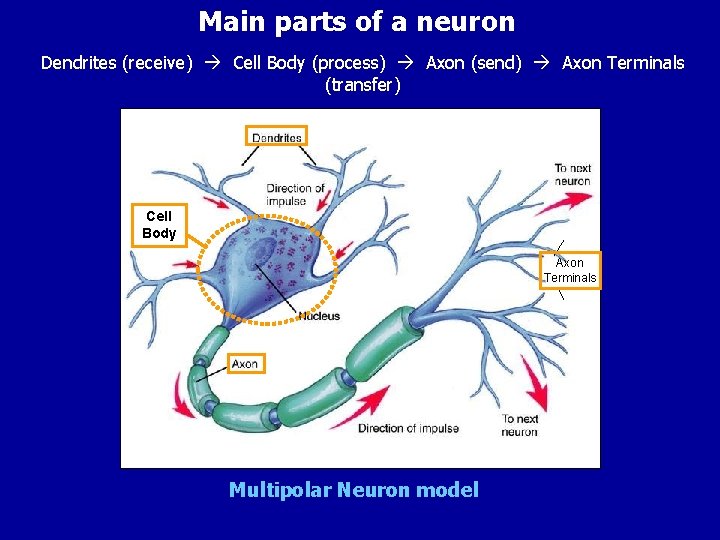

Main parts of a neuron Dendrites (receive) Cell Body (process) Axon (send) Axon Terminals (transfer) Cell Body Axon Terminals Multipolar Neuron model

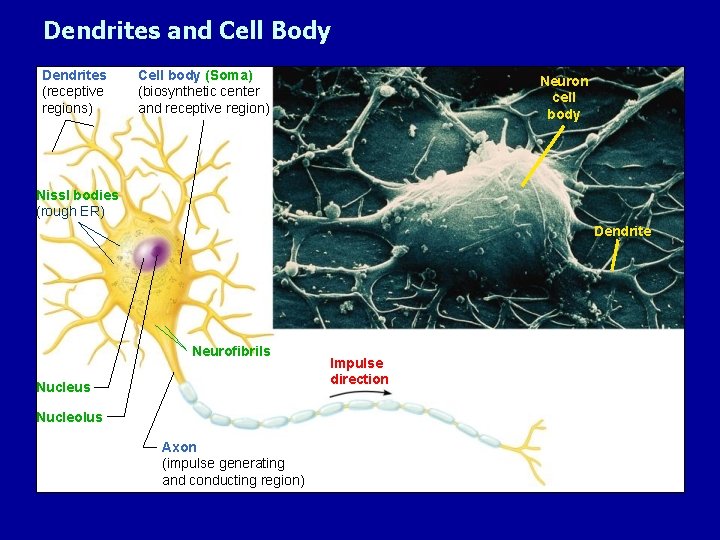

Dendrites and Cell Body Dendrites (receptive regions) Cell body (Soma) (biosynthetic center and receptive region) Neuron cell body Nissl bodies (rough ER) Dendrite Neurofibrils Nucleus Nucleolus Axon (impulse generating and conducting region) Impulse direction

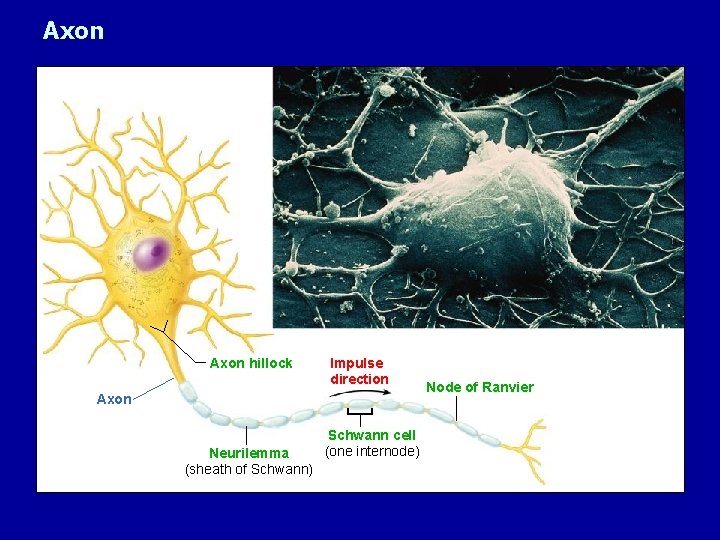

Axon hillock Impulse direction Axon Neurilemma (sheath of Schwann) Schwann cell (one internode) Node of Ranvier

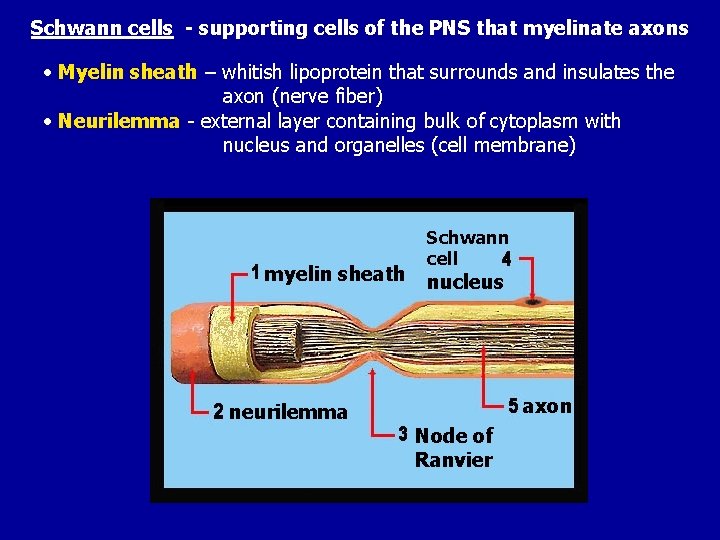

Schwann cells - supporting cells of the PNS that myelinate axons • Myelin sheath – whitish lipoprotein that surrounds and insulates the axon (nerve fiber) • Neurilemma - external layer containing bulk of cytoplasm with nucleus and organelles (cell membrane) myelin sheath neurilemma Schwann cell nucleus axon Node of Ranvier

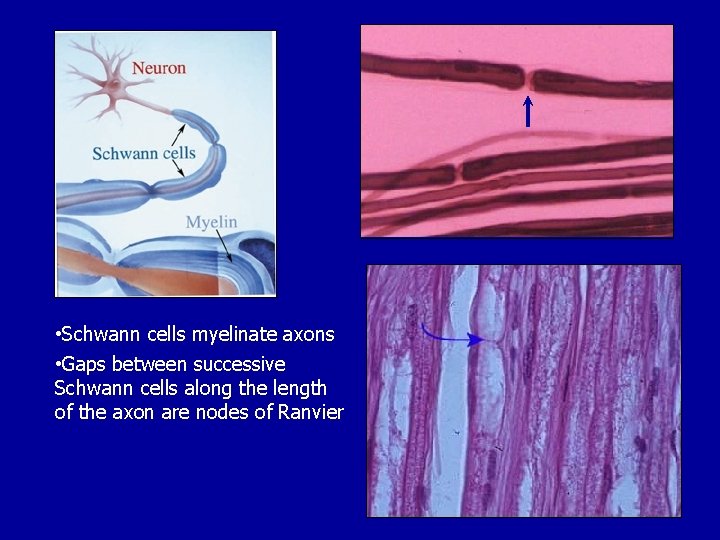

• Schwann cells myelinate axons • Gaps between successive Schwann cells along the length of the axon are nodes of Ranvier

What you need to draw and label Axon Node of Ranvier Neurilemma

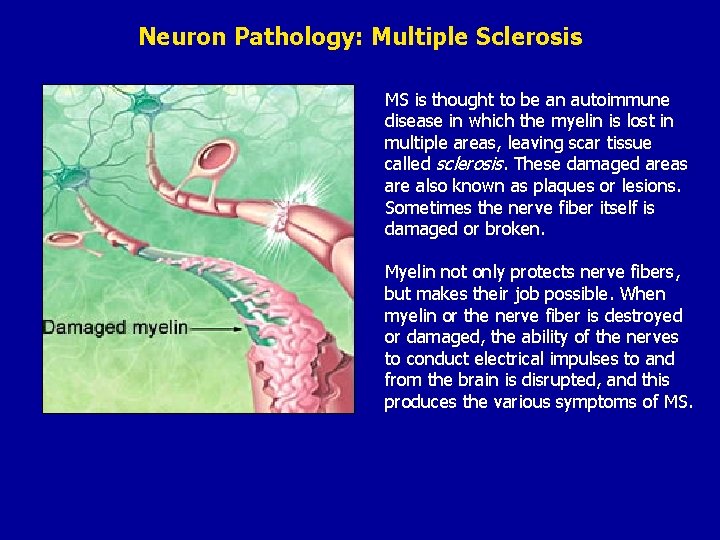

Neuron Pathology: Multiple Sclerosis MS is thought to be an autoimmune disease in which the myelin is lost in multiple areas, leaving scar tissue called sclerosis. These damaged areas are also known as plaques or lesions. Sometimes the nerve fiber itself is damaged or broken. Myelin not only protects nerve fibers, but makes their job possible. When myelin or the nerve fiber is destroyed or damaged, the ability of the nerves to conduct electrical impulses to and from the brain is disrupted, and this produces the various symptoms of MS.

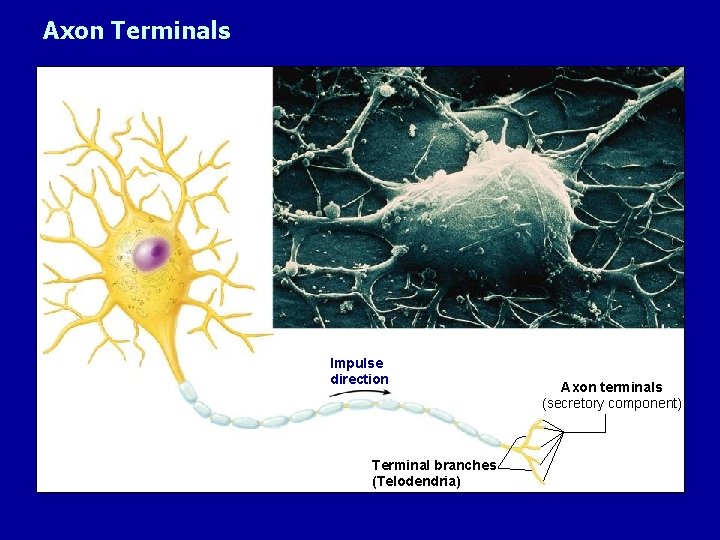

Axon Terminals Impulse direction Terminal branches (Telodendria) Axon terminals (secretory component)

Remember this? Axon (branches) Muscle fibers Axon terminals

Axon Collateral

What you need to draw and label (Nuclei) Cell Body Spinal Cord Smear – Motor Neuron

Objective 2: Neuron Classification

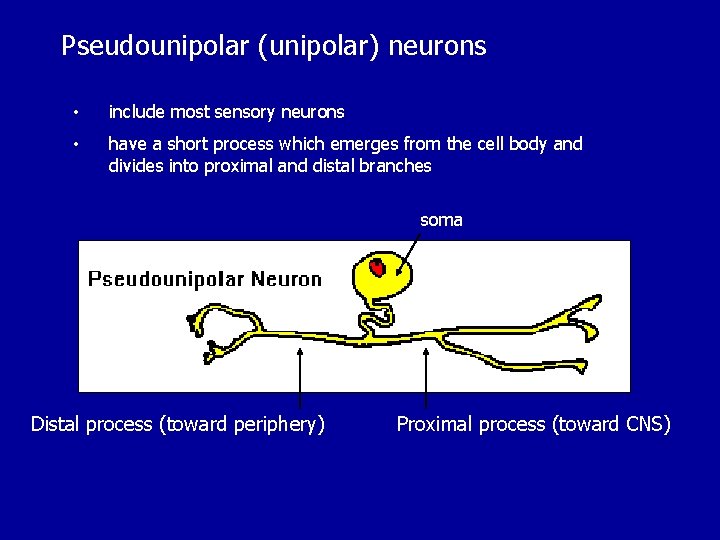

Pseudounipolar (unipolar) neurons • include most sensory neurons • have a short process which emerges from the cell body and divides into proximal and distal branches soma Distal process (toward periphery) Proximal process (toward CNS)

Pseudounipolar Cell Bodies in the Dorsal Root Ganglion of a Spinal Nerve

“This is a low power slide of the Dorsal Root Ganglion. The key to knowing that you are looking at Neurons in the DRG is by looking for the CENTRALLY LOCATED NUCLEI, indicated by the Red arrows. These large neurons are Pseudounipolar, Sensory (Afferent) Neurons. They are responsible for conveying information to the Central Nervous System. You can tell that these Neurons have huge cell bodies. These are some of the largest cells in the body. The larger the cell body, the further away the information is coming from. ” Red arrows - Central Nuclei of Sensory Neurons UMDNJ histsweb

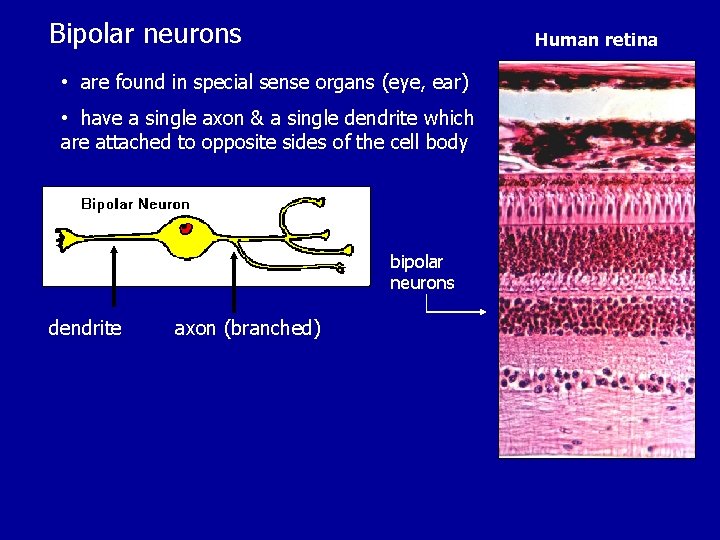

Bipolar neurons Human retina • are found in special sense organs (eye, ear) • have a single axon & a single dendrite which are attached to opposite sides of the cell body bipolar neurons dendrite axon (branched)

Multipolar neurons: • include most neurons including all motor neurons and most CNS neurons • have multiple dendrites and a single axon Purkinje cell of the cerebellum Neuron from the cerebral cortex Pyramidal cell of the hippocampus

Silver Stained Neuron In Gray Matter

Spinal Cord - Anterior Horn Glial cell nuclei Multipolar neuron

Multipolar neurons you will be drawing Pyramidal cell Hippocampus & Cerebral cortex Purkinje cell Cerebellum

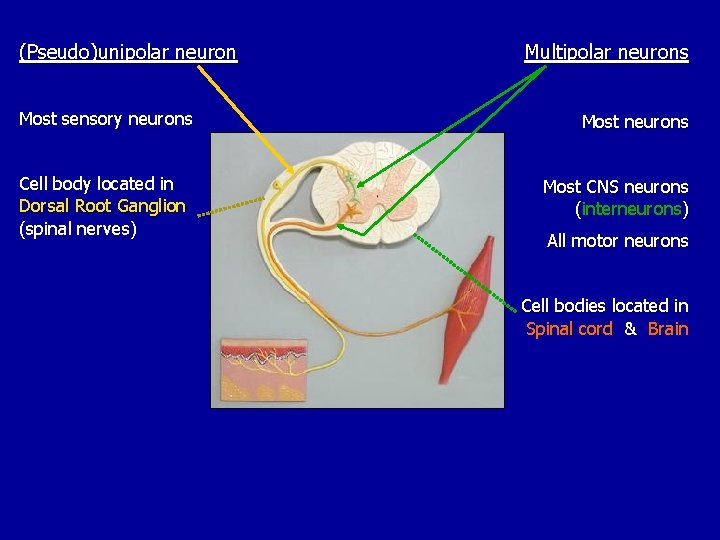

(Pseudo)unipolar neuron Most sensory neurons Cell body located in Dorsal Root Ganglion (spinal nerves) Multipolar neurons Most CNS neurons (interneurons) All motor neurons Cell bodies located in Spinal cord & Brain

Objective 3: Nerves are structures of the peripheral nervous system (PNS) that consist of axons and dendrites bundled together by connective tissue Nerves

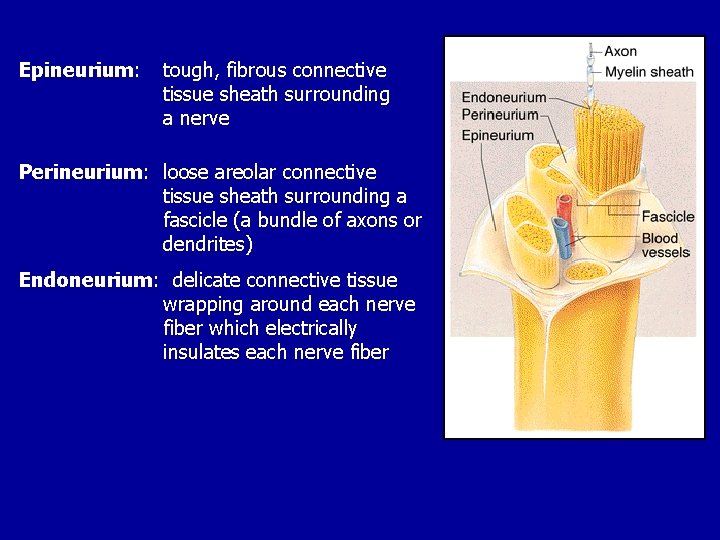

Epineurium: tough, fibrous connective tissue sheath surrounding a nerve Perineurium: loose areolar connective tissue sheath surrounding a fascicle (a bundle of axons or dendrites) Endoneurium: delicate connective tissue wrapping around each nerve fiber which electrically insulates each nerve fiber

Perineurium Endoneurium Fascicle Epineurium Electron micrograph image Nerve fiber (axon)

a = epineurium b= perineurium

perineurium endoneurium axon

EN = endoneurium Ax = axon NR = node of Ranvier My = myelin sheath
