Nervous System Histology
In Lab Today: • Draw & identify the portions of a multipolar neuron from slides • Draw & differentiate between pseudounipolar, bipolar & multipolar neurons from slides • Identify the components of the nerve cross section using diagrams & slides • Identify the portions of a multipolar neuron from the models
What is a neuron? Neuron = Nerve cell Reflex Arc

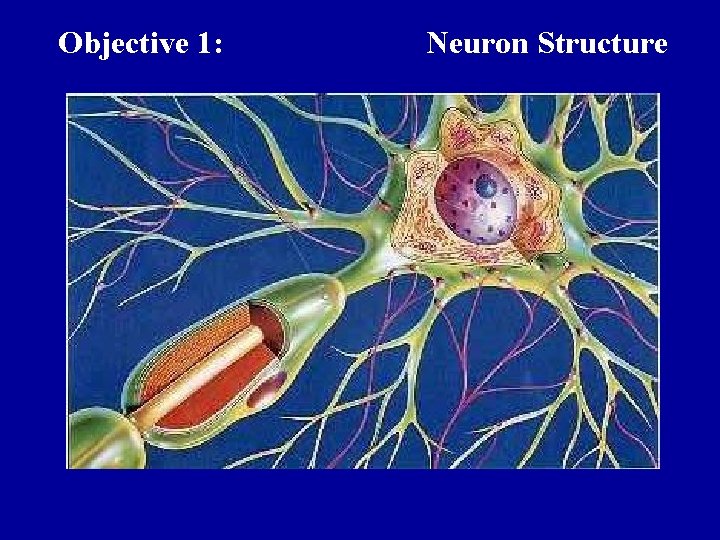

Objective 1: Neuron Structure
Main parts of a neuron Dendrites (receive) Cell Body (process) Axon (send) Axon Terminals (transfer) Multipolar Neuron model Cell Body Axon Terminals
Dendrites (receptive regions) Cell body (biosynthetic center and receptive region) Neuron cell body Nissl bodies (rough ER) Dendrite Neurofibrils Nucleus Nucleolus Axon (impulse generating and conducting region) Impulse direction

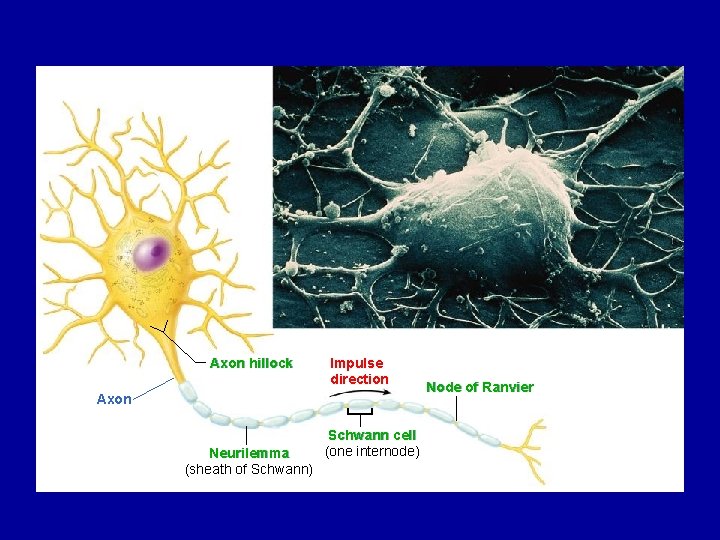

Axon hillock Impulse direction Axon Neurilemma (sheath of Schwann) Schwann cell (one internode) Node of Ranvier

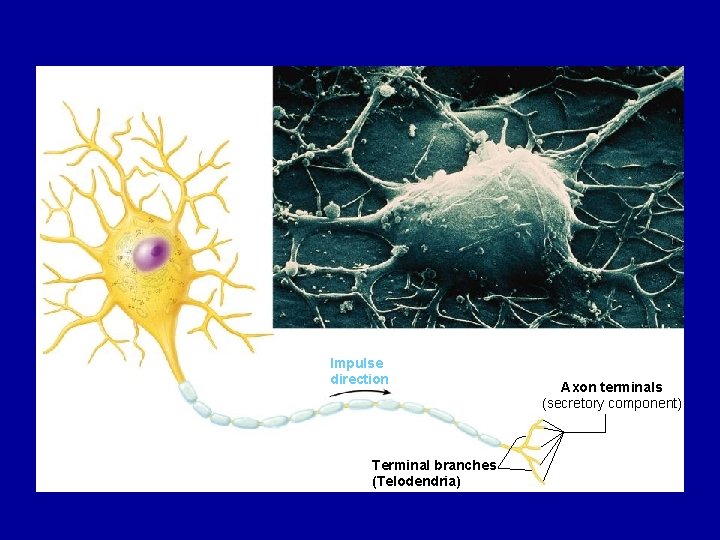

Impulse direction Terminal branches (Telodendria) Axon terminals (secretory component)

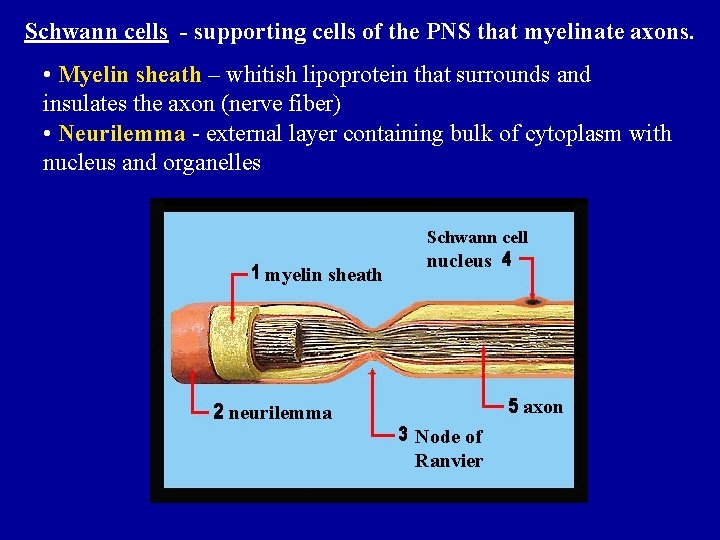

Schwann cells - supporting cells of the PNS that myelinate axons. • Myelin sheath – whitish lipoprotein that surrounds and insulates the axon (nerve fiber) • Neurilemma - external layer containing bulk of cytoplasm with nucleus and organelles Schwann cell myelin sheath nucleus axon neurilemma Node of Ranvier
Nodes of Ranvier Gaps between successive Schwann cells along the length of the axon Microscopic Views
What you need to draw and label Axon Node of Ranvier Neurilemma
What you need to draw and label Cell Body Spinal Cord Smear – Motor Neuron
Objective 2: Neuron Classification

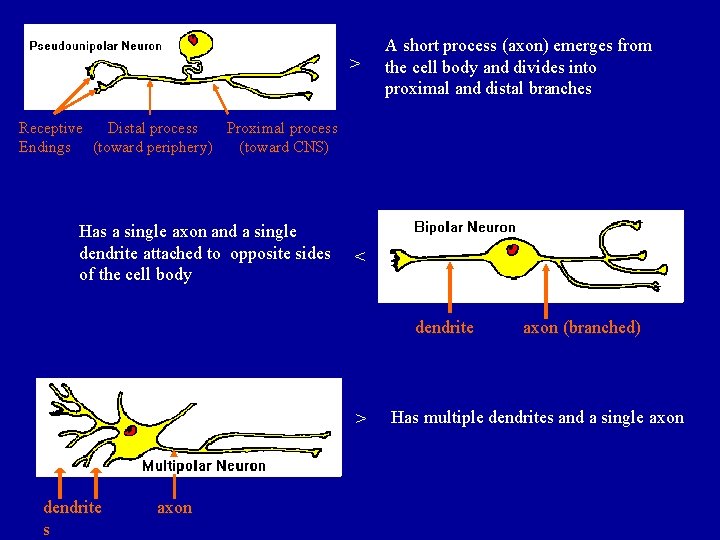

> A short process (axon) emerges from the cell body and divides into proximal and distal branches Receptive Distal process Proximal process Endings (toward periphery) (toward CNS) Has a single axon and a single dendrite attached to opposite sides of the cell body < dendrite > dendrite s axon (branched) Has multiple dendrites and a single axon
(Pseudo)unipolar neuron Most sensory neurons Cell body located in Dorsal Root Ganglion (spinal nerves) Multipolar neurons Most CNS neurons (interneurons) All motor neurons Cell bodies located in Spinal cord & Brain
Bipolar neurons Found in special sense organs (eye, ear, nose, tongue) Example: Retina
HISTOLOGY (Pseudo)uipolar neurons Bipolar neurons Multipolar neurons
Pseudounipolar cell bodies in the dorsal root ganglion of a spinal nerve
Centrally located nuclei Dorsal Root Ganglion Pseudounipolar cell bodies Spinal Cord
Bipolar neurons in the human retina Bipolar neurons
Bipolar neuron nuclei axons
Note: Multipolar neurons have diverse morphologies You do not need to memorize all these
Some Examples of Motor Neurons from the spinal cord (smear) Neuron from the cerebral cortex
Multipolar neurons you will be drawing Pyramidal cell Hippocampus & Cerebral cortex Purkinje cell Cerebellum
Pyramidal cell (Low Power – Cerebrum)
Purkinje cell (Low Power - Cerebellum)

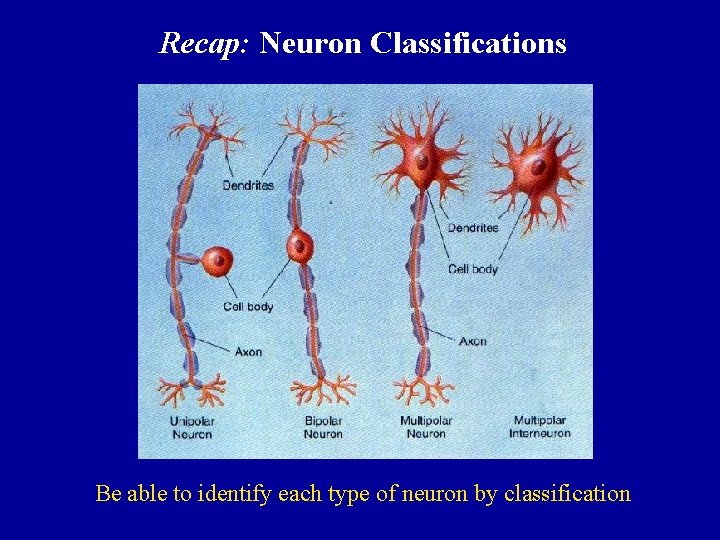

Recap: Neuron Classifications Be able to identify each type of neuron by classification
Objective 3: Nerves are structures of the PNS that consist of axons and dendrites bundled together by connective tissues Nerve Structures
NERVE Epineurium: tough, fibrous connective tissue sheath surrounding a nerve Perineurium: loose, areolar connective tissue sheath surrounding fascicles Fascicle: a bundle of axons or dendrites Endoneurium: delicate connective tissue wrapping around each nerve fiber; the endoneurium electrically insulates each nerve fiber
Perineurium Endoneurium Fascicle Epineurium Electron micrograph image Nerve fiber (axon)
LAB ACTIVITY: Draw and label the components of the nerve cross
