NELSON LAWN TENNIS CLUB NELSON CITY COUNCIL JOINT

NELSON LAWN TENNIS CLUB NELSON CITY COUNCIL JOINT COMMUNITY CLUB FACILITIES DEMONSTRATED PARTICIPATION DEVELOPMENT 150 Members, QUADRUPLING OF COMMUNITY PARTICIPATION NEW CLUBHOUSE, RELOCATABLE, LOW IMPACT, NO COST Timeframe – Completion September 2013 Costs – Total Building Costs met by NLTC Size – Club house 166 m 2 - 79 m 2 common area/145 m 2 deck

NELSON LAWN TENNIS CLUB

THE SITE/LOCALITY PLAN

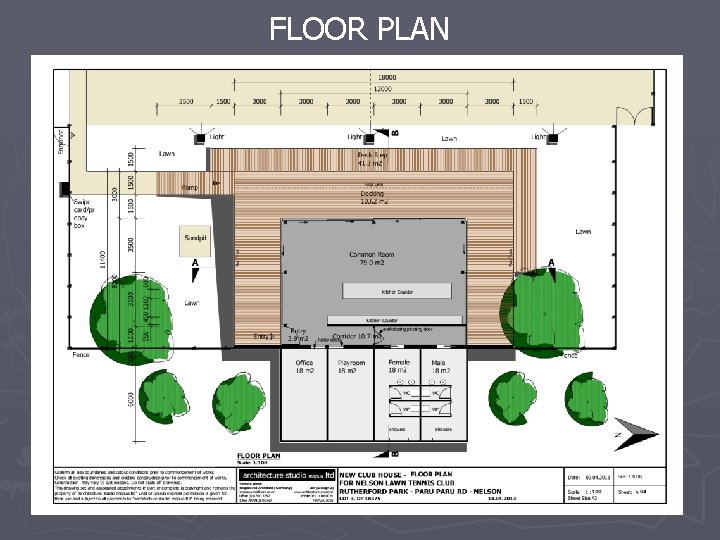

FLOOR PLAN

ELEVATION NORTH & EAST

ELEVATION SOUTH & WEST

CROSS SECTION A-A & B-B

NLTC/NCC Agreements/Process Seperate ground lease required for the site 5 year lease with 1 year removal/relocation option at NCC request Building issues Funding all provided by NLTC Clubhouse removable under terms noted above Color regime complimentary with precinct All maintenance and operational building costs NLTC account NCC only accountable for services connections Possibility of combining petanque Project management Assistance from NCC to tie in services

contact details: head contractor designer A 1 homes Tasman architecture studio mapua ltd Shane Mickell Director simone wenk registered architect (germany) lbp (design 2) 98 Washbourn Drive Richmond, Nelson 7020 Shane. mickell@a 1 homes. co. nz www. a 1 homes. co. nz 136 a aranui road mapua, nelson 7005 simonewenk@xtra. co. nz www. architecture-sw. co. nz Phone (03) 547 7301 Mobil 021 611 001 phone (03) 540 3282 mobil 0211 049 039 .
