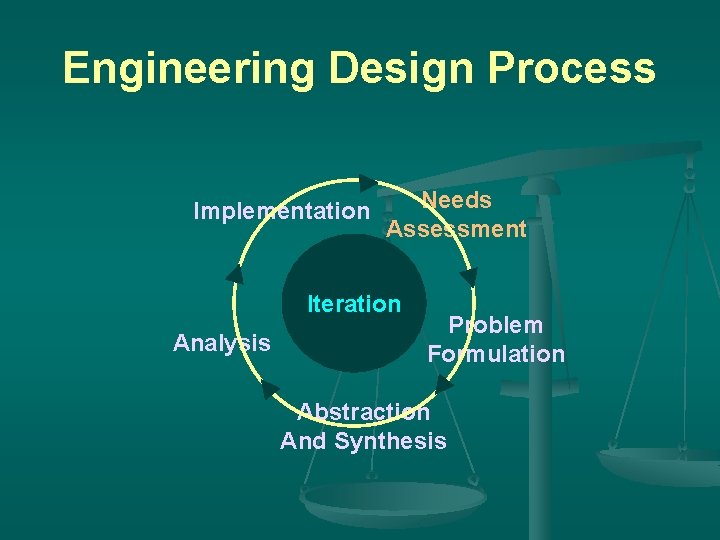

Engineering Design Process Implementation Needs Assessment Iteration Analysis Problem Formulation Abstraction And Synthesis

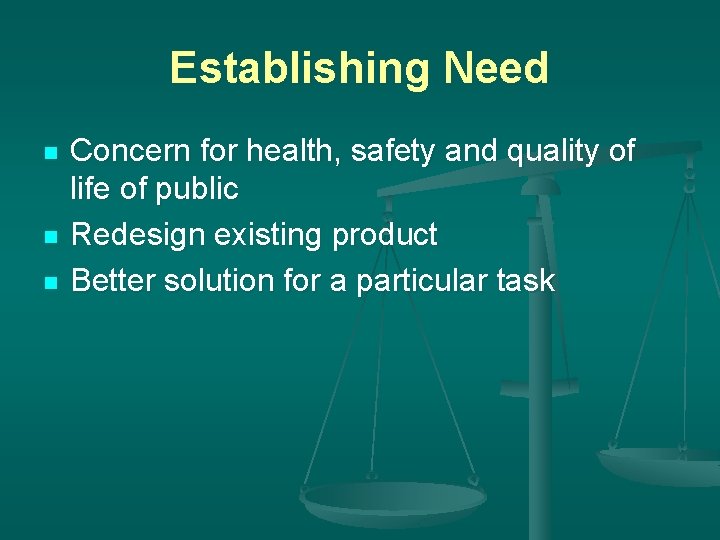

Establishing Need n n n Concern for health, safety and quality of life of public Redesign existing product Better solution for a particular task
All Problems are not Equal

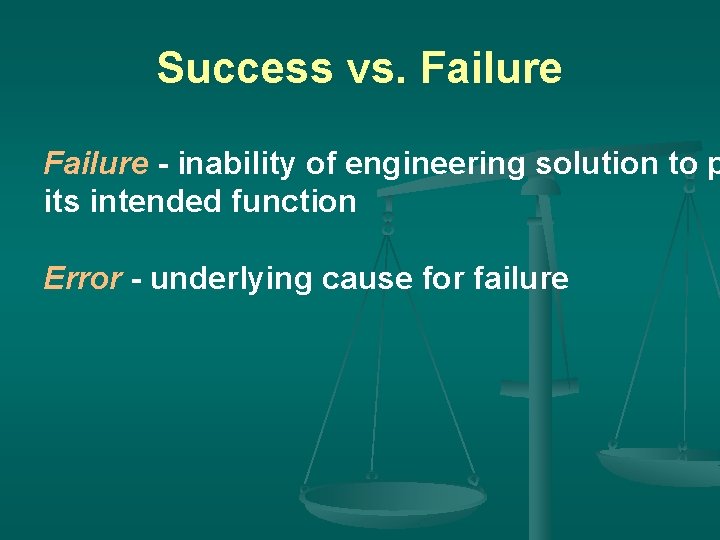

Success vs. Failure - inability of engineering solution to p its intended function Error - underlying cause for failure
Causes of Failure n n n Concrete level - Specific physical source (O-ring seal in Challenger) Process Level - Invalid assumptions or flawed execution (O-ring gaskets and putty assumed sufficient on Challenger) Perspective Level - Flawed value system (Manufacturer of Challenger boosterrocket overrode engineering recommendations)
Design Proposal Engineers often prepare formal design propo to justify expenditure of time, money and eff • Why? • Who? • Where? • How? • When? • What? • How much?

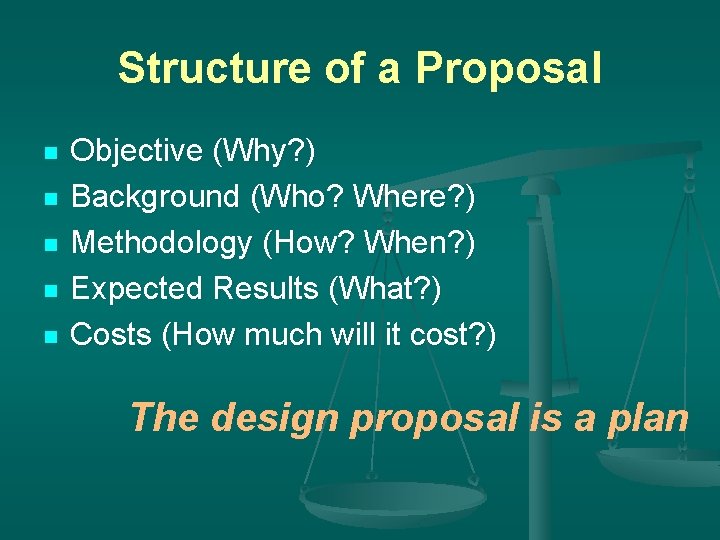

Structure of a Proposal n n n Objective (Why? ) Background (Who? Where? ) Methodology (How? When? ) Expected Results (What? ) Costs (How much will it cost? ) The design proposal is a plan
Methodology n n Approach Tasks Who will perform tasks Schedule of completion
Gantt Charts Tasks Gather Data Conceptual Design Select Alternative Reporting Q 1 Q 2 Q 3 Q 4
