Ne SSI II SAM Sensor Actuator Manager SAM

Ne. SSI II - SAM Sensor Actuator Manager (SAM) Comparison of Hardware Choices CPAC May 2004, Seattle WA Page 1

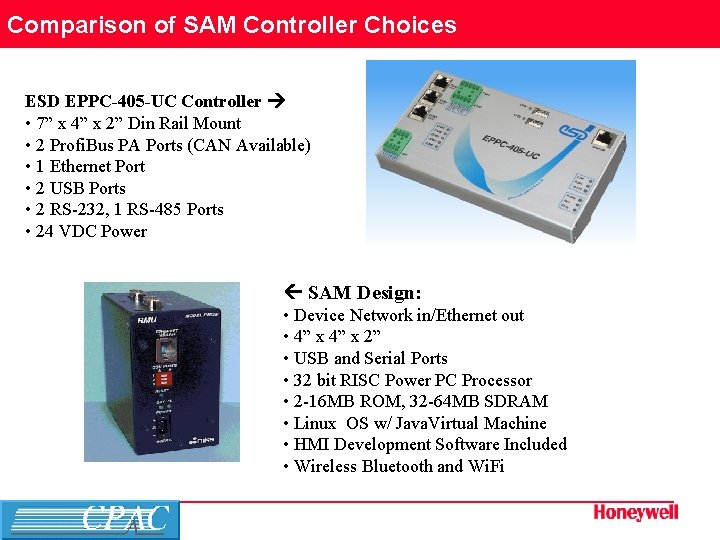

Comparison of SAM Controller Choices ESD EPPC-405 -UC Controller • 7” x 4” x 2” Din Rail Mount • 2 Profi. Bus PA Ports (CAN Available) • 1 Ethernet Port • 2 USB Ports • 2 RS-232, 1 RS-485 Ports • 24 VDC Power SAM Design: • Device Network in/Ethernet out • 4” x 2” • USB and Serial Ports • 32 bit RISC Power PC Processor • 2 -16 MB ROM, 32 -64 MB SDRAM • Linux OS w/ Java. Virtual Machine • HMI Development Software Included • Wireless Bluetooth and Wi. Fi Page 2

Preliminary Investigation of SAM Controller Choices Softing Controller • 3 Profi. Bus PA Ports (CAN Available) • 1 Ethernet Port • Profi. Bus OPC Server • 4. 4” x 5. 2” • RS-232 • 24 VDC Power Automation. Direct 205: • Device. Net in/Ethernet out • 3” x 4” x 6” • Expandable local I/O, Serial Ports • Windows CE OS • Flowchart Programming • Visio HMI/Control Software Page 3

Comparison of SAM Controller Choices |CPU|Enet|ISnet| I/O| Honeywell Experion PKS C 200 Controller • FF/Profi. Bus in/Ethernet or Control. Net out • Direct Connectivity to Honeywell Architectures • Local I/O and Serial Ports • Integrated Ne. SSI applications Versa. Logic PC 104: • PC 104 Architecture • Profi. Bus Network in/Ethernet out • 6” x 4” x 2” • USB, Serial Ports • Fully PC Compatible • All Windows software or Linux • Lab. View ready • HMI Development Software Included • Wi. Fi 802. 11 Page 4
