NCSX C 1 Modular Coil Test Data Acquisition

NCSX - C 1 Modular Coil Test -Data Acquisition Overview • • System Provided Component details Configuration Data Acquisition Parameters 10/26/2020 R. Gernhardt 1

System Provided • Has Data Acquisition for: – 16 Strain Gauge Channels (15 assigned to coil SG’s) – 8 Thermocouples (6 assigned to coil TC’s, 1 TC records chamber temperature) – CHI current monitoring (uses 1 SG channel) – EOP-SOP monitoring (uses 1 TC channel) • Uses National Instruments SCXI signal conditioning hardware and Vi Logger data logging software. • Provides for Real-time and Historical viewing/printing of data plots via PC running Vi Logger. • Exports data files as CSV type file for analysis by 3 rd party plotting software. ( PPPL will supply CSV data files to ORNL) 10/26/2020 R. Gernhardt 2

System Block Diagram TFTR BASEMENT TEST AREA RACK CTCB-EE-500 DATA ACQUISTION PATCH PANELS SCXI Sig. Condition PCI-6030 E Strain gauges (15 ) Thermocouples (7 ) Windows XP E-net NSCX-PC 01 National Instrmt’s VI Logger Mini TC TC F/O XCVR Tx Rx Rx-B 3 Tx-B 4 F/O RCVR A-log Rx CHI-I F/O RCVR Dig Rx SOP A 1 (SMA) (ST) Strain gages – Thermocouples isolated from Coil Form A 3 SPARE (4) 2 6 Rack Power Isolated 120 VAC Fiber Bundles SG SG TC . SG Rack Reference To Bldg Steel Topaz Grounding per Raki peer review 6/13/06 Pull box splices MG CONTROL ROOM 3 P Lemo Coil Form Ref. to Bldg Steel 1 k (14) Cooling Tubes Ref. to Bldg Steel SG TEST COIL TC SG CHI POWER SUPPLY FCPC JUNCTION AREA SAFE AREA (ST) Windows XP CHI-I E-net TF Joint Test PC (SMA) ENGR’G. 10 Network A-log Tx F/O XMIT SOP SPARE (4) Dig Tx F/O XMIT XP Remote Desktop 10/26/2020 R. Gernhardt 3

Sensor Specifications • Thermocouples: – Type E, #24 AWG, PPPL fabricated. – Connectors-Miniature, Omega SMPW-E-M – Extension TC Cable-Type E, 24 AWG • Strain Gauges: – H-Series – Manufacturer: Micro-Measurements • Type: H 06 A-AC 1 -125 -700 • R= 700 ohms • GF= 2. 07 + 1% (nominal) • MAX strain +/- 1. 5% = +/- 15000 m. E 10/26/2020 R. Gernhardt 4

NI SCXI Signal Conditioning Hardware NI SCXI-1001 12 Slot Chassis • Expandable to 96 channels (8 ch / mod x 12 slot) • 1 k. Hz Max scan rate for 96 acquired channels with 100 k. Hz DAQ card NI SCXI-1520 Universal Strain Gauge modules (8 ch/ea) • NIST-traceable calibration certificate • Programmable gain, excitation, and filters per channel • Automatic null compensation in hardware • Quarter, half, and full-bridge completion • Two independent stunt-calibration circuits per channel The NI SCXI-1520 is an 8 -channel universal strain gauge input module that offers all of the features you need for simple or advanced strain measurements. With this single module, you can read signals from strain gauges, force sensors, torque sensors, and load cells. Each SCXI-1520 is shipped with a NIST-traceable calibration certificate, and includes an onboard reference for automatic calibration. 10/26/2020 NI SCXI-1112 Thermocouple Module (8 ch) • Programmatic input and overvoltage protection • Multiplex all channels into a single channel of a DAQ device • Onboard calibration reference • Hardware scanning for cold-junction sensors • Add modules to increase channel count NI SCXI-1102 and SCXI-1112 are designed for high-accuracy thermocouple measurements. They share a common architecture where each input channel includes an instrumentation amplifier and a 2 Hz low-pass filter. With this architecture, you can scan the SCXI-1102 or SCXI-1112 analog input channels along with the input channels of other modules at rates up to 333 k. S/s (3 us per channel). You can also scan the cold-junction compensation sensor along with other input channels. The SCXI-1102 can also acquire millivolt, and 0 to 20 m. A, and 4 to 20 m. A current input signals. R. Gernhardt 5

NI Vi Logger data logging software 10/26/2020 R. Gernhardt 6

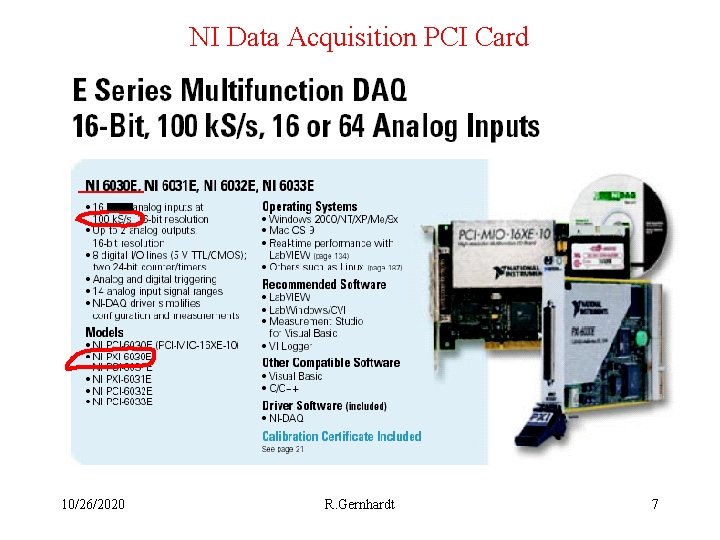

NI Data Acquisition PCI Card 10/26/2020 R. Gernhardt 7

Sensor ID / Locations NCSX Modular Coil Test • Strain gauge ID’s per ORNL test plan document • Thermocouple ID’s per ORNL test plan document 10/26/2020 R. Gernhardt 8

Strain Gage ID’s Date 6/12/06 Strain Gage ID’s Gage locations per K. Freudenberg, ORNL • 15 gages read at a time • 5 on winding pack • 10 on casting • 5 redundant Gage not installed 10/26/2020 R. Gernhardt 9

Date 6/12/06 Thermocouple ID’s • 7 TC’s read at a time 10/26/2020 R. Gernhardt 10

STRAIN GAUGE MODULE Strain Gauge Configuration Chassis Gnd Belden 8723 3 pin LEMO NC WH RD GN NC WH 1 WH RD 2 RD Twisted #24 AWG Active BK BK 1 Bulkhead Crimp side view Device&Interface, Module 1 &2, SG Channel 0 -14, Properties 10/26/2020 3 2 3 BK PATCH PANEL Dummy STRAIN GAUGES Data Neighborhood, Virtual Channels, SG Channel 0 -14, Properties R. Gernhardt 11

Thermocouple Configuration THERMOCOUPLE MODULE SCXI-1112 Thermocouple Module Channels 0 -5 TC-1 -6 EXTENSION CABLE TYPE – E Miniature TC connector + - PATCH PANEL # 24 AWG THERMOCOUPLES TYPE – E # 24 AWG Miniature TC connectors VI VI + RD RD - Data Neighborhood, Virtual Channels, TC Channel 0 -6, Properties Device&Interface, Module 3, TC All Channels, Properties E- 10/26/2020 R. Gernhardt 12

STRAIN GAUGE MODULE CHI Current Configuration Chassis Gnd Belden 8723 3 pin LEMO NC NC RD RD BK BK 1 2+ 3 - ANALOG F/O RCVR CHI CURRENT + 10 V out =50 k. A Banana plug Miniature TC connector WH 5. 6 k GN 10 ohm Device&Interface, Module 2, SG Channel 7, Properties 10/26/2020 WH + SCXI-1112 Thermocouple Module - Channel 7 TC-8 GN + - DIGITAL F/O RCVR SOP / EOP 5 V out =Gate True Data Neighborhood, Virtual Channels, SG Channel 7, Properties R. Gernhardt 13

SOP/EOP Configuration Chassis Gnd Belden 8723 NC NC RD RD BK BK Miniature TC connector WH 5. 6 k GN 10 ohm Device&Interface, Module 1 &2, SG Channel 1 -15, Properties 10/26/2020 3 pin LEMO THERMOCOUPLE MODULE + - Channel 7 TC 8 -SOP 2+ 3 - ANALOG F/O RCVR CHI CURRENT + 10 V out =50 k. A Banana plug WH SCXI-1112 Thermocouple Module 1 GN + - DIGITAL F/O RCVR SOP / EOP 5 V out =Gate True T(-2 sec) to EOP Data Neighborhood, Virtual Channels, SG Channel 1 -15, Properties R. Gernhardt 14

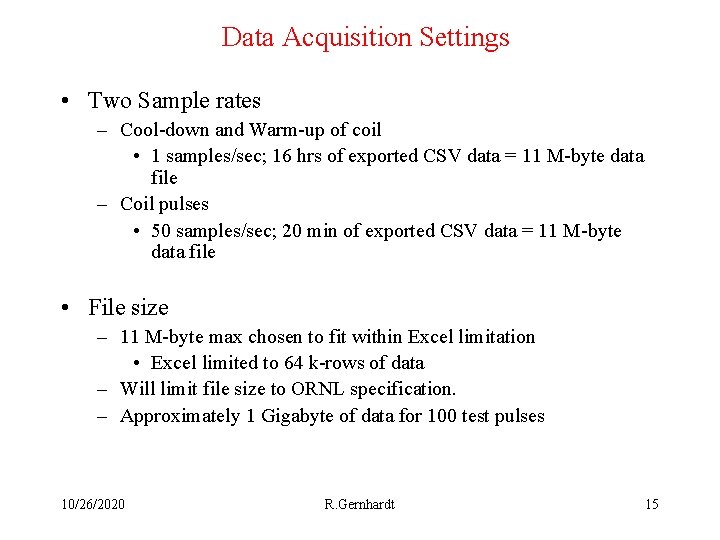

Data Acquisition Settings • Two Sample rates – Cool-down and Warm-up of coil • 1 samples/sec; 16 hrs of exported CSV data = 11 M-byte data file – Coil pulses • 50 samples/sec; 20 min of exported CSV data = 11 M-byte data file • File size – 11 M-byte max chosen to fit within Excel limitation • Excel limited to 64 k-rows of data – Will limit file size to ORNL specification. – Approximately 1 Gigabyte of data for 100 test pulses 10/26/2020 R. Gernhardt 15

Data Acquisition Scenario Cool-down File # 1 Shot Pulses 2 3 4 5 6 7 8 Warm-up 9 10 11 12 13 # • Cool-down of coil – Acquire data at slow rate (1 sample/sec) from ambient to 77 degrees Kelvin temperature. Files labeled “Date/Time/Cooldown”. • Coil Shot Pulse – Acquire data at fast rate (50 sample/sec) for each shot pulse. Each 20 minute shot file labeled “Date/Time/Shot number”. • Warm-up of coil – Acquire data at slow rate (2 sample/sec) from 77 degrees Kelvin to ambient temperature. Files labeled “Date/Time/Warmup”. 10/26/2020 R. Gernhardt 16
