NC 300 to NC 300 II A Major

NC 300 to NC 300 II A Major Milestone BROUGHT TO YOU BY:

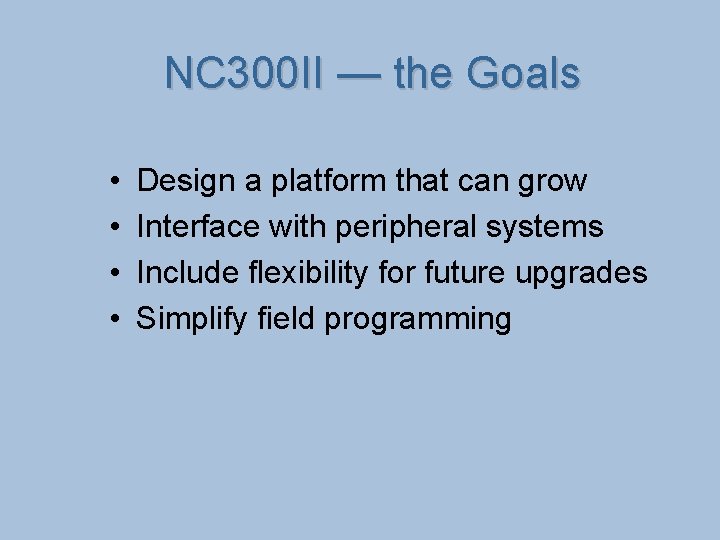

NC 300 II — the Goals • • Design a platform that can grow Interface with peripheral systems Include flexibility for future upgrades Simplify field programming

NC 300 II — Features • CPE Station Capacity NC 351= 256 points NC 351/2= 512 points • CPE Master Capacity No expander card needed as a separate purchase. 8

NC 300 II — Features • Extended Master wiring/ Field wiring Distance 1000 feet • Polling Speed 8 times/second

NC 300 II — Features • Call Display 15" VGA (COLOR) • Optional LCD Display 40 characters by 2 lines

Color Display!

Optional LCD Display

NC 300 II — Features • Custom Labeling 16 character 2 label entry lines — customize for bed 1 and bed 2 • Call Type Display Field programmable

NC 300 II — Features • Video Port VGA at each master • Common Composite Video Port Composite at CPE (optional)

NC 300 II — Features • Audio Paths 8 (with expander card) ** resetting audio from bed 1 will not reset call from bed 2 on dual stations • Master to Master Audio Full duplex via handset

NC 300 II — Features • Ports & Inputs – CPE Serial/Parallel ports – Master Serial/Parallel ports – PC Keyboard Input • Programmable Dome Light Color & Tone Rate – Customize for facility’s special requirements

NC 304 — Nurse’s Master Console Available Ports

NC 300 II — Features • Changing Needs – Program up/download – Upgrade via upload • Telephone Interface –Yes, with digital display at phone so equipped (currently configured for Spectralink system). – PBX interface or standalone

Spectra. Link® Wireless Telephone System WTS TT CPE

Daily User Functions Stat Button Allows user to upgrade a routine level call to Stat priority.

Daily User Functions Nurse Follow When used with staff presence stations, allows calls to be annunciated in rooms where a staff member is registered.

Daily User Functions Nurse/Aide Request Allows user to place a nurse or aide request from the master. Request is annunciated via a flashing green or yellow dome light.

Daily User Functions Monitor Allows staff to monitor rooms in which privacy function has not been engaged.

Daily User Functions Capture Allows staff to quickly reassign zones in order to better utilize staff.

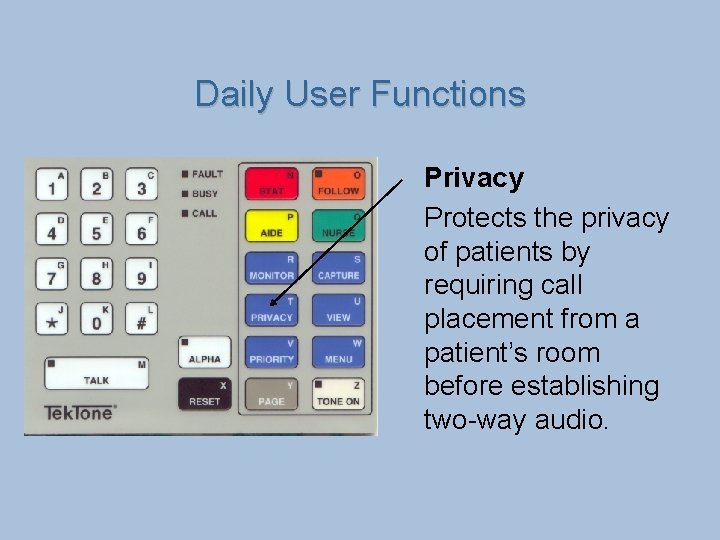

Daily User Functions Privacy Protects the privacy of patients by requiring call placement from a patient’s room before establishing two-way audio.

Daily User Functions View Button Allows staff to scroll to the next page of calls, and will also be used for future integration of features.

Daily User Functions Priority Allows staff to quickly change a call’s status between routine, personal attention and priority.

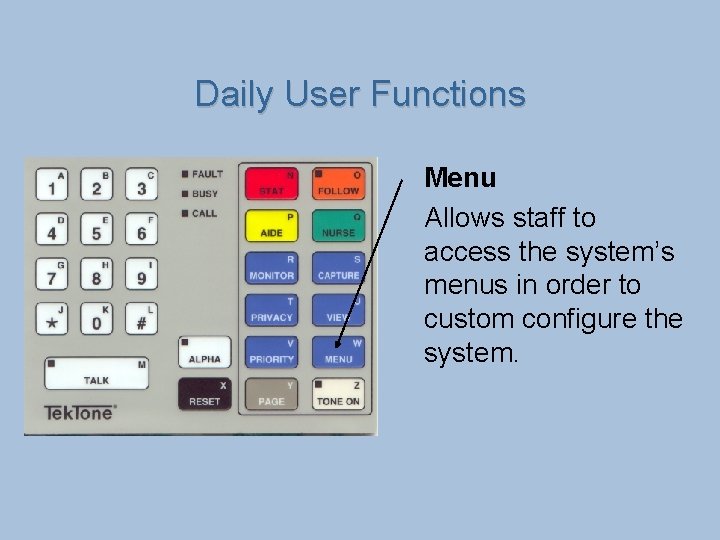

Daily User Functions Menu Allows staff to access the system’s menus in order to custom configure the system.

Daily User Functions Page Allows staff to call stations or a group of stations. Also allows staff to place a routine level call on hold.

Daily User Functions Tone On Allows staff to silence the tone for routine level calls only, thus reducing background noise level.

System Interconnect Spectra. Link Equipment Management System Typical Room Wireless Telephone Interface Radio Paging NC 304 LCD Central Equipment

Coming Soon… • Direct Select Master Station • Interface with asset tracking • Utilizing the display on a caller ID phone to send room number and call type via the telephone interface • Networking of two NC 364 A telephone interfaces • Utilizing the master LAN port for inter-master communications • Integration of next generation Nurses Master Console
