安森美 NB 7 NPQ 1102 Redriver IC 介紹與使用 Jun Kuo 2020. 03. 20

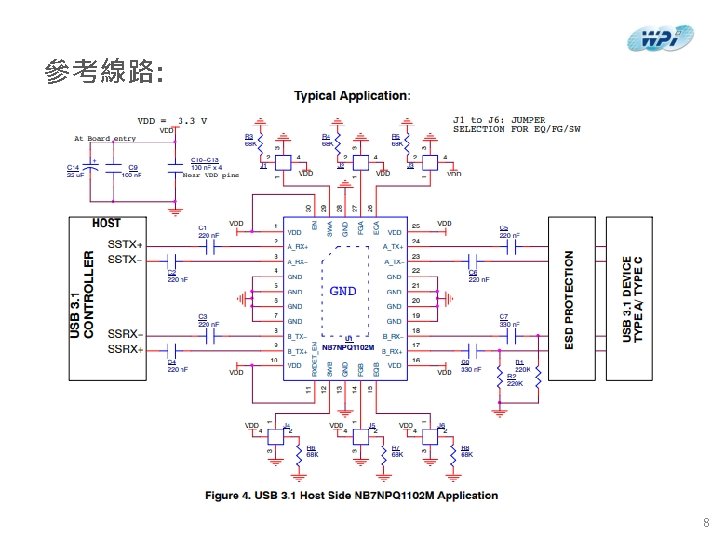

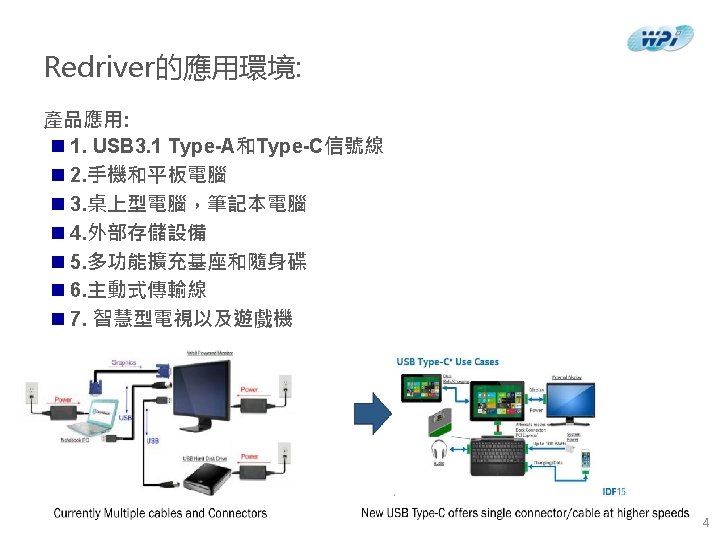

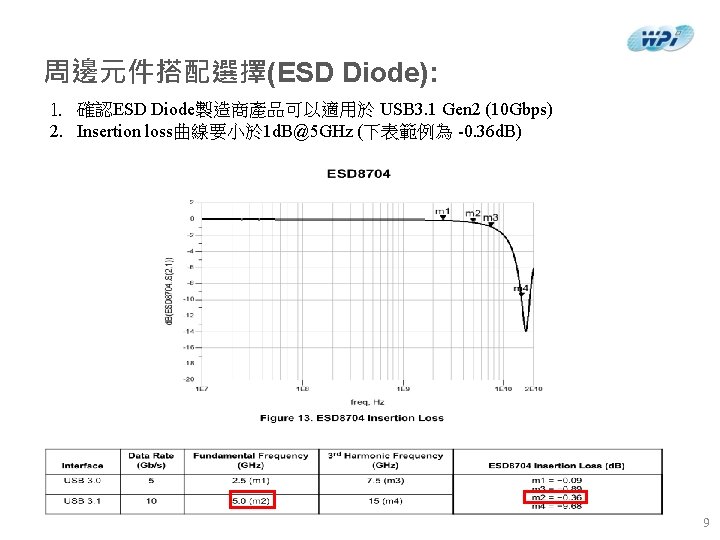

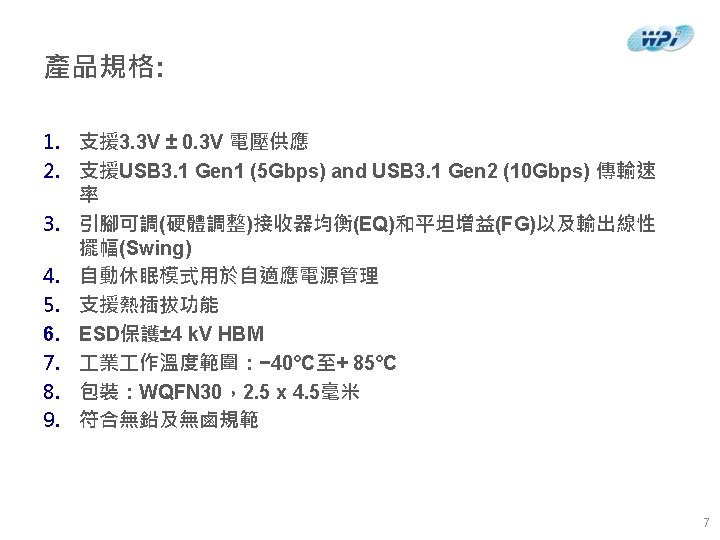

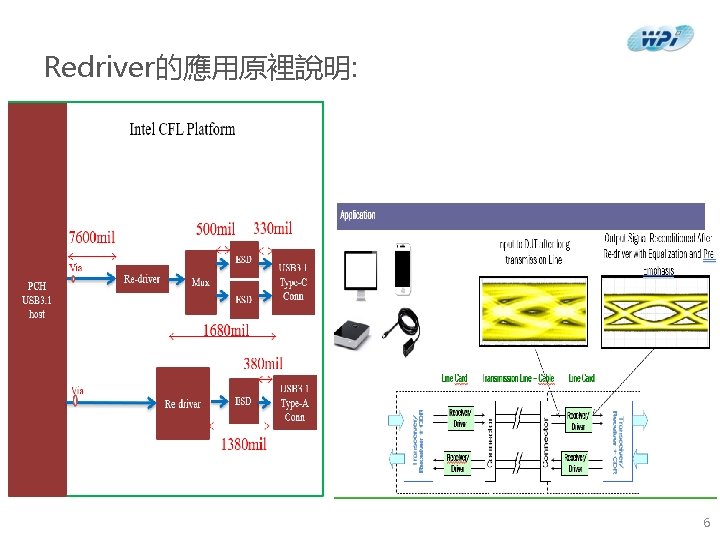

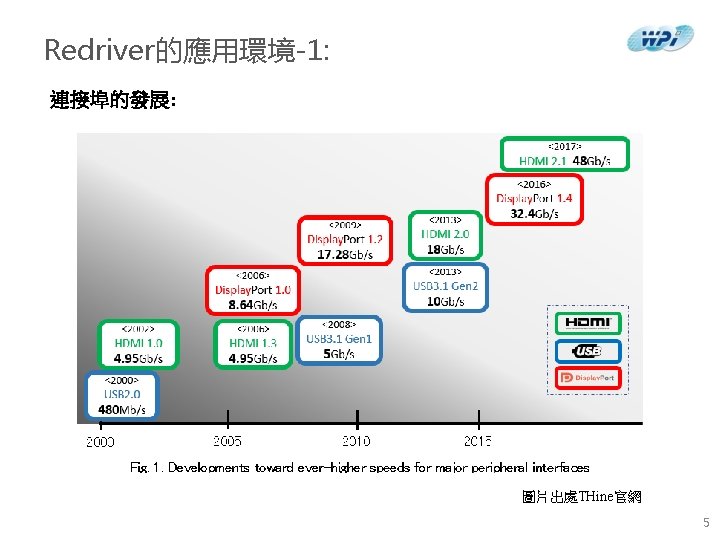

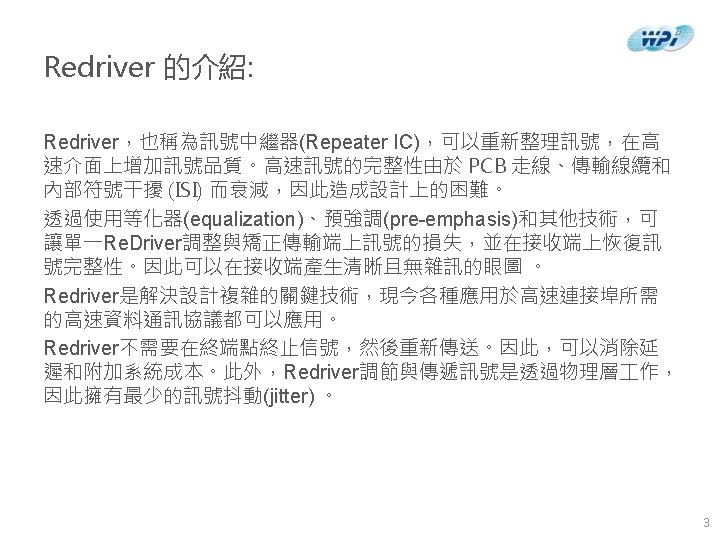

IC 設定方式 (Equalization): H=0 ohm to pull high (3. 3 V) R=68 Kohm to pull GND F=Floating L=0 ohm to pull GND 10
IC 設定方式-1 (Flat Gain): H=0 ohm to pull high (3. 3 V) R=68 Kohm to pull GND F=Floating L=0 ohm to pull GND 11
IC 設定方式-2 (Swing): H=0 ohm to pull high (3. 3 V) R=68 Kohm to pull GND F=Floating L=0 ohm to pull GND 12
EVB介紹: 13
附錄: n ESD 8704 datasheet link https: //www. onsemi. cn/pub/Collateral/ESD 8704 -D. PDF n NB 7 NPQ 1102 datasheet link https: //www. onsemi. cn/pub/Collateral/NB 7 NPQ 1102 M-D. PDF 14
- Slides: 15
