NAVIGATION RULES -INLANDLIGHTS & SHAPES Inland Navigation Rules Act of 1980 Rules 20 through 31 Developed and provided courtesy of Ohio Dept. Natural Resources
Disclaimer ! The Rules presented in this program are an overview of summarized versions of the Inland Navigation Rules. ! This program should not be considered a substitute for a complete version of the entire Inland Navigation Rules. ! The summarized rules in this program could be interpreted differently than the complete rules of the Inland Navigation Rules.
Application of Lighting Rules (Rule 20) ! Lighting rules shall be complied with: # in all weather # from sunset to sunrise local time # sunrise to sunset in restricted visibility # all other times it is deemed necessary
Application of Lighting Rules (Rule 20) ! No other lights shall be displayed except lights that: # cannot be mistaken for required lights # do not impair visibility of required lights # do not interfere with keeping a proper look-out

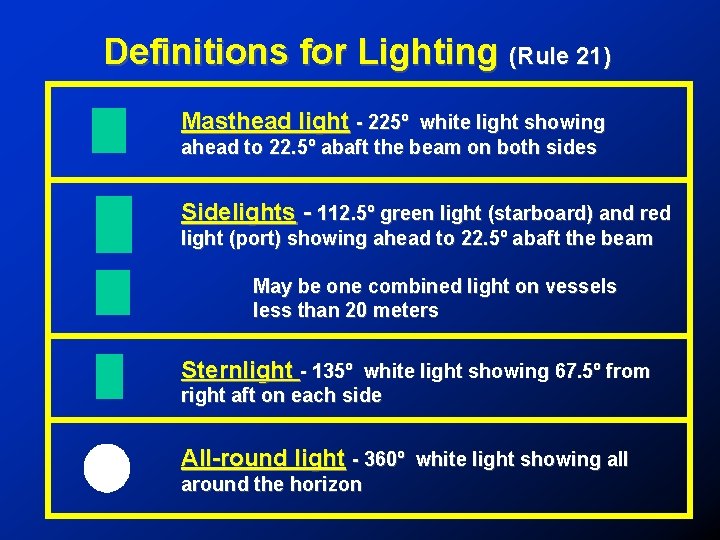

Definitions for Lighting (Rule 21) Masthead light - 225º white light showing ahead to 22. 5º abaft the beam on both sides Sidelights - 112. 5º green light (starboard) and red light (port) showing ahead to 22. 5º abaft the beam May be one combined light on vessels less than 20 meters Sternlight - 135º white light showing 67. 5º from right aft on each side All-round light - 360º white light showing all around the horizon

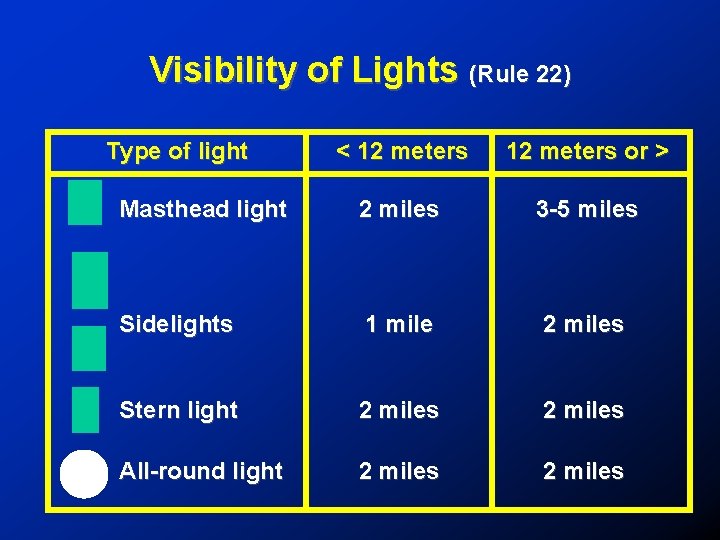

Visibility of Lights (Rule 22) Type of light < 12 meters or > Masthead light 2 miles 3 -5 miles Sidelights 1 mile 2 miles Stern light 2 miles All-round light 2 miles
Zones Overtaking Crossing Head-On Crossing
Power-Driven Vessel Underway (Rule 23) ! Vessels less than 20 meters (65. 6 feet) Sidelights may be combined in one light. Under Power
Power-Driven Vessel Underway (Rule 23) ! Vessels less than 12 meters (39. 4 feet) May exhibit an all-around light instead of masthead and stern lights.
Sailing Vessel Underway (Rule 25) ! Vessels less than 20 meters (65. 6 feet)
Sailing Vessel Underway (Rule 25) ! Vessel less than 7 meters (23 feet) # Exhibit same lights as larger sailing vessels if practical. # If not practical, exhibit an electric torch or lantern showing a white light in time to prevent collision.

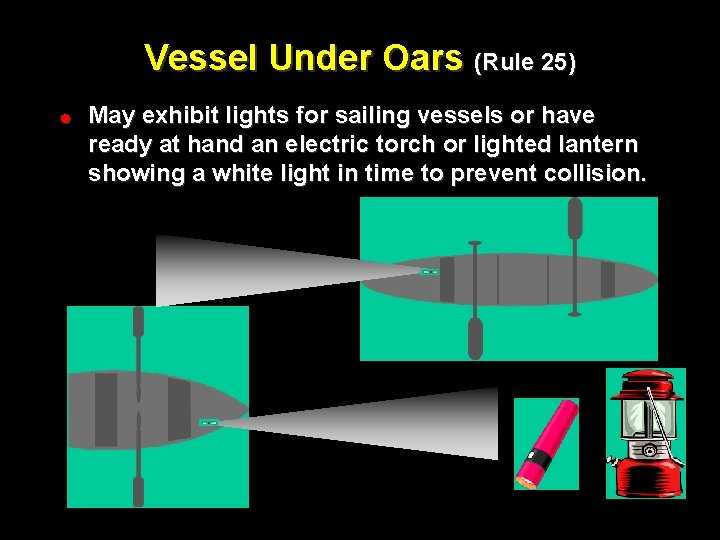

Vessel Under Oars (Rule 25) ! May exhibit lights for sailing vessels or have ready at hand an electric torch or lighted lantern showing a white light in time to prevent collision.
Vessel at Anchor (Rule 30) ! Vessel at anchor (less than 50 meters) Except: # a vessel less than 20 meters (65. 6 feet) at anchor in a special anchorage # a vessel less than 7 meters (23. 0 feet) at anchor and not in a narrow channel, fairway or where other vessels normally navigate

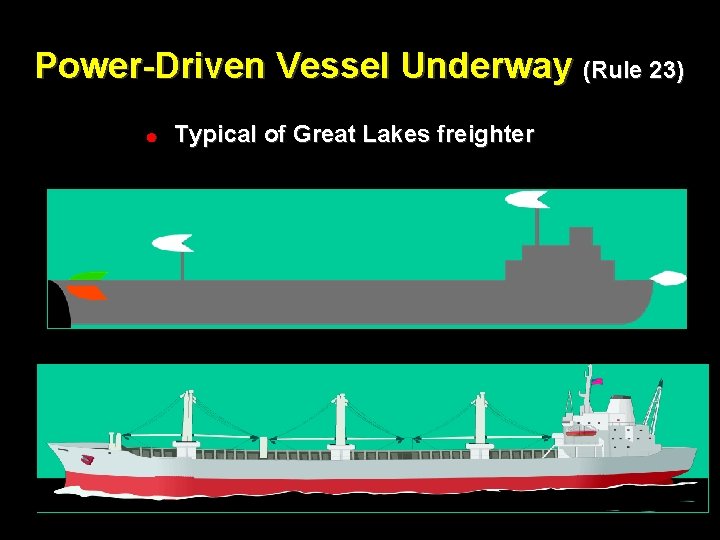

Power-Driven Vessel Underway (Rule 23) ! Typical of Great Lakes freighter
Vessel Pushing (Rule 24) ! Typical of Ohio River barges Barges Flashing
Vessel Towing (Rule 24) ! Vessel being towed DANGER: Unlighted cable spans between vessels ! Object being towed

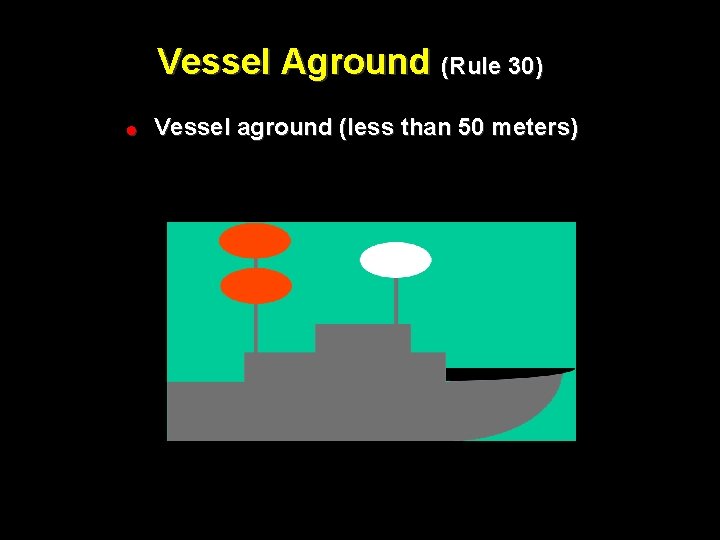

Vessel Aground (Rule 30) ! Vessel aground (less than 50 meters)
More Lights ! Vessel not under command (Rule 27) ! Vessel restricted in maneuverability (Rule 27) When making way through the water, these vessels also display masthead, side and stern lights. When at anchor these vessels also display anchor light
More Lights ! Fishing vessels (Rule 26) When making way through the water these vessels also display masthead, side and stern lights ! Vessel engaged in diving (Rule 27)
Day Shapes ! In addition to lights, some vessels are required to display shapes to indicate a special circumstance ! Example: # A vessel towing with severely restricted maneuverability displays 2 balls and 1 diamond in a vertical line (Rule 27) Ball Diamond Ball Towing with severely restricted maneuverability
Day Shapes Cone shape, apex down ! Sailing vessels under sail and power must display a cone shape, apex facing down # except a vessel less than 12 meters (39. 4 feet) is not obliged (Rule 25) Under sail and power
Day Shapes ! A vessel at anchor must display a ball on the forward part of the vessel, except: # a vessel less than 20 meters (65. 6 feet) at anchor in a special anchorage # a vessel less than 7 meters (23. 0 feet) at anchor and not in a narrow channel, fairway or where other vessels normally navigate Ball (Rule 30) Under 23 feet not required
Day Shapes ! A vessel restricted in its ability to maneuver shall display 2 balls and 1 diamond in a vertical line. ! A vessel not under command shall display 2 balls in a vertical line. ! Vessels less than 12 meters are not required, except when engaged in diving. (Rule 27)
Day Shapes ! If the size of a vessel engaged in diving makes it impracticable to display shapes for restricted ability to maneuver, it shall display a rigid replica of the code flag “A”. (Rule 27) Rigid replica of code flag “A” - One meter in height - All around visibility Does not affect use of “diver down” flag Small vessel engaged in diving
Day Shapes ! A vessel engaged in fishing shall display 2 cones in a vertical line with apexes together 2 cones with apexes together (Rule 26) Vessel engaged in fishing
Day Shapes ! A vessel aground shall display 3 balls in a vertical line, if practicable 3 balls in a vertical line (Rule 30)
Day Shapes Vessel Shape Exemptions Vessel Under Sail & Power Cone > 12 m Anchored Ball > 7 m (not in channel) > 20 m (in anchorage) Aground 3 Balls (vert. line) > 12 m Not Under Command 2 Balls (vert. line) > 12 m Restricted in Ability to Maneuver 1 Ball + 1 Diamond > 12 m (except dive boats) + 1 Ball (vert. line) Diving (restricted in Same as above ability to maneuver) Fishing (commercial) Shapes not practical (must display “A” flag) 2 Cones (vert. line) (nets or trawling) > 20 m (but must display basket shape) Vessel Towing Diamond Tow > 200 m Vessel Being Towed Diamond Tow > 200 m
