Natural Wastewater Treatment Systems Professor Nick Gray Centre
- Slides: 31
Natural Wastewater Treatment Systems Professor Nick Gray Centre for the Environment Trinity College University of Dublin © Tigroney Press
Natural Wastewater Treatment Systems Learning Objectives: § To explore the key NWT systems § To understand the processes involved in such systems § To be able to design reed beds and stabilization ponds

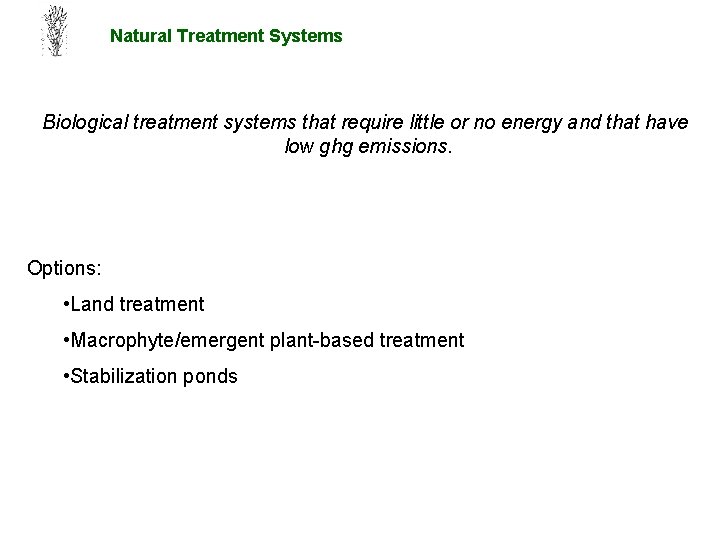

Natural Treatment Systems Biological treatment systems that require little or no energy and that have low ghg emissions. Options: • Land treatment • Macrophyte/emergent plant-based treatment • Stabilization ponds

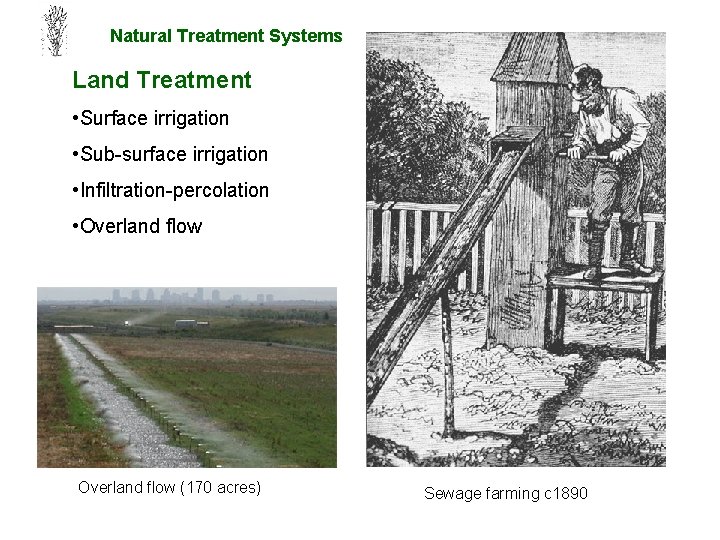

Natural Treatment Systems Land Treatment • Surface irrigation • Sub-surface irrigation • Infiltration-percolation • Overland flow (170 acres) Sewage farming c 1890
Natural Treatment Systems Land Treatment Surface irrigation

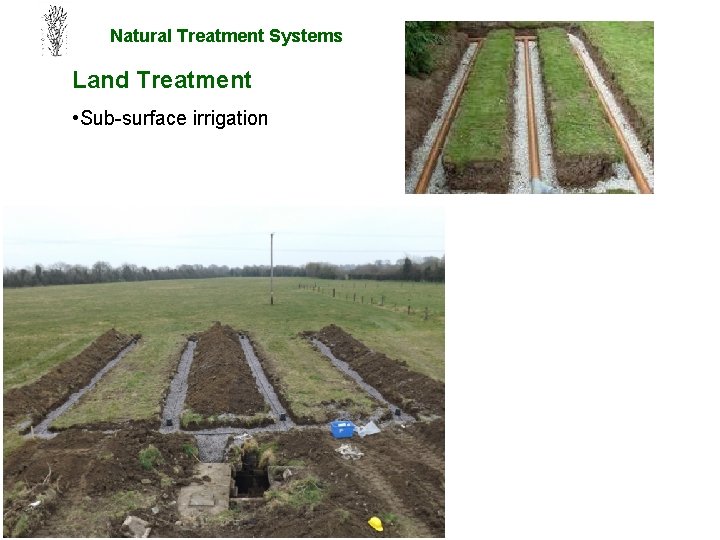

Natural Treatment Systems Land Treatment • Sub-surface irrigation

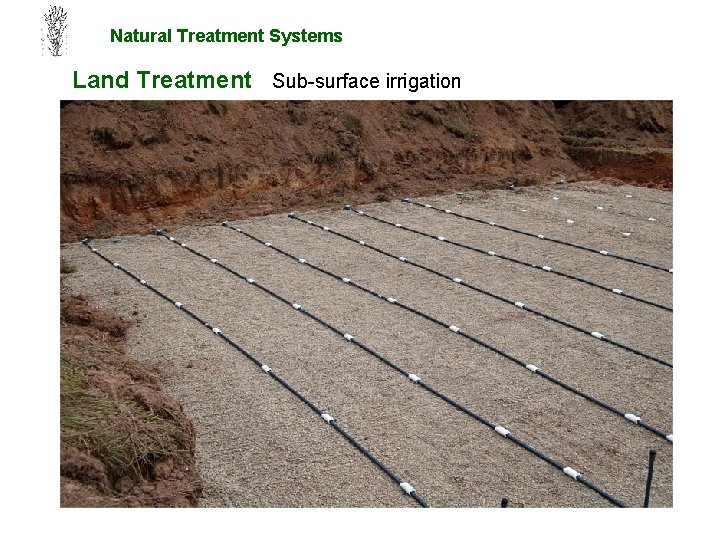

Natural Treatment Systems Land Treatment Sub-surface irrigation

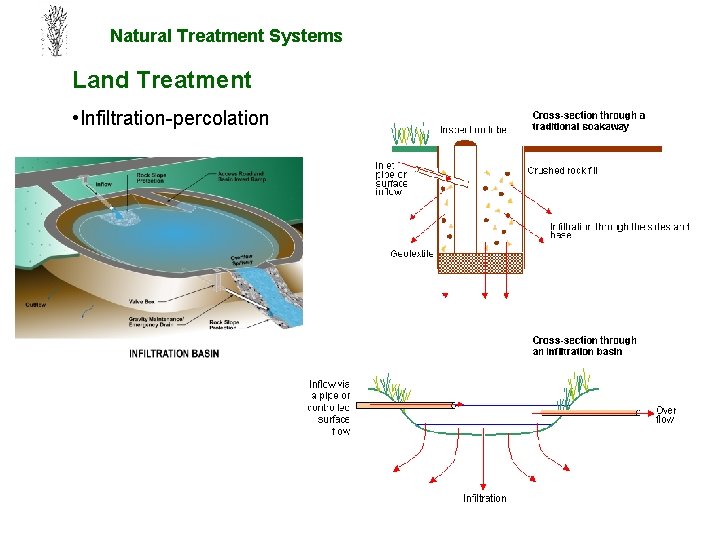

Natural Treatment Systems Land Treatment • Infiltration-percolation

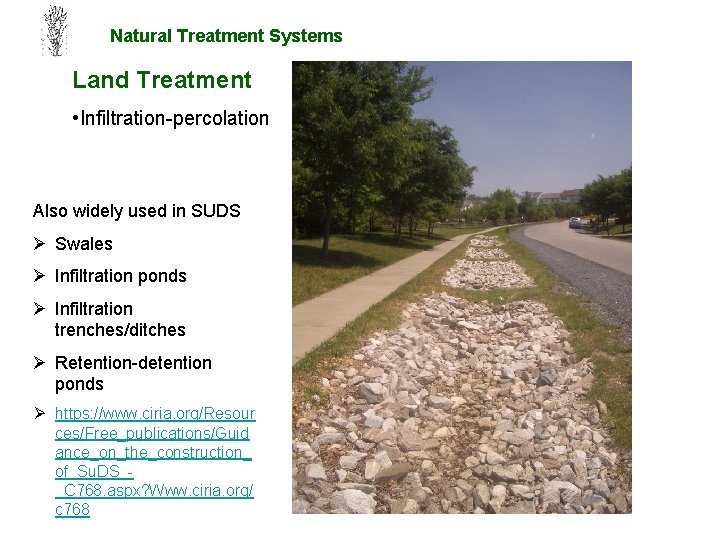

Natural Treatment Systems Land Treatment • Infiltration-percolation Also widely used in SUDS Ø Swales Ø Infiltration ponds Ø Infiltration trenches/ditches Ø Retention-detention ponds Ø https: //www. ciria. org/Resour ces/Free_publications/Guid ance_on_the_construction_ of_Su. DS__C 768. aspx? Www. ciria. org/ c 768

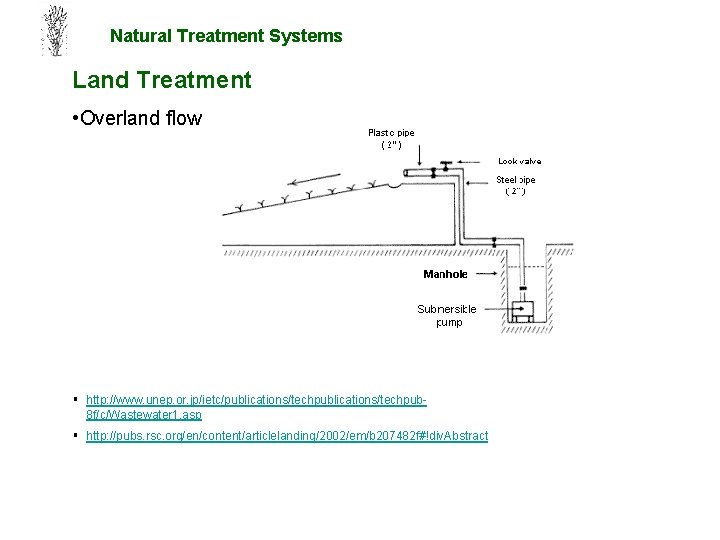

Natural Treatment Systems Land Treatment • Overland flow § http: //www. unep. or. jp/ietc/publications/techpub 8 f/c/Wastewater 1. asp § http: //pubs. rsc. org/en/content/articlelanding/2002/em/b 207482 f#!div. Abstract

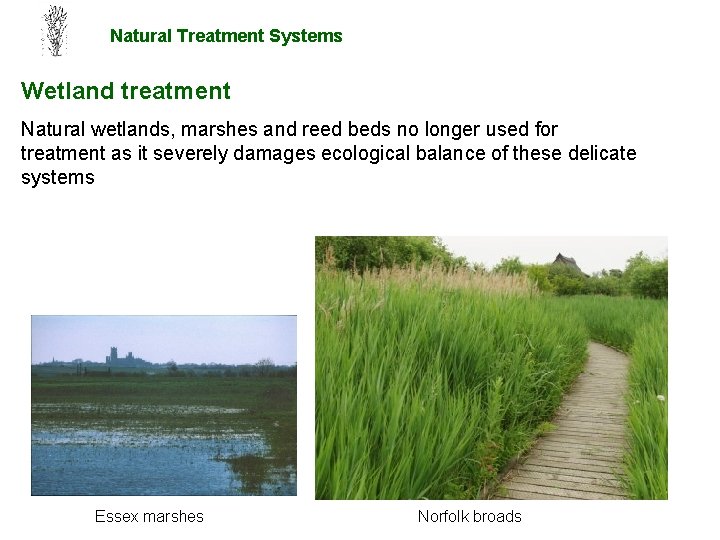

Natural Treatment Systems Wetland treatment Natural wetlands, marshes and reed beds no longer used for treatment as it severely damages ecological balance of these delicate systems Essex marshes Norfolk broads

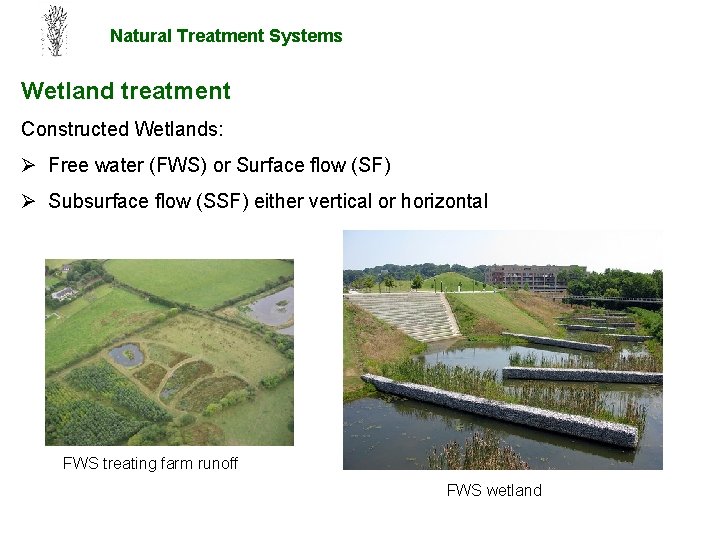

Natural Treatment Systems Wetland treatment Constructed Wetlands: Ø Free water (FWS) or Surface flow (SF) Ø Subsurface flow (SSF) either vertical or horizontal FWS treating farm runoff FWS wetland

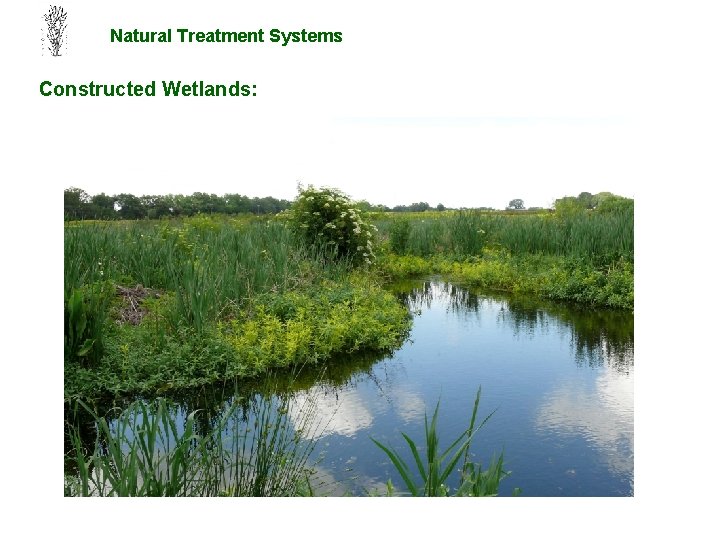

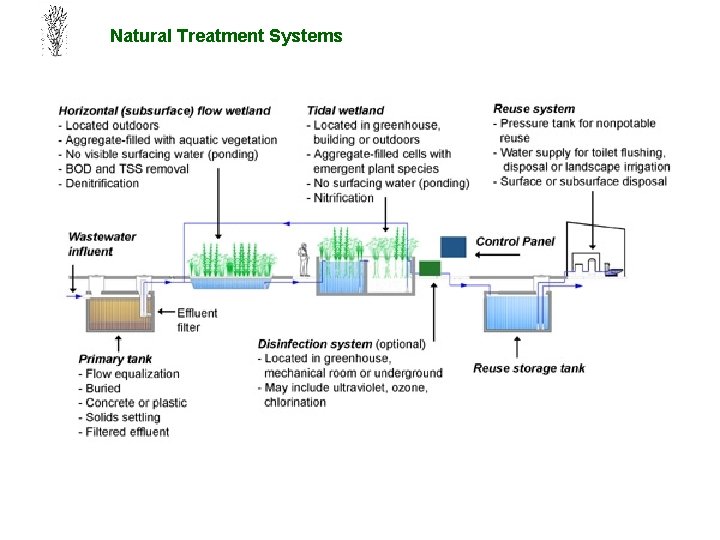

Natural Treatment Systems Constructed Wetlands:

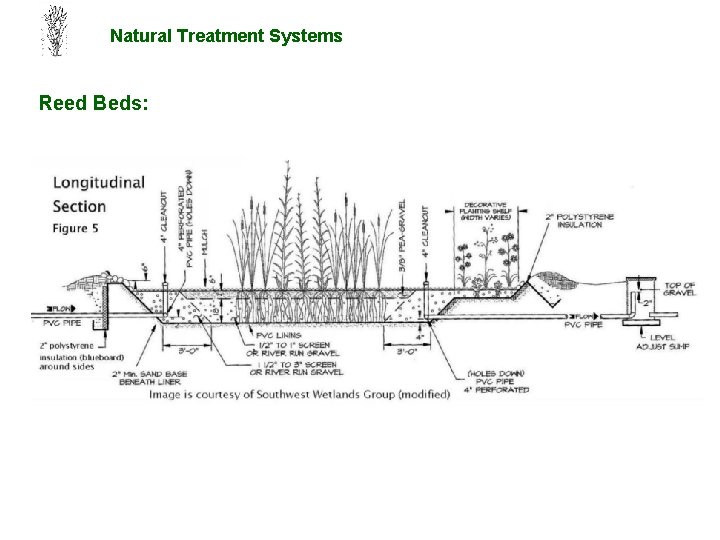

Natural Treatment Systems Reed Beds:

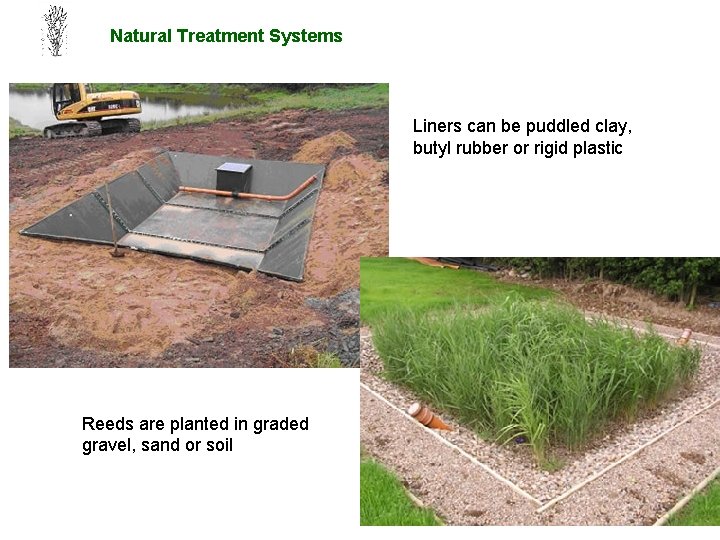

Natural Treatment Systems Liners can be puddled clay, butyl rubber or rigid plastic Reeds are planted in graded gravel, sand or soil
Natural Treatment Systems Reed beds can be located almost anywhere providing flexible design options Simple outlet with manhole section used as secondary settlement tank
Natural Treatment Systems Newly planted bed Septic tank and 9 reed bed tanks in series serving school
Natural Treatment Systems Treatment of mine waters Treatment of surface runoff from motorways

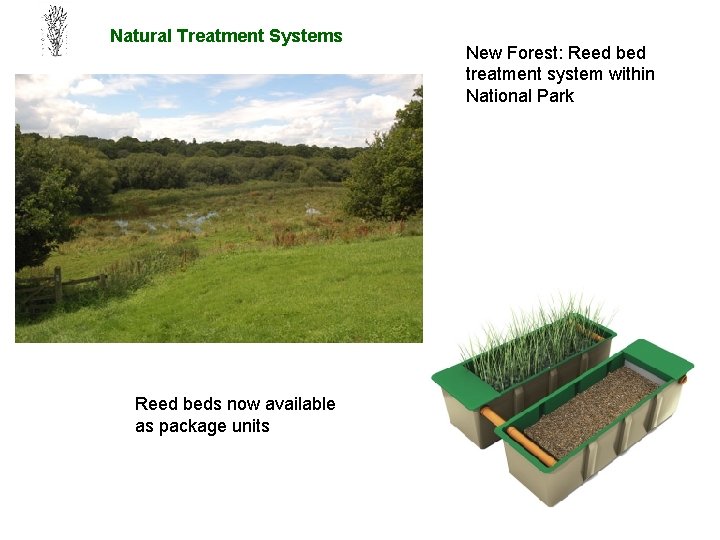

Natural Treatment Systems Reed beds now available as package units New Forest: Reed bed treatment system within National Park

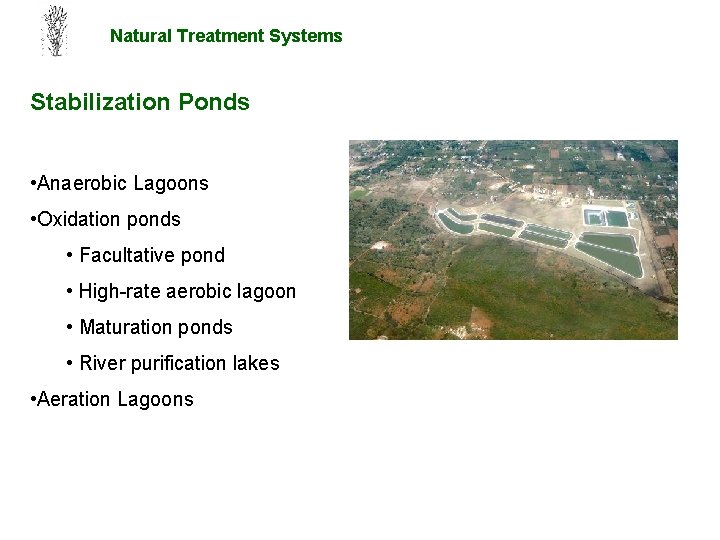

Natural Treatment Systems Stabilization Ponds • Anaerobic Lagoons • Oxidation ponds • Facultative pond • High-rate aerobic lagoon • Maturation ponds • River purification lakes • Aeration Lagoons

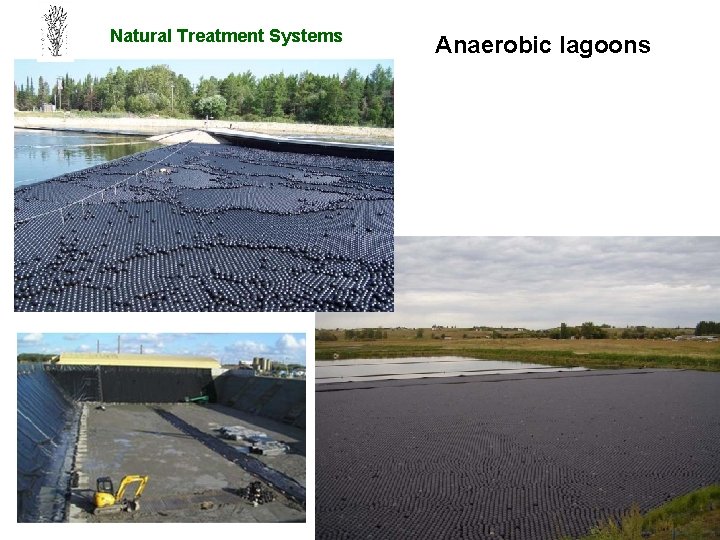

Natural Treatment Systems Anaerobic lagoons

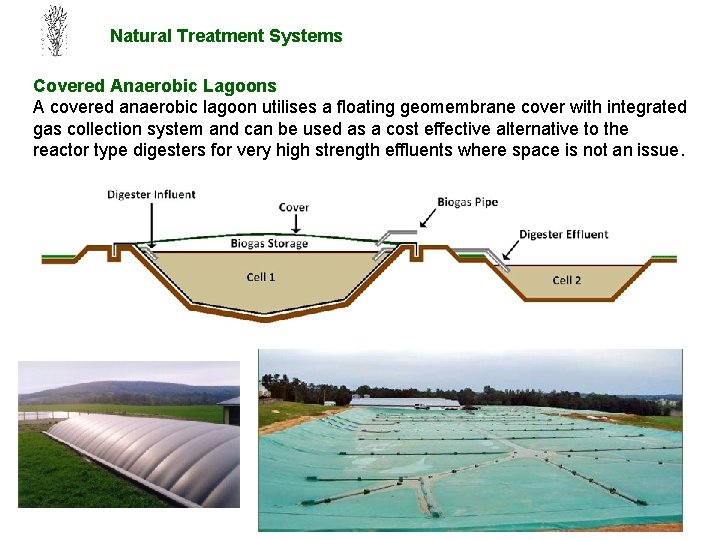

Natural Treatment Systems Covered Anaerobic Lagoons A covered anaerobic lagoon utilises a floating geomembrane cover with integrated gas collection system and can be used as a cost effective alternative to the reactor type digesters for very high strength effluents where space is not an issue.

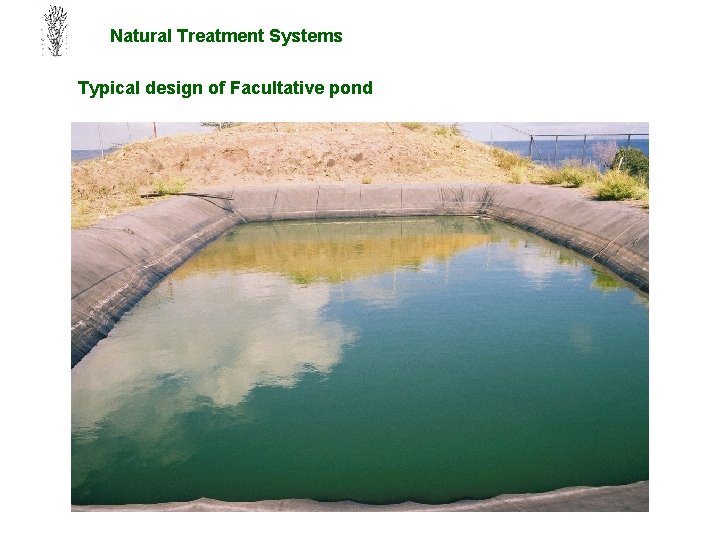

Natural Treatment Systems Typical design of Facultative pond

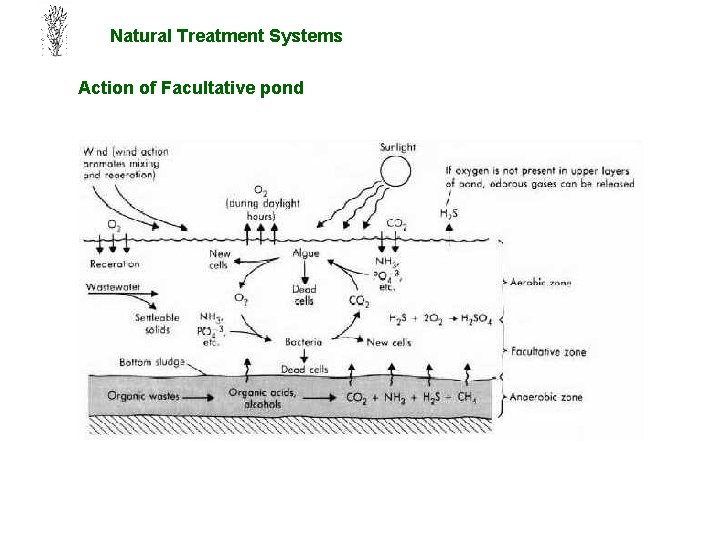

Natural Treatment Systems Action of Facultative pond
Natural Treatment Systems Fish Culture Tilapia Labeo rohita Catla catala

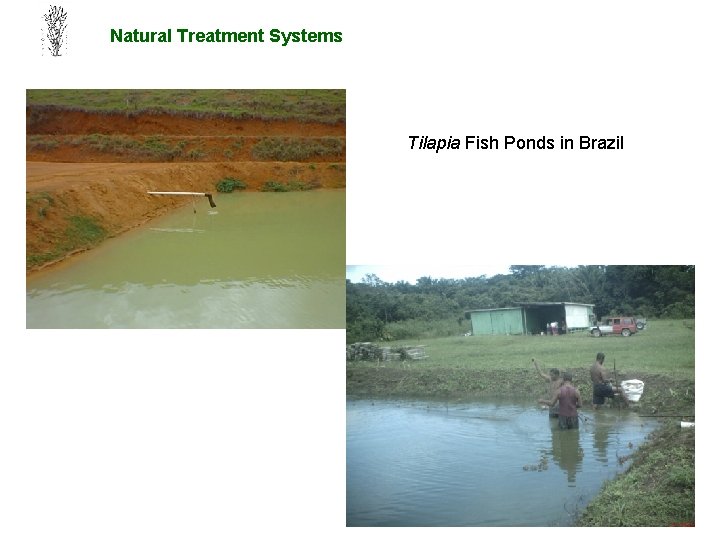

Natural Treatment Systems Tilapia Fish Ponds in Brazil

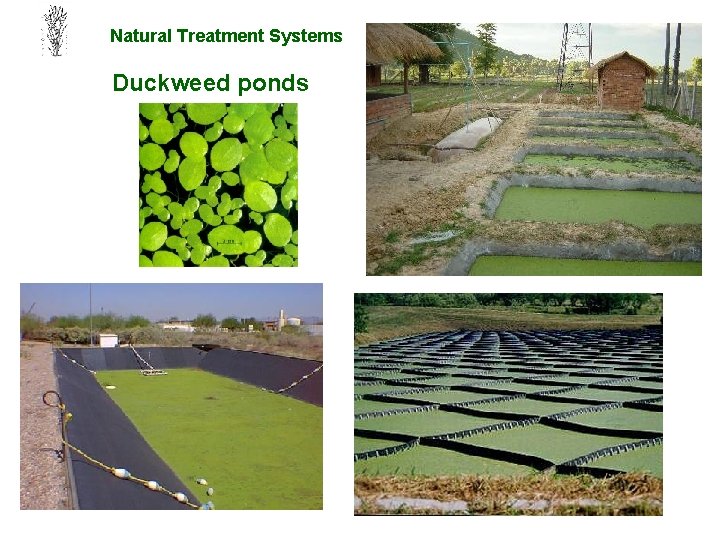

Natural Treatment Systems Duckweed ponds

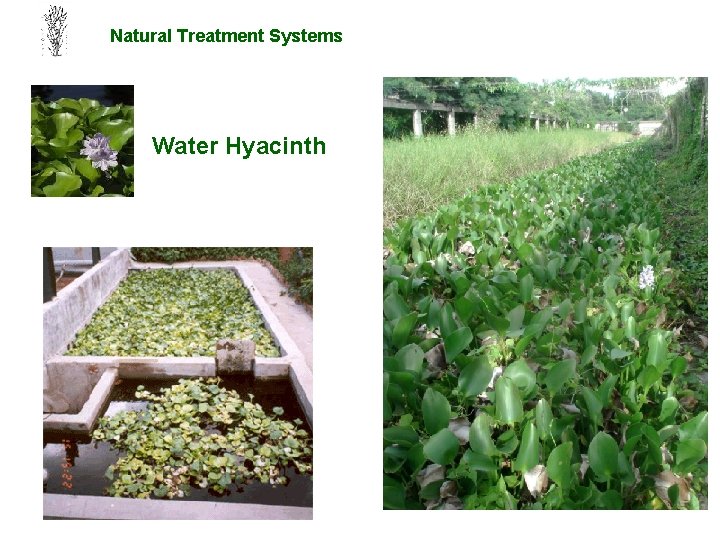

Natural Treatment Systems Water Hyacinth

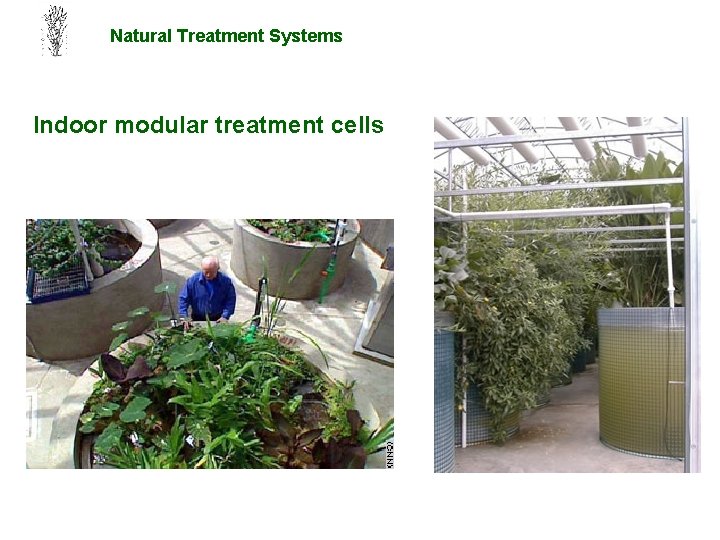

Natural Treatment Systems Indoor modular treatment cells
Natural Treatment Systems

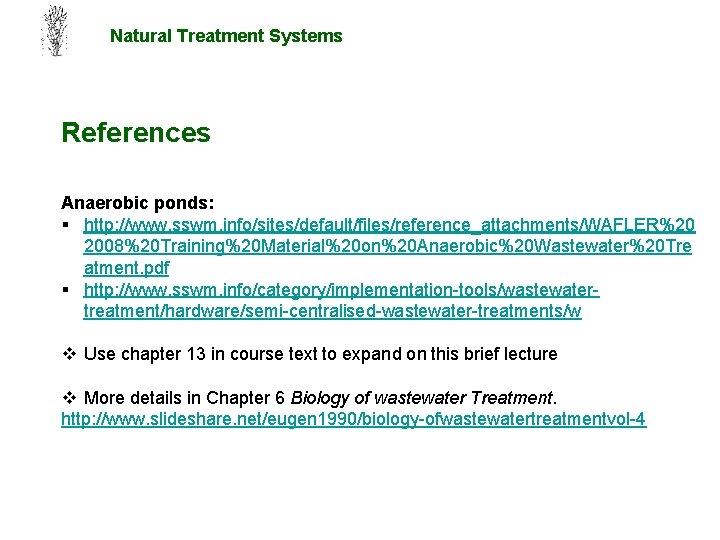

Natural Treatment Systems References Anaerobic ponds: § http: //www. sswm. info/sites/default/files/reference_attachments/WAFLER%20 2008%20 Training%20 Material%20 on%20 Anaerobic%20 Wastewater%20 Tre atment. pdf § http: //www. sswm. info/category/implementation-tools/wastewatertreatment/hardware/semi-centralised-wastewater-treatments/w v Use chapter 13 in course text to expand on this brief lecture v More details in Chapter 6 Biology of wastewater Treatment. http: //www. slideshare. net/eugen 1990/biology-ofwastewatertreatmentvol-4
