National Taiwan University Fundamentals of Waveguide and Antenna Applications Involving DNG and SNG Metamaterials N. Engheta, A. Alù, and R. W. Ziolkowiski, Metamaterials – Physics and Engineering Explorations, Wiley, New York, Ch. 2 Advisor: Prof. Ruey-Beei Wu Speaker: Ting-Yi Huang (黃定彝) 2010/03/04

Outlines n n n 2 Introduction Subwavelength cavities and waveguides Subwavelength cylindrical and spherical core-shell systems National Taiwan University

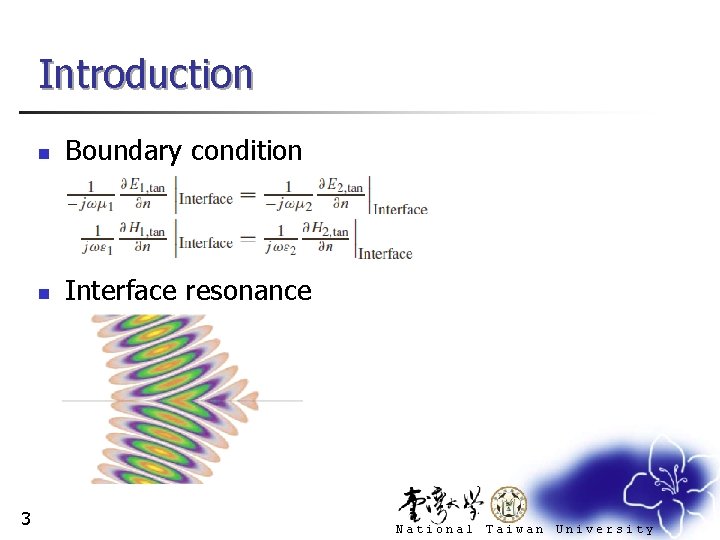

Introduction 3 n Boundary condition n Interface resonance National Taiwan University

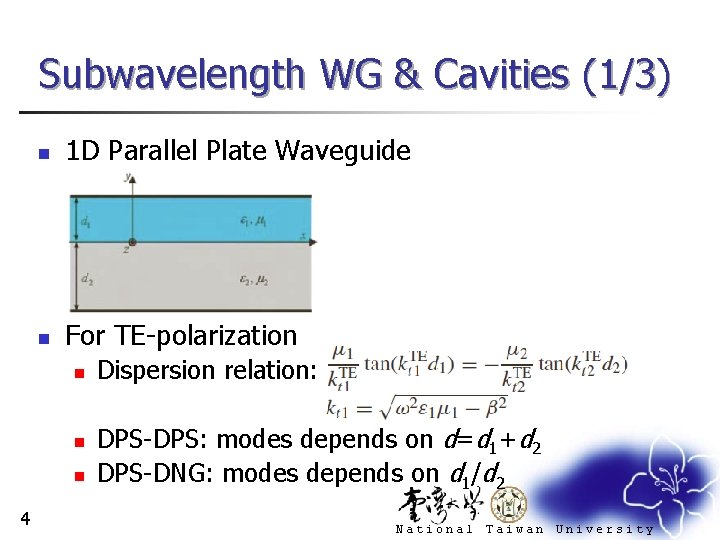

Subwavelength WG & Cavities (1/3) n 1 D Parallel Plate Waveguide n For TE-polarization n 4 Dispersion relation: DPS-DPS: modes depends on d=d 1+d 2 DPS-DNG: modes depends on d 1/d 2 National Taiwan University

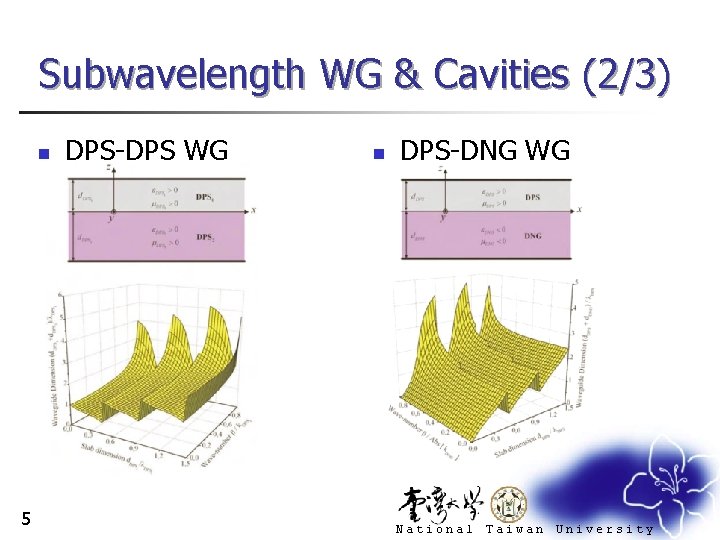

Subwavelength WG & Cavities (2/3) n 5 DPS-DPS WG n DPS-DNG WG National Taiwan University

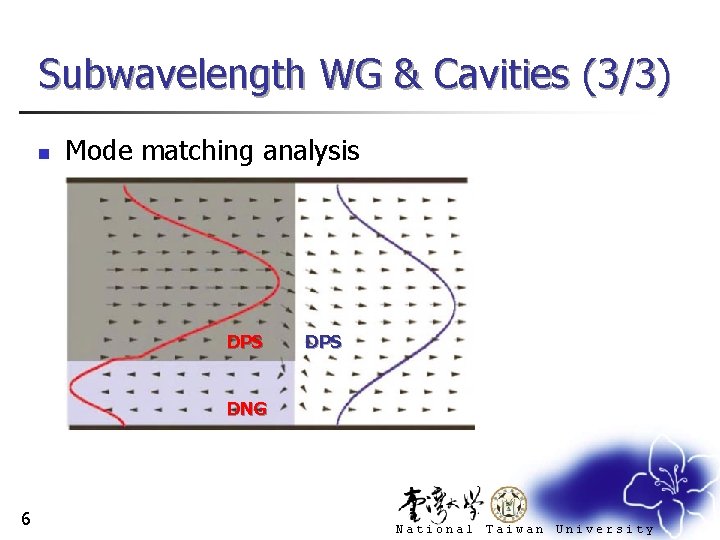

Subwavelength WG & Cavities (3/3) n Mode matching analysis DPS DNG 6 National Taiwan University

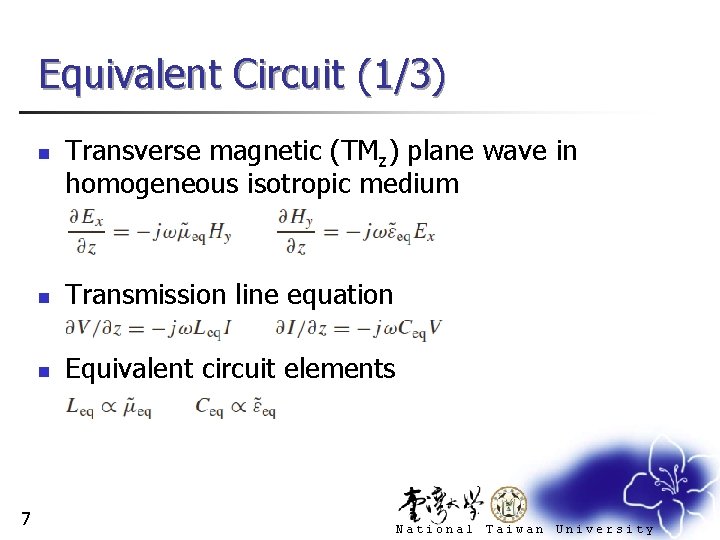

Equivalent Circuit (1/3) n 7 Transverse magnetic (TMz) plane wave in homogeneous isotropic medium n Transmission line equation n Equivalent circuit elements National Taiwan University

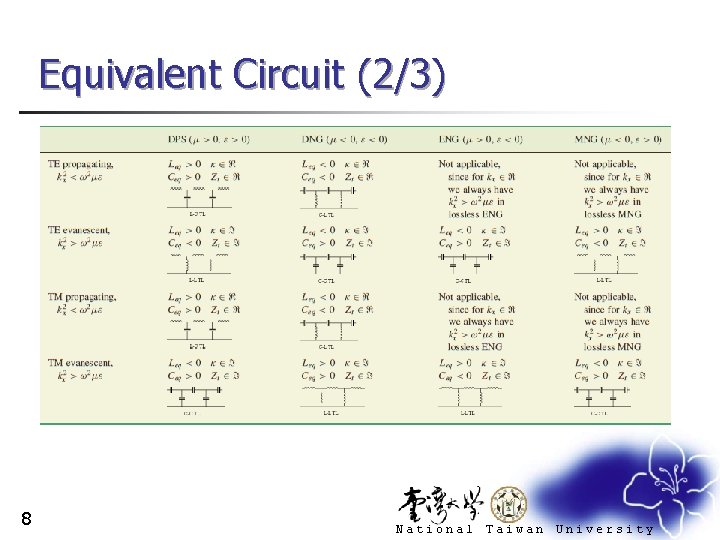

Equivalent Circuit (2/3) 8 National Taiwan University

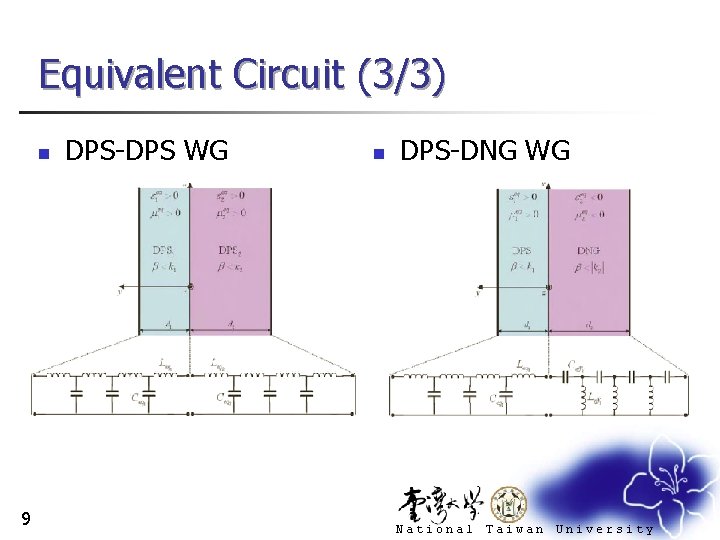

Equivalent Circuit (3/3) n 9 DPS-DPS WG n DPS-DNG WG National Taiwan University

Slab Waveguide (1/3) n Odd mode dispersion curve slab WG n n DPS: DNG: No cutoff thickness for the lowest branch 2 d 10 National Taiwan University

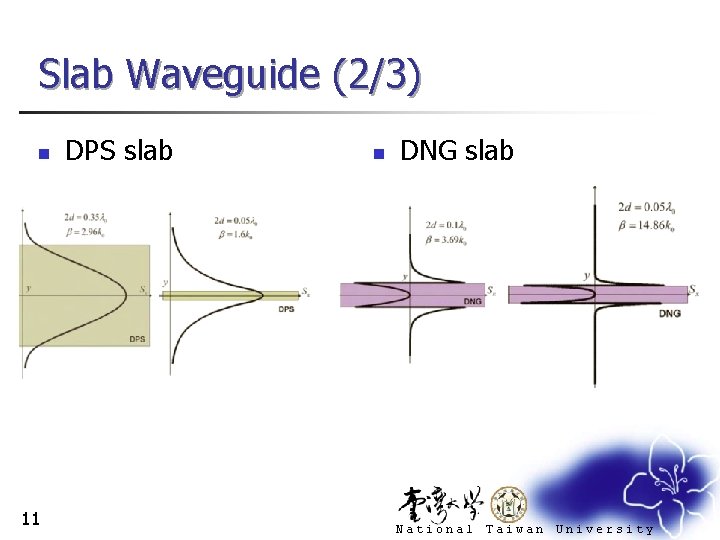

Slab Waveguide (2/3) n 11 DPS slab n DNG slab National Taiwan University

Slab Waveguide (3/3) n 12 Antidirectional coupler National Taiwan University

Sub-λ Core-Shell Systems (1/6) n Cross section of spherical structure ε 2 , μ 2 ε 1 , μ 1 a ε 0 , μ 0 n 13 Resonant Condition National Taiwan University

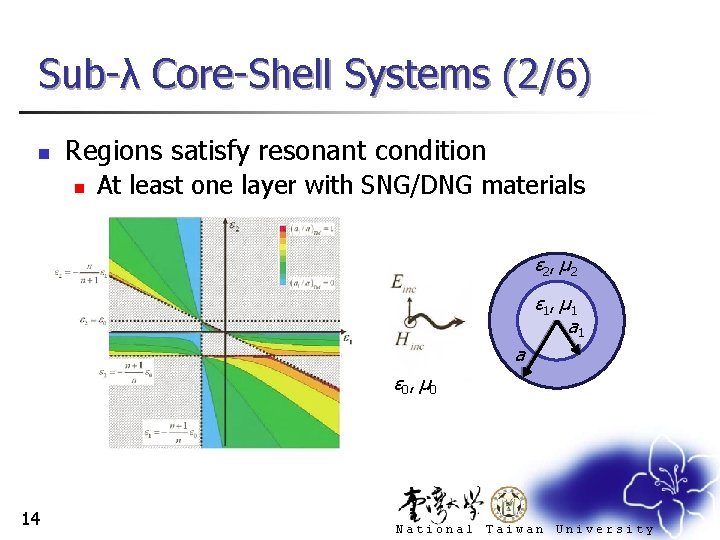

Sub-λ Core-Shell Systems (2/6) n Regions satisfy resonant condition n At least one layer with SNG/DNG materials ε 2 , μ 2 ε 1 , μ 1 a ε 0 , μ 0 14 National Taiwan University

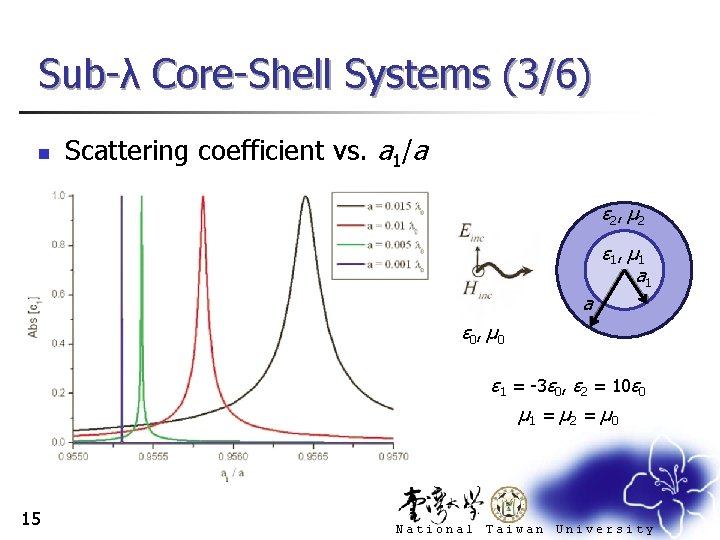

Sub-λ Core-Shell Systems (3/6) n Scattering coefficient vs. a 1/a ε 2 , μ 2 ε 1 , μ 1 a ε 0 , μ 0 ε 1 = -3ε 0, ε 2 = 10ε 0 μ 1 = μ 2 = μ 0 15 National Taiwan University

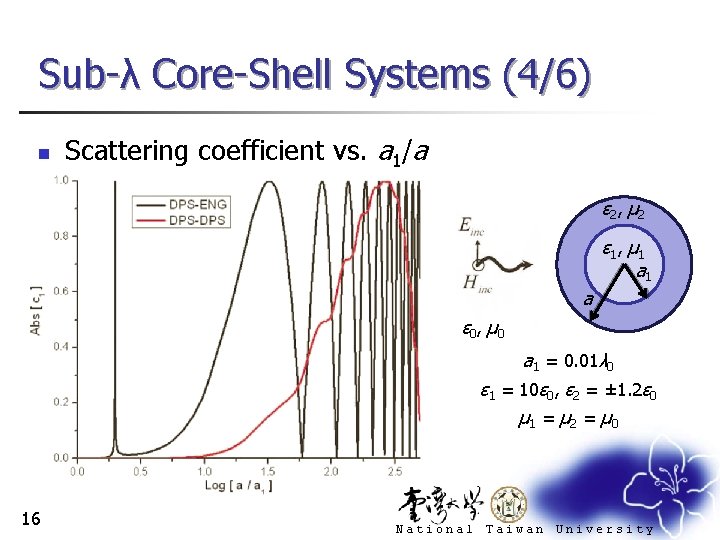

Sub-λ Core-Shell Systems (4/6) n Scattering coefficient vs. a 1/a ε 2 , μ 2 ε 1 , μ 1 a ε 0 , μ 0 a 1 = 0. 01λ 0 ε 1 = 10ε 0, ε 2 = ± 1. 2ε 0 μ 1 = μ 2 = μ 0 16 National Taiwan University

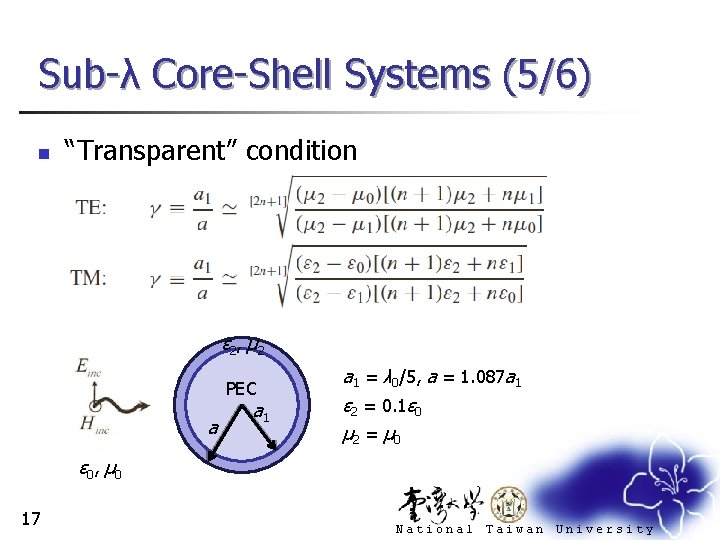

Sub-λ Core-Shell Systems (5/6) n “Transparent” condition ε 2 , μ 2 PEC a a 1 = λ 0/5, a = 1. 087 a 1 ε 2 = 0. 1ε 0 μ 2 = μ 0 ε 0 , μ 0 17 National Taiwan University

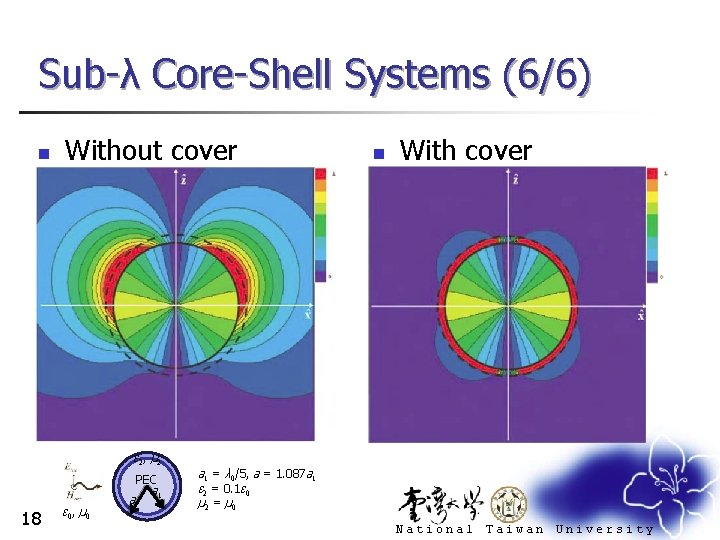

Sub-λ Core-Shell Systems (6/6) n Without cover ε 2 , μ 2 PEC 18 ε 0 , μ 0 a a 1 n With cover a 1 = λ 0/5, a = 1. 087 a 1 ε 2 = 0. 1ε 0 μ 2 = μ 0 National Taiwan University
