National Spatial Data Infrastructure: Concepts and Components Douglas Nebert U. S. Federal Geographic Data Committee Secretariat September 2004

What is a Spatial Data Infrastructure (SDI)? “The SDI provides a basis for spatial data discovery, evaluation, and application for users and providers within all levels of government, the commercial sector, the non-profit sector, academia and by citizens in general. ” --The SDI Cookbook http: //www. gsdi. org 2

Who needs access to coordinated geographic information? Land Records Adjudication Disaster Response Transportation Management Water, gas & electric planning Public Protection Defense Natural Resource Management Telecommunications Infrastructure Economic Development Civic Entrepreneurs Regional Stewards 3

Components of a Spatial Data Infrastructure (SDI) Policies & Institutional Arrangements (governance, data privacy & security, data sharing, cost recovery) People (training, professional development, cooperation, outreach) Data (digital base map, thematic, statistical, place names) Technology (hardware, software, networks, databases, technical implementation plans) 4

Why build an SDI? Build data once and use it many times for many applications Integrate distributed providers of data: Cooperative governance “Place-based management” Share costs of data creation and maintenance Support sustainable economic, social, and environmental development 5

The outcomes of an NSDI The participant members (contributors and users) are known and can interact Core and specialized map and data services are easily discoverable and accessible Decision-makers and analysts have ready access to the right geo-information for input to analytical and visual models – indicators, models, trends, patterns 6

Benefits of an NSDI Development of a private sector involved with data sales and added value A chance for communities of all sizes and capabilities to participate in the knowledge economy A more informed voter/citizen Increased access to distributed geoinformation through standards 7

Creating the motivation Development of an SDI should be a voluntary and have long-term vision Government roles may require both incentives and directives Commercial and non-commercial participants should find SDI appealing as a market The correct solution for NSDI must be defined by the community

Government Role in Infrastructure National Interstate Highway system built for defense logistics, now baseline for commerce DARPA/ARPA advanced Internet infrastructure design, establishing the backbone Promotes standards to enable compatible solutions We cannot imagine the fullest extent of how the NSDI will be populated or what applications will live upon it!

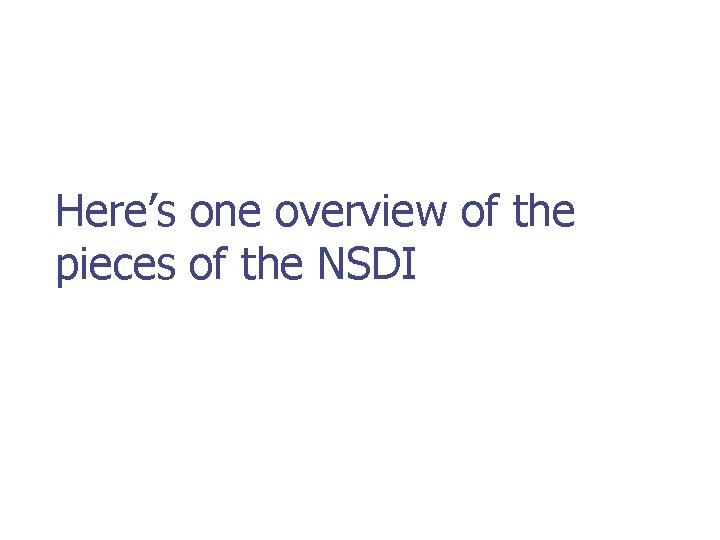

Here’s one overview of the pieces of the NSDI

The first task is to inventory who has what data of what type and quality F A standardized form of metadata was published in June 1994 by the FGDC. An international standard now exists and will be adopted by the US beginning in 2005 F Metadata

Metadata. . . Provides documentation of existing internal geospatial data resources within an organisation (inventory) Permits structured search and comparison of held spatial data by others (catalog) Provides end-users with adequate information to take the data and use it in an appropriate context (documentation)

Metadata Formats The FGDC Content Standard for Digital Geospatial Metadata (CSDGM, 1998) is expressed in XML for exchange and text and HTML for presentation Participants in the Geospatial Data Clearinghouse offer other metadata formats, including Dublin Core, ANZLIC, and expressions of ISO 19115 Any metadata format can be presented by requesting the HTML format 13

Metadata describes existing data holdings for order, retrieval, or local use F Metadata should be used to describe all types of data, emphasis on ‘truth in labeling’ F Metadata Geospatial Data

Special-use thematic layers are built and described as available geospatial data FCommon data layers are being defined in the Framework activity F Metadata Framework GEOdata

Framework supports. . . Community development of sets of spatial features, feature representation, and attribution to a lowest common denominator Participant collecting, converting, or associating information to common Framework data standards with an encoding format to facilitate exchange Multiple representations of real-world features at different scales and times by feature identifier and generalization

Framework Data Standards Eleven abstract data content standards are being promulgated through the ANSI process to become American National Standards in 2005 Each thematic content standard has an informative annex describing its implementation as XML/GML Application Schemas using OGC Web Feature Services 17

The NSDI includes the services to help discover and interact with data Services Metadata Framework GEOdata

An important common service in SDI is that of discovering resources through metadata Discovery Access Processing Services Metadata Framework GEOdata This Discovery Service is the core function of the NSDI Clearinghouse for geospatial information and the GOS geodata. gov portal

NSDI Clearinghouse Network and geodata. gov portal Supports uniform, distributed search through a single user interface to all domestic metadata collections to find data and maps A free advertising mechanism to provide world access to your holdings under the principle of “truth-in-labeling” Search for spatial data through fields and fulltext in the metadata and categorical browsing Links through to full data access and online web mapping services, where available

Geospatial Data Clearinghouse The Geospatial Data Clearinghouse Network includes nearly 300 distributed collections of metadata searched via the Z 39. 50 protocol, “GEO” Profile geodata. gov harvests XML forms of domestic metadata from Z 39. 50 and browseable Web directories into a searchable cache 21

A second class of services provides standardised access to geospatial information Discovery Access Processing F Services Metadata Framework GEOdata FThis may be made via static files on ftp or via online data streaming services. These services deliver ‘raw’ data, not maps.

Data Access Concepts Standardisation of data access implies several things: n n n Definition of model used for the data to be exchanged Adoption of an exchange or encoding format Agreement on data access protocol(s) Organisations should strive to identify the mode(s) of operation to simplify data exchange

Data Access Examples Administrative boundary data conforming to the Global. Map data model, packaged as Vector Product Format (VPF), made accessible over ftp Panchromatic 10 m, single-band, rectified imagery to a specific coordinate reference system, packaged as GEOTIFF with LZW compression, made accessible on CD-ROM

A third class of services provides additional processing on geospatial information Discovery Access Processing Services Metadata Framework GEOdata

Processing Services § These include capabilities that extend and enhance the delivery of data through processes applied to raw data: § § § Web Mapping Services (OGC WMS) Symbolization (OGC SLD) Coordinate Transformation (OGC WCTS) Analysis or topologic overlay services Routing services

Geospatial Interoperability Reference Model (GIRM) Voluntary technical participation in the NSDI is defined through the GIRM The GIRM includes data standards, formats, protocols, and interface specifications to maximize interoperability http: //gai. fgdc. gov/girm/ 27

Standardization makes SDI work F Standards touch every SDI activity F Discovery Access Processing Services Metadata Framework GEOdata Standards include specifications, formal standards, and documented practices

FGDC Standards. . . Created by FGDC working groups and thematic subcommittees as national standards, representing community consensus view of data theme or common approach Submitted for 90 -day public review Reviewed across disciplines for uniformity Published as US Federal Standards by ISO, OGC, W 3 C and other standardization bodies are used FIRST, if they exist! http: //www. fgdc. gov/standards. html

Roles of standards bodies Software interfaces (Implementation Specifications) Open. GIS Consortium Other NSDIs Endorsed practices and specifications NSDI ISO TC 211 Foundations for implementation. (Abstract standards) National Standards Content standards, Authority for data

Partnerships extend our capabilities Partnerships Discovery Access Processing Services Metadata Framework GEOdata Standards

Partnerships are the glue. . . FGDC has recognized 40+ geographic data councils across the country to establish 2 -way coordination mechanisms FGDC has funded numerous agencies with “seed” funding to further existing efforts along common lines Partnerships extend local capabilities in technology, skills, logistics, and data The National Map is a partnership designed to serve Framework data themes from distributed participating organizations for multiple purposes

Regional consortia Locally formed, interdependent Inclusive, voluntary, open State, local, federal, tribal, academic, private sector Expanded from existing collaborations 33

Best practices Treat data as strategic, capital assets and public goods Collaborate and Coordinate Align roles, responsibilities and resources for data stewardship Organize Effective and Efficient Production and Stewardship of Data Pool and Leverage Investments 34

Treated together this comprises the NSDI Partnerships Discovery Access Processing Clearinghouse (catalog) Services Metadata Framework GEOdata Framework Standards

Initiatives and Future Directions Geospatial One-Stop and the geodata. gov portal An Enterprise Architecture for the NSDI/FGDC Future Directions Initiative 36

Geospatial One-Stop One of 24 official E-Government initiatives started in late 2002 Focused on the use and re-use of data and services between government (G 2 G) and the citizen (G 2 C) Involves all sectors (federal, state, local government, academia, commercial) 37

How does One. Stop support NSDI? GOS has a timeline for implementation of NSDI components by all partners Deploys a “one-stop” portal (geodata. gov) for quick access to community data, services, and related resources Standards are being developed with multisectoral stakeholders as national (ANSI) standards, not FGDC ones Goals include measures of costs and savings through cost-sharing in data acquisition, processing, and service of geospatial data 38

Some operational features geodata. gov will speed and simplify search and browse of metadata as a replacement for the domestic NSDI Gateways Metadata are harvested from remote collections into a single metadata ‘cache’ to speed search and ranking Browsing for geospatial data is made possible through common ISO 19115 Topic Categories Current portal is an operational prototype based on research and development efforts, March-September 2004 39

Portal at geodata. gov Map services can be registered and visualized in viewer where links provided in metadata (Online_Linkage) Other resource types: Data, static maps, and applications can be registered through metadata Channels (thematic communities) post and arbitrate selected browseable content Operational portal is to be awarded by competitive procurement in Q 1 2005 40

41

Enterprise Architecture: NSDI as the Enterprise Develop an Enterprise Architecture for the NSDI to encourage the identification of geospatial data service producers and consumers, and optimize resourcing for relevant programs within and across agency lines Deliverables to include: Common terminology and scope to effort Business, Data and Technology Reference models n Validation of Reference Models via active prototyping and demonstration n A consensus process to evolve reference models via broad NSDI Stakeholder / Community involvement n 42

NSDI Future Directions Initiative Purpose: Draft a National Geospatial Strategy for the further development of the National Spatial Data Infrastructure (NSDI) Product: A Plan of Action for the FGDC and the geospatial community 43

Drivers Revised OMB Circular A-16 (2002) E-Government Act 2002 (Section 216) President’s Management Agenda Proposed Legislation GAO Reports 44

Future Direction Actions Making Framework Real n n Framework Standards Development Publishing Metadata Implementing Standards/Web Protocols Urban Areas Communicating The Message n n n Partnerships with Purpose n n Restructure FGDC Tribal Engagement State Councils Engaging Non-Geospatial Organizations Business Case Strategic Communications Plan Training and Education 45

Douglas Nebert Federal Geographic Data Committee Secretariat ddnebert@fgdc. gov http: //www. fgdc. gov (703) 648 -4151 46
