National Risk Assessment Workshop April 30, 2013 National Disaster Management Institute(NDMI) 1

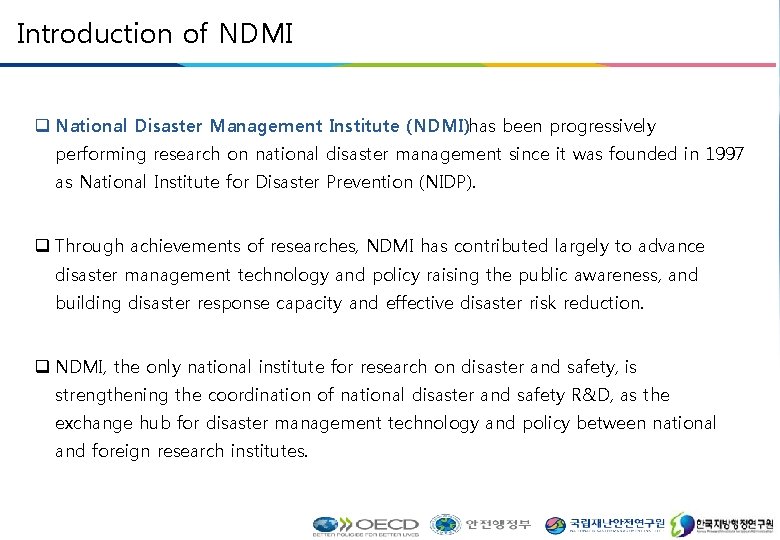

Introduction of NDMI National Disaster Management Institute (NDMI)has been progressively performing research on national disaster management since it was founded in 1997 as National Institute for Disaster Prevention (NIDP). Through achievements of researches, NDMI has contributed largely to advance disaster management technology and policy raising the public awareness, and building disaster response capacity and effective disaster risk reduction. NDMI, the only national institute for research on disaster and safety, is strengthening the coordination of national disaster and safety R&D, as the exchange hub for disaster management technology and policy between national and foreign research institutes. 2

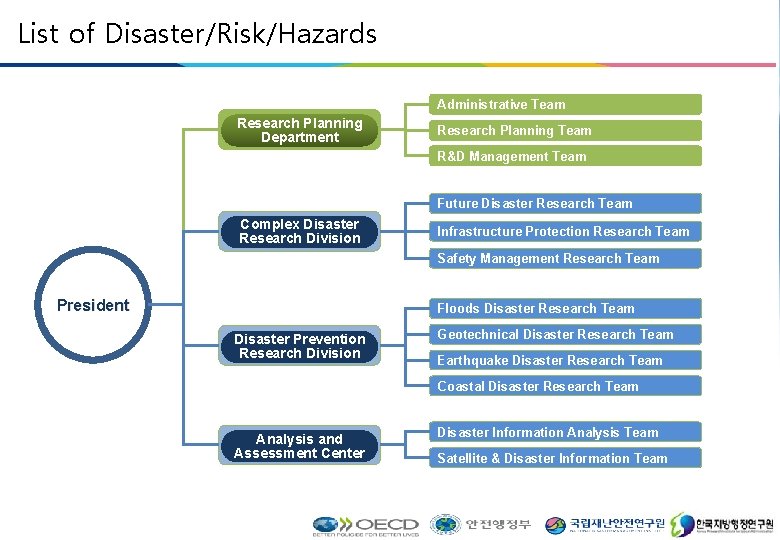

List of Disaster/Risk/Hazards Administrative Team Research Planning Department Research Planning Team R&D Management Team Future Disaster Research Team Complex Disaster Research Division Infrastructure Protection Research Team Safety Management Research Team President Floods Disaster Research Team Geotechnical Disaster Research Team Disaster Prevention Research Division Earthquake Disaster Research Team Coastal Disaster Research Team Disaster Information Analysis Team Analysis and Assessment Center Satellite & Disaster Information Team 3

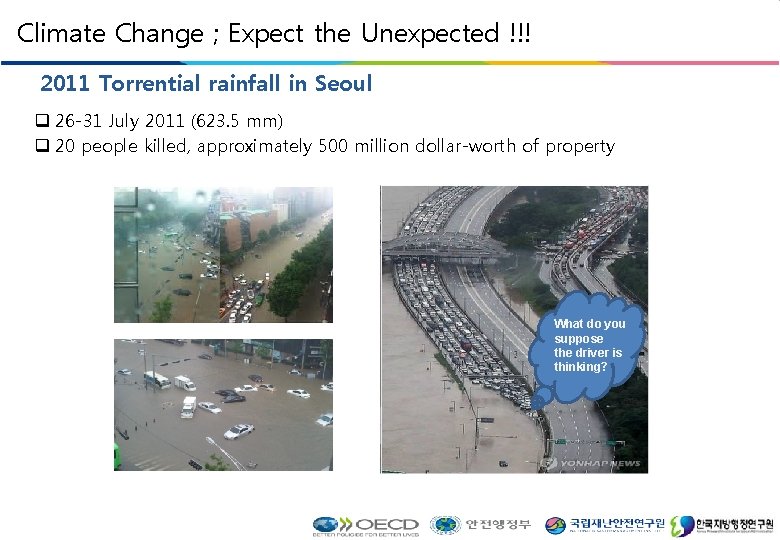

Climate Change ; Expect the Unexpected !!! 2011 Torrential rainfall in Seoul 26 -31 July 2011 (623. 5 mm) 20 people killed, approximately 500 million dollar-worth of property What do you suppose the driver is thinking? 4

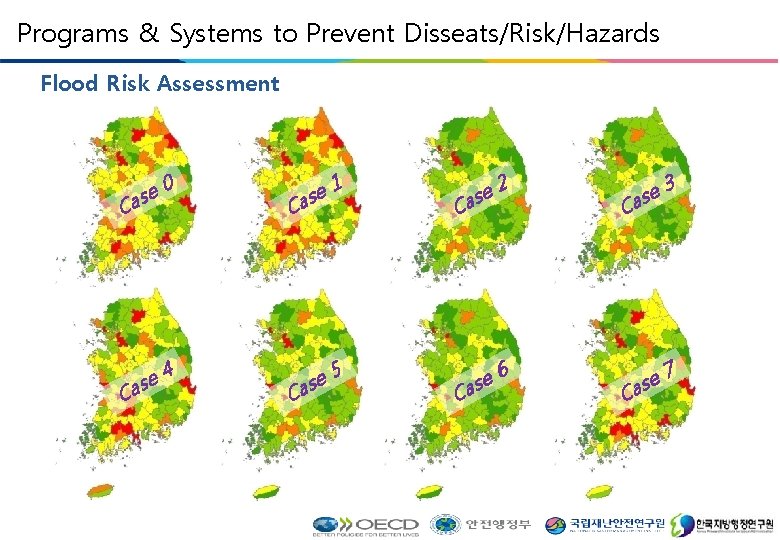

Programs & Systems to Prevent Disseats/Risk/Hazards Flood Risk Assessment se a C 0 se a C 1 se a C 4 se a C 5 ase 2 ase 6 C C 5 ase 3 ase 7 C C

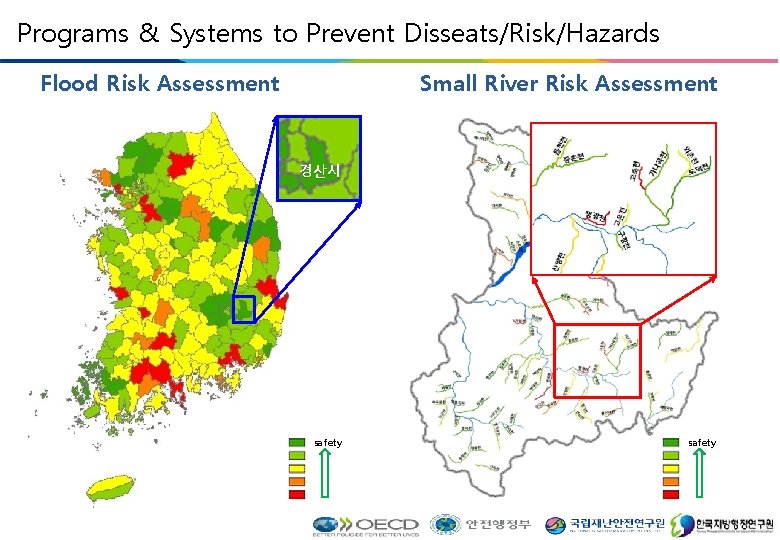

Programs & Systems to Prevent Disseats/Risk/Hazards Flood Risk Assessment Small River Risk Assessment 경산시 safety 6

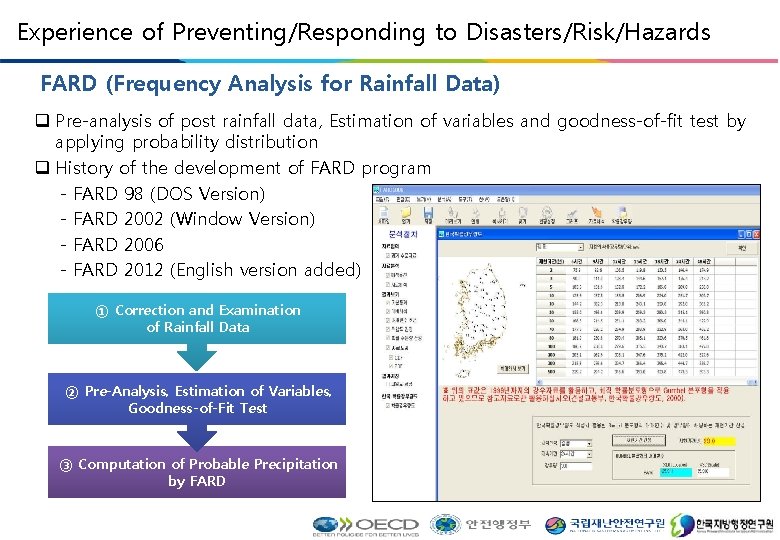

Experience of Preventing/Responding to Disasters/Risk/Hazards FARD (Frequency Analysis for Rainfall Data) Pre-analysis of post rainfall data, Estimation of variables and goodness-of-fit test by applying probability distribution History of the development of FARD program - FARD 98 (DOS Version) - FARD 2002 (Window Version) - FARD 2006 - FARD 2012 (English version added) ① Correction and Examination of Rainfall Data ② Pre-Analysis, Estimation of Variables, Goodness-of-Fit Test ③ Computation of Probable Precipitation by FARD 7

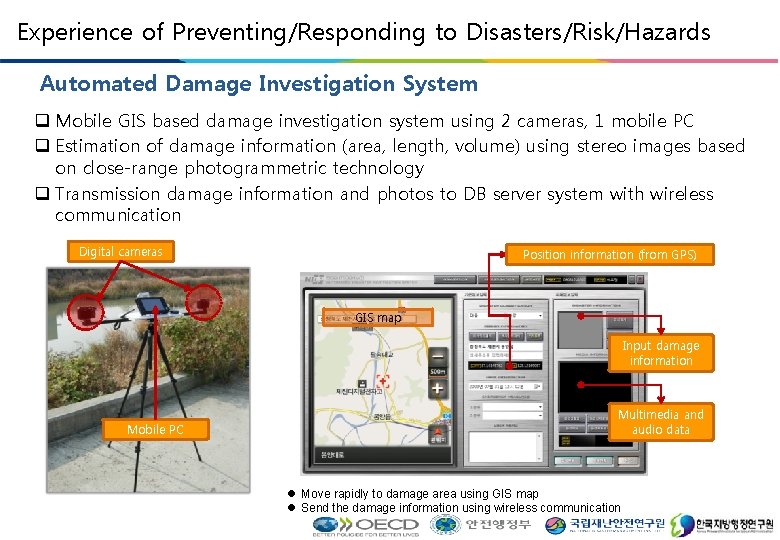

Experience of Preventing/Responding to Disasters/Risk/Hazards Automated Damage Investigation System Mobile GIS based damage investigation system using 2 cameras, 1 mobile PC Estimation of damage information (area, length, volume) using stereo images based on close-range photogrammetric technology Transmission damage information and photos to DB server system with wireless communication Digital cameras Position information (from GPS) GIS map Input damage information Multimedia and audio data Mobile PC l Move rapidly to damage area using GIS map l Send the damage information using wireless communication 8

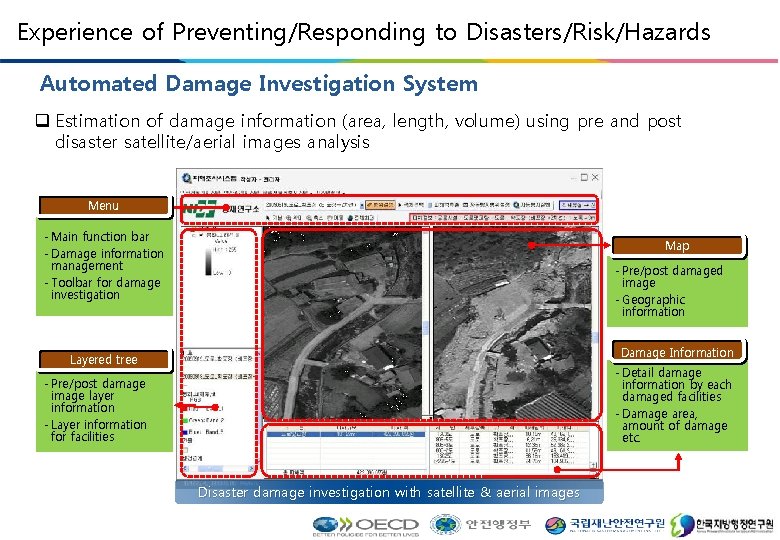

Experience of Preventing/Responding to Disasters/Risk/Hazards Automated Damage Investigation System Estimation of damage information (area, length, volume) using pre and post disaster satellite/aerial images analysis Menu - Main function bar - Damage information management - Toolbar for damage investigation Map - Pre/post damaged image - Geographic information Damage Information Layered tree - Detail damage information by each damaged facilities - Damage area, amount of damage etc. - Pre/post damage image layer information - Layer information for facilities Disaster damage investigation with satellite & aerial images 9

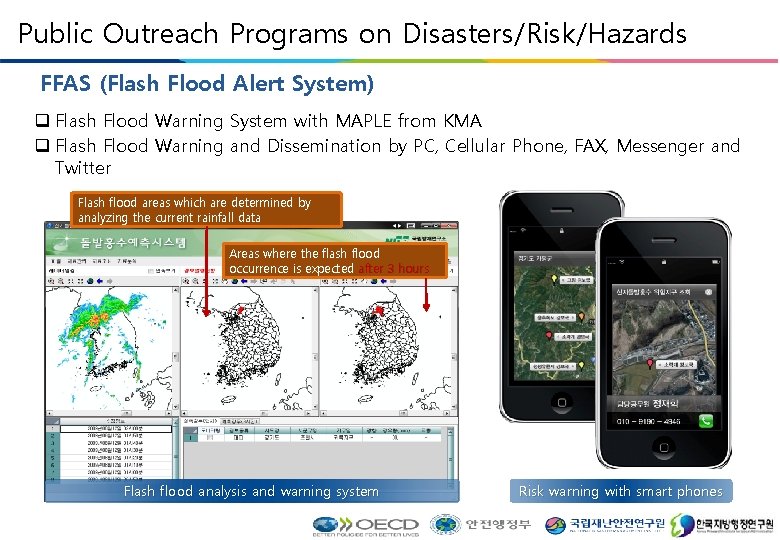

Public Outreach Programs on Disasters/Risk/Hazards FFAS (Flash Flood Alert System) Flash Flood Warning System with MAPLE from KMA Flash Flood Warning and Dissemination by PC, Cellular Phone, FAX, Messenger and Twitter Flash flood areas which are determined by analyzing the current rainfall data Areas where the flash flood occurrence is expected after 3 hours Flash flood analysis and warning system Risk warning with smart phones 10

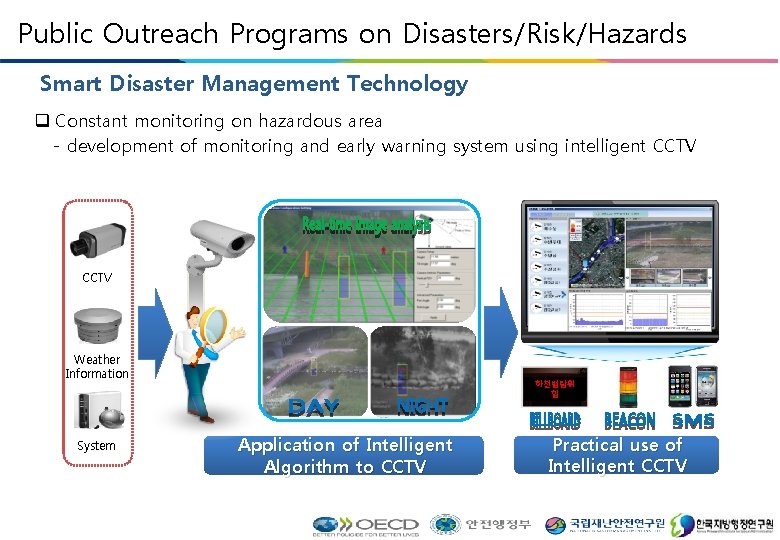

Public Outreach Programs on Disasters/Risk/Hazards Smart Disaster Management Technology Constant monitoring on hazardous area - development of monitoring and early warning system using intelligent CCTV Weather Information System 하천범람위 험 Application of Intelligent Algorithm to CCTV 11 Practical use of Intelligent CCTV

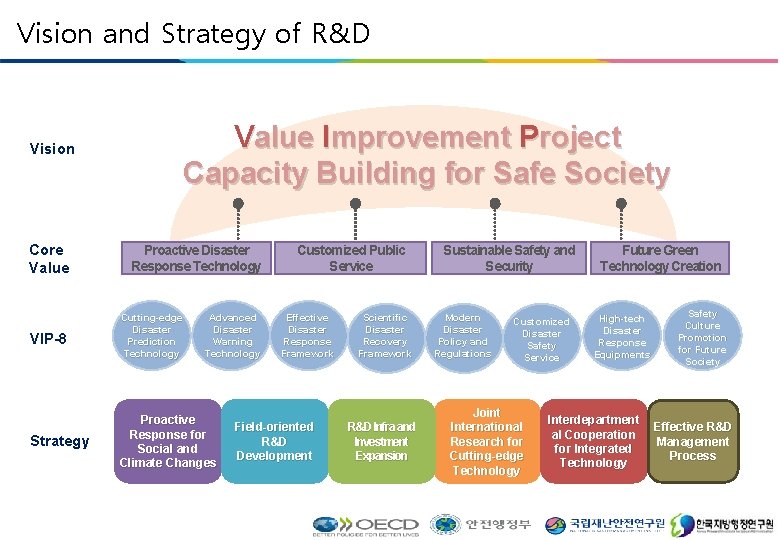

Vision and Strategy of R&D Value Improvement Project Capacity Building for Safe Society Vision Core Value Proactive Disaster Response Technology VIP-8 Cutting-edge Disaster Prediction Technology Advanced Disaster Warning Technology Strategy Proactive Response for Social and Climate Changes Customized Public Service Effective Disaster Response Framework Field-oriented R&D Development Scientific Disaster Recovery Framework R&D Infra and Investment Expansion 12 Sustainable Safety and Security Modern Disaster Policy and Regulations Customized Disaster Safety Service Joint International Research for Cutting-edge Technology Future Green Technology Creation High-tech Disaster Response Equipments Interdepartment al Cooperation for Integrated Technology Safety Culture Promotion for Future Society Effective R&D Management Process

Thank You 13
