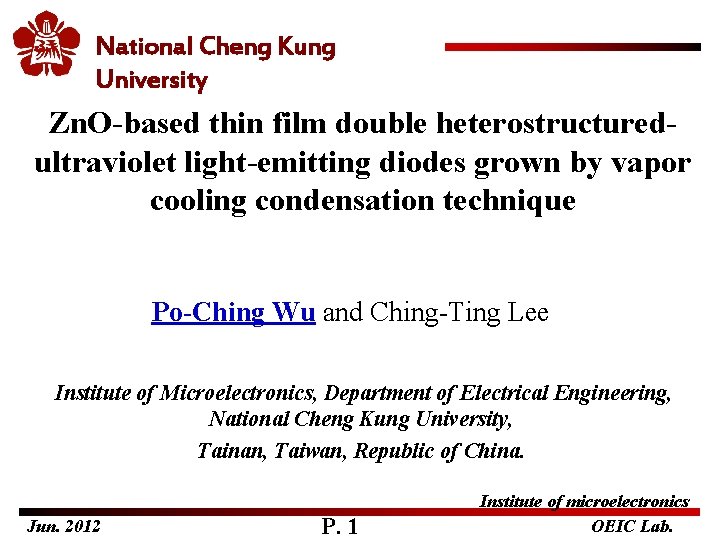

National Cheng Kung University Zn. O-based thin film double heterostructuredultraviolet light-emitting diodes grown by vapor cooling condensation technique Po-Ching Wu and Ching-Ting Lee Institute of Microelectronics, Department of Electrical Engineering, National Cheng Kung University, Tainan, Taiwan, Republic of China. Jun. 2012 P. 1 Institute of microelectronics OEIC Lab.

National Cheng Kung University Outline p Introduction p Experiments p Results and discussion p Conclusions Jun. 2012 P. 2 Institute of microelectronics OEIC Lab.

National Cheng Kung University Introduction The applications of the UV light： l Anti-counterfeiting detectors l UV treatment l Air and water purification The advantages of the UV LEDs： l l Portable Safety Long lifetime Environmental protection －no mercury (Hg) pollution Jun. 2012 P. 3 Institute of microelectronics OEIC Lab.

National Cheng Kung University The advantages of the Zn. O semiconductor： l l Wide direct band gap (3. 37 e. V) Large exciton binding energy (60 me. V) Low cost, high stability, non-toxic The energy bandgap of the Mg. Zn. O film could be modulated from 3. 37 e. V to 7. 7 e. V The common deposition methods of the Mg. Zn. O film： ü ü MOCVD [1] MBE [2] PLD [3] Sputtering [4] High-temperature process Ref：[1] J. Phys. D: Appl. Phys. , 42, 235101 (2009). [3] IEEE J. Sel. Top. Quantum Electron. , 14, 1048 (2008). [2] Appl. Phys. Lett. , 86, 192911, (2005). Jun. 2012 [4] IEEE Photon. Technol. Lett. , 20, 2108 (2008). P. 4 Institute of microelectronics OEIC Lab.

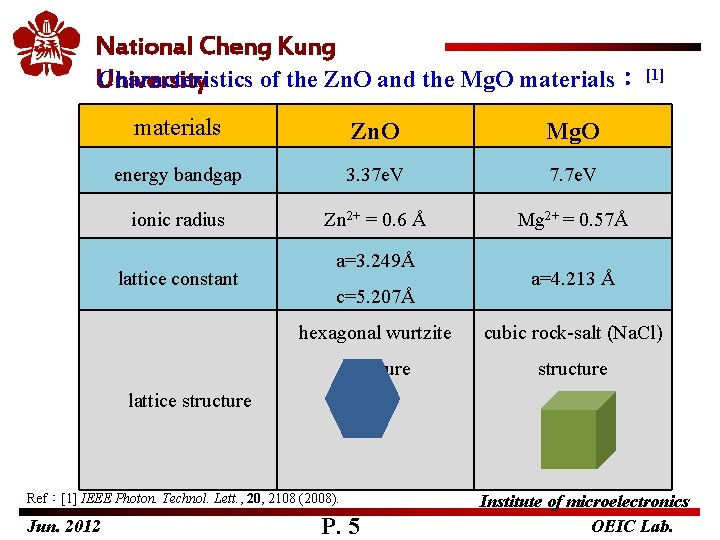

National Cheng Kung Characteristics of the Zn. O and the Mg. O materials： [1] University materials Zn. O Mg. O energy bandgap 3. 37 e. V 7. 7 e. V ionic radius Zn 2+ = 0. 6 Å Mg 2+ = 0. 57Å lattice constant a=3. 249Å c=5. 207Å a=4. 213 Å hexagonal wurtzite cubic rock-salt (Na. Cl) structure lattice structure Ref：[1] IEEE Photon. Technol. Lett. , 20, 2108 (2008). Jun. 2012 P. 5 Institute of microelectronics OEIC Lab.

National Cheng Kung Lattice structure of the Mg. Zn. O films： University Hexagonal Mg. Zn. O u. When the Mg content of the Mg. Zn. O films is lower than 36%, the lattice structure is still as hexagonal structure. [1] Mixed Phase Cubic Mg. Zn. O Ref：[1] J. Appl. Phys. , 94, 7336 (2003). Jun. 2012 P. 6 Institute of microelectronics OEIC Lab.

National Cheng Kung Experiments University The vapor cooling condensation system Deposition layers： i-type Mg. Zn. O film i-type Zn. O film n-type Zn. O: In film Deposition conditions： Pressure ： 10 -4 torr Deposition Rate ： 1 Å/s Substrate Temperature： 80 K Jun. 2012 P. 7 Institute of microelectronics OEIC Lab.

National Cheng Kung Universityprocess of the Zn. O-based thin film double Fabrication heterostructured-ultraviolet LEDs) light-emitting diodes (UV u ULEDs was patterned by the conventional photolithography and lift-off process. u The electrodes were deposited by the evaporator. electron-beam u The ohmic contacts of the Ni/Au metals and p-Al. Ga. N was processed with sulfide treatment and performed at 500 o. C in an air ambient for 10 min in the rapid thermal annealing (RTA) system, while the Ti/Au metals and n-Zn. O: In was performed at 200 o. C in a N 2 ambient for 3 min. u The p-Al. Ga. N/i-Mg. Zn. O/i-Mg. Zn. O/n-Zn. O: In UV LEDs and the conventional p-Al. Ga. N/i-Zn. O/n-Zn. O: In UV LEDs were fabricated. Jun. 2012 P. 8 Institute of microelectronics OEIC Lab.

National Cheng Kung The schematic diagram of the p-Al. Ga. N/i-Mg. Zn. O/i-Zn. O/i. University Mg. Zn. O/n-Zn. O: In UV LEDs Mg. Zn. O CB VB A energy level schematic diagram of the Mg. Zn. O/Mg. Zn. O double heterostructure u Carrier confinement u Enhance the radiative recombination rate Jun. 2012 P. 9 Institute of microelectronics OEIC Lab.

National Cheng Kung University The influence factor of the light-extraction efficiency of the LEDs：[1] Ø Critical angle loss (internal total reflection) Snell`s law n 1 sin c = n 2 sin 90 Þ c =sin-1(n 2 / n 1) n 2 n 1 ØFresnel loss T+R = 1 R = (n 2 - n 1)2 / (n 2 + n 1)2 T = 1 -R = 4 n 2 n 1/ (n 22 +2 n 2 n 1 + n 12) Reduce the light extraction loss Jun. 2012 P. 10 n 2 n 1 > n 2 c T R Ref：[1] S. M. Sze, Semiconductor Devices: Physics and Technology. New York: Wiley, 2002. Institute of microelectronics OEIC Lab.

National Cheng Kung The schematic cross sectional view of the UV LEDs University u Deposited the transparent oxide films of the Si. O 2 and Ti. O 2 , respectively, on the top and sidewall of the UV LEDs by using a RF sputtering system. u The contribution of the oxide passivation layer ： Refractive index： n(air) = 1 n(Si. O 2) = 1. 45 n(Zn. O) = 2 n(Ti. O 2) = 2. 3 Jun. 2012 P. 11 p reduce the light extraction loss p reduce the leakage current Institute of microelectronics OEIC Lab.

National Cheng Kung Results and discussion University The properties of the p-type Al. Ga. N p The energy band gap of the p-type Al 0. 18 Ga 0. 82 N layer was about 3. 71 e. V. p Activation： 750 °C in N 2 ambient for 30 min p Hole concentration = 3. 0 × 1017 cm-3 , Hole mobility = 3. 86 cm 2/V-s Hall measurement results of the films deposited by the vapor cooling condensation system Jun. 2012 Thin film Carrier concentration (cm-3) Mobility (cm 2/V-s) i-type Zn. O 3. 12× 1015 6. 2 n-type Zn. O: In Mg. Zn. O 3. 62× 1019 × 3. 7 × P. 12 Institute of microelectronics OEIC Lab.

National Cheng Kung University Transmittance and optical energy bandgap Tauc plot [1] visible region d：Thickness ：Absorption coefficient T ： Transmittance h：Planck`s constant ：Photon frequency Eg：Optical energy bandgap Thin film Mg. Zn. O i-Zn. O n-Zn. O: In Optical energy bandgap (Eg) 4. 01 e. V 3. 27 e. V 3. 25 e. V Ref：[1] Phys. Stat. Sol. , 15, 627 (1966). Jun. 2012 P. 13 Institute of microelectronics OEIC Lab.

National Cheng Kung University EDS measurement u The magneisum content of the Mg. Zn. O film was about 25%. [1] XRD measurement u The (0 0 2) diffraction peak of the hexagonal structure in the Mg. Zn. O film was measured. [2] Ref：[1] J. Appl. Phys. , 101, 033502 (2007). [2] Thin Solid Films, 372, 173 (2000). Jun. 2012 P. 14 Institute of microelectronics OEIC Lab.

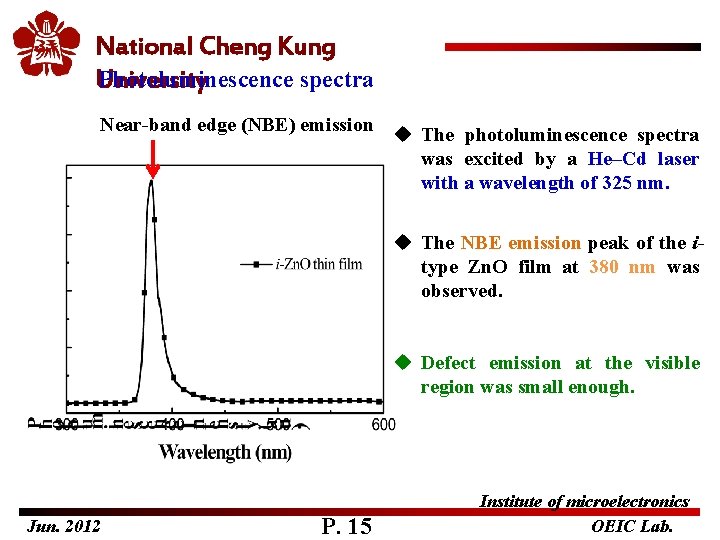

National Cheng Kung Photoluminescence spectra University Near-band edge (NBE) emission u The photoluminescence spectra was excited by a He–Cd laser with a wavelength of 325 nm. u The NBE emission peak of the itype Zn. O film at 380 nm was observed. u Defect emission at the visible region was small enough. Jun. 2012 P. 15 Institute of microelectronics OEIC Lab.

National Cheng Kung Why the films deposited at low-temperature have lower University defect concentration? Room temperature photoluminescence spectra of the high temperature (HT)-Zn. O films and the low temperature (LT)-Zn. O films excited with a He–Cd laser with a wavelength of 325 nm. [1] Ref：[1] H. Y. Lee, S. D. Xia, W. P. Zhang, L. R. Lou, J. T. Yan, and C. T. Lee, “Mechanisms of high quality i-Zn. O thin films deposition at low temperature by vapor cooling condensation technique, ” J. Appl. Phys. , 108, 073119 (2010). Jun. 2012 P. 16 Institute of microelectronics OEIC Lab.

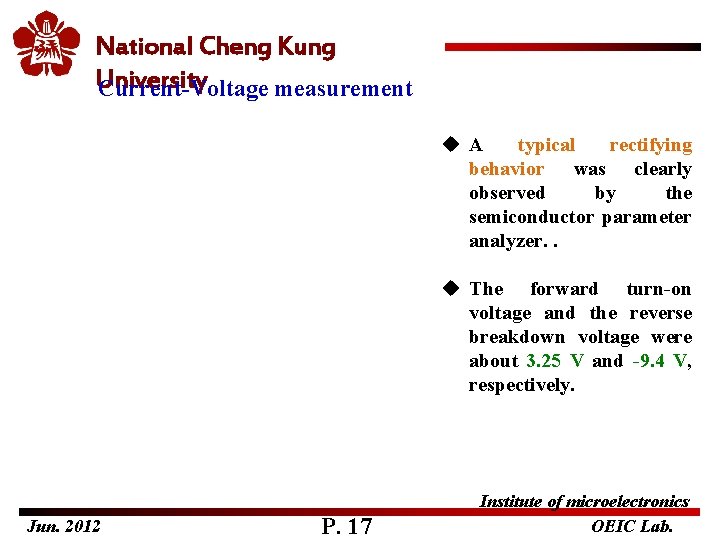

National Cheng Kung University Current-Voltage measurement u A typical rectifying behavior was clearly observed by the semiconductor parameter analyzer. . u The forward turn-on voltage and the reverse breakdown voltage were about 3. 25 V and -9. 4 V, respectively. Jun. 2012 P. 17 Institute of microelectronics OEIC Lab.

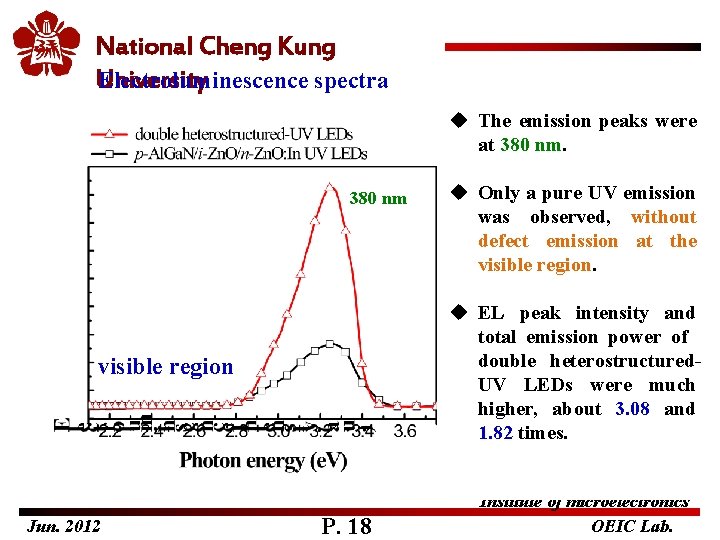

National Cheng Kung Electroluminescence spectra University u The emission peaks were at 380 nm u EL peak intensity and total emission power of double heterostructured. UV LEDs were much higher, about 3. 08 and 1. 82 times. visible region Jun. 2012 u Only a pure UV emission was observed, without defect emission at the visible region. P. 18 Institute of microelectronics OEIC Lab.

National Cheng Kung Conclusions University u High quality Zn. O and Mg. Zn. O film with low defect concentration were successfully deposited by the vapor cooling condensation system. u The UV LEDs with a pure UV emission and without defect emission at the visible region was achieved. u Double heterostructure was contributed to the carrier confinement and the enhancement of the radiative recombination rate in the active i-Zn. O layer. u The EL emission peak intensity and the total emission power of the double heterostructured-UV LEDs were much higher than that conventional UV LEDs. Jun. 2012 P. 19 Institute of microelectronics OEIC Lab.
