National Center for Scientific and Technical Research ----------------------------------National Institute of Geophysics NEAREST PROJECT CNRST Contribution to WP 5 activities NEAREST meeting Barcelona May 2008 Birouk A. ING-CNRST

Plan n n Seismic Data sharing and integration Contribution of the CNRST to the Tide gauge Network NEAREST meeting Barcelona May 2008

Workpackge N° 5 Data integration/ Integrated tsunami detection Network Objectives: Integration of data collected in real time, collection of waveforms from different permanent landbased networks with the data collected by OBS array and seafloor observatory Description of work Task 5. 1: Establishment of 3 data collectors for real-time automatic processing of data (one in Portugal, the other in Spain and a 3 rd one in Morocco) Task 5. 2: Waveform sharing between data collectors, integration of seismic data including OBSs Task 5. 3: Integration of tide gauge data Task 5. 4: Integration of multiparameter data from seafloor observatory Task 5. 5: Development of automatic procedures for rapid determination of seismic parameters and definition of thresholds for triggering the tsunami detection procedures Task 5. 6: Development of an effective tsunami detection methodology. Definition of thresholds for issuing different levels of alarm messages NEAREST meeting Barcelona May 2008

Contribution of the CNRST to WP 5: Seismic Data sharing and integration: current state CNRST-Rabat reception from IM of Lisbon since 20/5/08 PM_PVAQ BB station (since 20/5/08) Digitiser: Guralp DM 24 Sensor: Guralp CMG-3 T (120 sec) PM_PESTR BB station (since 20/5/08) Digitiser: Guralp DM 24 Sensor: Guralp CMG-3 T (120 sec) PM_PFVI BB station (since 18/11/08) Digitiser: Guralp DM 24 Sensor: Guralp CMG-3 ESPc (120 sec) IM of Lisbon reception from Rabat RTC-Rabat VBB station (since 20/5/08) Digitiser: Quanterra 680 Sensor: VBB Streikeisen STS-1 (320 sec) One or two news BB stations wil be availaible in few months to IM and UGR nodes Data sharing with UGR regional center of Spain (node): not yet available because data acquisition system in Spanish node is based on another system not compatible with Seiscomp. In few months this problem will be fixed and 2 BB stations will be availaible in real time to Rabat node. NEAREST meeting Barcelona May 2008

RABAT RTC VBB STATION NEAREST meeting Barcelona May 2008

Reception in real time of Seismic data in Rabat node NEAREST meeting Barcelona May 2008

REMOTE STATION: GENERAL OVERVIEW OR OR NEAREST meeting Barcelona May 2008 Le-3 D

Data Acquisition & Processing System DUAL HUB Dual Modem Antelope NEAREST meeting Barcelona May 2008

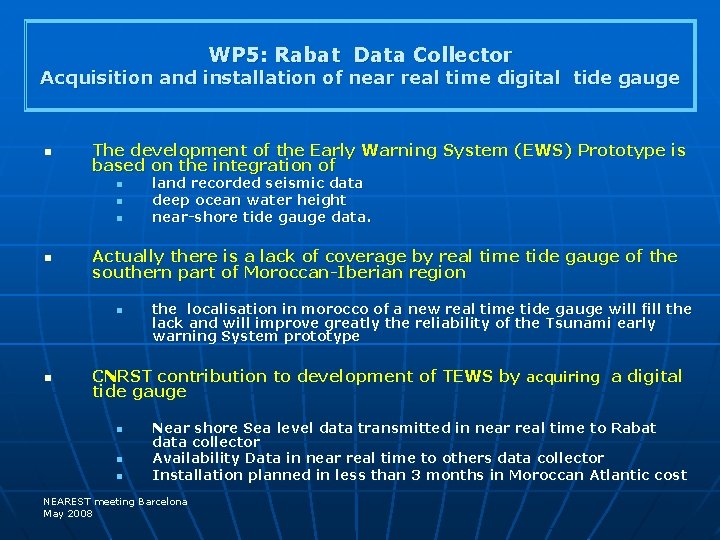

WP 5: Rabat Data Collector Acquisition and installation of near real time digital tide gauge n The development of the Early Warning System (EWS) Prototype is based on the integration of n n Actually there is a lack of coverage by real time tide gauge of the southern part of Moroccan-Iberian region n n land recorded seismic data deep ocean water height near-shore tide gauge data. the localisation in morocco of a new real time tide gauge will fill the lack and will improve greatly the reliability of the Tsunami early warning System prototype CNRST contribution to development of TEWS by acquiring a digital tide gauge n n n Near shore Sea level data transmitted in near real time to Rabat data collector Availability Data in near real time to others data collector Installation planned in less than 3 months in Moroccan Atlantic cost NEAREST meeting Barcelona May 2008

WP 5: Rabat Data Collector Acquisition and installation of near real time digital tide gauge n Manufacturers contacted: n Sensor: • • • n Acquisition System (logger): • • n OTT MESSTECHNIK Gmb. H & Co. KG KROHN VEGA OTT MESSTECHNIK Gmb. H & Co. KG KROHN ELTA Campbell Scientific Best Quality/price ratio by OTT MESSTECHNIK Gmb. H n n Sensor: Kalesto type Radar technology Acquisition System : OTT Duo. Sens • • • n analogical inputs: 2 (voltage, curent, PT 100) digital inputs: 2 impulse, 1 SDI-12 and RS-485; Control : RS-232 or Infrared Ir. DA; Sampling: 5 s-24 h; Transmission: dial-up line , GSM, GPRS, ADSL and satellite acquisition and processing: Hydra 3 software: NEAREST meeting Barcelona May 2008

TIDE GAUGE DATA INTEGRATION TO RABAT DATA COLLECTOR Tide gauge Logger ADSL MODEM VPN TELECOM OPER ADSL MODEM Morocco land seismic BB stations node (CNRST) Spain land seismic BB stations node (UGR) NEAREST meeting Barcelona May 2008 -Tide Gauge Acquisition cost: ~ 20. 000 Euro -Tide Gauge Installation cost: ~ 1500 Euro -Tide Gauge oparating Cost: ~ 120 Euro / month Portugal land seismic BB stations node (IM) Near real time Internet link ADSL transmission

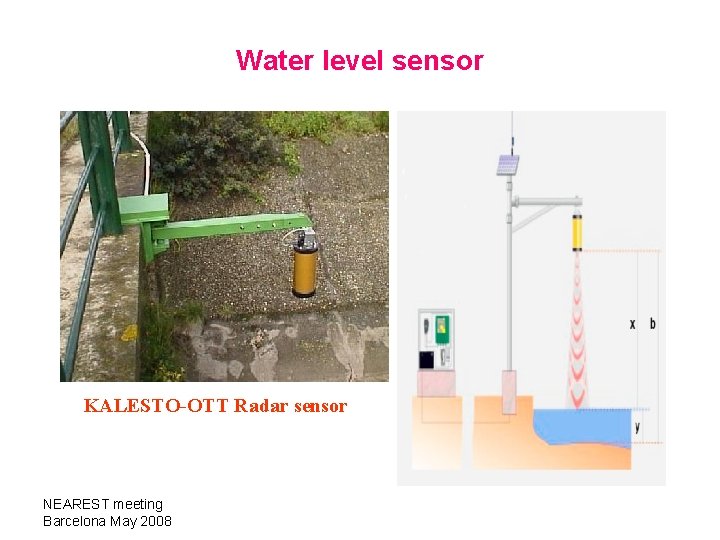

Water level sensor KALESTO-OTT Radar sensor NEAREST meeting Barcelona May 2008

Tide gauge acquisition System NEAREST meeting Barcelona May 2008

Communcations possibilities of Tide gauge acquisition System NEAREST meeting Barcelona May 2008

Moroccan tide gauge network ANP: 10 Tide gauges: -VEGAPULS 65 Radar Sensor -AURORE 200 datalogger. Martec/Serpe-IESM -Data is recorded every 10 minutes but presently only a Flash memory is used -Data sent as an attachment to an email on a monthly or 3 monthly period from all ports ANCFCC: 2 Tide gauges - Mors HT 200 Acoustic - No information availaible on data storage and transmission Moroccan tide gauge network operated since 2003 by DPDPM and ANCFCC. (Ref: Intergouvernmental Oceanographic Commission (IOC), 2007. Global Sea Level Observing System (GLOSS), Technical Visit Report, 4 th - 12 th February 2007) NEAREST meeting Barcelona May 2008

Harbours prospection for installation of tide gauge: Sidi Abed Marina (nearby Rabat) NEAREST meeting Barcelona May 2008

Harbours prospection for installation of tide gauge: Mohamadia Harbour NEAREST meeting Barcelona May 2008

Moroccan tide gauge network Exemple of tide gauge installation, Agadir Harbour NEAREST meeting Barcelona May 2008

CNRST- ANP BEGINNING OF COOPERATION n Possibilities of cooperation on tsunami hazard assesment (accses to ANP tide database) n Installation of CNRST TG in Harbour managed by ANP n data exchange in real time between CNRST and ANP n CNRST can take in charge upgrading of data transmission possibilities of the current tide gauge in tangier n it will result in two real time TG for the benefit of our NEAREST project NEAREST meeting Barcelona May 2008
