National Center for Case Study Teaching in Science Erosion of Soil Pollution of Air and Water A Supplement to A Tale of Twin Towns: Natural Capital Degradation by Vandana A. Gudi Department of Science Robert Morgan Educational Center, Miami, FL

Natural Capital Degradation By 1. Deforestation (Logging) 2. Mining 3. Burning of Fossil fuel 4. Acid rain 5. Agriculture & Industrialization 6. Eutrophication 7. Human ignorance 2

Deforestation 3

Deforestation: Harmful to the Environment • Causes soil erosion • Results in decreased soil fertility • Eroded soil runoff may increase turbidity in the nearby water reservoirs • Extensive clearing of forests may change local climate • Flooding becomes common as there is no soil to retain water 4

Logging Advantages • Renewable resource • Jobs Disadvantages • Damages surrounding ecosystems • Decreases biodiversity • Decreases recreational opportunities 5

Mining: Nonrenewable (Mineral) Resources Extraction and processing of minerals causes … • • Habitat destruction Soil erosion Air & water pollution Solid waste generation 6

Acid Mine Drainage 7

Acid Drainage 8

Air Pollution Acid Rain due to Fossil Fuel Consumption (Regional Problem) Sources: • Coal burning power plants • Ore smelters • Industrial plants Harmful effects: • Causes respiratory diseases • Metal corrosion & weathering of stone sculptures • Haze • Harmful to aquatic life Pollutants: • Sulfur dioxide, Nitrogen oxides, suspended particulates • Primary pollutants become secondary pollutants such as HNO 3, H 2 SO 4, during transportation over several kilometers by prevailing winds • Dry deposition of particulates as SO 4 & NO 3 salts, away from the source 9

Acid Rain Formation 10

Effects of Acid Rain Usually mountain top ecosystems with thin soil cover and low amounts of Ca and Mg salts (low buffering capacity) in the soil are vulnerable to acid rain damage 11

Acid Rain on Forests • • Acid rain when p. H of rain is < 5. 1 Acids leach Ca & Mg salts from soils Soils lose their buffering capacity Ca-deficiencies in plants growing in such soils can pass to primary consumers. Ex. Birds lay eggs with brittle shells 12

Effects of Acid Rain cont. • Low p. H releases highly toxic ions such as Al, Hg, Pb, and Cd from insoluble compounds in soil. Absorption of these ions makes trees weak. • Weak trees become vulnerable to low temperatures, drought, and to infection by insects and acid loving mosses. 13

Types of Sources of Water Pollution • Point Sources are easy to locate and control • Discharge at specific locations • Ex. drain pipes, sewer lines • Culprits: industries, sewage treatment plants • Non-Point Sources are dispersed and difficult to pin point • Ex. agricultural run off, run off from live stock feed lots, lawns of suburban neighborhoods, construction sites, streets and parking lots, acid rain etc. 14

Major Sources of Water Pollution • Agriculture: agricultural runoff, erosion from overgrazed land, microorganisms from live stock, wastes from food processing industries, excess salts from soils of irrigated crop land • Industries: wastes stored can leach to surface and/or ground water • Surface mining: disturbs earth’s surface, runoff of toxic chemicals 15

Pollution of Fresh Water Streams • As the water is flowing, moderate amounts of biodegradable wastes and excess heat gets diluted easily in a stream • It is a problem when large amounts of pollutants contaminate the stream or • The water flow is reduced due to a. Drought, b. Damming or c. Diverted to agriculture or industries 16

Pollution of Fresh Water Reservoirs • Surface water reservoirs like lakes can easily get contaminated with pollutants as water is mostly stagnant • Additionally, there is little vertical mixing among the stratified layers of a lake which further inhibits the dilution of the pollutant • Air pollutants produced by industries and automobiles, agricultural run off, run off from mining and construction sites, run off from streets and lawns are the major sources leading to nutrient overload of lakes 17

Runoff from farm fields reaches sediment-laden stream in southwestern Iowa Construction site runoff in Davidson, North Carolina 18

Eutrophication 1. Nutrient rich runoff from farmlands to surface water reservoirs allows phytoplanktons to grow uncontrollably. So zooplanktons that feed on them grow uncontrollably too. 2. When phytoplanktons & zooplanktons die and sink to the bottom, aerobic decomposers metabolize them, consuming almost all of the dissolved O 2 in the water creating a hypoxic zone where no aerobic organisms can live. 19

20

Relationship between Dissolved Oxygen Levels and Water Quality DO (ppm) at 200 C 8. 0 -9. 0 6. 7 -8. 0 4. 5 -6. 7 Below 4. 5 Below 4. 0 Water Quality Good Slightly Polluted Moderately Polluted Heavily Polluted Gravely Polluted Miller T. G. 2005. Living in the Environment, 14 th edition, Brooks/Cole, Page 492. 21

How Ground Water Gets Polluted? • Leakage from underground septic tanks, industrial waste storage tanks, chemical storage ponds, agricultural runoff can easily contaminate water in an aquifer • The plume of contaminated water may reach a well which is used as a source of ground water for human consumption and/or for agriculture 22

Contaminated Ground Water is a Serious Problem • Unlike surface water, ground water does not get diluted of pollutants as it flows extremely slowly • The decomposers responsible to degrade contaminating organic matter are low in number due to the lower amounts of dissolved oxygen in ground water • The colder temperatures of aquifers further slow down the rate of decomposition 23

Ground Water Contamination is Permanent on a Human Time Scale • Ground water contaminated with biodegradable wastes cleanses itself within hundreds to thousands of years • Ground water contaminated with non degradable wastes such as lead, arsenic, fluoride stays like that permanently 24

Sources of Ground Water Pollution 25

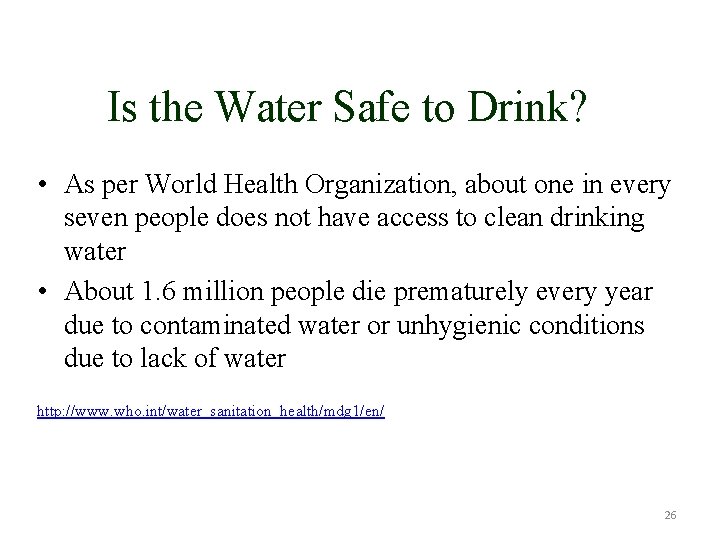

Is the Water Safe to Drink? • As per World Health Organization, about one in every seven people does not have access to clean drinking water • About 1. 6 million people die prematurely every year due to contaminated water or unhygienic conditions due to lack of water http: //www. who. int/water_sanitation_health/mdg 1/en/ 26

Pollutants in Drinking Water are Harmful to Human Health • High levels of naturally occurring fluoride(F-) in drinking water may lead to crippling backbone disease, neck damage and is responsible for many dental problems • NO 3 ions from agricultural run off can contaminate ground water. NO 2 ions in the digestive system react with these NO 3 ions in the water after human consumption to form organic intermediates which can be carcinogenic • These NO 3 ions when in blood interfere with oxygen circulation especially in infants causing ‘blue baby syndrome’ • Arsenic(As) enters drinking water when a well is drilled in the rock naturally rich in it. Long term exposure to As may lead to various cancers 27

Solutions to Groundwater Pollution Prevention is better… Solutions: 1. Limit the use of polluting 1. Bioremediation chemicals in the 2. Pump up the polluted water environment, find to clean up, then return to alternates aquifer (may not be cost 2. Quick detection system for efficient) leakage of underground 3. Prevention is better than storage tanks and pipe cure! lines 3. No dumping of hazardous wastes in landfill, make people aware of recycling centers 28

How to Keep Ground Water Safe? • Reduce the use of chemical fertilizers by planting native trees • Increase use of greywater (treated waste water from homes and office buildings) • Use ecologically friendly methods to treat sewage (black water) • Minimize industrial air pollution • Educate public about refuse, reduce, reuse and recycle 29

How to prevent water pollution? Water pollution can be prevented by educating the public on the following issues: • Why the use of synthetic, chemical fertilizers, and pesticides should be reduced and the use of green fertilizer or manure should be increased • How to compost the kitchen organic waste • Never to dump household chemicals such as oil (frying oil or car oil), paint thinners, paints, pesticides, unwanted medicines etc. onto the ground or down the drain • Never to apply pesticides or synthetic fertilizers near a water reservoir • How to grow your own vegetables or encourage public to buy organic food to support organic food industry 30

Reference Miller T. G. 2005. Living in the Environment, 14 th edition. Brooks/Cole. • • • Chapter 11. Sustaining Terrestrial Biodiversity: Managing and Protecting Ecosystems. Human impact on ecosystems, managing and sustaining forests, tree harvests, deforestation, logging in U. S. National Forests, etc. Pages 194 -223 Chapter 15. Water Resources. Supply, renewal and use of various water resources, withdrawing ground water, depletion of ground water, reducing wastage of purified water, etc. Pages 305 -330 Chapter 16. Geology and Nonrenewable Mineral Resources. Surface and subsurface mining, different types of surface mining, environmental impact of surface mining etc. Pages 331 -349 Chapter 20. Air Pollution. Primary and secondary pollutants, local and regional effects of air pollution, acid deposition, effects of acid deposition, etc. Pages 433 -460 Chapter 22: Water Pollution. Sources of water pollution, point and nonpoint sources, pollution of streams, lakes and ground water, solution, etc. Pages 491 -517 31
