Nanofabrication Nanofabrication manipulates very small materials 100 nm

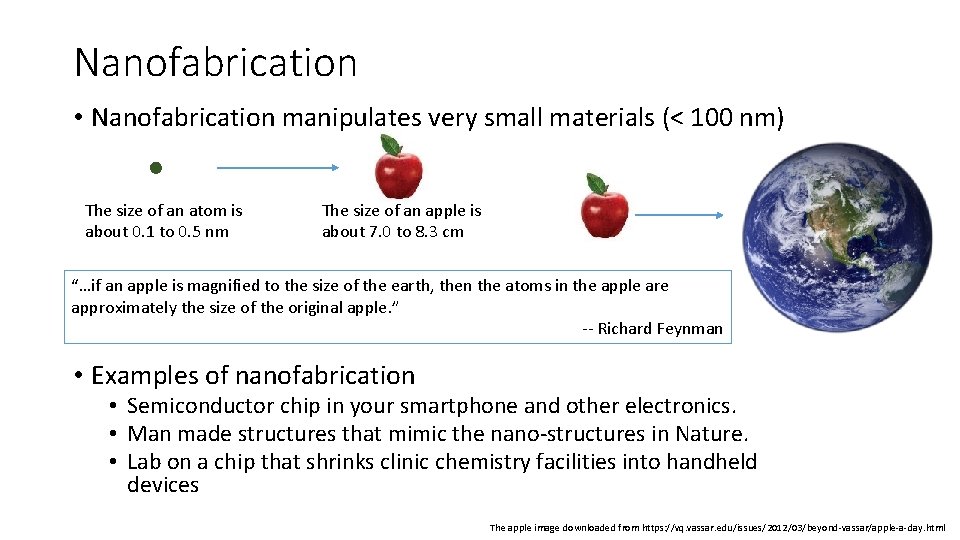

Nanofabrication • Nanofabrication manipulates very small materials (< 100 nm) The size of an atom is about 0. 1 to 0. 5 nm The size of an apple is about 7. 0 to 8. 3 cm “…if an apple is magnified to the size of the earth, then the atoms in the apple are approximately the size of the original apple. ” -- Richard Feynman • Examples of nanofabrication • Semiconductor chip in your smartphone and other electronics. • Man made structures that mimic the nano-structures in Nature. • Lab on a chip that shrinks clinic chemistry facilities into handheld devices The apple image downloaded from https: //vq. vassar. edu/issues/2012/03/beyond-vassar/apple-a-day. html

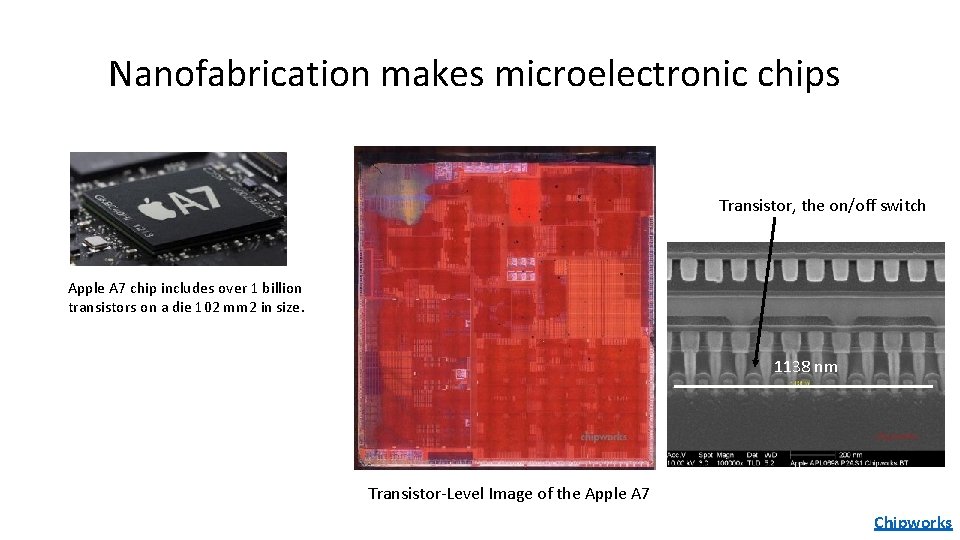

Nanofabrication makes microelectronic chips Transistor, the on/off switch Apple A 7 chip includes over 1 billion transistors on a die 102 mm 2 in size. 1138 nm Transistor-Level Image of the Apple A 7 Chipworks

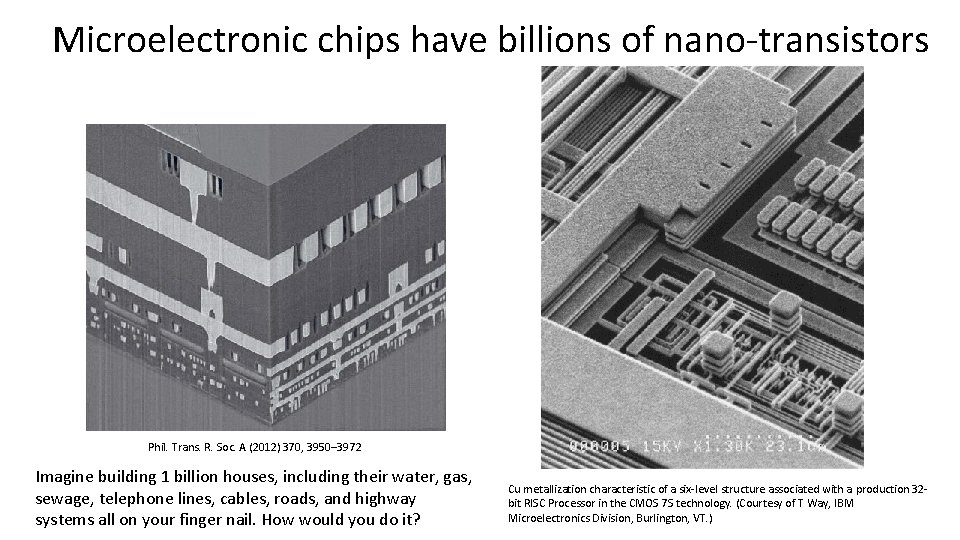

Microelectronic chips have billions of nano-transistors Phil. Trans. R. Soc. A (2012) 370, 3950– 3972 Imagine building 1 billion houses, including their water, gas, sewage, telephone lines, cables, roads, and highway systems all on your finger nail. How would you do it? Cu metallization characteristic of a six-level structure associated with a production 32 bit RISC Processor in the CMOS 7 S technology. (Courtesy of T Way, IBM Microelectronics Division, Burlington, VT. )

The nanostructure on the butterfly wing can be mimicked using nanofabrication Blue Morpho butterfly Radwanul H. Siddiquea, Karlsruhe Institute of Technology proceedings. spiedigitallibrary. org Rene Lopez, UNC at Chapel Hill Journal of Vacuum Science & Technology B 30, 061802 (2012);

Nanofabrication can shrink clinical chemistry laboratories to the size of handheld devices Clinical lab to handheld device enabled by nanofabrication http: //www. royalwolverhamptonhospitals. nhs. uk/pathology_services/departments/clinical_chemistry. aspx http: //www. siliconsemiconductor. net/article/75748 Commercialising-Lab-On-A-Chip-Technology. php

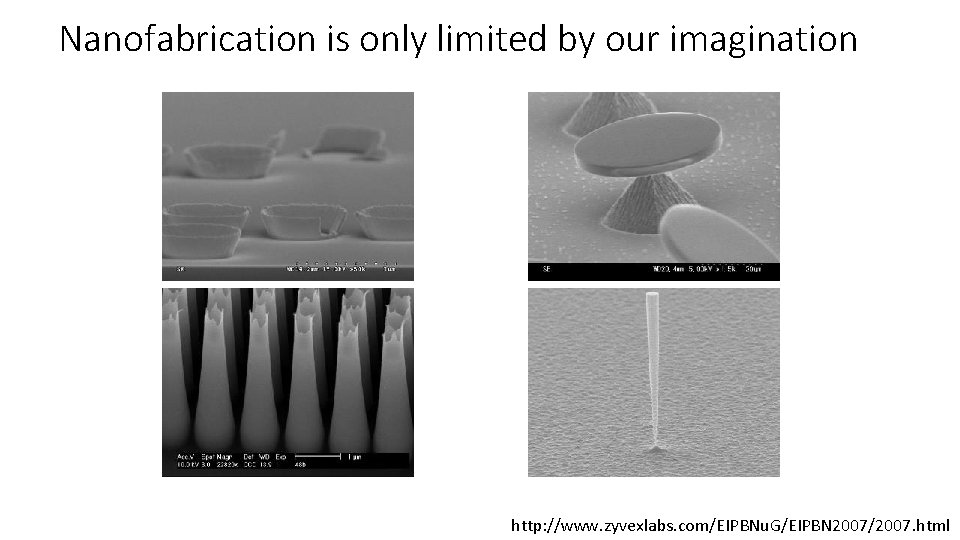

Nanofabrication is only limited by our imagination http: //www. zyvexlabs. com/EIPBNu. G/EIPBN 2007/2007. html

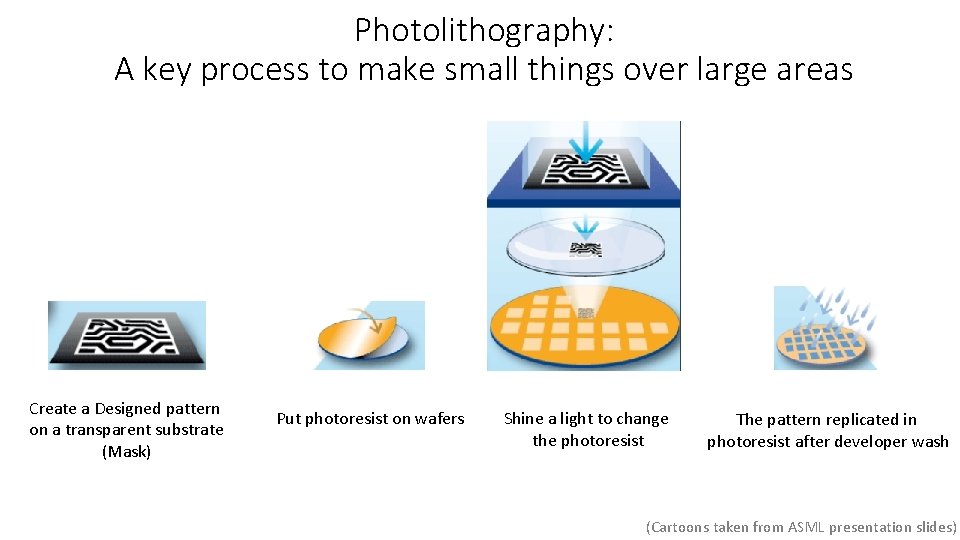

Photolithography: A key process to make small things over large areas Create a Designed pattern on a transparent substrate (Mask) Put photoresist on wafers Shine a light to change the photoresist The pattern replicated in photoresist after developer wash (Cartoons taken from ASML presentation slides)

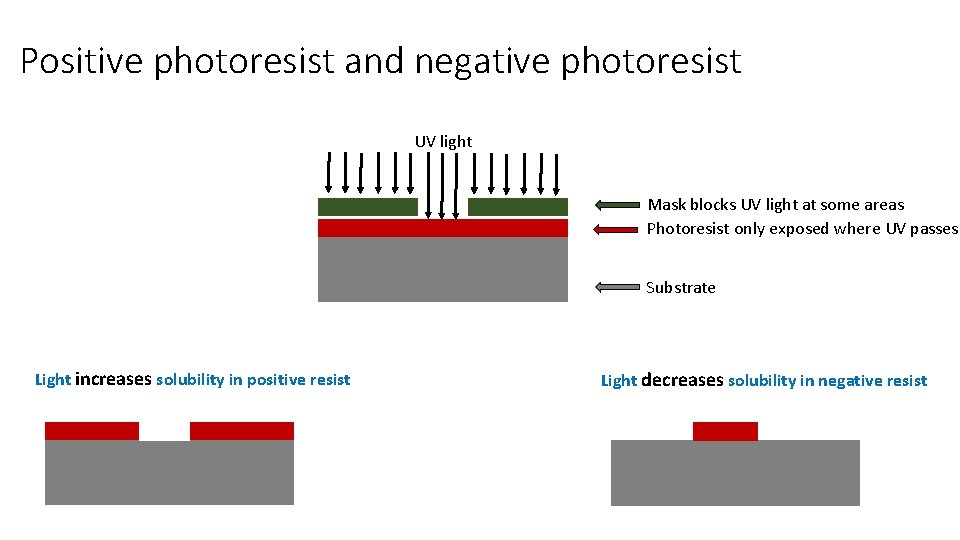

Positive photoresist and negative photoresist UV light Mask blocks UV light at some areas Photoresist only exposed where UV passes Substrate Light increases solubility in positive resist Light decreases solubility in negative resist

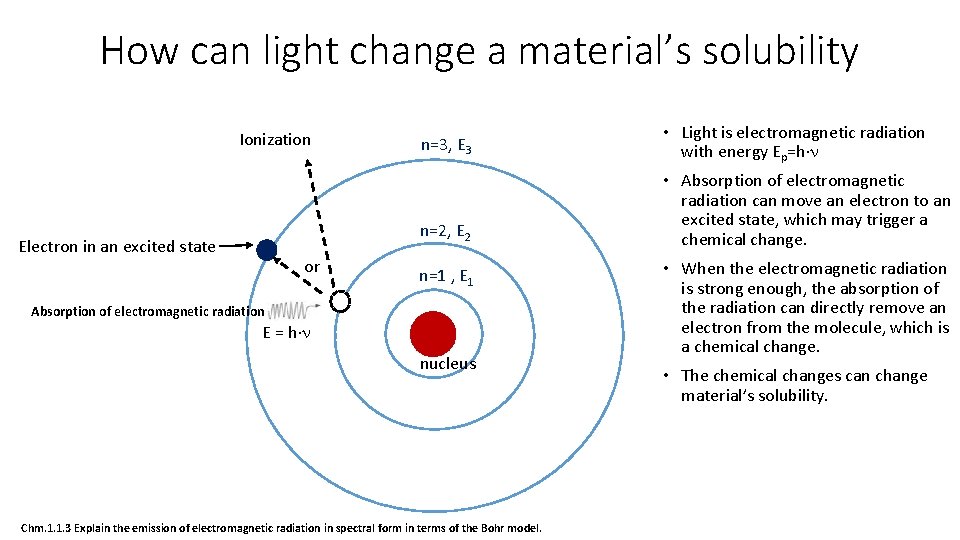

How can light change a material’s solubility Ionization Electron in an excited state or n=3, E 3 • Light is electromagnetic radiation with energy Ep=h n=2, E 2 • Absorption of electromagnetic radiation can move an electron to an excited state, which may trigger a chemical change. n=1 , E 1 Absorption of electromagnetic radiation E = h nucleus Chm. 1. 1. 3 Explain the emission of electromagnetic radiation in spectral form in terms of the Bohr model. • When the electromagnetic radiation is strong enough, the absorption of the radiation can directly remove an electron from the molecule, which is a chemical change. • The chemical changes can change material’s solubility.

An example of positive photoresist Photoresist before exposure to UV light + Insoluble in base solution UV light + H 2 O Photoresist after exposure to UV light + Soluble in base solution

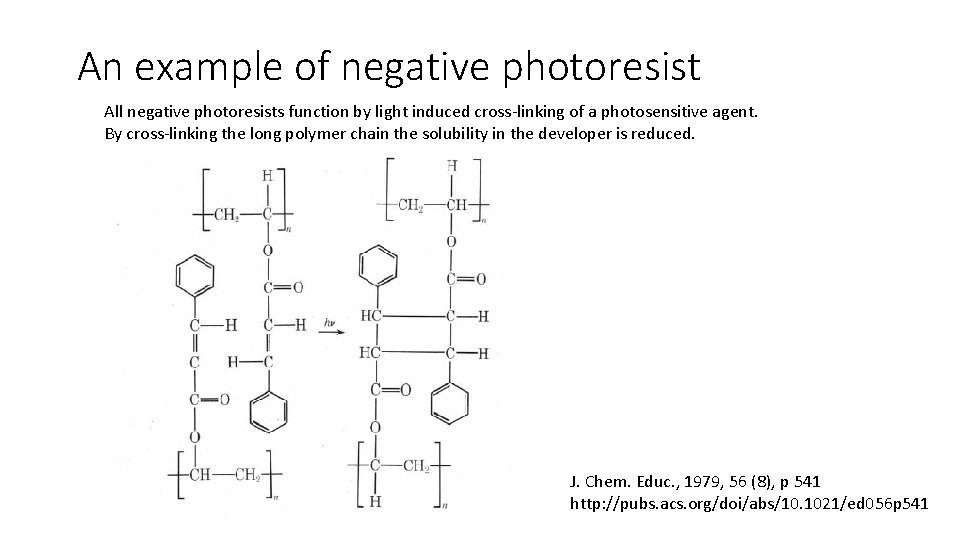

An example of negative photoresist All negative photoresists function by light induced cross-linking of a photosensitive agent. By cross-linking the long polymer chain the solubility in the developer is reduced. J. Chem. Educ. , 1979, 56 (8), p 541 http: //pubs. acs. org/doi/abs/10. 1021/ed 056 p 541
