Naming in Distributed Systems

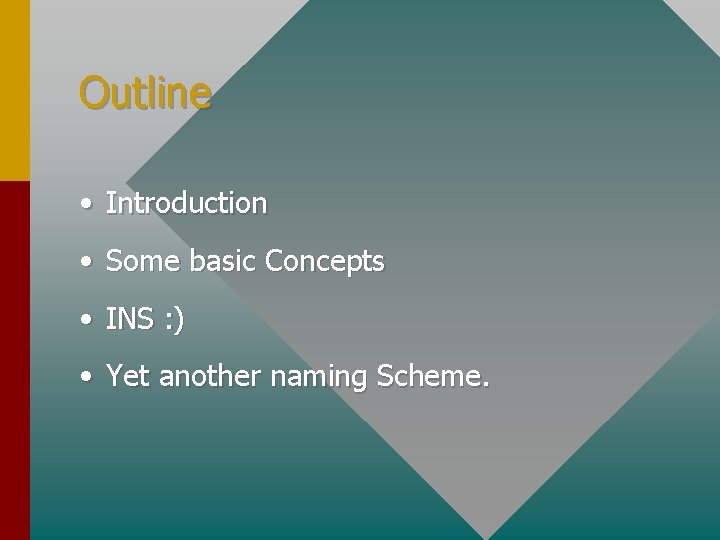

Outline • Introduction • Some basic Concepts • INS : ) • Yet another naming Scheme.

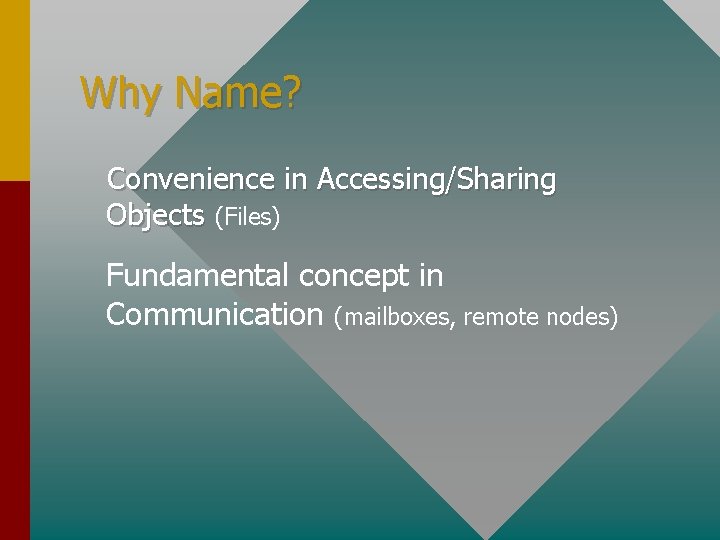

Why Name? Convenience in Accessing/Sharing Objects (Files) Fundamental concept in Communication (mailboxes, remote nodes)

What does Naming get us? • Mapping between names->objects • Provide info on those objects • Locate/discover objects and their attributes Thus it directly affects : • Sharing, migration, replication, security

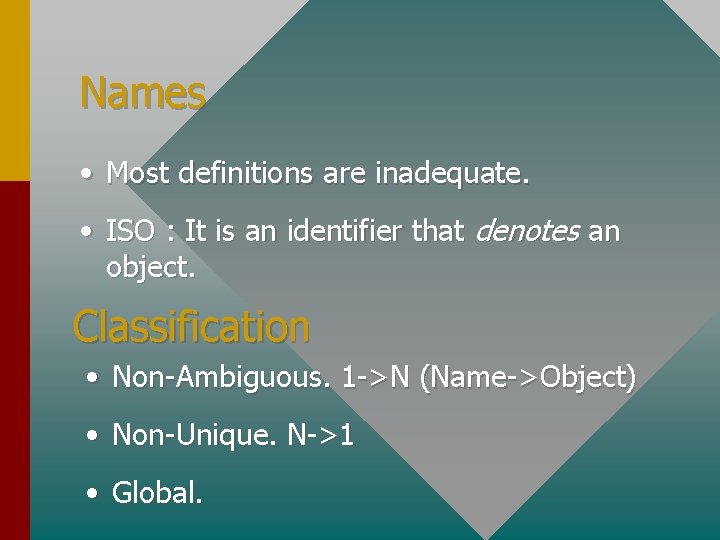

Names • Most definitions are inadequate. • ISO : It is an identifier that denotes an object. Classification • Non-Ambiguous. 1 ->N (Name->Object) • Non-Unique. N->1 • Global.

Names, Addresses And Routes • Name specifies WHAT, address WHERE, routes HOW to get there. • Each is a tighter binding of information. • System names / Communication names. • Name is usually user-friendly. Naming facility translates names-> addresses-> routes. Routing is part of naming!

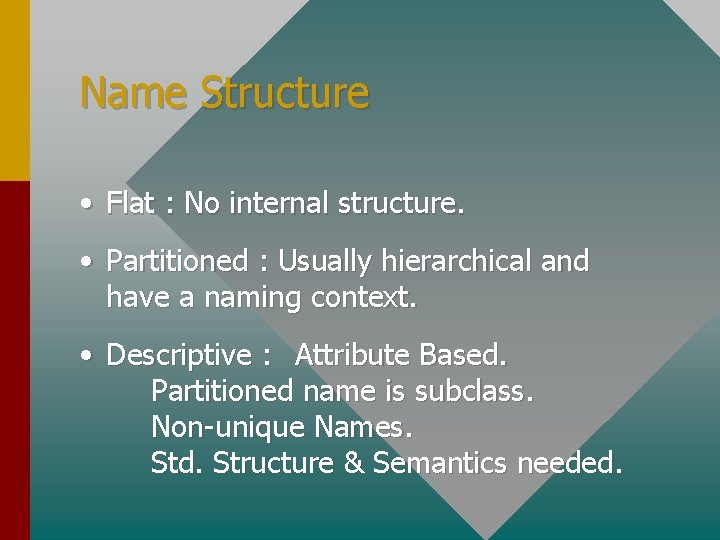

Name Structure • Flat : No internal structure. • Partitioned : Usually hierarchical and have a naming context. • Descriptive : Attribute Based. Partitioned name is subclass. Non-unique Names. Std. Structure & Semantics needed.

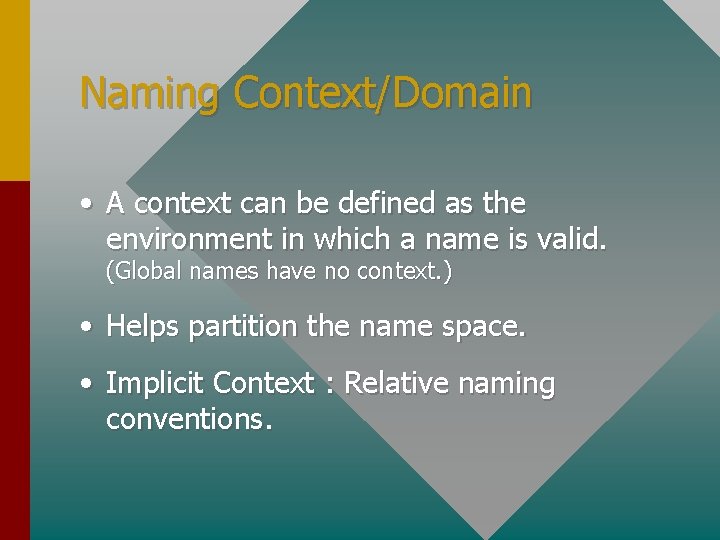

Naming Context/Domain • A context can be defined as the environment in which a name is valid. (Global names have no context. ) • Helps partition the name space. • Implicit Context : Relative naming conventions.

Naming schemes • Hierarchical : – Extensible/scalable. – Goes with logical view of the system. – Implicit context -> smaller names. – Configuration is (usually) not simple.

Naming Schemes (cont’d) • Descriptive : – Supports ‘services’. – Scalable. – Easily supports fault-tolerance, group communication. – Processing overhead is usually large.

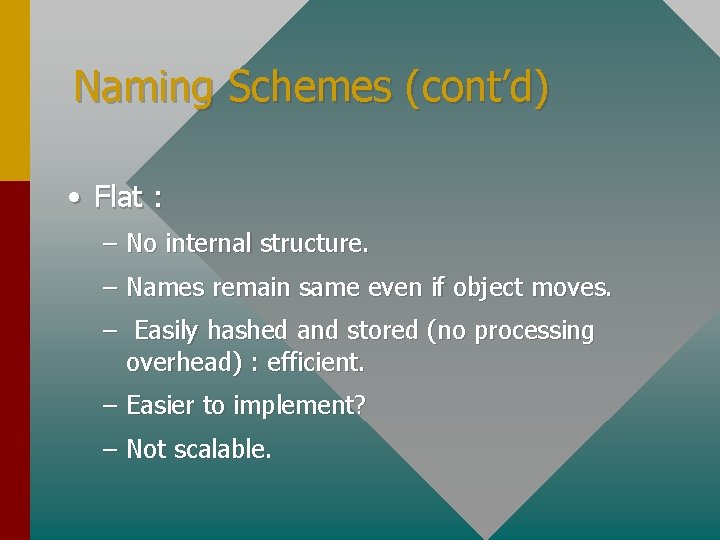

Naming Schemes (cont’d) • Flat : – No internal structure. – Names remain same even if object moves. – Easily hashed and stored (no processing overhead) : efficient. – Easier to implement? – Not scalable.

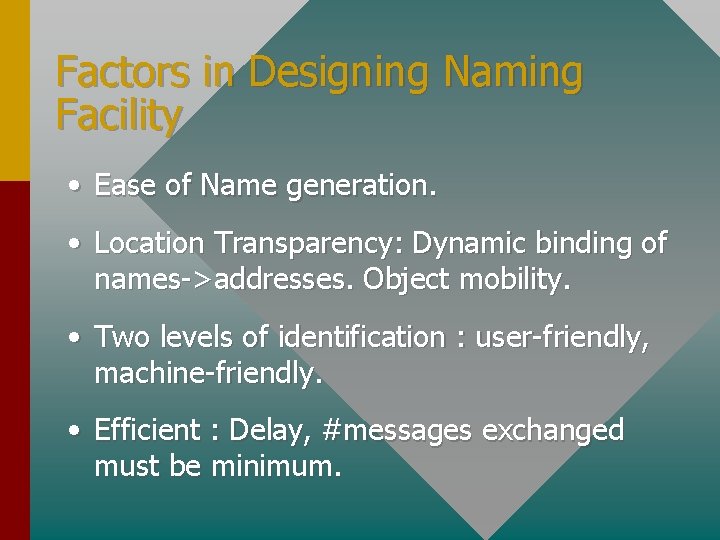

Factors in Designing Naming Facility • Ease of Name generation. • Location Transparency: Dynamic binding of names->addresses. Object mobility. • Two levels of identification : user-friendly, machine-friendly. • Efficient : Delay, #messages exchanged must be minimum.

• Support for 1 ->N mapping between names & addresses : – Fault Tolerance – Group Communication.

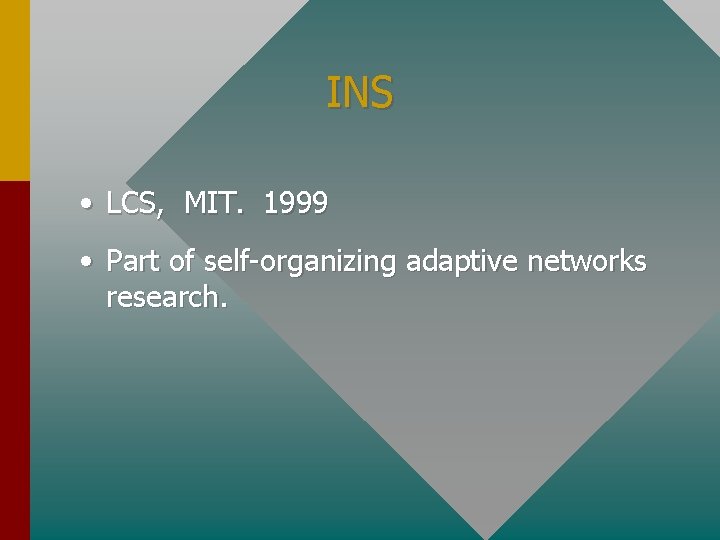

INS • LCS, MIT. 1999 • Part of self-organizing adaptive networks research.

Motivation • How to adapt to dynamicity in networks seamlessly - mobility of devices and services. • Dynamic resource discovery and service location. • Software and service mgmt cost > HW • E. g. : good ol’ printer, finding least loaded server, etc.

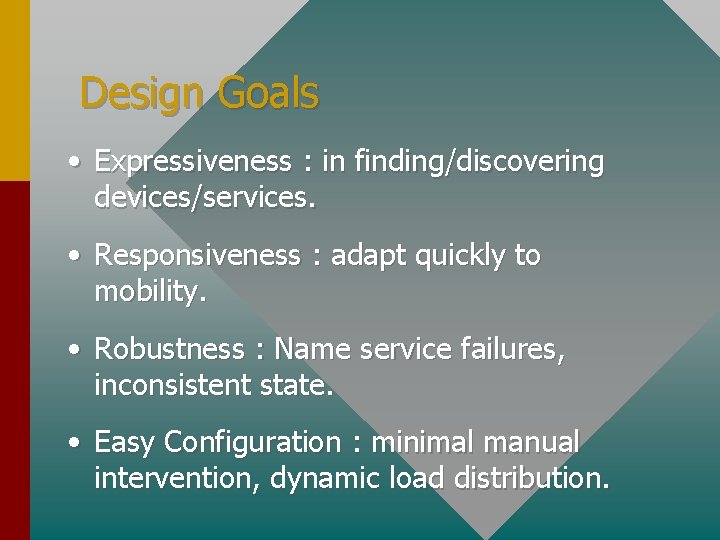

Design Goals • Expressiveness : in finding/discovering devices/services. • Responsiveness : adapt quickly to mobility. • Robustness : Name service failures, inconsistent state. • Easy Configuration : minimal manual intervention, dynamic load distribution.

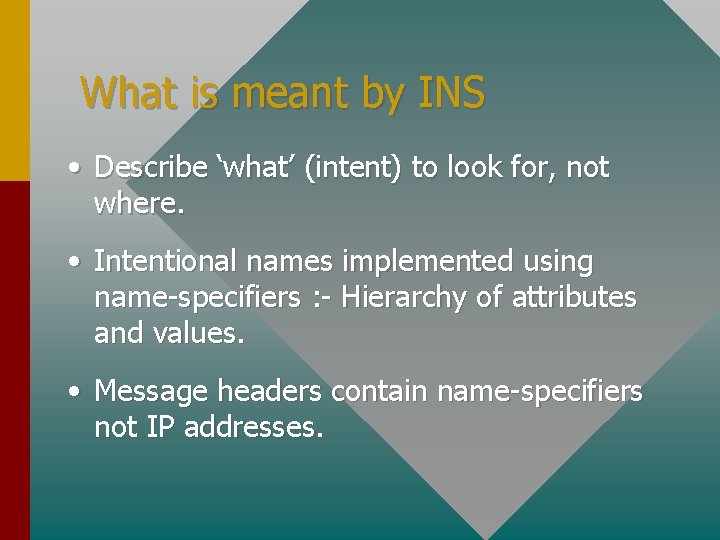

What is meant by INS • Describe ‘what’ (intent) to look for, not where. • Intentional names implemented using name-specifiers : - Hierarchy of attributes and values. • Message headers contain name-specifiers not IP addresses.

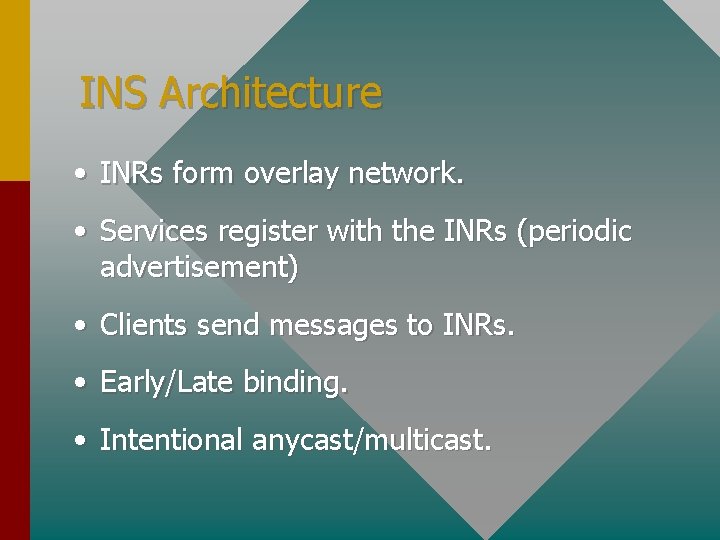

INS Architecture • INRs form overlay network. • Services register with the INRs (periodic advertisement) • Clients send messages to INRs. • Early/Late binding. • Intentional anycast/multicast.

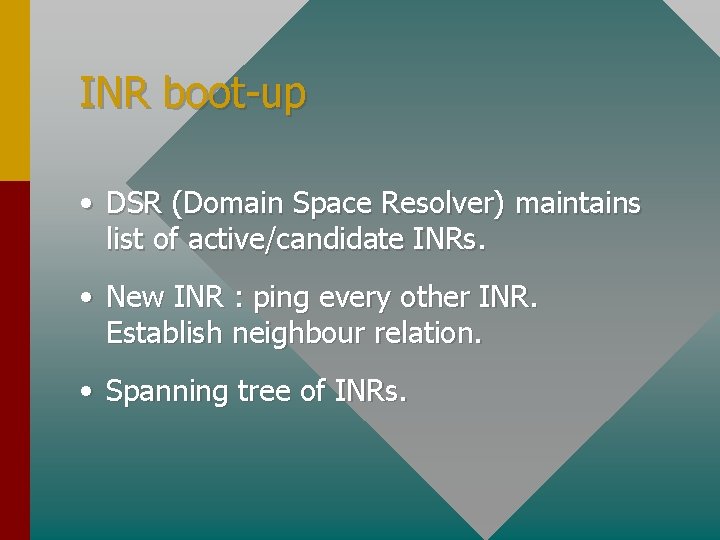

INR boot-up • DSR (Domain Space Resolver) maintains list of active/candidate INRs. • New INR : ping every other INR. Establish neighbour relation. • Spanning tree of INRs.

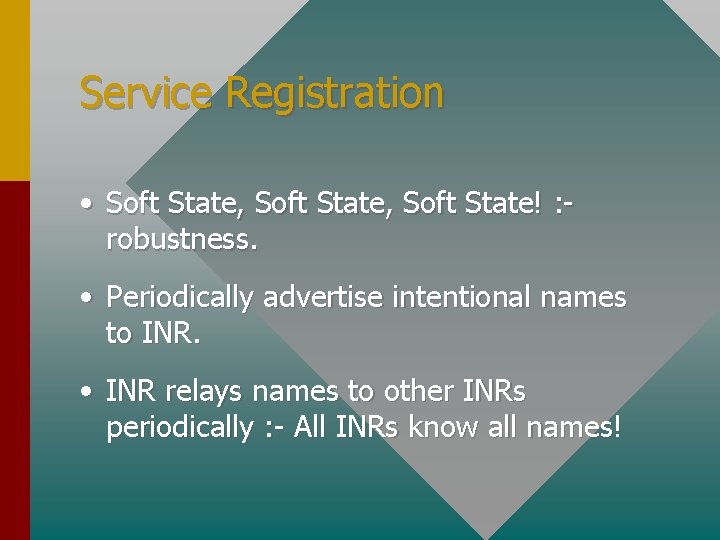

Service Registration • Soft State, Soft State! : robustness. • Periodically advertise intentional names to INR. • INR relays names to other INRs periodically : - All INRs know all names!

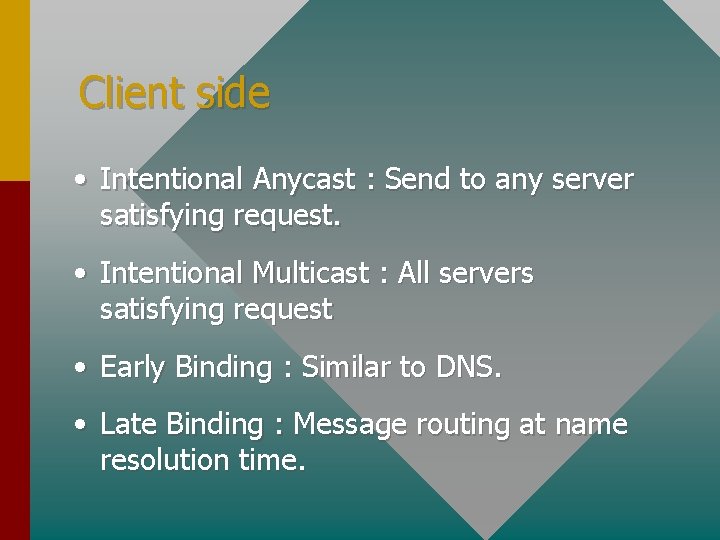

Client side • Intentional Anycast : Send to any server satisfying request. • Intentional Multicast : All servers satisfying request • Early Binding : Similar to DNS. • Late Binding : Message routing at name resolution time.

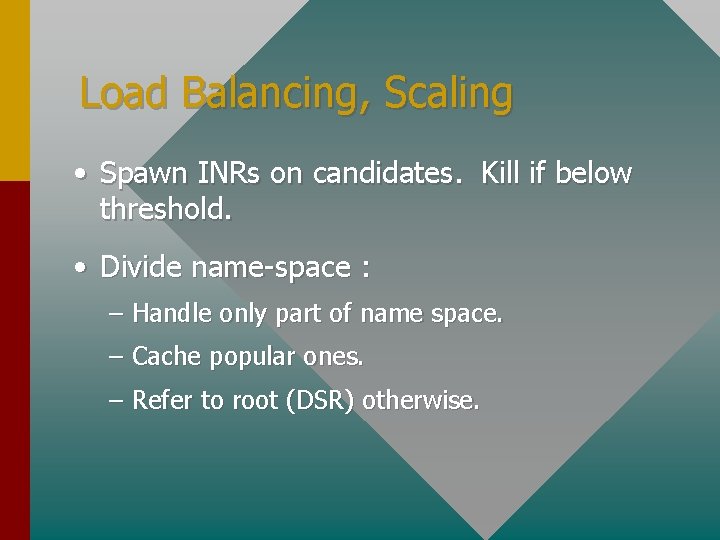

Load Balancing, Scaling • Spawn INRs on candidates. Kill if below threshold. • Divide name-space : – Handle only part of name space. – Cache popular ones. – Refer to root (DSR) otherwise.

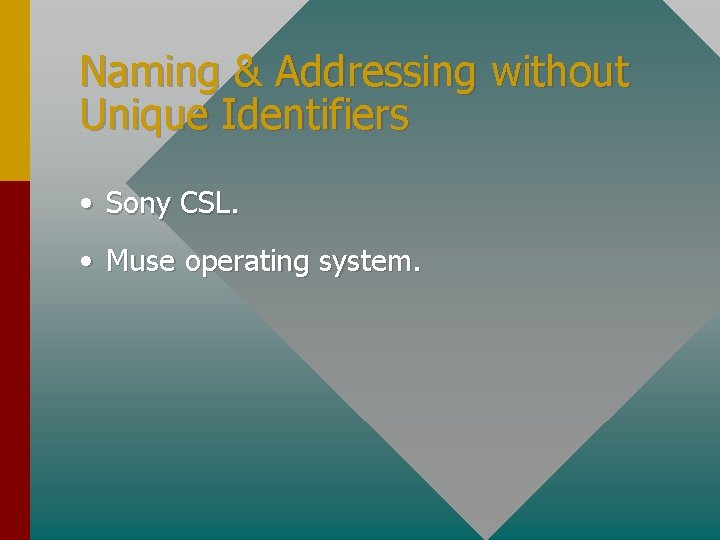

Naming & Addressing without Unique Identifiers • Sony CSL. • Muse operating system.

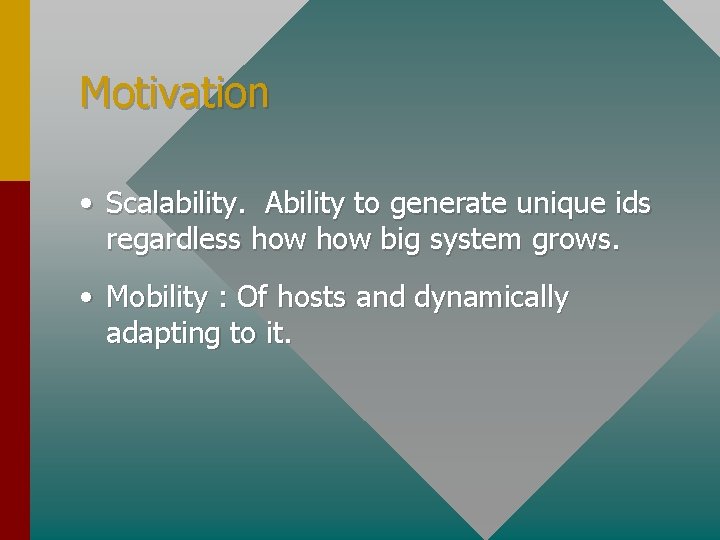

Motivation • Scalability. Ability to generate unique ids regardless how big system grows. • Mobility : Of hosts and dynamically adapting to it.

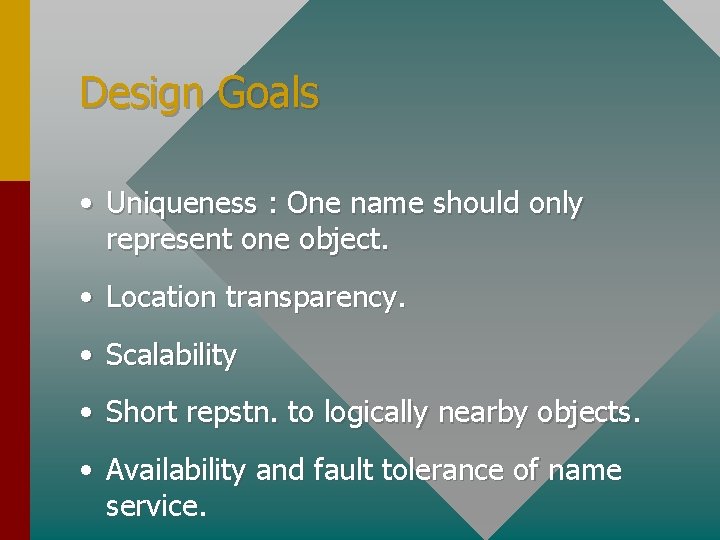

Design Goals • Uniqueness : One name should only represent one object. • Location transparency. • Scalability • Short repstn. to logically nearby objects. • Availability and fault tolerance of name service.

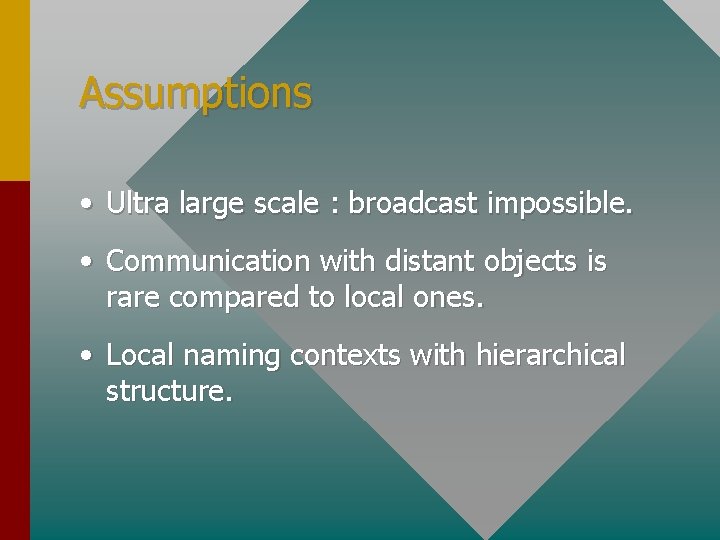

Assumptions • Ultra large scale : broadcast impossible. • Communication with distant objects is rare compared to local ones. • Local naming contexts with hierarchical structure.

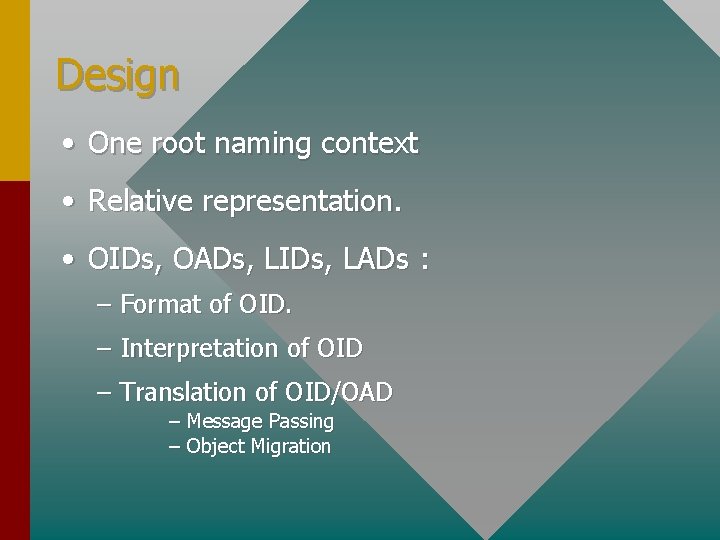

Design • One root naming context • Relative representation. • OIDs, OADs, LIDs, LADs : – Format of OID. – Interpretation of OID – Translation of OID/OAD – Message Passing – Object Migration

Close •
