Naming Conventions, Hardware Baseline, Preliminary Layout Status Report 6 th HL-PLC 2013 -09 -03 I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli

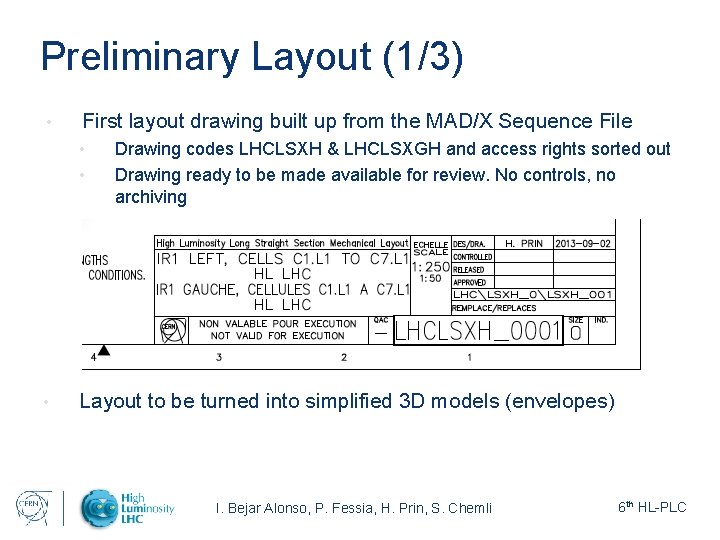

Preliminary Layout (1/3) • First layout drawing built up from the MAD/X Sequence File • • • Drawing codes LHCLSXH & LHCLSXGH and access rights sorted out Drawing ready to be made available for review. No controls, no archiving Layout to be turned into simplified 3 D models (envelopes) I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli 6 th HL-PLC

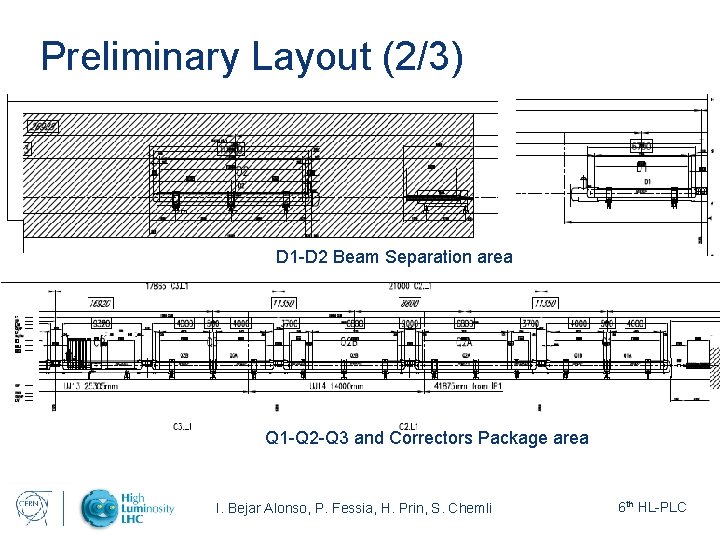

Preliminary Layout (2/3) D 1 -D 2 Beam Separation area Q 1 -Q 2 -Q 3 and Correctors Package area I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli 6 th HL-PLC

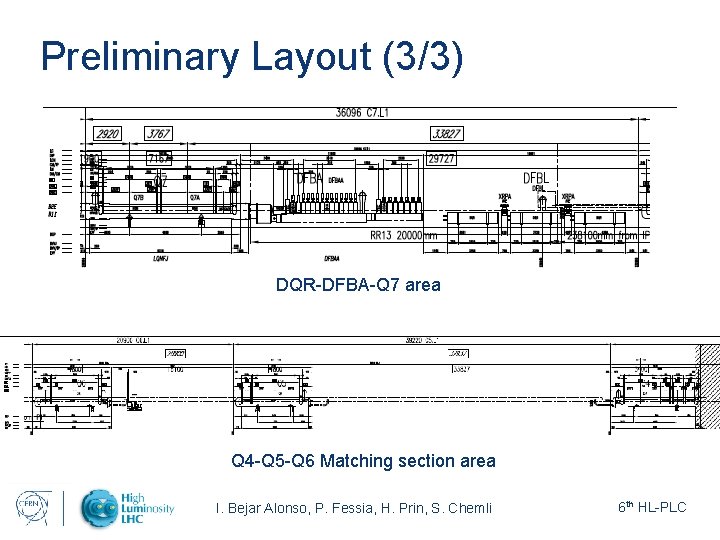

Preliminary Layout (3/3) DQR-DFBA-Q 7 area Q 4 -Q 5 -Q 6 Matching section area I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli 6 th HL-PLC

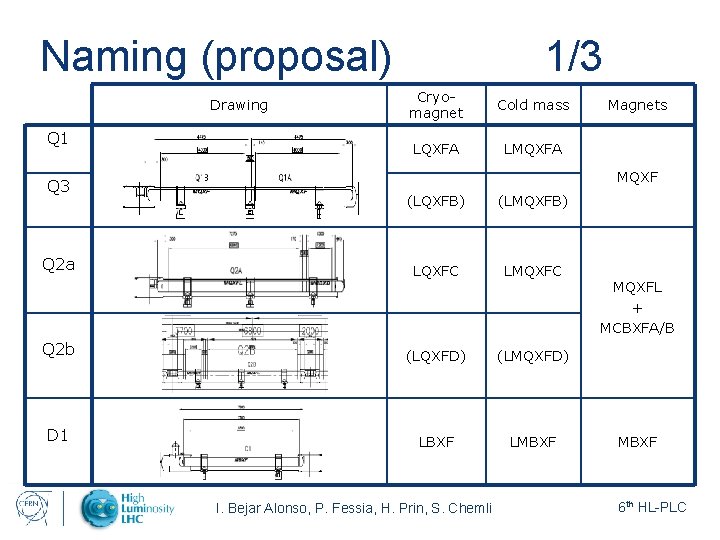

Naming (proposal) Drawing Q 1 Q 3 1/3 Cryomagnet Cold mass LQXFA LMQXFA MQXF (LQXFB) (LMQXFB) LQXFC LMQXFC Q 2 b (LQXFD) (LMQXFD) D 1 LBXF LMBXF Q 2 a Magnets I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli MQXFL + MCBXFA/B MBXF 6 th HL-PLC

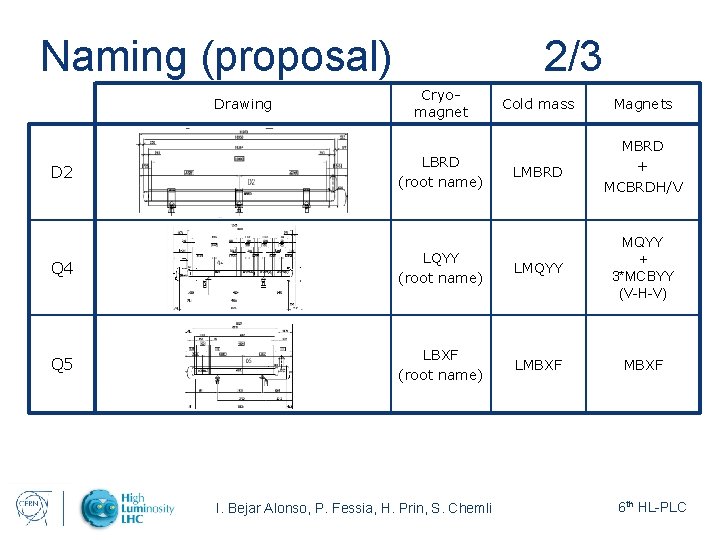

Naming (proposal) Drawing D 2 2/3 Cryomagnet LBRD (root name) Cold mass Magnets LMBRD + MCBRDH/V Q 4 LQYY (root name) LMQYY + 3*MCBYY (V-H-V) Q 5 LBXF (root name) LMBXF I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli 6 th HL-PLC

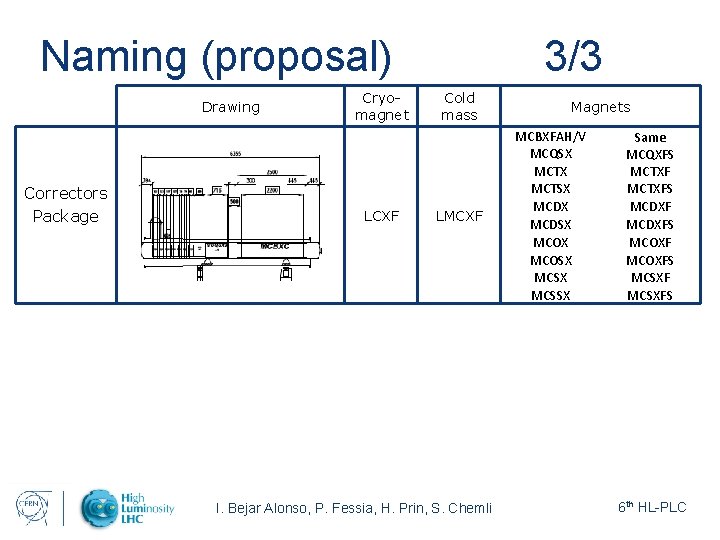

Naming (proposal) Drawing Correctors Package Cryomagnet LCXF 3/3 Cold mass LMCXF I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli Magnets MCBXFAH/V MCQSX MCTSX MCDSX MCOSX MCSSX Same MCQXFS MCTXFS MCDXFS MCOXFS MCSXFS 6 th HL-PLC

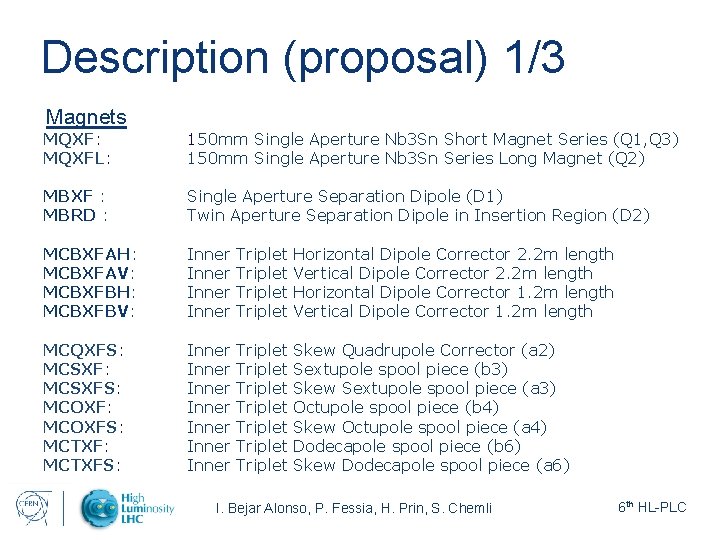

Description (proposal) 1/3 Magnets MQXF: MQXFL: 150 mm Single Aperture Nb 3 Sn Short Magnet Series (Q 1, Q 3) 150 mm Single Aperture Nb 3 Sn Series Long Magnet (Q 2) MBXF : MBRD : Single Aperture Separation Dipole (D 1) Twin Aperture Separation Dipole in Insertion Region (D 2) MCBXFAH: MCBXFAV: MCBXFBH: MCBXFBV: Inner Triplet Horizontal Dipole Corrector 2. 2 m length Inner Triplet Vertical Dipole Corrector 2. 2 m length Inner Triplet Horizontal Dipole Corrector 1. 2 m length Inner Triplet Vertical Dipole Corrector 1. 2 m length MCQXFS: MCSXFS: MCOXFS: MCTXFS: Inner Triplet Skew Quadrupole Corrector (a 2) Inner Triplet Sextupole spool piece (b 3) Inner Triplet Skew Sextupole spool piece (a 3) Inner Triplet Octupole spool piece (b 4) Inner Triplet Skew Octupole spool piece (a 4) Inner Triplet Dodecapole spool piece (b 6) Inner Triplet Skew Dodecapole spool piece (a 6) I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli 6 th HL-PLC

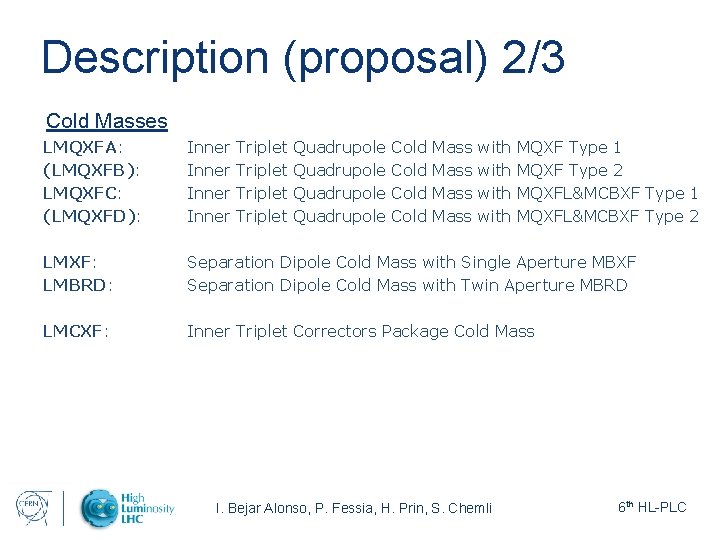

Description (proposal) 2/3 Cold Masses LMQXFA: (LMQXFB): LMQXFC: (LMQXFD): Inner Triplet Quadrupole Cold Mass with MQXF Type 1 Inner Triplet Quadrupole Cold Mass with MQXF Type 2 Inner Triplet Quadrupole Cold Mass with MQXFL&MCBXF Type 1 Inner Triplet Quadrupole Cold Mass with MQXFL&MCBXF Type 2 LMXF: LMBRD: Separation Dipole Cold Mass with Single Aperture MBXF Separation Dipole Cold Mass with Twin Aperture MBRD LMCXF: Inner Triplet Correctors Package Cold Mass I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli 6 th HL-PLC

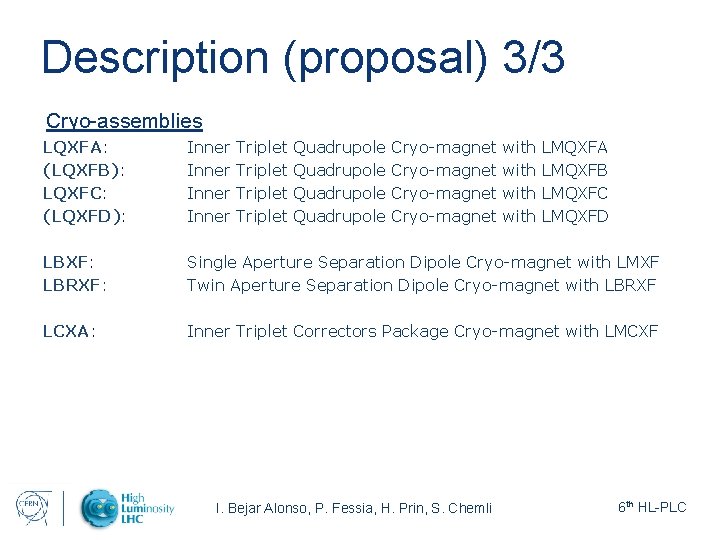

Description (proposal) 3/3 Cryo-assemblies LQXFA: (LQXFB): LQXFC: (LQXFD): Inner Triplet Quadrupole Cryo-magnet with LMQXFA Inner Triplet Quadrupole Cryo-magnet with LMQXFB Inner Triplet Quadrupole Cryo-magnet with LMQXFC Inner Triplet Quadrupole Cryo-magnet with LMQXFD LBXF: LBRXF: Single Aperture Separation Dipole Cryo-magnet with LMXF Twin Aperture Separation Dipole Cryo-magnet with LBRXF LCXA: Inner Triplet Correctors Package Cryo-magnet with LMCXF I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli 6 th HL-PLC

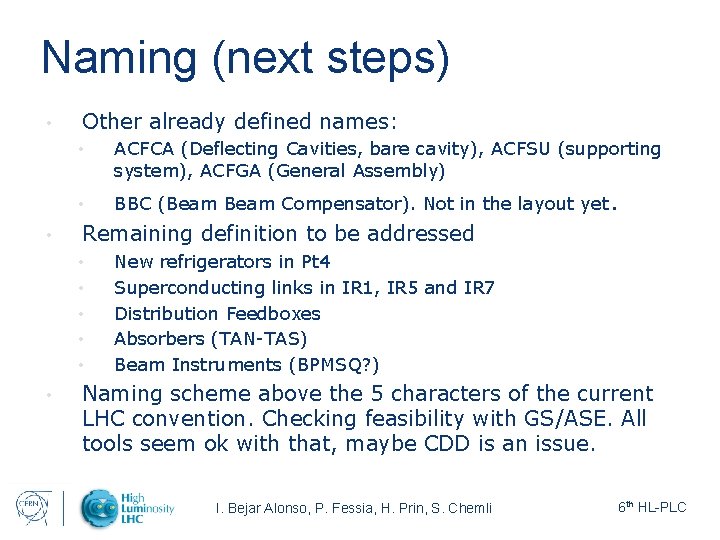

Naming (next steps) • Other already defined names: • • • BBC (Beam Compensator). Not in the layout yet. Remaining definition to be addressed • • • ACFCA (Deflecting Cavities, bare cavity), ACFSU (supporting system), ACFGA (General Assembly) New refrigerators in Pt 4 Superconducting links in IR 1, IR 5 and IR 7 Distribution Feedboxes Absorbers (TAN-TAS) Beam Instruments (BPMSQ? ) Naming scheme above the 5 characters of the current LHC convention. Checking feasibility with GS/ASE. All tools seem ok with that, maybe CDD is an issue. I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli 6 th HL-PLC

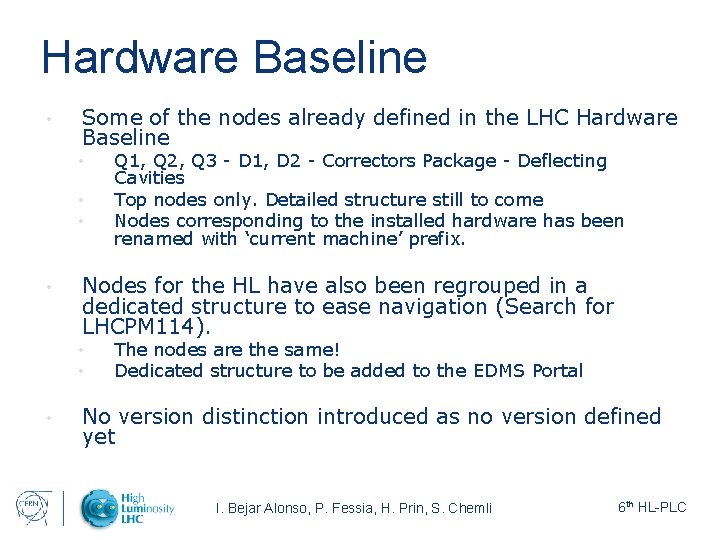

Hardware Baseline • Some of the nodes already defined in the LHC Hardware Baseline • • Nodes for the HL have also been regrouped in a dedicated structure to ease navigation (Search for LHCPM 114). • • • Q 1, Q 2, Q 3 - D 1, D 2 - Correctors Package - Deflecting Cavities Top nodes only. Detailed structure still to come Nodes corresponding to the installed hardware has been renamed with ‘current machine’ prefix. The nodes are the same! Dedicated structure to be added to the EDMS Portal No version distinction introduced as no version defined yet I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli 6 th HL-PLC

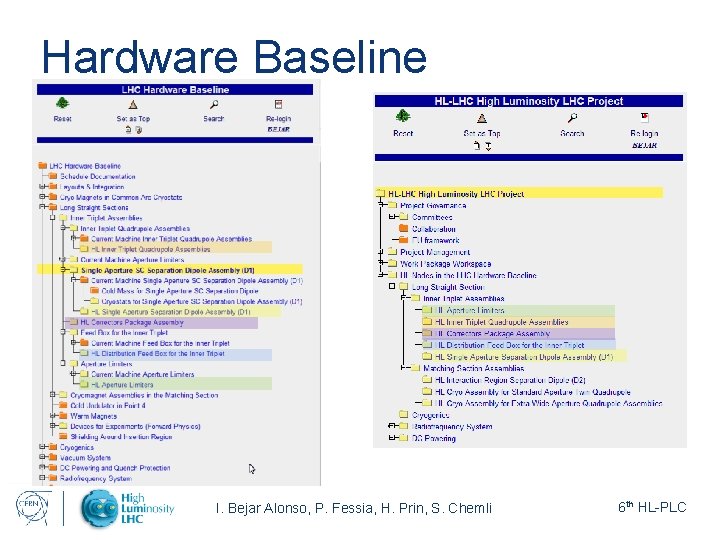

Hardware Baseline I. Bejar Alonso, P. Fessia, H. Prin, S. Chemli 6 th HL-PLC
