Naming Binary Compounds Binary Ionic Compounds l Contain

Naming Binary Compounds

Binary Ionic Compounds l Contain 2 different elements l Name the metal first, then the nonmetal as -ide. l Use name of a metal with a fixed charge Groups 1 A, 2 A, 3 A and Ag, Zn, and Cd Examples: Na. Cl sodium chloride Zn. I 2 zinc iodide Al 2 O 3 aluminum oxide

Learning Check N 1 Complete the names of the following binary compounds: Na 3 N sodium ________ KBr potassium________ Al 2 O 3 aluminum ________ Mg. S _____________

Solution N 1 Complete the names of the following binary compounds: Na 3 N sodium nitride KBr potassium bromide Al 2 O 3 aluminum oxide Mg. S magnesium sulfide

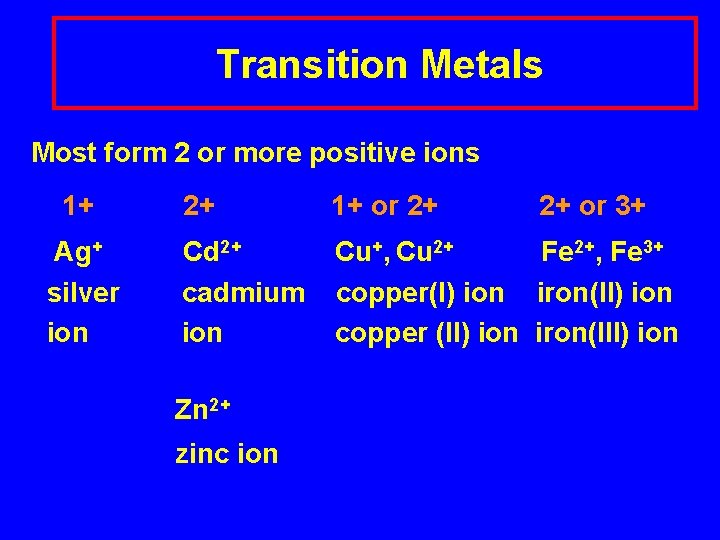

Transition Metals Most form 2 or more positive ions 1+ Ag+ silver ion 2+ 1+ or 2+ Cd 2+ cadmium ion Cu+, Cu 2+ Fe 2+, Fe 3+ copper(I) ion iron(II) ion copper (II) ion iron(III) ion Zn 2+ zinc ion 2+ or 3+

Names of Variable Ions Use a roman number after the name of a metal that forms two or more ions Transition metals and the metals in groups 4 A and 5 A Fe. Cl 3 (Fe 3+) iron (III) chloride Cu. Cl Sn. F 4 Pb. Cl 2 Fe 2 S 3 (Cu+ ) (Sn 4+) (Pb 2+) (Fe 3+) copper (I) chloride tin (IV) fluoride lead (II) chloride iron (III) sulfide

Learning Check N 2 Name the following compounds: A. Ca. O 1) calcium oxide 2) calcium(I) oxide 3) calcium (II) oxide B. Sn. Cl 4 1) tin tetrachloride 3) tin(IV) chloride 2) tin(II) chloride C. Co 2 O 3 1) cobalt oxide 3) cobalt trioxide 2) cobalt (III) oxide

Solution N 2 Name the following compounds: A. Ca. O 1) calcium oxide B. Sn. Cl 4 3) tin(IV) chloride C. Co 2 O 3 2) cobalt (III) oxide

Learning Check N 3 Complete the names of the following binary compounds with variable metal ions: Fe. Br 2 iron (_____) bromide Cu 2 O copper (_____) oxide Sn. Cl 4 ___(_____ ) _______ Fe 2 O 3 ____________ Cu. S ____________

Solution N 3 Complete the names of the following binary compounds with variable metal ions: Fe. Br 2 iron ( II ) bromide Cu 2 O copper ( I ) oxide Sn. Cl 4 tin (IV) chloride Fe 2 O 3 iron (III) oxide Cu. S copper (II) sulfide

Naming Binary Covalent Compounds Two nonmetals l. Name each element l. End the last element in -ide l. Add prefixes to show more than 1 atom Prefixes mon 1 penta 5 di 2 hexa 6 tri 3 tetra 4

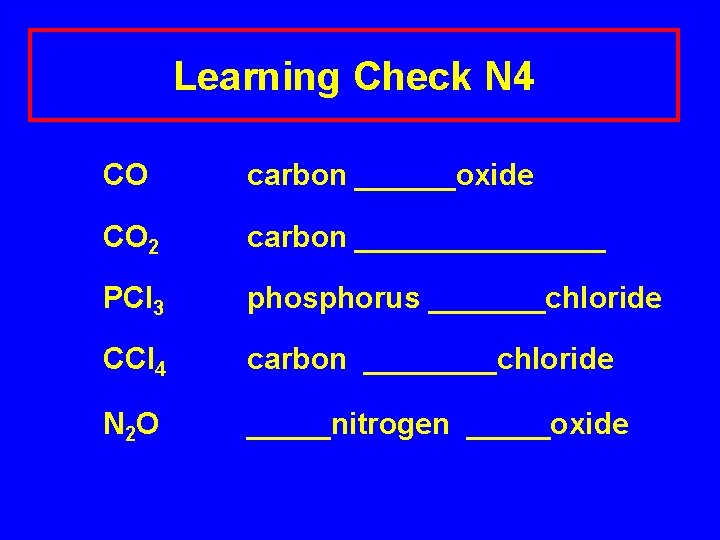

Learning Check N 4 CO carbon ______oxide CO 2 carbon ________ PCl 3 phosphorus _______chloride CCl 4 carbon ____chloride N 2 O _____nitrogen _____oxide

Solution N 4 CO carbon monoxide CO 2 carbon dioxide PCl 3 phosphorus trichloride CCl 4 carbon tetrachloride N 2 O dinitrogen monoxide

Learning Check N 5 A. P 2 O 5 1) phosphorus oxide 2) phosphorus pentoxide 3) diphosphorus pentoxide B. Cl 2 O 7 1) dichlorine heptoxide 2) dichlorine oxide 3) chlorine heptoxide C. Cl 2 1) chlorine 2) dichlorine 3) dichloride

Solution N 5 A. P 2 O 5 3) diphosphorus pentoxide B. Cl 2 O 7 1) dichlorine heptoxide C. Cl 2 1) chlorine

Naming Ternary Compounds l Contain at least 3 elements l Name the nonmetals as a polyatomic ion l Examples: Na. NO 3 Sodium nitrate K 2 SO 4 Potassium sulfate Al(HCO 3)3 Aluminum bicarbonate or aluminum hydrogen carbonate

Polyatomic Ions A group of atoms with an overall charge. NH 4+ ammonium OH- hydroxide NO 3 - nitrate NO 2 - nitrite CO 32 - _______ HCO 3 - hydrogen carbonate (bicarbonate)

Learning Check N 6 Match each set with the correct name: A. Na 2 CO 3 1) magnesium sulfite Mg. SO 3 2) magnesium sulfate Mg. SO 4 3) sodium carbonate B. Ca(HCO 3)2 1) calcium carbonate Ca. CO 3 Ca 3(PO 4)2 2) calcium phosphate 3) calcium bicarbonate

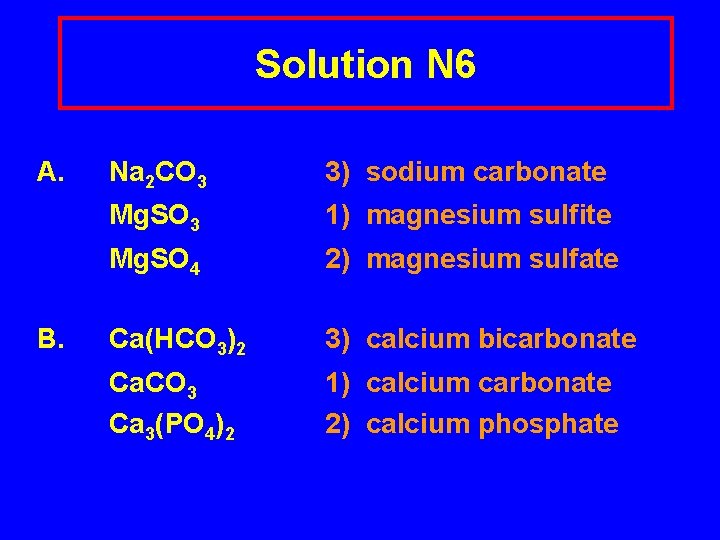

Solution N 6 A. B. Na 2 CO 3 3) sodium carbonate Mg. SO 3 1) magnesium sulfite Mg. SO 4 2) magnesium sulfate Ca(HCO 3)2 3) calcium bicarbonate Ca. CO 3 Ca 3(PO 4)2 1) calcium carbonate 2) calcium phosphate

Learning Check N 7 A. aluminum nitrate 1) Al. NO 3 2) Al(NO)3 3) Al(NO 3)3 B. copper(II) nitrate 1) Cu. NO 3 2) Cu(NO 3)2 3) Cu 2(NO 3) C. Iron (III) hydroxide 1) Fe. OH 2) Fe 3 OH D. Tin(IV) hydroxide 1) Sn(OH)4 2) Sn(OH)2 3) Fe(OH)3 3) Sn 4(OH)

Solution N 7 A. aluminum nitrate 3) Al(NO 3)3 B. copper(II) nitrate 2) Cu(NO 3)2 C. Iron (III) hydroxide 3) Fe(OH)3 D. Tin(IV) hydroxide 1) Sn(OH)4

Acids(not the kind that Madison does on the weekend) • Binary Acids= hydrogen + 5 A, 6 A, 7 A – Naming Binary acids= hydro + root of the second element + ic and acid – Writing formulas= balancing charges with hydrogen being +1. – HCl, HBr, H 2 S

Oxyacids • Hydrogen + polyatomic ion • Naming= If polyatomic ends in –ate, drop it add -ic and acid. (NO HYDRO) – If polyatomic ends in –ite, drop it add –ous and acid. – HNO 3 or HNO 2 – HCl. O 3
