NAME ST FINTINANS LONGWOOD THE ELLIPSE DATE NAME

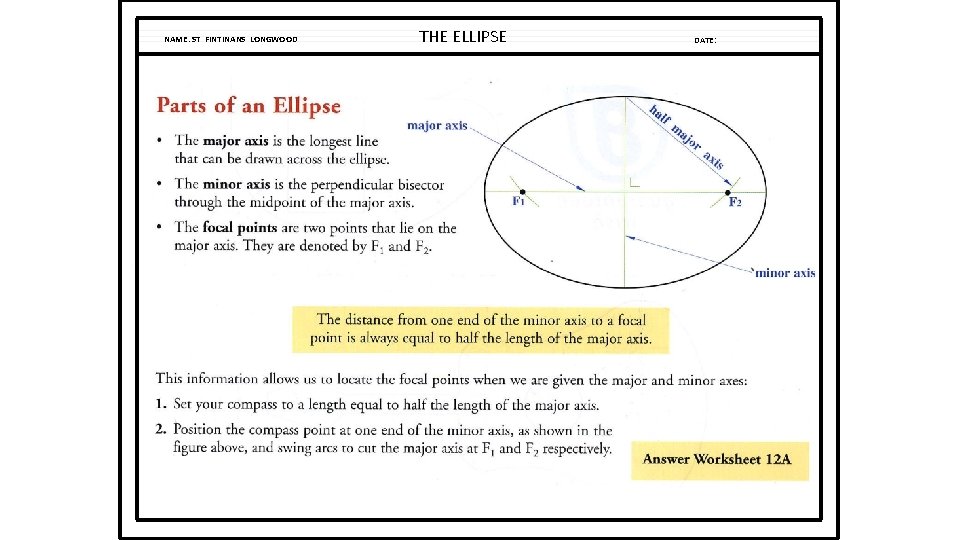

NAME: ST FINTINANS LONGWOOD THE ELLIPSE DATE:

NAME: ST FINTINANS LONGWOOD THE ELLIPSE DATE:

NAME: ST FINTINANS LONGWOOD THE ELLIPSE DATE:

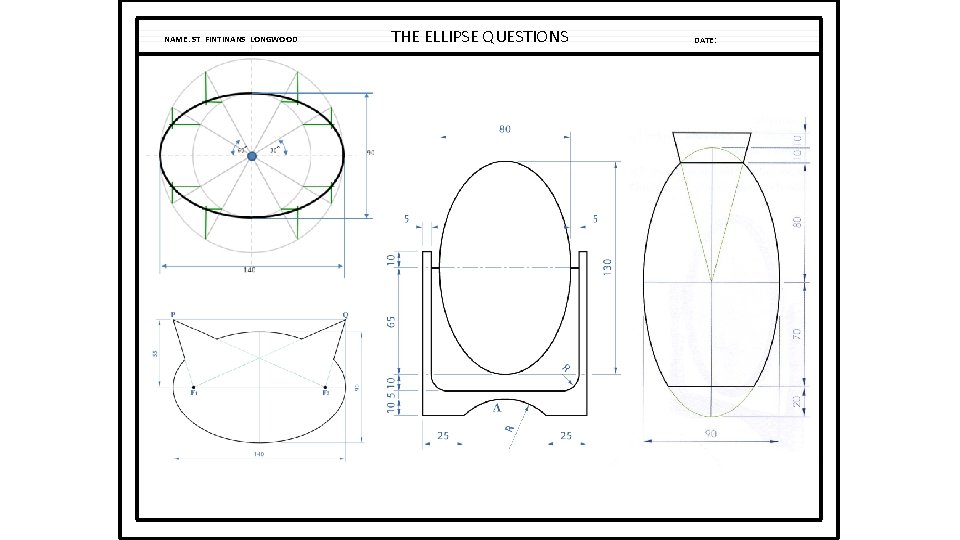

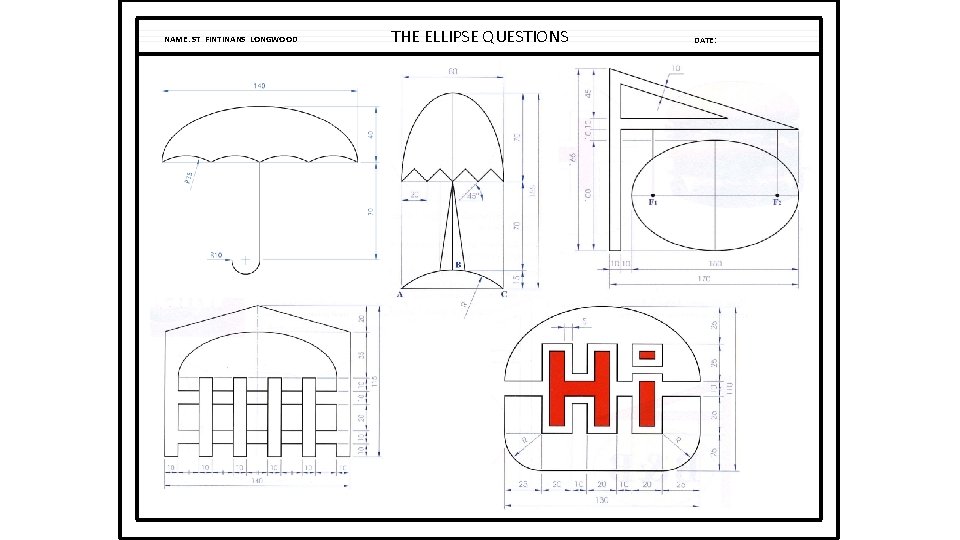

NAME: ST FINTINANS LONGWOOD THE ELLIPSE QUESTIONS DATE:

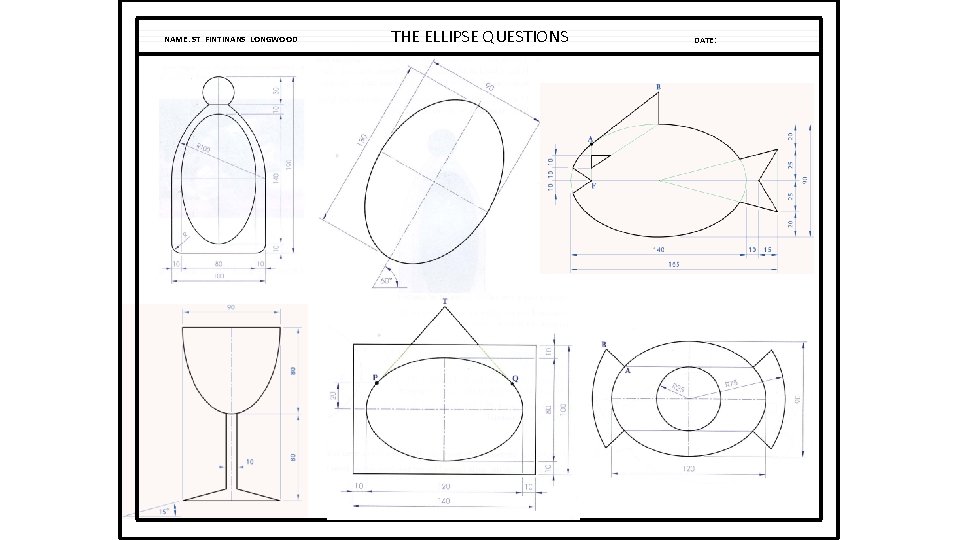

NAME: ST FINTINANS LONGWOOD THE ELLIPSE QUESTIONS DATE:

NAME: ST FINTINANS LONGWOOD THE ELLIPSE QUESTIONS DATE:

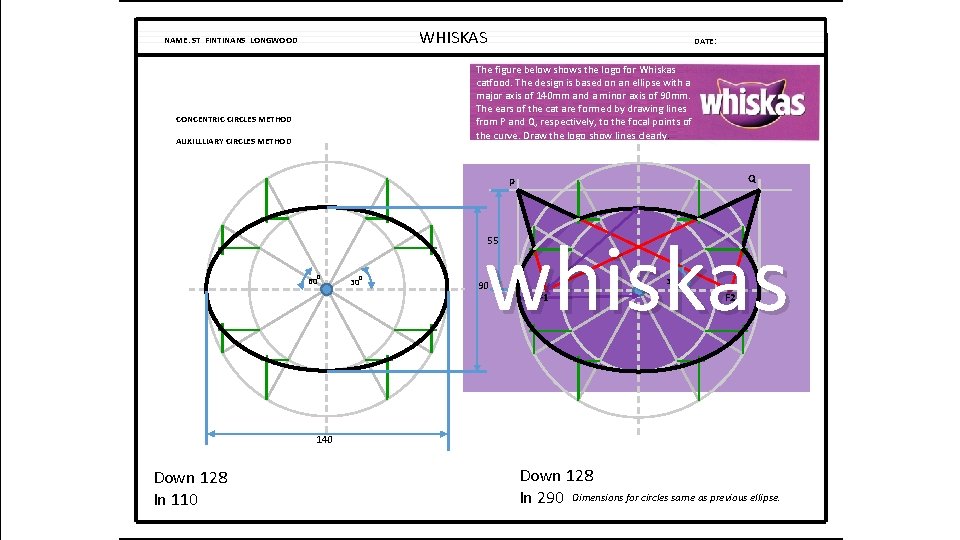

WHISKAS NAME: ST FINTINANS LONGWOOD DATE: The figure below shows the logo for Whiskas catfood. The design is based on an ellipse with a major axis of 140 mm and a minor axis of 90 mm. The ears of the cat are formed by drawing lines from P and Q, respectively, to the focal points of the curve. Draw the logo show lines clearly. CONCENTRIC CIRCLES METHOD AUXILLLIARY CIRCLES METHOD Q P whiskas 55 60° 30° 90 30° F 1 F 2 140 Down 128 In 110 Down 128 In 290 Dimensions for circles same as previous ellipse.

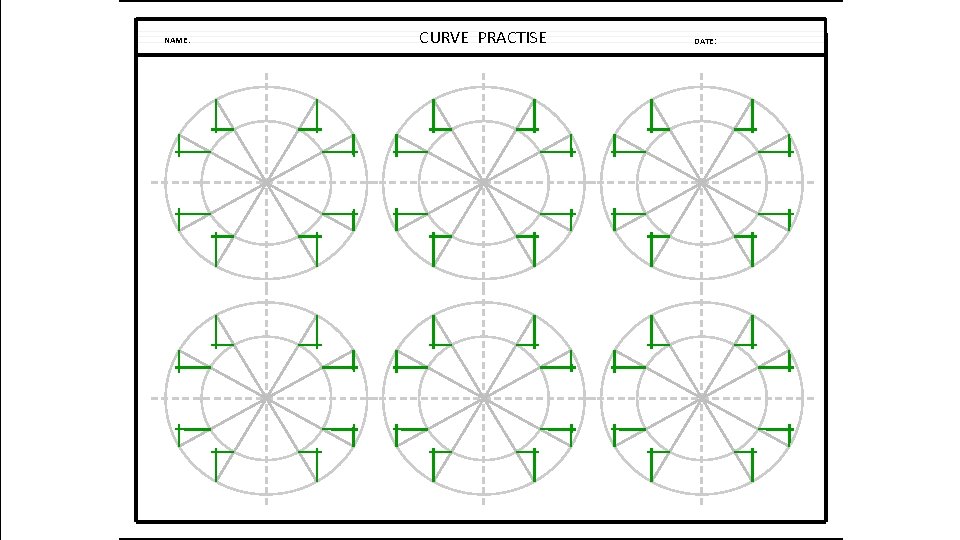

NAME: CURVE PRACTISE DATE:

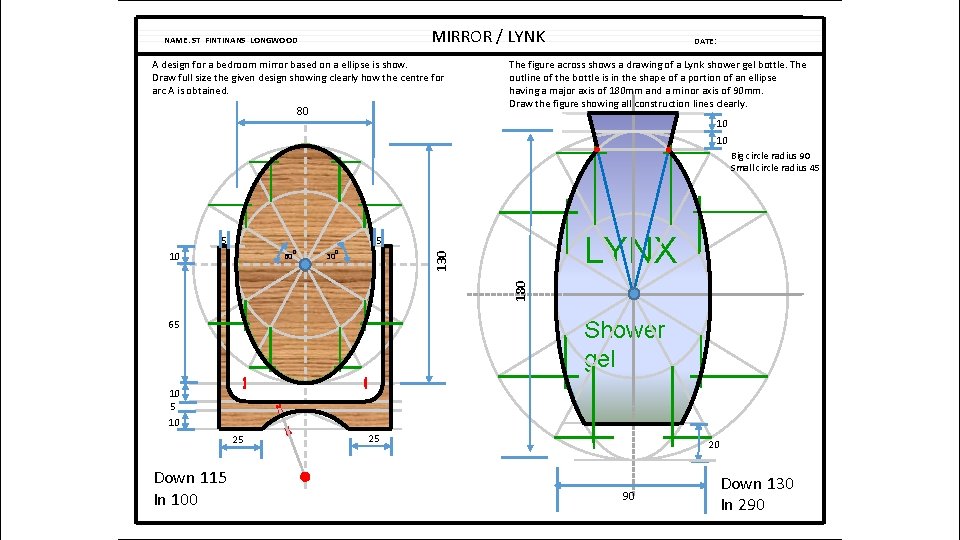

MIRROR / LYNK NAME: ST FINTINANS LONGWOOD A design for a bedroom mirror based on a ellipse is show. Draw full size the given design showing clearly how the centre for arc A is obtained. 80 DATE: The figure across shows a drawing of a Lynk shower gel bottle. The outline of the bottle is in the shape of a portion of an ellipse having a major axis of 180 mm and a minor axis of 90 mm. Draw the figure showing all construction lines clearly. 10 10 Big circle radius 90 Small circle radius 45 5 LYNX 5 30° 180 130 60° 10 Shower gel 65 10 25 Down 115 In 100 25 20 90 Down 130 In 290

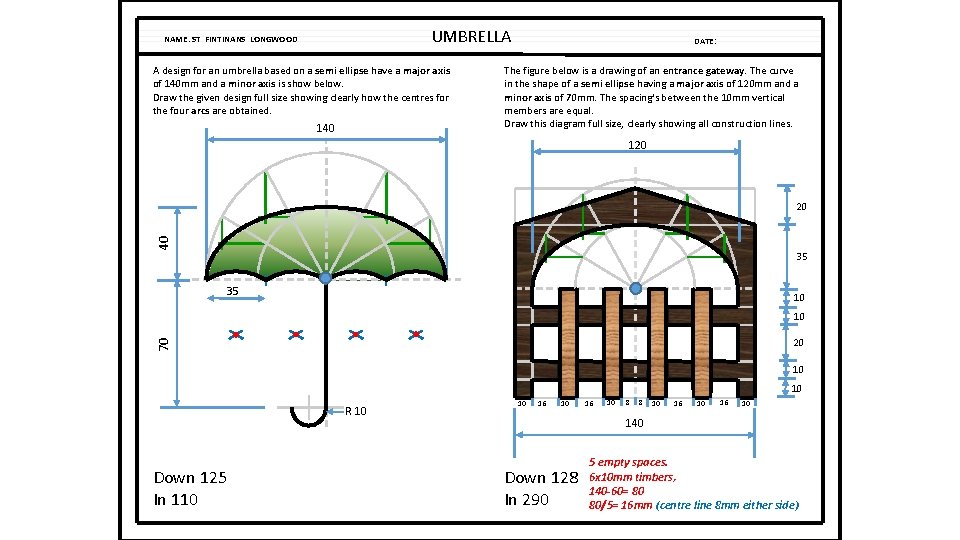

UMBRELLA NAME: ST FINTINANS LONGWOOD A design for an umbrella based on a semi ellipse have a major axis of 140 mm and a minor axis is show below. Draw the given design full size showing clearly how the centres for the four arcs are obtained. 140 DATE: The figure below is a drawing of an entrance gateway. The curve in the shape of a semi ellipse having a major axis of 120 mm and a minor axis of 70 mm. The spacing's between the 10 mm vertical members are equal. Draw this diagram full size, clearly showing all construction lines. 120 40 20 35 35 10 10 70 20 10 10 R 10 Down 125 In 110 10 16 10 8 8 10 16 10 140 Down 128 In 290 5 empty spaces. 6 x 10 mm timbers, 140 -60= 80 80/5= 16 mm (centre line 8 mm either side)

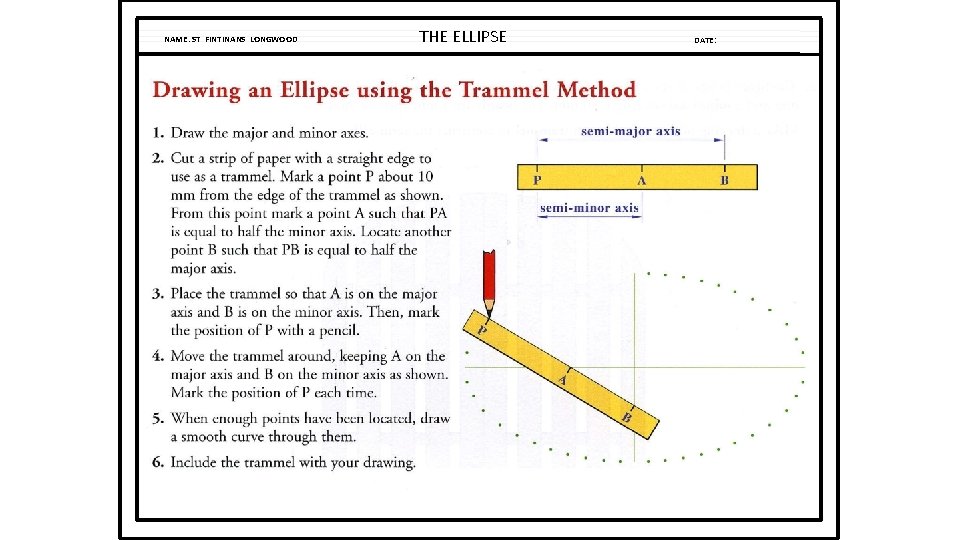

NAME: ST FINTINANS LONGWOOD THE ELLIPSE DATE:

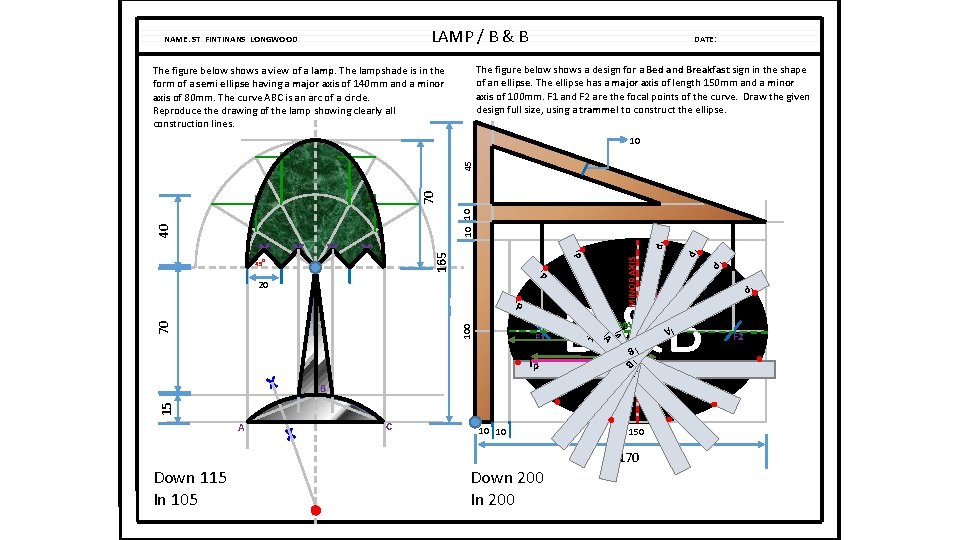

LAMP / B & B NAME: ST FINTINANS LONGWOOD DATE: The figure below shows a design for a Bed and Breakfast sign in the shape of an ellipse. The ellipse has a major axis of length 150 mm and a minor axis of 100 mm. F 1 and F 2 are the focal points of the curve. Draw the given design full size, using a trammel to construct the ellipse. The figure below shows a view of a lamp. The lampshade is in the form of a semi ellipse having a major axis of 140 mm and a minor axis of 80 mm. The curve ABC is an arc of a circle. Reproduce the drawing of the lamp showing clearly all construction lines. 40 10 10 70 45 10 P MINOR AXIS B 100 70 MAJOR AXIS A A B B BB P B &B A A A F 1 A P 15 B A Down 115 In 105 C 10 10 Down 200 In 200 150 170 B P P 20 P 165 P P 45° F 2

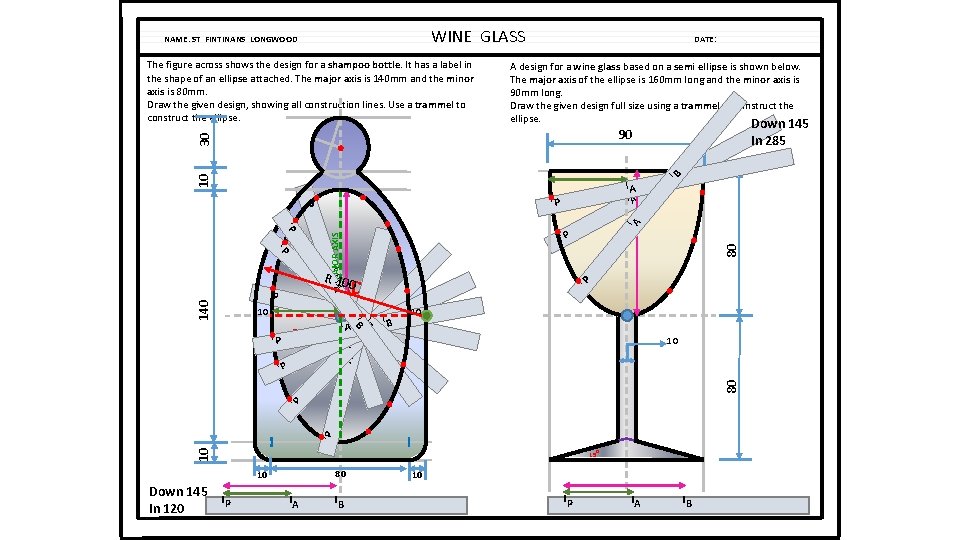

WINE GLASS NAME: ST FINTINANS LONGWOOD The figure across shows the design for a shampoo bottle. It has a label in the shape of an ellipse attached. The major axis is 140 mm and the minor axis is 80 mm. Draw the given design, showing all construction lines. Use a trammel to construct the ellipse. DATE: A design for a wine glass based on a semi ellipse is shown below. The major axis of the ellipse is 160 mm long and the minor axis is 90 mm long. Draw the given design full size using a trammel to construct the ellipse. Down 145 In 285 BB B 10 30 90 A A A P P 80 MAJOR AXIS P P P R 140 P 10 B B 10 P A A 100 HEAD A &A B BBB AMINOR AXIS A SHOULDERS A 10 A P P P 80 P 10 15° 80 10 Down 145 In 120 P A B 10 P A B

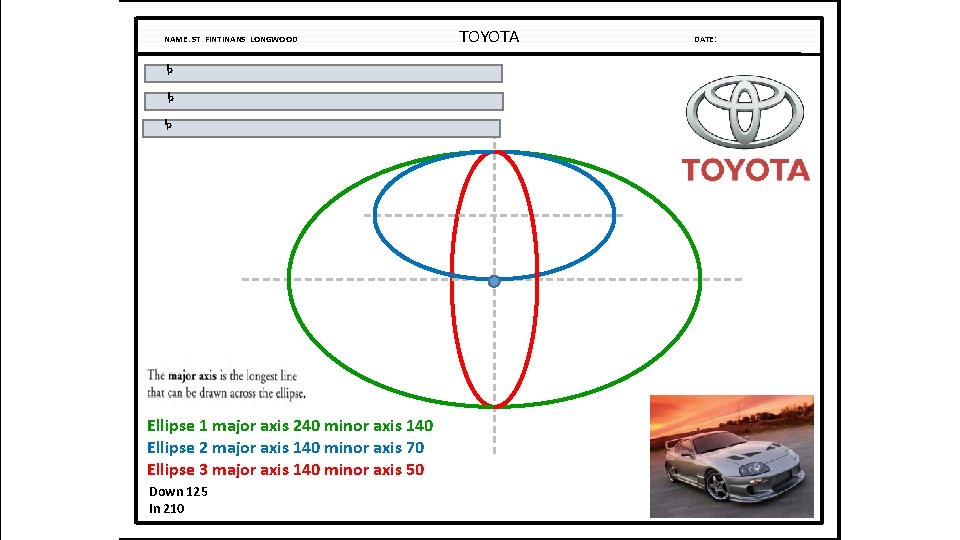

NAME: ST FINTINANS LONGWOOD P P P Ellipse 1 major axis 240 minor axis 140 Ellipse 2 major axis 140 minor axis 70 Ellipse 3 major axis 140 minor axis 50 Down 125 In 210 TOYOTA DATE:

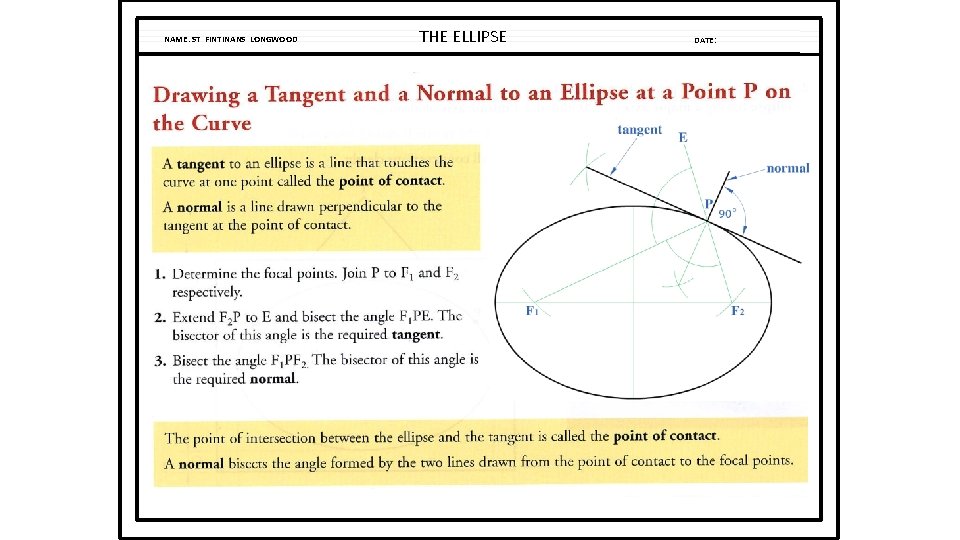

NAME: ST FINTINANS LONGWOOD THE ELLIPSE DATE:

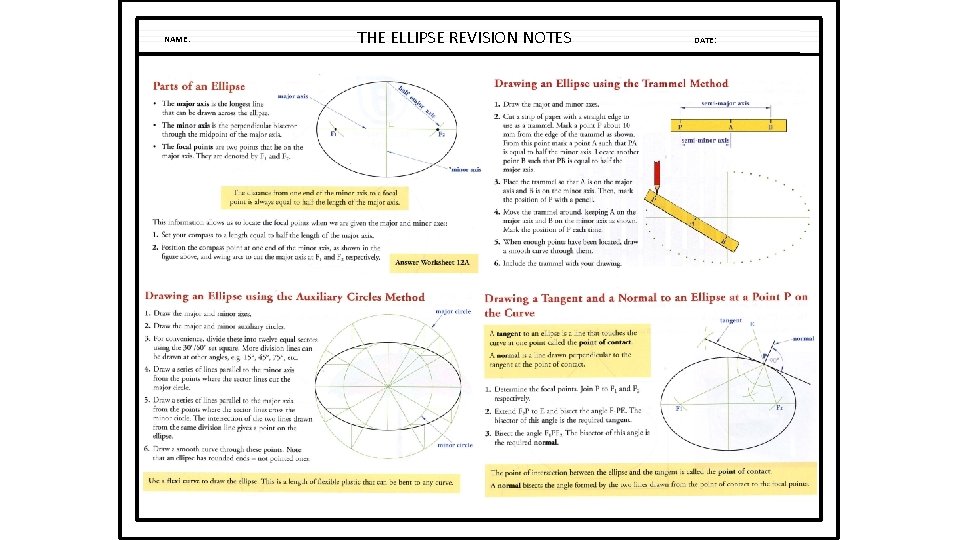

NAME: THE ELLIPSE REVISION NOTES DATE:

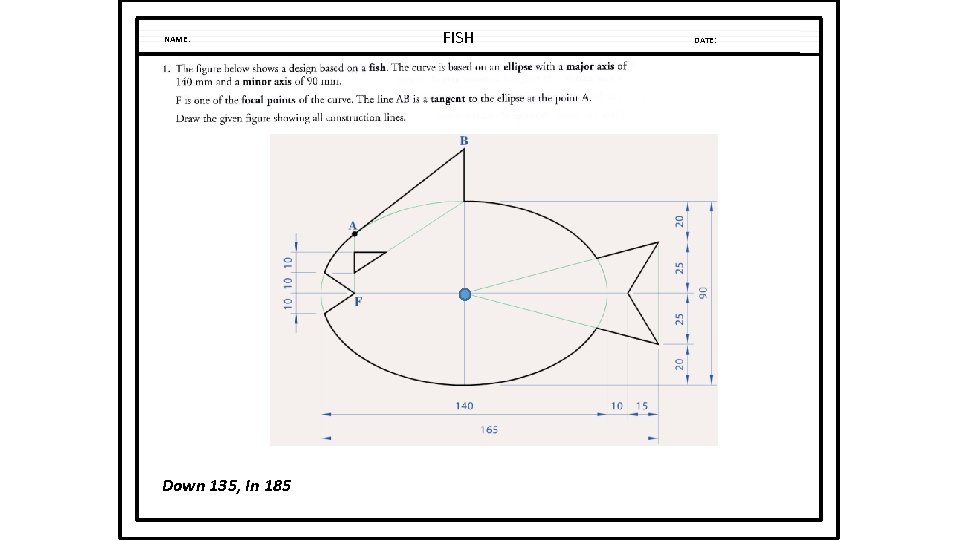

NAME: Down 135, In 185 FISH DATE:
