Name Date Period DC Series Circuit Practice Problems

Name: Date: Period: DC Series Circuit Practice Problems – 1 Objective(s): Students will create drawings, define terms, and solve equations, in order to demonstrate knowledge and understanding of Ohm's Law (Series Circuits) Resources: This Power. Point, Week 34 -3 Ohms Law_DC Series Circuits V 1 Power. Point, Student. Vue & Office 365 Teams Instructions: Option 1 • Rename and Save this Power. Point as DC Series-1_p? _last name • Type your name, date & period at top of this page • Complete the following items (1 -7) and show work where required. • Suggest using Equations or Draw tools in Power. Point to complete • Save Often Option 2 • Complete work on a sheet(s) of paper. Scan, or take a picture, and attach per instruction below. Remember to put your name on the file (written & digital) Submitting Instructions (both Please): • Student. Vue > Your Class > This Assignment • Clever > Office 365 > Your Team > This Assignment

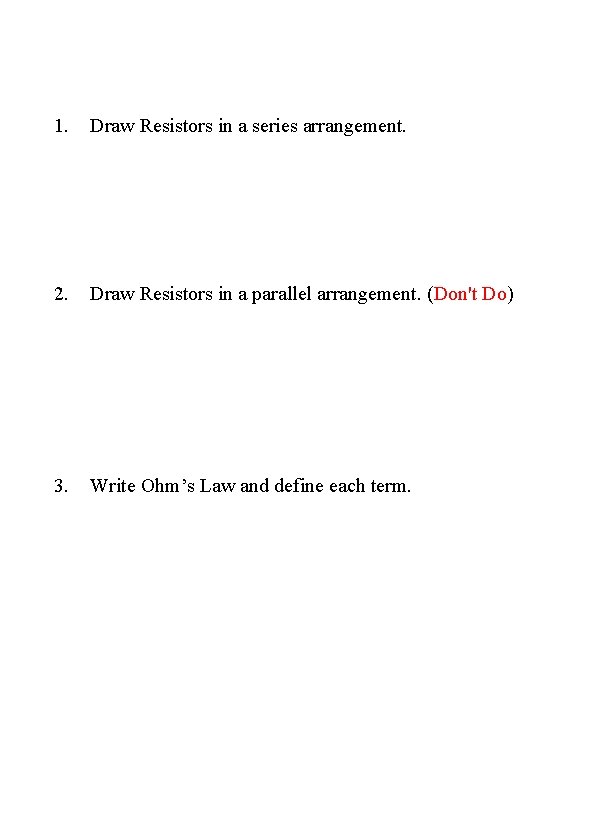

1. Draw Resistors in a series arrangement. 2. Draw Resistors in a parallel arrangement. (Don't Do) 3. Write Ohm’s Law and define each term.

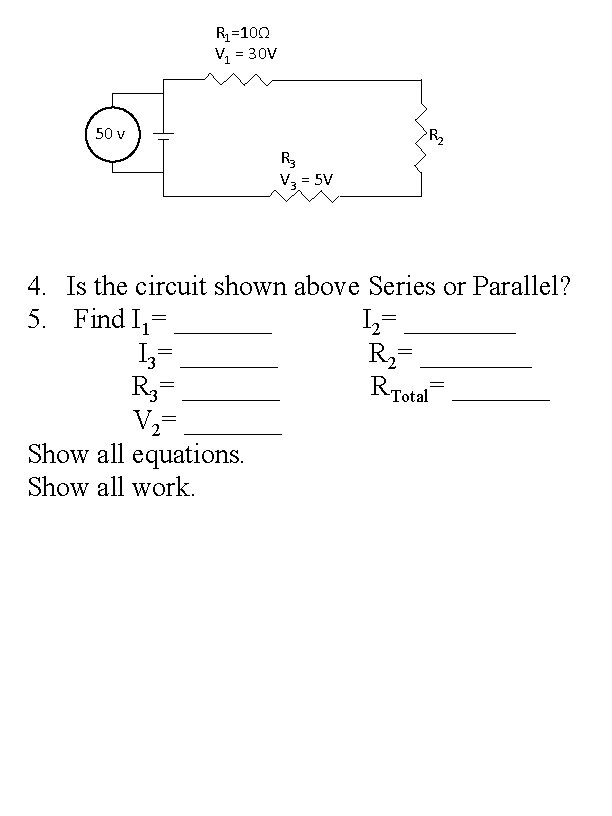

R 1=10Ω V 1 = 30 V 50 v R 3 V 3 = 5 V R 2 4. Is the circuit shown above Series or Parallel? 5. Find I 1= _______ I 2= ____ I 3= _______ R 2= ____ R 3= _______ RTotal= _______ V 2= _______ Show all equations. Show all work.

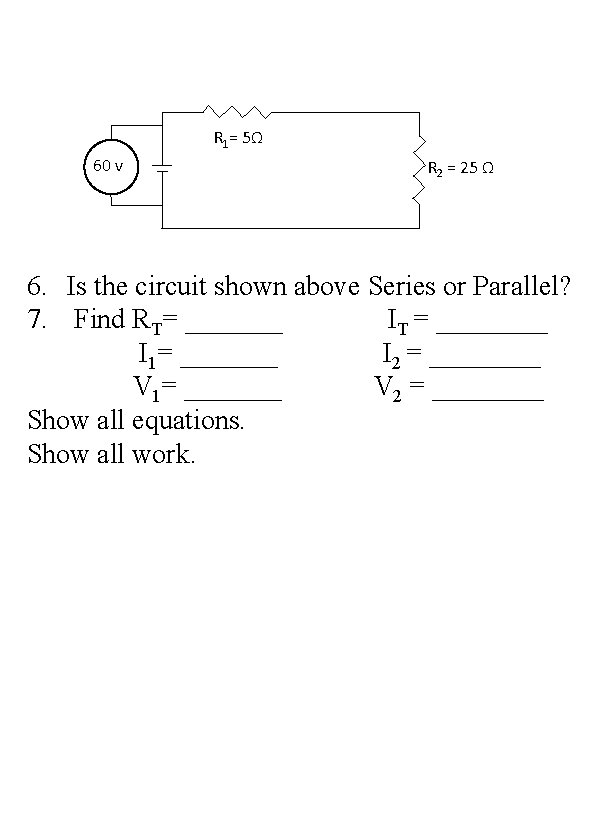

R 1= 5Ω 60 v R 2 = 25 Ω 6. Is the circuit shown above Series or Parallel? 7. Find RT= _______ IT = ____ I 1= _______ I 2 = ____ V 1= _______ V 2 = ____ Show all equations. Show all work.
