n n 1 AND ASCII l a 61
- Slides: 126

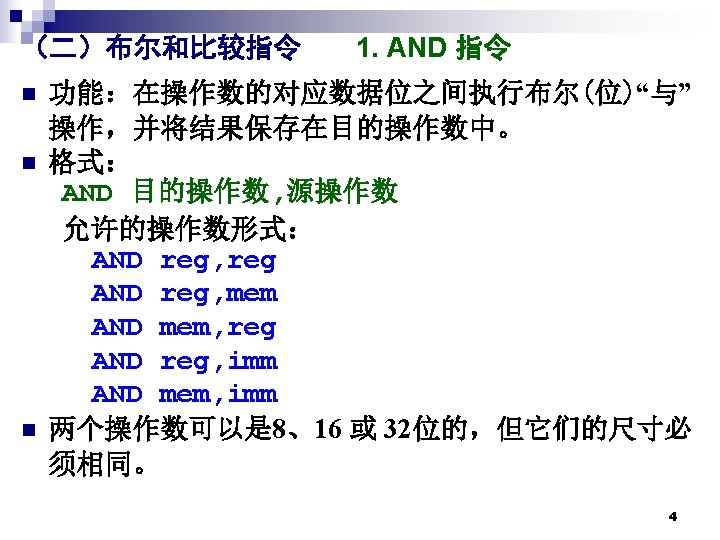

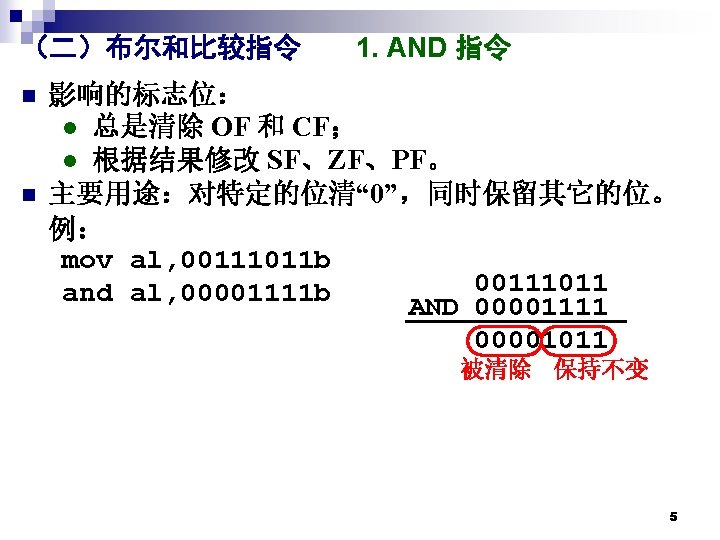

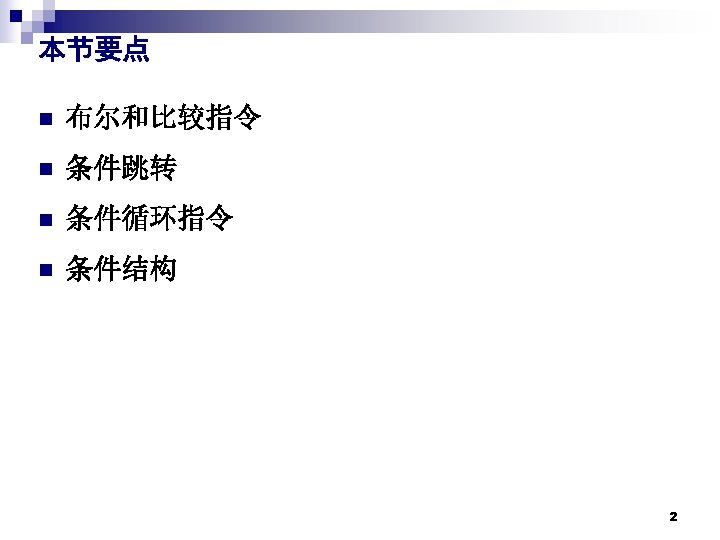

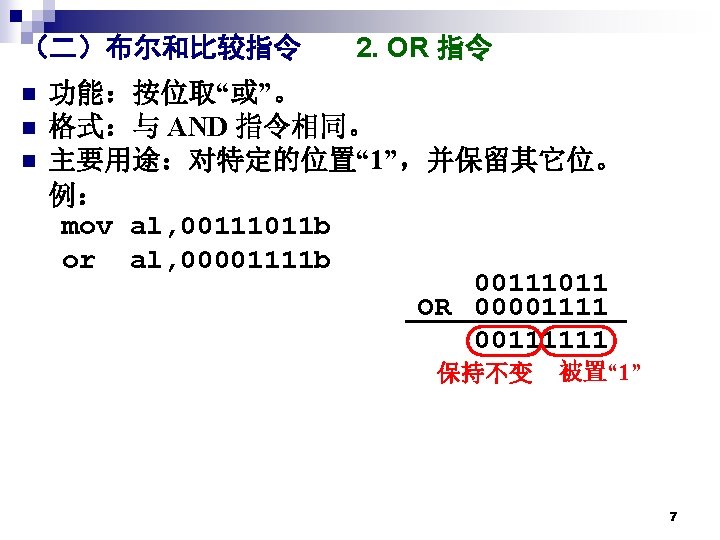

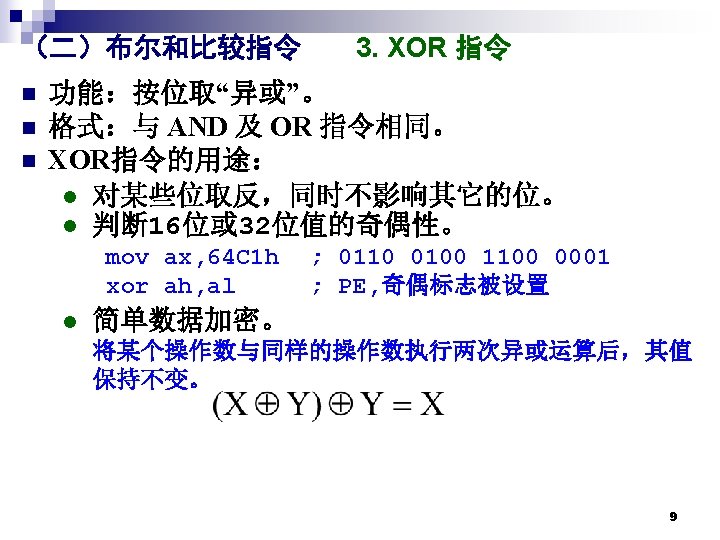

(二)布尔和比较指令 n n 1. AND 指令 大写字母与小写字母的 ASCII 码之间的关系: l 'a': 61 h,即 01100001 l 'A': 41 h,即 01000001 例:将字符转换位大写形式:. data array BYTE 50 DUP(? ). code mov ecx, LENGTHOF array mov esi, OFFSET array L 1: and byte ptr [esi], 11011111 b inc esi loop L 1 6

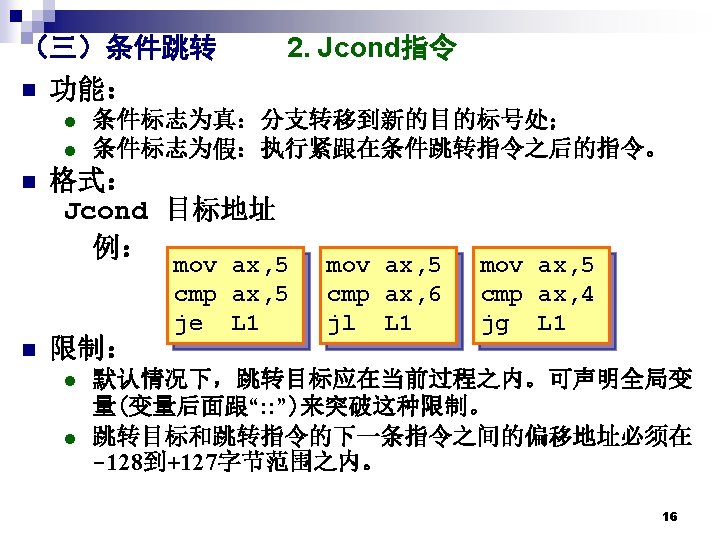

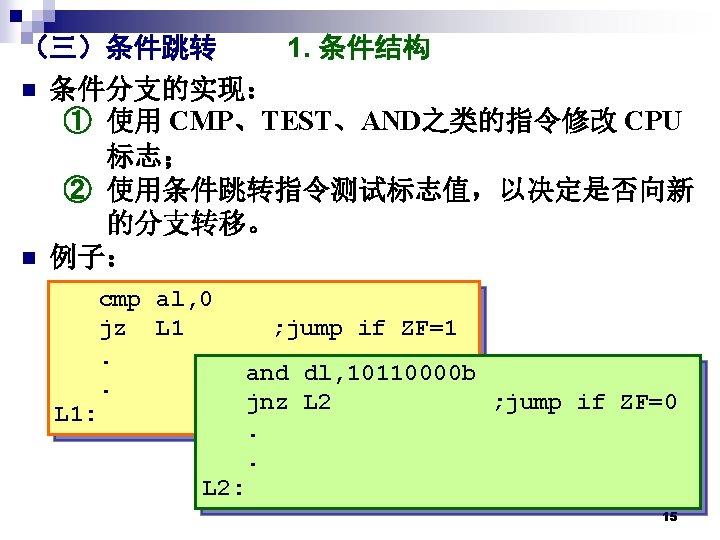

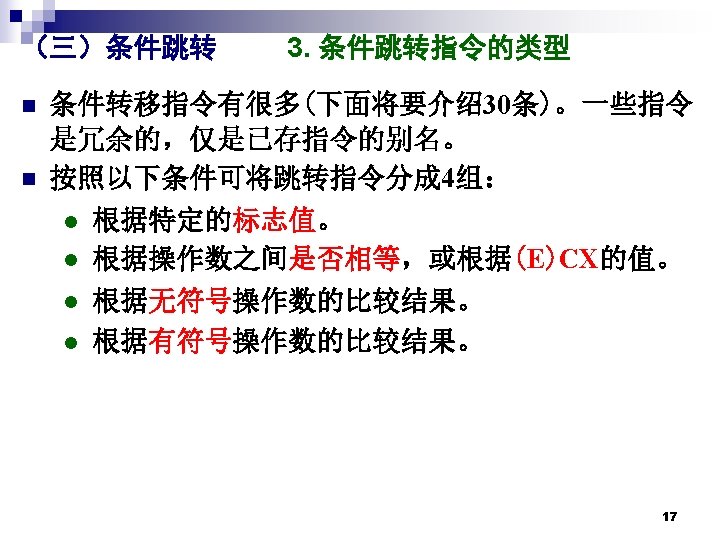

(三)条件跳转 3. 条件跳转指令的类型 例: mov al, 7 Fh +127) cmp al, 80 h 128) ja Is. Above jg Is. Greater ; (7 Fh or ; (80 h or ; no: 7 F not > 80 h ; yes: +127 > -128 22
(三)条件跳转 3. 条件跳转指令的类型 例: 8位内存操作数status中存放着同接口卡相连的外设 的状态信息。 1. bit 5为“ 1”时外设处于脱机状态,跳转到某标号处 2. bit 0、bit 1、bit 4任何一位为“ 1”时跳转到某标号处 3. bit 2、bit 3、bit 7全部为“ 1”时跳转到某标号处 ① mov al, status ③ mov al, status test al, 00100000 b jnz Equip. Offline ② mov and al, 10001100 b cmp al, 10001100 b jz Reset. Machine al, status test al, 00010011 b jnz Input. Data. Byte 23
(三)条件跳转 3. 条件跳转指令的类型 例:比较 V 1、V 2、V 3 三个无符号变量的值,将最小 值送入AX寄存器。. data V 1 WORD V 2 WORD V 3 WORD. code mov cmp jbe mov L 1: cmp jbe mov L 2: ? ? ? ax, V 1 ax, V 2 L 1 ax, V 2 ax, V 3 L 2 ax, V 3 ; assume V 1 is smallest ; if ax <= V 2 then ; jump to L 1 ; else move V 2 to ax ; if ax <= V 3 then ; jump to L 2 ; else move V 3 to ax 24

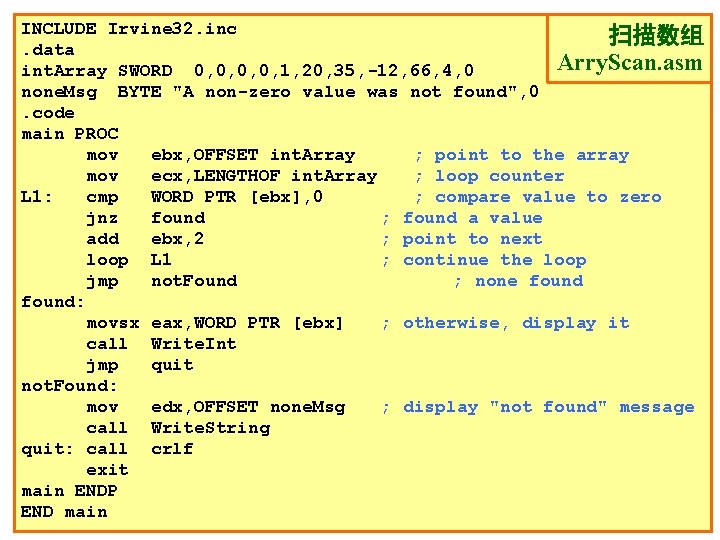

INCLUDE Irvine 32. inc 扫描数组. data Arry. Scan. asm int. Array SWORD 0, 0, 1, 20, 35, -12, 66, 4, 0 none. Msg BYTE "A non-zero value was not found", 0. code main PROC mov ebx, OFFSET int. Array ; point to the array mov ecx, LENGTHOF int. Array ; loop counter L 1: cmp WORD PTR [ebx], 0 ; compare value to zero jnz found ; found a value add ebx, 2 ; point to next loop L 1 ; continue the loop jmp not. Found ; none found: movsx eax, WORD PTR [ebx] ; otherwise, display it call Write. Int jmp quit not. Found: mov edx, OFFSET none. Msg ; display "not found" message call Write. String quit: call crlf exit main ENDP END main

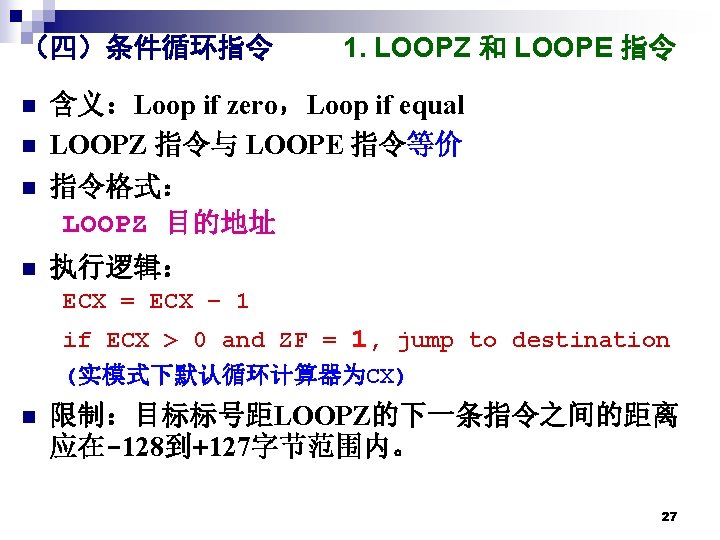

(四)条件循环指令 3. 例子 扫描数组中的每个数值,直到发现正数为止。. data array SWORD -3, -6, -10, 10, 30, 4 sentinel SWORD 0. code mov esi, OFFSET array mov ecx, LENGTHOF array next: test WORD PTR [esi], 8000 h ; test highest bit pushfd ; push flags on stack add esi, TYPE array popfd ; pop flags from stack loopnz next ; continue loop jnz quit ; none found sub esi, TYPE array ; SI points to value quit: 29
(五)条件结构 例:以表格驱动的分支选择 D: Masm 615Examplesch 06Proc. Tble. asm INCLUDE Irvine 32. inc. data Case. Table BYTE 'A' ; lookup value DWORD Process_A ; address of procedure Entry. Size = ($ - Case. Table) BYTE 'B' DWORD Process_B BYTE 'C' DWORD Process_C BYTE 'D' DWORD Process_D Number. Of. Entries = 4 prompt BYTE "Press capital A, B, C, or D: ", 0 msg. A BYTE "Process_A", 0 msg. B BYTE "Process_B", 0 msg. C BYTE "Process_C", 0 msg. D BYTE "Process_D", 0 31

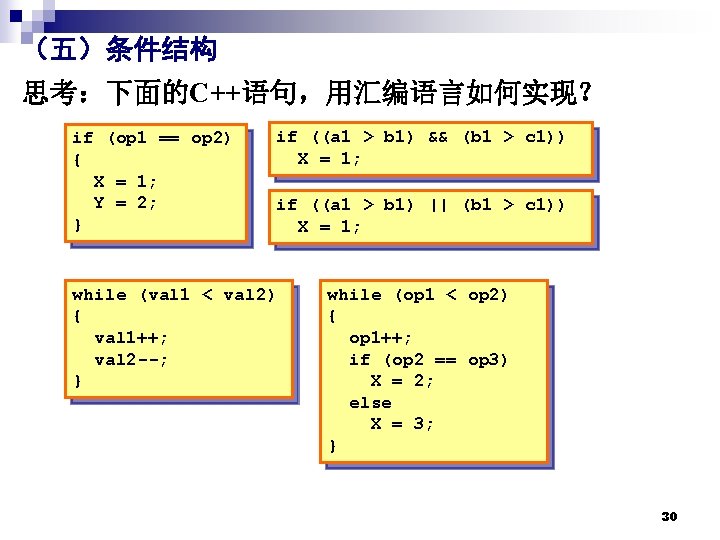

(五)条件结构. code main PROC mov call mov L 1: cmp jne call jmp L 2: add loop L 3: exit main ENDP 例:以表格驱动的分支选择 Process_A PROC mov edx, OFFSET msg. A ret Process_A ENDP ; ask user for input edx, OFFSET prompt Write. String Process_B PROC Read. Char ; read one character mov edx, OFFSET msg. B ebx, OFFSET Case. Table ; point EBX to the table ret ecx, Number. Of. Entries ; loop counter Process_B ENDP al, [ebx] ; match found? L 2 ; no: continue Process_C PROC NEAR PTR [ebx + 1] ; yes: call the procedure mov edx, OFFSET msg. C Write. String ; display message ret Crlf Process_C ENDP L 3 ; exit the search ebx, Entry. Size ; point to the next entry (+5) Process_D PROC L 1 ; repeat until ECX = 0 mov edx, OFFSET msg. D ret Process_D ENDP END main 32

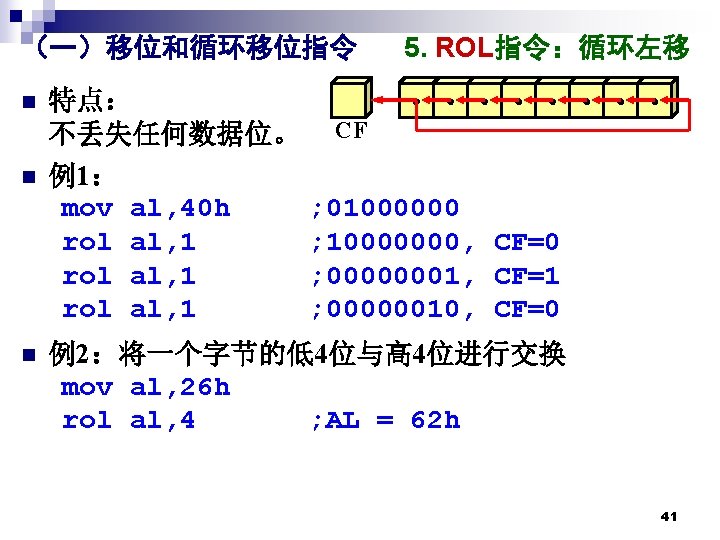

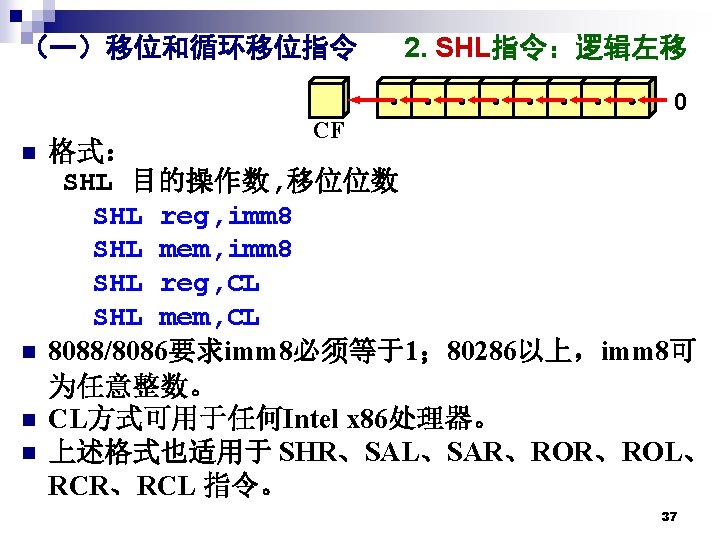

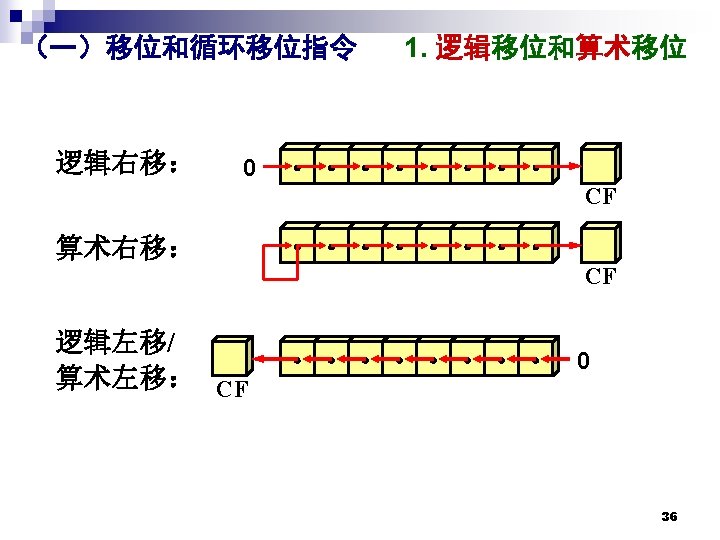

(一)移位和循环移位指令 6. ROR指令:循环右移 · · · · CF 例: mov al, 01 h ror al, 1 ; 00000001 ; 10000000, CF=1 ; 01000000, CF=0 42
(一)移位和循环移位指令 7. RCL指令和RCR指令 n RCL指令:带进位的循环左移 CF · n · · · · RCR指令:带进位的循环右移 · · · · n CF · 例:从进位标志中恢复一个位。. data testval BYTE 01101010 b. code shr testval, 1 ; shift LSB into Carry flag jc quit ; exit if Carry flag set rcl testval, 1 ; else restore the number 43

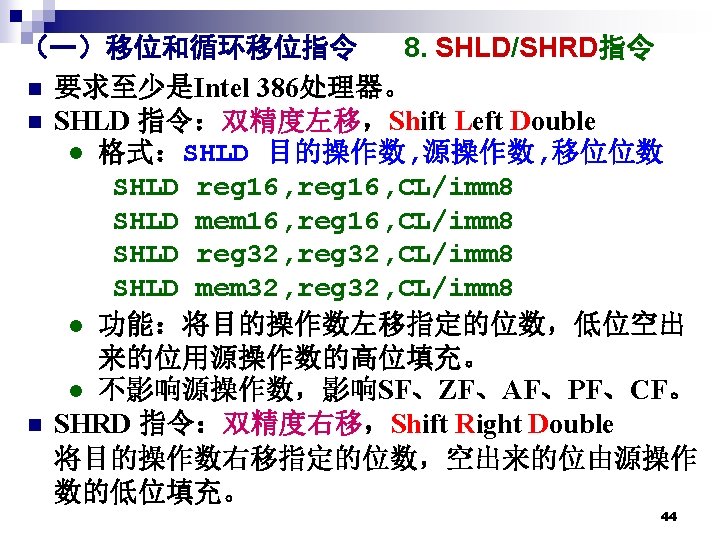

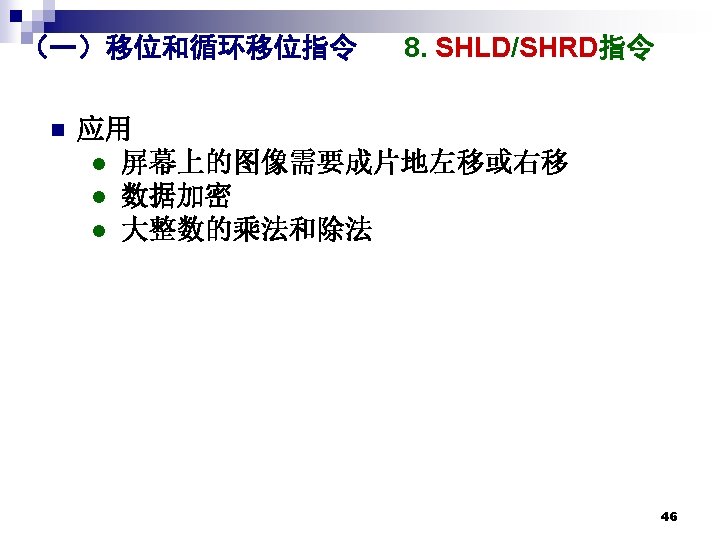

(一)移位和循环移位指令 n 例1:. data wval WORD 9 BA 6 h. code mov ax, 0 AC 36 h shld wval, ax, 4 n 8. SHLD/SHRD指令 例2: mov ax, 234 Bh mov dx, 7654 h shrd ax, dx, 4 wval 9 BA 6 AX AC 36 BA 6 A AC 36 DX 7654 AX 234 B 7654 4234 45
(一)移位和循环移位指令 9. 移位和循环移位的应用 n n 多双字移位 二进制乘法 显示二进制位 分离位串 99999999 h [esi+8] [esi+4] [esi]. data Array. Size = 3 array DWORD Array. Size DUP(9999 h). code mov esi, 0 shr array[esi+8], 1 rcr array[esi+4], 1 rcr array[esi], 1 47

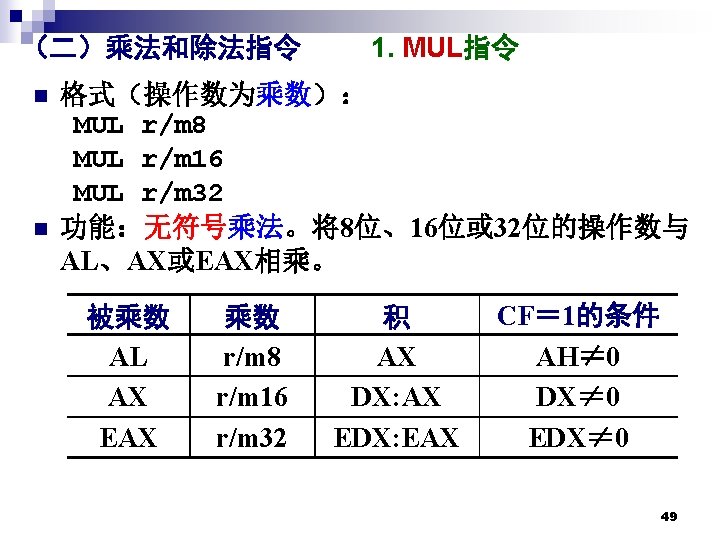

(二)乘法和除法指令 n 1. MUL指令 例: mov al, 5 h mov bl, 10 h mul bl ; 积在AX中,50 h ; CF = 0 . data val 1 WORD 2000 h val 2 WORD 0100 h. code mov ax, val 1 mul val 2 ; CF = 1 ; 积在DX: AX中,00200000 h 50
(二)乘法和除法指令 n n n 2. IMUL指令 有符号乘法,格式与MUL指令相同。 如果积的高半部分不是低半部分的符号扩展,则设 置CF和OF。 例: mov al, 48 ; 48 D = 30 H mov bl, 4 imul bl ; AX = 00 C 0 h, OF = 1 mov al, -4 mov bl, 4 imul bl ; AX = FFF 0 h, OF = 0 mov ax, 48 mov bx, 4 imul bx ; DX: AX = 000000 C 0 h, OF = 0 51
3. DIV指令 (二)乘法和除法指令 n 例: ; 8003 h/100 h mov dx, 0 mov ax, 8003 h mov cx, 100 h div cx ; ; clear dividend, high dividend, low divisor AX = 0080 h, DX = 0003 h . data dividend QWORD 0000000800300020 h divisor DWORD 00000100 h. code mov edx, DWORD PTR dividend + 4 ; high doubleword mov eax, DWORD PTR dividend ; low doubleword divisor ; EAX = 08003000 h, EDX = 00000020 h 53
(二)乘法和除法指令 4. 有符号整数除法 ① CBW,CWD 和 CDQ 指令 n CBW(Convert Byte to Word) 将AL中的符号位扩展到AH寄存器中。 n CWD(Convert Word to Doubleword) 将AX的符号位扩展到DX寄存器中。 n CDQ(Convert Doubleword to Quadword) 将EAX中的符号位扩展到EDX寄存器中。 n 例:. data word. Val SWORD -101. code mov ax, word. Val cwd ; FF 9 Bh ; AX = FF 9 Bh ; DX: AX = FFFFFF 9 Bh 54
4. 有符号整数除法 (二)乘法和除法指令 ② IDIV 指令 n 例:. data byte. Val SBYTE -48. code mov al, byte. Val cbw mov bl, 5 idiv bl . data word. Val SWORD -5000. code mov ax, word. Val cwd mov bx, 256 idiv bx ; ; ; ; ; dividend extend AL into AH divisor AL = -9, AH = -3 dividend, extend AX divisor quotient remainder low into DX AX = -19 DX = -136 56

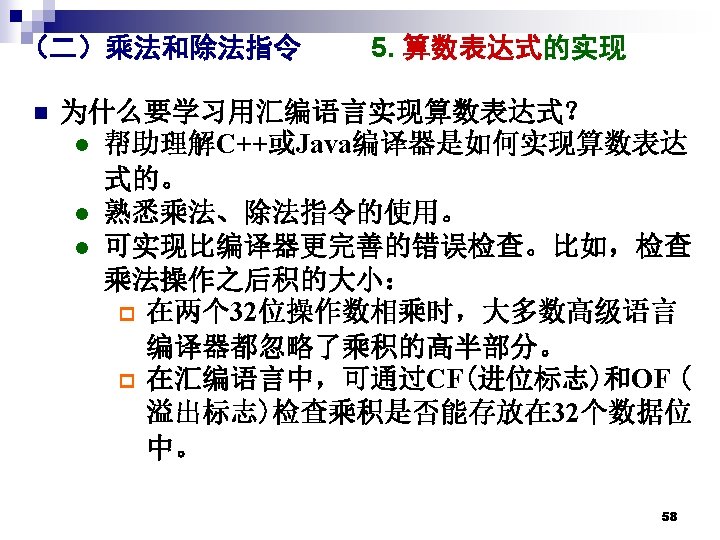

(二)乘法和除法指令 5. 算数表达式的实现 【例1】以汇编语言实现下面的C++语句(使用 32位无 符号整数): var 4 = (var 1 + var 2) * var 3; mov eax, var 1 add eax, var 2 mul var 3 jc too. Big mov var 4, eax jmp next too. Big: ; EAX = EAX * var 3 ; unsigned overflow? ; display error message 59
(二)乘法和除法指令 5. 算数表达式的实现 【例2】使用 32位有符号整数实现下面C++语句: var 4 = (var 1 * -5) / (-var 2 % var 3); mov eax, var 2 ; begin right side neg eax ; 有符号数, 需将被除数符号扩展到EDX, 然后用IDIV指令 cdq ; sign-extend dividend idiv var 3 ; EDX = remainder mov ebx, edx ; EBX = right side mov eax, -5 imul var 1 ; begin left side ; EDX: EAX = left side idiv ebx mov var 4, eax ; final division ; quotient 60

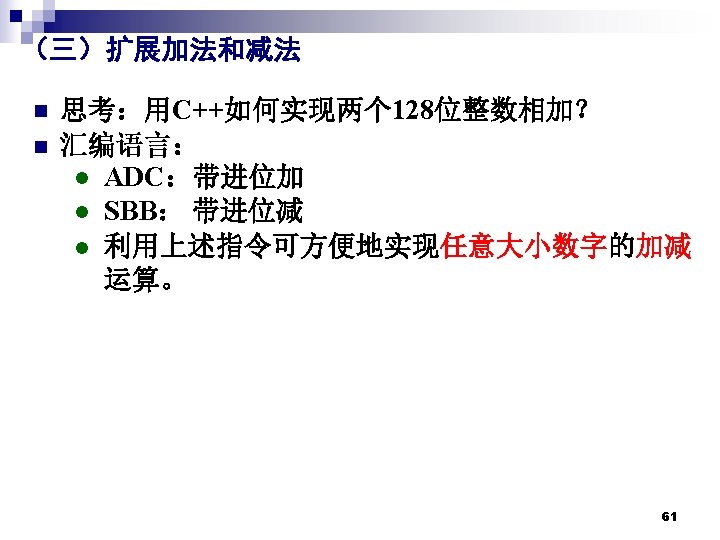

(三)扩展加法和减法 n n n 1. ADC指令 功能:add with carry,扩展加法。 目的操作数+源操作数+进位标志→目的操作数 格式:同MOV指令。 ADC reg, reg ADC mem, reg ADC reg, mem ADC mem, imm ADC reg, imm 扩展加法的例子 D: Masm 615Examplesch 07Ext. Add. asm 62
; ---------------------------Extended_Add PROC ; ; Calculates the sum of two extended integers that are ; stored as an array of doublewords. ; Receives: ESI and EDI point to the two integers, ; EBX points to a variable that will hold the sum, and ; ECX indicates the number of doublewords to be added. ; ---------------------------pushad clc ; clear the Carry flag L 1: mov eax, [esi] ; get the first integer adc eax, [edi] ; add the second integer pushfd ; save the Carry flag mov [ebx], eax ; store partial sum add esi, 4 ; advance all 3 pointers add edi, 4 add ebx, 4 popfd ; restore the Carry flag loop L 1 ; repeat the loop adc word ptr [ebx], 0 ; add any leftover carry popad ret Extended_Add ENDP ② 子程序 END main
TITLE Extended Addition Example (Ext. Add. asm) ; This program calculates the sum of two 64 -bit integers. INCLUDE Irvine 16. inc. data op 1 QWORD 0 A 2 B 2 A 40674981234 h op 2 QWORD 08010870000234502 h sum DWORD 3 dup(0). code main PROC mov ax, @data mov ds, ax mov mov call exit main ENDP esi, OFFSET op 1 edi, OFFSET op 2 ebx, OFFSET sum ecx, 2 Extended_Add esi, OFFSET sum ebx, 4 ecx, 3 Dump. Mem ; ; first operand second operand sum operand number of doublewords ; dump memory ; is doublewords ; three doublewords ① 主程序

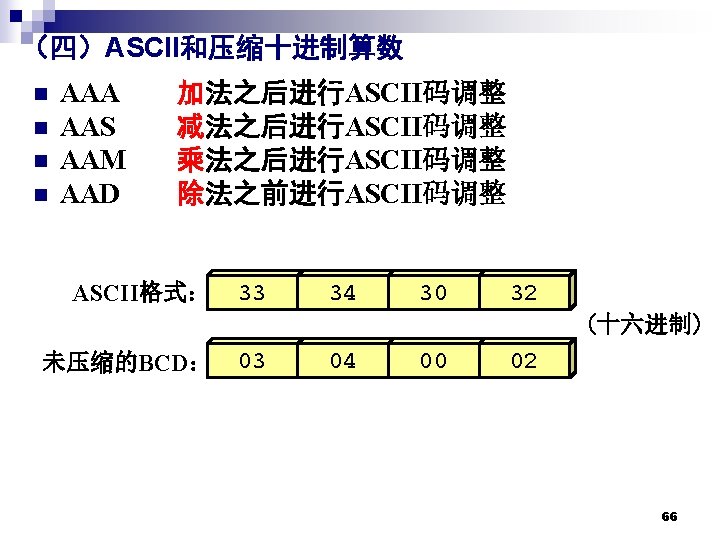

(四)ASCII和压缩十进制算数 n n 1. AAA指令 功能:ASCII adjust after addition 调整两个ASCII数字用ADD或ADC指令相加之后在 AL中的结果。 例: mov ah, 0 mov al, '8' ; AX = 0038 h add al, '2' ; AX = 006 Ah aaa ; AX = 0100 h or ax, 3030 h ; AX = 3130 h = '10' 67
(四)ASCII和压缩十进制算数 2. AAS指令 n 功能:ASCII adjust after subtraction 调整ASCII减法之后AL中得到的结果。 仅当减法产生负数结果时调整才是必须的。 n 例:. data val 1 BYTE '8' val 2 BYTE '9'. code mov ah, 0 mov al, val 1 sub al, val 2 aas pushf or al, 30 h popf ; ; ; AX = 0038 h AX = 00 FFh AX = FF 09 h save the Carry flag AX = FF 39 h restore the Carry flag 68
(四)ASCII和压缩十进制算数 n n 3. AAM指令 功能:ASCII adjust after multiplication 调整两个未压缩的BCD数字相乘之后AX中的结果, 即将二进制值调整为非压缩的ASCII格式。 例:. data Asc. Val BYTE 05 h, 06 h. code mov bl, Asc. Val ; first operand mov al, Asc. Val+1 ; second operand mul bl ; AX = 001 Eh aam ; AX = 0300 h 69
(四)ASCII和压缩十进制算数 n n 4. AAD指令 功能:ASCII adjust before division 将AH和AL中未压缩的BCD数字转换成二进制数值 存放在AL中,AH清零,为DIV指令做好准备。 例:. data quotient BYTE ? remainder BYTE ? . code mov ax, 0307 h aad mov bl, 5 div bl mov quotient, al mov remainder, ah ; ; ; dividend AX = 0025 h divisor AX = 0207 h 37/5,商为 7,余数 2 70

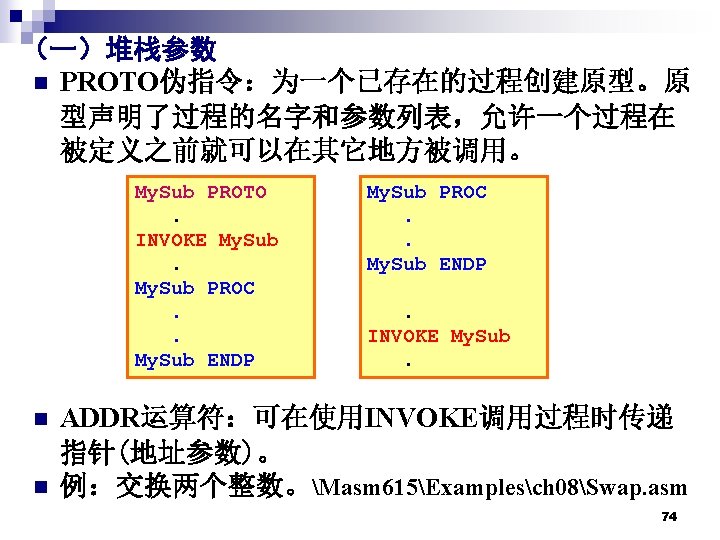

(一)堆栈参数 n 寄存器参数:寄存器内容在装入参数前必须保存。 pushad mov esi, OFFSET array mov ecx, LENGTHOF array mov ebx, TYPE array call Dump. Mem popad n starting OFFSET size, in units doubleword format display memory 堆栈参数:需要的参数由调用程序压入堆栈。 push call n ; ; OFFSET array LENGTHOF array TYPE array Dump. Mem 使用INVOKE伪指令可自动在堆栈上压入参数并调用 程序。 INVOKE Dump. Mem, TYPE array, LENGTHOF array, OFFSET array n 几乎所有高级语言都使用堆栈参数。 73
; Demonstration of the Swap procedure, using ; PROTO, PROC, and INVOKE. INCLUDE Irvine 32. inc Swap PROTO, ; procedure prototype p. Val. X: PTR DWORD, p. Val. Y: PTR DWORD. data Array DWORD 10000 h, 20000 h. code main PROC ; Display the array before the exchange: mov esi, OFFSET Array mov ecx, 2 ; count = 2 mov ebx, TYPE Array call Dump. Mem ; dump the array values INVOKE Swap, ADDR Array, ADDR [Array+4] ; Display the array after the exchange: call Dump. Mem exit main ENDP
; ---------------------------Swap PROC USES eax esi edi, p. Val. X: PTR DWORD, ; pointer to first integer p. Val. Y: PTR DWORD ; pointer to second integer ; ; Exchange the values of two 32 -bit integers ; Returns: nothing ; ---------------------------mov esi, p. Val. X ; get pointers mov edi, p. Val. Y mov eax, [esi] ; get first integer xchg eax, [edi] ; exchange with second mov [esi], eax ; replace first integer ret Swap ENDP END main

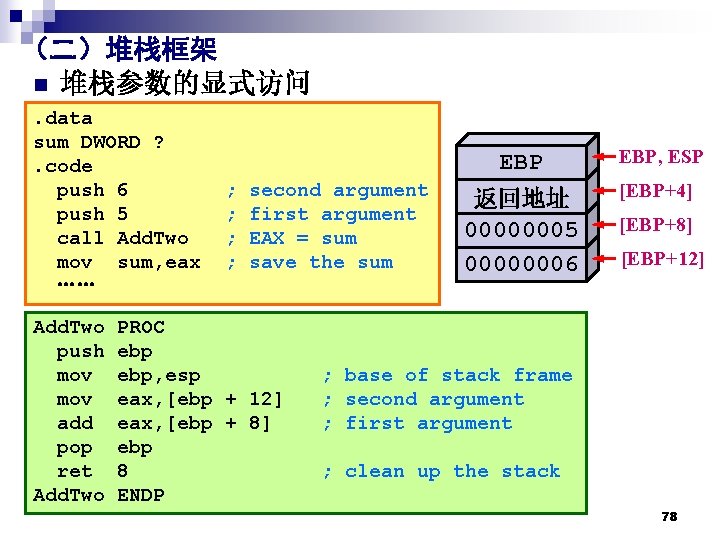

(二)堆栈框架 n 堆栈参数的显式访问. data sum DWORD ? . code push 6 push 5 call Add. Two mov sum, eax …… Add. Two push mov add pop ret Add. Two ; ; second argument first argument EAX = sum save the sum PROC ebp, esp eax, [ebp + 12] eax, [ebp + 8] ebp 8 ENDP EBP, ESP 返回地址 00000005 00000006 [EBP+4] [EBP+8] [EBP+12] ; base of stack frame ; second argument ; first argument ; clean up the stack 78

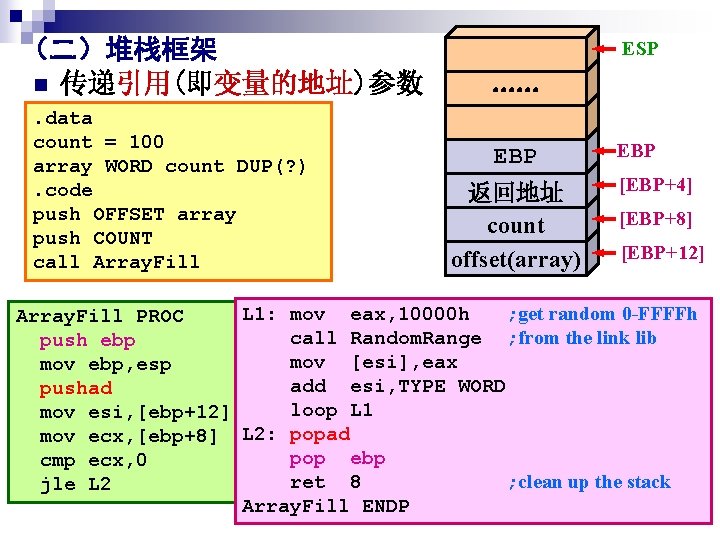

(二)堆栈框架 n 传递引用(即变量的地址)参数. data count = 100 array WORD count DUP(? ). code push OFFSET array push COUNT call Array. Fill ESP …… EBP 返回地址 count offset(array) EBP , ESP [EBP+4] [EBP+8] [EBP+12] L 1: mov eax, 10000 h ; get random 0 -FFFFh Array. Fill PROC call Random. Range ; from the link lib push ebp mov [esi], eax mov ebp, esp add esi, TYPE WORD pushad loop L 1 mov esi, [ebp+12] ; offset of array popad mov ecx, [ebp+8] L 2: ; array size pop cmp ecx, 0 ; ECX <= ebp 0 ? ret skip 8 over loop ; clean up the stack jle L 2 ; yes: Array. Fill ENDP 79
(二)堆栈框架 n LEA指令:计算并装入内存操作数的偏移。 指令格式:LEA reg, mem 【例】 Fill. String PROC USES eax esi LOCAL string[20]: BYTE ; mov esi, OFFSET string ; error lea esi, string mov ecx, 20 L 1: mov eax, 10 call Random. Range ; AL = 0. . 9 add al, 30 h mov [esi], al add esi, 1 Loop L 1 LOCAL伪指令在过程中声明 ret 一个或多个局部变量。 Fill. String ENDP 80
(二)堆栈框架 n 创建局部变量 l C++ 例子 l 用汇编语言实现 ESP [EBP-36] Z void My. Sub() { char X = 'X'; int Y = 10; char name[20]; name[0] = 'B' double Z = 1. 2; } [EBP-28] name …… Y X EBP [EBP-8] 返回地址 [EBP+4] [EBP-4] EBP 变量 X Y name 字节数 4 4 20 堆栈偏移 EBP-4 EBP-8 EBP-28 Z 8 EBP-36 81
(二)堆栈框架 n 创建局部变量 l 用汇编语言实现 My. Sub PROC push ebp mov ebp, esp sub esp, 36 mov mov mov ESP [EBP-36] Z [EBP-28] name 汇编 …… Y X EBP [EBP-8] 返回地址 [EBP+4] [EBP-4] EBP ; create variables BYTE PTR [ebp-4], 'X' ; X DWORD PTR [ebp-8], 10 ; Y C++ BYTE PTR [ebp-28], 'B' ; void name[0] My. Sub() DWORD PTR [ebp-32], 3 ff 33333 h ; {Z(high) DWORD PTR [ebp-36], 3333 h ; Z(low) char X = 'X'; mov esp, ebp pop ebp ret My. Sub ENDP int Y = 10; ; destroy variables char name[20]; name[0] = 'B' double Z = 1. 2; } 82

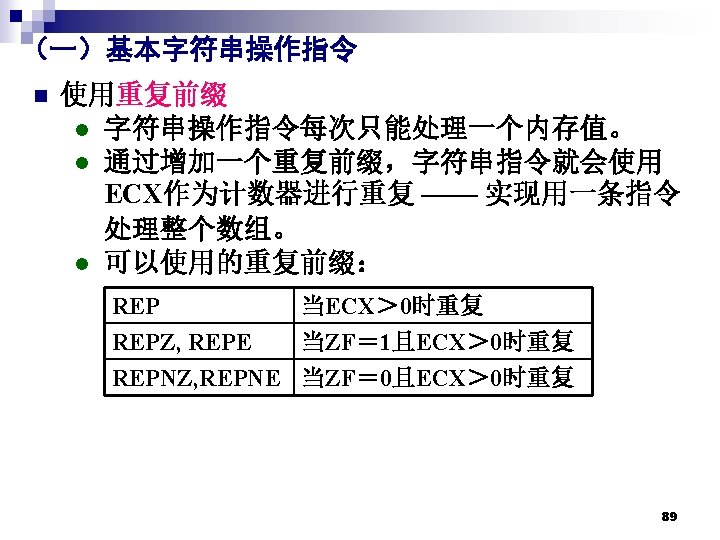

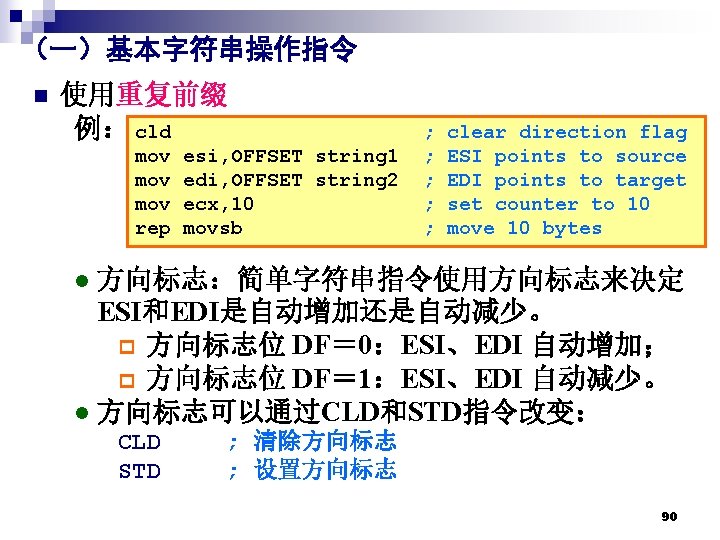

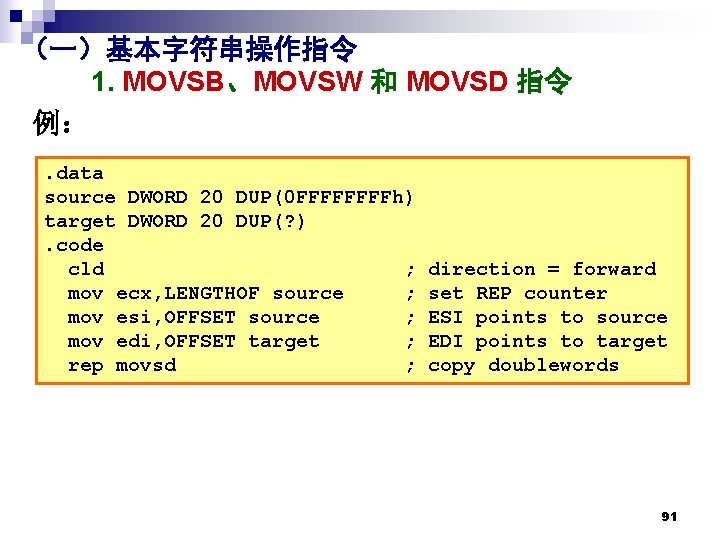

(一)基本字符串操作指令 1. MOVSB、MOVSW 和 MOVSD 指令 例:. data source DWORD 20 DUP(0 FFFFh) target DWORD 20 DUP(? ). code cld ; mov ecx, LENGTHOF source ; mov esi, OFFSET source ; mov edi, OFFSET target ; rep movsd ; direction = forward set REP counter ESI points to source EDI points to target copy doublewords 91

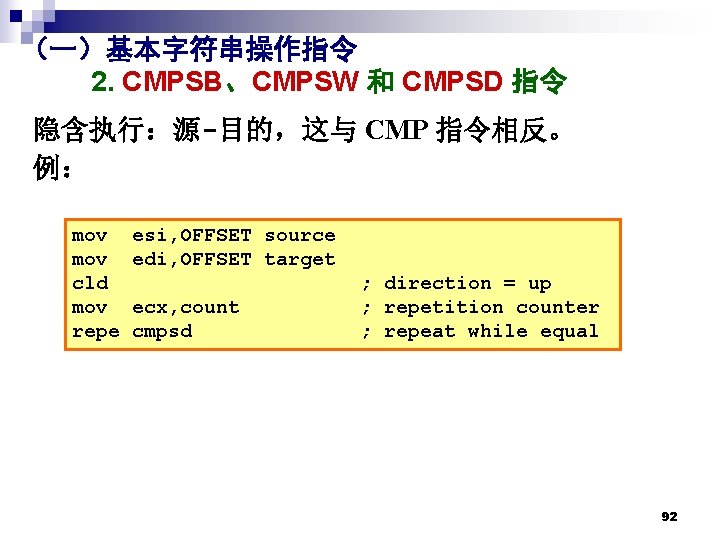

(一)基本字符串操作指令 2. CMPSB、CMPSW 和 CMPSD 指令 隐含执行:源-目的,这与 CMP 指令相反。 例: mov cld mov repe esi, OFFSET source edi, OFFSET target ecx, count cmpsd ; direction = up ; repetition counter ; repeat while equal 92
INCLUDE Irvine 32. inc. data source BYTE "MARTIN " dest BYTE "MARTINEZ" str 1 BYTE "Source is smaller", 0 dh, 0 ah, 0 str 2 BYTE "Source is not smaller", 0 dh, 0 ah, 0. code main PROC cld ; direction = up mov esi, OFFSET source mov edi, OFFSET dest mov cx, LENGTHOF source repe cmpsb jb source_smaller mov edx, OFFSET str 2 jmp done source_smaller: mov edx, OFFSET str 1 done: call Write. String exit main ENDP END main

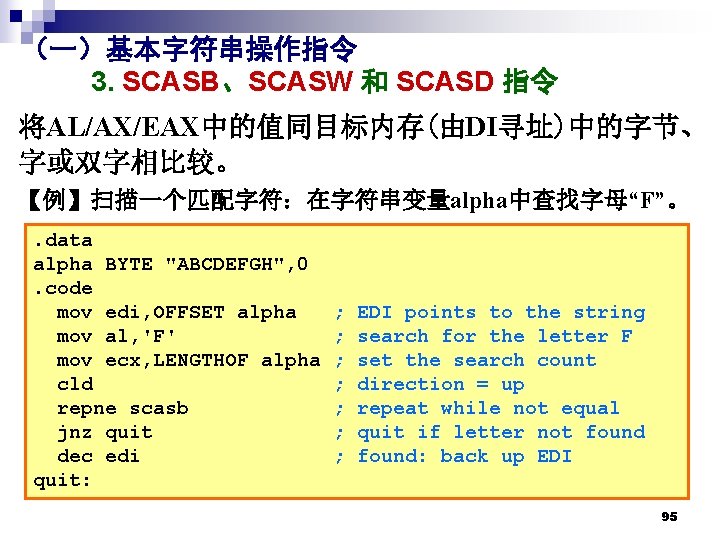

(一)基本字符串操作指令 3. SCASB、SCASW 和 SCASD 指令 将AL/AX/EAX中的值同目标内存(由DI寻址)中的字节、 字或双字相比较。 【例】扫描一个匹配字符:在字符串变量alpha中查找字母“F”。. data alpha BYTE "ABCDEFGH", 0. code mov edi, OFFSET alpha mov al, 'F' mov ecx, LENGTHOF alpha cld repne scasb jnz quit dec edi quit: ; ; ; ; EDI points to the string search for the letter F set the search count direction = up repeat while not equal quit if letter not found: back up EDI 95
(一)基本字符串操作指令 4. STOSB、STOSW 和 STOSD 指令 将AL/AX/EAX的内容存储在EDI指向的内存单元中, 同时EDI的值根据方向标志增加或减少。可与REP前 缀联合使用。 例:将string 1的每个字节初始化为 0 FFh。. data count = 100 string 1 BYTE count DUP(? ). code mov al, 0 FFh mov edi, OFFSET string 1 mov ecx, count cld rep stosb ; ; ; value to be stored ES: DI points to target character count direction = forward fill with contents of AL 96
TITLE Multiply an Array (Mult. asm) ; This program multiplies each element of an array ; of 32 -bit integers by a constant value. INCLUDE Irvine 32. inc. data array DWORD 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 ; test data multiplier DWORD 10 ; test data. code main PROC cld ; direction = up mov esi, OFFSET array ; source index mov edi, esi ; destination index mov ecx, LENGTHOF array ; loop counter L 1: lodsd ; copy [ESI] into EAX multiplier ; multiply by a value stosd ; store EAX at [EDI] loop L 1 exit main ENDP END main
(二)二维数组 n 表格的例子。 1. 基址变址操作数 . data 0 1 2 3 4 table. B BYTE 0 10 h, 20 h, 30 h, 40 h, 50 h 列 BYTE 1 60 h, 70 h, 80 h, 90 h, 0 A 0 h BYTE 2 0 B 0 h, 0 C 0 h, 0 D 0 h, 0 E 0 h, 0 F 0 h Num. Cols = 5 行. code Row. Number = 1 ; 第 1行 Column. Number = 2 ; 第 2列 mov ebx, OFFSET table. B add ebx, Num. Cols*Row. Number mov esi, Column. Number mov al, [ebx+esi] ; AL = 80 h 第 0行 第 1行 第 2行 10 20 30 40 50 60 70 80 90 A 0 B 0 C 0 D 0 E 0 F 0 table. B [EBX] [EBX+ESI] 100

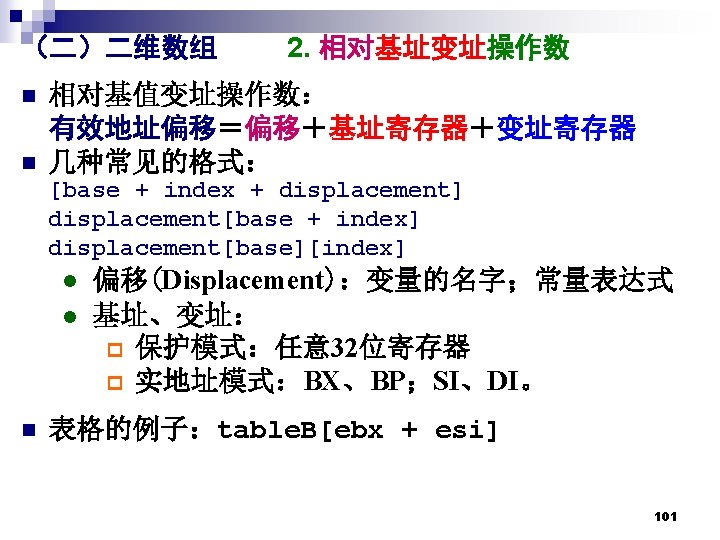

(二)二维数组 n 表格的例子: 2. 相对基址变址操作数 . data 0 1 2 3 4 table. B BYTE 0 10 h, 20 h, 30 h, 40 h, 50 h 列 BYTE 1 60 h, 70 h, 80 h, 90 h, 0 A 0 h BYTE 2 0 B 0 h, 0 C 0 h, 0 D 0 h, 0 E 0 h, 0 F 0 h Num. Cols = 5 行. code Row. Number = 1 ; 第 1行 Column. Number = 2 ; 第 2列 mov ebx, Num. Cols*Row. Number ; 第 1行起始地址: 5× 1 mov esi, Column. Number ; 列号: 2 mov al, table. B[ebx+esi] ; AL = 80 h 第 0行 第 1行 第 2行 10 20 30 40 50 60 70 80 90 A 0 B 0 C 0 D 0 E 0 F 0 table. B[EBX] table. B[EBX+ESI] 102
(一)结构 2. 结构的声明及引用 声明 Employee STRUCT Id. Num BYTE Last. Name BYTE Years WORD Salary. History Employee ENDS . data worker Employee <> person 1 Employee <” 555223333”> person 2 Employee <, ”Jones”> person 3 Employee <, , , 2 DUP(20000)> ” 00000” 30 DUP(0) 0 DWORD 0, 0, 0, 0 定义 引用 . code mov dx, worker. Years mov worker. Salary. History+4, 30000 ; second salary mov edx, OFFSET worker. Last. Name mov esi, OFFSET worker mov ax, (Employee PTR [esi]). Years 106

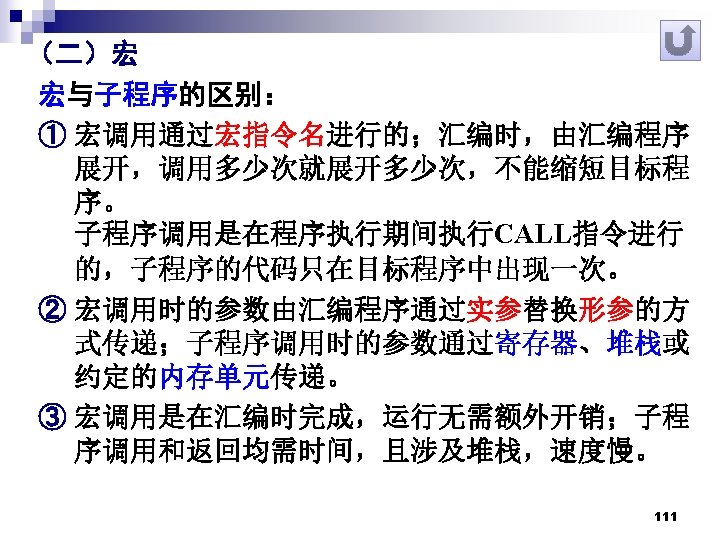

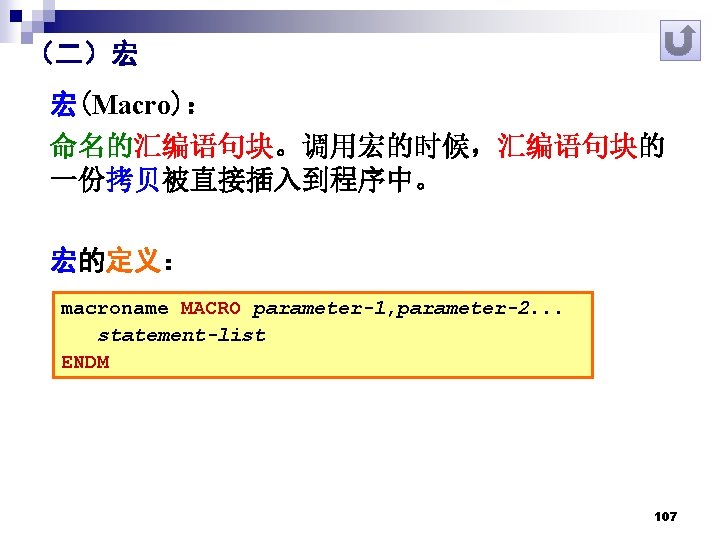

(二)宏 【例1】 m. Write. Str MACRO string push edx mov edx, OFFSET string call Write. String pop edx 定义 ENDM 编译后的代码 push edx mov edx, OFFSET msg 1 call Write. String pop edx push edx mov edx, OFFSET msg 2. data call Write. String msg 1 BYTE ”This is message 1. ”, 0 Dh, 0 Ah, ’$’ pop edx msg 2 BYTE ”This is message 2. ”, 0 Dh, 0 Ah, ’$’ push edx msg 3 BYTE ”This is message 3. ”, 0 Dh, 0 Ah, ’$’ mov edx, OFFSET msg 3. code call Write. String m. Write. Str msg 1 pop edx m. Write. Str msg 2 m. Write. Str msg 3 调用 108
(二)宏 【例2】 HTOASC MACRO LOCAL ISDECM AND AL, 0 FH CMP AL, 9 JBE ISDECM ADD AL, 7 ISDECM: ADD AL, 30 H ENDM. . . HTOASC. . . 调用 定义 编译后的代码. . . AND AL, 0 FH CMP AL, 9 JBE ? ? 0000 ADD AL, 7 ? ? 0000: ADD AL, 30 H. . . AND AL, 0 FH CMP AL, 9 JBE ? ? 0001 ADD AL, 7 ? ? 0001: ADD AL, 30 H. . . 109

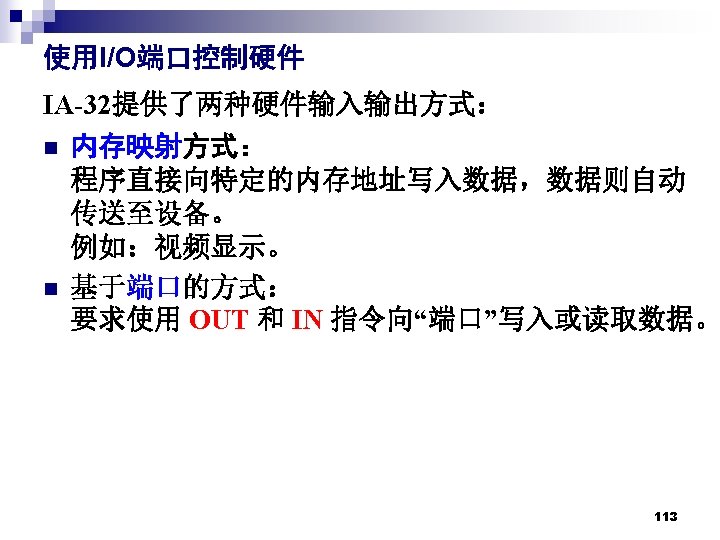

使用I/O端口控制硬件 (二)IN 和 OUT 指令 例: in out mov in out al, 3 Ch, al dx, 2 A 3 Ch ax, dx dx, ax eax, dx dx, eax ; ; ; ; input byte from port 003 Ch output byte to port 003 Ch DX can contain a port number input word from port named in DX output word to the same port input doubleword from port output doubleword to same port 116
; This program plays a series of ascending notes on ; the PC speaker. . model small, stdcall ; 16 -bit Real mode program. stack 4096 speaker timer delay 1 delay 2 start. Pitch. code main PROC in push or out mov = = = 61 h 42 h 800 7600 ; address of speaker port ; address of timer port ; delay between notes al, speaker ax al, 00000011 b speaker, al ; get speaker status ; save status ; set lowest 2 bits ; turn speaker on bx, start. Pitch ; starting pitch 119
L 2: mov out al, bl timer, al al, bh timer, al ; ; bit 7. . 0 timer port: pulses speaker bit 15. . 8 timer port: pulses speaker ; Create a delay loop between pitches: mov cx, delay 1 L 3 a: push cx mov cx, delay 2 L 3 b: loop L 3 b pop cx loop L 3 a sub jnz bx, 200 L 2 ; raise pitch ; play another note pop and out ax al, 11111100 b speaker, al ; get original status ; clear lowest 2 bits ; turn speaker off mov ax, 4 c 00 h int 21 h main ENDP END main 120

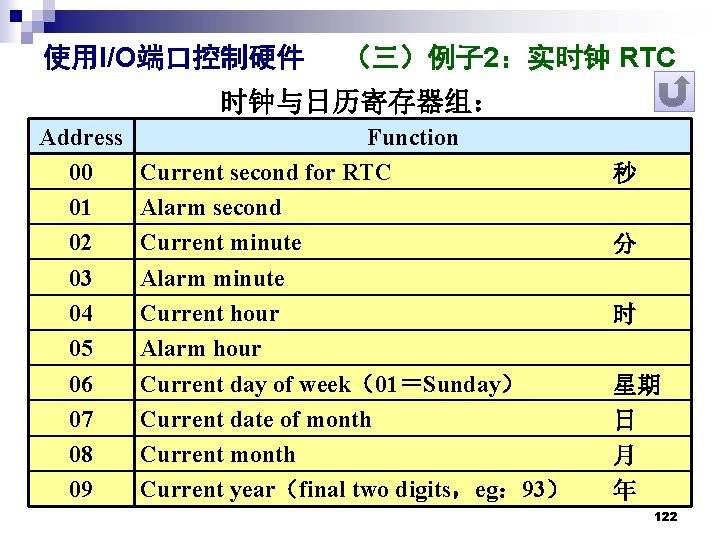

使用I/O端口控制硬件 (三)例子 2:实时钟 RTC 时钟与日历寄存器组: Address 00 01 02 03 04 05 06 07 08 09 Function Current second for RTC Alarm second Current minute Alarm minute Current hour Alarm hour Current day of week(01=Sunday) Current date of month Current year(final two digits,eg: 93) 秒 分 时 星期 日 月 年 122
程序功能:显示当前时间。 显示格式:hh: mm: ss, yyyy-mm-dd, week. MODEL small, stdcall. STACK 4096. data ; 01234567890123456789 weekinfo byte 'Sunday Monday Tuesday Wednesday ' ; 01234567890123456789 byte 'Thursday Friday Saturday ' display byte 0 dh, 0 ah hour byte '00: ' minute byte '00: ' second byte '00, ' year 1 byte '20' year 2 byte '00 -' month byte '00 -' day byte '00, ' week byte 10 dup(20 h), 0 dh, 0 ah, '$' 125
m. Read. RTC mov out nop in ENDM MACRO address al, address 70 h, al ; 宏,读地址为address的RTC寄存器 al, 71 h ; 读入数据在al寄存器 m. Trans. Info MACRO string mov string+1, al and string+1, 0 fh add string+1, '0' mov cl, 4 shr al, cl and al, 0 fh add al, '0' mov string, al ENDM ; 送地址 ; 延时 宏 ; 宏,将al中的bcd数据转换为ascii码字符 ; 处理低4位(个位) ; 处理高 4位(十位) ; 转换好的字符(2个)在string中 126
. code main PROC mov ax, @data mov ds, ax mov es, ax m. Read. RTC 4 m. Trans. Info hour ; read hour to al ; trans hour to ascii m. Read. RTC 2 m. Trans. Info minute ; read minute to al ; trans minute to ascii m. Read. RTC 0 m. Trans. Info second ; read second to al ; trans second to ascii m. Read. RTC 9 m. Trans. Info year 2 ; read year to al ; trans year to ascii m. Read. RTC 8 m. Trans. Info month ; read month to al ; trans month to ascii m. Read. RTC 7 m. Trans. Info day ; read day to al ; trans day to ascii 127
m. Read. RTC 6 ; read week to al, 01=Sunday dec al ; al: 0, 1, 2, 3, 4, 5, 6 -> Sundy, Monday, . . . , Friday, Saturday mov cx, 10 mul cl ; ax=al*10 mov si, offset weekinfo add si, ax mov di, offset week cld rep movsb ; copy weekinfo string to week mov ah, 9 mov dx, offset display ; display time, date and week int 21 h mov ah, 4 ch int 21 h main ENDP END main 128
数据段: weekinfo+10 weekinfo+20 weekinfo+30 weekinfo+40 weekinfo+50 weekinfo+60 hour Sund Mo n d Tu e s We d n Thu r Fr i d Sa t u second a a d e s a r y y a s d y day ay ay year 2 day ←↓ 0 0 : 0 0 , 2 0 0 0 - 0 0 , display minute year 1 month ←↓ $ week 129
