N* Gate 포탈 개요 및 사용법 KISTI Supercomputing Center 명훈주
목차 n N* Gate 포탈의 개요 n N* Gate 기본 기능 및 사용법 n High Throughput Grid Portal n Feed Back
N* Gate 포탈 n Grid Portal My. Proxy Server GSI HTML Client Browser HTTPS JSP & Serlvet GSIFTP Storage Archives HTTPS Apache+Tomcat Computing Resource LDAP Information Service
N* Gate 포탈 n N* Gate에 설치된 소프트웨어 – – – – – Globus 2. 0 Apache 1. 3. 20 JDK 1. 4 for Linux tomcat 3. 2. 4 GPDK 1. 01 JAVA Co. G 0. 9. 13 My. Proxy 0. 4. 3 GSI-enabled SSH MPICH-G 2 1. 2. 4
N* Gate 포탈 n My. Proxy 서버 delegate a credential to Enter user name And pass phrase Portal My. Proxy Server Retrieve a newly delegated credential
기능 및 사용법(6) n MDS Browser – Anonymous, secure binding 가능 – Tree형태로 browsing 가능

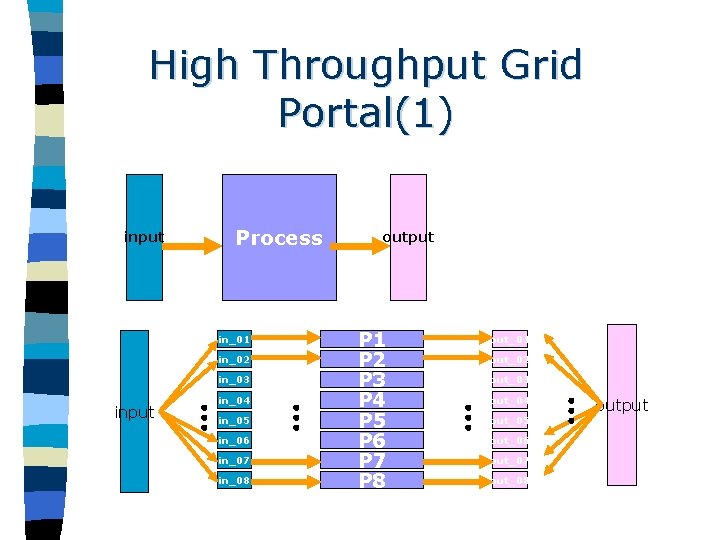

High Throughput Grid Portal(1) Process input in_01 in_02 in_03 in_07 in_08 out_01 out_02 out_03 out_04 out_05 out_06 out_07 out_08 … in_06 P 1 P 2 P 3 P 4 P 5 P 6 P 7 P 8 … in_05 … … input in_04 output
