My Home light and motor automation BUS system

My Home light and motor automation: BUS system characteristics

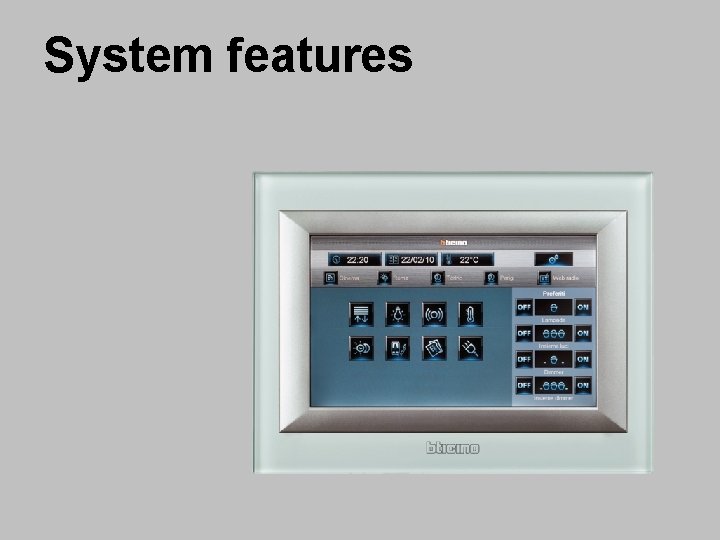

System features

Designed for residential application WDS DIVISION My Home SCS bus system was designed with – – System dimension and feature for homes Designed to reduce the cabinet dimension Installation method close to the traditional installation Aesthetic integrated with WD Apartment Villa 3

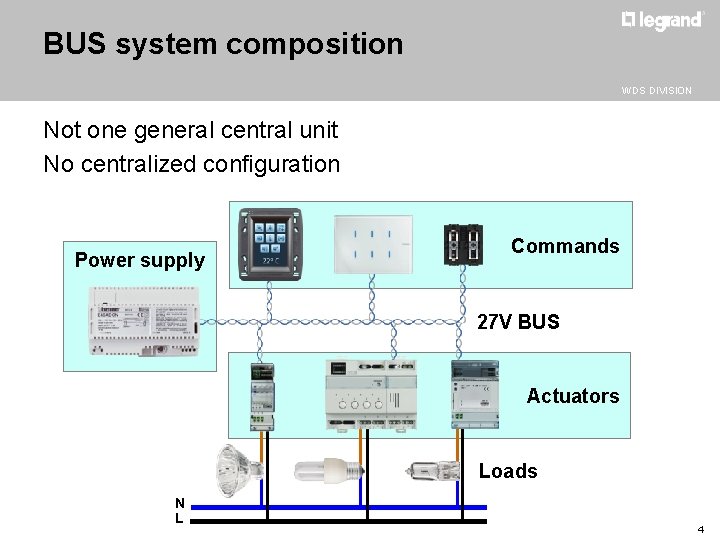

BUS system composition WDS DIVISION Not one general central unit No centralized configuration Power supply Commands 27 V BUS Actuators Loads N L 4

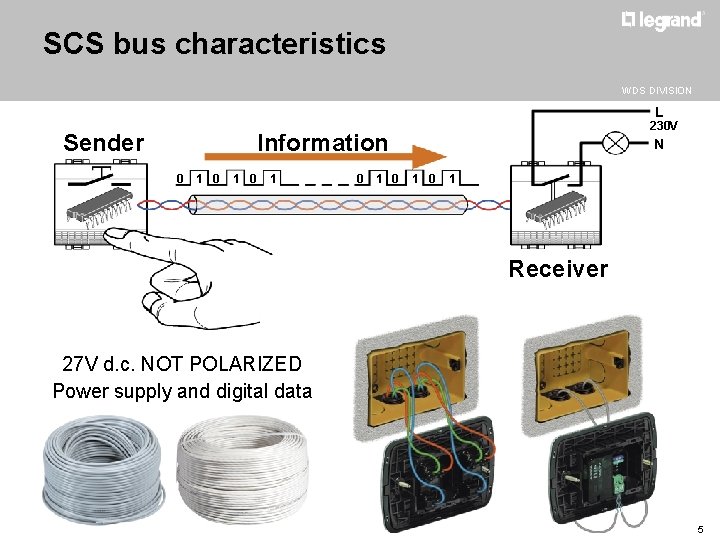

SCS bus characteristics WDS DIVISION L 230 V Information Sender 0 1 0 1 0 N 1 0 1 Receiver 27 V d. c. NOT POLARIZED Power supply and digital data 5

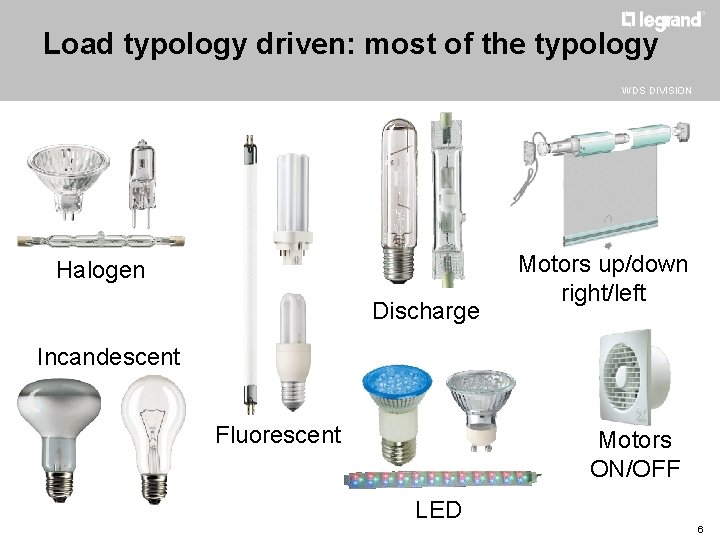

Load typology driven: most of the typology WDS DIVISION Halogen Discharge Motors up/down right/left Incandescent Fluorescent Motors ON/OFF LED 6

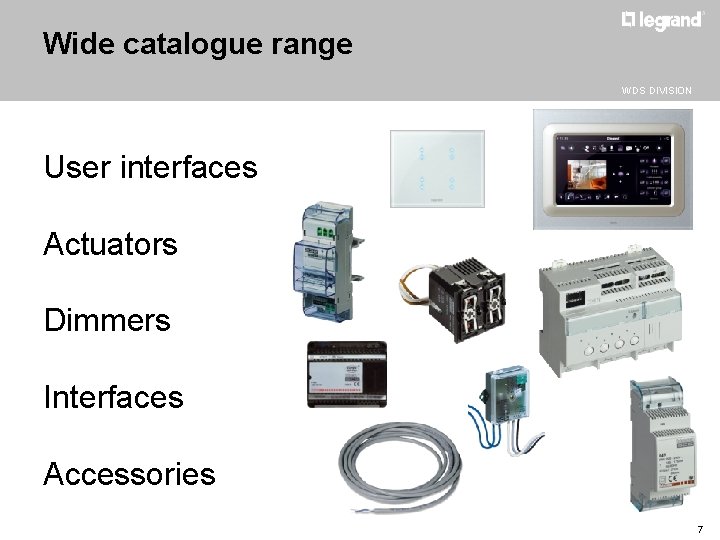

Wide catalogue range WDS DIVISION User interfaces Actuators Dimmers Interfaces Accessories 7

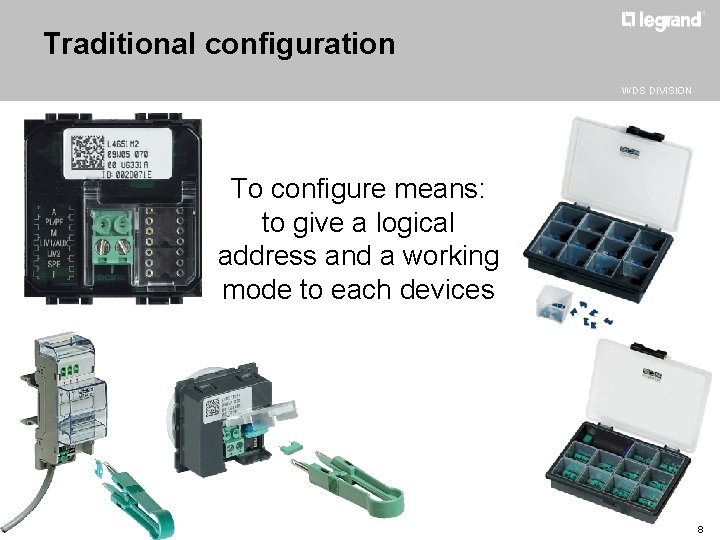

Traditional configuration WDS DIVISION To configure means: to give a logical address and a working mode to each devices 8

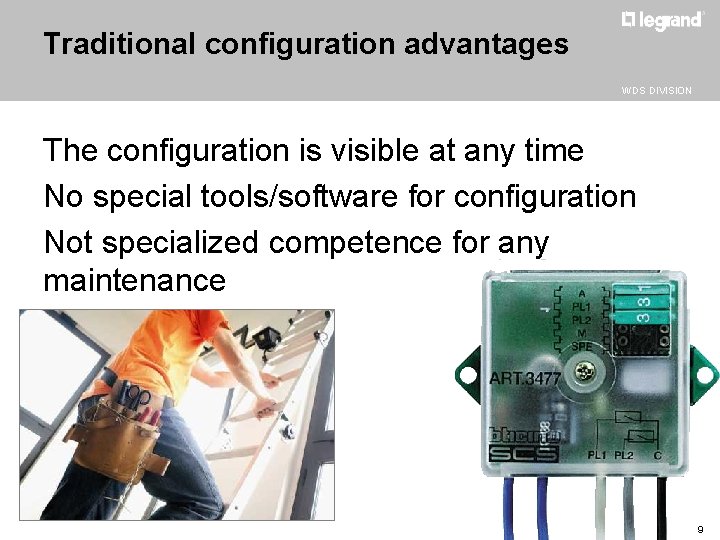

Traditional configuration advantages WDS DIVISION The configuration is visible at any time No special tools/software for configuration Not specialized competence for any maintenance 9

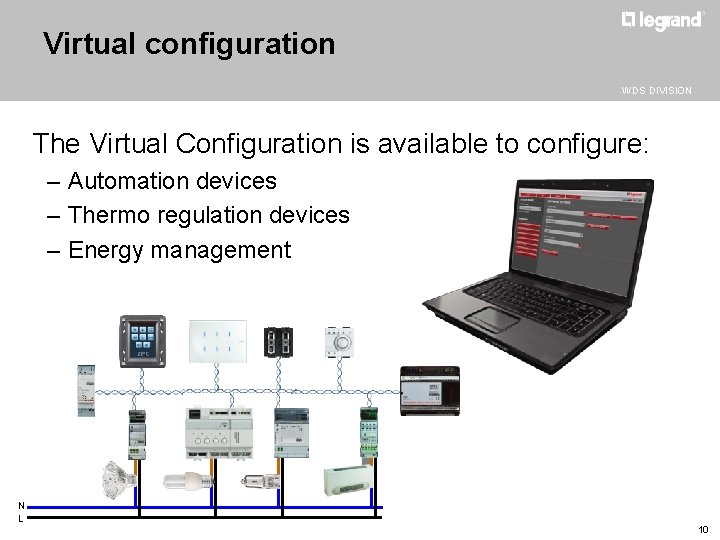

Virtual configuration WDS DIVISION The Virtual Configuration is available to configure: – Automation devices – Thermo regulation devices – Energy management N L 10

Virtual configuration advantage WDS DIVISION Up-Down load system configuration System configuration scan Configurators and time saving Easy re-configuration You can clone the configuration! 11

Free BUS cabling topology WDS DIVISION The choice is based on the installation need, function and wall limitation Just one rule: no closed ring! Star connections Free connection 12

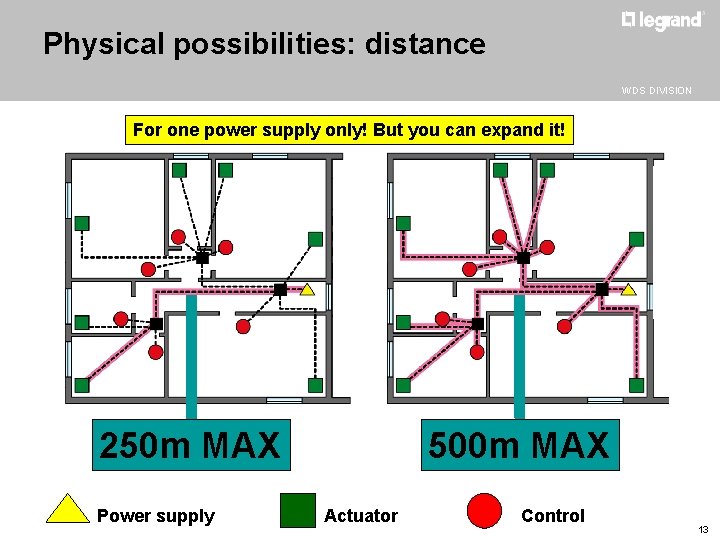

Physical possibilities: distance WDS DIVISION For one power supply only! But you can expand it! 250 m MAX Power supply 500 m MAX Actuator Control 13

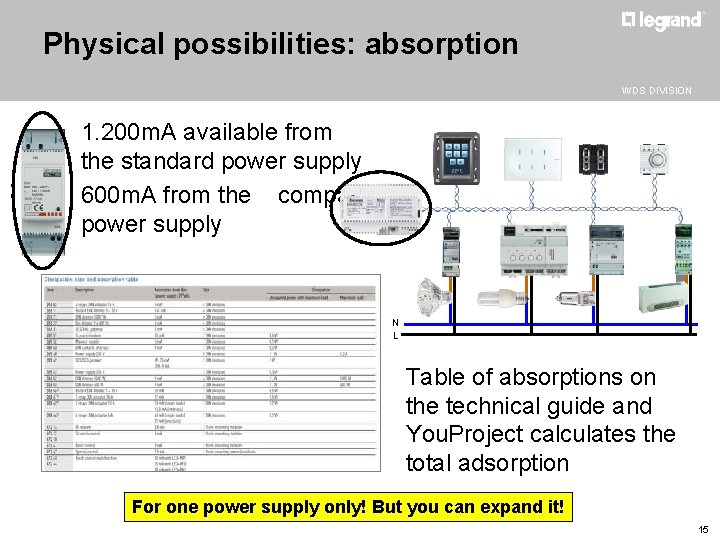

Physical possibilities: absorption WDS DIVISION 1. 200 m. A available from the standard power supply 600 m. A from the compact power supply N L Table of absorptions on the technical guide and You. Project calculates the total adsorption For one power supply only! But you can expand it! 15

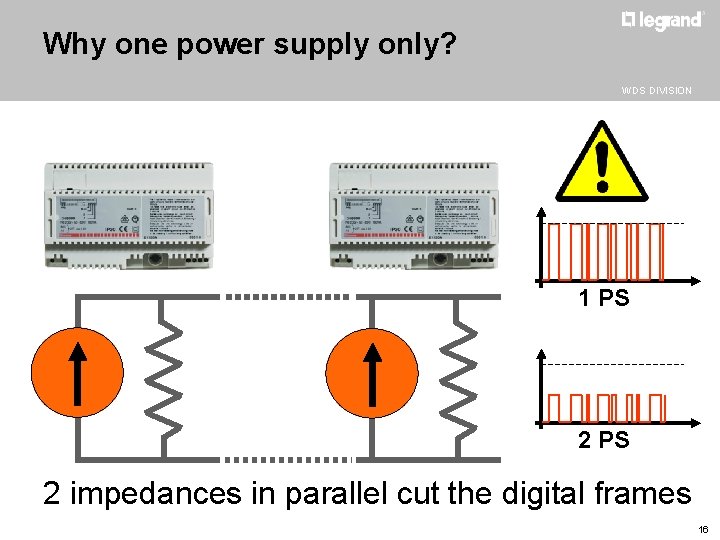

Why one power supply only? WDS DIVISION 1 PS 2 impedances in parallel cut the digital frames 16

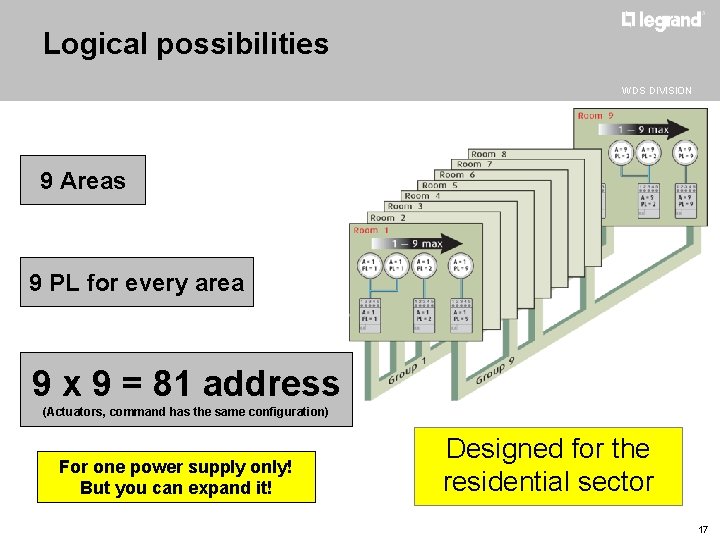

Logical possibilities WDS DIVISION 9 Areas 9 PL for every area 9 x 9 = 81 address (Actuators, command has the same configuration) For one power supply only! But you can expand it! Designed for the residential sector 17

Lighting management integration WDS DIVISION Some MH device are in common with LM system. For this reason you can use the LM configuration rules and system limits. 18

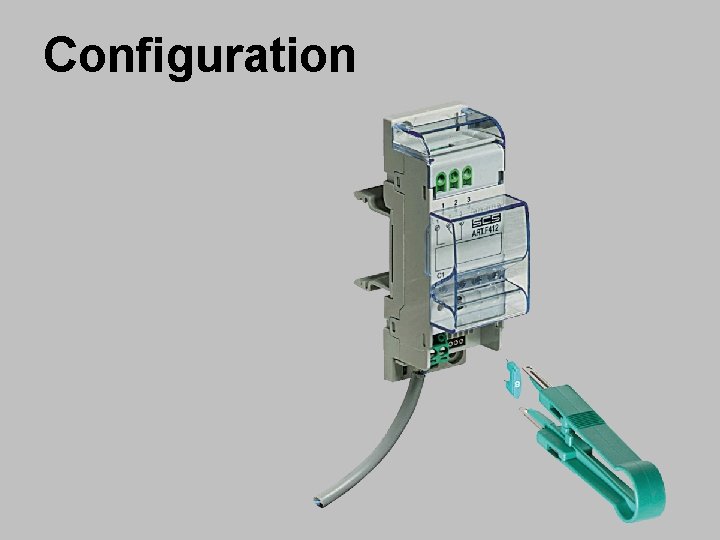

Configuration WDS DIVISION 19

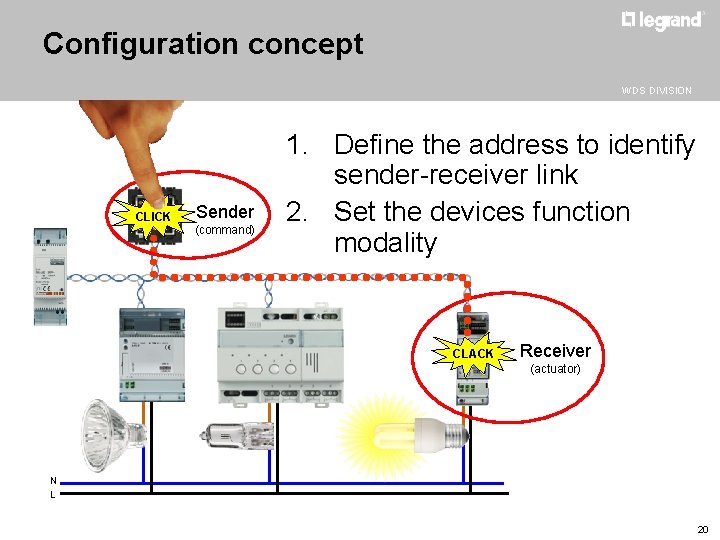

Configuration concept WDS DIVISION CLICK Sender (command) 1. Define the address to identify sender-receiver link 2. Set the devices function modality CLACK Receiver (actuator) N L 20

Configuration logics: area WDS DIVISION Subdivide the plan in several Areas 3 2 Max 9 areas! Each area has maximum 9 point of light 1 4 6 21

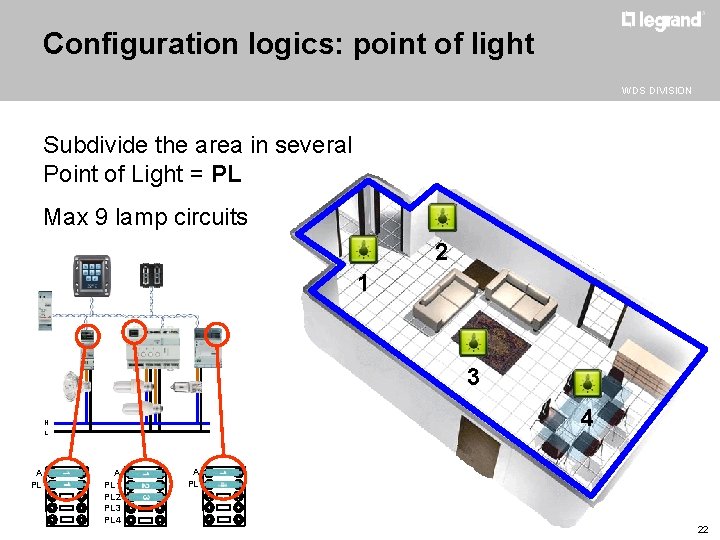

Configuration logics: point of light WDS DIVISION Subdivide the area in several Point of Light = PL Max 9 lamp circuits 2 1 3 4 N L A PL 1 PL 2 PL 3 PL 4 A PL 22

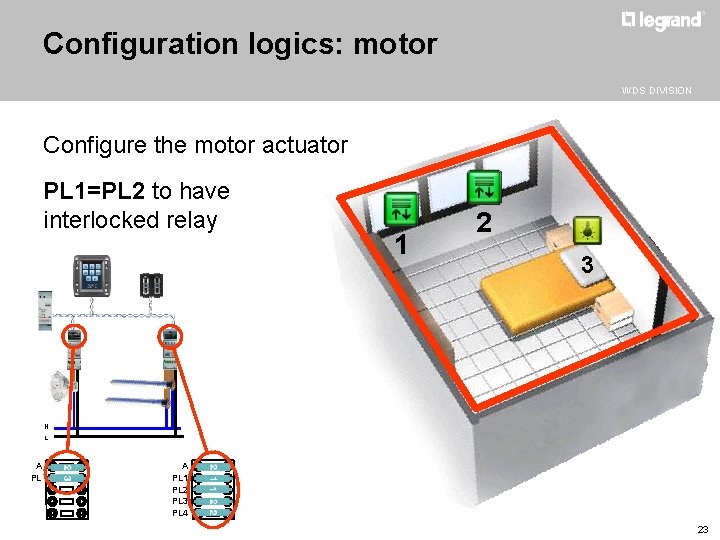

Configuration logics: motor WDS DIVISION Configure the motor actuator PL 1=PL 2 to have interlocked relay 1 2 3 N L A PL 1 PL 2 PL 3 PL 4 23

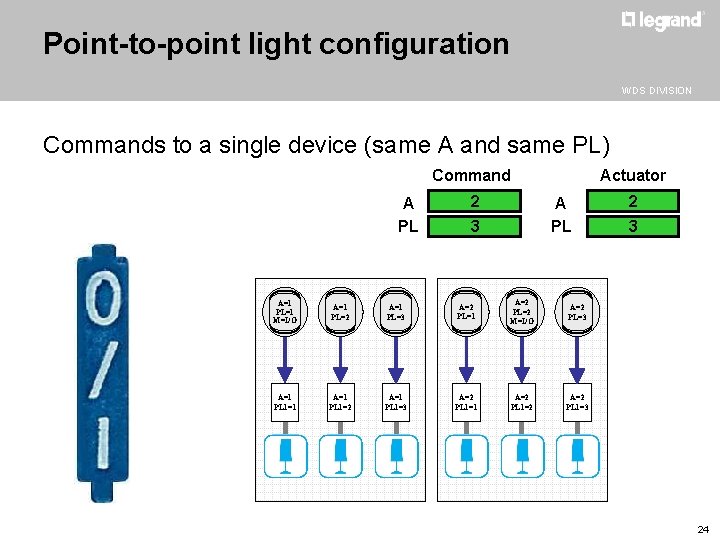

Point-to-point light configuration WDS DIVISION Commands to a single device (same A and same PL) Command A PL 2 Actuator A PL 3 A=1 PL=1 M=I/O A=1 PL=2 A=1 PL=3 A=2 PL=1 A=2 PL=2 M=I/O A=2 PL=3 A=1 PL 1=1 A=1 PL 1=2 A=1 PL 1=3 A=2 PL 1=1 A=2 PL 1=2 A=2 PL 1=3 2 3 24

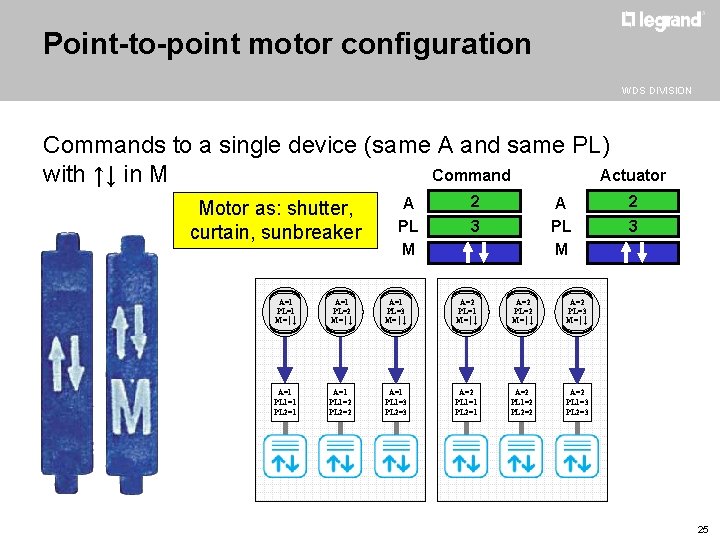

Point-to-point motor configuration WDS DIVISION Commands to a single device (same A and same PL) Command Actuator with ↑↓ in M Motor as: shutter, curtain, sunbreaker A PL M 2 A PL M 3 A=1 PL=1 M=↑↓ A=1 PL=2 M=↑↓ A=1 PL=3 M=↑↓ A=2 PL=1 M=↑↓ A=2 PL=2 M=↑↓ A=2 PL=3 M=↑↓ A=1 PL 1=1 PL 2=1 A=1 PL 1=2 PL 2=2 A=1 PL 1=3 PL 2=3 A=2 PL 1=1 PL 2=1 A=2 PL 1=2 PL 2=2 A=2 PL 1=3 PL 2=3 2 3 25

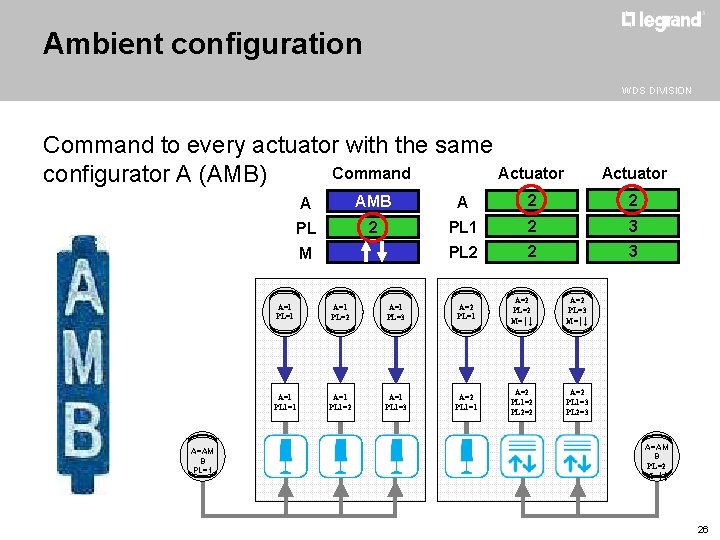

Ambient configuration WDS DIVISION Command to every actuator with the same Command Actuator configurator A (AMB) A AMB A 2 2 PL 1 2 3 PL 2 2 3 M A=AM B PL=1 Actuator A=1 PL=1 A=1 PL=2 A=1 PL=3 A=2 PL=1 A=2 PL=2 M=↑↓ A=2 PL=3 M=↑↓ A=1 PL 1=1 A=1 PL 1=2 A=1 PL 1=3 A=2 PL 1=1 A=2 PL 1=2 PL 2=2 A=2 PL 1=3 PL 2=3 A=AM B PL=2 M=↑↓ 26

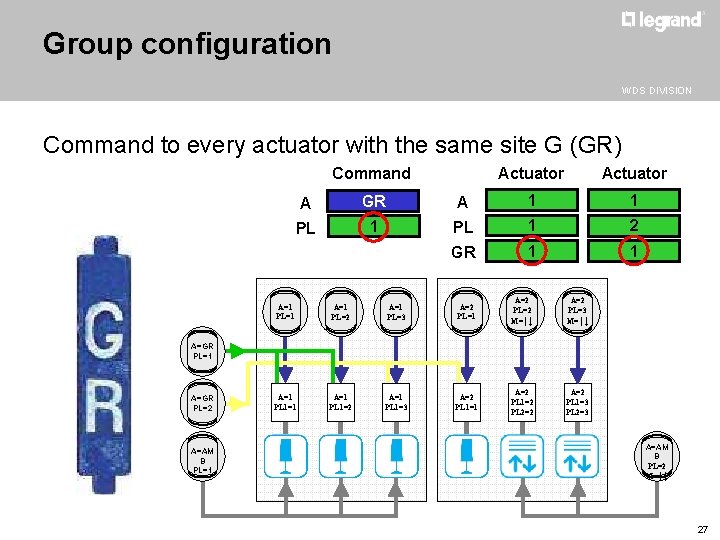

Group configuration WDS DIVISION Command to every actuator with the same site G (GR) Command Actuator A GR A 1 1 PL 1 2 GR 1 1 A=1 PL=2 A=1 PL=3 A=2 PL=1 A=2 PL=2 M=↑↓ A=2 PL=3 M=↑↓ A=1 PL 1=1 A=1 PL 1=2 A=1 PL 1=3 A=2 PL 1=1 A=2 PL 1=2 PL 2=2 A=2 PL 1=3 PL 2=3 A=GR PL=1 A=GR PL=2 A=AM B PL=1 A=AM B PL=2 M=↑↓ 27

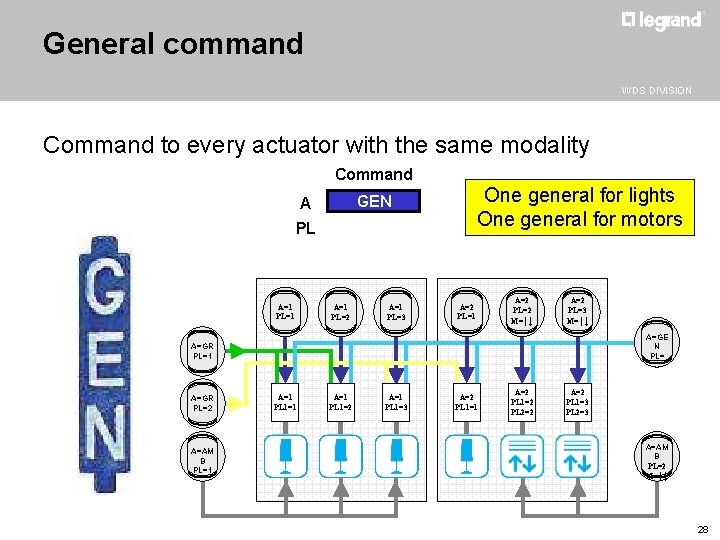

General command WDS DIVISION Command to every actuator with the same modality Command One general for lights One general for motors GEN A PL A=1 PL=1 A=1 PL=2 A=1 PL=3 A=2 PL=1 A=2 PL=2 M=↑↓ A=2 PL=3 M=↑↓ A=GE N PL= A=GR PL=1 A=GR PL=2 A=AM B PL=1 A=1 PL 1=2 A=1 PL 1=3 A=2 PL 1=1 A=2 PL 1=2 PL 2=2 A=2 PL 1=3 PL 2=3 A=AM B PL=2 M=↑↓ 28

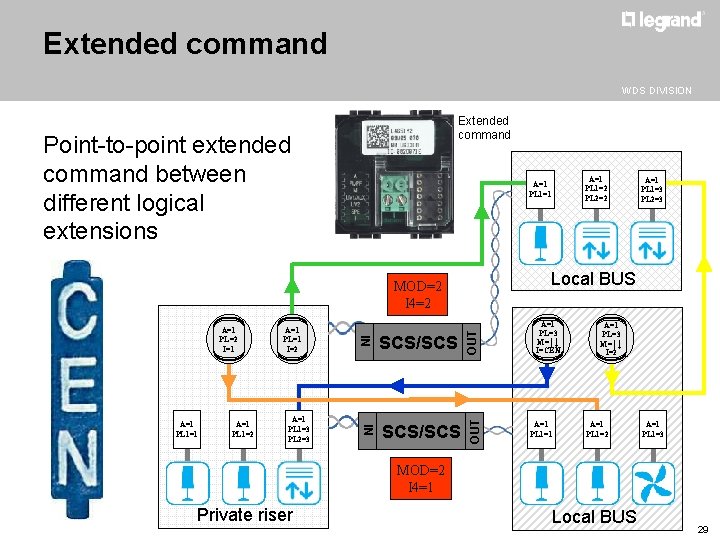

Extended command WDS DIVISION Extended command Point-to-point extended command between different logical extensions A=1 PL 1=1 OUT SCS/SCS OUT A=1 PL 1=3 PL 2=3 SCS/SCS IN A=1 PL 1=2 IN A=1 PL 1=1 A=1 PL=1 I=2 A=1 PL 1=3 PL 2=3 Local BUS MOD=2 I 4=2 A=1 PL=2 I=1 A=1 PL 1=2 PL 2=2 A=1 PL=3 M=↑↓ I=CEN A=1 PL 1=1 A=1 PL=3 M=↑↓ I=2 A=1 PL 1=3 MOD=2 I 4=1 Private riser Local BUS 29

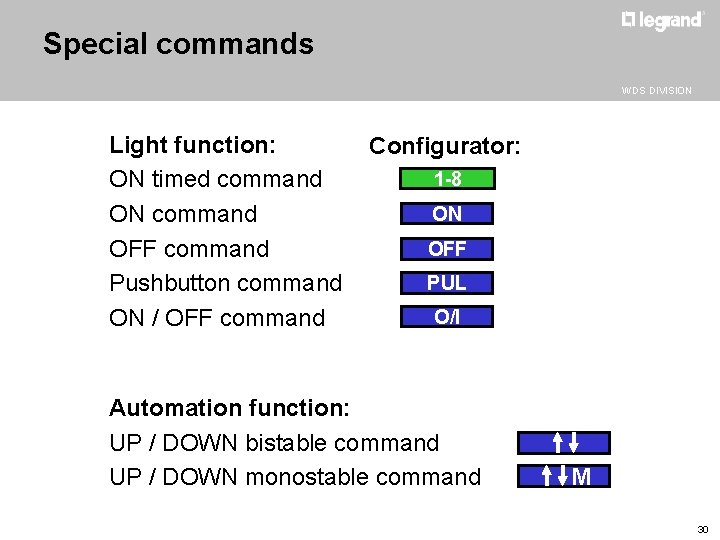

Special commands WDS DIVISION Light function: ON timed command ON command OFF command Pushbutton command ON / OFF command Configurator: 1 -8 ON OFF PUL O/I Automation function: UP / DOWN bistable command UP / DOWN monostable command M 30

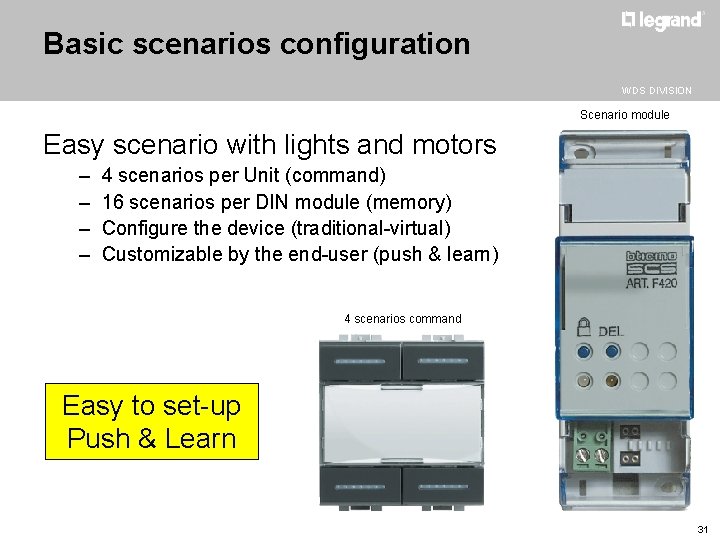

Basic scenarios configuration WDS DIVISION Scenario module Easy scenario with lights and motors – – 4 scenarios per Unit (command) 16 scenarios per DIN module (memory) Configure the device (traditional-virtual) Customizable by the end-user (push & learn) 4 scenarios command Easy to set-up Push & Learn 31

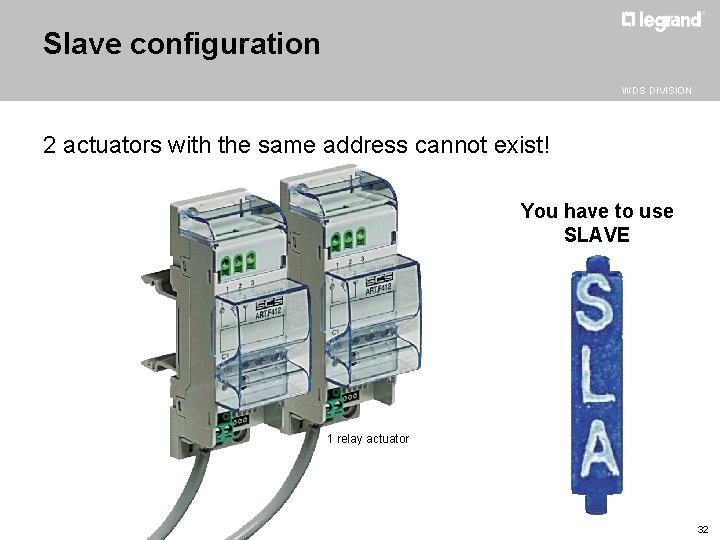

Slave configuration WDS DIVISION 2 actuators with the same address cannot exist! You have to use SLAVE 1 relay actuator 32

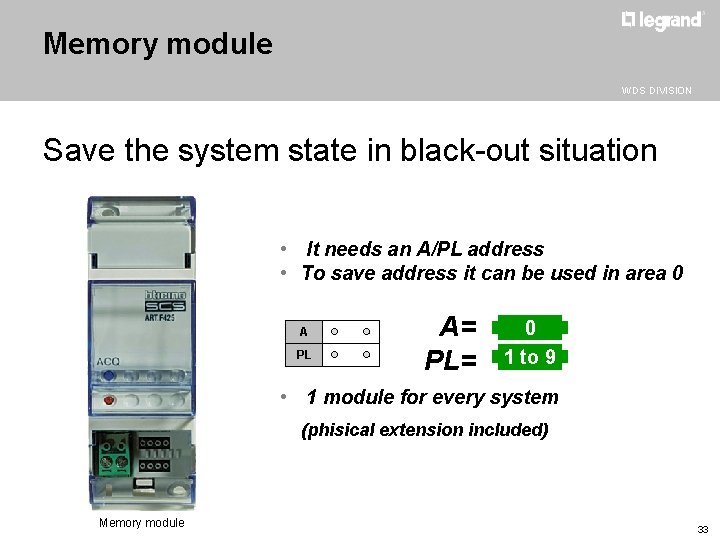

Memory module WDS DIVISION Save the system state in black-out situation • It needs an A/PL address • To save address it can be used in area 0 A PL A= PL= 0 1 to 9 • 1 module for every system (phisical extension included) Memory module 33

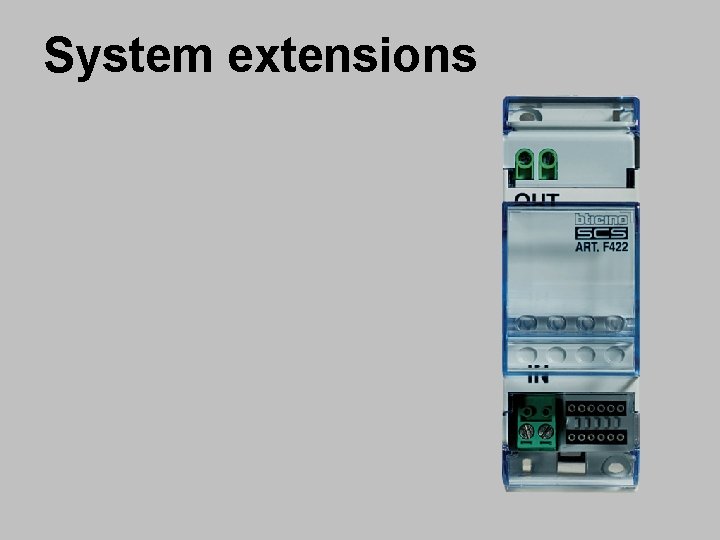

System extensions WDS DIVISION 34

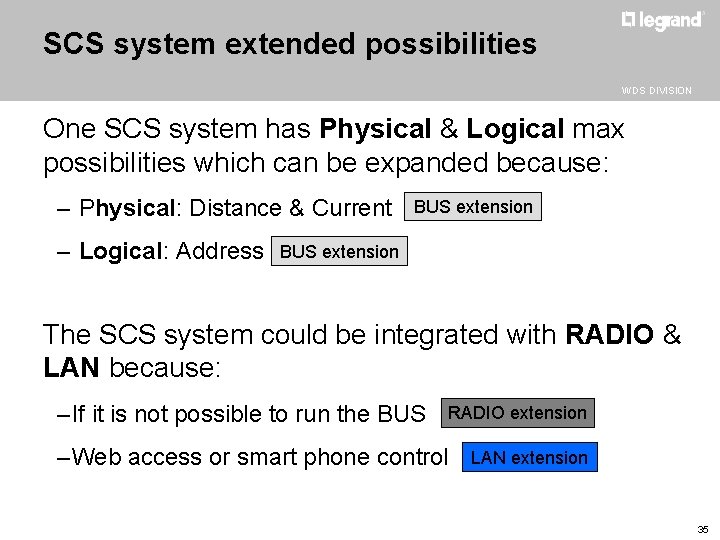

SCS system extended possibilities WDS DIVISION One SCS system has Physical & Logical max possibilities which can be expanded because: – Physical: Distance & Current – Logical: Address BUS extension The SCS system could be integrated with RADIO & LAN because: –If it is not possible to run the BUS RADIO extension –Web access or smart phone control LAN extension 35

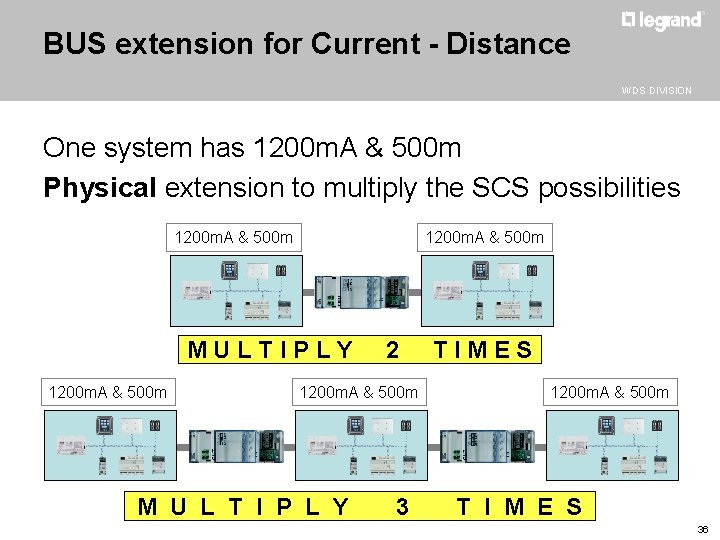

BUS extension for Current - Distance WDS DIVISION One system has 1200 m. A & 500 m Physical extension to multiply the SCS possibilities 1200 m. A & 500 m MULTIPLY 1200 m. A & 500 m 2 1200 m. A & 500 m M U L T I P L Y 3 TIMES 1200 m. A & 500 m T I M E S 36

Physical extensions rules: max 6 A & 2. 5 km (4 interfaces maximum: 5 buses) WDS DIVISION 331 IN IN Address 33 34 -54 SCS/SCS OUT 11 -32 551 56 -99 Address 55 Max 4 SCS interface: 5 times the max possibilities The SCS interface takes one available system address to separate 2 or more system sections COMMAND IN OUT IN Point to point PASS Area PASS Group PASS General PASS Auxiliary PASS Extended PASS Physical extension MOD=1 I 3 & I 4 are the link address All kind of command is interface transparent: see the table beside 37

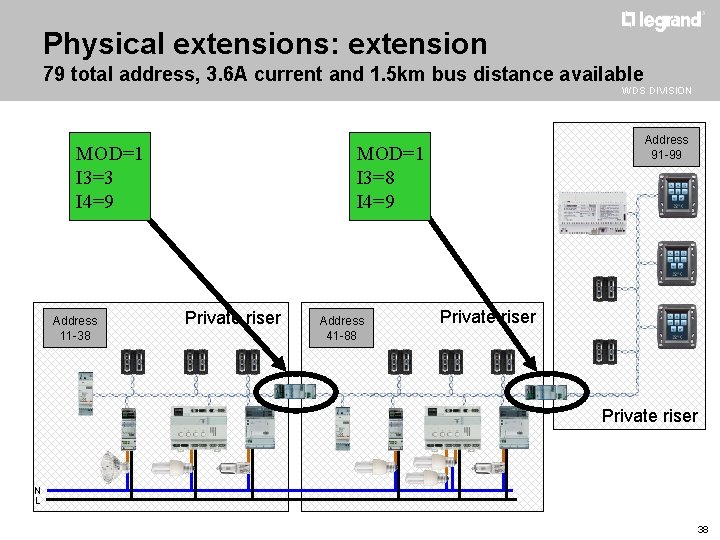

Physical extensions: extension 79 total address, 3. 6 A current and 1. 5 km bus distance available WDS DIVISION MOD=1 I 3=8 I 4=9 MOD=1 I 3=3 I 4=9 Address 11 -38 Address 91 -99 Private riser Address 41 -88 Private riser N L 38

BUS extension for Address WDS DIVISION Local BUSES One system has 81 address available Logical extension to multiply the SCS possibilities Private riser MULTIPLY 10 TIMES 810 address 39

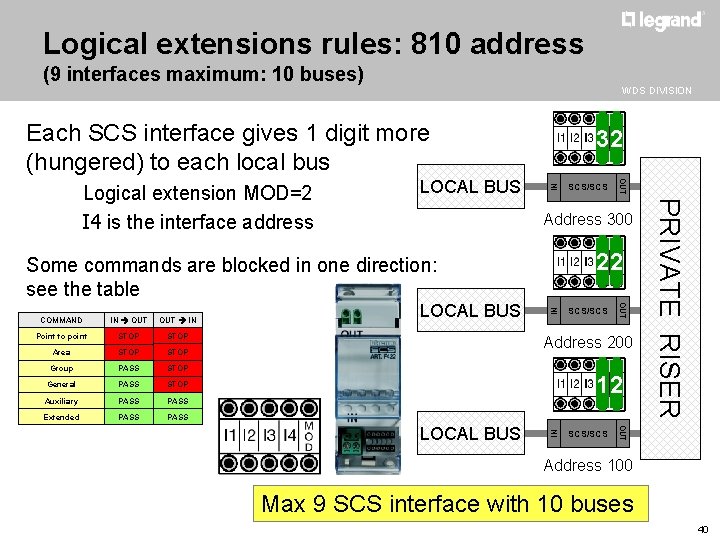

Logical extensions rules: 810 address (9 interfaces maximum: 10 buses) WDS DIVISION Each SCS interface gives 1 digit more (hungered) to each local bus IN LOCAL BUS 22 Point to point STOP Area STOP Group PASS STOP General PASS STOP Auxiliary PASS Extended PASS IN LOCAL BUS SCS/SCS Address 200 12 SCS/SCS OUT LOCAL BUS IN OUT IN OUT PRIVATE RISER Address 300 Some commands are blocked in one direction: see the table COMMAND SCS/SCS OUT Logical extension MOD=2 I 4 is the interface address 32 Address 100 Max 9 SCS interface with 10 buses 40

Logical extensions: example 243 total address, 3. 6 A current and 1, 5 km bus distance available WDS DIVISION Address 211 -299 Local BUS MOD=2 I 4=2 N L Address 111 -199 Local BUS MOD=2 I 4=1 Address 011 -099 N L Private riser 41

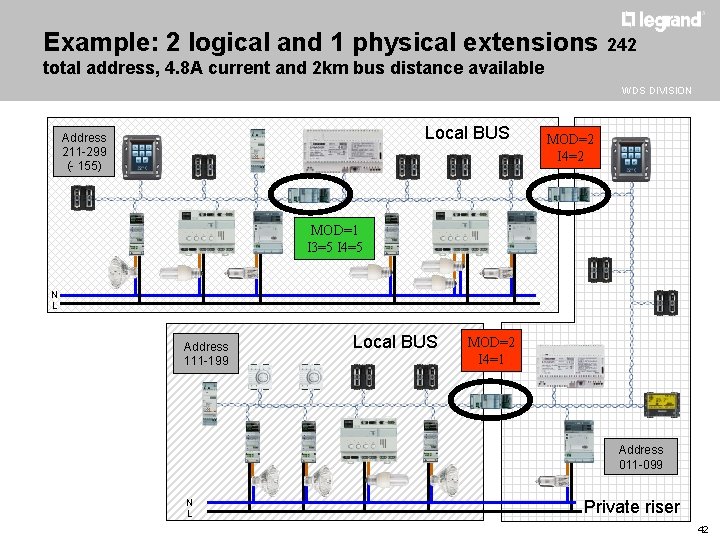

Example: 2 logical and 1 physical extensions 242 total address, 4. 8 A current and 2 km bus distance available WDS DIVISION Local BUS Address 211 -299 (- 155) MOD=2 I 4=2 MOD=1 I 3=5 I 4=5 N L Address 111 -199 Local BUS MOD=2 I 4=1 Address 011 -099 N L Private riser 42

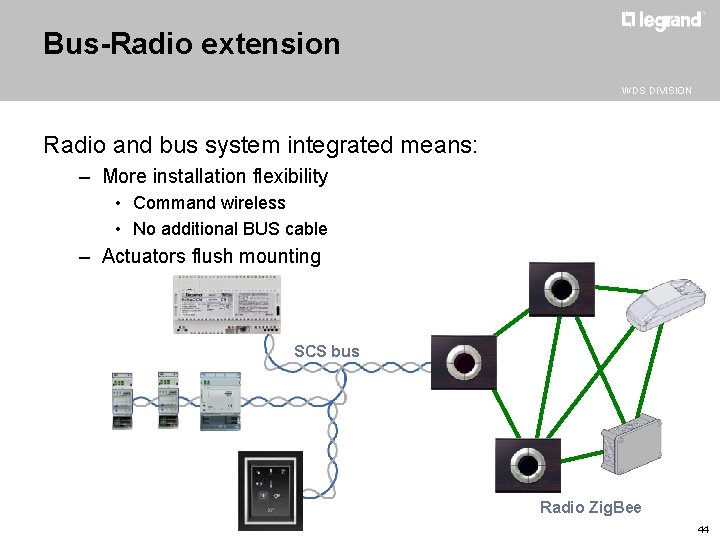

Bus-Radio extension WDS DIVISION Radio and bus system integrated means: – More installation flexibility • Command wireless • No additional BUS cable – Actuators flush mounting SCS bus Radio Zig. Bee 44

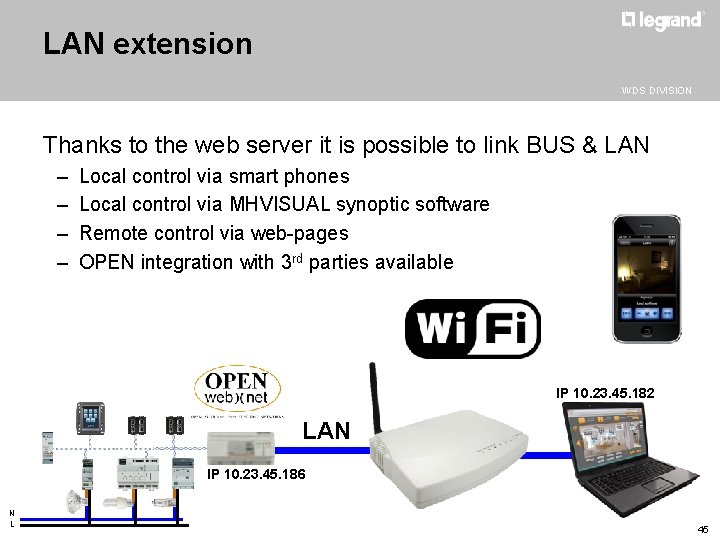

LAN extension WDS DIVISION Thanks to the web server it is possible to link BUS & LAN – – Local control via smart phones Local control via MHVISUAL synoptic software Remote control via web-pages OPEN integration with 3 rd parties available IP 10. 23. 45. 182 LAN IP 10. 23. 45. 186 N L 45

WDS DIVISION THE END 46
