MXMF MOISTURE ANALYZERS MX50 MF50 DESIGN FEATURES Super
- Slides: 26
MX/MF MOISTURE ANALYZERS

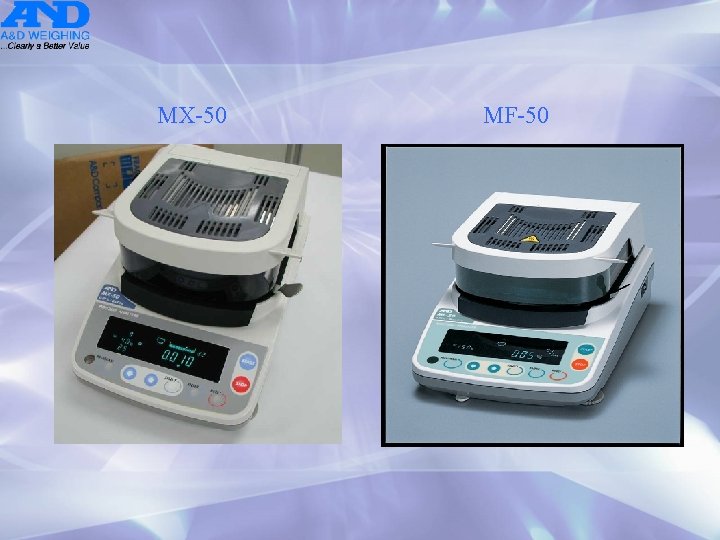

MX-50 MF-50
DESIGN FEATURES • Super Hybrid Sensor Technology • RS 232 Interface • Easy to Read VFD • Quick Reference Operation Guide • Automatic Self. Checking Function • Clearly Marked Operation Panel • Front Spirit Level • 400 W Halogen Lamp – Easy and low cost to replace – 5000 hrs. rating – Fast Heating 50 -200 C in < 2 minutes
SUPER HYBRID SENSOR (SHS) • MFR-High Resolution • Extremely Fast • Less sensitive to temperature than previous MFR cells • Small and compact • Less expensive to produce than older MFR • Durable
Easy Maintenance – Removable Heater Cover
Low Cost Replacement Lamp Halogen Lamp Unit 400 W 5000 Hours

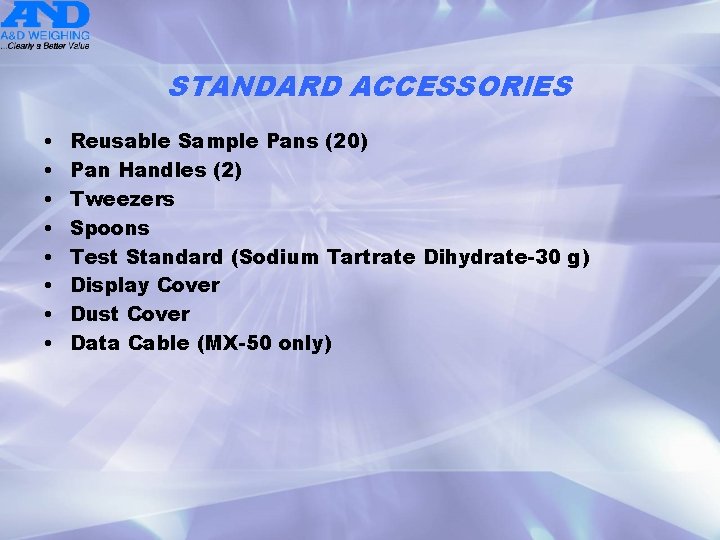

STANDARD ACCESSORIES • • Reusable Sample Pans (20) Pan Handles (2) Tweezers Spoons Test Standard (Sodium Tartrate Dihydrate-30 g) Display Cover Dust Cover Data Cable (MX-50 only)

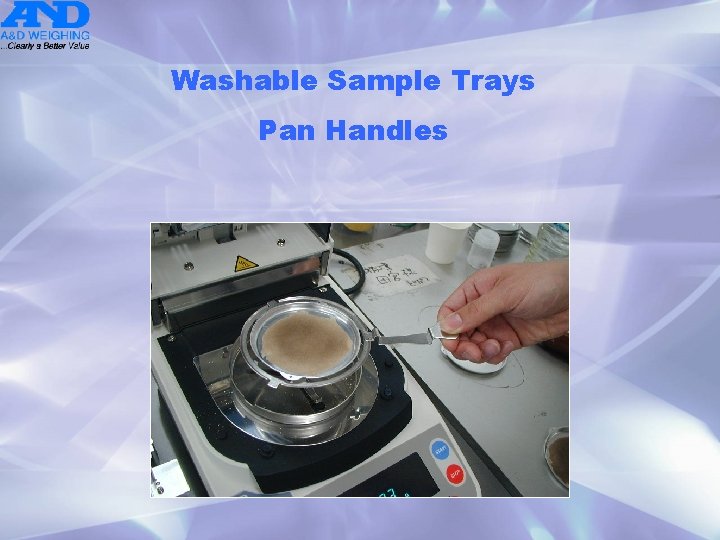

Washable Sample Trays Pan Handles
Easy to Use Operation Instruction Card
OPERATIONAL FEATURES • • • Four Measurement Programs – – Standard Automatic Timer Manual Program Memory – MX-50 20 sets – MF-50 10 sets Four Measurement Modes – – Wet Base Dry Base Solid content Ratio • Results Memory – MX-50 100 results – MF-50 50 results • GLP/GMP/ISO Conformity Software • Communication Software – Win-CT Moisture Standard with MX-50 – Win-CT Standard with MF-50 (Win-CT Moisture optional)
OPERATION STANDARD MODE • Operator sets accuracy, HI, MID, or LO, (see accuracy parameters on next slide. • Operator sets temperature, and moisture measurement unit. • Analyzer determines sample weight necessary based on accuracy required. • Auto stop at %/minute programmed.
STANDARD MODE ACCURACY SETTINGS
Auto Stop Mode • Operator Sets: – Temperature, – % of Change, – Moisture Type & – Weight Resolution. • Auto Stop Occurs at %/min. Setting.
Accuracy Settings for AUTO Mode • Setting 0. 005% / min. 0. 01% / min. 0. 02% / min. 0. 05% / min. 0. 1% / min. 0. 2% / min. 0. 5% / min. 1. 0% / min. 2. 0% / min. • MX-50 MF-50
TIMER Mode • Operator Sets: – – Temperature (between 50 C to 200 C), Timer (between 1 – 480 Minutes), Moisture Type & Weight Resolution. • Test Auto Completed when Timer Expires

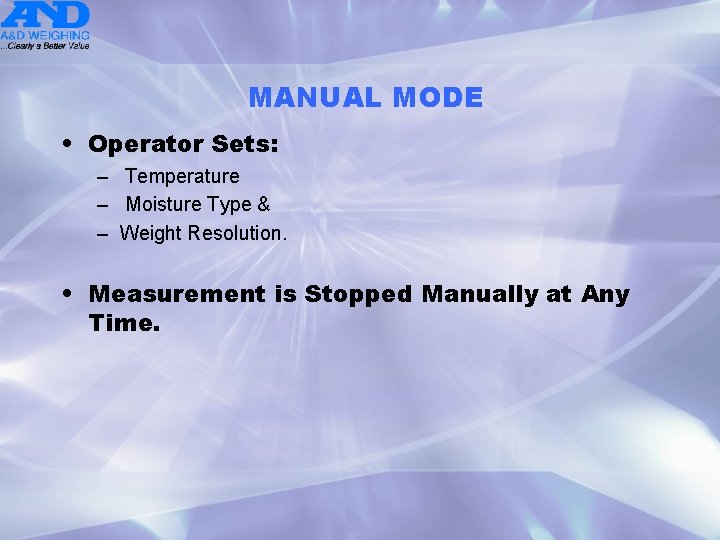

MANUAL MODE • Operator Sets: – Temperature – Moisture Type & – Weight Resolution. • Measurement is Stopped Manually at Any Time.
Win. CT-Moisture SOFTWARE • • Windows software for MX-50 Optional for MF-50 Shows Drying Curve on the Display Determines The Best Temperature for Moisture Measurement

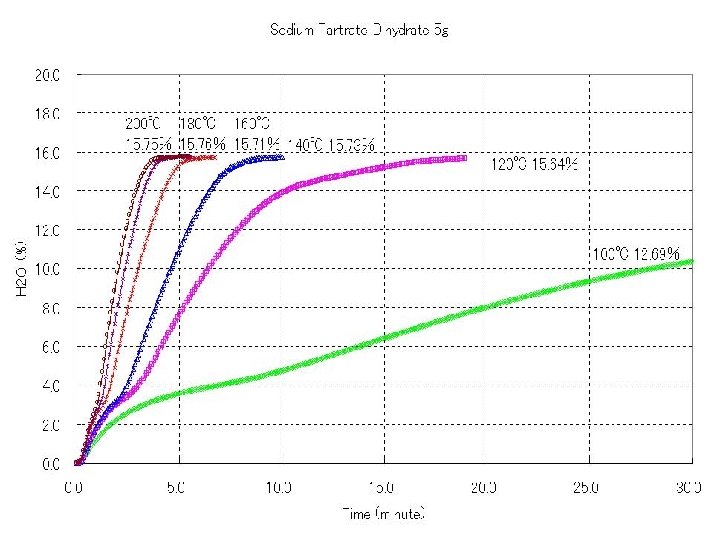

Green Light Blue Red purple yellow Blue 100 120 140 160 180 200 C C C

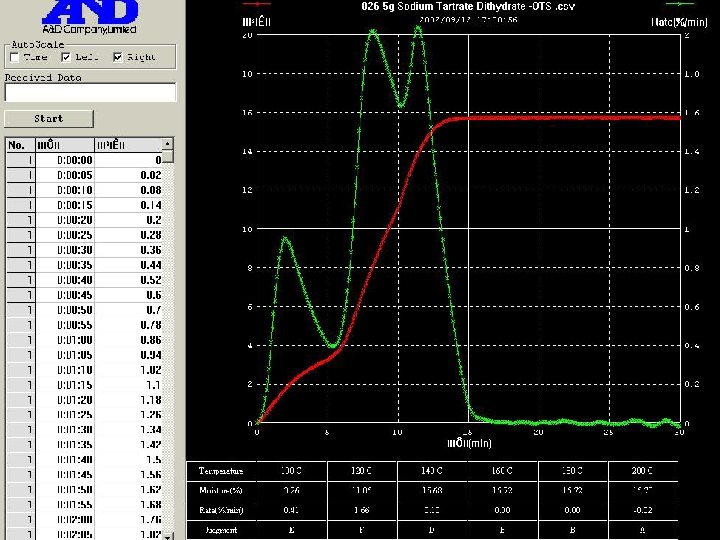

“OTS” Optimal Temperature Setting Allow the Moisture Analyzer to determine the best temperature and heating time.
PERFORMANCE vs. COMPETITION Feature A&D MF-50 MX-50 Ohaus MB-35 MB-45 Mettler HB 43 HB 53 Sartorius MA 50 MA 100 Sartorius MA 45 Denver IR 30 IR 200 Capacity/ Resolution 51 g x 2 mg 51 g x 1 mg 35 g x 5 mg 45 mg x 1 mg 41 g x 1 mg 50 g x 1 mg 100 g x. 1 mg 45 g x 1 mg 30 g x 1 mg 100 g x 1 mg Moisture Readability 0. 05% 0. 01% 0. 001% 0. 01% Repeatability >5 g +/-. 05% +/-. 02% +/-. 05% +/-. 03% +/-. 05% +/-. 02% +/-. 05% Method Memory 20 50 None 5 30 3 None 99 Sample Memory 50 100 None 1 1 None 250
PRICING vs. COMPETITION A&D Weighing Mettler Toledo Sartorius MX-50 $2995 MF-50 $2295 HR 73 $5525 MA 100 $6495 HG 53 $4450 MA 50 $4435 HB-43 $3460 MA 45 $3475 Ohaus MB 45 $3350 MB 35 $2750
Performance Comparison Testing Sodium Tartrate Dihydrate (5 g, 160 C) Average Std Dev CV Max-Min MX-50 15. 72 0. 015 0. 095 0. 04 HB 43 15. 79 0. 058 0. 367 0. 14 MA 30 15. 76 0. 053 0. 336 0. 13 Ideal Value = 15. 66%
Test Results…. . A&D Outperforms the Higher Priced Competition ! ! !
NEW A&D MX/MF MOISTURE ANALYSER - SUMMARY • • • Perform better than competitors Easier to use and set-up than competition Modern, updated design and styling Durable, reliable, and cost less to maintain Priced significantly lower than competition Which represents… …Clearly a Better Value
- Thats all thank you
