Mw 7 1 Canterbury New Zealand Earthquake Michael

Mw 7. 1 Canterbury, New Zealand Earthquake Michael Bunds Department of Earth Science Utah Valley University and Laura Benninger U. S. Bureau of Reclamation

Copyright 2010, Michael P. Bunds, all rights reserved This material may be used for educational purposes only. Users agree to acknowledge the original author and the Department of Earth Science, Utah Valley University when using any original portion of this material.

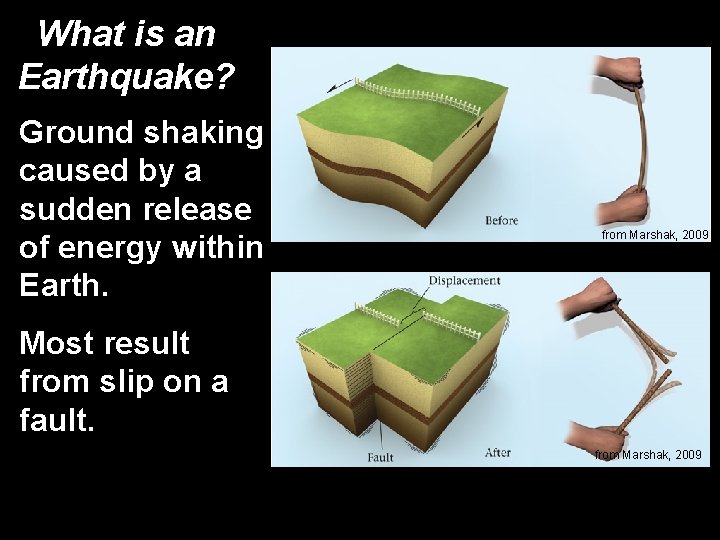

What is an Earthquake? Ground shaking caused by a sudden release of energy within Earth. from Marshak, 2009 Most result from slip on a fault. from Marshak, 2009

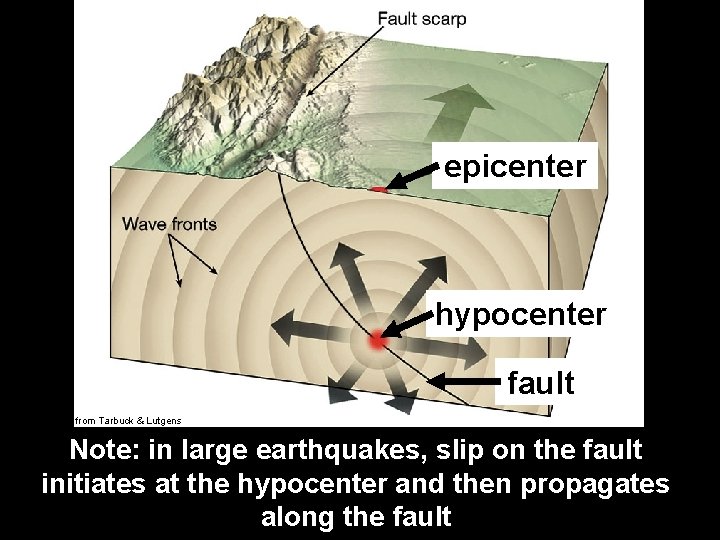

epicenter hypocenter fault from Tarbuck & Lutgens Note: in large earthquakes, slip on the fault initiates at the hypocenter and then propagates along the fault

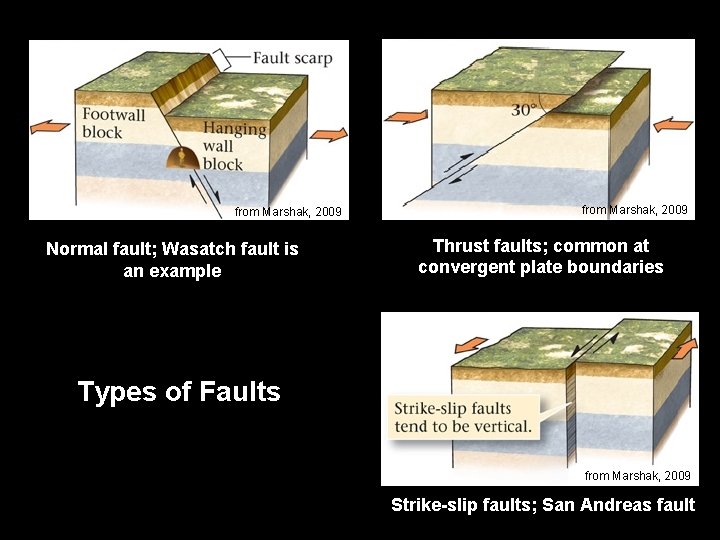

from Marshak, 2009 Normal fault; Wasatch fault is an example from Marshak, 2009 Thrust faults; common at convergent plate boundaries Types of Faults from Marshak, 2009 Strike-slip faults; San Andreas fault

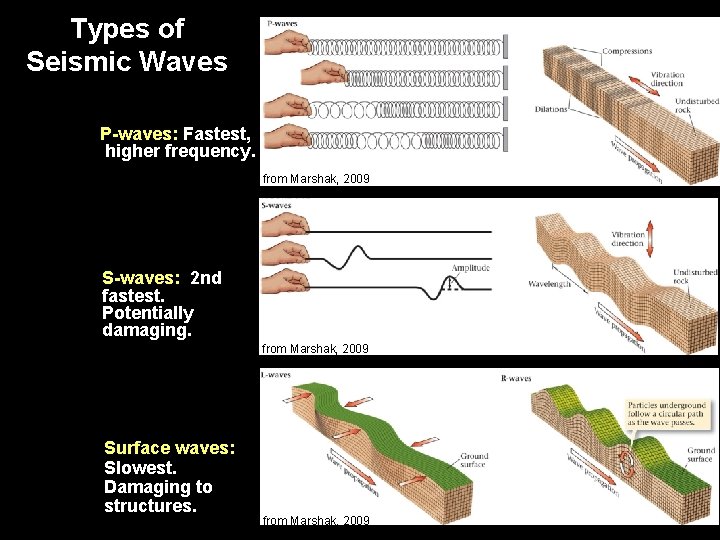

Types of Seismic Waves P-waves: Fastest, higher frequency. from Marshak, 2009 S-waves: 2 nd fastest. Potentially damaging. from Marshak, 2009 Surface waves: Slowest. Damaging to structures. from Marshak, 2009

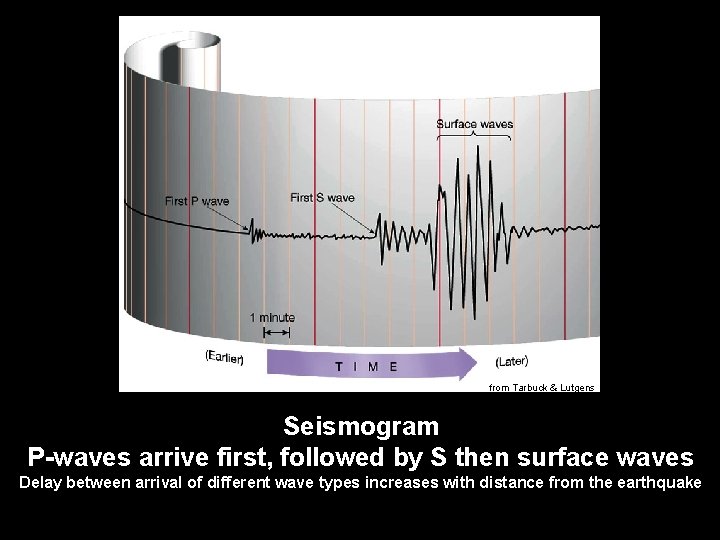

from Tarbuck & Lutgens Seismogram P-waves arrive first, followed by S then surface waves Delay between arrival of different wave types increases with distance from the earthquake

New Zealand

For those of you accustomed to looking at the Earth upside-down New Zealand

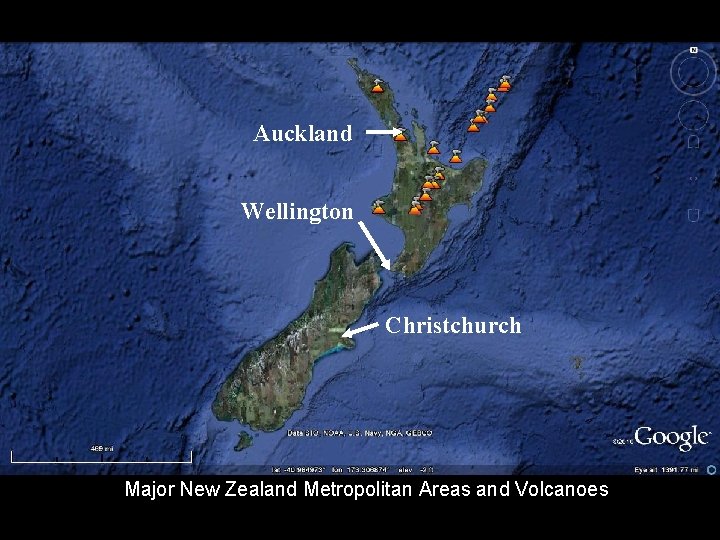

Auckland Wellington Christchurch Major New Zealand Metropolitan Areas and Volcanoes

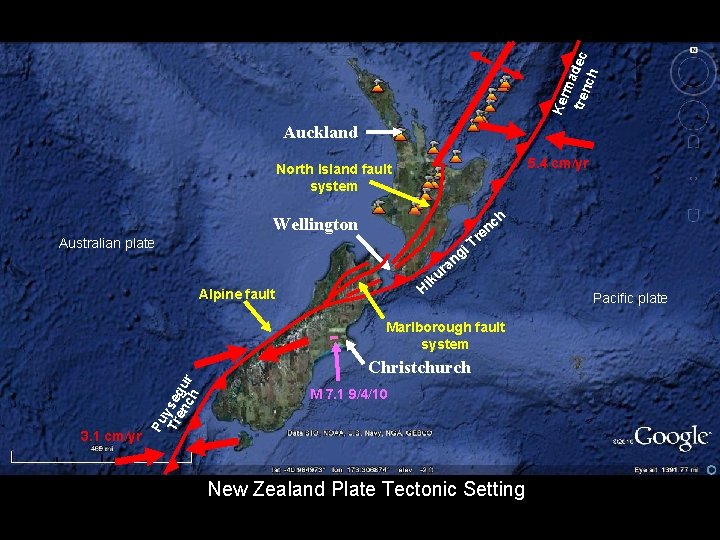

KKeerr m Ttr emaaddee nc cc h Auckland 5. 4 cm/yr North Island fault system h Wellington Australian plate gi n a nc e Tr r u ik H Alpine fault Marlborough fault system 3. 1 cm/yr Pu Tr yseg en u ch r Christchurch M 7. 1 9/4/10 New Zealand Plate Tectonic Setting Pacific plate

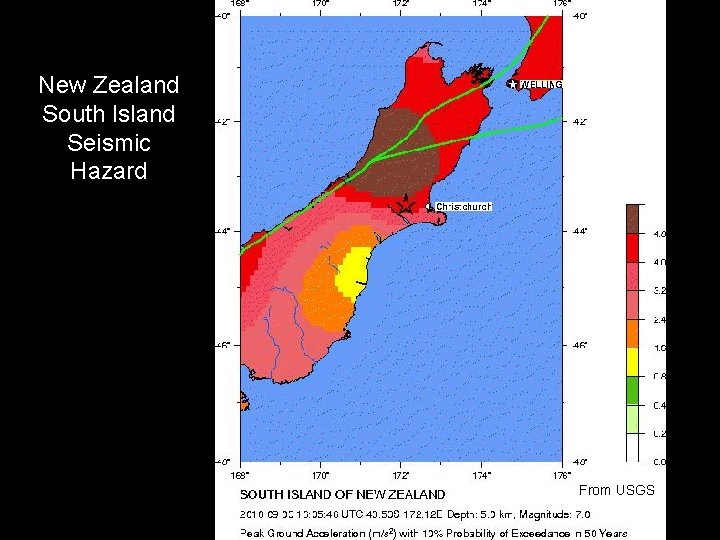

New Zealand South Island Seismic Hazard From USGS

The Earthquake

Our room © Michael Bunds

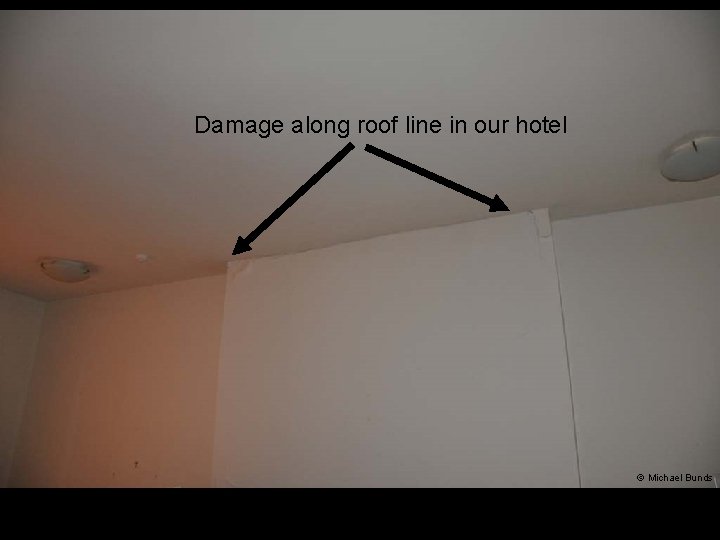

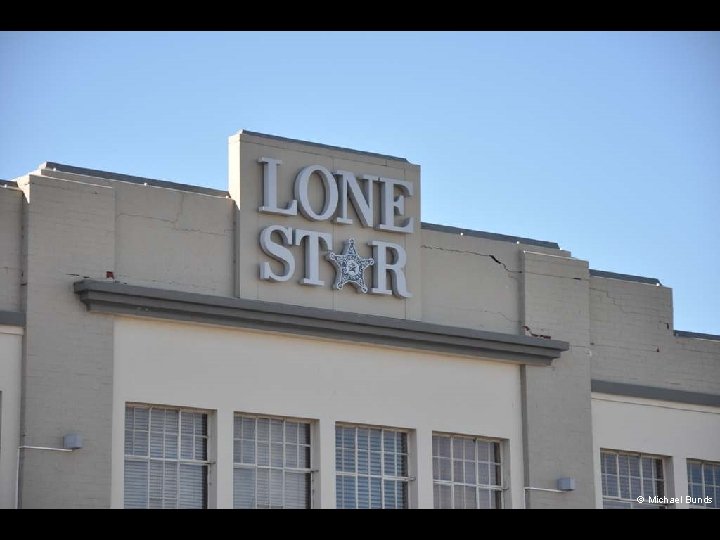

Damage along roof line in our hotel © Michael Bunds

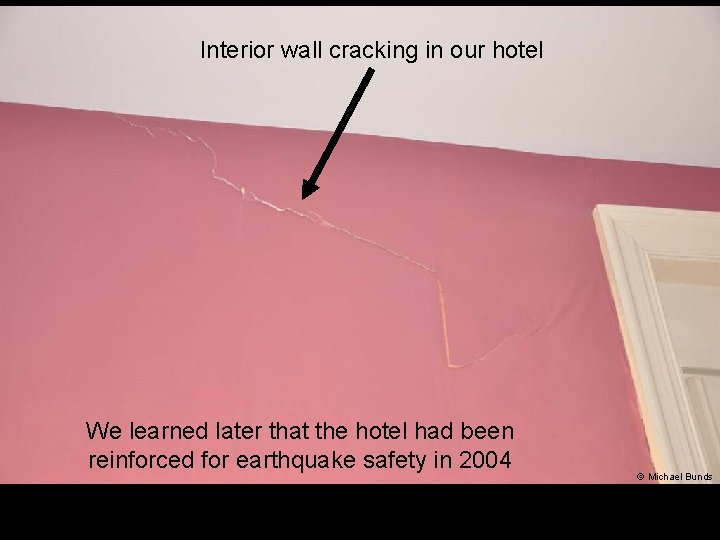

Interior wall cracking in our hotel We learned later that the hotel had been reinforced for earthquake safety in 2004 © Michael Bunds

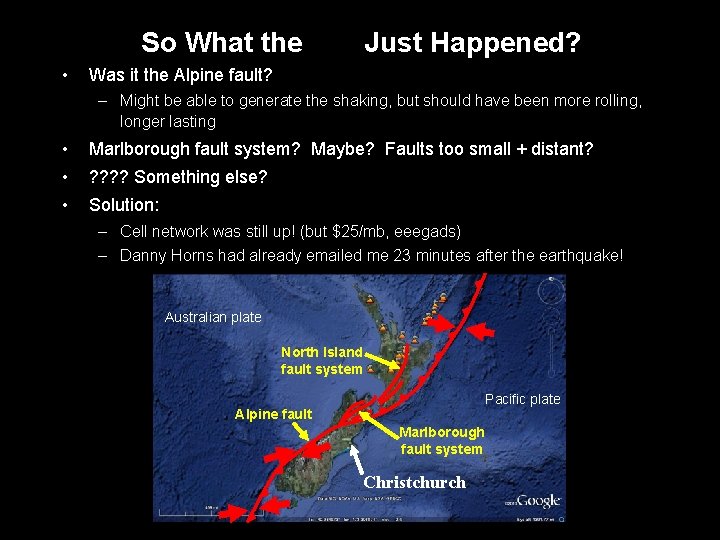

So What the • Just Happened? Was it the Alpine fault? – Might be able to generate the shaking, but should have been more rolling, longer lasting • Marlborough fault system? Maybe? Faults too small + distant? • ? ? Something else? • Solution: – Cell network was still up! (but $25/mb, eeegads) – Danny Horns had already emailed me 23 minutes after the earthquake! Australian plate North Island fault system Pacific plate Alpine fault Marlborough fault system Christchurch

So I called Danny, and he had answers! (more on what the answers were later)

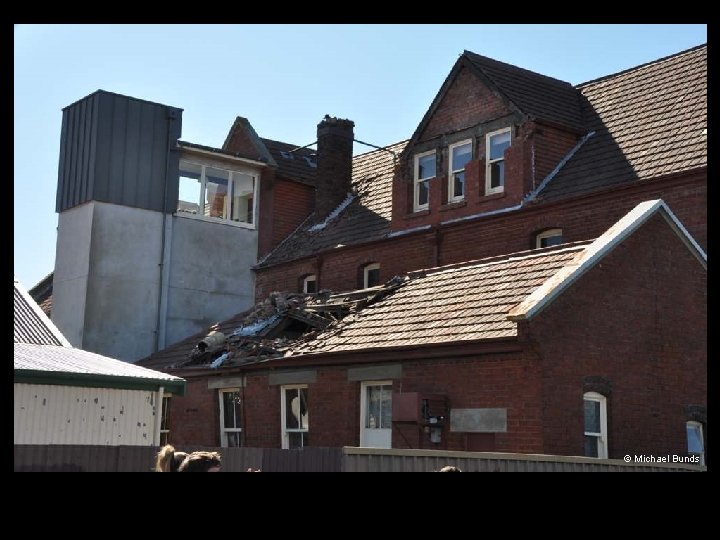

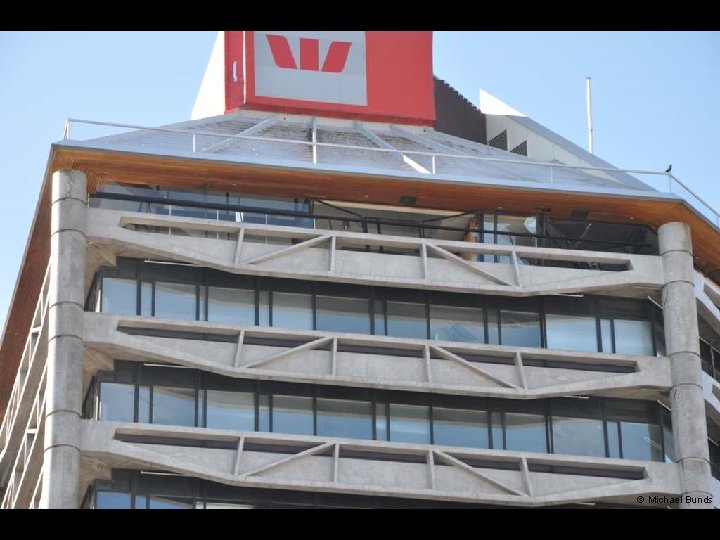

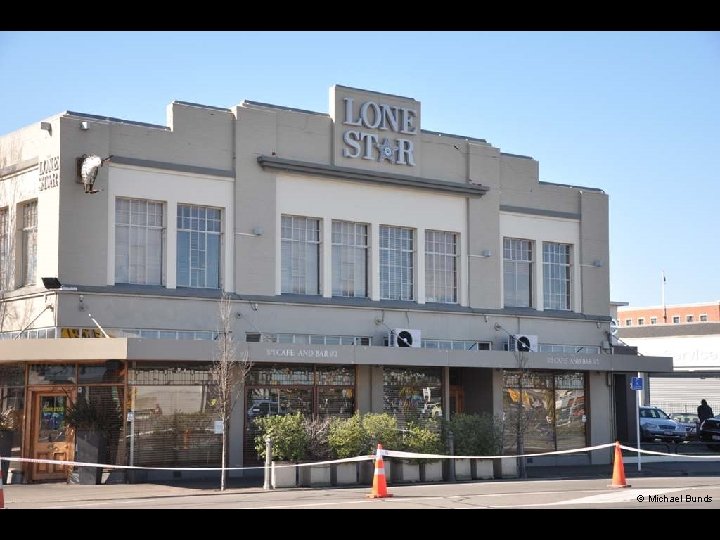

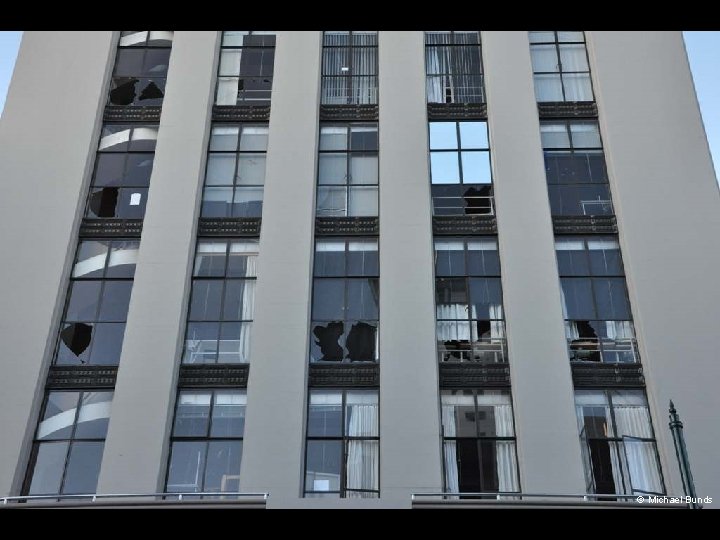

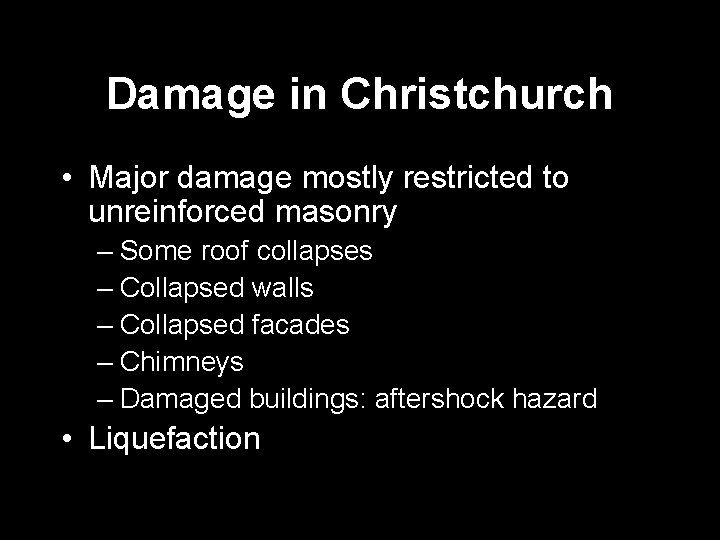

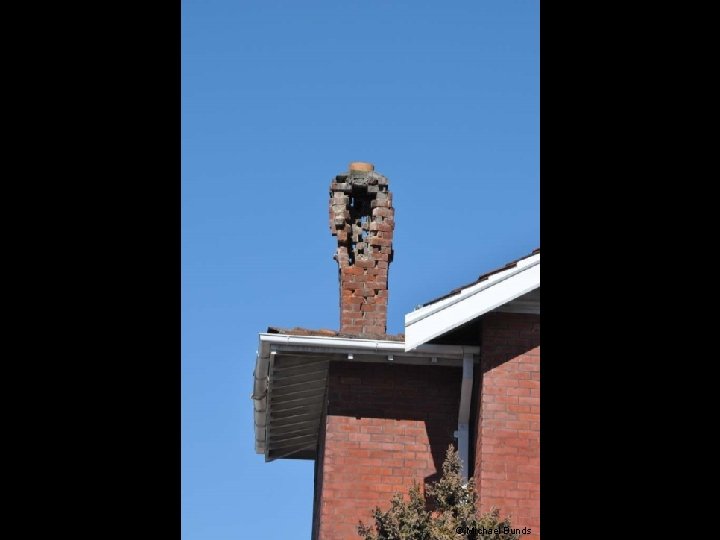

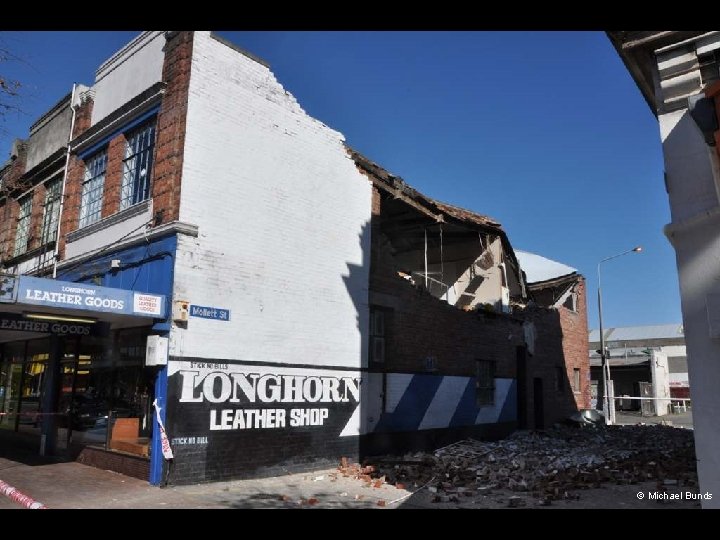

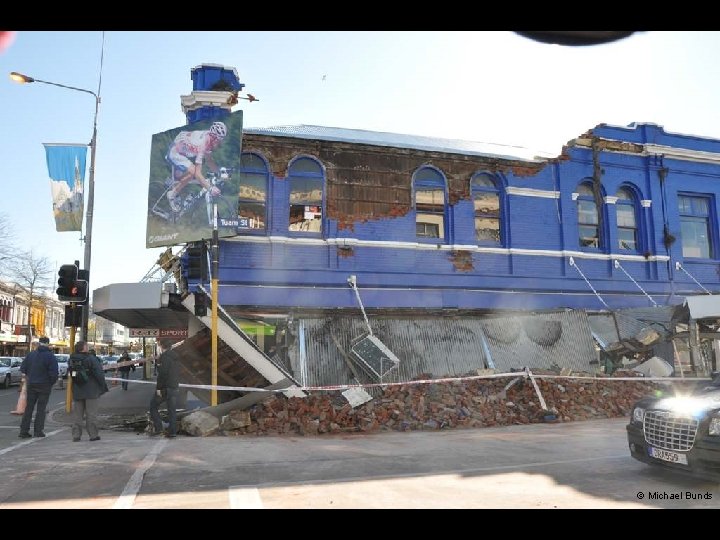

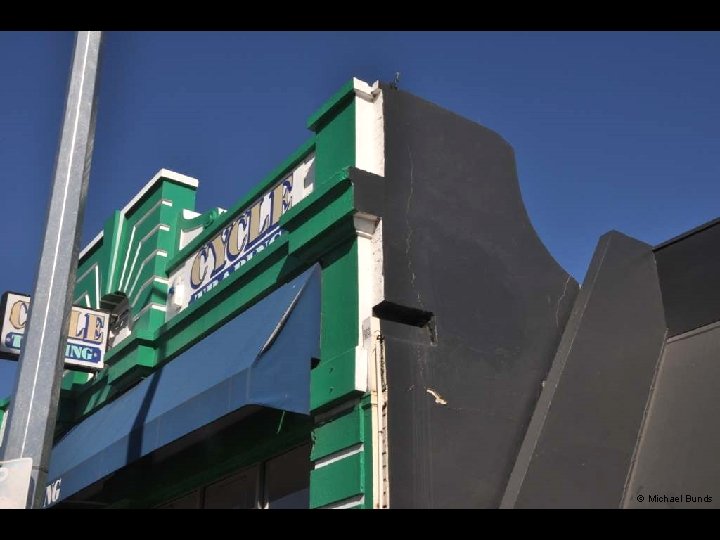

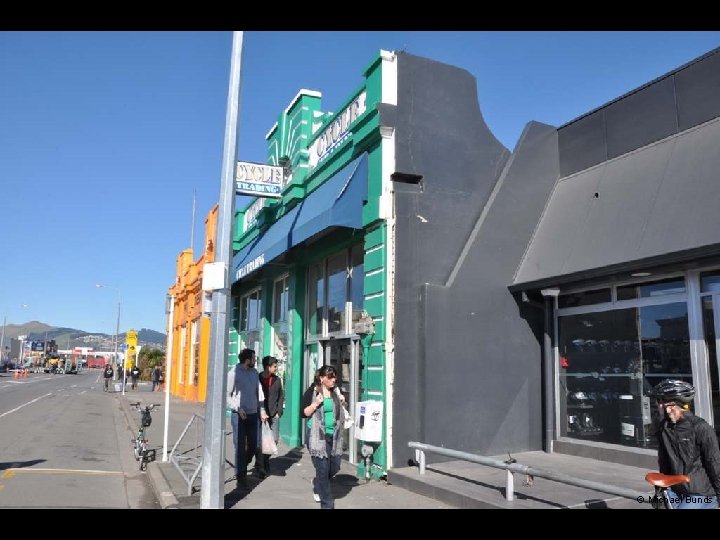

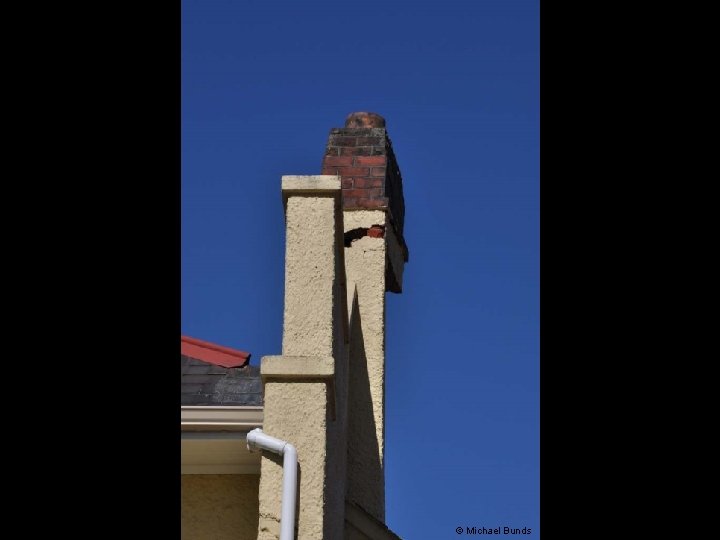

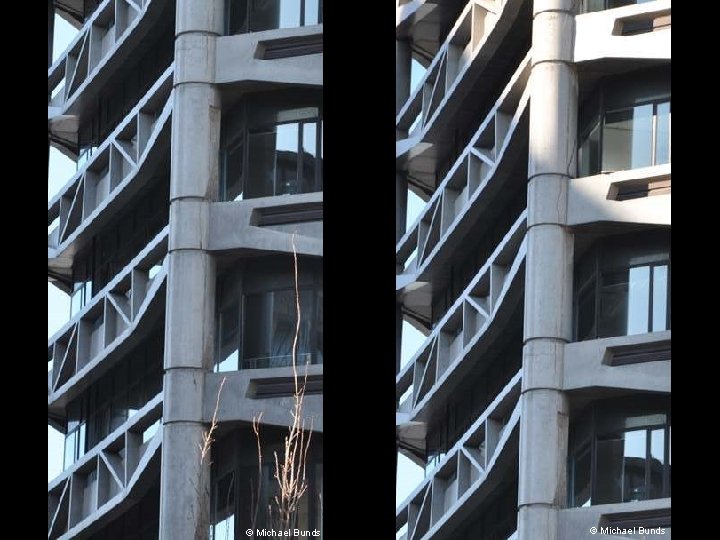

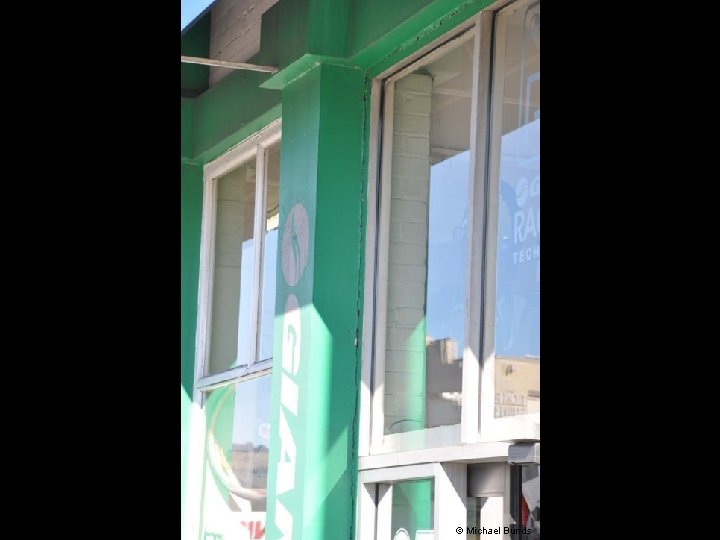

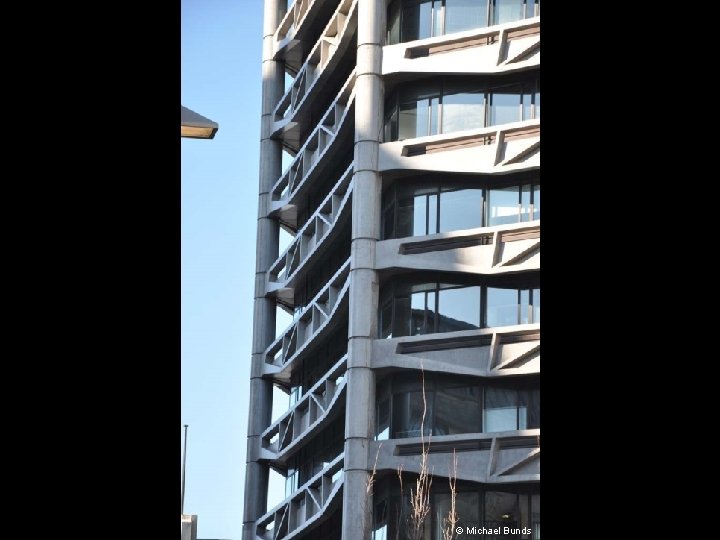

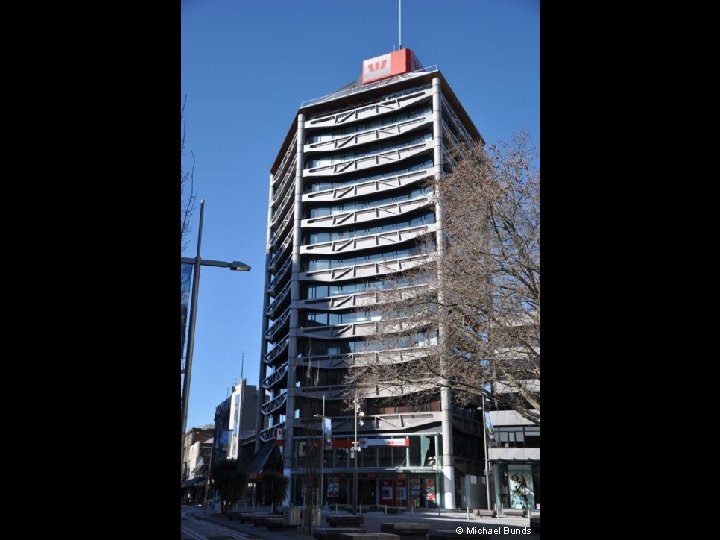

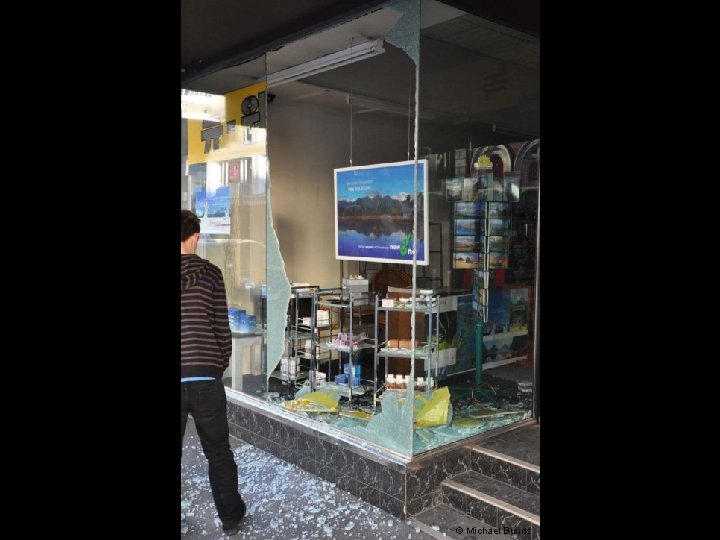

Damage in Christchurch • Major damage mostly restricted to unreinforced masonry – Some roof collapses – Collapsed walls – Collapsed facades – Chimneys – Damaged buildings: aftershock hazard • Liquefaction

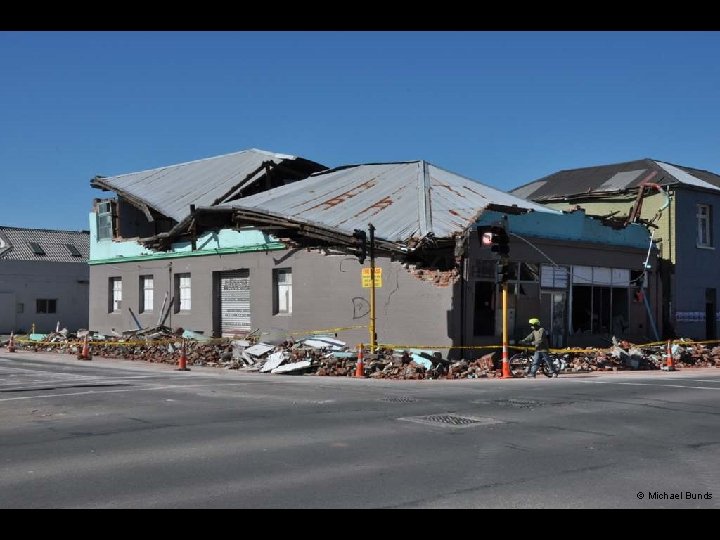

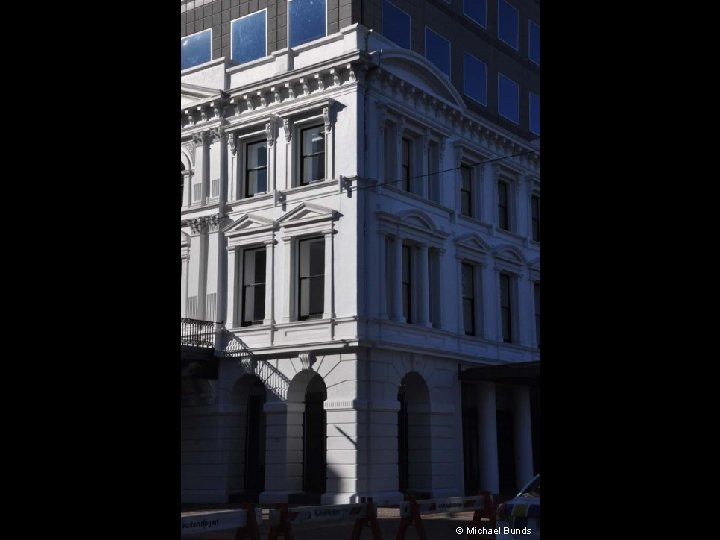

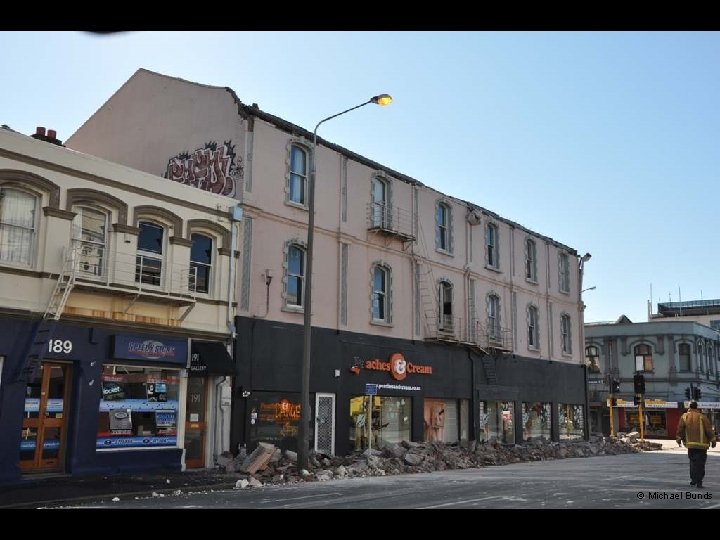

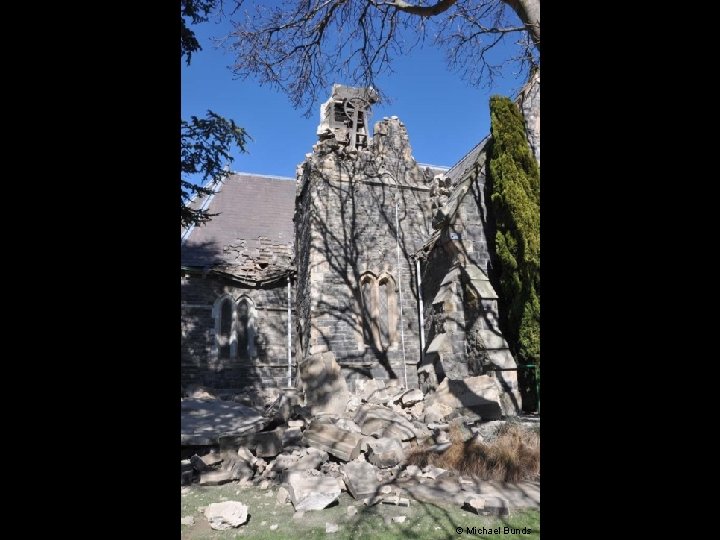

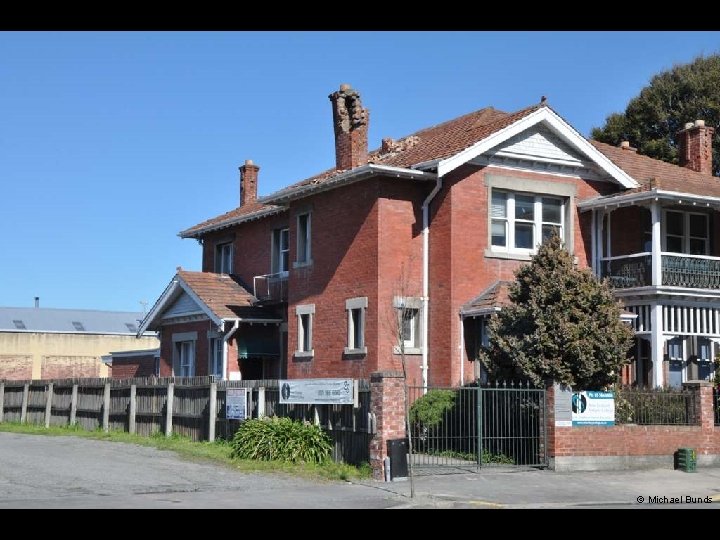

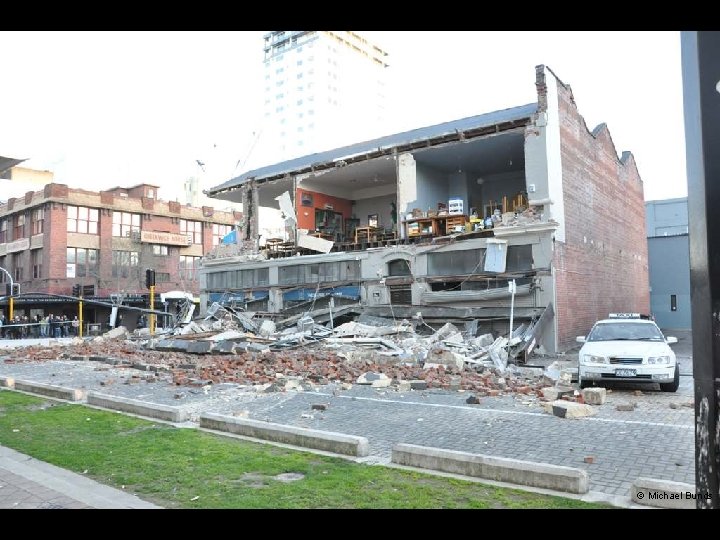

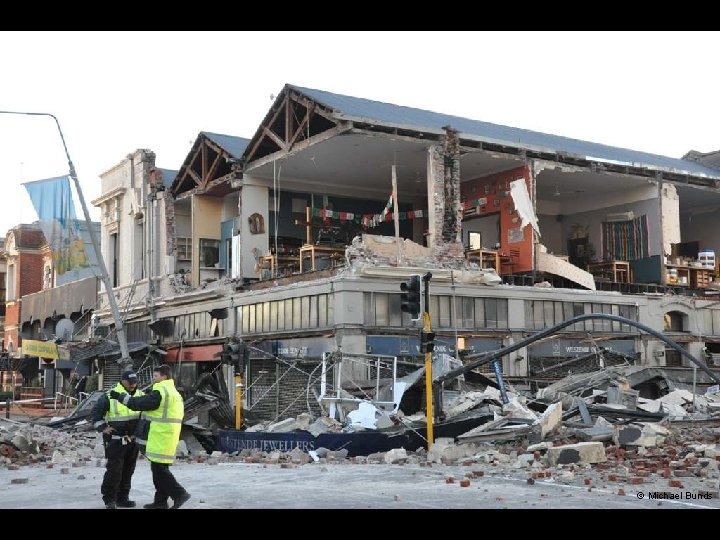

Extensively Damaged Buildings

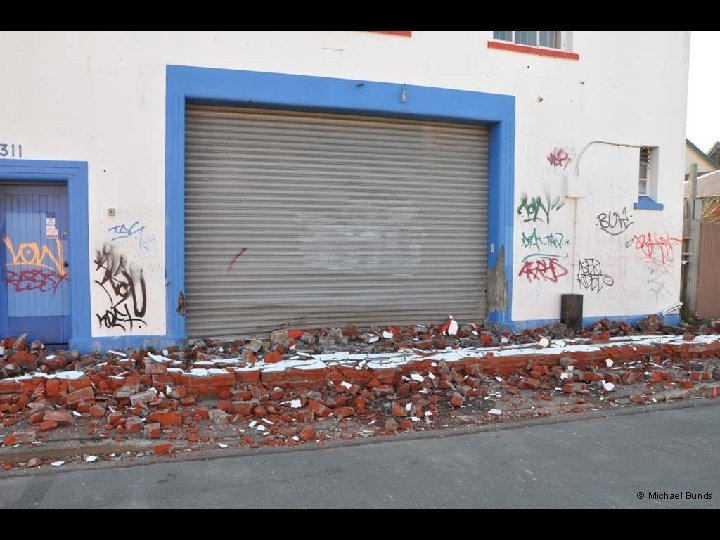

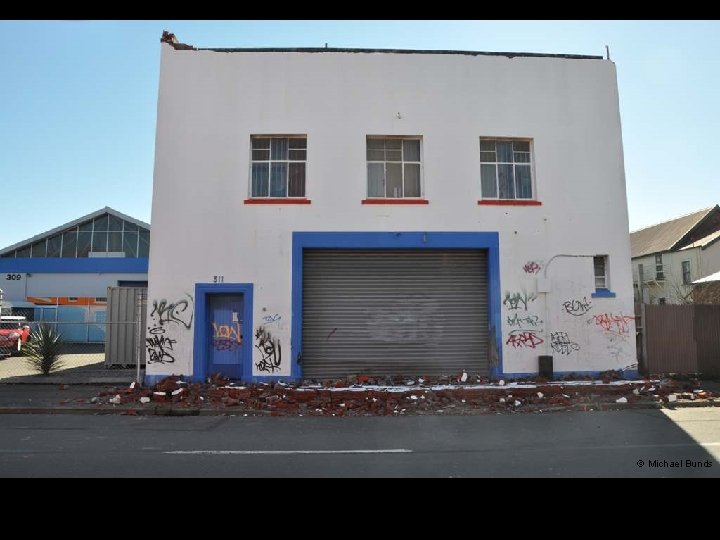

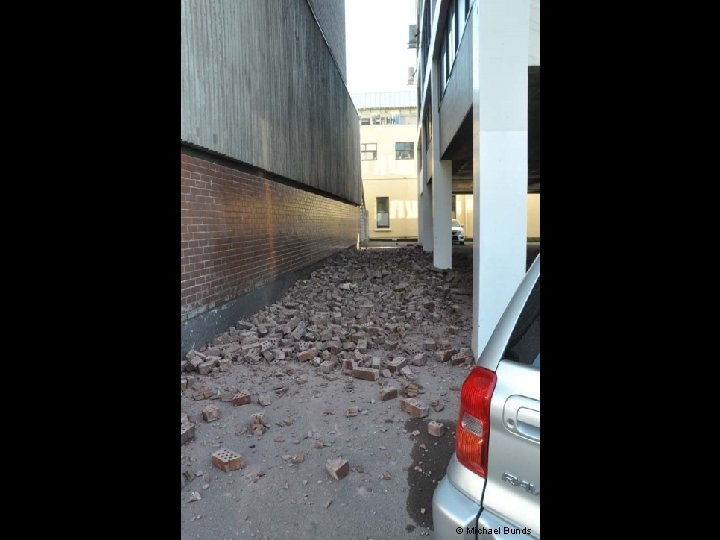

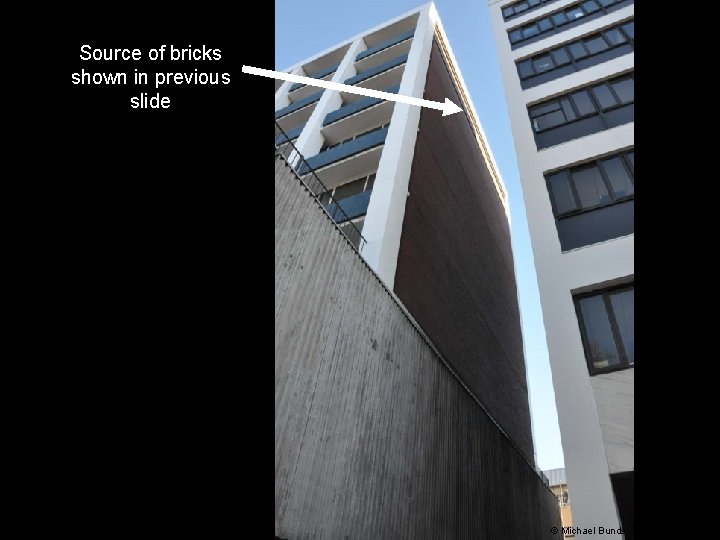

Source of bricks shown in previous slide © Michael Bunds

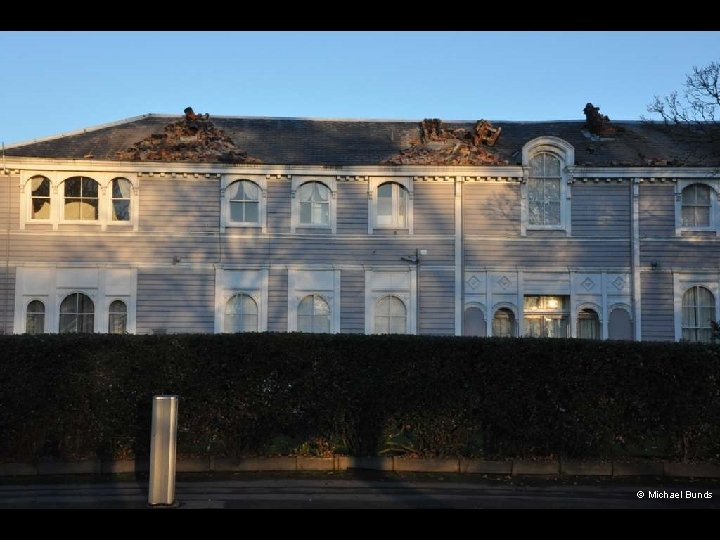

Damaged Buildings at Risk from Aftershocks

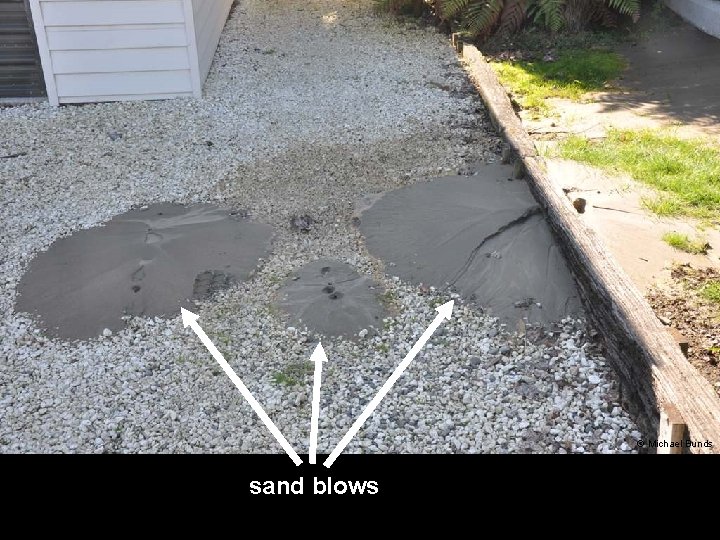

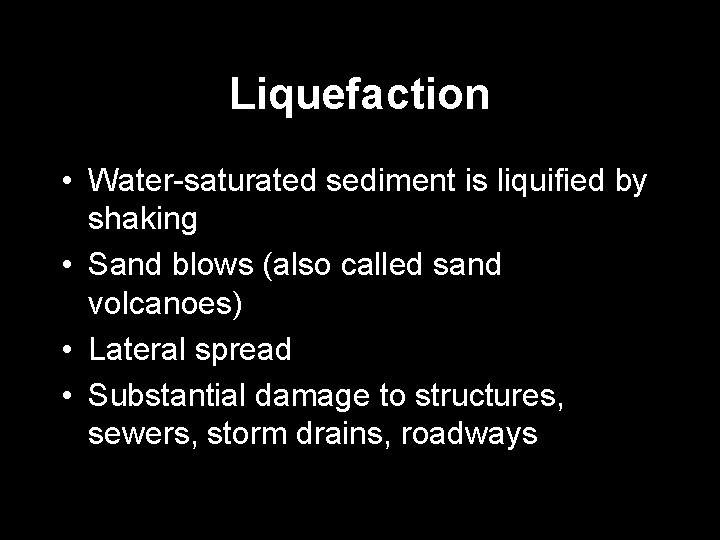

Liquefaction • Water-saturated sediment is liquified by shaking • Sand blows (also called sand volcanoes) • Lateral spread • Substantial damage to structures, sewers, storm drains, roadways

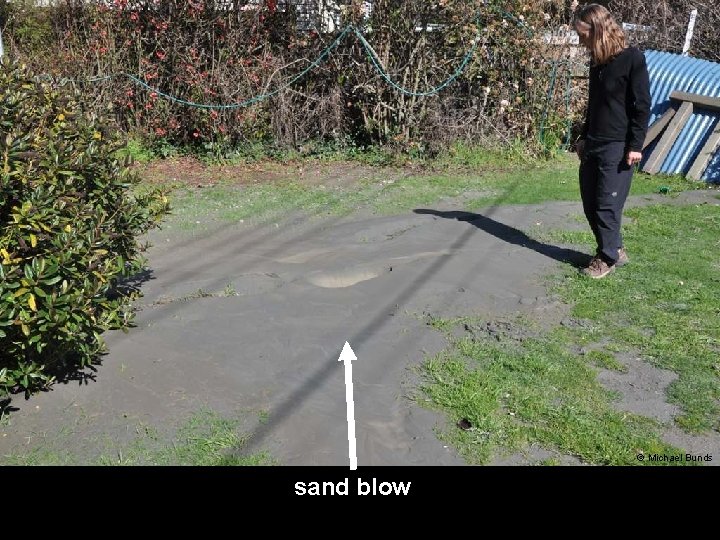

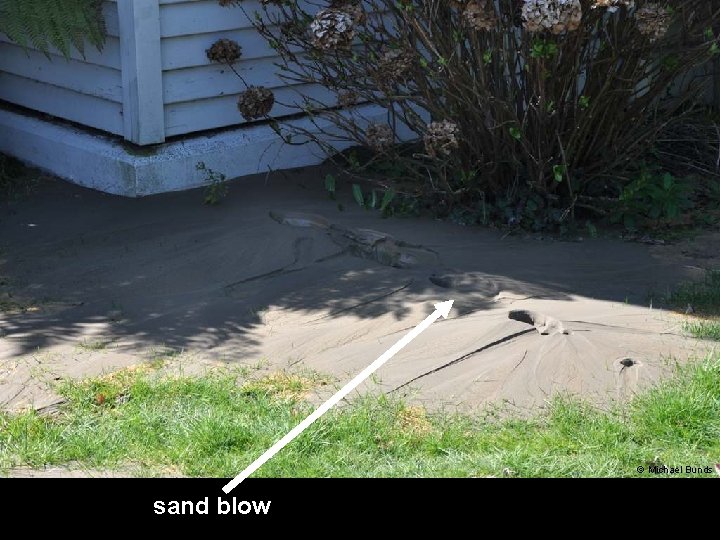

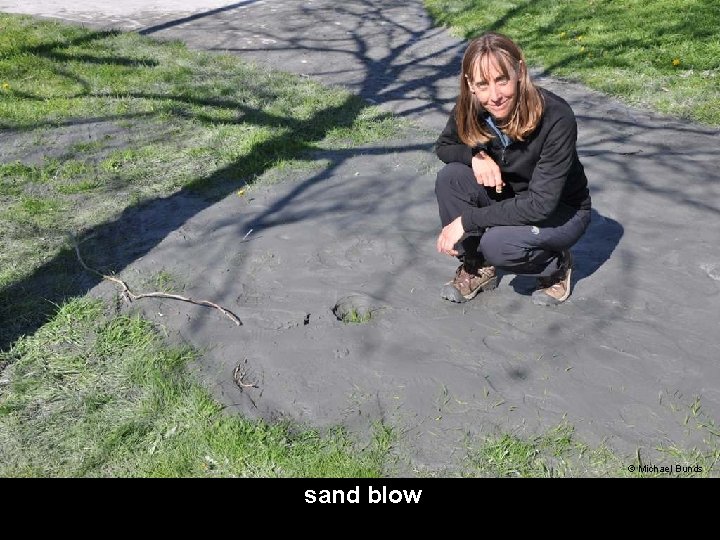

sand blow © Michael Bunds

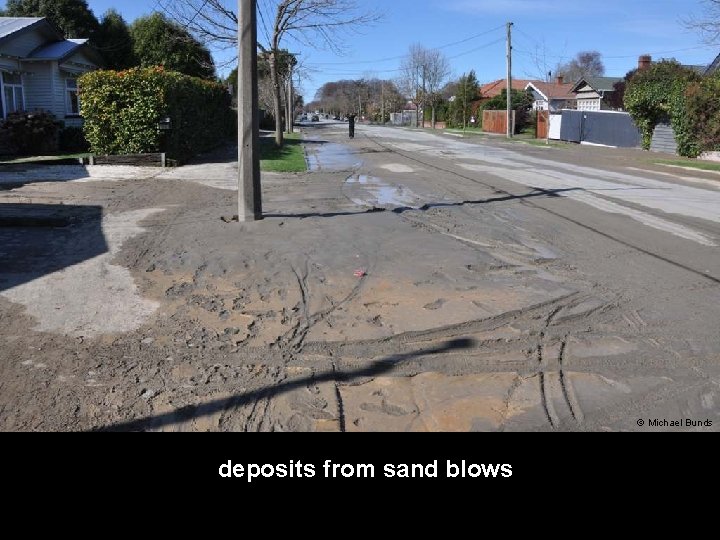

© Michael Bunds deposits from sand blows

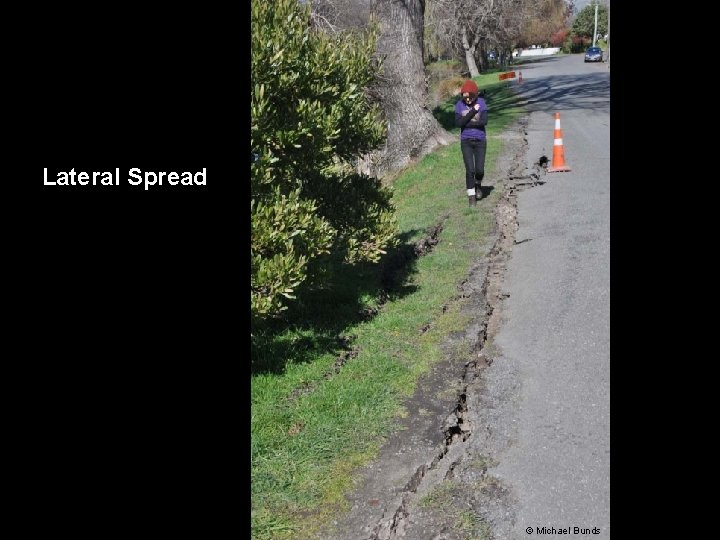

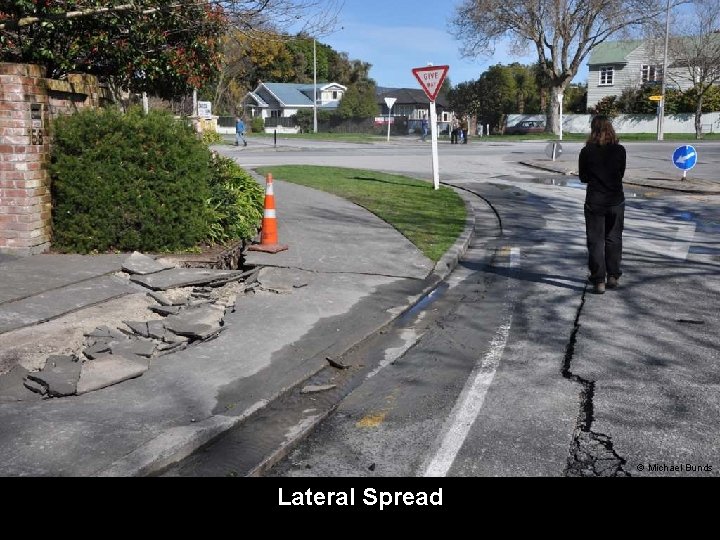

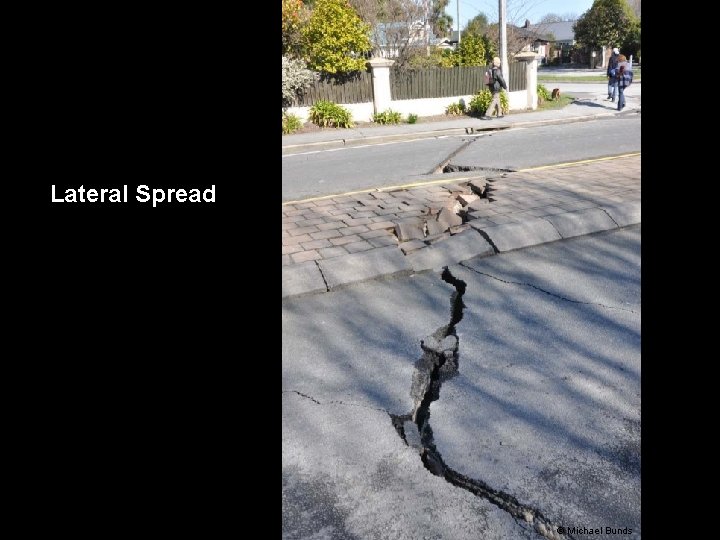

Lateral Spread © Michael Bunds

Lateral Spread © Michael Bunds

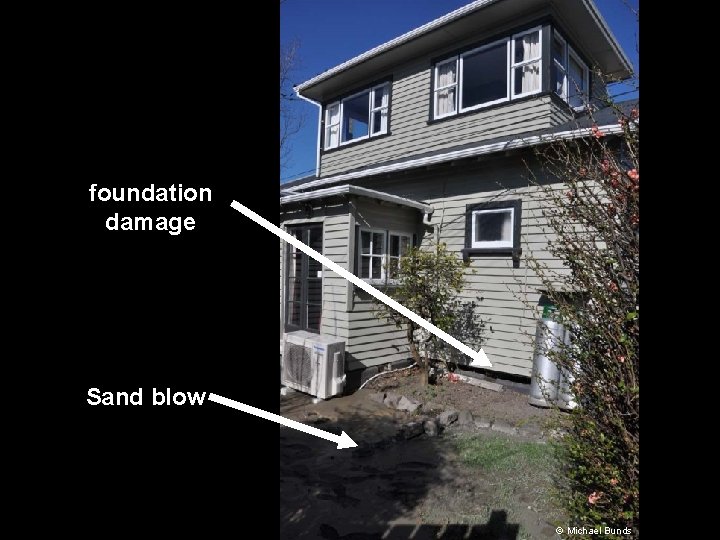

foundation damage Sand blow © Michael Bunds

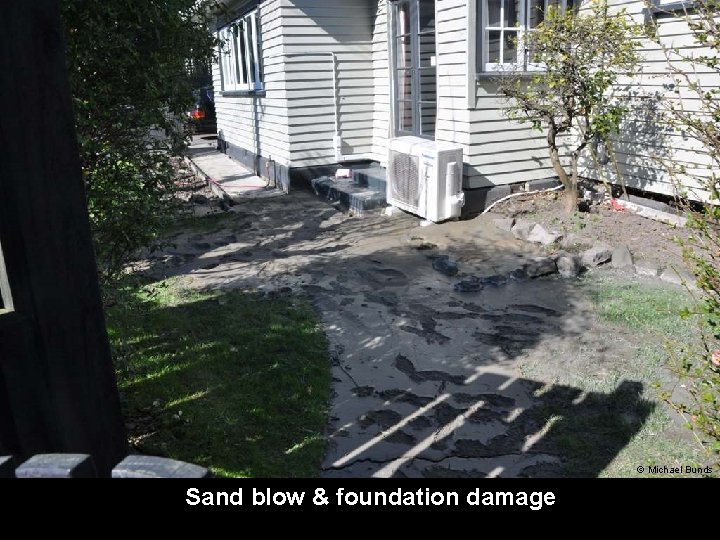

© Michael Bunds Sand blow & foundation damage

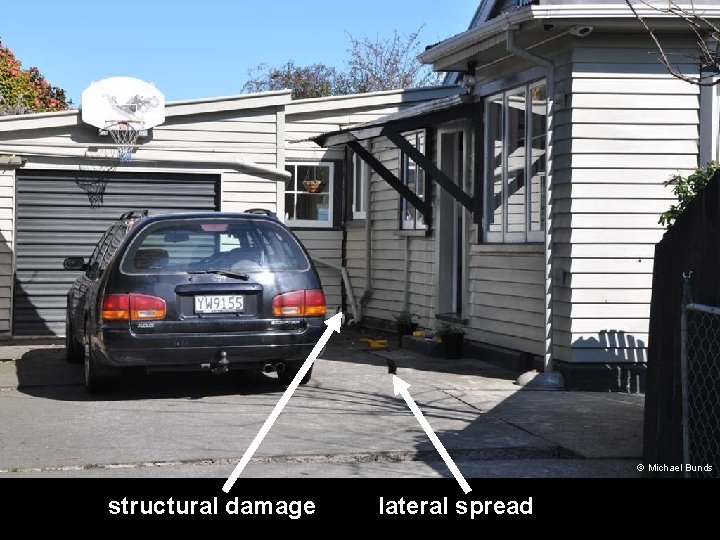

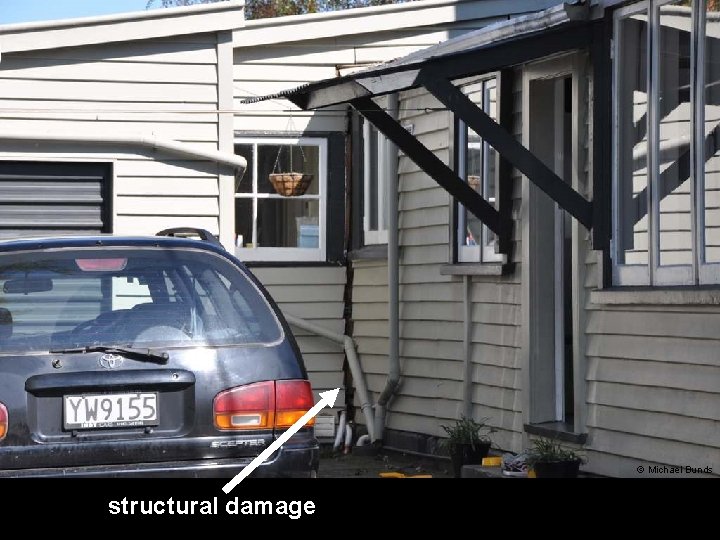

© Michael Bunds structural damage lateral spread

Geology & Geophysics of the Earthquake • • • Seismicity Surface rupture Aftershocks Shaking intensities Comparison to other earthquakes

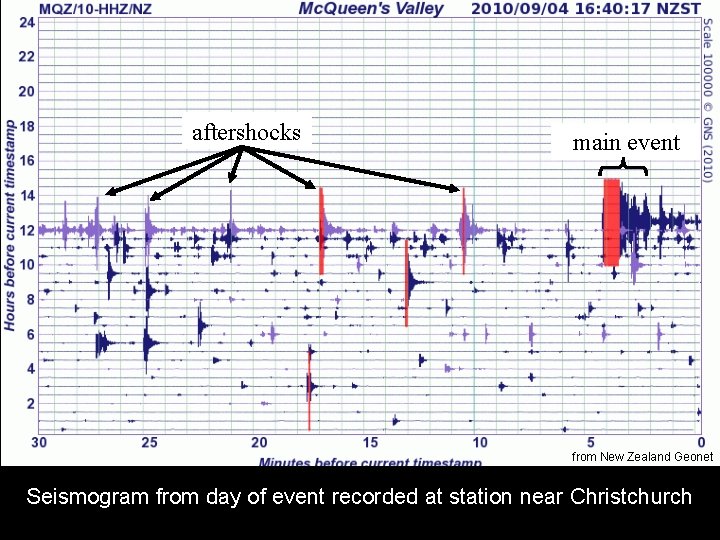

aftershocks main event from New Zealand Geonet Seismogram from day of event recorded at station near Christchurch

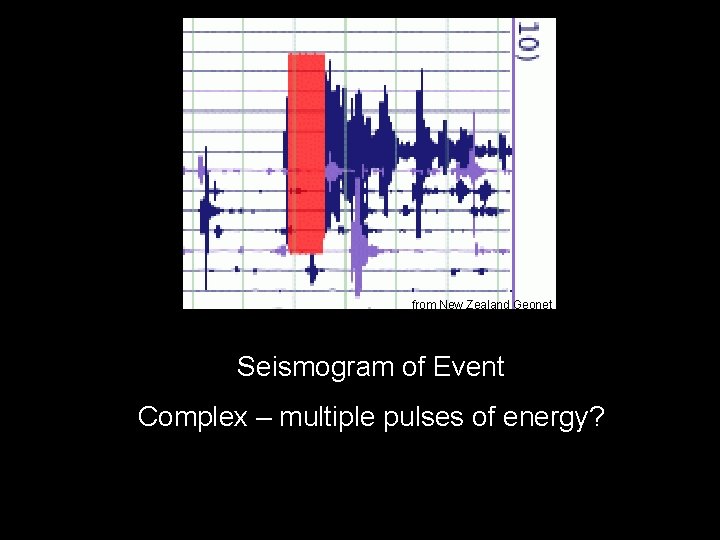

from New Zealand Geonet Seismogram of Event Complex – multiple pulses of energy?

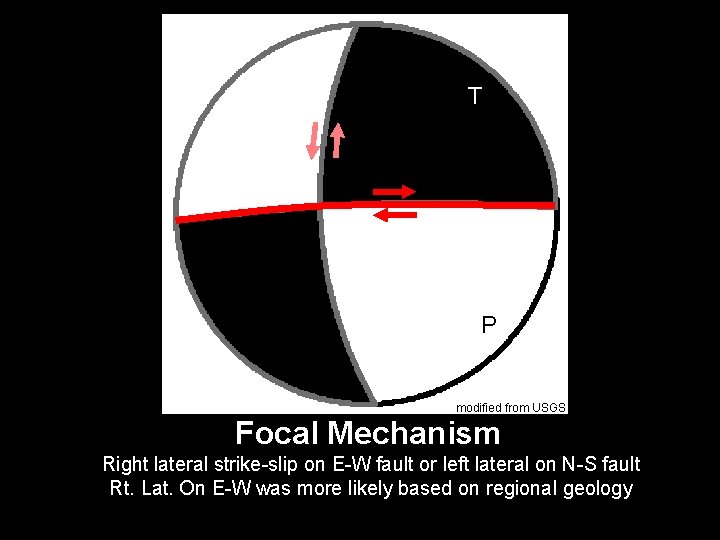

T P modified from USGS Focal Mechanism Right lateral strike-slip on E-W fault or left lateral on N-S fault Rt. Lat. On E-W was more likely based on regional geology

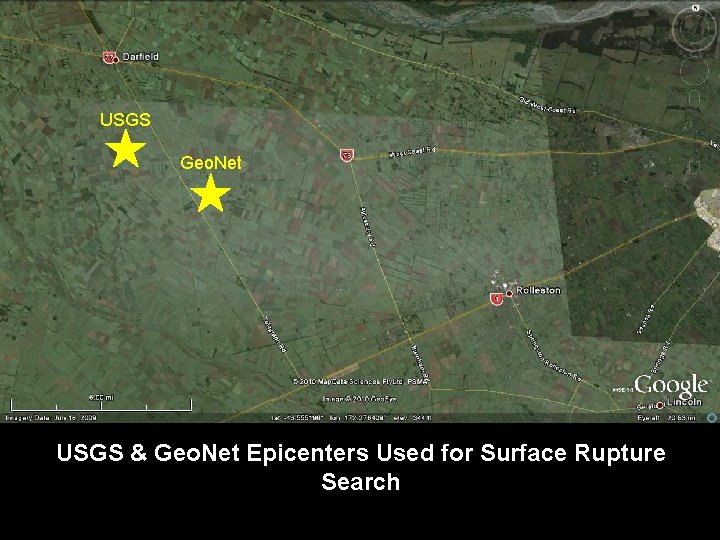

Christchurch USGS Geo. Net USGS & Geo. Net Epicenters Used for Surface Rupture Search

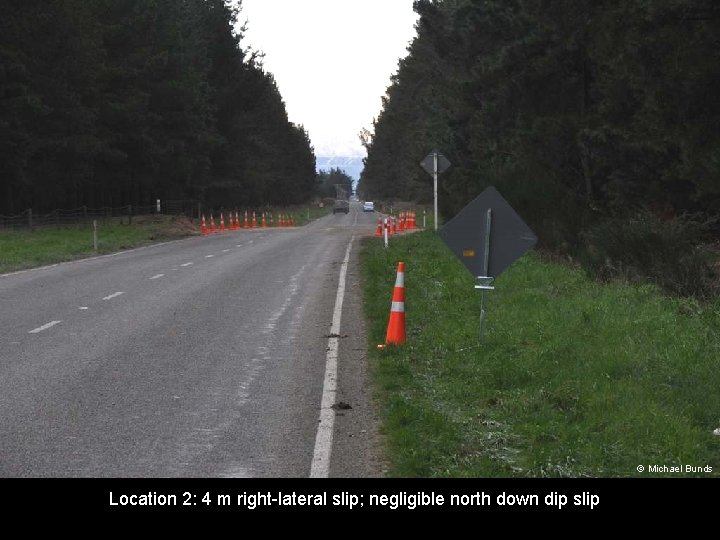

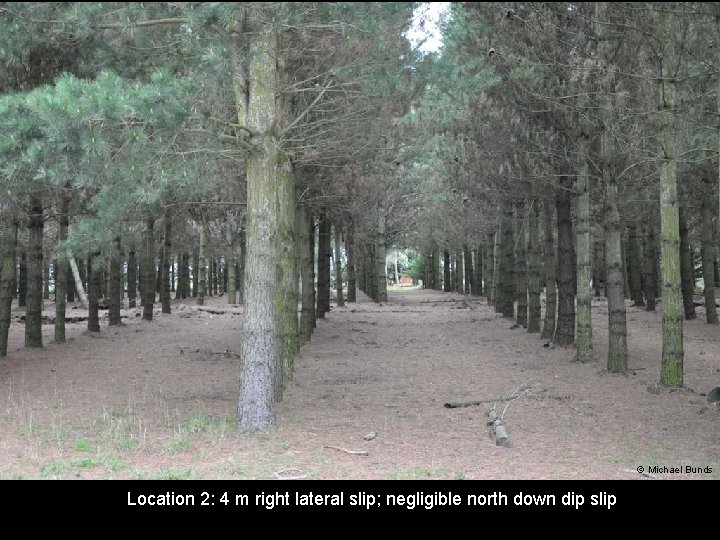

© Michael Bunds Location 2: 4 m right-lateral slip; negligible north down dip slip

Surface Rupture • Distributed en echelon shears • Riedel shears • right-lateral slip + minor north-side down • Probably extends to at least 10 – 12 km depth

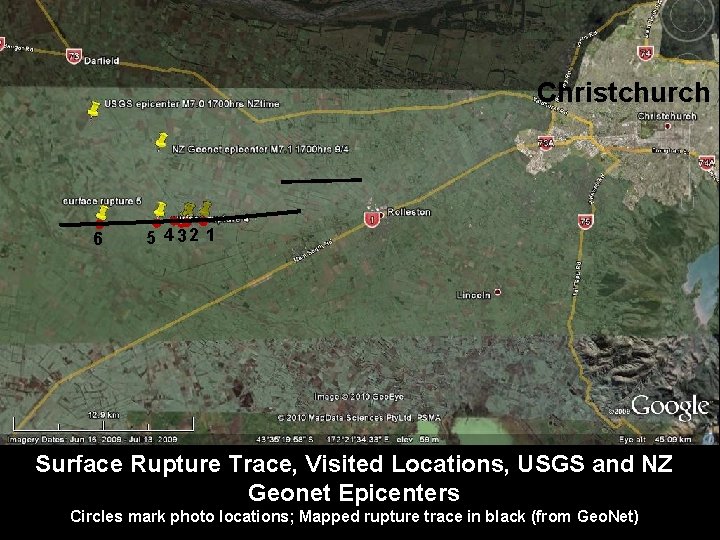

Christchurch 6 5 4 32 1 Surface Rupture Trace, Visited Locations, USGS and NZ Geonet Epicenters Circles mark photo locations; Mapped rupture trace in black (from Geo. Net)

© Michael Bunds Location 2: 4 m right lateral slip; negligible north down dip

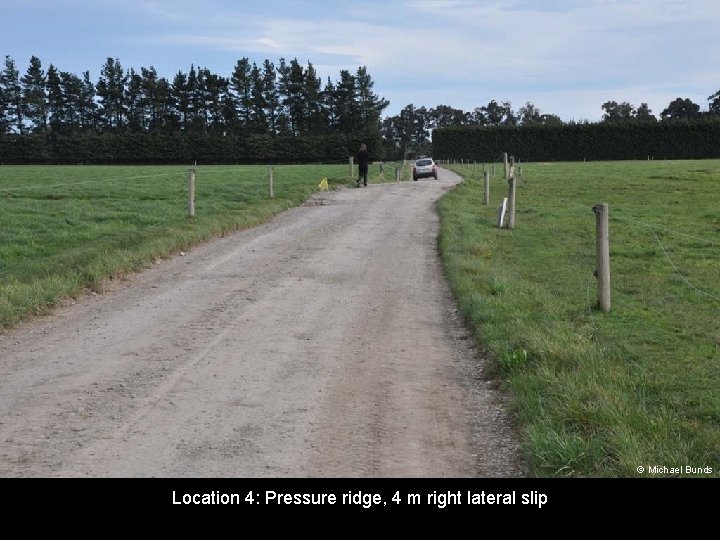

© Michael Bunds Location 4: Pressure ridge, 4 m right lateral slip

© Michael Bunds Location 4: Extended fence; pressure ridge; Reidel shears; 4 m right

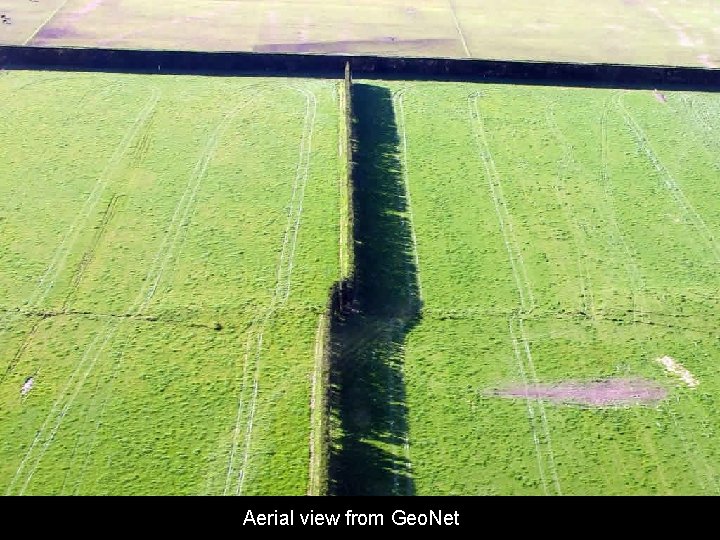

Aerial view of location 4 from Geo. Net

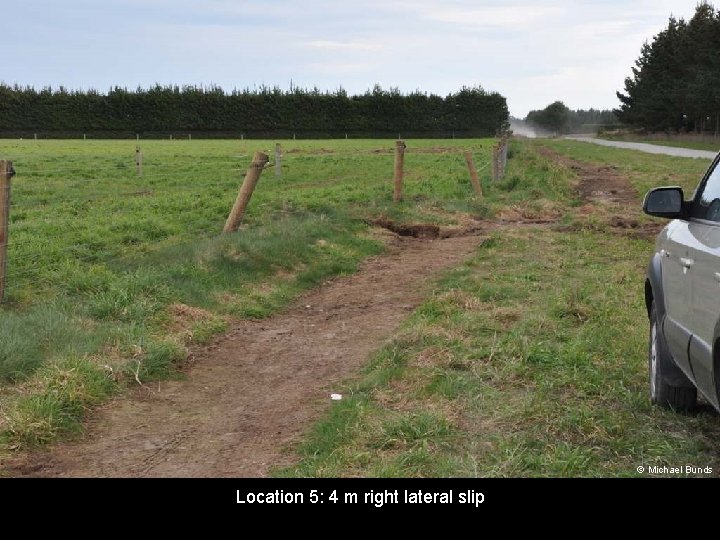

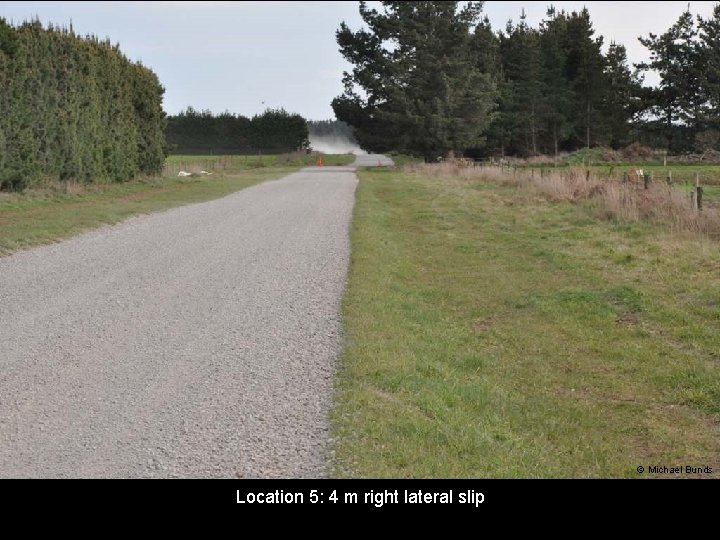

© Michael Bunds Location 5: 4 m right lateral slip

Location 5 4 m right lateral slip © Michael Bunds

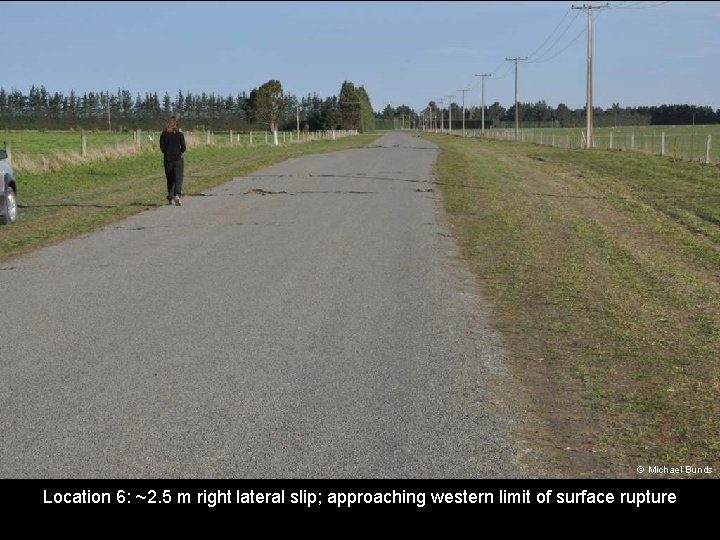

© Michael Bunds Location 6: ~2. 5 m right lateral slip; approaching western limit

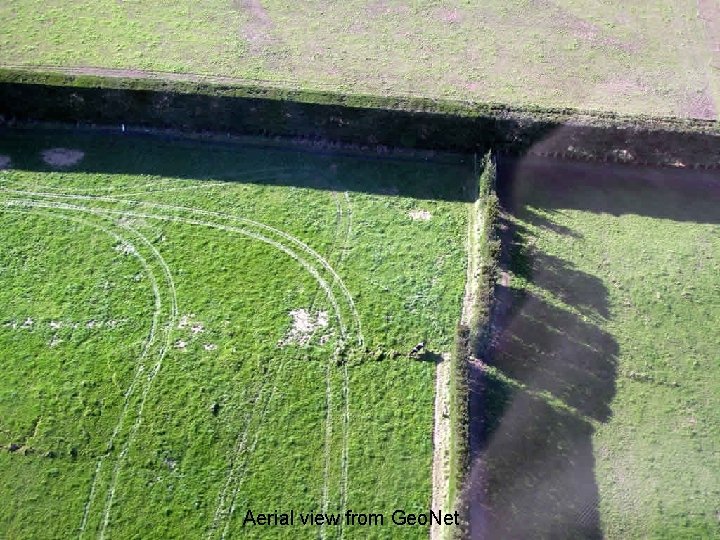

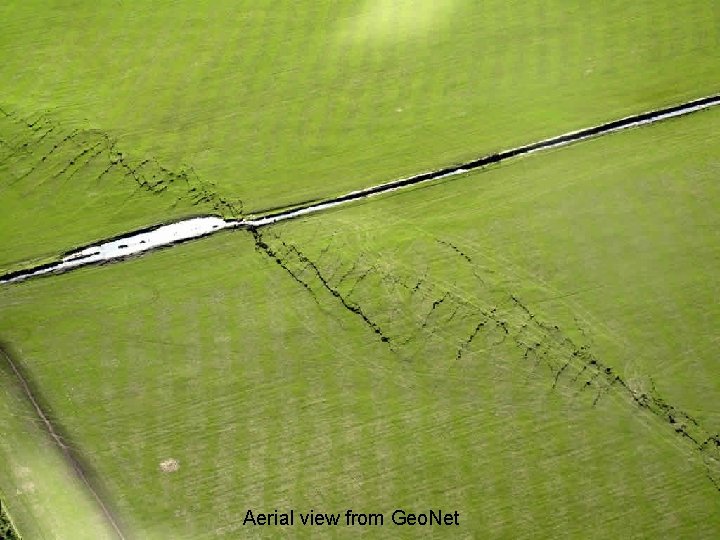

Aerial view from Geo. Net

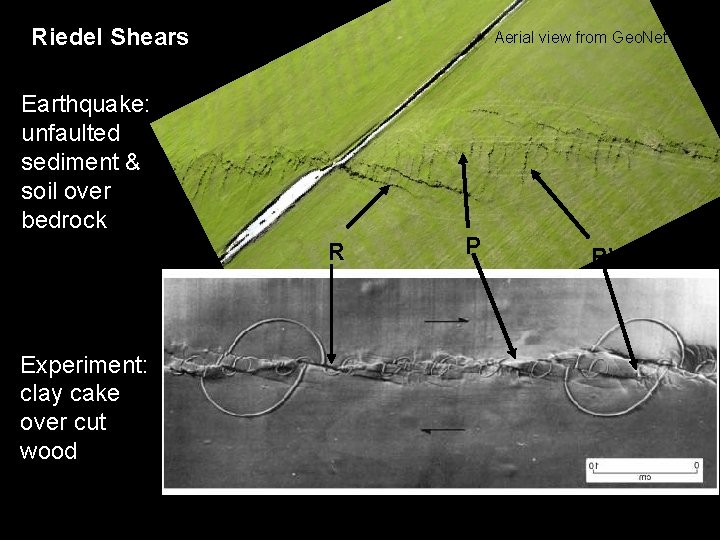

Riedel Shears Aerial view from Geo. Net Earthquake: unfaulted sediment & soil over bedrock R Experiment: clay cake over cut wood P R’

Aerial view from Geo. Net

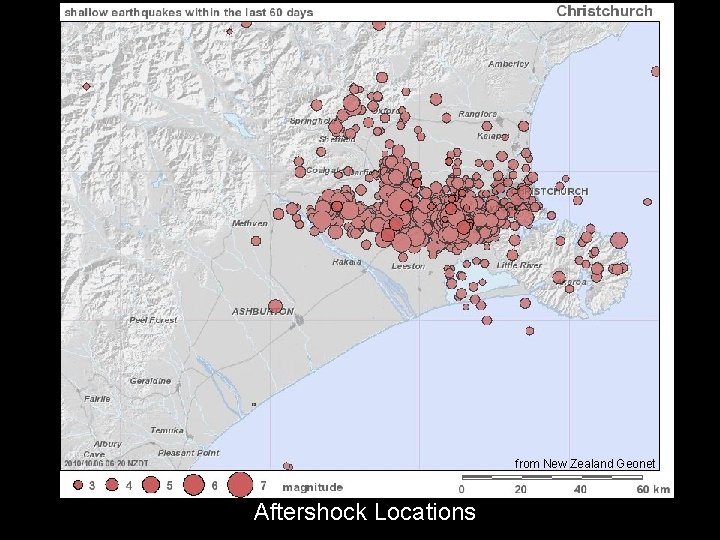

from New Zealand Geonet Aftershock Locations

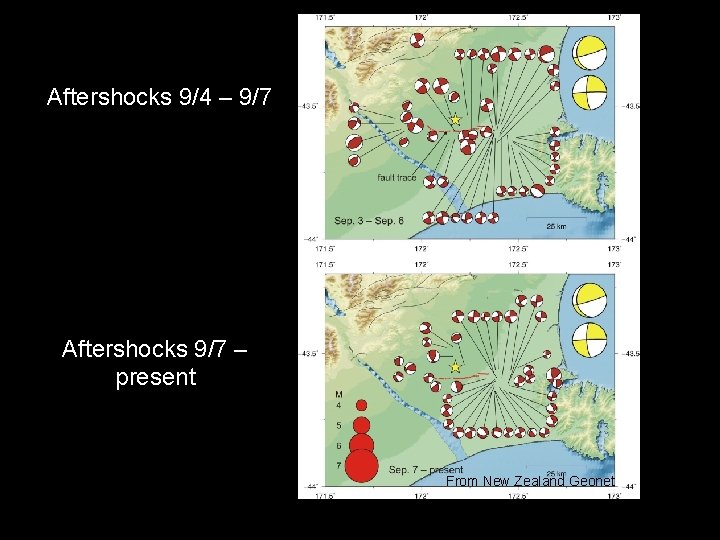

Aftershocks 9/4 – 9/7 Aftershocks 9/7 – present From New Zealand Geonet

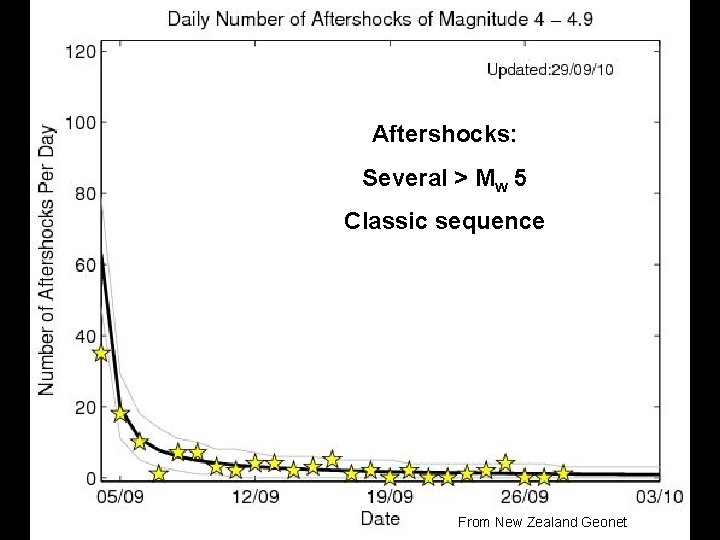

Aftershocks: Several > Mw 5 Classic sequence From New Zealand Geonet

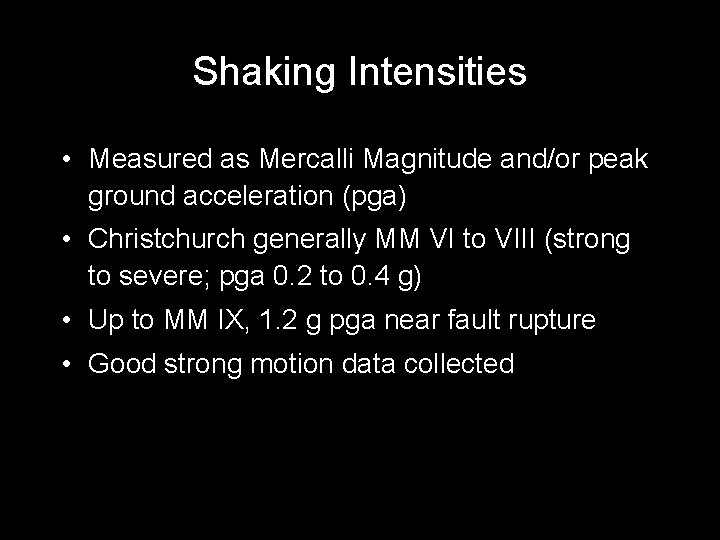

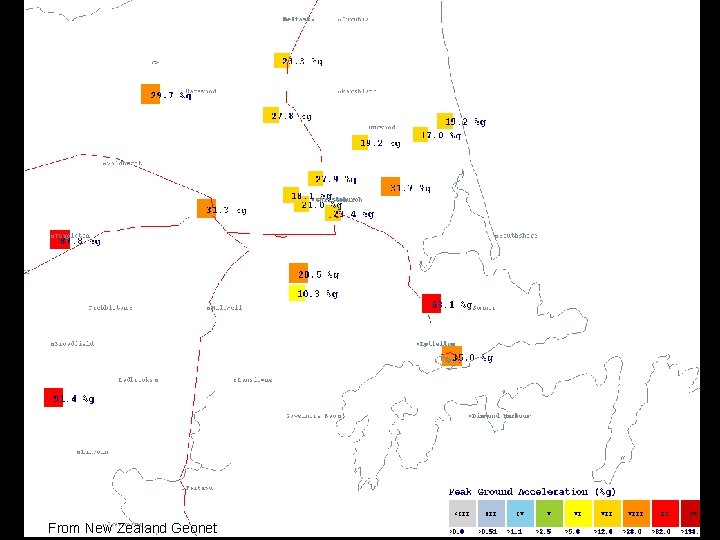

Shaking Intensities • Measured as Mercalli Magnitude and/or peak ground acceleration (pga) • Christchurch generally MM VI to VIII (strong to severe; pga 0. 2 to 0. 4 g) • Up to MM IX, 1. 2 g pga near fault rupture • Good strong motion data collected

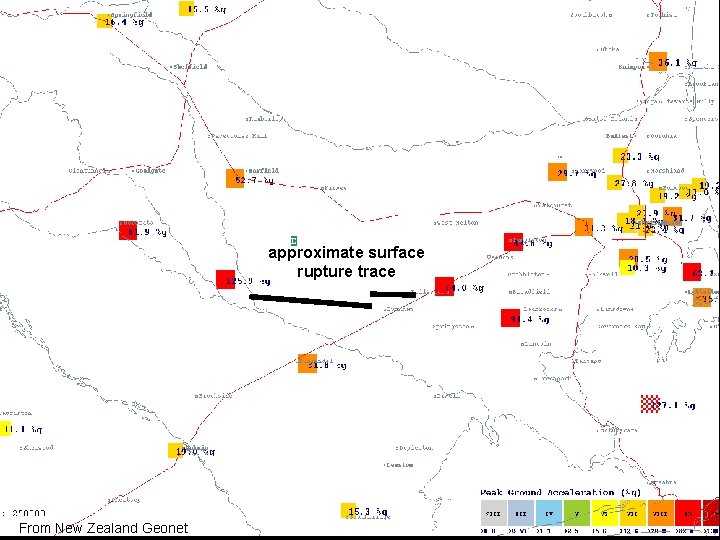

approximate surface rupture trace From New Zealand Geonet

From New Zealand Geonet

Comparison to Other Earthquakes • Haiti • Landers / Hector Mine

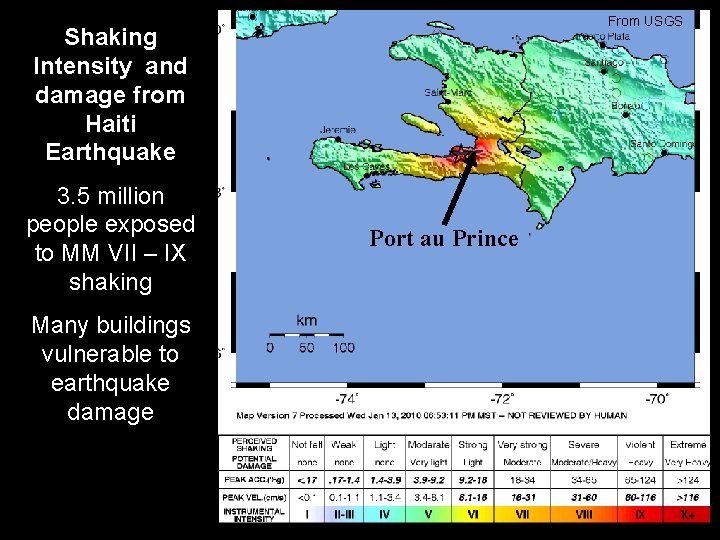

From USGS Shaking Intensity and damage from Haiti Earthquake 3. 5 million people exposed to MM VII – IX shaking Many buildings vulnerable to earthquake damage Port au Prince

Comparison to Haiti Earthquake • Both earthquakes had similar magnitudes, proximities to cities • Huge loss of life (~230, 000) vs. no lives loss – – Higher population density in Haiti; greater shaking intensity Much more resistant buildings in Christchurch Time of day (4: 53 pm vs. 4: 35 am) Good building codes and retrofitting buildings saves lives • Haiti earthquake on or near recognized fault, Canterbury earthquake on previously unknown fault – We are good at identifying hazardous faults, and there is lots of work to do

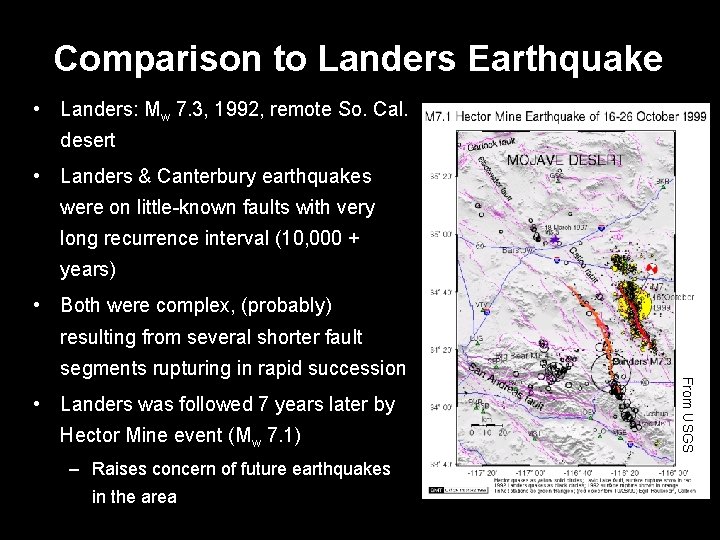

Comparison to Landers Earthquake • Landers: Mw 7. 3, 1992, remote So. Cal. desert • Landers & Canterbury earthquakes were on little-known faults with very long recurrence interval (10, 000 + years) • Both were complex, (probably) resulting from several shorter fault • Landers was followed 7 years later by Hector Mine event (Mw 7. 1) – Raises concern of future earthquakes in the area From USGS segments rupturing in rapid succession

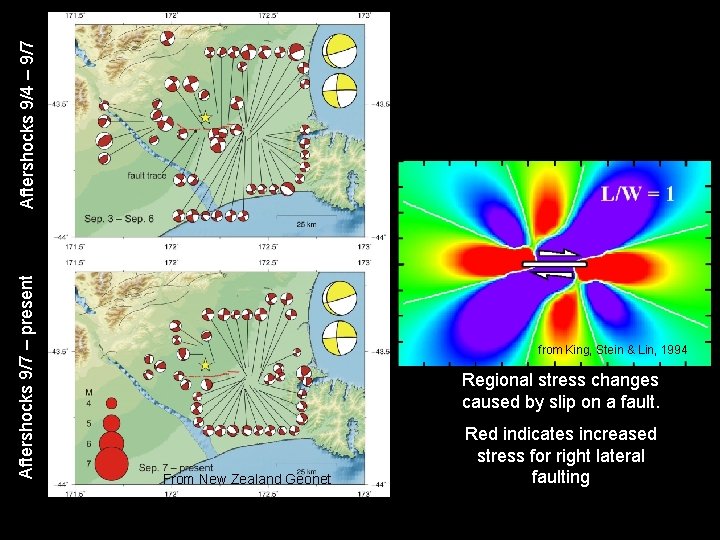

Aftershocks 9/4 – 9/7 Aftershocks 9/7 – present from King, Stein & Lin, 1994 Regional stress changes caused by slip on a fault. From New Zealand Geonet Red indicates increased stress for right lateral faulting

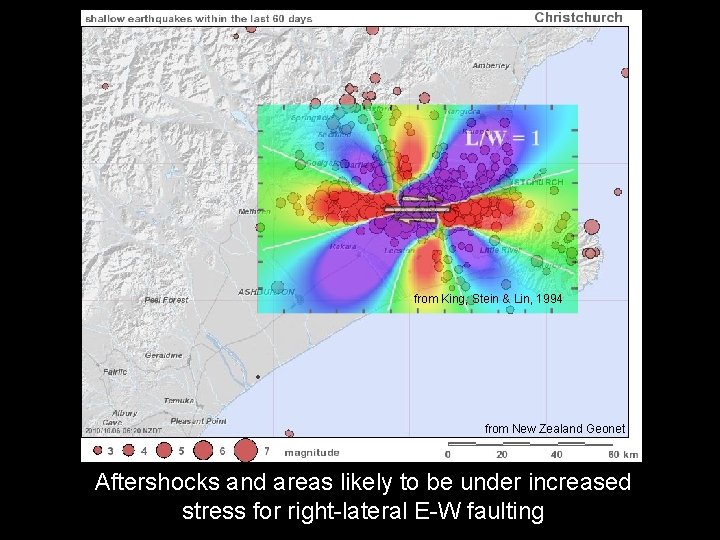

from King, Stein & Lin, 1994 from New Zealand Geonet Aftershocks and areas likely to be under increased stress for right-lateral E-W faulting

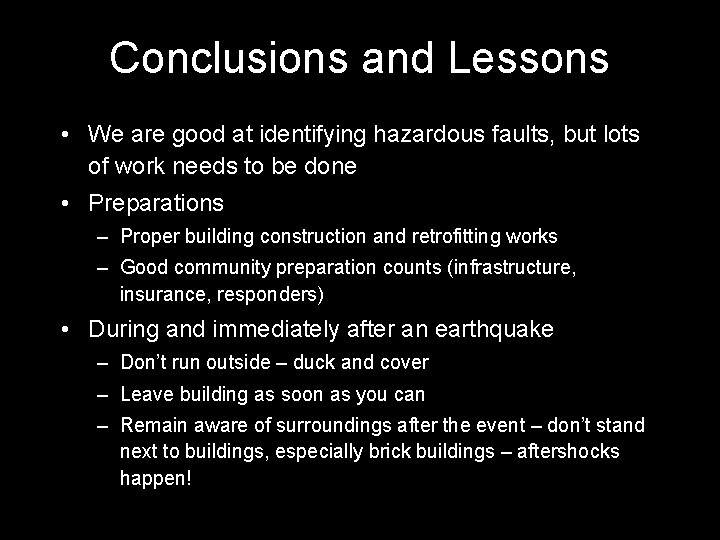

Conclusions and Lessons • We are good at identifying hazardous faults, but lots of work needs to be done • Preparations – Proper building construction and retrofitting works – Good community preparation counts (infrastructure, insurance, responders) • During and immediately after an earthquake – Don’t run outside – duck and cover – Leave building as soon as you can – Remain aware of surroundings after the event – don’t stand next to buildings, especially brick buildings – aftershocks happen!
