MVVM Pattern Mahender Senior Software Engineer United Health
- Slides: 14
MVVM Pattern Mahender Senior Software Engineer United Health Group
Mahender Sarangam • Having 5 years of experience on. NET Technologies. Working as a Senior Software Engineer in United Health Group (UHG India Information Service Ltd. ). Worked with Big Firms like Deloitte Consulting & Wipro Technology. • Got Technical Acquaintance on Technologies like C#, ASP. NET, AJAX, LINQ, Silverlight, WPF, WCF , SQL Server, Team Foundation Server(TFS) and Share. Point Technology. • MCTS Certified in Web Technologies. • Blog : http: //Msarangam. wordpress. com
Why Do need Pattern Everything in code behind, is not a good idea

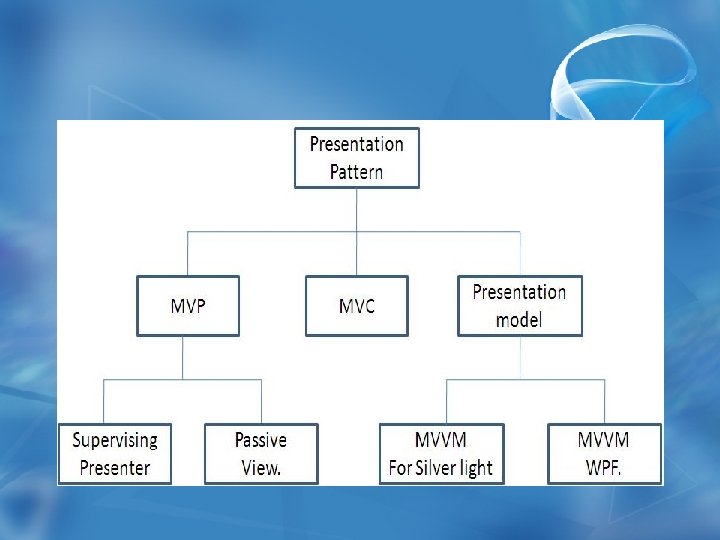

Why Do need Pattern • Basic Motivation of separation pattern – – – Removing logic from Code behind Interchanging UI screens Create Unit test case foe logic and UI Developers and Designers can work parallel. Model never needs to be changed to support changes to the view No duplicated code to update views • So what is MVVM ? – – Its variation of MVC pattern John Gossman from WPF team Resources from external assemblies Martin Fowler's Presentation Model (PM) pattern

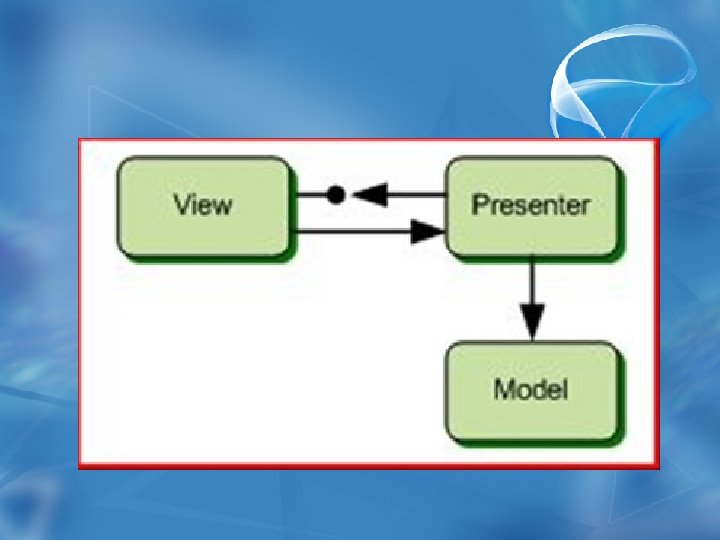

MVC & MVP Difference
Diagram • View Knows VIEW MODEL • VIEW MODEL Knows MODEL • BUT VIEWMODEL does not know View Model
View • Represents the user interface that the user will see. • Can be a user control or Data Template • Keep the view as simple as possible. • Uses Binding to “subscribe” to the View. Model • Interprets business data and state of View. Model to the human • Nothing but Presentation - XAML • No or minimal code-behind
View Model • • • An abstraction of View Connector between View and Model Keep View State, Value Conversion No strong or weak (via Interface) reference of View Make VM as testable as possible (e. g. no call to Singleton class) No Control related Stuff in VM Provides data to and from the View Responds to both the View and the Model Informs the View of changes in the data Reusable (at least much more than code behind a form)
Model • Can be Data Model, DTO, POCO, autogenerated proxy of domain class and UI Model based on how you want to have the separation between Domain Service and Presentation Layer • No reference to View Model • Typical class that covers a database • Could be a WCF Service and its client reference
Supporting Libraires and Framework • • • WPF Team : MVVM Toolkit MS Pattern and Practice Team : Composite WPF (Prism) Josh Smith. "MVVM Foundation" Sacha Barber. "Cinch. " Karl Shifflett. "Ocean" Laurent Bugnion. "MVVM Light Toolkit" Lester Lobo. "Core. MVVM" Rob Eisenberg. "Caliburn" William e Kempf. "Onyx" Peter O’Hanlon. "Gold. Light" jbe. "WPF Application Framework (WAF)" Paul Stovel : Macro. Models
Thank you
