MVP Micro Vascular Plug System Specifications PTFE Partial

  • Slides: 7
Download presentation
MVP Micro Vascular Plug System Specifications PTFE Partial Cover Microcatheter ID Recommended Microcatheter Length

MVP Micro Vascular Plug System Specifications PTFE Partial Cover Microcatheter ID Recommended Microcatheter Length Recommended 15 mm 0. 021” ≤ 150 cm 16 mm 0. 027” ≤ 150 cm MVP System Target Vessels MVP Width Unconstrained MVP Length Max Constrained MVP-3 Q 1. 5 – 3. 0 mm 5. 3 mm 12 mm MVP-5 Q 3. 0 – 5. 0 mm 6. 5 mm 12 mm Delivery Wire: Maximum OD 0. 018” (1. 5 mm vessel) (3. 0 mm vessel)

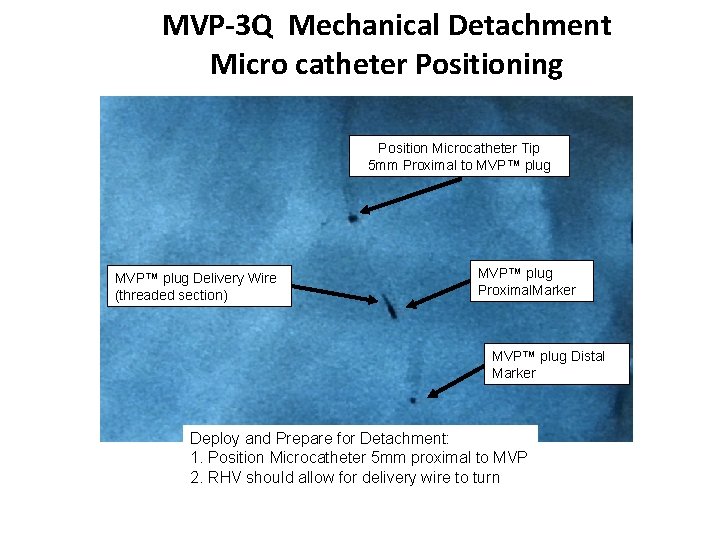

MVP-3 Q Mechanical Detachment Micro catheter Positioning Position Microcatheter Tip 5 mm Proximal to

MVP-3 Q Mechanical Detachment Micro catheter Positioning Position Microcatheter Tip 5 mm Proximal to MVP™ plug Delivery Wire (threaded section) MVP™ plug Proximal. Marker MVP™ plug Distal Marker Deploy and Prepare for Detachment: 1. Position Microcatheter 5 mm proximal to MVP 2. RHV should allow for delivery wire to turn

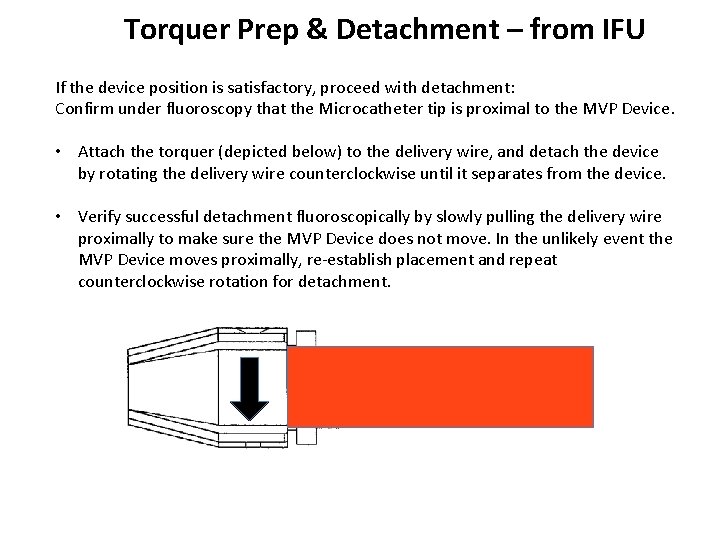

Torquer Prep & Detachment – from IFU If the device position is satisfactory, proceed

Torquer Prep & Detachment – from IFU If the device position is satisfactory, proceed with detachment: Confirm under fluoroscopy that the Microcatheter tip is proximal to the MVP Device. • Attach the torquer (depicted below) to the delivery wire, and detach the device by rotating the delivery wire counterclockwise until it separates from the device. • Verify successful detachment fluoroscopically by slowly pulling the delivery wire proximally to make sure the MVP Device does not move. In the unlikely event the MVP Device moves proximally, re-establish placement and repeat counterclockwise rotation for detachment.

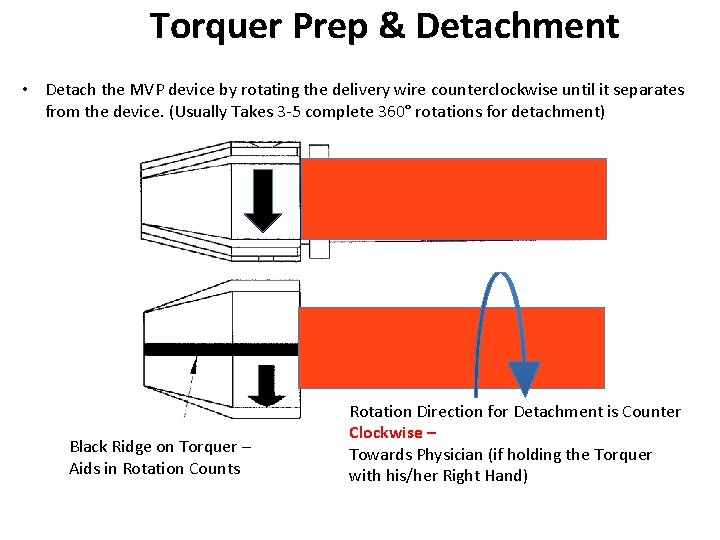

Torquer Prep & Detachment • Detach the MVP device by rotating the delivery wire

Torquer Prep & Detachment • Detach the MVP device by rotating the delivery wire counterclockwise until it separates from the device. (Usually Takes 3 -5 complete 360° rotations for detachment) Black Ridge on Torquer – Aids in Rotation Counts Rotation Direction for Detachment is Counter Clockwise – Towards Physician (if holding the Torquer with his/her Right Hand)

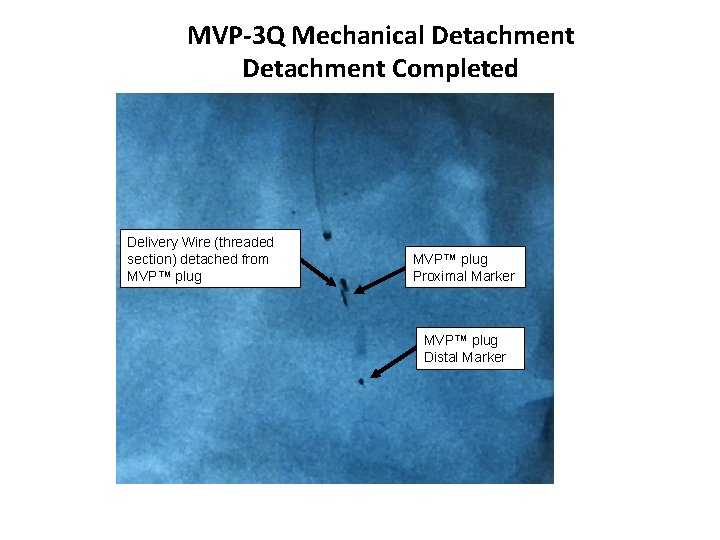

MVP-3 Q Mechanical Detachment Completed Delivery Wire (threaded section) detached from MVP™ plug Proximal

MVP-3 Q Mechanical Detachment Completed Delivery Wire (threaded section) detached from MVP™ plug Proximal Marker MVP™ plug Distal Marker

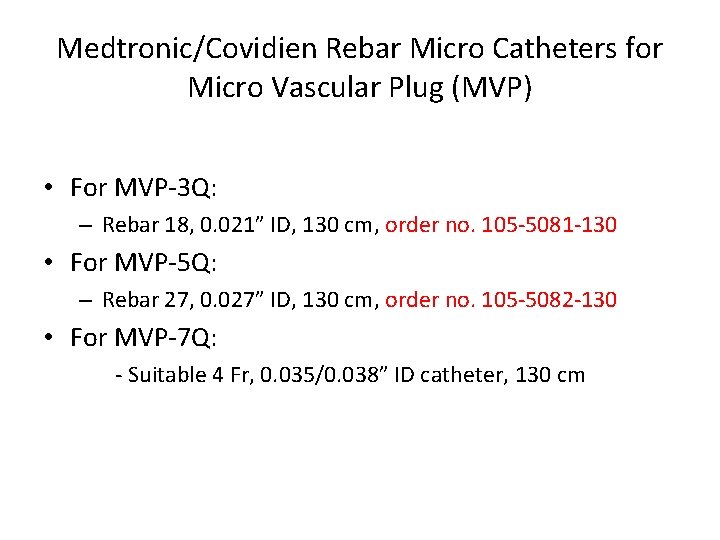

Medtronic/Covidien Rebar Micro Catheters for Micro Vascular Plug (MVP) • For MVP-3 Q: –

Medtronic/Covidien Rebar Micro Catheters for Micro Vascular Plug (MVP) • For MVP-3 Q: – Rebar 18, 0. 021” ID, 130 cm, order no. 105 -5081 -130 • For MVP-5 Q: – Rebar 27, 0. 027” ID, 130 cm, order no. 105 -5082 -130 • For MVP-7 Q: - Suitable 4 Fr, 0. 035/0. 038” ID catheter, 130 cm

Micro Catheter Selection for Micro Vascular Plug (MVP) From Medtronic/Covidien IFU recommended micro catheters:

Micro Catheter Selection for Micro Vascular Plug (MVP) From Medtronic/Covidien IFU recommended micro catheters: • MVP-3 Q: min. 021” ID • MVP-5 Q: min. 027” ID • Recommended Length ≤ 150 cm
