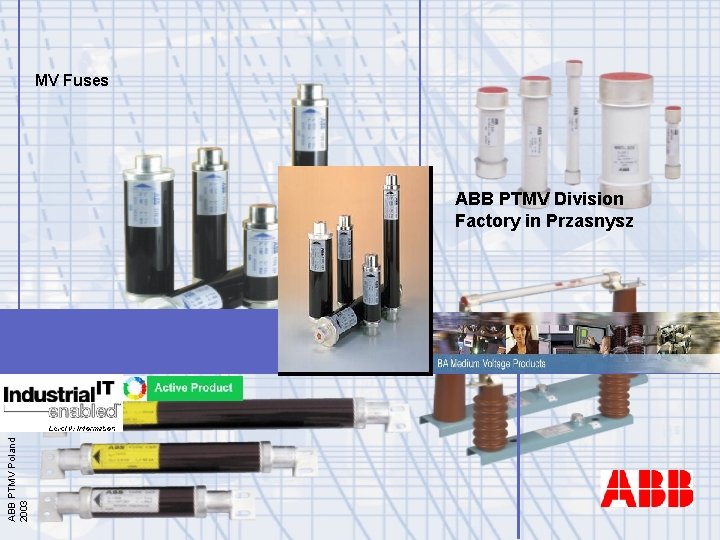

MV Fuses ABB PTMV Poland 2003 ABB PTMV Division Factory in Przasnysz

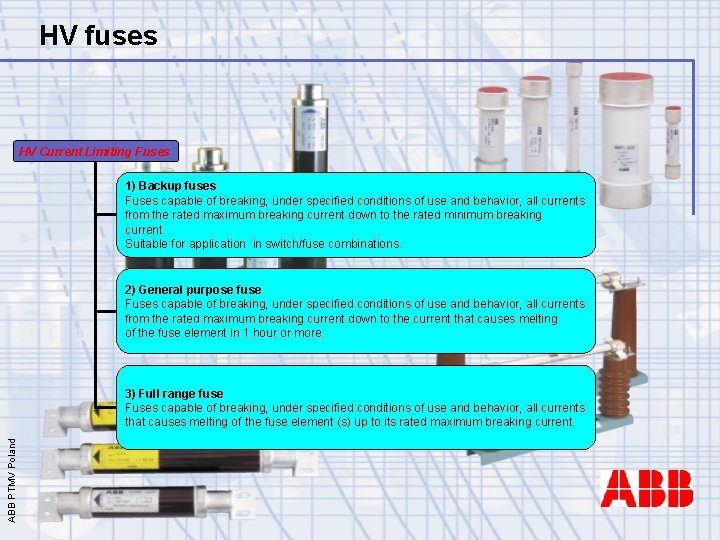

HV fuses HV Current Limiting Fuses 1) Backup fuses Fuses capable of breaking, under specified conditions of use and behavior, all currents from the rated maximum breaking current down to the rated minimum breaking current. Suitable for application in switch/fuse combinations. 2) General purpose fuse Fuses capable of breaking, under specified conditions of use and behavior, all currents from the rated maximum breaking current down to the current that causes melting of the fuse element in 1 hour or more. ABB PTMV Poland 3) Full range fuse Fuses capable of breaking, under specified conditions of use and behavior, all currents that causes melting of the fuse element (s) up to its rated maximum breaking current.

HV fuses HV Non. Current Limiting Fuses 1 Expulsion fuses Outdoor fuses for protection of overhead lines and distribution transformers. They comprise a tin or copper fuse element in series with a flexible braid in a tube. ABB PTMV Poland 2) Liquid fuses Based on early noncurrent limiting fuses that use liquids ( mostly hydrocarbon) to quench the arc.

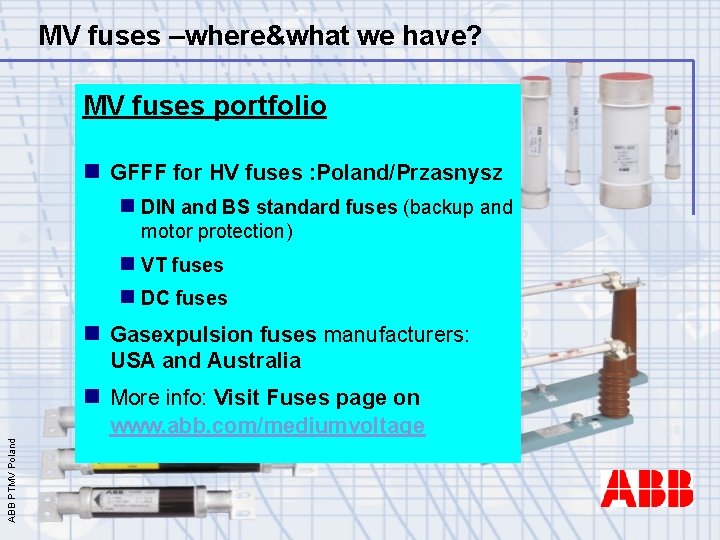

MV fuses –where&what we have? MV fuses portfolio n GFFF for HV fuses : Poland/Przasnysz n DIN and BS standard fuses (backup and motor protection) n VT fuses n DC fuses n Gasexpulsion fuses manufacturers: USA and Australia n More info: Visit Fuses page on ABB PTMV Poland www. abb. com/mediumvoltage

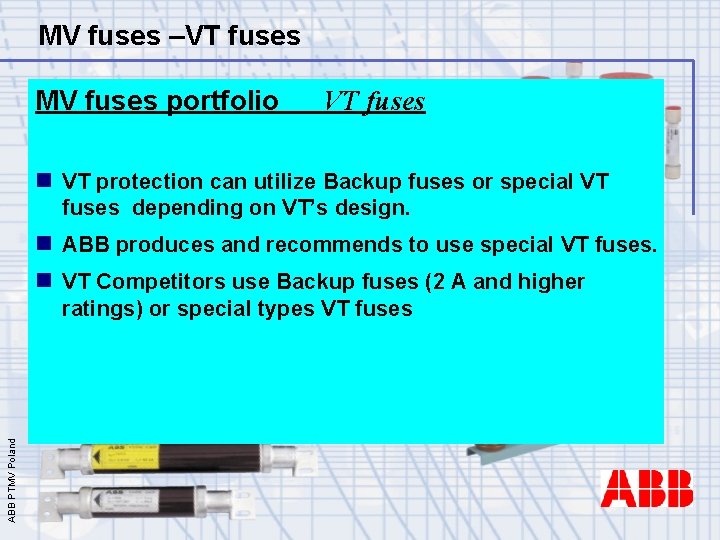

MV fuses –VT fuses MV fuses portfolio VT fuses n VT protection can utilize Backup fuses or special VT fuses depending on VT’s design. n ABB produces and recommends to use special VT fuses. n VT Competitors use Backup fuses (2 A and higher ABB PTMV Poland ratings) or special types VT fuses

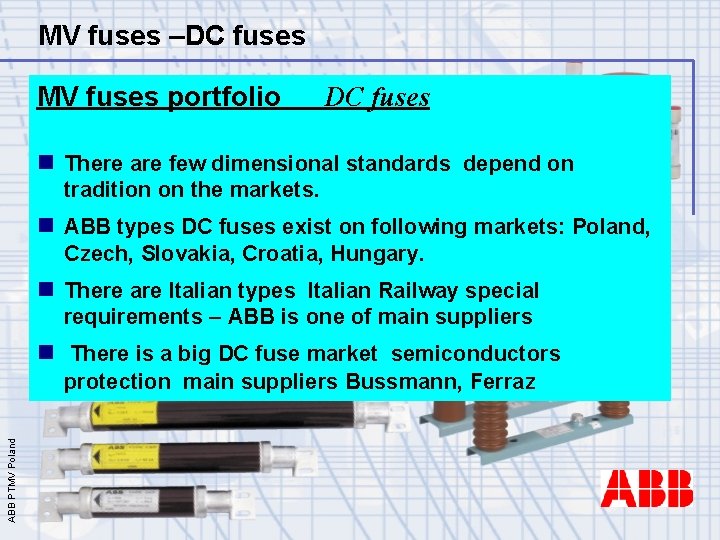

MV fuses –DC fuses MV fuses portfolio DC fuses n There are few dimensional standards depend on tradition on the markets. n ABB types DC fuses exist on following markets: Poland, Czech, Slovakia, Croatia, Hungary. n There are Italian types Italian Railway special requirements – ABB is one of main suppliers n There is a big DC fuse market semiconductors ABB PTMV Poland protection main suppliers Bussmann, Ferraz

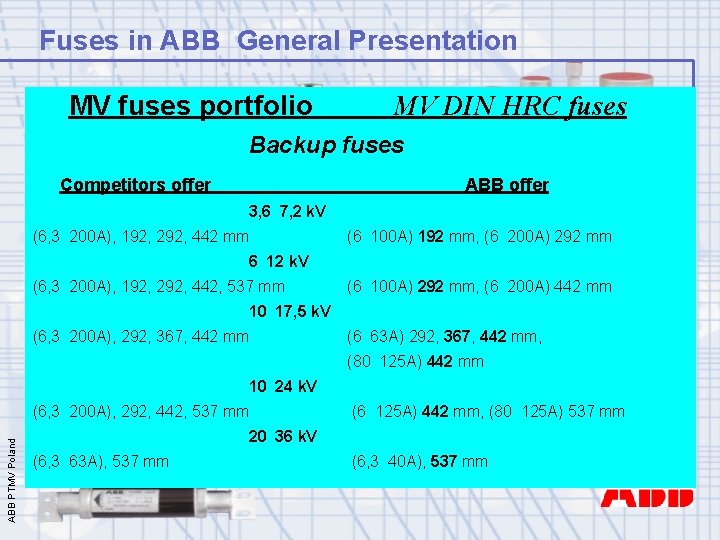

Fuses in ABB General Presentation MV fuses portfolio MV DIN HRC fuses Backup fuses Competitors offer ABB offer 3, 6 7, 2 k. V (6, 3 200 A), 192, 292, 442 mm (6 100 A) 192 mm, (6 200 A) 292 mm 6 12 k. V (6, 3 200 A), 192, 292, 442, 537 mm (6 100 A) 292 mm, (6 200 A) 442 mm 10 17, 5 k. V (6, 3 200 A), 292, 367, 442 mm (6 63 A) 292, 367, 442 mm, (80 125 A) 442 mm 10 24 k. V ABB PTMV Poland (6, 3 200 A), 292, 442, 537 mm (6 125 A) 442 mm, (80 125 A) 537 mm 20 36 k. V (6, 3 63 A), 537 mm (6, 3 40 A), 537 mm

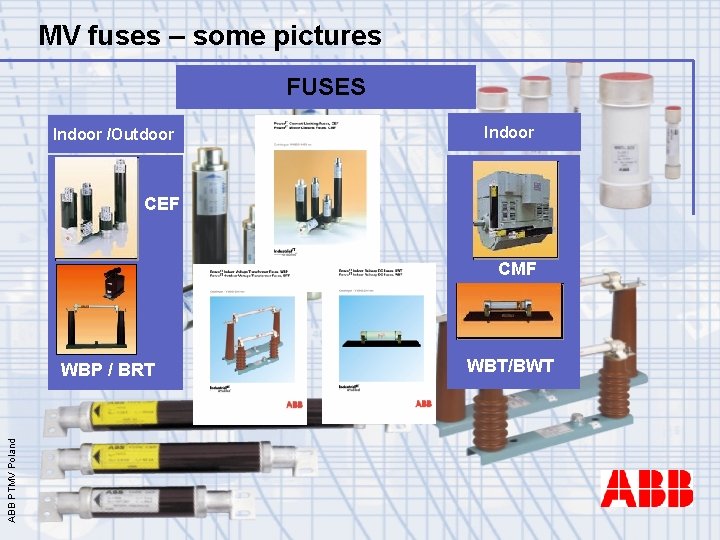

MV fuses – some pictures FUSES Indoor /Outdoor Indoor CEF CMF ABB PTMV Poland WBP / BRT WBT/BWT

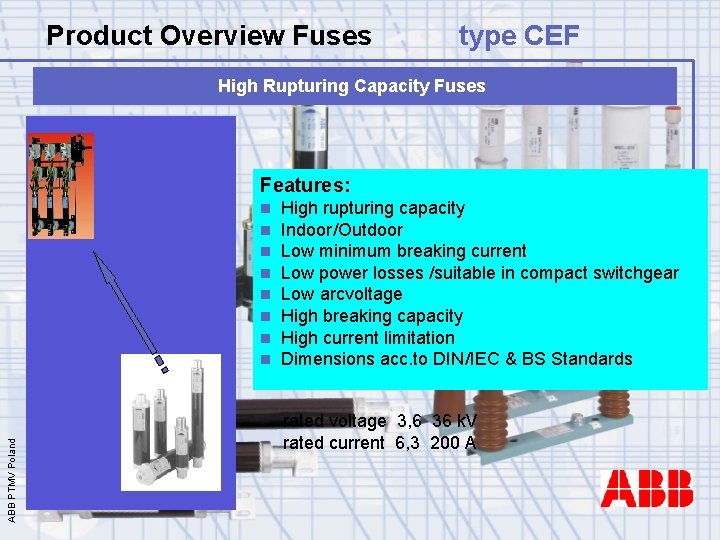

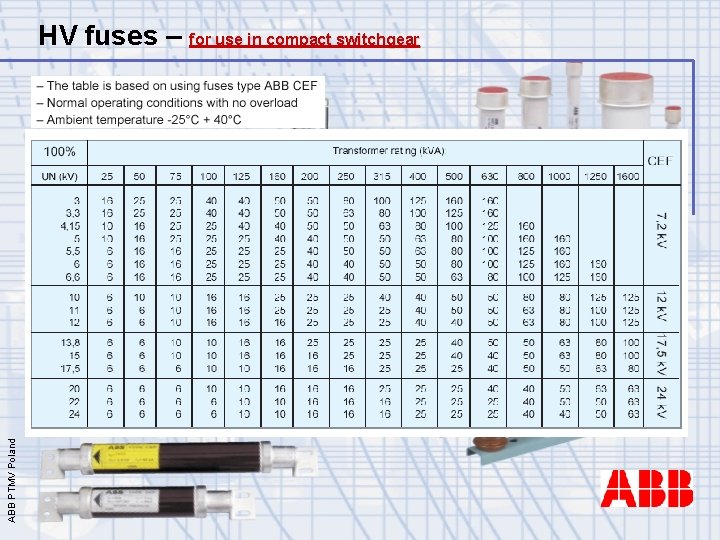

Product Overview Fuses type CEF High Rupturing Capacity Fuses Features: ABB PTMV Poland n n n n High rupturing capacity Indoor/Outdoor Low minimum breaking current Low power losses /suitable in compact switchgear Low arcvoltage High breaking capacity High current limitation Dimensions acc. to DIN/IEC & BS Standards rated voltage 3, 6 36 k. V rated current 6, 3 200 A

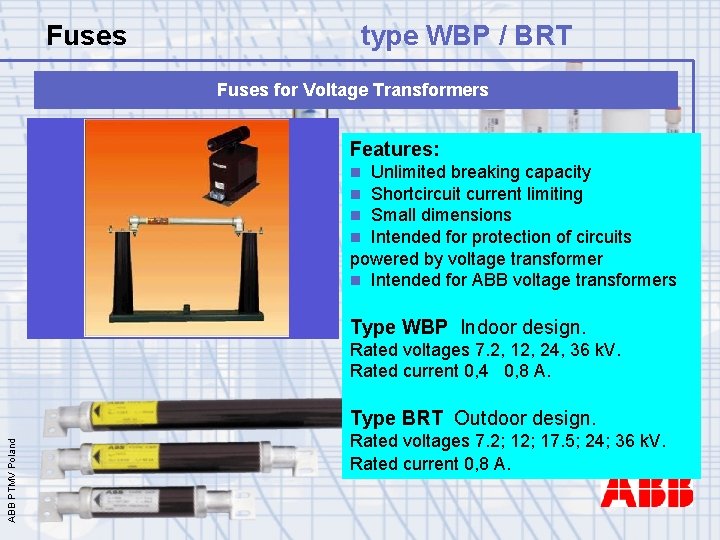

Fuses type WBP / BRT Fuses for Voltage Transformers Features: Unlimited breaking capacity Shortcircuit current limiting Small dimensions Intended for protection of circuits powered by voltage transformer n Intended for ABB voltage transformers n n Type WBP Indoor design. Rated voltages 7. 2, 12, 24, 36 k. V. Rated current 0, 4 0, 8 A. ABB PTMV Poland Type BRT Outdoor design. Rated voltages 7. 2; 17. 5; 24; 36 k. V. Rated current 0, 8 A.

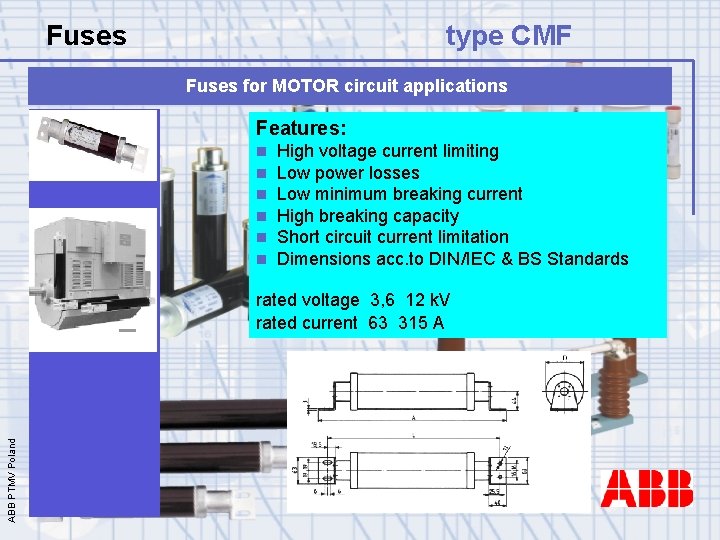

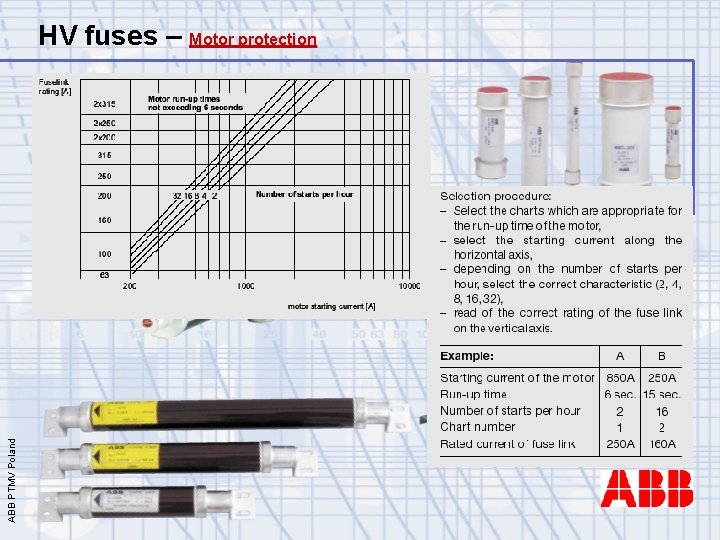

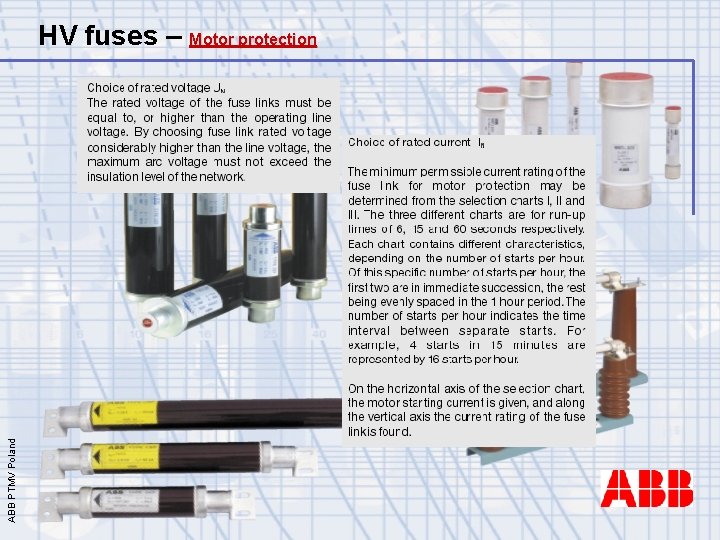

Fuses type CMF Fuses for MOTOR circuit applications Features: n n n High voltage current limiting Low power losses Low minimum breaking current High breaking capacity Short circuit current limitation Dimensions acc. to DIN/IEC & BS Standards ABB PTMV Poland rated voltage 3, 6 12 k. V rated current 63 315 A

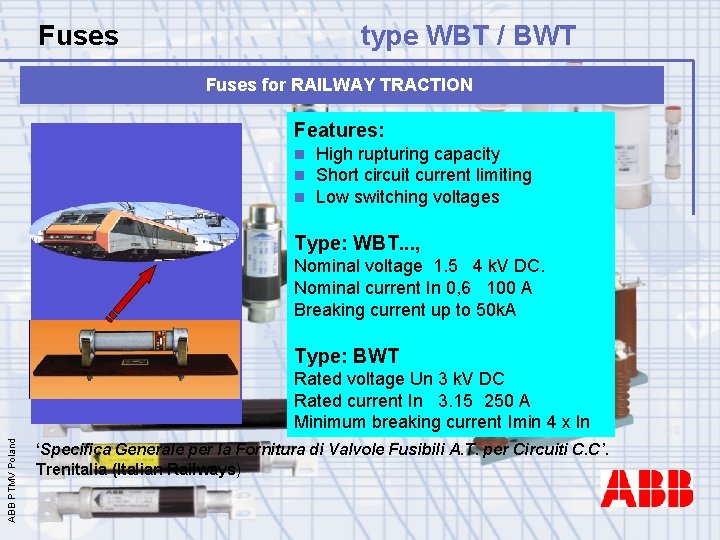

Fuses type WBT / BWT Fuses for RAILWAY TRACTION Features: n n n High rupturing capacity Short circuit current limiting Low switching voltages Type: WBT. . . , Nominal voltage 1. 5 4 k. V DC. Nominal current In 0, 6 100 A Breaking current up to 50 k. A Type: BWT ABB PTMV Poland Rated voltage Un 3 k. V DC Rated current In 3. 15 250 A Minimum breaking current Imin 4 x In ‘Specifica Generale per la Fornitura di Valvole Fusibili A. T. per Circuiti C. C’. Trenitalia (Italian Railways)

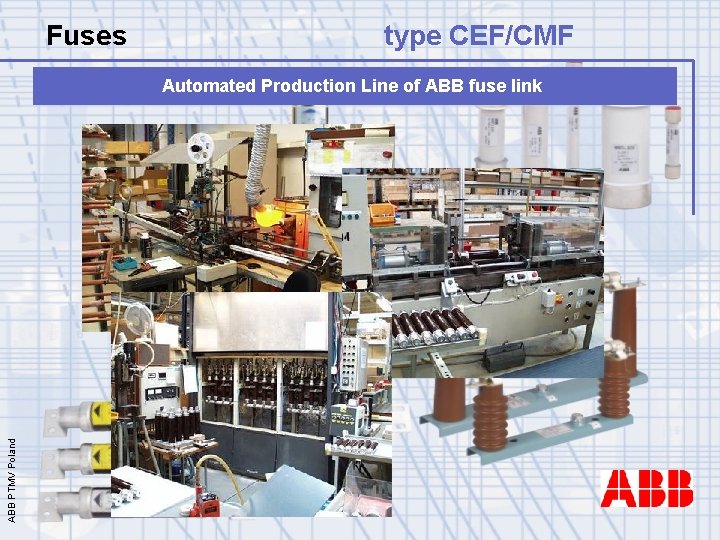

Fuses type CEF/CMF ABB PTMV Poland Automated Production Line of ABB fuse link

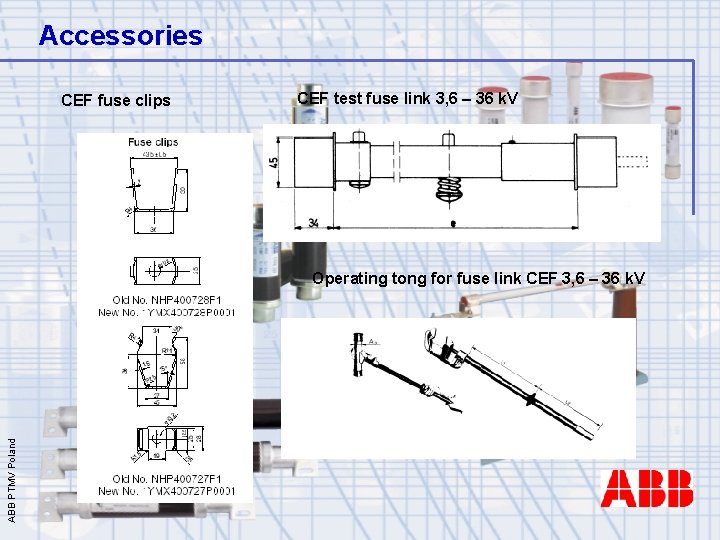

Accessories CEF fuse clips CEF test fuse link 3, 6 – 36 k. V ABB PTMV Poland Operating tong for fuse link CEF 3, 6 – 36 k. V

ABB PTMV Poland Accessories

Fuses ABB PTMV Poland EUROPE: WE+CEE üAUSTRIA üBELGIUM üBELARUS üBULGARIA üCROATIA üCZECH REP. üDENMARK üESTONIA üFINLAND üFRANCE üGERMANY üGREAT BRITAIN üGREECE üHUNGARY üICELAND üIRELAND üITALY üLATVIA üLITHUANIA üLUXEMBOURG üNORWAY üNETHERLANDS üPOLAND üPORTUGAL üROMANIA üSLOVAKIA üSPAIN üSWEDEN üSWITZERLAND ASIA: üAUSTRALIA üCHINA üHONG KONG üINDIA üINDONESIA üJAPAN üKOREA ü NEW ZEALAND üMALAYSIA üPHILIPPINES üSINGAPORE üTAIWAN üTHAILAND üVIETNAM SOUTH&NORTH AMERICA: üARGENTINA üBRAZIL üCANADA üCHILE üCOLOMBIA üECUADOR üMEXICO üPANAMA üPERU üUSA üVENEZUELA MIDDLE EAST: üEGYPT üISRAEL üJORDAN üKUWAIT üLEBANON üSAUDI ARABIA üSYRIA üTUNISIA üTURKEY üUNITED ARAB EMIRATES AFRICA: üSOUTH AFRICA üTANZANIA

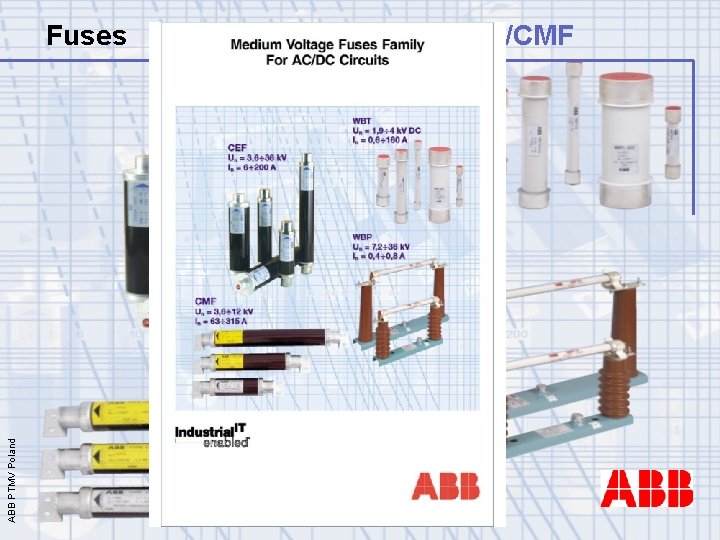

ABB PTMV Poland Fuses type CEF/CMF

HV fuses – normal operating conditions ABB PTMV Poland • Maximum ambient temperature +400 C • Minimum ambient temperature is 250 C • The altitude does not exceed 1000 m (3300 ft) • The ambient air is not excessively polluted by dust, smoke, corrosive or flammable gases, vapour or salt • Vibrations due to causes external to fuses or earth tremors are negligible • Typical condition of humidity for indoor installations are fulfilled

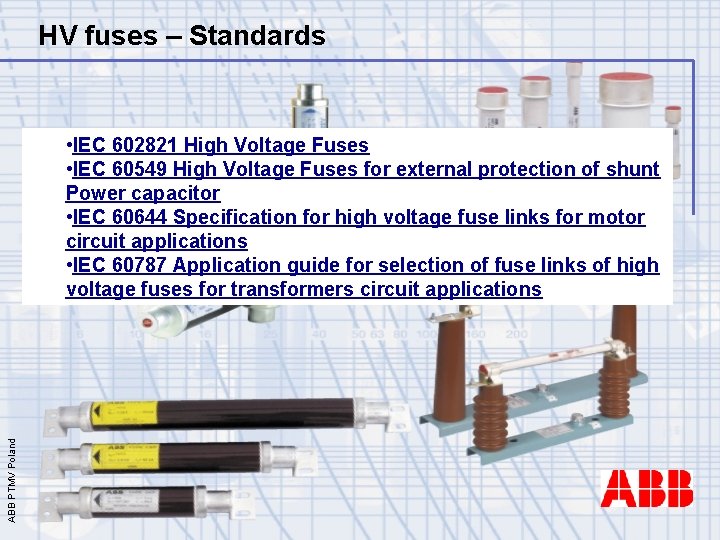

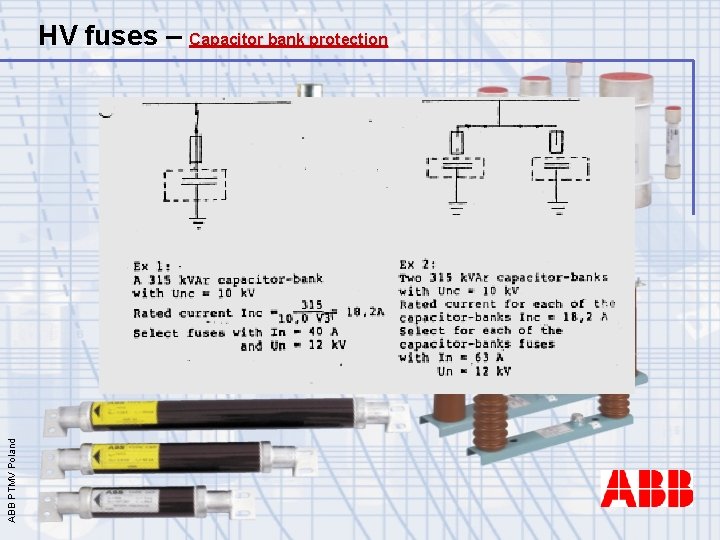

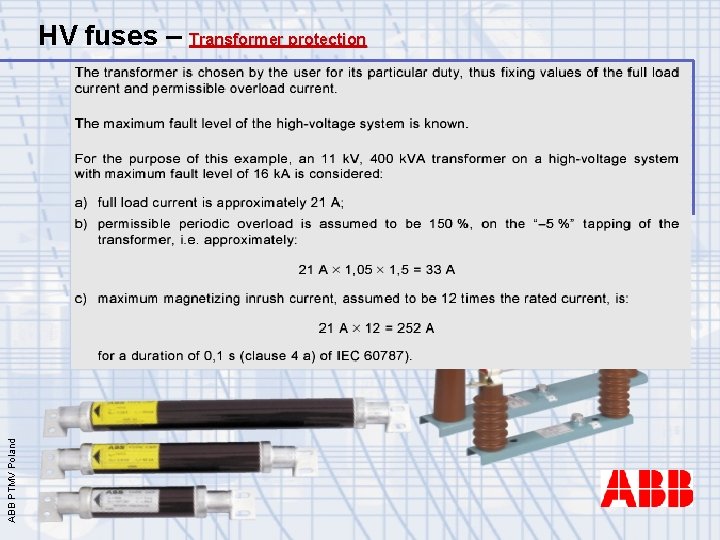

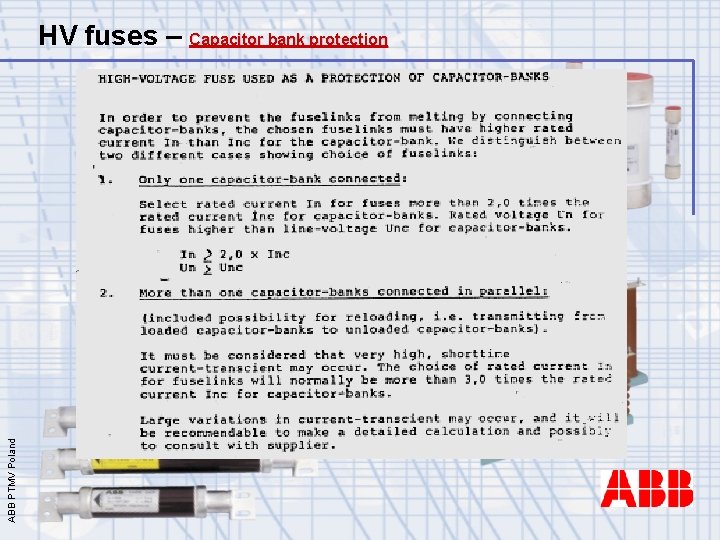

HV fuses – Standards ABB PTMV Poland • IEC 602821 High Voltage Fuses • IEC 60549 High Voltage Fuses for external protection of shunt Power capacitor • IEC 60644 Specification for high voltage fuse links for motor circuit applications • IEC 60787 Application guide for selection of fuse links of high voltage fuses for transformers circuit applications

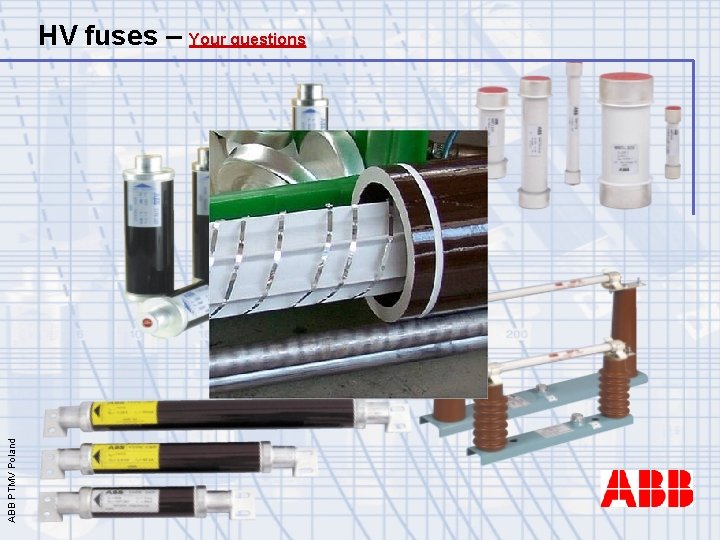

ABB PTMV Poland HV fuses – design

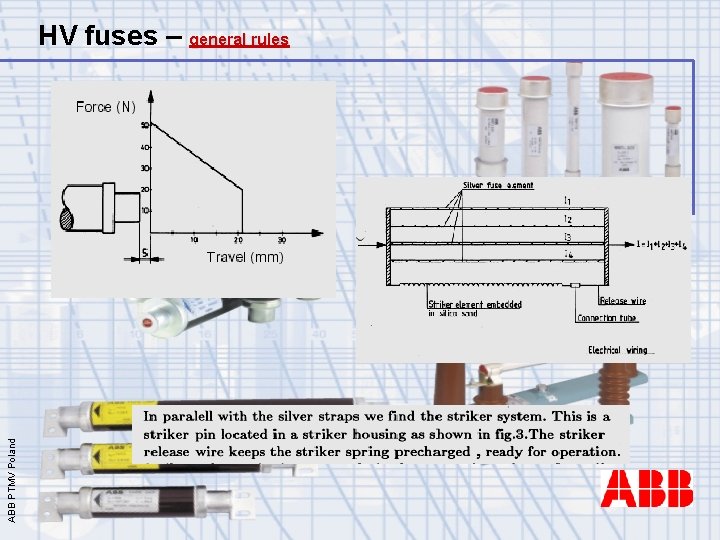

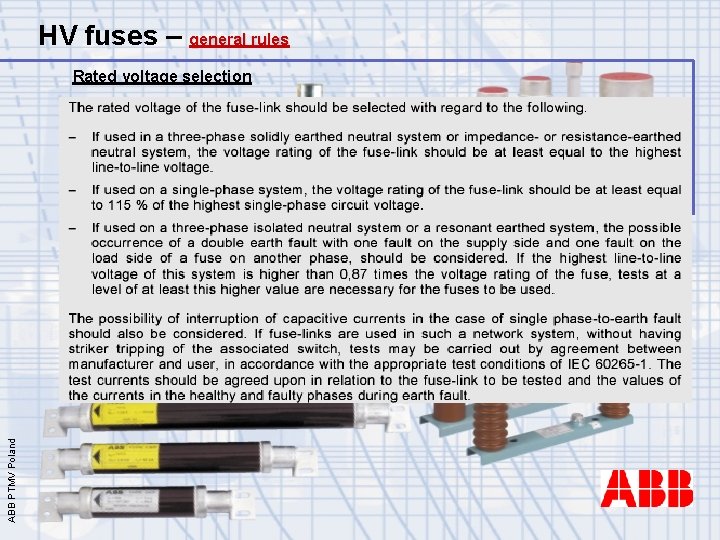

ABB PTMV Poland HV fuses – general rules

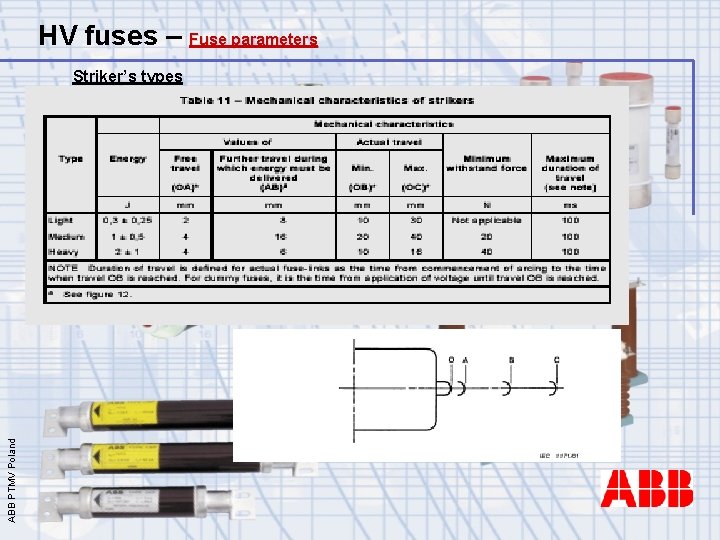

HV fuses – Fuse parameters ABB PTMV Poland Striker’s types

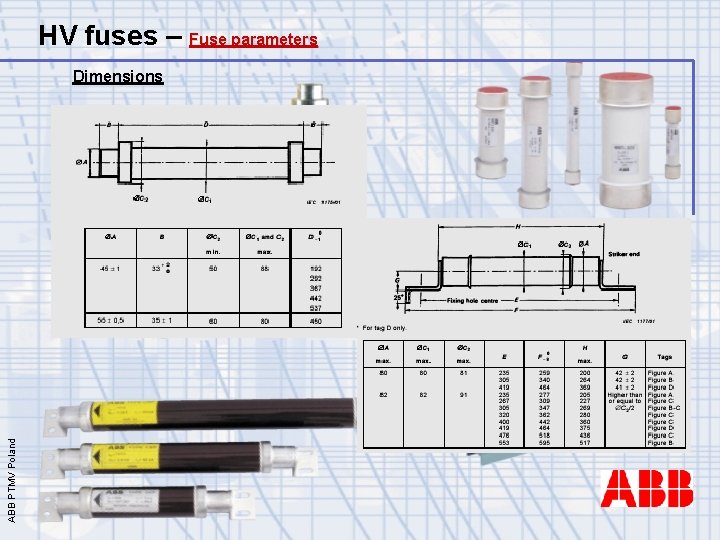

HV fuses – Fuse parameters ABB PTMV Poland Dimensions

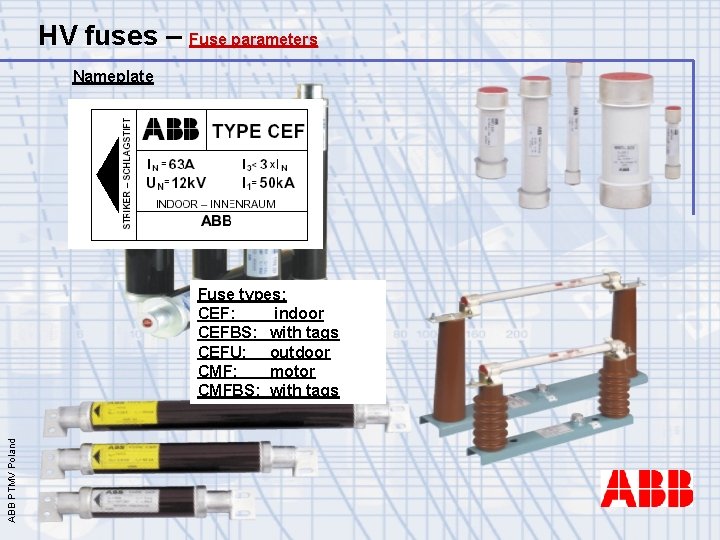

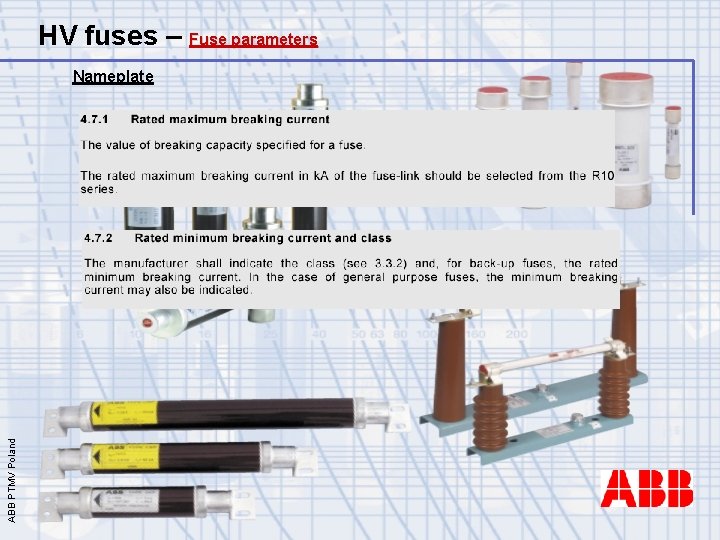

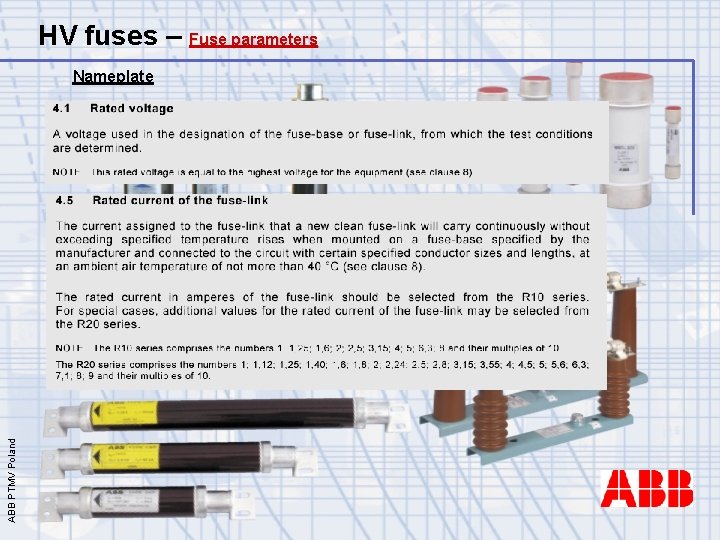

HV fuses – Fuse parameters Nameplate ABB PTMV Poland Fuse types: CEF: indoor CEFBS: with tags CEFU: outdoor CMF: motor CMFBS: with tags

HV fuses – Fuse parameters ABB PTMV Poland Nameplate

ABB PTMV Poland HV fuses – Graphic definition of currents

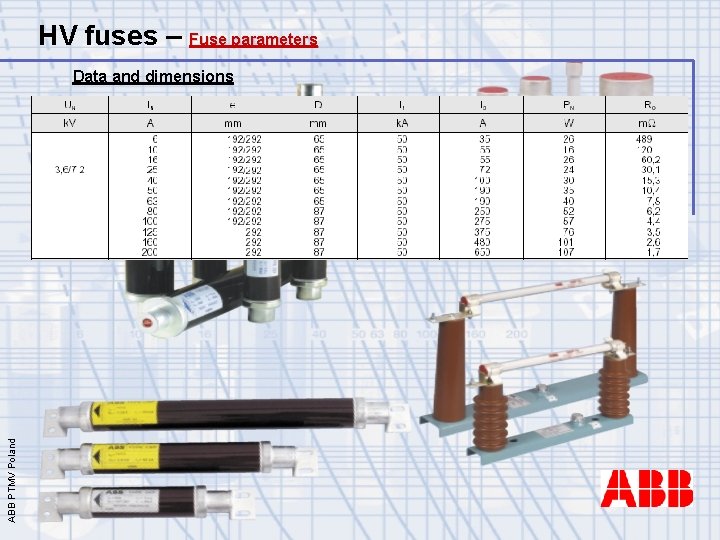

HV fuses – Fuse parameters ABB PTMV Poland Data and dimensions

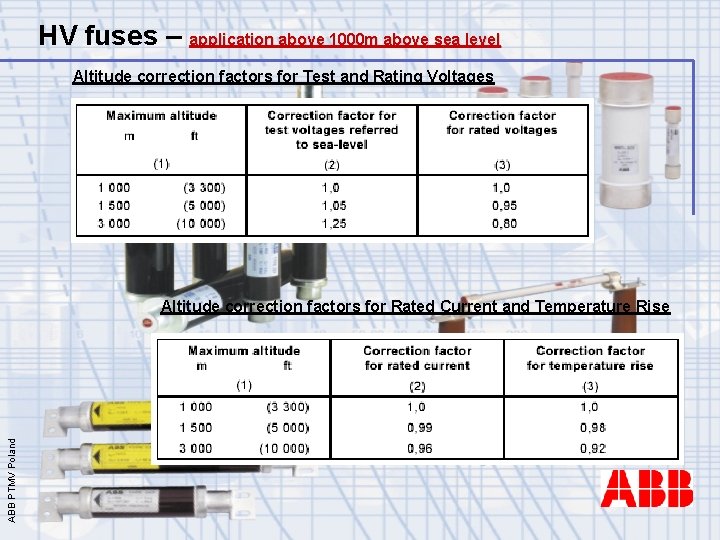

HV fuses – application above 1000 m above sea level Altitude correction factors for Test and Rating Voltages ABB PTMV Poland Altitude correction factors for Rated Current and Temperature Rise

ABB PTMV Poland HV fuses – Fuse operation

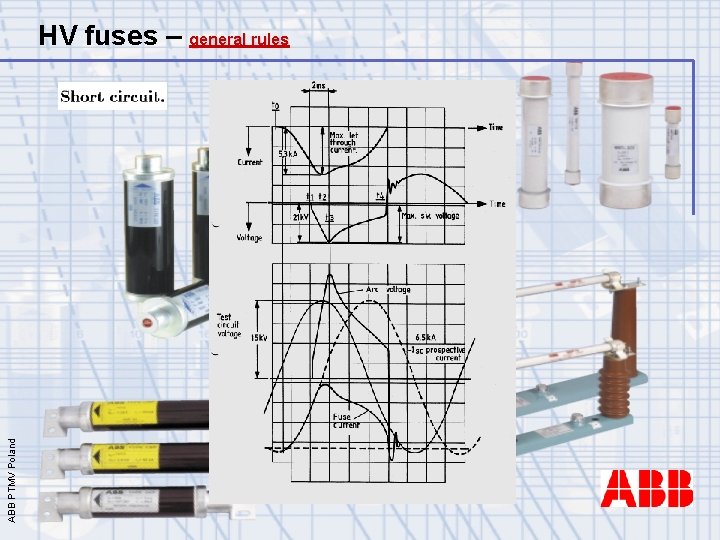

ABB PTMV Poland HV fuses – general rules

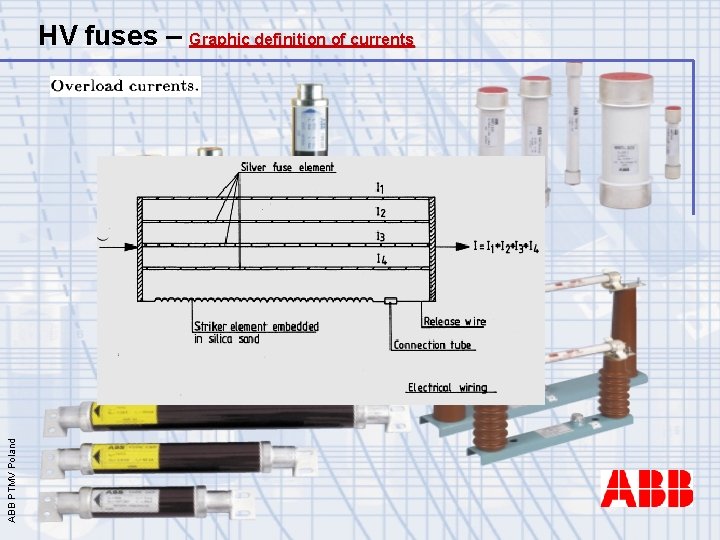

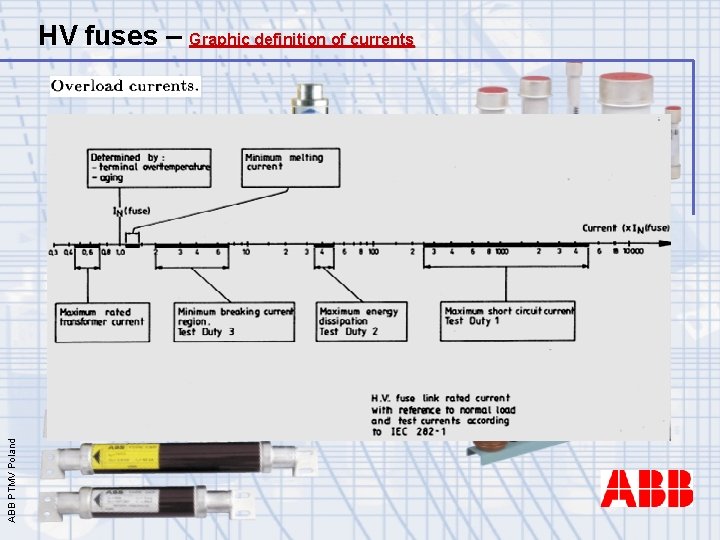

ABB PTMV Poland HV fuses – Graphic definition of currents

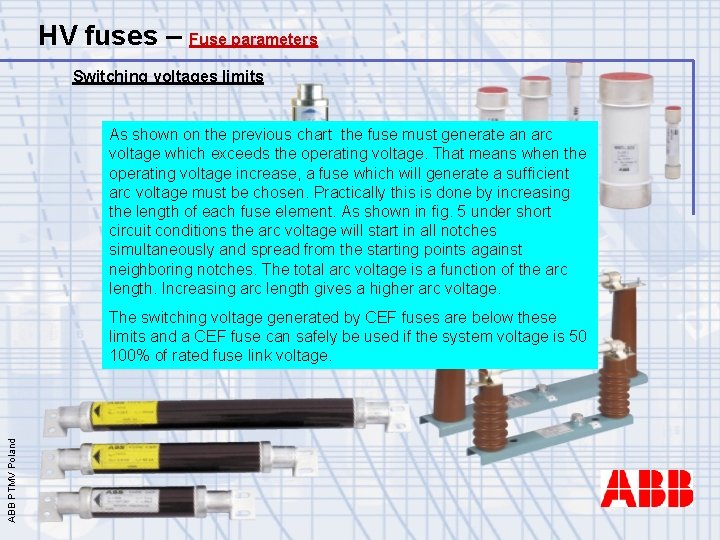

HV fuses – Fuse parameters Switching voltages limits As shown on the previous chart the fuse must generate an arc voltage which exceeds the operating voltage. That means when the operating voltage increase, a fuse which will generate a sufficient arc voltage must be chosen. Practically this is done by increasing the length of each fuse element. As shown in fig. 5 under short circuit conditions the arc voltage will start in all notches simultaneously and spread from the starting points against neighboring notches. The total arc voltage is a function of the arc length. Increasing arc length gives a higher arc voltage. ABB PTMV Poland The switching voltage generated by CEF fuses are below these limits and a CEF fuse can safely be used if the system voltage is 50 100% of rated fuse link voltage.

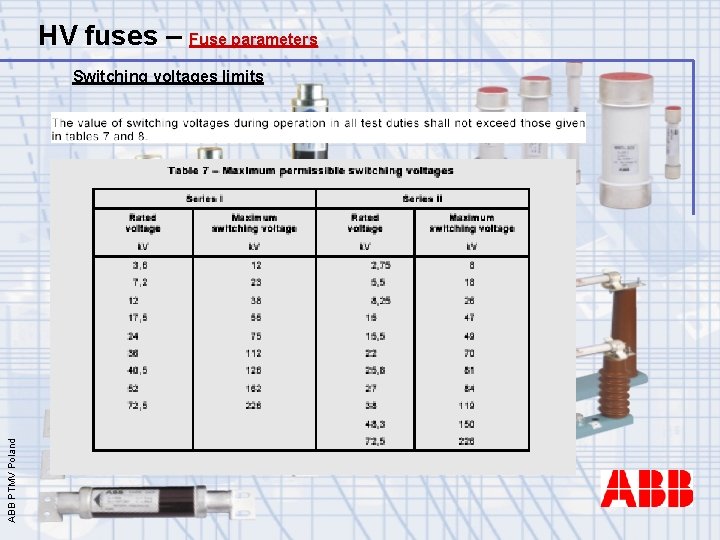

HV fuses – Fuse parameters ABB PTMV Poland Switching voltages limits

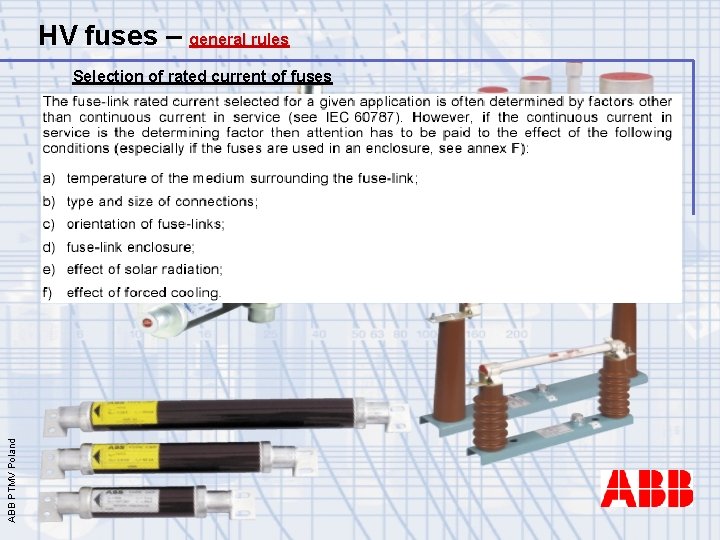

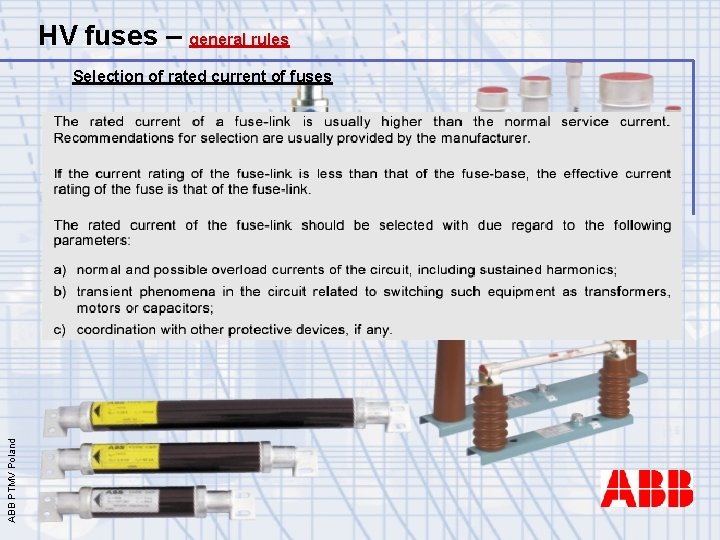

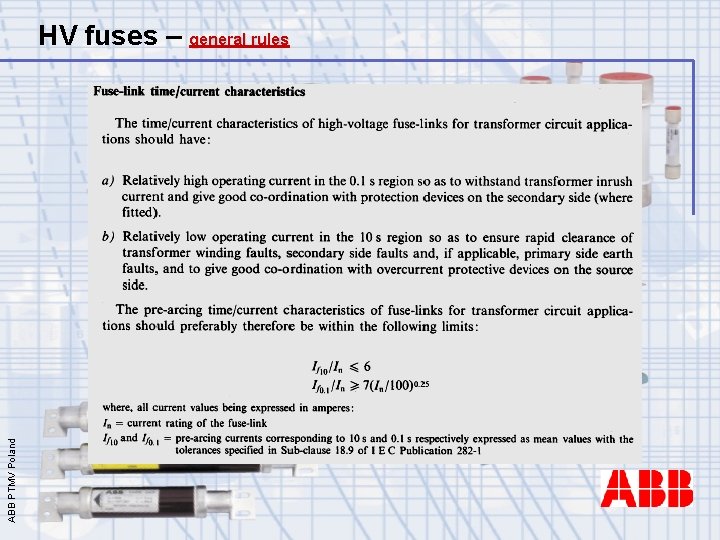

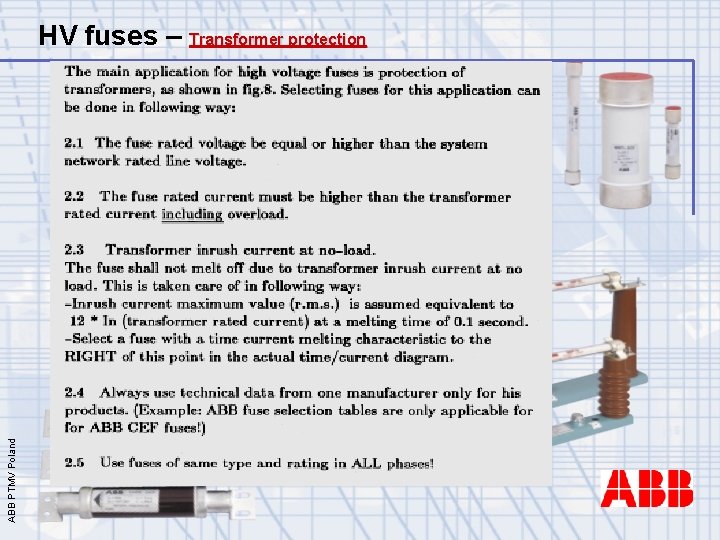

HV fuses – general rules ABB PTMV Poland Selection of rated current of fuses

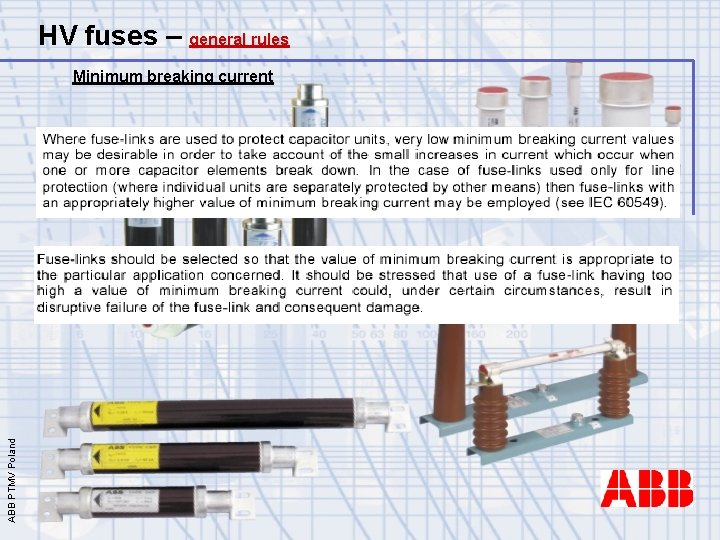

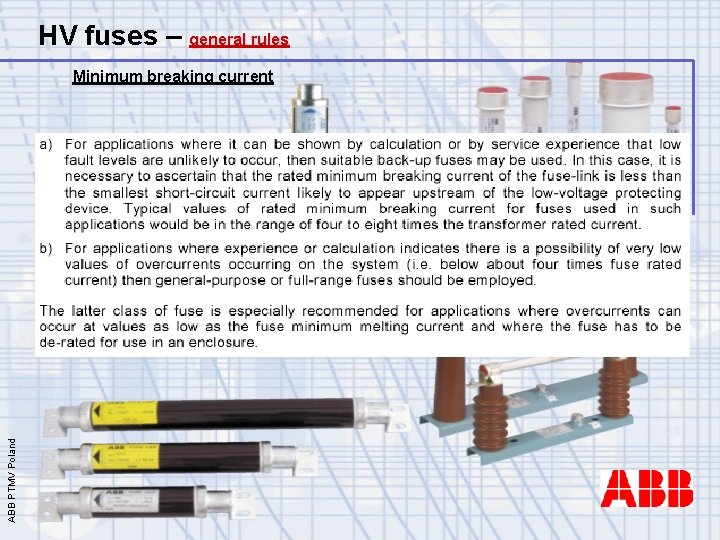

HV fuses – general rules ABB PTMV Poland Minimum breaking current

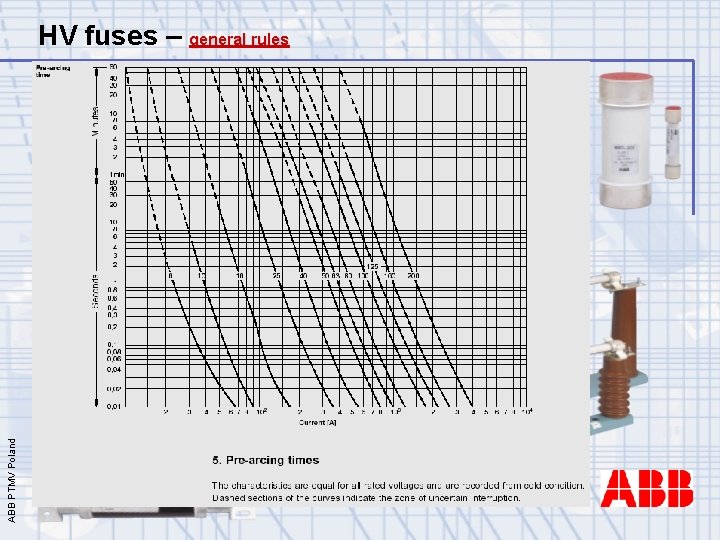

HV fuses – general rules ABB PTMV Poland Timecurrent characteristic

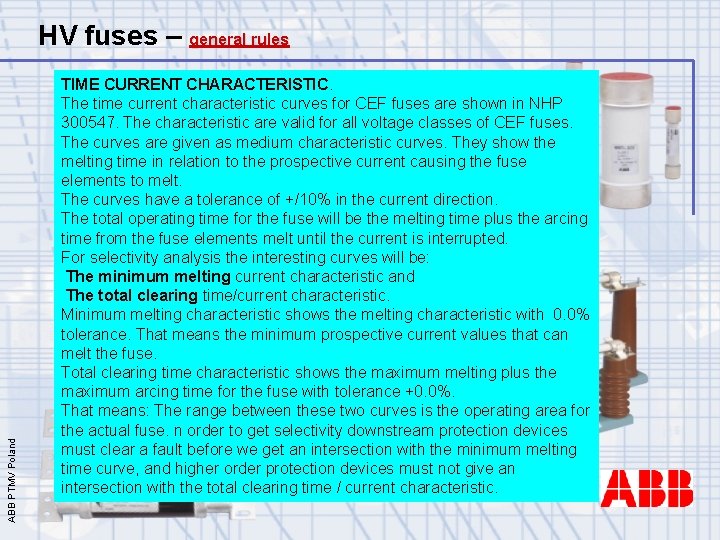

ABB PTMV Poland HV fuses – general rules TIME CURRENT CHARACTERISTIC. The time current characteristic curves for CEF fuses are shown in NHP 300547. The characteristic are valid for all voltage classes of CEF fuses. The curves are given as medium characteristic curves. They show the melting time in relation to the prospective current causing the fuse elements to melt. The curves have a tolerance of +/10% in the current direction. The total operating time for the fuse will be the melting time plus the arcing time from the fuse elements melt until the current is interrupted. For selectivity analysis the interesting curves will be: The minimum melting current characteristic and The total clearing time/current characteristic. Minimum melting characteristic shows the melting characteristic with 0. 0% tolerance. That means the minimum prospective current values that can melt the fuse. Total clearing time characteristic shows the maximum melting plus the maximum arcing time for the fuse with tolerance +0. 0%. That means: The range between these two curves is the operating area for the actual fuse. n order to get selectivity downstream protection devices must clear a fault before we get an intersection with the minimum melting time curve, and higher order protection devices must not give an intersection with the total clearing time / current characteristic.

ABB PTMV Poland HV fuses – general rules

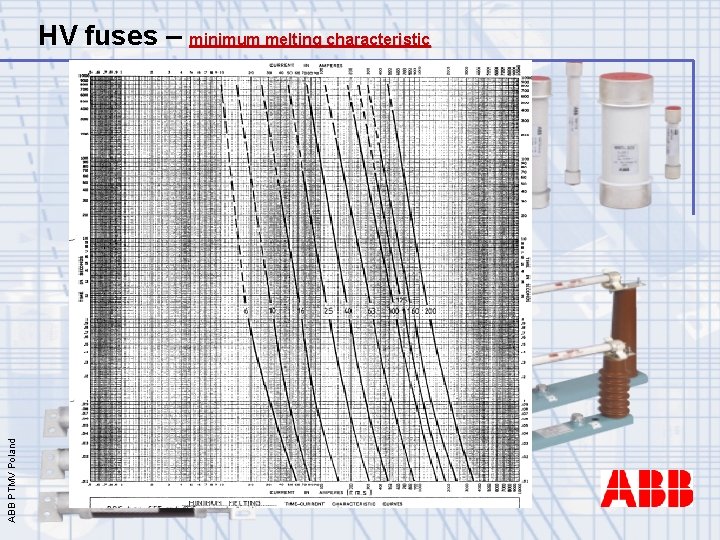

ABB PTMV Poland HV fuses – minimum melting characteristic

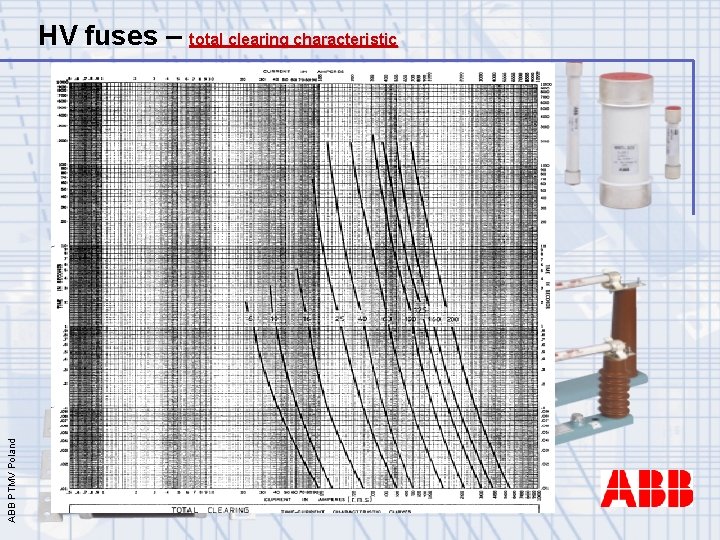

ABB PTMV Poland HV fuses – total clearing characteristic

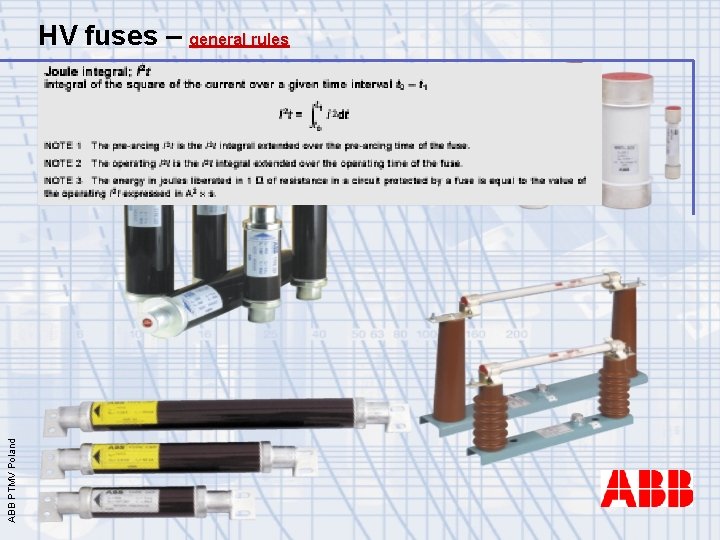

ABB PTMV Poland HV fuses – general rules

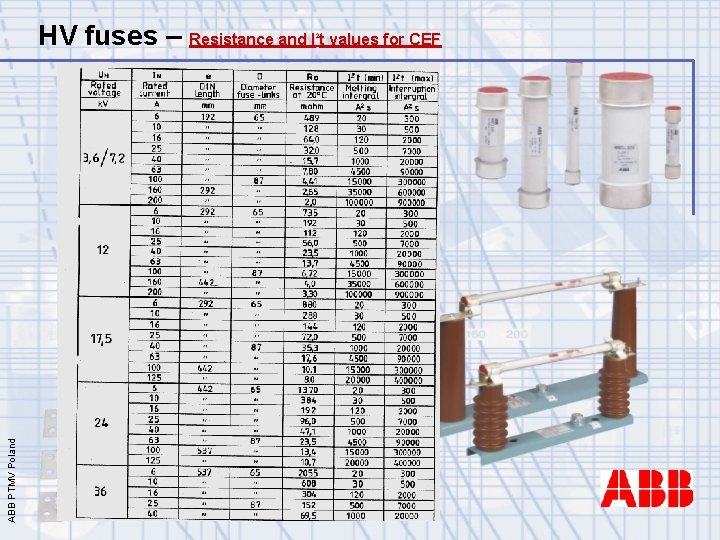

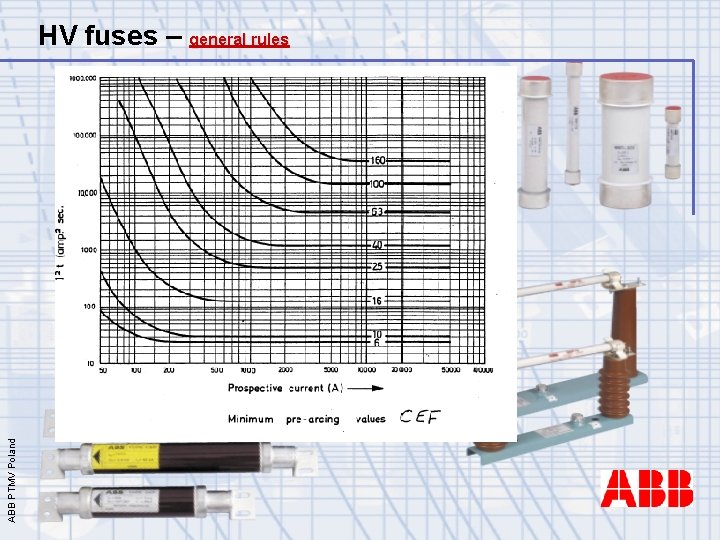

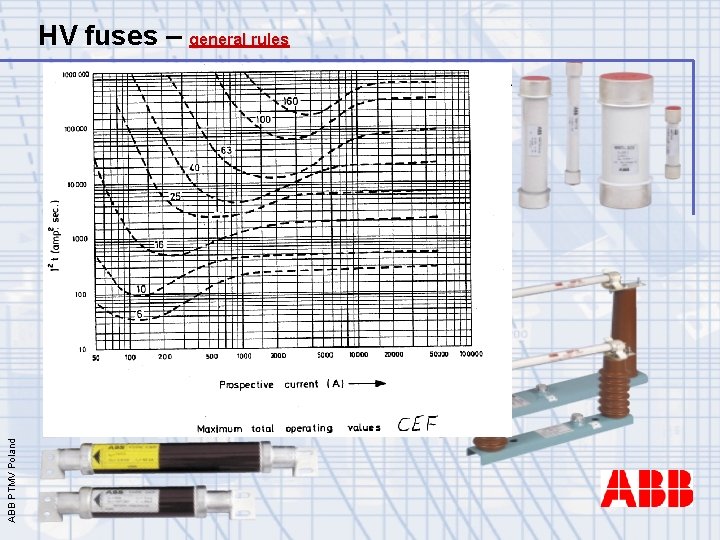

HV fuses – Resistance and I t values for CEF ABB PTMV Poland 2

ABB PTMV Poland HV fuses – Cut off current

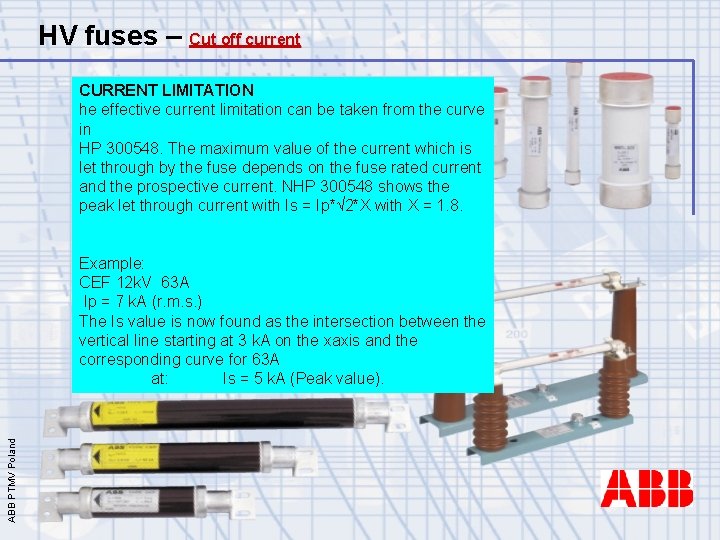

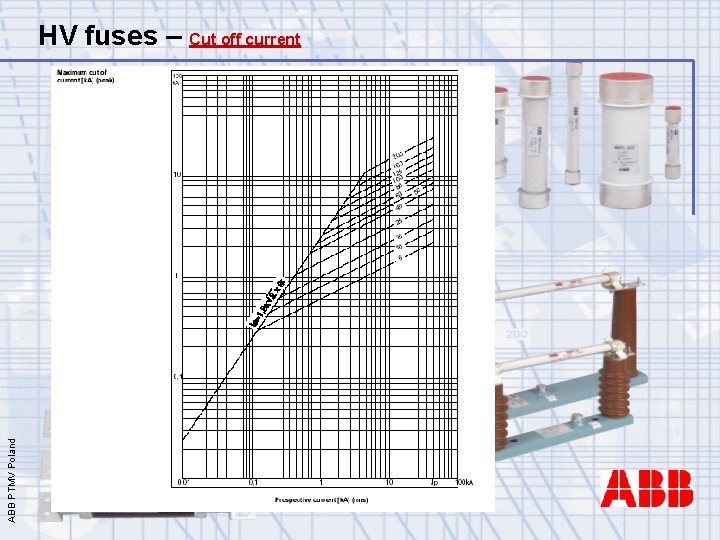

HV fuses – Cut off current CURRENT LIMITATION he effective current limitation can be taken from the curve in HP 300548. The maximum value of the current which is let through by the fuse depends on the fuse rated current and the prospective current. NHP 300548 shows the peak let through current with Is = Ip*√ 2*X with X = 1. 8. ABB PTMV Poland Example: CEF 12 k. V 63 A Ip = 7 k. A (r. m. s. ) The Is value is now found as the intersection between the vertical line starting at 3 k. A on the xaxis and the corresponding curve for 63 A at: Is = 5 k. A (Peak value).
