Mustang FPGA download Cable User Guide Install Quartus

Mustang FPGA download Cable User Guide

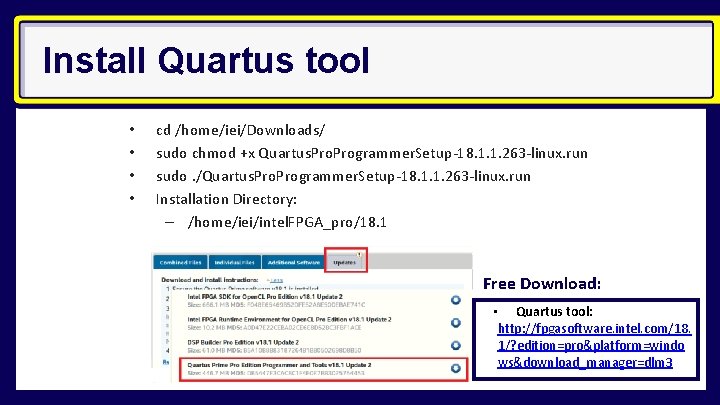

Install Quartus tool • • cd /home/iei/Downloads/ sudo chmod +x Quartus. Programmer. Setup-18. 1. 1. 263 -linux. run sudo. /Quartus. Programmer. Setup-18. 1. 1. 263 -linux. run Installation Directory: – /home/iei/intel. FPGA_pro/18. 1 Free Download: • Quartus tool: http: //fpgasoftware. intel. com/18. 1/? edition=pro&platform=windo ws&download_manager=dlm 3

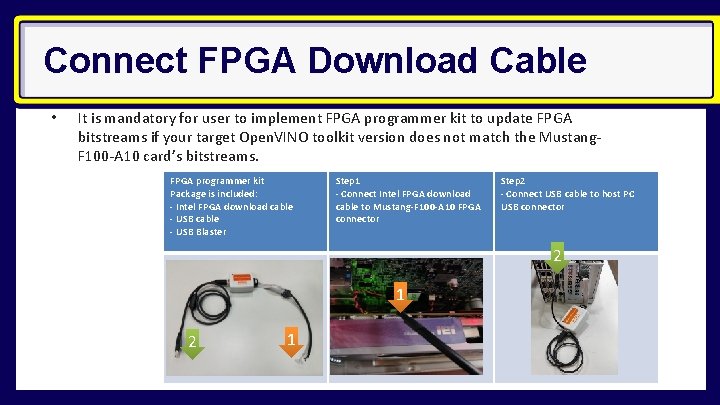

Connect FPGA Download Cable • It is mandatory for user to implement FPGA programmer kit to update FPGA bitstreams if your target Open. VINO toolkit version does not match the Mustang. F 100 -A 10 card’s bitstreams. FPGA programmer kit Package is included: - Intel FPGA download cable - USB Blaster Step 1 - Connect Intel FPGA download cable to Mustang-F 100 -A 10 FPGA connector Step 2 - Connect USB cable to host PC USB connector 2 1

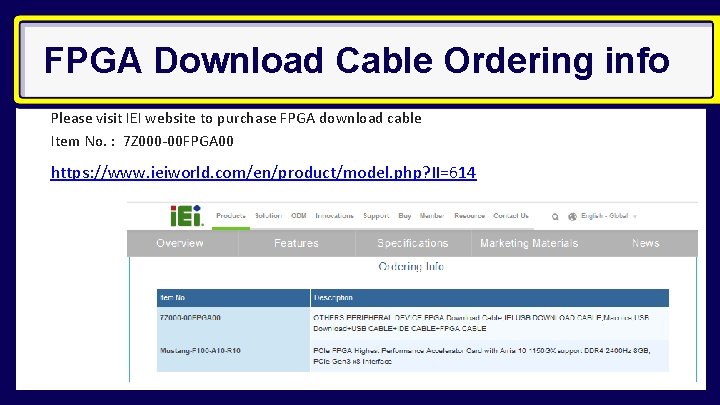

FPGA Download Cable Ordering info Please visit IEI website to purchase FPGA download cable Item No. : 7 Z 000 -00 FPGA 00 https: //www. ieiworld. com/en/product/model. php? II=614

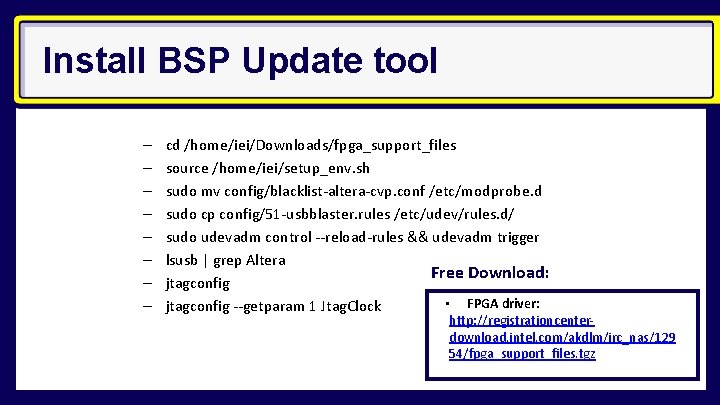

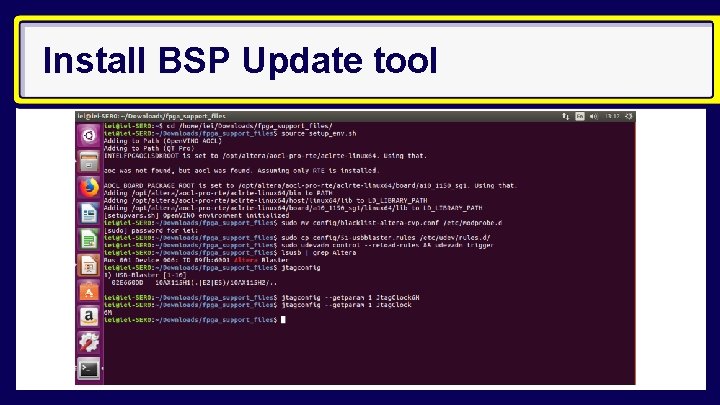

Install BSP Update tool – – – – cd /home/iei/Downloads/fpga_support_files source /home/iei/setup_env. sh sudo mv config/blacklist-altera-cvp. conf /etc/modprobe. d sudo cp config/51 -usbblaster. rules /etc/udev/rules. d/ sudo udevadm control --reload-rules && udevadm trigger lsusb | grep Altera Free Download: jtagconfig • FPGA driver: jtagconfig --getparam 1 Jtag. Clock http: //registrationcenterdownload. intel. com/akdlm/irc_nas/129 54/fpga_support_files. tgz

Install BSP Update tool

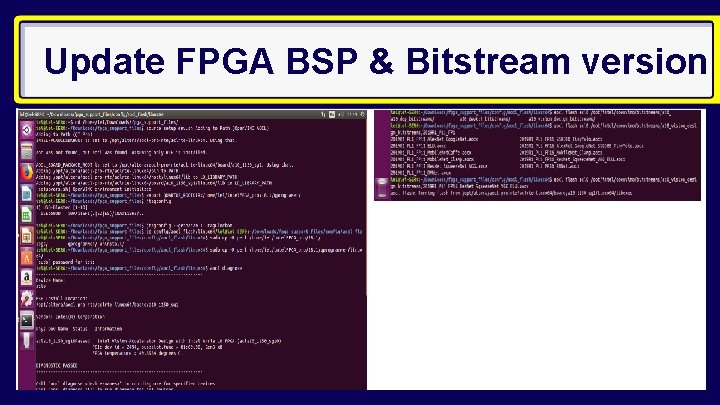

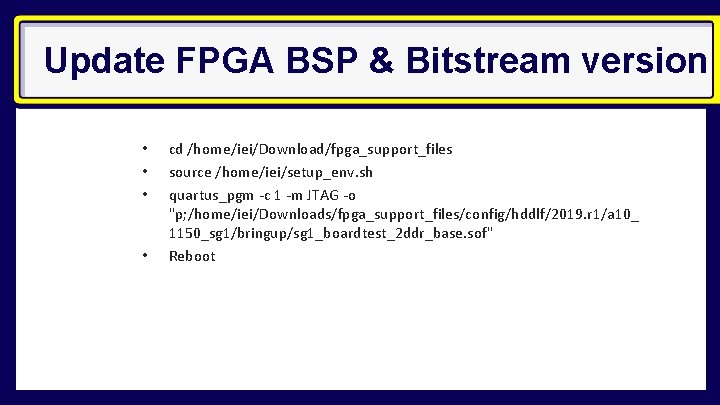

Update FPGA BSP & Bitstream version • • cd /home/iei/Download/fpga_support_files source /home/iei/setup_env. sh quartus_pgm -c 1 -m JTAG -o "p; /home/iei/Downloads/fpga_support_files/config/hddlf/2019. r 1/a 10_ 1150_sg 1/bringup/sg 1_boardtest_2 ddr_base. sof" Reboot

Update FPGA BSP & Bitstream version

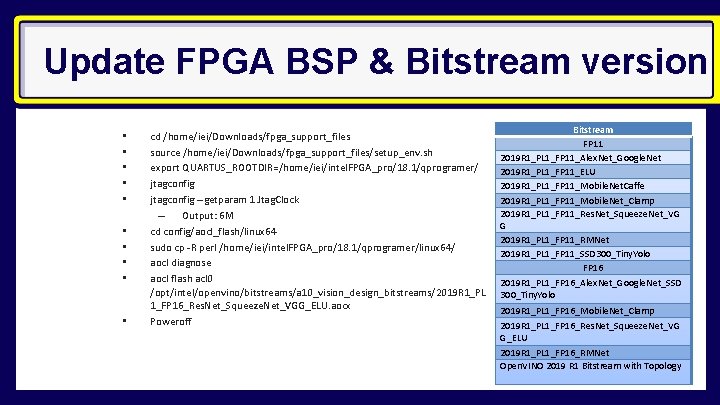

Update FPGA BSP & Bitstream version • • • cd /home/iei/Downloads/fpga_support_files source /home/iei/Downloads/fpga_support_files/setup_env. sh export QUARTUS_ROOTDIR=/home/iei/intel. FPGA_pro/18. 1/qprogramer/ jtagconfig --getparam 1 Jtag. Clock – Output: 6 M cd config/aocl_flash/linux 64 sudo cp -R perl /home/iei/intel. FPGA_pro/18. 1/qprogramer/linux 64/ aocl diagnose aocl flash acl 0 /opt/intel/openvino/bitstreams/a 10_vision_design_bitstreams/2019 R 1_PL 1_FP 16_Res. Net_Squeeze. Net_VGG_ELU. aocx Poweroff Bitstream FP 11 2019 R 1_PL 1_FP 11_Alex. Net_Google. Net 2019 R 1_PL 1_FP 11_ELU 2019 R 1_PL 1_FP 11_Mobile. Net. Caffe 2019 R 1_PL 1_FP 11_Mobile. Net_Clamp 2019 R 1_PL 1_FP 11_Res. Net_Squeeze. Net_VG G 2019 R 1_PL 1_FP 11_RMNet 2019 R 1_PL 1_FP 11_SSD 300_Tiny. Yolo FP 16 2019 R 1_PL 1_FP 16_Alex. Net_Google. Net_SSD 300_Tiny. Yolo 2019 R 1_PL 1_FP 16_Mobile. Net_Clamp 2019 R 1_PL 1_FP 16_Res. Net_Squeeze. Net_VG G_ELU 2019 R 1_PL 1_FP 16_RMNet Open. VINO 2019 R 1 Bitstream with Topology

Update FPGA BSP & Bitstream version
