MUSIC 318 MINI-COURSE ON SPEECH AND SINGING 2. ARTICULATION AND FORMANTS Science of Sound, Chapter 15 The Speech Chain, Chapter 4 http: //www. phys. unsw. edu. au/music/

VOWELS OF AMERICAN ENGLISH

MUSCLES OF THE TONGUE

TONGUE POSITIONS FOR CARDINAL VOWELS

VOCAL TRACT CONFIGURATIONS FOR VOWELS i, o, oo

THE EFFECT OF FORMANTS ON SOUND

FORMANT FREQUENCIES AND AMPLITUDES (AVERAGE OF 76 SPEAKERS)

THE WEBSITE http: //www. phys. unsw. edu. au/jw/voice. html IS HIGHLY RECOMMENDED. PROFS. WOLFE AND SMITH AT THE UNIVERSITY OF NEW SOUTH WALES IN AUSTRALIA TEACH A COURSE SIMILAR TO THIS ONE. • Introduction and overview • The source • The filter • Vowels • Consonants • Source-filter interactions • Contrasting the voice with wind instruments The Source-Filter model Some difficulties • The source at the larynx • Different registers and vocal mechanisms • Producing a sound • When is the source independent of the filter? • Resonances, spectral peaks, formants, phonemes and timbre • Phonemes • The vocal tract as a pipe or duct • Resonances, frequency, pitch and hearing • Timbre and singing • The origin of vocal tract resonances • Tract-wave interactions • Do the ‘source’ and the ‘filter’ affect each other? • Does the glottis affect the tract resonances? • Do pressure waves affect the vocal fold vibration? • Do singers and speakers use tract resonances and pitch in a coordinated way? • Harmonic singing • The singers formant • References • Links • •

VOWEL FORMANT FREQUENCIES

CLOSED PIPE MODEL OFTHE VOCAL TRACT

SIMPLE MODELS OF THE VOCAL TRACT

OPEN AND CLOSED PIPES OPEN PIPE CLOSED PIPE

USING VOCAL FRY TO DETERMINE FORMANTS VOCAL FRY IS A BUBBLING AIR THROUGH CLOSED VOCAL FOLDS AT A RATE SLOW ENOUGH THAT THE INDIVIDUAL IMPULSES ARE HEARD AS SEPARATE TICKS. THE RESULTANT WEAK SOUND ARTICULATES THE VARIOUS VOWELS, AND THEIR SPECTRA CAN REVEAL THE FREQUENCIES OF AT LEAST THE FIRST TWO FORMANTS. /i/ /e/ /ε/ /ae/ VOCAL FRY SPECTRA OF FOUR FRONT VOWELS. CURSOR ON F 2 OF /ae/

CONSONANTS INVOLVE VERY RAPID, SOMETIMES SUBTLE , CHANGES IN SOUND. CONSONANTS ARE MORE DIFFICULT TO ANALYZE AND TO DESCRIBE ACOUSTICALLY CONSONANTS MAY BE CLASSIFIED ACCORDING TO THE MANNER OF ARTICULATION AS PLOSIVE, FRICATIVE, NASAL, LIQUID, AND SEMIVOWEL. PLOSIVE CONSONANTS (p, b, t, etc. ) ARE PRODUCED BY BLOCKING THE FLOW OF AIR (USUALLY IN THE MOUTH) AND RELEASING THE PRESSURE RATHER SUDDENLY FRICATIVES (f, s, sh, etc. ) ARE MADE BY CONSTRICTING THE FLOW TO PRODUCE TURBULENCE NASALS (m, n, ng) ARE MADE BY LOWER THE SOFT PALATE TO CONNECT THE NASAL CAVITY TO THE PHARYNX AND BLOCKING THE MOUTH CAVITY SOMEWHERE SEMIVOWELS (w, y) ARE PRODUCED BY KEEPING THE VOCAL TRACT BRIEFLY IN A VOWEL POSITION AND THEN CHANGING IT RAIDLY TO THE VOWEL SOUND THAT FOLLOWS IN SOUND THE LIQUIDS (r, l) THE TIP OF THE TONGUE IS RAISED AND THE ORAL CAVITY IS SOMEWHAT RESTRICTED

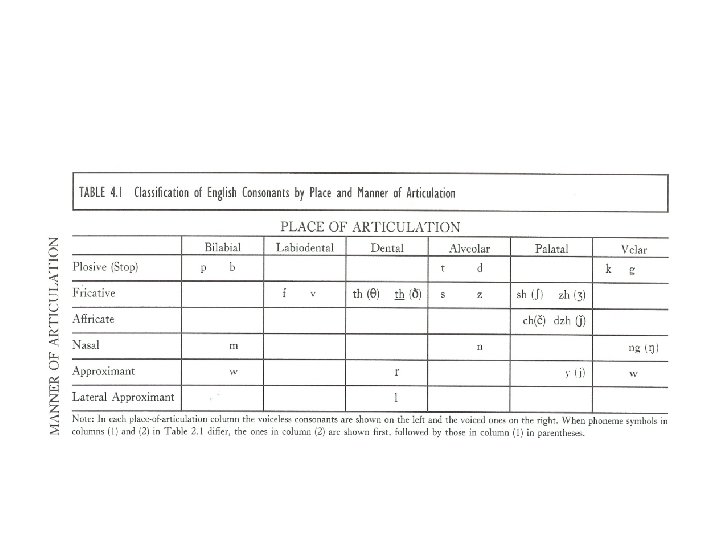

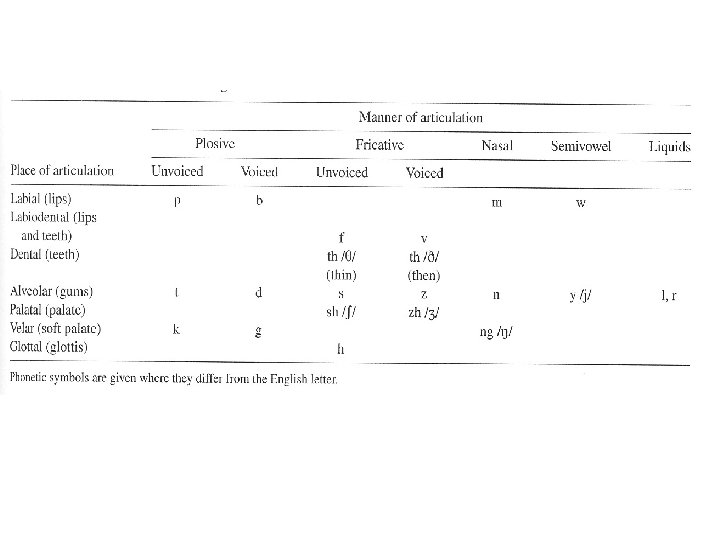

PLACE OF ARTICULATION CONSONANTS ARE FURTHER CLASSIFIED ACCORDING TO THEIR PLACE OF ARTICULATION, LKPRIMARILY THE LIPS, THE TEETH, THE GUMS, THE PALATE, AND THE GLOTTIS. TERMS USED BY SPEECH SCIENTISTS TO DENOTE PLACE OF ARTICULATION INCLUDE LABIAL (LIPS), DENTAL (TEETH), ALVEOLAR (GUMS), PALATAL (PALATE), VELAR (SOFT PALATE), GLOTTAL (GLOTTIS), AND LABIODENTAL (LIPS AND TEETH) FINALLY, CONSONANTS ARE CLASSIFIED AS VOICED OR UNVOICED PLACE OF ARTICULATION OF PLOSIVES

VOCAL TRACT WITH SOFT PALATE LOWERED (AS FOR BREATHING)

VOCAL TRACT WITH SOFT PLATE RAISED (FOR ARTICULATING NON-NASAL SOUNDS)

VOICE QUALITY IS A BROAD TERM THAT REFERS TO THE EXTRALINGUISTIC ASPECTS OF A SPEAKER’S VOICE WITH REGARD TO IDENTITY, PERSONALITY, HEALTH, AND EMOTIONAL STATE. VOCAL FOLD MASS, VOCAL TRACT LENGTH, TRACHEAL LENGTH, JAW AND TONGUE SIZE, AND NASAL CAVITY VOLUME MAY INDICATE INFORMATION ABOUT AGE, SEX, PHYSIQUE, AND HEALTH.

NORMAL, “YAWNY”, AND “TWANGY” VOICE Story, Titze, and Hoffman (2001) did a 3 -dimensional study of the vocal tract using MRI to determine the shape when vowels /i/, /ae/, /α/, and /u/ were spoken with NORMAL, “YAWNY”, and “TWANGY” voice. Relative to NORMAL speech, the ORAL CAVITY is widened and the TRACT is lengthened for YAWNYY vowels. F 1 and F 2 moved closer together. TWANGY vowels were characterized by shortened TRACT length, widened LIP OPENING, and a slightly constricted ORAL CAVITY. F 1 and F 2 moved farther apart.

Story, Titze Hoffman, 2001)

Story, Titze and Hoffman, 2001)

ECHOES is a quarterly newsletter of the Acoustical Society of America, edited by Thomas Rossing. It reports acoustics news, and the editor scans scientific journals for interesting articles about acoustics. ECHOES can be read online at http: //asa. aip. org/echoes. html. Copies are also available from the editor. Here a couple of recent items about speech production: A newly-discovered gene, called tospeak by its discoverers, enables us to speak by helping to keep our vocal tract limber, according to a story in Novmber 2009 issue of Science News. Researchers discovered the gene in an Australian family with a speaking disorder. Many of the women in the family have weak, husky voices, while their male relatives cannot speak above a whisper. Family members with the speaking problem have short, thick vocal folds that don’t vibrate properly. (ECHOES, Winter 2010). A 60 -year old man learned to sing so he could learn to talk again, according to a story in the April 22, 2008 issue of The New York Times. A stroke had paralyzed the right side of his body and brought on a condition known as aphasia. Complex verbal communication was impossible. One day therapist asked him to sing. “How can I sing if I can’t talk, ” he remembered thinking. But as soon as therapist sang “Happy birthday” he chimed in. (ECHOES, Summer 2008)
