Musculoskeletal Anatomy Quiz The bones muscles and muscular
Musculoskeletal Anatomy Quiz The bones, muscles and muscular action below the belt…
What’s to Come T T Quick review of the bones Origin, insertion, and action of muscles Muscles categorized by their action Test yourself with the diagram and click for the answer… All images scanned from: Sieg & Adams, Illustrated Essentials of Musculoskeletal Anatomy
Bones in Review

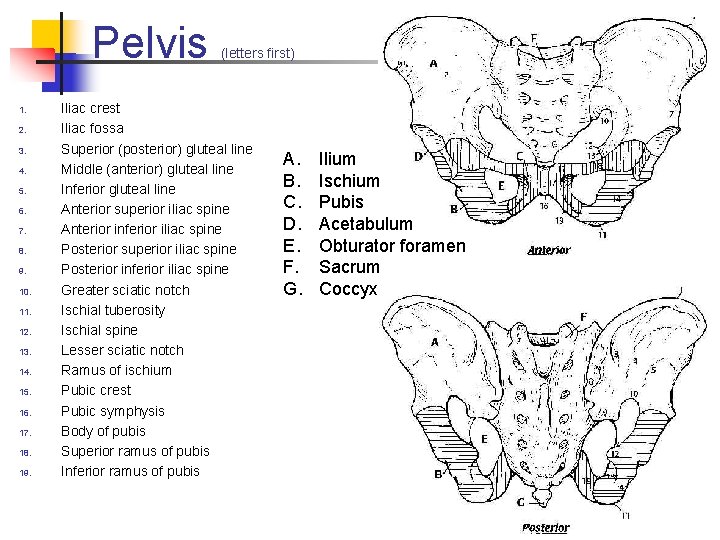

Pelvis 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. (letters first) Iliac crest Iliac fossa Superior (posterior) gluteal line Middle (anterior) gluteal line Inferior gluteal line Anterior superior iliac spine Anterior inferior iliac spine Posterior superior iliac spine Posterior inferior iliac spine Greater sciatic notch Ischial tuberosity Ischial spine Lesser sciatic notch Ramus of ischium Pubic crest Pubic symphysis Body of pubis Superior ramus of pubis Inferior ramus of pubis A. B. C. D. E. F. G. Ilium Ischium Pubis Acetabulum Obturator foramen Sacrum Coccyx

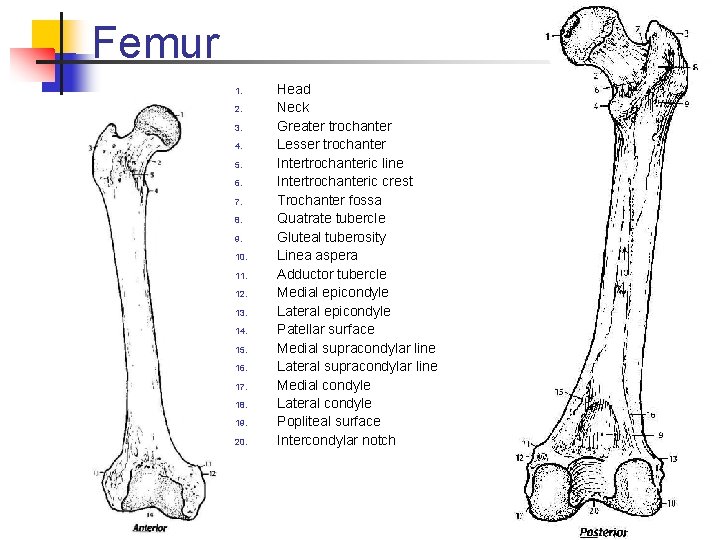

Femur 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. Head Neck Greater trochanter Lesser trochanter Intertrochanteric line Intertrochanteric crest Trochanter fossa Quatrate tubercle Gluteal tuberosity Linea aspera Adductor tubercle Medial epicondyle Lateral epicondyle Patellar surface Medial supracondylar line Lateral supracondylar line Medial condyle Lateral condyle Popliteal surface Intercondylar notch

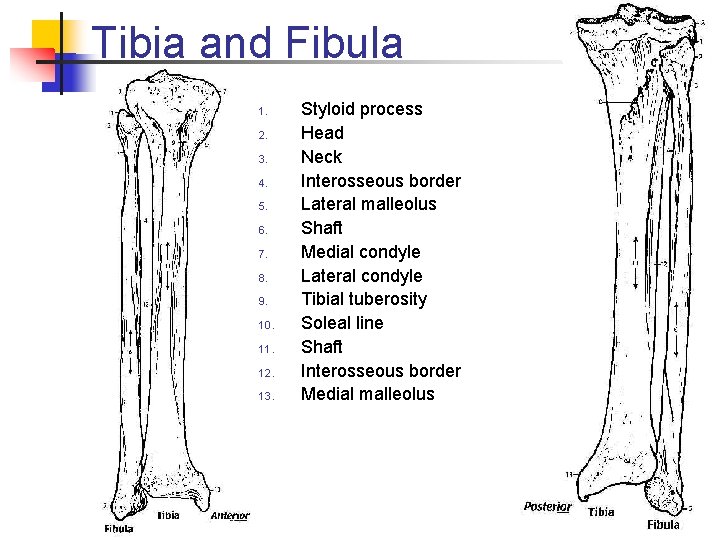

Tibia and Fibula 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Styloid process Head Neck Interosseous border Lateral malleolus Shaft Medial condyle Lateral condyle Tibial tuberosity Soleal line Shaft Interosseous border Medial malleolus

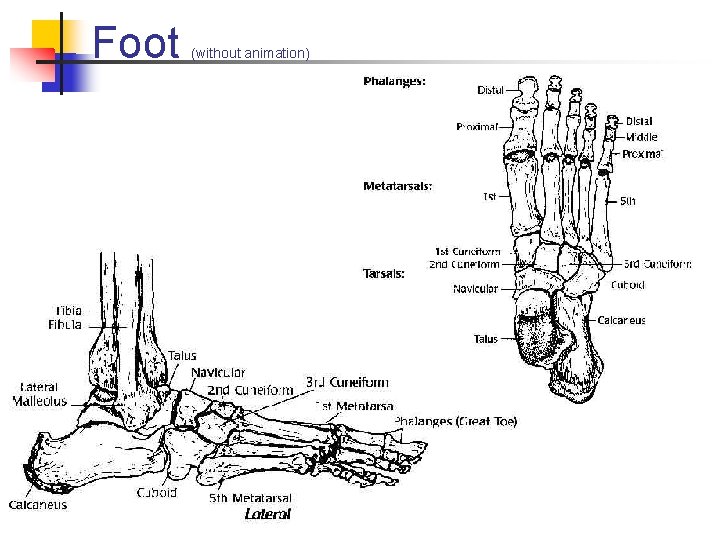

Foot (without animation)
Extensors of Spine

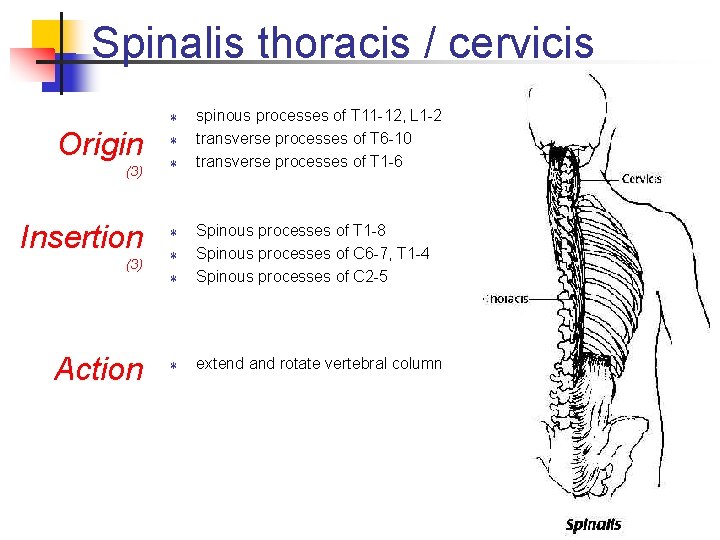

Spinalis thoracis / cervicis T Origin (3) Insertion (3) Action T T spinous processes of T 11 -12, L 1 -2 transverse processes of T 6 -10 transverse processes of T 1 -6 T Spinous processes of T 1 -8 Spinous processes of C 6 -7, T 1 -4 Spinous processes of C 2 -5 T extend and rotate vertebral column T T
semispinalis thoracis / cervicus Origin (3) Insertion T T Spinous processes of T 1 -8 Spinous processes of C 6 -7, T 1 -4 Spinous processes of C 2 -5 T extend and rotate vertebral column T (3) T Action spinous processes of T 11 -12, L 1 -2 transverse processes of T 6 -10 transverse processes of T 1 -6
Leg / Hip Flexors
Psoas Major Origin Insertion Action T T T (2) T bodies, transverse processes lumbar vertebrae lesser trochanter of femur flexes and rotates thigh laterally flexes vertebrae
Iliacus Origin T iliac fossa of ilium Insertion T lesser trochanter of femur Action T (2) T flexes and rotates thigh laterally flexes vertebrae
Leg Extensors & Abductors
Gluteus Maximus Origin T iliac crest, sacrum, coccyx Insertion T gluteal tuberosity of femur Action T extends and rotates thigh laterally

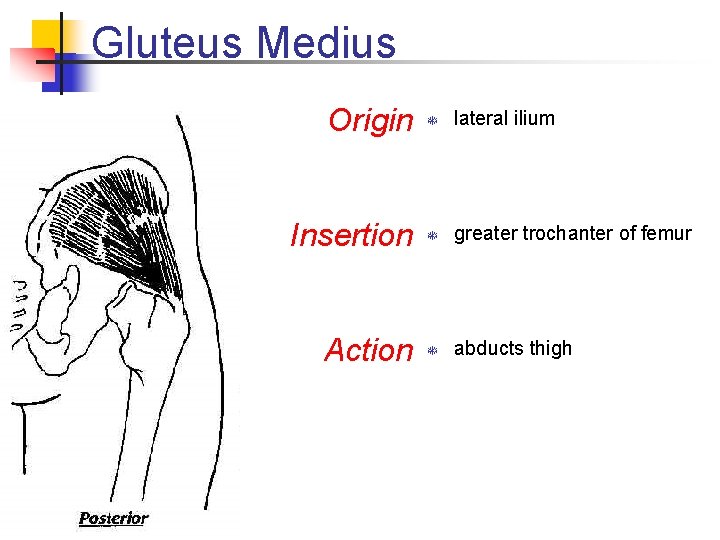

Gluteus Medius Origin T lateral ilium Insertion T greater trochanter of femur Action T abducts thigh
Gluteus Minimus Origin T lateral ilium Insertion T greater trochanter of femur T abducts thigh Action

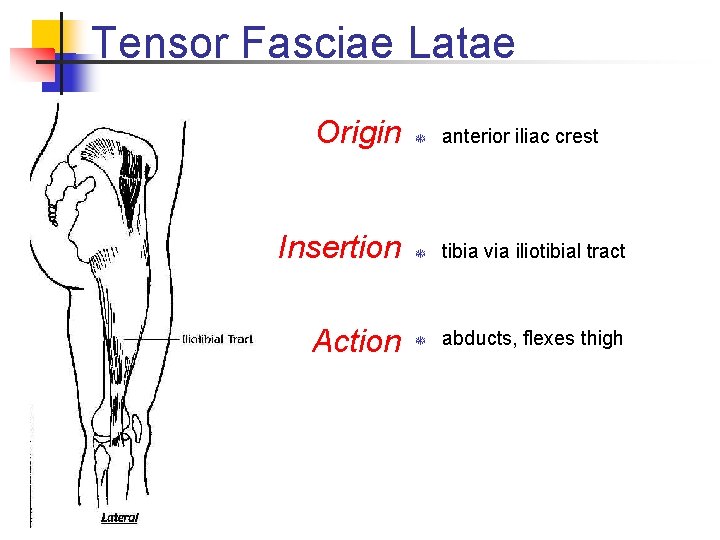

Tensor Fasciae Latae Origin T anterior iliac crest Insertion T tibia via iliotibial tract T abducts, flexes thigh Action
Leg Adductors

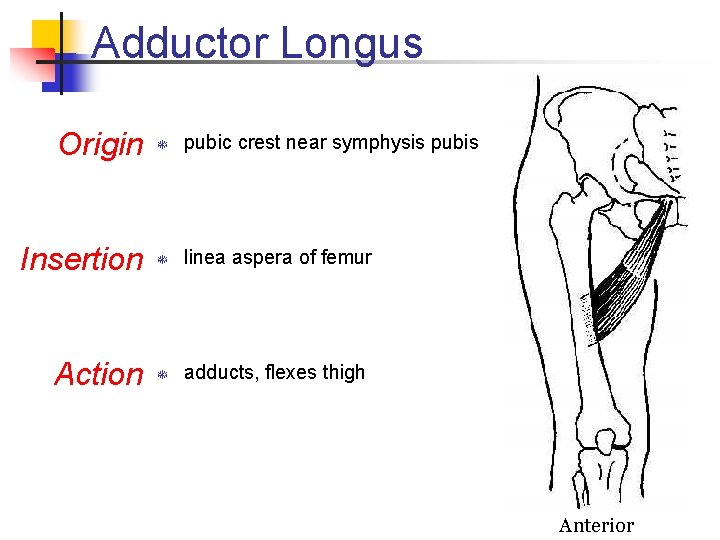

Adductor Longus Origin T pubic crest near symphysis pubis Insertion T linea aspera of femur Action T adducts, flexes thigh Anterior

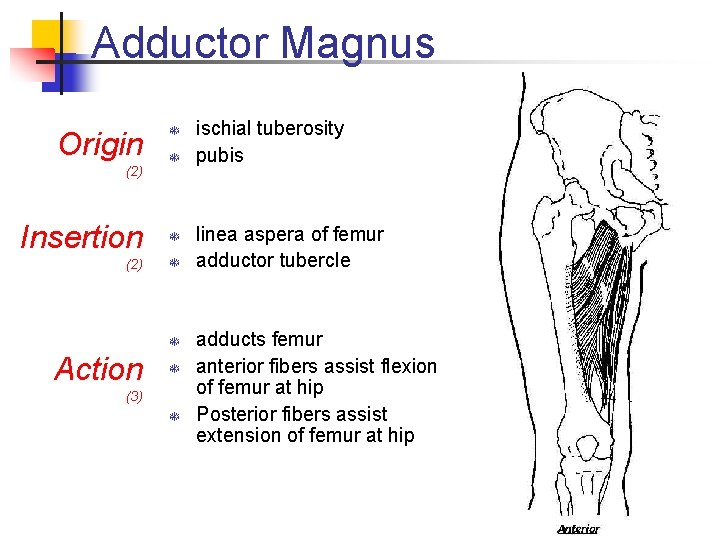

Adductor Magnus Origin (2) T T Insertion T (2) T T Action T (3) T ischial tuberosity pubis linea aspera of femur adductor tubercle adducts femur anterior fibers assist flexion of femur at hip Posterior fibers assist extension of femur at hip
Gracilis Origin T pubic ramus Insertion T medial surface of tibial shaft Action T (2) T adducts thigh flexes leg at knee
Leg Flexors

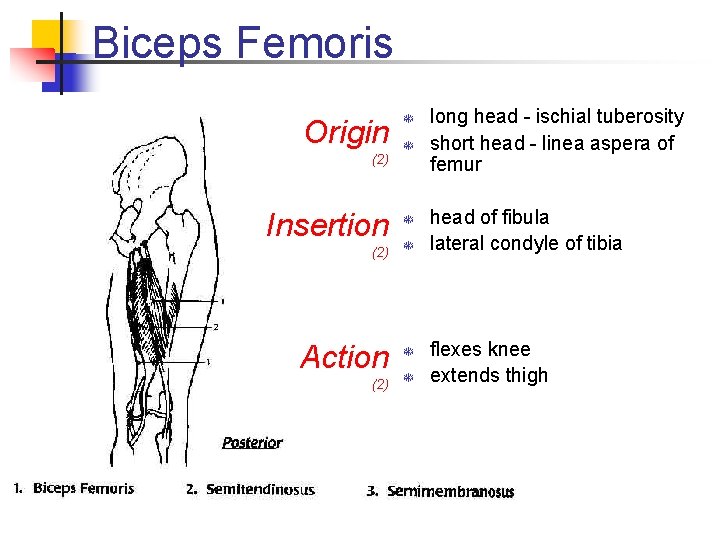

Biceps Femoris Origin (2) Insertion T T T (2) T Action T (2) T long head - ischial tuberosity short head - linea aspera of femur head of fibula lateral condyle of tibia flexes knee extends thigh
Semitendinosus Origin T Insertion T Action T (2) T ischial tuberosity medial, proximal surface of tibia flexes knee extends thigh

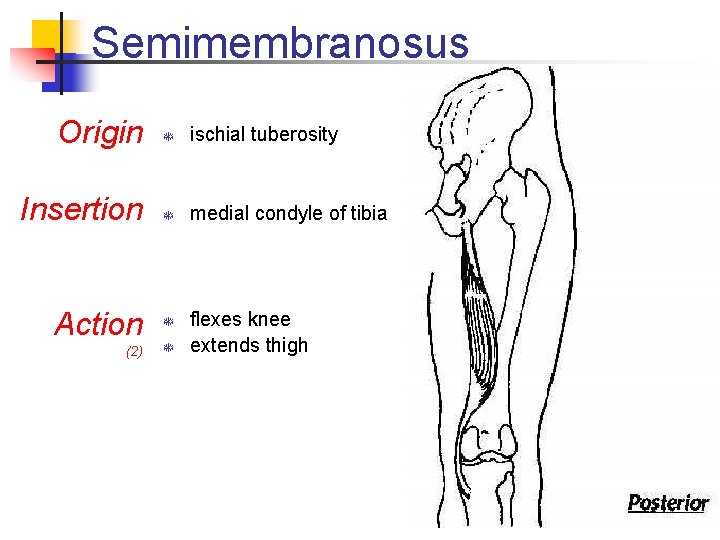

Semimembranosus Origin T ischial tuberosity Insertion T medial condyle of tibia Action (2) T T flexes knee extends thigh
Sartorius Origin T Insertion T (2) T Action T (2) T anterior superior iliac spine medial surface of tibia proximal surface of tibia flexes leg and thigh rotates thigh laterally (crosses leg)
Leg Extensors

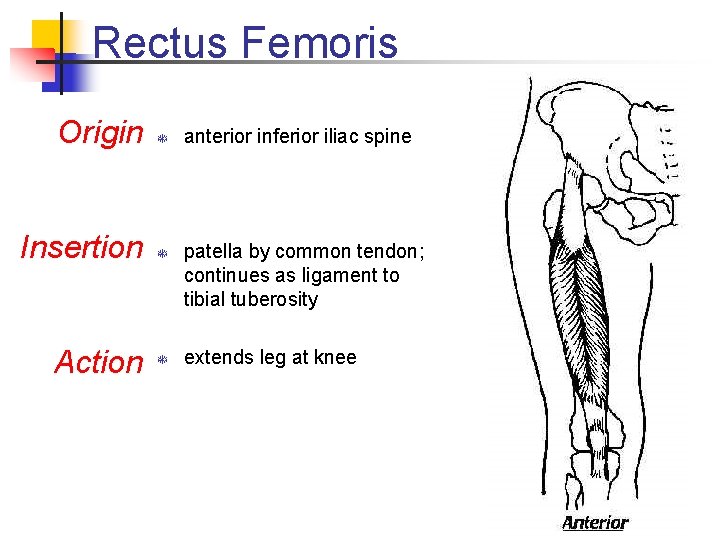

Rectus Femoris Origin T Insertion T Action T anterior inferior iliac spine patella by common tendon; continues as ligament to tibial tuberosity extends leg at knee
Vestus: medialis, lateralis intermedius Origin medialis lateralis intermedius T T Insertion Action T anterior/medial surface femur greater trochanter femur anterior lateral shaft of femur patella by common tendon; continues as ligament to tibial tuberosity extends leg at knee
Dorsiflexors
Tibialis Anterior Origin Insertion (2) Action (2) T T T lateral condyle/surface of tibia 1 st meta tarsal 1 st cuneiform dorsiflexion inversion of foot
Peroneus Tertius Origin T distal third anterior fibula Insertion T 5 th metatarsal Action (2) T T dorsiflexion eversion of foot

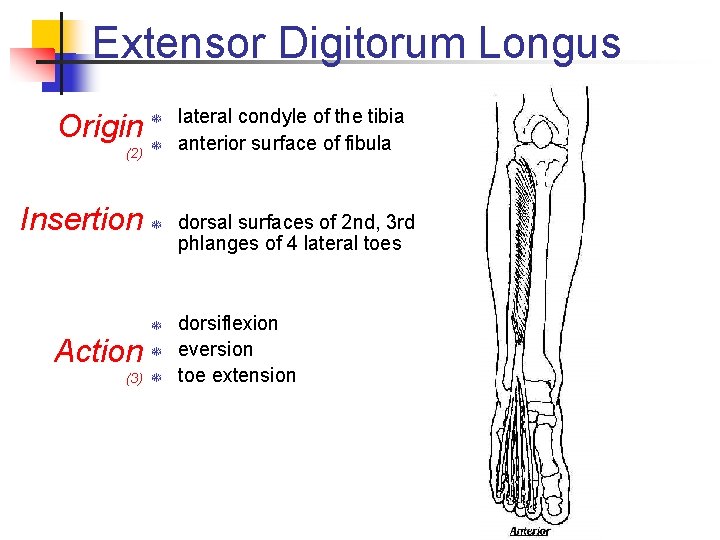

Extensor Digitorum Longus Origin (2) Insertion T T Action T (3) T lateral condyle of the tibia anterior surface of fibula dorsal surfaces of 2 nd, 3 rd phlanges of 4 lateral toes dorsiflexion eversion toe extension
Plantar Flexors

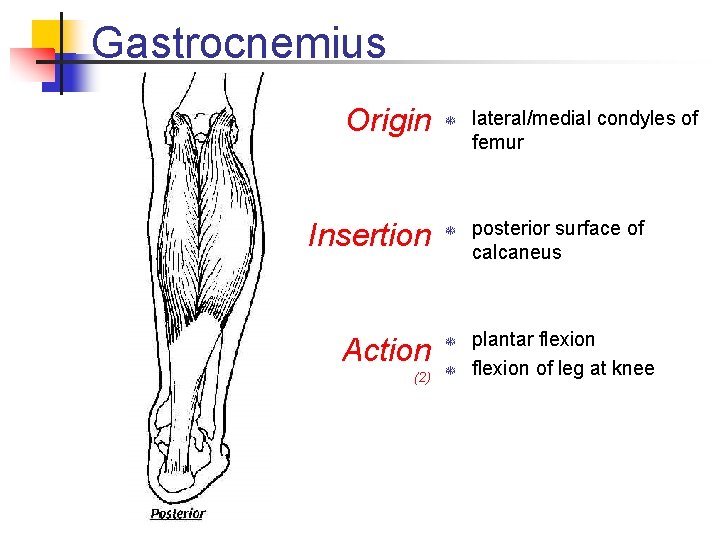

Gastrocnemius Origin T Insertion T Action (2) T T lateral/medial condyles of femur posterior surface of calcaneus plantar flexion of leg at knee

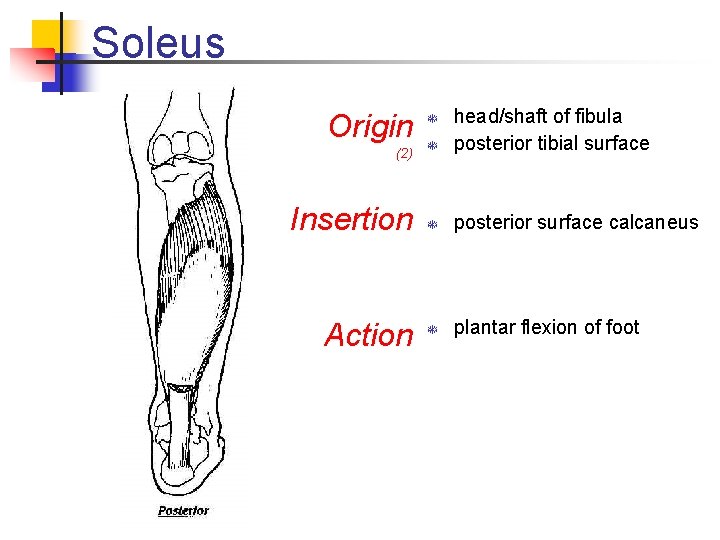

Soleus T head/shaft of fibula posterior tibial surface Insertion T posterior surface calcaneus Action T plantar flexion of foot Origin (2) T

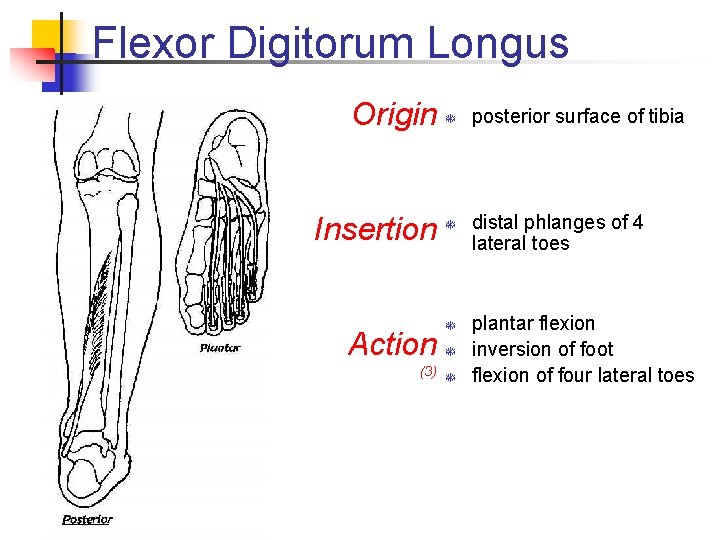

Flexor Digitorum Longus Origin T Insertion T Action T T (3) T posterior surface of tibia distal phlanges of 4 lateral toes plantar flexion inversion of foot flexion of four lateral toes
Tibialis Posterior Origin T Insertion T (2) T Action T (2) T lateral condyle posterior tibial/fibular surface tarsal bones metatarsal bones plantar flexion inversion of foot

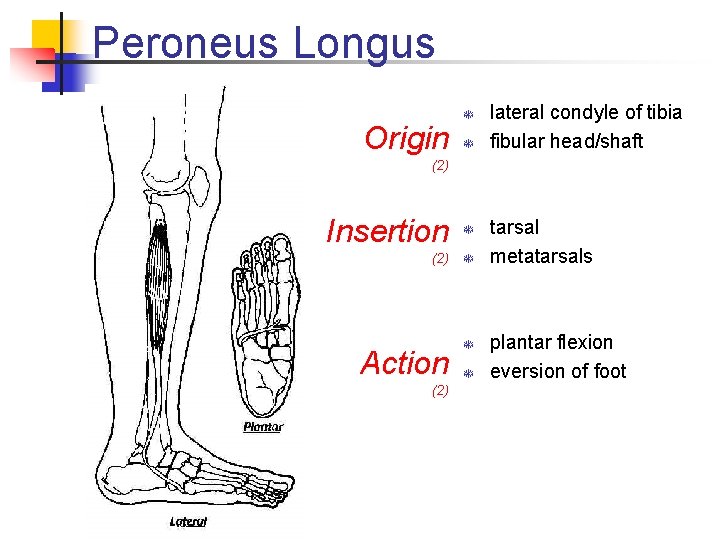

Peroneus Longus Origin T T lateral condyle of tibia fibular head/shaft (2) Insertion T (2) T Action (2) T T tarsal metatarsals plantar flexion eversion of foot
Muscles by Action
Hip / Leg Medial Rotator 3. Gluteus medius Gluteus minimus Tensor fasciae latae 4. Petineus 1. 2. 5. 6. 7. Adductor longus Adductor brevis Adductor magnus (horizontal fibers)

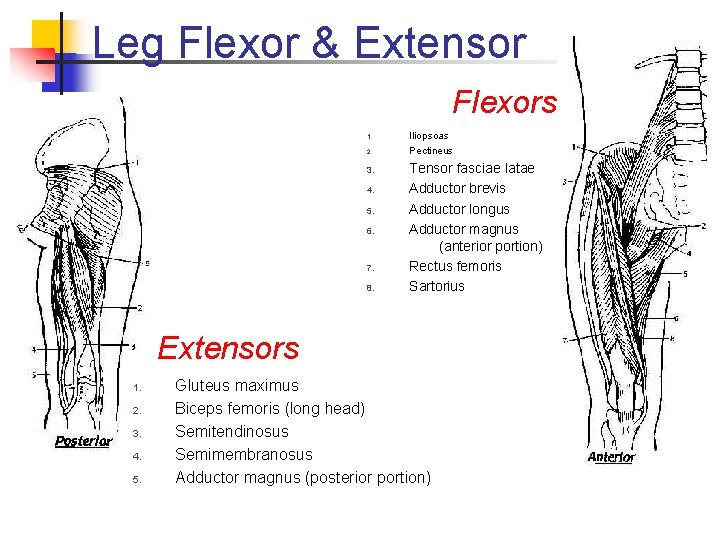

Leg Flexor & Extensor Flexors 1. 2. 3. 4. 5. 6. 7. 8. Iliopsoas Pectineus Tensor fasciae latae Adductor brevis Adductor longus Adductor magnus (anterior portion) Rectus femoris Sartorius Extensors 1. 2. 3. 4. 5. Gluteus maximus Biceps femoris (long head) Semitendinosus Semimembranosus Adductor magnus (posterior portion)
Leg Adductors & Abductors 1. 2. 3. 4. Gluteus medius Gluteus minimus Tensor fasciae latae Sartorius Adductors 1. 2. 3. 4. Adductor brevis Adductor longus Adductor magnus Gracilis

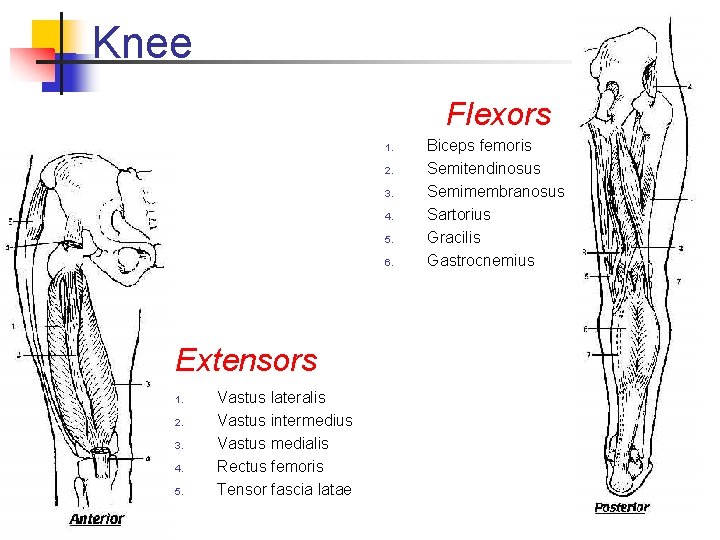

Knee Flexors 1. 2. 3. 4. 5. 6. Extensors 1. 2. 3. 4. 5. Vastus lateralis Vastus intermedius Vastus medialis Rectus femoris Tensor fascia latae Biceps femoris Semitendinosus Semimembranosus Sartorius Gracilis Gastrocnemius

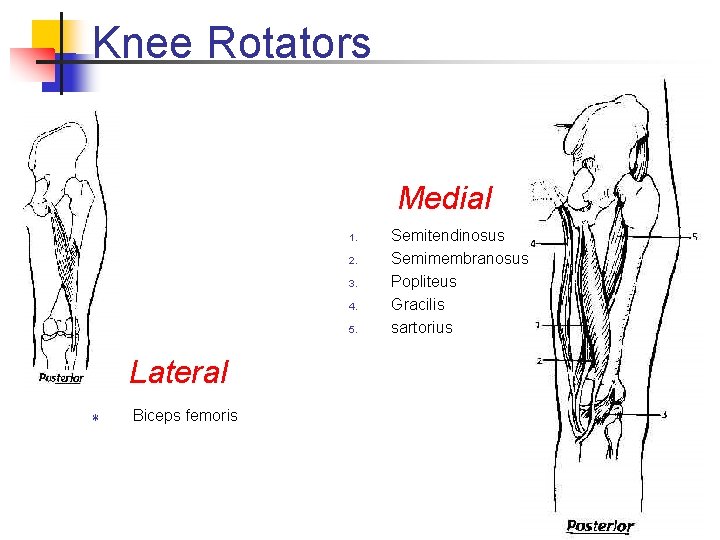

Knee Rotators Medial 1. 2. 3. 4. 5. Lateral T Biceps femoris Semitendinosus Semimembranosus Popliteus Gracilis sartorius

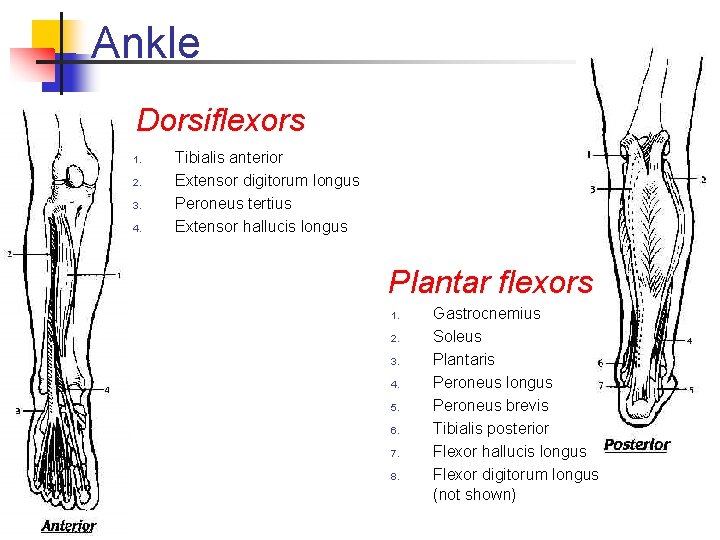

Ankle Dorsiflexors 1. 2. 3. 4. Tibialis anterior Extensor digitorum longus Peroneus tertius Extensor hallucis longus Plantar flexors 1. 2. 3. 4. 5. 6. 7. 8. Gastrocnemius Soleus Plantaris Peroneus longus Peroneus brevis Tibialis posterior Flexor hallucis longus Flexor digitorum longus (not shown)
Foot Evertors 1. 2. 3. Peroneus tertius Peroneus longus Peroneus brevis Invertors 1. 2. Tibialis anterior Tibialis posterior
