Multithreaded Programming with POSIX Threads CSE 331 Operating

Multi-threaded Programming with POSIX Threads CSE 331 Operating Systems Design

Processes vs Threads Text Data Stack Process 1 Process 2 Stack 1 Stack 2 Thread 1 Thread 2

Some Terms • • Thread Safe Reentrant Multi-threaded POSIX

What does POSIX mean? • Portable Operating System Interface for Unix" is the name of a family of related standards specified by the IEEE to define the application programming interface (API), along with shell and utilities interfaces, for software compatible with variants of the UNIX operating system, although the standard can apply to any operating system.

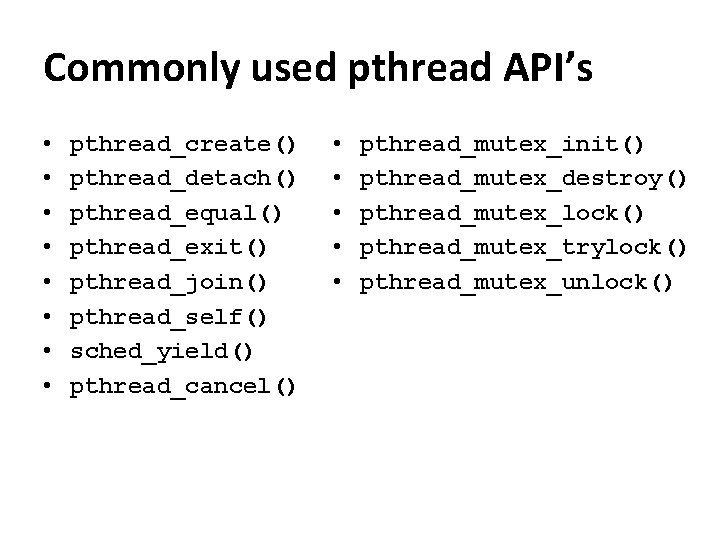

Commonly used pthread API’s • • pthread_create() pthread_detach() pthread_equal() pthread_exit() pthread_join() pthread_self() sched_yield() pthread_cancel() • • • pthread_mutex_init() pthread_mutex_destroy() pthread_mutex_lock() pthread_mutex_trylock() pthread_mutex_unlock()

pthread API’s cont’d • • pthread_cond_destroy( ) pthread_cond_init( ) pthread_cond_broadcast( ) pthread_cond_signal( ) pthread_cond_timedwait() pthread_cond_wait() pthread_mutexattr_gettype() pthread_mutexattr_settype() • • pthread_setconcurrency() pthread_getconcurrency() pthread_mutexattr_getprotocol() pthread_mutexattr_setprotocol() pthread_setschedparam() pthread_attr_setschedpolicy() sched_get_priority_max() sched_set_priority_min()

#include <pthread. h> #include <stdio. h> void *thread_routine(void* arg) { printf("Inside newly created thread n"); } void main() { pthread_t thread 1; pthread_create(&thread 1, NULL, thread_routine, NULL); pthread_create( &thread_id, NULL, thread_routine, NULL ); printf("Inside main thread n"); pthread_join( thread_id, NULL ); } pluto. nvc. cs. vt. edu$ cc p. c -lpthread

int pthread_create( pthread_t *tid, //Thread ID returned by the system const pthread_attr_t *attr, //optional attributes void *(*start)(void *), //thread function void *arg // Arguments to start function ); Description: Create a thread running the start function.

int pthread_join( pthread_t void thread, **value_ptr // ID of thread // return value of thread ); Description: Wait for thread to terminate, and return thread’s exit value if value_ptr is not NULL. This also detaches thread on successful completion.

int pthread_exit( void *value_ptr, // Return value ); Description: Terminate the calling thread, returning the value_ptr to any joining thread. int pthread_equal( pthread_t t 1, t 2, // ID of thread 1 // ID of thread 2 ); Description: Return zero if equal. Non-zero if not.

int pthread_cancel( pthread_t thread. ID // ID of thread to cancel ); Description: Cancellation provides a way to request that a thread terminate gracefully when you no longer need it to complete its normal execution. Each thread can control how and whether cancellation affect it and repair the shared state as it terminates due to cancellation. pthread_t pthread_self(); Description: Used to get the ID of the current thread. int sched_yield(); Description: Make the calling thread from running state to ready state, giving way for other threads.

Thread Cancellation Example: void *thread_routine(void* arg){ printf("Inside thread n"); sleep( 30 ); printf("After sleep n"); } void main(){ pthread_t thread_id; void *thread_result =0; pthread_create( & thread_id, NULL, thread_routine, NULL ); sleep(3); printf("Main threadn"); pthread_cancel( thread_id ); printf("End of mainn"); }

If multiple threads want to wait for the completion of a thread, they cannot do so by calling pthread_join() Instead, these threads should wait on a condition variable which is set by the waited thread after completion. Main thread vs Other Threads 1) Input arguments are different. 2) When main thread returns all other threads are aborted. 3) If you want the main thread to exit, but other threads to keep running then call pthread_exit in the main function. Avoid fork and signals in threads.

Synchronization • • • pthread_mutex_init() pthread_mutex_destroy() pthread_mutex_lock() pthread_mutex_trylock() pthread_mutex_unlock()

Reasons for Synchronization Need • For getting shared access to resources (variables, buffers, devices, etc. ) – Critical variables; critical sections. – For communicating. • Cases where cooperating processes need not synchronize to share resources: – All processes are read only. – All processes are write only. – One process writes (atomically), all other processes read.

Atomicity • What does atomic mean? • Characteristics of ‘trouble situations’: – Multiple processes doing updates non-atomically. – Non-atomic write processes coupled with read or update processes

void *consumer(void* arg) { for(int I =0; I < 30 ; I ++ )mutex ); , shared_data--; /* Critical Section. */ printf("data val=%dn”, shared_data); } void main() { pthread_t thread_id; pthread_create(&thread_id, NULL, consumer, NULL); for(int I =0; I < 30 ; I ++ ) shared_data ++; /* Critical Section. */ printf("End of main =%dn”, shared_data); }

Formal Definition of Critical Sections • The overlapping portion of each process, where the shared variables are being accessed. • Necessary and sufficient conditions for a solution to the critical section problem: – Mutual Exclusion – Progress – Bounded Waiting

Mutual Exclusion Simplest and most efficient thread synchronization mechanism • A special variable that can be either in – locked state: a distinguished thread that holds or owns the mutex; or – unlocked state: no thread holds the mutex • When several threads compete for a mutex, one wins. The rest block at that call – The mutex also has a queue of threads that are waiting to hold the mutex. • POSIX does not require that this queue be accessed FIFO

POSIX Mutex-related Functions int pthread_mutex_init(pthread_mutex_t *restrict mutex, const pthread_mutexattr_t *restrict attr); Also see PTHREAD_MUTEX_INITIALIZER int pthread_mutex_destroy(pthread_mutex_t *mutex); int pthread_mutex_lock(pthread_mutex_t *mutex); int pthread_mutex_trylock(pthread_mutex_t *mutex); int pthread_mutex_unlock(pthread_mutex_t *mutex);

Example #include <pthread. h> #include <stdio. h> #include <stdlib. h> static pthread_mutex_t my_lock = PTHREAD_MUTEX_INITIALIZER; void *mythread(void *ptr) { long int i, j; while (1) { pthread_mutex_lock (&my_lock); for (i=0; i<10; i++) { printf ("Thread %dn", (int) ptr); for (j=0; j<50000000; j++); } pthread_mutex_unlock (&my_lock); for (j=0; j<50000000; j++); } } int main (int argc, char *argv[]) { pthread_t thread[2]; } pthread_create(&thread[0], NULL, mythread, (void *)0); pthread_create(&thread[1], NULL, mythread, (void *)1); getchar();
