MultiTasking The MultiTasking service is offered by Vx

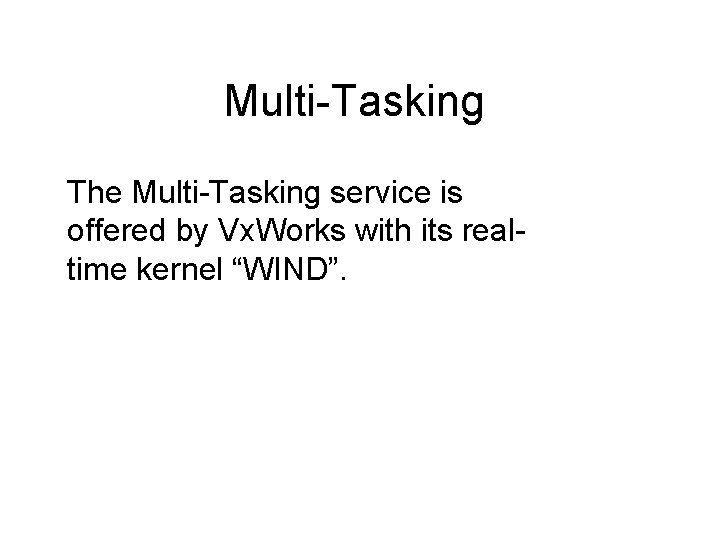

Multi-Tasking The Multi-Tasking service is offered by Vx. Works with its realtime kernel “WIND”.

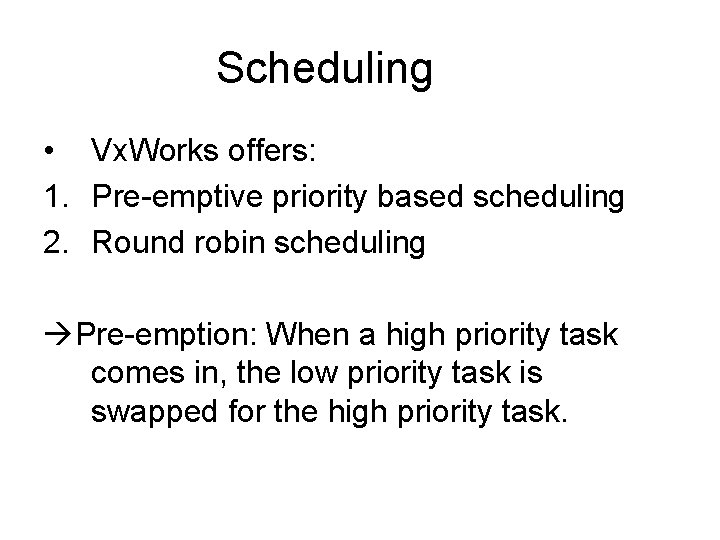

Scheduling • Vx. Works offers: 1. Pre-emptive priority based scheduling 2. Round robin scheduling Pre-emption: When a high priority task comes in, the low priority task is swapped for the high priority task.

Task Switching • The process of Swapping tasks is called Task switching. • When a high priority task comes in, the processor completes the current assembly instruction of the low priority task, saves the context of the current task and then switches to the high priority task.

Task Control Block • Each individual program is considered as a task and has its own context. • While switching, the context of the current task is saved in a Task Control Block (TCB) that acts like a Process control block(PCB) of a general purpose operating system.

Contents of TCB 1. 2. 3. 4. 5. 6. 7. A thread of execution (program counter) CPU register & floating point registers Stack of the task. I/O assignments for stdio Timers Kernel Control Structures Others (Signal handlers etc. . )

The difference between a PCB and TCB is, the TCB doesn’t contain the memory address space of the task unlike PCB. Reason: Every task in Vxworks operates in a unique memory address space and the mapping is done through the concept of Virtual Memory Interface (Vx. VMI).

• By default the tasks created in Vx. Works are in a Suspended state and every task has to be explicitly activated to be moved to the ready state. • Note: task. Spawn() can be used to create and activate a task simulateneously

APIs used for task information • The basic tasking routines are provide by tasklib. h • These routines provide the means for task creation, control, and information. • Vx. Works tasks can be controlled from the host-resident shell (Tornado user shell)

Taskshow library • This library provides routines to show task-related information, such as register values, task status, etc. The task. Show. Init( ) routine links the task show facility into the Vx. Works system. It is called automatically when this show facility is configured into Vx. Works using either of the following methods: • If you use the configuration header files, define INCLUDE_SHOW_ROUTINES in config. h. • If you use the Tornado project facility, select INCLUDE_TASK_SHOW.

task. Info. Get( ) • task. Info. Get( ) - get information about a task • STATUS task. Info. Get ( int tid, /*ID of task for which to get info */ TASK_DESC * p. Task. Desc /* task descriptor to be filled in */ ) This routine fills in a specified task descriptor (TASK_DESC) for a specified task. The information in the task descriptor is, for the most part, a copy of information kept in the task control block (WIND_TCB). The TASK_DESC structure is useful for common information and avoids dealing directly with the unwieldy WIND_TCB.

task. Show( ) • task. Show( ) - display task information from TCBs • STATUS task. Show ( int tid, /* task ID */ int level /* 0 = summary, 1 = details, 2 = all tasks */ ) This routine displays the contents of a task control block (TCB) for a specified task. If level is 1, it also displays task options and registers. If level is 2, it displays all tasks.

task. Regs. Show( ) • task. Regs. Show( ) - display the contents of a task's registers • void task. Regs. Show ( int tid /* task ID */ ) This routine displays the register contents of a specified task on standard output.

task. Status. String( ) • task. Status. String( ) - get a task's status as a string. • STATUS task. Status. String ( int tid, /* task to get string for */ char * p. String /* where to return string */ ) This routine deciphers the WIND task status word in the TCB for a specified task, and copies the appropriate string to p. String.
