Multiservice Access Platform & Last Mile Solutions Presented by: Meni Sasson RAD Technical Support Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 1

Technologies in Transition Background & Trends Traditional Services SDH/ SONET Network Voice, Data (LS, HS) Copper, Microwave, Fiber Ethernet Services PSN Network • Traditional Services over SDH/SONET • Service Ethernet clients next to traditional ones over SDH/SONET Any services, over Any Media, to Any Network • Carrying High bandwidth Ethernet traffic and traditional services over PSN network Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 2

MAP Target Customers & Applications Target Customers: • Carriers & alternative carriers and service providers • Cellular operators • Private networks owners: Airports, Military and government • Utilities & Transportation Main Trends – NG-DLC (TDM based) is declining while MSAP (Ethernet based) is growing – Ethernet over fiber is the major driver for MSAP Target Applications: • Multiservice traffic for utility and transportation networks • Integrated data and voice solutions for private networks • Legacy services transport over packet switched networks • Ethernet and E 1/serial over DSL/fiber aggregation Service Provider Enterprise Utilities Oil & Gas Transportation Airports Government Military Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 3

MAP Portfolio Central Site Central Rack: Grooming Multiplexing Aggregation Customer Premises Fiber Megaplex Multiservice Access Nodes PSN Copper Megaplex DXC FCD-155 TDM DXC Cross Connect Grooming Broadcast Wireless FCD E 1/T 1 access units ASMi SHDSL Multiplexers & Modems E 1 T 1 FXS FXO E&M ETH V. 35 X. 21 RS-530 Optimux Fiber Multiplexers Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 4

Next Generation SDH/SONET ADM & Terminal (FCD-155 x) Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 5

FCD-155, FCD-155 E Feature Highlights NG STM-1/OC 3 Terminal (155) or Add Drop Multiplexer (155 E) for grooming LAN and PDH traffic over SDH/SONET networks • Fast Ethernet and GBE services • GFP, VCAT and LCAS support • FCD-155: 4 or 8 E 1/T 1 ports, or E 3/DS 3 port PDH services • FDC-155 E: 8 or 21 E 1/T 1 ports or E 3/DS 3 or Combination of 21 x E 1/28 x T 1 plus E 3/T 3 • Management via DCC, IP tunneling or dedicated VC-12 • Modular power supplies with optional redundancy • Station clock port Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 6

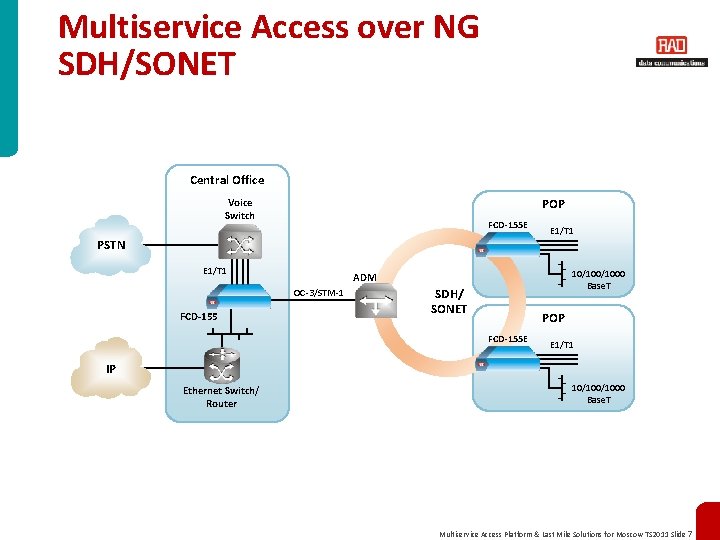

Multiservice Access over NG SDH/SONET Central Office Voice Switch POP FCD-155 E PSTN E 1/T 1 10/1000 Base. T ADM OC-3/STM-1 FCD-155 E 1/T 1 SDH/ SONET POP FCD-155 E E 1/T 1 IP Ethernet Switch/ Router 10/1000 Base. T Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 7

Next Generation Multiservice Access Nodes (Megaplex) Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 8

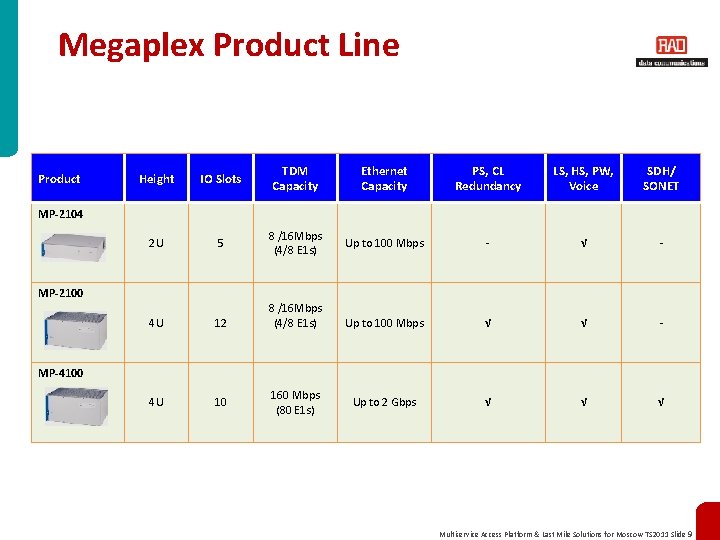

Megaplex Product Line Product Height IO Slots TDM Capacity Ethernet Capacity PS, CL Redundancy LS, HS, PW, Voice SDH/ SONET 2 U 5 8 /16 Mbps (4/8 E 1 s) Up to 100 Mbps - √ - 4 U 12 Up to 100 Mbps √ √ - 4 U 10 Up to 2 Gbps √ √ √ MP-2104 MP-2100 8 /16 Mbps (4/8 E 1 s) MP-4100 160 Mbps (80 E 1 s) Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 9

MP-4100 Feature Highlights • Multiservice – Voice, Data, Ethernet • Fiber and copper aggregation • Bridges TDM and PSN networks (both directions) • Powerful T 1/E 1 Non Blocking DS 0/DS 1 Cross connect • GBE and SDH/SONET (with VCAT support) • Hardware redundancy (CL, PS) • Traffic protection switching within 50 ms • Hot swap for all supported modules -4 MP 100 • Wide range of management support Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 10

MP-4100 – Central Solution for MAP and Last Mile Networks Infrastructures and Services NMS Station MIRIC-E 3 ASMi-52 RICi-8 E 1 n x E 1 PSN Router ETH FCD-E 1 E DXC-8 R STM-1 ETX FE ETH E 1 DXC-4 8 x E 1 IPmux-xx FE/Gb. E FE POP Megaplex-4100 SHDSL. bis FO STM-1/ OC-3 FO E 1 SDH/ SONET SHDSL STM-1 NMS Station E 1 ASMi-54 ETH Optimux-108 ETH 4 x E 1 Optimux-106 ETH 4 x T 1 FCD-IP ASMi-52 FCD-155 E ETH E 1 ETH Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 11

Transportation • • Single box solution for multiple services SDH reliability Suitable for high capacity needs Single box solution for every node MP-4100 STM-1 / OC-3 Ring MP-4100 Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 12

Megaplex-4100 Phase 2 Versions 2. xx (GA) • MPW-1 – 8 E 1/T 1 Pseudowire (TDMo. IP) • M 8 SL – 8 ports of SHDSL E 1 • M 16 E 1/T 1 – 16 ports of E 1/T 1 • ASMi-54 C – 8 G. SHDSL. bis lines • • • OP-106/8 C – Dual port, 4 x E 1/T 1 channel FO OP-34/25 C – 16 E 1/T 1 channels and Ethernet over fiber (E 3 using SFP) VC 16 – 16 analog voice ports Support for SSH/SSL and Radius Additional Full fault propagation capabilities (VCG, GBE) SNMPv 3 support Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 13

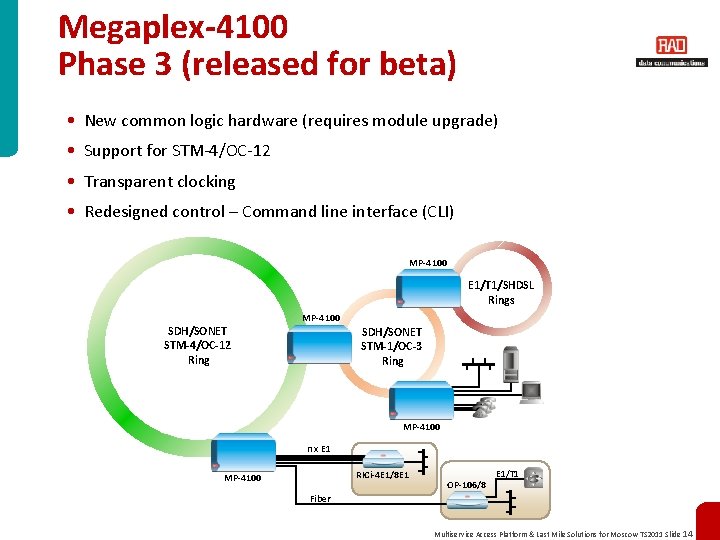

Megaplex-4100 Phase 3 (released for beta) • New common logic hardware (requires module upgrade) • Support for STM-4/OC-12 • Transparent clocking • Redesigned control – Command line interface (CLI) MP-4100 E 1/T 1/SHDSL Rings SDH/SONET STM-4/OC-12 Ring MP-4100 SDH/SONET STM-1/OC-3 Ring MP-4100 n x E 1 RICi-4 E 1/8 E 1 MP-4100 OP-106/8 E 1/T 1 Fiber Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 14

Cross Connect Solutions (DXC) Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 15

DXC family Strengths IDSL SHDSL n x 56/64 Kbps LAN over WAN Up to 15. 7 Mbps E 1/T 1 ISDN E 3/T 3 Multiservice access nodes with SNMP management • Non-blocking DS 0 cross-connect services for T 1, E 1 (frame and unframed), n × 56/n × 64 kbps and ISDN BRI services STM-1/ OC-3 • E 3 and T 3 multiplexing services • Fractional STM-1 multiplexing services • Inverse multiplexing capabilities: transparent transmission of high -speed data over up to eight E 1 or T 1 links Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 16

DXC Family Products Product Description DXC-8 R 1 U Chassis Sys Redundancy 4 I/O - Up to 32 Ports DXC-10 A 1 U Chassis 5 I/O - Up to 40 Ports DXC-30 3 U Chassis Optional Sys Redundancy 15 I/O- Up to 120 Ports DXC-2 Half 19” 1 U Chassis E 1/T 1 converter DXC-4 Half 19” 1 U Chassis 8 E 1/T 1 groomer PRBm-20 Half 19” 1 U Chassis 8 E 1/T 1 SS 7 monitoring probe Picture Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 17

Grooming Cellular Traffic E 1/T 1 BTS Cellular Site E 1/T 1 Cellular Site Central Site Switch BTS DXC-30 E 1/T 1 DXC-8 R BTS E 1/T 1 Primary and Redundant links Cellular Site NMS BTS E 1/T 1 Cellular Site • At the central site the DXC-30 can aggregate the traffic from many BTS/BSC sites as well as manage the remote DXC Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 18

TDM NTUs (FCD) Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 19

FCD Product Line Table Modem Uplink Services Special Features Central Solution E 1 S. E 1, V. 35, ETH • LCD panel • ETH management capability • High ETH performance • E 1 bypass DXC-30/8 R/10 A MP-2100/MP-4100 E 1/T 1 S. E 1/T 1, V. 35, ETH • Multiplexer solution over E 1 or T 1 • Up to two serial ports and sub-E 1 services • ETH supported on VLAN transparent DXC-30/8 R/10 A MP-2100/MP-4100 E 1/T 1 3 S. E 1, Serial port (V. 35, X. 21), ETH, Analog ports (FXS, FXO, E&M) • Supported on ring and daisy chain application • Integrated Router including OSPF support DXC-30/8 R/10 A MP-2100/MP-4100 FCD-E 1 E FCD-E 1 LC/ FCD-T 1 LC FCD-IP Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 20

Variety of Services – FCD Family Switch PC Router FCD Family SDH/SONET/ PDH Network E 1/T 1 Fractional E 1/T 1 Copper SHDSL Fiber LAN PBX Phone - Fixed • • Convergence of multiple services Centralized Management Integrated Local Loop Flexible Service Support Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 21

Last Mile Solutions Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 22

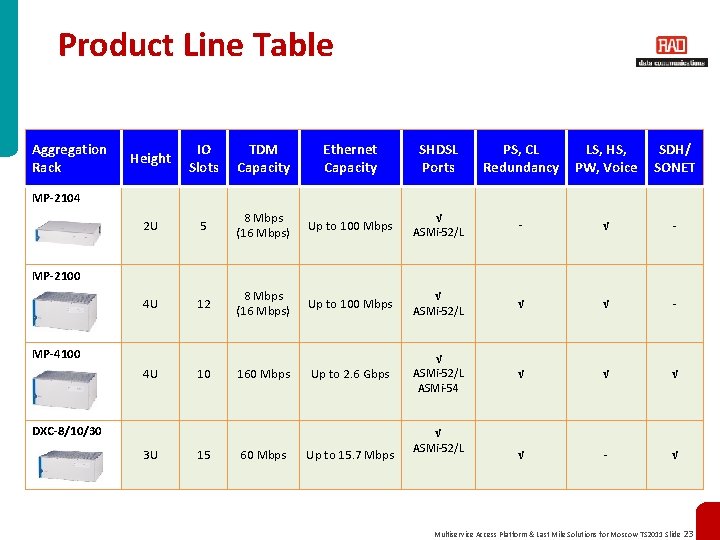

Product Line Table Aggregation Rack Height IO Slots TDM Capacity Ethernet Capacity SHDSL Ports PS, CL Redundancy LS, HS, PW, Voice SDH/ SONET 2 U 5 8 Mbps (16 Mbps) Up to 100 Mbps √ ASMi-52/L - √ - 4 U 12 8 Mbps (16 Mbps) Up to 100 Mbps √ √ - √ MP-2104 MP-2100 MP-4100 4 U 10 160 Mbps Up to 2. 6 Gbps DXC-8/10/30 √ ASMi-52/L ASMi-54 √ 3 U 15 60 Mbps Up to 15. 7 Mbps ASMi-52/L Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 23

Extending Colocated 2 G/3 G Base Stations over Different Infrastructure BTS Site Fiber Central Office Node B ETH Optimux FE BTS BSC n x E 1 TDM BTS Site LRS/Megaplex Copper RNC Packet ETH ASMi FE Airmux-200 n x ETH n x E 1 Node B BTS Wireless BTS Site Node B ETH Airmux-200 FE BTS Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 24

Fiber Multiplexers (Optimux) – Everything Over Fiber Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 25

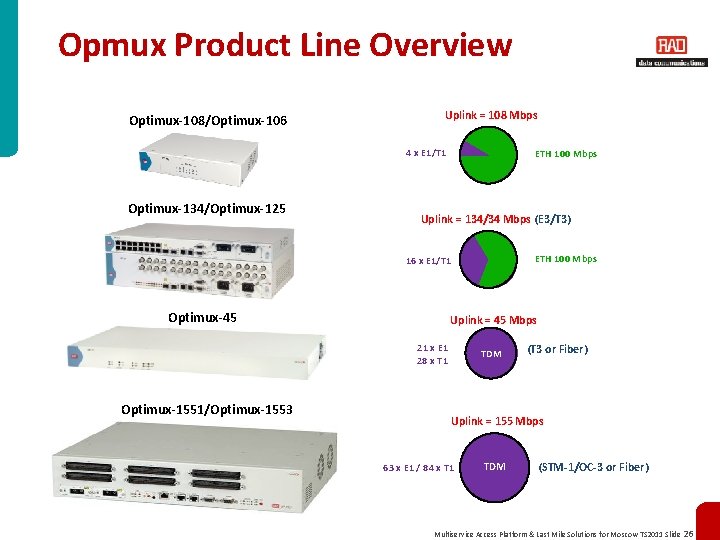

Opmux Product Line Overview Optimux-108/Optimux-106 Uplink = 108 Mbps 4 x E 1/T 1 Optimux-134/Optimux-125 ETH 100 Mbps Uplink = 134/34 Mbps (E 3/T 3) ETH 100 Mbps 16 x E 1/T 1 Optimux-45 Uplink = 45 Mbps 21 x E 1 28 x T 1 Optimux-1551/Optimux-1553 FO TDM Coax (T 3 or Fiber) Uplink = 155 Mbps 63 x E 1 / 84 x T 1 FO TDM Coax (STM-1/OC-3 or Fiber) Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 26

Target Applications Multi-service Drop & Insert Transparency – Clocks & Services Redundancy – Uplinks, Power Supplies, Tributaries Simplicity – Plug & Play MP-4100 OP-108 C Gb. E 1+1 Branch 2 OP-108 C SDH POP OP-108 C STM-1 1+1 OP-108 C • • • F. O OP-108 PBX 1 -4 E 1 Branch 20 Gb. E ISP PSN Cisco FE NMS RADview F. O OP-108 FE PBX 1 -4 E 1 Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 27

Case Study Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 28

Utilities in Russia: Integrated Data and Voice Services over SDH • Powerful Central Node, MP-4100 - based • Ethernet traffic concentration • Support the traffic protection in the STM-1 • SDH ring • Legacy (FXS/FXO, 4 -wire, RS-232) and Ethernet services over the SDH and Leased E 1 • Centralized solution with management • Scalable, typical solutions for Power Industry Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 29

Carrier in Africa: Bank – Branches Connectivity over PSN • Support ETH services over any available access infrastructure • Branches connectivity over any existing Last Mile infrastructure: Copper, PDH and Wireless • Complete Access solution with Aggregation platform (MP-4100), Aggregate any ETH/IP traffic coming from DSL, PDH, Wireless towards IP/MPLS Network • Reduce Cap. Ex/Op. Ex by leveraging existing infrastructure for providing ETH/IP connectivity for the branches over new IP-MPLS network, enabling fast delivery Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 30

Carrier in Africa: Ethernet and TDM Services over Copper or Fiber • Wide range of interfaces (SHDL/E 1/ETH) • MP-4100 high capacity. STM-1 and legacy services on single BOX. • Multirate support • Single multi-functional platform • Reduce Op. Ex/Cap. Ex by Multiservice aggregation device at the Po. P • Both E 1 and Eth services over single Fiber • Ensure SLA by providing advance ETH services with Qo. S Internet Multiservice Access Platform & Last Mile Solutions for Moscow TS 2011 Slide 31
