MultiRobot Systems with ROS Lesson 8 Teaching Assistant
Multi-Robot Systems with ROS Lesson 8 Teaching Assistant: Roi Yehoshua roiyeho@gmail. com
Agenda • Running navigation stack in Gazebo with multiple robots • Sending goals to robots in Gazebo • Using amcl • Multi robot collision avoidance in navigation stack (C)2014 Roi Yehoshua

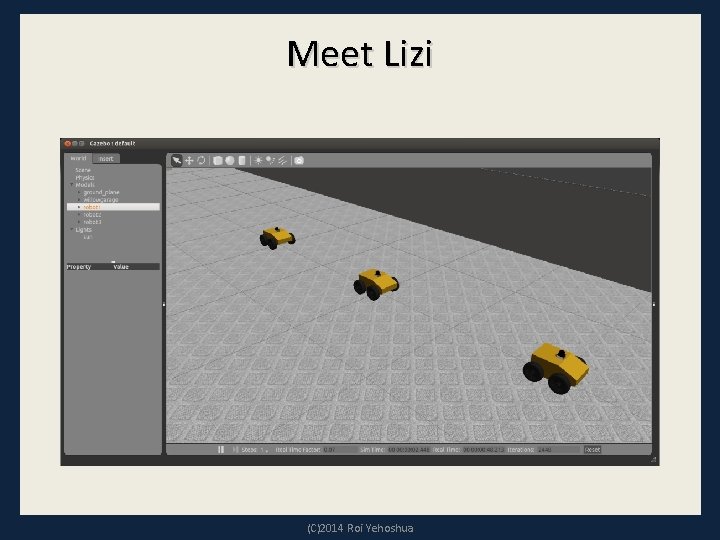

Meet Lizi (C)2014 Roi Yehoshua
lizi_description package (C)2014 Roi Yehoshua
Setting Up Navigation Stack • Copy the package navigation_multi into a new package called gazebo_navigation_multi • Change the name of the package in package. xml, CMake. Lists. txt and move_base. xml • Remove stage_config subdirectory • Copy launch files (gazebo_multi. launch, robots. launch, one_robot. launch) from the launch directory in gazebo_multi package • Change package name in launch files to gazebo_navigation_multi • Rename gazebo_multi. launch to navigation_multi. launch (C)2014 Roi Yehoshua 5
gazebo_navigation_multi package (C)2014 Roi Yehoshua 6
gazebo_navigation_multi launch files (C)2014 Roi Yehoshua 7
Use Static Map • We will first run navigation stack with a static known map • Create a maps directory in your package and copy willow-full. png file into it • In navigation_multi. launch file make sure map_server points to this map file (C)2014 Roi Yehoshua 8
navigation_multi. launch <launch> <master auto="start"/> <param name="/use_sim_time" value="true"/> <node pkg="map_server" type="map_server" name="map_server" args="$(find gazebo_navigation_multi)/maps/willow-full. png 0. 1" respawn="false" > <param name="frame_id" value="/map" /> </node> <!-- start gazebo --> <include file="$(find gazebo_navigation_multi)/launch/willowgarage_world. launch"/> <!-- include our robots --> <include file="$(find gazebo_navigation_multi)/launch/robots. launch"/> <node name="rviz" pkg="rviz" type="rviz" args="-d $(find gazebo_navigation_multi)/multi_robot. rviz" /> </launch> (C)2014 Roi Yehoshua 9
robots. launch <launch> <!-- ROBOT 1 --> <group ns="lizi 1"> <param name="tf_prefix" value="lizi 1" /> <include file="$(find gazebo_navigation_multi)/launch/one_robot. launch" > <arg name="init_pose" value="-x 20 -y 15 -z 0" /> <arg name="robot_name" value="lizi 1" /> </include> </group> <!-- ROBOT 2 --> <group ns="lizi 2"> <param name="tf_prefix" value="lizi 2" /> <include file="$(find gazebo_navigation_multi)/launch/one_robot. launch" > <arg name="init_pose" value="-x 22 -y 15 -z 0" /> <arg name="robot_name" value="lizi 2" /> </include> </group> <!-- ROBOT 3 --> <group ns="lizi 3"> <param name="tf_prefix" value="lizi 3" /> <include file="$(find gazebo_navigation_multi)/launch/one_robot. launch" > <arg name="init_pose" value="-x 24 -y 15 -z 0" /> <arg name="robot_name" value="lizi 3" /> </include> </group> </launch> (C)2014 Roi Yehoshua 10
one_robot. launch • Copy navigation stack nodes (move_base, fake_localization) to one_robot. launch • Add a static transform publisher between base_link and laser_link frames (will be explained later) (C)2014 Roi Yehoshua 11
one_robot. launch (1) <launch> <arg name="robot_name"/> <arg name="init_pose"/> <param name="robot_description" command="$(find xacro)/xacro. py $(find lizi_description)/urdf/lizi. urdf"/> <node name="spawn_urdf" pkg="gazebo_ros" type="spawn_model" args="$(arg init_pose) -urdf -param robot_description -model $(arg robot_name)" output="screen"/> <node name="joint_state_publisher" pkg="joint_state_publisher" type="joint_state_publisher"/> <node pkg="robot_state_publisher" type="robot_state_publisher" name="robot_state_publisher" output="screen"/> <!-- Run navigation stack --> <node pkg="move_base" type="move_base" respawn="false" name="move_base_node" output="screen"> <remap from="map" to="/map" /> <param name="controller_frequency" value="10. 0" /> <rosparam file="$(find gazebo_navigation_multi)/move_base_config/costmap_common_params. yaml" command="load" ns="global_costmap" /> <rosparam file="$(find gazebo_navigation_multi)/move_base_config/costmap_common_params. yaml" command="load" ns="local_costmap" /> <rosparam file="$(find gazebo_navigation_multi)/move_base_config/local_costmap_params. yaml" command="load" /> <rosparam file="$(find gazebo_navigation_multi)/move_base_config/global_costmap_params. yaml" command="load" /> <rosparam file="$(find gazebo_navigation_multi)/move_base_config/base_local_planner_params. yaml" command="load" /> </node> (C)2014 Roi Yehoshua 12
one_robot. launch (2) <node pkg="fake_localization" type="fake_localization" name="fake_localization" respawn="false" output="screen"> <param name="odom_frame_id" value="$(arg robot_name)/odom" /> <param name="base_frame_id" value="$(arg robot_name)/base_link" /> </node> <node pkg="tf" type="static_transform_publisher" name="laser_link_broadcaster" args="0 0 1 0 0 0 $(arg robot_name)/base_link $(arg robot_name)/laser_link 100" /> </launch> (C)2014 Roi Yehoshua 13
TF Tree • For the navigation stack to work properly, the robot needs to publish the following transformations: map published by the localization system robot. X/odom published by Gazebo’s driver controller robot. X/base_link robot. X/laser_link (C)2014 Roi Yehoshua published by static tf defined in your launch file 14
Gazebo’s Driver Controllers • http: //gazebosim. org/wiki/Tutorials/1. 9/ROS_Motor _and_Sensor_Plugins • The driver controller is specified in the robot’s URDF file • There are different Gazebo built-in driver plugins that you can use, including: – differential_drive_controller – a basic controller for differential drive robots (useful for robots with 2 wheels) – skid_steer_drive_controller – a basic controller for skid steering drive robots in Gazebo (useful for robots with 4 wheels, such as Pioneer 3 AT) • The driver controller is automatically publishing the transformation from odom to base_link (C)2014 Roi Yehoshua 15
Driver Plugin Definition <plugin name="skid_steer_drive_controller" filename="libgazebo_ros_skid_steer_drive. so"> <update. Rate>100. 0</update. Rate> <left. Front. Joint>front_left_joint</left. Front. Joint> <right. Front. Joint>front_right_joint</right. Front. Joint> <left. Rear. Joint>rear_left_joint</left. Rear. Joint> <right. Rear. Joint>rear_right_joint</right. Rear. Joint> <wheel. Separation>0. 255</wheel. Separation> <wheel. Diameter>0. 154</wheel. Diameter> <odometry. Topic>odom</odometry. Topic> <odometry. Frame>odom</odometry. Frame> <robot. Base. Frame>base_link</robot. Base. Frame> <torque>500</torque> <command. Topic>cmd_vel</command. Topic> <broadcast. TF>1</broadcast. TF> </plugin> (C)2014 Roi Yehoshua 16
Gazebo position_3 d Controller • In addition, you need to make Gazebo publish the robot’s position to ROS • The easiest way to do this is with the position_3 d controller • Add the following to your URDF file: <plugin name="p 3 d_base_controller" filename="libgazebo_ros_p 3 d. so"> <always. On>true</always. On> <update. Rate>100. 0</update. Rate> <body. Name>base_link</body. Name> <topic. Name>base_pose_ground_truth</topic. Name> <gaussian. Noise>0</gaussian. Noise> <frame. Name>/map</frame. Name> <xyz. Offsets>0 0 0</xyz. Offsets> <rpy. Offsets>0 0 0</rpy. Offsets> </plugin> (C)2014 Roi Yehoshua 17
Laser Scanner Controller • The gazebo model, written in URDF, makes use of an Hokuyo laser scanner through the libgazebo_ros_laser. so plugin • The frame. Name property of the plugin specifies the TF frame that corresponds to the laser link <plugin name="gazebo_ros_laser_controller" filename="libgazebo_ros_laser. so"> <always. On>true</always. On> <update. Rate>40</update. Rate> <topic. Name>base_scan</topic. Name> <frame. Name>laser_link</frame. Name> </plugin> (C)2014 Roi Yehoshua 18
Laser Scanner Controller • However, the laser plugin doesn't automatically publishes a transform from base_link to the frame that you specified in the file (laser_link) • Thus we need to manually specify a static transform publisher between the laser_link and base_link frames • Add this publisher to one_robot. launch file (C)2014 Roi Yehoshua 19
Laser Scanner Controller <launch> <arg name="robot_name"/> <arg name="init_pose"/> <param name="robot_description" command="$(find xacro)/xacro. py $(find lizi_description)/urdf/lizi. urdf"/> <node name="spawn_urdf" pkg="gazebo_ros" type="spawn_model" args="$(arg init_pose) -urdf -param robot_description -model $(arg robot_name)" output="screen"/> <node name="joint_state_publisher" pkg="joint_state_publisher" type="joint_state_publisher"/> <node pkg="robot_state_publisher" type="robot_state_publisher" name="robot_state_publisher" output="screen"/> <!-- Run navigation stack --> <node pkg="move_base" type="move_base" respawn="false" name="move_base_node" output="screen"> … </node> <node pkg="fake_localization" type="fake_localization" name="fake_localization" respawn="false" output="screen"> <param name="odom_frame_id" value="$(arg robot_name)/odom" /> <param name="base_frame_id" value="$(arg robot_name)/base_link" /> </node> <node pkg="tf" type="static_transform_publisher" name="link_broadcaster" args="0 0 1 0 0 0 $(arg robot_name)/base_link $(arg robot_name)/laser_link 100" /> </launch> (C)2014 Roi Yehoshua 20
TF Tree • The TF tree should now look like this: (C)2014 Roi Yehoshua 21
Map in Gazebo and rviz • By default the origin of the map is different in Gazebo and rviz • In Gazebo the origin is by default at the center of the map while in rviz it is at the lower-left corner • The map’s pose in Gazebo can be changed by adjusting its corresponding model in Gazebo’s world file • For that purpose, we first need to copy the world’s file into our package (C)2014 Roi Yehoshua 22
Change Map’s Pose in Gazebo • Create worlds directory in your package • Copy willowgarage. world file from gazebo’s worlds directory to worlds directory of your package $ roscd gazebo_navigation_multi/worlds $ cp /usr/share/gazebo-1. 9/worlds/willowgarage. world. • Now edit the world’s file to adjust the model’s pose • The pose parameter consists of 6 values: <x y z r p y> – Angles are specified in degrees (C)2014 Roi Yehoshua 23
willowgarage. world <? xml version="1. 0" ? > <sdf version="1. 4"> <world name="default"> <include> <uri>model: //ground_plane</uri> </include> <include> <uri>model: //sun</uri> </include> <include> <uri>model: //willowgarage</uri> <pose>-3 54 0 0 0 30</pose> </include> </world> </sdf> (C)2014 Roi Yehoshua 24
Change Map’s Pose in Gazebo • We also need to update the launch file of Gazebo’s world to launch our own version of the world file • First copy willowgarage_world. launch from gazebo_ros package to the launch directory of your package $ roscd gazebo_ros/launch $ cp willowgarage_world. launch ~/catkin_ws/src/gazebo_navigation_multi/launch • Now edit this file (C)2014 Roi Yehoshua 25

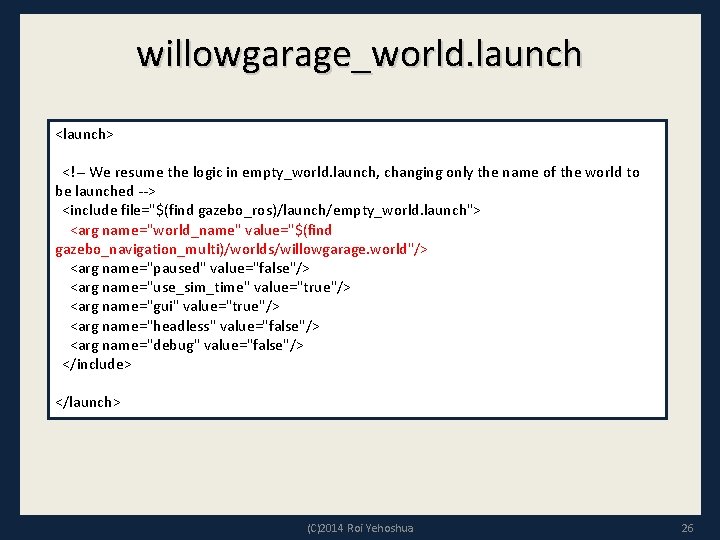

willowgarage_world. launch <launch> <!-- We resume the logic in empty_world. launch, changing only the name of the world to be launched --> <include file="$(find gazebo_ros)/launch/empty_world. launch"> <arg name="world_name" value="$(find gazebo_navigation_multi)/worlds/willowgarage. world"/> <arg name="paused" value="false"/> <arg name="use_sim_time" value="true"/> <arg name="gui" value="true"/> <arg name="headless" value="false"/> <arg name="debug" value="false"/> </include> </launch> (C)2014 Roi Yehoshua 26
Running the Navigation Stack • Now we are ready to run the navigation stack $ roslaunch gazebo_navigation_multi. launch (C)2014 Roi Yehoshua
Gazebo (C)2014 Roi Yehoshua 28
rviz (C)2014 Roi Yehoshua 29

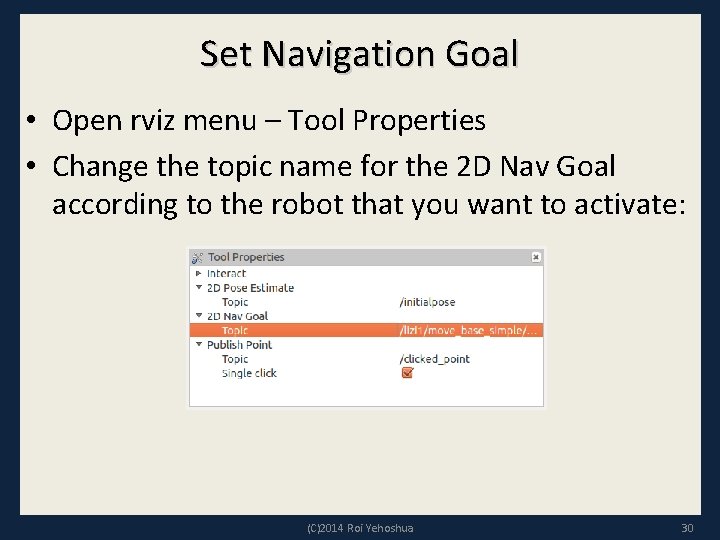

Set Navigation Goal • Open rviz menu – Tool Properties • Change the topic name for the 2 D Nav Goal according to the robot that you want to activate: (C)2014 Roi Yehoshua 30
Set Navigation Goal (C)2014 Roi Yehoshua 31
Following the Global Plan (C)2014 Roi Yehoshua 32
Final Pose (C)2014 Roi Yehoshua 33
Final Pose in Gazebo (C)2014 Roi Yehoshua 34
Change Speed Limits • To change the speed limits of the robot used by the navigation stack, open the file move_base_config/base_local_planner_params. yaml • There are 4 parameters that determine the speed limits – max_vel_x: maximum linear velocity – min_vel_x: minimum linear velocity – max_rotational_vel: maximum angular velocity – min_in_place_rotational_vel: minimum angular velocity (C)2014 Roi Yehoshua 35
Change Speed Limits • For the lizi robot we are going to change the following speed limits: #Set the velocity limits of the robot max_vel_x: 1. 5 min_vel_x: 0. 5 max_rotational_vel: 1. 5 min_in_place_rotational_vel: 1. 0 (C)2014 Roi Yehoshua 36
Sending Goals From Terminal • To send a goal to a robot from terminal, you can publish a message to the topic [robot_name]/move_base_simple/goal • For example to send a goal command to lizi 2: $ rostopic pub /lizi 2/move_base_simple/goal geometry_msgs/Pose. Stamped '{header: {frame_id: "map"}, pose: {position: {x: 22, y: 17, z: 0}, orientation: {x: 0, y: 0, z: 0, w: 1}}}' (C)2014 Roi Yehoshua 37
Sending Goals From Terminal (C)2014 Roi Yehoshua 38

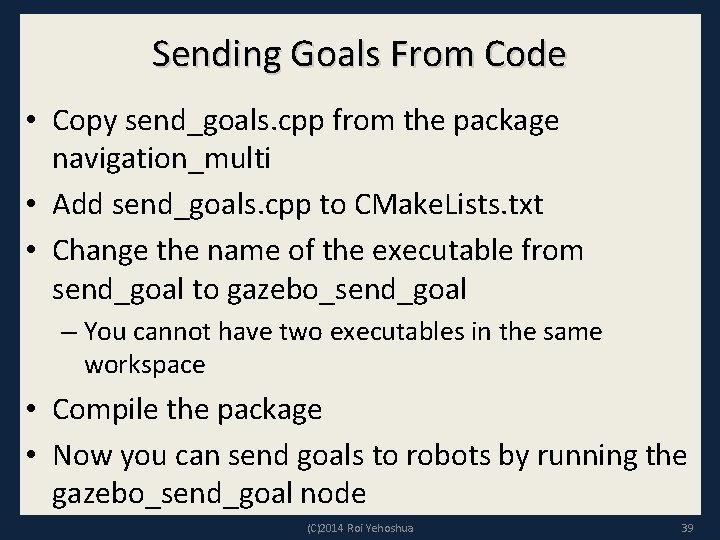

Sending Goals From Code • Copy send_goals. cpp from the package navigation_multi • Add send_goals. cpp to CMake. Lists. txt • Change the name of the executable from send_goal to gazebo_send_goal – You cannot have two executables in the same workspace • Compile the package • Now you can send goals to robots by running the gazebo_send_goal node (C)2014 Roi Yehoshua 39

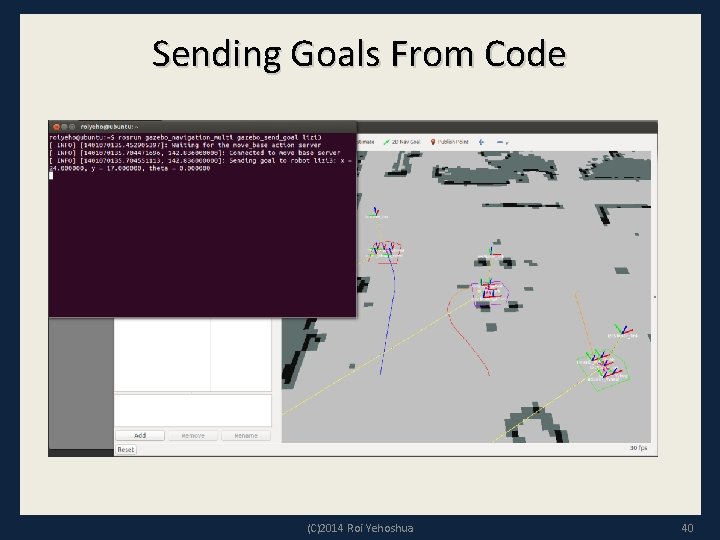

Sending Goals From Code (C)2014 Roi Yehoshua 40
AMCL • amcl is a probabilistic localization system for a robot moving in 2 D • It implements the Adaptive Monte Carlo localization approach, which uses a particle filter to track the pose of a robot against a known map • To use amcl, in one_robot. launch remove fake_localization node and include amcl_node. xml from move_base_config directory (C)2013 Roi Yehoshua
AMCL <launch> … <!-- Run navigation stack --> <node pkg="move_base" type="move_base" respawn="false" name="move_base_node" output="screen"> … </node> <!--<node pkg="fake_localization" type="fake_localization" name="fake_localization" respawn="false" output="screen"> <param name="odom_frame_id" value="$(arg robot_name)/odom" /> <param name="base_frame_id" value="$(arg robot_name)/base_link" /> </node>--> <include file="$(find gazebo_navigation_multi)/move_base_config/amcl_node. xml"/> <node pkg="tf" type="static_transform_publisher" name="laser_link_broadcaster" args="0 0 1 0 0 0 $(arg robot_name)/base_link $(arg robot_name)/laser_link 100" /> </launch> (C)2013 Roi Yehoshua
AMCL • Localization made by AMCL needs some help in providing the initial position of the robots on the map • For this purpose we will introduce 3 params carrying those values: initial_pose_x, initial_pose_y and initial_pose_a (their default value is 0) – We will define them in robots. launch file • Amcl node runs is in the robot namespace and thus the whole path of these params would be like /robot. X/amcl/initial_pose_x (C)2013 Roi Yehoshua
robots. launch <launch> <!-- ROBOT 1 --> <group ns="lizi 1"> <param name="tf_prefix" value="lizi 1" /> <param name="amcl/initial_pose_x" value="20" /> <param name="amcl/initial_pose_y" value="15" /> <include file="$(find gazebo_navigation_multi)/launch/one_robot. launch" > <arg name="init_pose" value="-x 20 -y 15 -z 0" /> <arg name="robot_name" value="lizi 1" /> </include> </group> <!-- ROBOT 2 --> … </launch> (C)2013 Roi Yehoshua
Set Initial Pose in rviz • You can also set the initial pose in rviz • First open Tool Properties and change the 2 D Pose Estimate topic to the specific robot’s initialpose topic • Then you can use the 2 D Pose Estimate button to specify the initial pose of the robot (C)2013 Roi Yehoshua
Multi Robot Collision Avoidance • http: //wiki. ros. org/multi_robot_collision_avoidance • This package includes a patch to AMCL that can take into account other robots navigation paths • The AMCL patch is necessary to publish a Weighted Point Cloud needed for the calculation • Multi Robot Collision Avoidance Demo • No version of this package for ROS Hydro yet – Opportunity to make some contribution to the community! (C)2014 Roi Yehoshua 46
Homework (not for submission) • Spawn 3 Pioneer robots in Gazebo • Add all the necessary Gazebo controllers and definitions to the robot’s URDF file • Run ROS navigation stack on these robots (without amcl and with amcl) (C)2014 Roi Yehoshua
