Multi-Radio Coexistence: Co-Located Coexistence Class Document Number: IEEE C 80216 m-09/559 Voice: +1 -503 -2647073 Date Submitted: 2009 -02 -24 Email: jing. z. zhu@intel. com Source: Jing Zhu, Aran Bergman, jing. z. zhu@intel. com Intel Corporation Re: 8. x IEEE 802. 16 m Air-Interface Protocol Structure: Multi-Radio Coexistence Base Contribution: N/A Purpose: to be discussed and adopted by TGm AWD Notice: This document does not represent the agreed views of the IEEE 802. 16 Working Group or any of its subgroups. It represents only the views of the participants listed in the “Source(s)” field above. It is offered as a basis for discussion. It is not binding on the contributor(s), who reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor grants a free, irrevocable license to the IEEE to incorporate material contained in this contribution, and any modifications thereof, in the creation of an IEEE Standards publication; to copyright in the IEEE’s name any IEEE Standards publication even though it may include portions of this contribution; and at the IEEE’s sole discretion to permit others to reproduce in whole or in part the resulting IEEE Standards publication. The contributor also acknowledges and accepts that this contribution may be made public by IEEE 802. 16. Patent Policy: The contributor is familiar with the IEEE-SA Patent Policy and Procedures: <http: //standards. ieee. org/guides/bylaws/sect 6 -7. html#6> and <http: //standards. ieee. org/guides/opman/sect 6. html#6. 3>. Further information is located at <http: //standards. ieee. org/board/pat-material. html> and <http: //standards. ieee. org/board/pat >. 1
Outline • Co-Located Coexistence Class – overview – BS scheduling behavior – improvements over Rev 2 • Proposed AWD Outline • Back Up – co-ex usage scenarios 2
Co-Located Coexistence (CLC) Class: Overview • Fundamental – separate 802. 16 m and non-802. 16 m activities in time domain (enhancing the Rev 2 co-ex feature: PSC-based CLC) • Definition – AMS conducts pre-negotiated periodic absences from the serving ABS, and the time pattern of such periodic absence is referred by ABS and AMS as Co-Located Coexistence (CLC) class. • Requirement – mandatory for ABS, optional for AMS • Parameter – active interval / ratio / period, starting time, number of active classes • Signaling – capability notification: CLC Limits TLV (REG-RSP) – activation / deactivation: MOB_CLC-REQ / MOB_CLC-RSP 3
Comparison of CLC Classes Type III Targeted non-16 m radio Bluetooth e. SCO, Bluetooth ACL, Bluetooth activities Wi-Fi beacon, … Wi-Fi data, … page/inquiry, Wi. Fi passive scan, … Unit of Active Interval subframe second* Unit of Active Ratio % % % Unit of Active Period microsecond frame second Unit of Starting Time subframe Owner of Starting Time AMS ABS *: 1 second = 200 frames 4
BS scheduling behavior • • • CLC Limits Latency Limit MAP and HARQ timing Synchronous Allocation SFH, Scan, Sleep, Idle, and HO 5
CLC Limits k-th active interval k+1 -th active interval CLC active ratio = CLC active period CLC Limits Maximum Number of Active Classes of the Type Maximum Active Ratio Maximum Active Interval Type I > or = 1 > or = 5% > or = 5 ms Type II > or = 1 > or = 30% > or = 40 ms Type III 1 1% 3 second – BS shall accept a new CLC class request, and honor it (i. e. not unsolicited deactivate it after activation) if the CLC class meets the CLC Limits, and may reject it otherwise – CLC limits shall be configured according to the above table to ensure the basic support for multi-radio co-ex 6
Latency Limit • The Maximum Latency parameter of an active service flow shall be guaranteed even if a CLC class is active – Maximum Latency: the maximum interval between the entry of a packet at the CS and the forwarding of the SDU to its Air Interface. • Latency Limit (s): the minimum value of the Maximum Latency parameters of all active service flows of the AMS – Latency Margin (d) provides additional time for meeting Maximum latency requirement (d= 10 ms) CLC Active MAP Data ACK Interval (t) DL UL d+t s 7
MAP and HARQ timing • ABS shall not schedule an allocation, if Assignment IE (MAP), Data, or/and ACK of the allocation overlaps with an CLC active interval, DDL-MAP FDD DL UL DACK CLC active interval DDL-MAP TDD CLC inactive interval w/o 16 m data • DACK = 4 and DDL-MAP = 1 (or 0) • UL MAP relevance not considered 8
Synchronous Allocation Data Nack Data Overlap with CLC active interval Nack Data Ack Dynamic Rescheduling Static Rescheduling (with the same subframe index) • • ABS and AMS shall cancel a synchronous allocation locally if its data or/and ACK overlaps with an CLC active interval that is no longer than a frame, and reschedule it after the end of the CLC active interval. How to indicate the rescheduled allocation? – Option 1: dynamic rescheduling (new Assignment IE) • Pro: lower latency ; Con: control overhead – Option 2: static rescheduling (next available subframe) • Pro: no control overhead; Con: higher latency (with the same subframe index) 9
SFH, Scan, Sleep, HO, and Idle • Super Frame Header – super frame header may overlap with CLC active interval • AMS / ABS should set the starting time of a CLC class to avoid SFH as much as possible. • Scan Mode – scan interval may overlap with CLC active interval • AMS locally decides whether to perform co-ex or. 16 m scan • Sleep Mode – unavailable interval may overlap with CLC active interval • AMS may use it as additional duty cycle for co-ex • Handover – locally suspend all active CLC classes before HO starts, and resume them after HO completes • Idle Mode – locally deactivate all active CLC classes after entering idle mode 10
Improvements over Rev 2 • Efficiency – granularity is fixed to frame, e. g. 5 ms, and has a direct impact on the efficiency of TDMbased CLC operation, particularly when radio transmissions take less than 5 ms solution: reduce granularity to subframe (617 us) • Flexibility – MS determines CLC pattern, giving little flexibility for BS to adjust according to network condition solution: allow BS to determine the starting time – CLC period has to be the integer number of frames, and may not suitable to some application. solution: use microsecond as the unit for period • Manageability – BS has no way to manage the impact of TDM operation on Wi. MAX performance solution: CLC limits • Scalability – only one PSC is allowed active at any given time per MS, and difficult to support multiple radios / applications. solution: allow multiple classes and multiple types • Compatibility – power save needs to be disabled when CLC is active • • sleeping pattern is determined by 802. 16 m traffic CLC pattern is determined by co-located non 802. 16 m traffic solution: CLC class operation independent of sleep mode 11
Proposed AWD Outline for Multi-Radio Coexistence 15. 2. x. 1 Co-Located Coexistence Class 12
Back Up 13

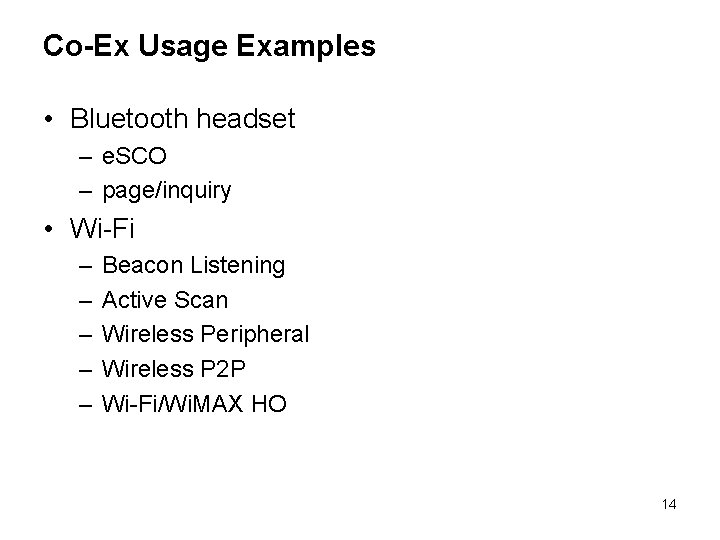

Co-Ex Usage Examples • Bluetooth headset – e. SCO – page/inquiry • Wi-Fi – – – Beacon Listening Active Scan Wireless Peripheral Wireless P 2 P Wi-Fi/Wi. MAX HO 14
Bluetooth: e. SCO + 16 m TDD Max BT Retries = 0, CLC Active Ratio = 17% Bluetooth Slot 6 1 2 3 4 5 4 5 6 7 8 1 2 3 4 5 6 7 8 . 16 m subframe 1 2 3 Max BT Retries = 1, CLC Active Ratio = 9% 6 1 2 3 4 5 1 2 3 4 5 6 7 8 Max BT Retries = 2, CLC Active Ratio = 5% 6 1 2 3 4 5 1 2 3 4 5 6 7 8 15
Bluetooth: Page / Inquiry • Bluetooth Page/Inquiry – Transmit in one Bluetooth slot every 2 slots for at least 2. 56 seconds • each slot is 625 us à supported by Type III CLC class (CLC active interval > 2. 56 s) • Bluetooth Page/Inquiry Scan – Listen for 11. 25 ms (scan window) for every 1. 28 seconds à supported by Type II CLC class (CLC active ratio = 1 superframe / 64 =1. 6%) 16

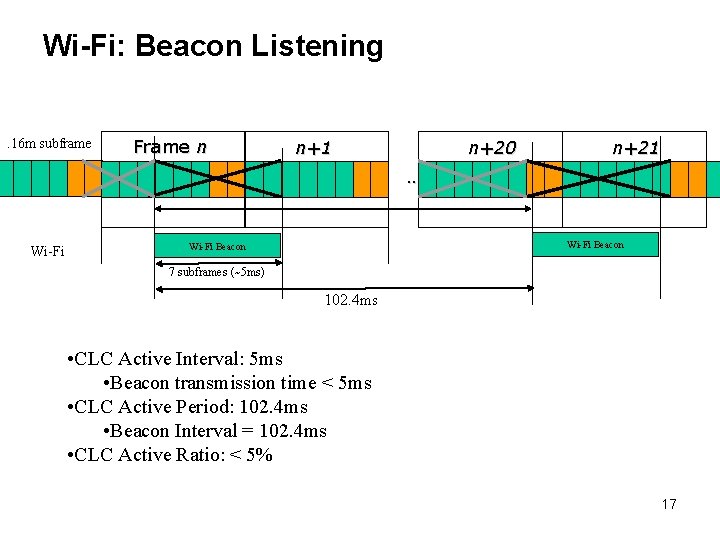

Wi-Fi: Beacon Listening. 16 m subframe Frame n n+1 n+20 n+21 …… Wi-Fi Beacon 7 subframes (~5 ms) 102. 4 ms • CLC Active Interval: 5 ms • Beacon transmission time < 5 ms • CLC Active Period: 102. 4 ms • Beacon Interval = 102. 4 ms • CLC Active Ratio: < 5% 17
Wi-Fi: Active Scan 100 ms* 70 ms (. 16 m) 30 ms (Wi-Fi) STA Prob-Req 70 ms (. 16 m) 30 ms ACK Prob-RSP AP Wi-Fi active scan • CLC Active Interval: 30 ms • Wi-Fi STA usually needs ~30 ms to complete one active scan operation *: other configurations are possible 18
Wi-Fi: (Low-Latency) Wireless Peripheral • CLC Active Interval: 2 subframes • CLC Active Period: 5 ms • CLC Active Ratio: 25% DL: UL CLC Active Pattern* 6: 2 . 16 m data allocation time 50% Available Time Ratio for. 16 m Data Allocations DL UL 67% 100% Unavailable due to HARQ timing 5: 3 60% 67% 4: 4 50% 3: 5 67% 60% 2: 6 100% 67% *: only example, and other configurations possible 19
Wireless Peripheral (cont’d) General Mouse Wireless Keyboard Voice Quality Headset CD Quality headphones Throughput Req. 8 kbps 256 kbps 384 kbps Latency Req. < 10 ms < 50 ms < 30 ms < 100 ms Period 10 ms 20 ms Bytes period < 10 <20 640 960 Tx Time* (11 g-only, 6 Mbps) 189 us 201 us 1029 us 1453 us x 2 (+ 1 re-transmission) 378 us 402 us 2058 2906 us CLC Active Interval (subframes) 1 (0. 6 ms) 4 (2. 4 ms) 5 (3. 0 ms) CLC Active period (frames) 2 4 4 4 CLC Active Ratio 7% 4% 13% 16% *: no contention from other Wi-Fi STAs; < 30% 20
Traffic Load of Wireless P 2 P (Peer-to-Peer) Usages Voice Projection File Sharing Wireless Display Sync. Go 480 p 0. 1 6 16 17 67 65 (1 x 2, 20 Mhz) <1% 17% 44% 47% N/A 135 (1 x 2, 40 Mhz) <1% 8% 22% 23% 89% 195 (3 x 3, 20 Mhz) <1% 6% 15% 16% 62% 405 (3 x 3, 40 Mhz) <1% 3% 8% 8% 30% Throughput Req. (Mbps) Maximum 802. 11 n PHY Rate (Mbps) Latency Req. for the above applications: > 10 ms < 30% Maximum Throughput = PHY Rate x (1 – PER* ) x MAC Efficiency* Traffic Load = Throughput Req. / Maximum Throughput *: MAC Efficiency = 80% and PER = 30%, only example, other values possible 21
How will 16 m co-ex benefit Wi-Fi / Wi. MAX HO? • Wi. MAX to Wi-Fi – protecting Beacon after Wi-Fi STA is associated with Wi. Fi AP while Wi. MAX MS is still transmitting data 16 m Co-Ex starts here Rev 2 Co-Ex starts here • Wi. Fi to Wi. MAX – start co-ex operation right after Basic Capability Negotiation to avoid long authentication delay Authentication may take long, and data transmission over Wi-Fi needs to be protected 22
